SOLD
1,450.00USD+ buyer's premium (217.50)
This item SOLD at 2017 Jul 20 @ 13:15UTC-4 : AST/EDT
Did you win this lot?
A full invoice should be emailed to the winner by the auctioneer within a day or two.
Location Grandville MI
loading Fee $150

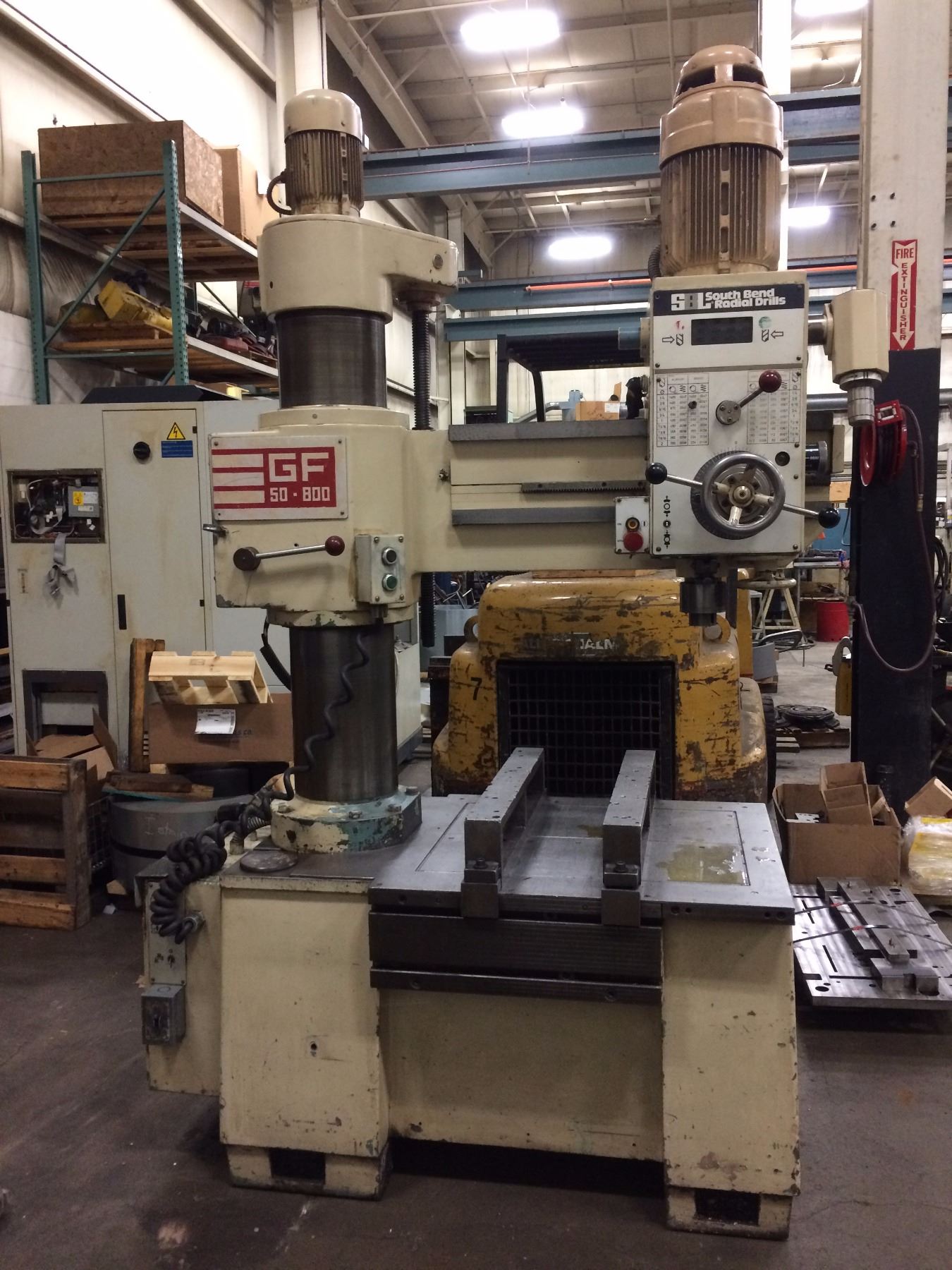

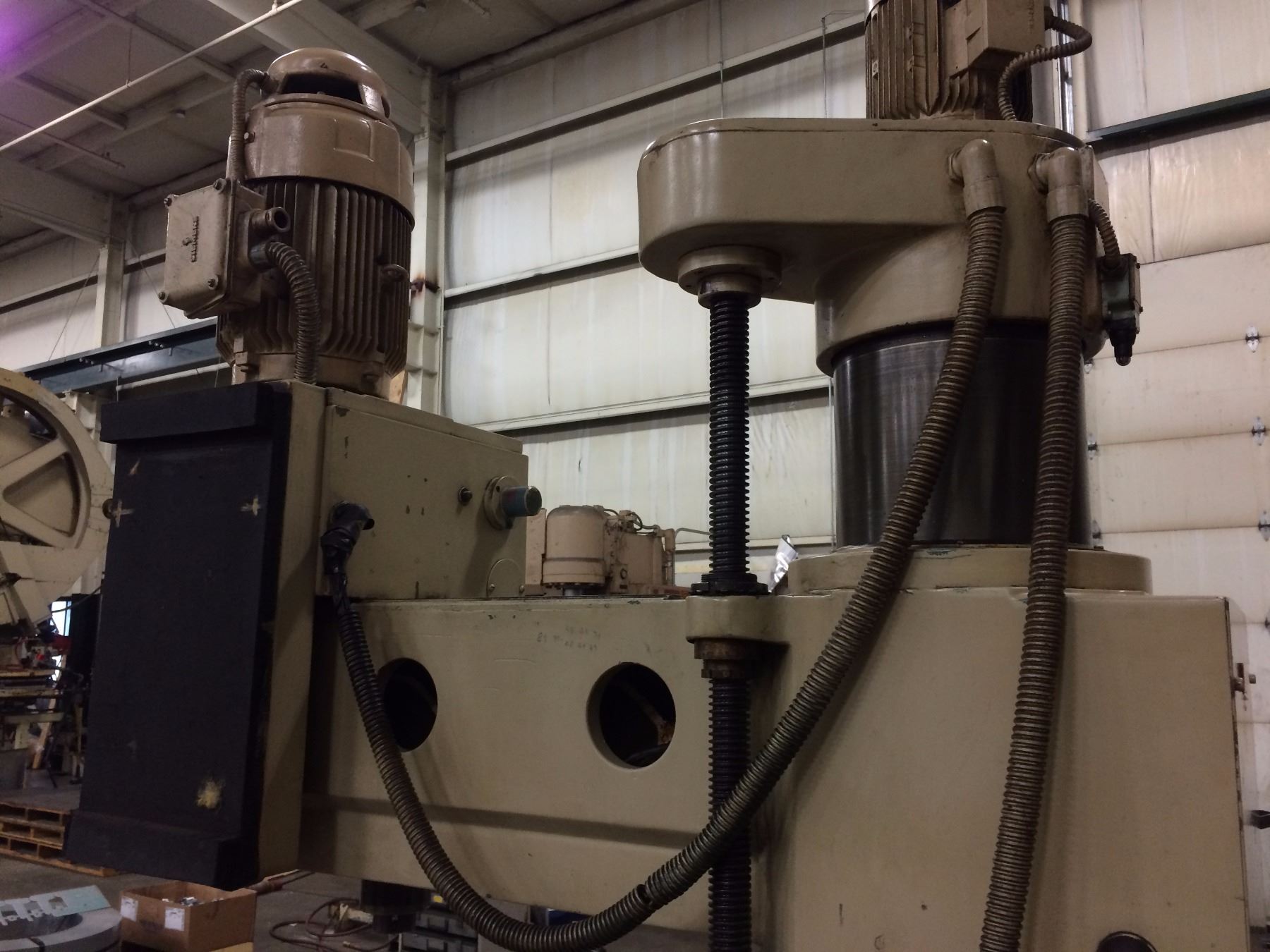

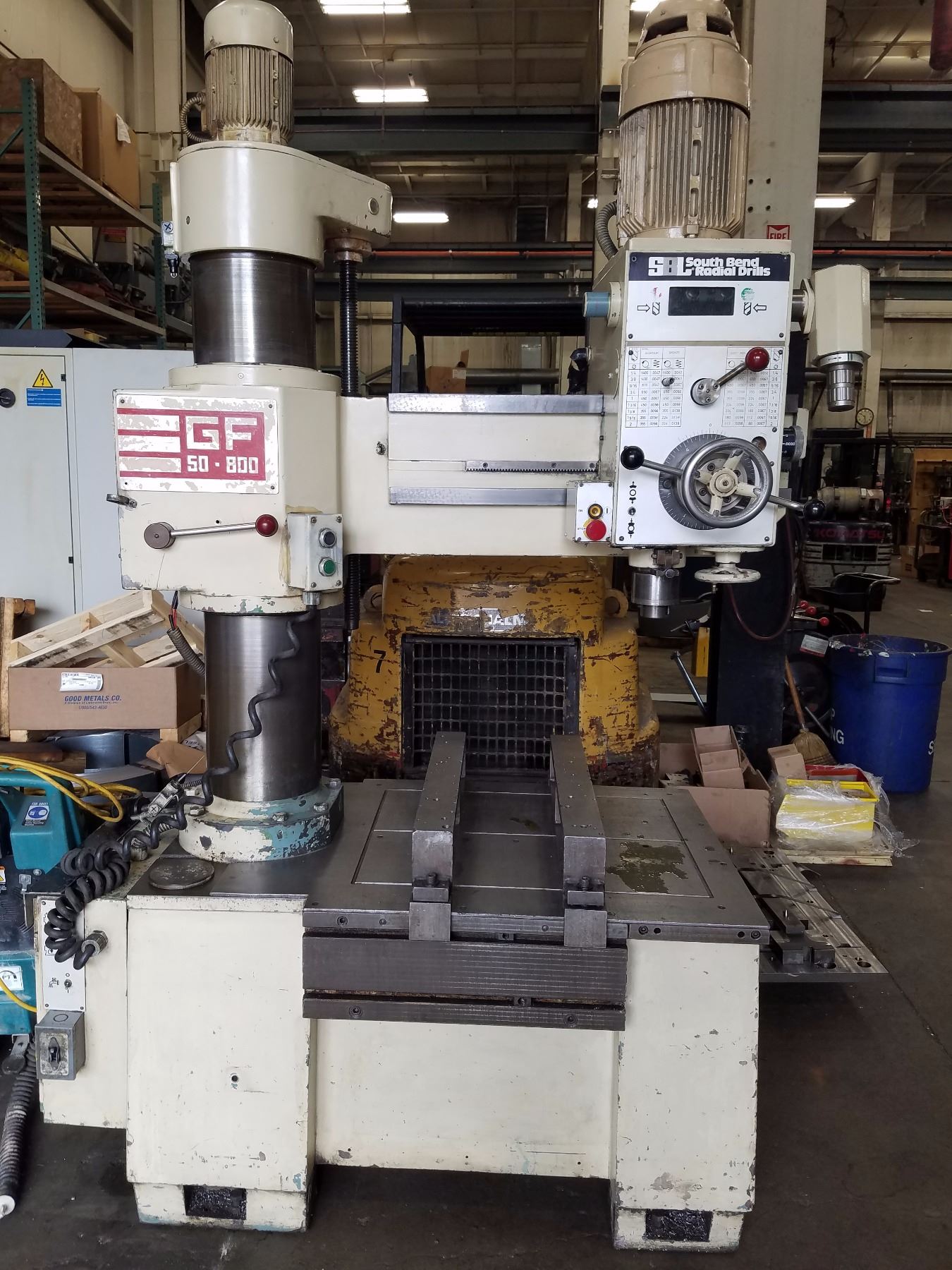

South Bend GF 50-800 RADIAL Arm Drill
Machine working condition
SPECIFICATIONS:
DRILLING CAPACITY, MILD STEEL ........... 2"
DRILLING CAPACITY, CAST IRON ............ 2-3/8"
TAPPING CAPACITY, MILD STEEL ............ 1-9/16"
TAPPING CAPACITY, CAST IRON ............. 2"
COLUMN DIAMETER ......................... 10"
ARM LENGTH .............................. 2'7-1/2"
MIN/MAX DISTANCE, SPINDLE TO BASE ....... 3-7/16" / 27-7/16"
WORKING SURFACE OF BASE, WIDTH X LENGTH . 25" X 33"
SPINDLE TAPER ........................... #4 MORSE
SPINDLE STROKE .......................... 9-1/2"
TRAVERSE OF ARM ON COLUMN ............... 21-1/2"
TRAVERSE OF HEAD ON ARM ................. 21-3/4"
DRILLS TO CENTER OF CIRCLE, MIN/MAX ..... 14.75"/36.5"
FEEDS (6) ............................... .0019 TO .0138 IPR
SPINDLE SPEEDS (9) ...................... 80 TO 1,400 RPM
BASE DIMENSIONS ......................... 25"W x 47"L x 90"H
APPROXIMATE WEIGHT ...................... 4,000 LBS.
EQUIPPED WITH:
- 25-3/4" X 33-5/8" T-SLOTTED WORK SURFACE WITH 8-3/8" X 23"
SLOTTED RIGHT ANGLE TABLE FOR VERTICAL MOUNTING OF WORK
- POWER ELEVATION OF ARM ON COLUMN
- BUILT-IN COOLANT SYSTEM
- REVERSING SPINDLE FOR TAPPING
- 1/2" CAPACITY JACOBS DRILL CHUCK
- 1.5 H.P. ARM ELEVATION MOTOR
- 3.5 - 2.2 H.P. 3/60/230 - 460 VOLT SPINDLE DRIVE MOTOR
