*NOTE* We were told that the machine worked OK, but the top end of Centrifuge should be replaced!

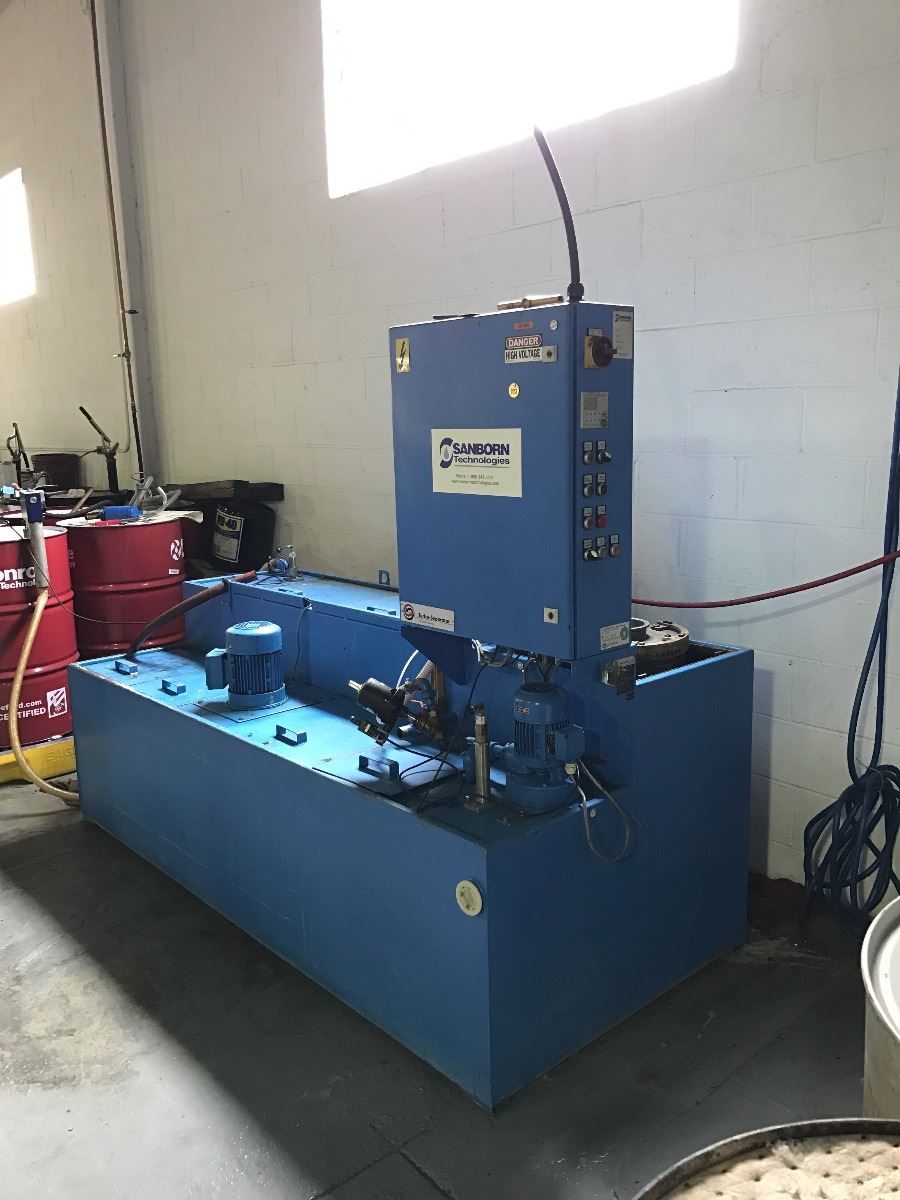

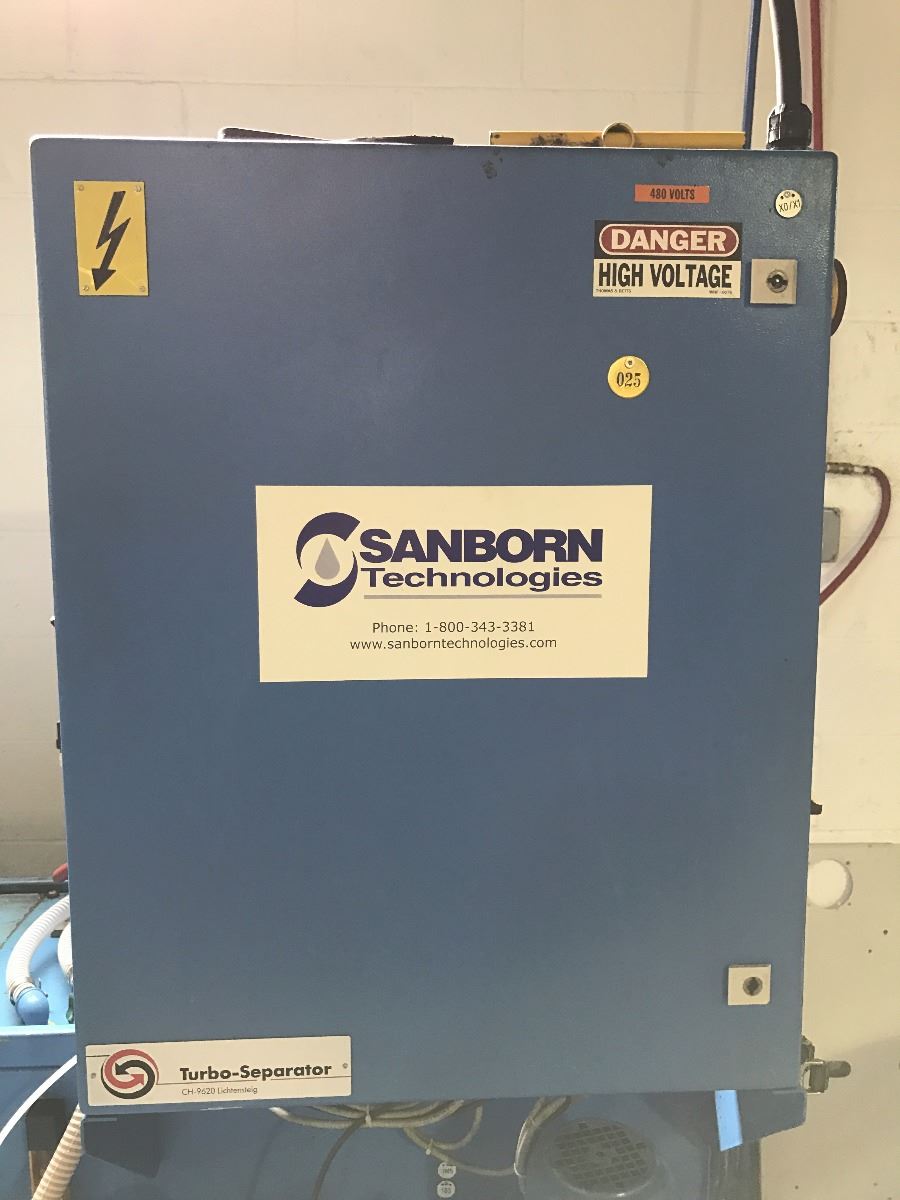

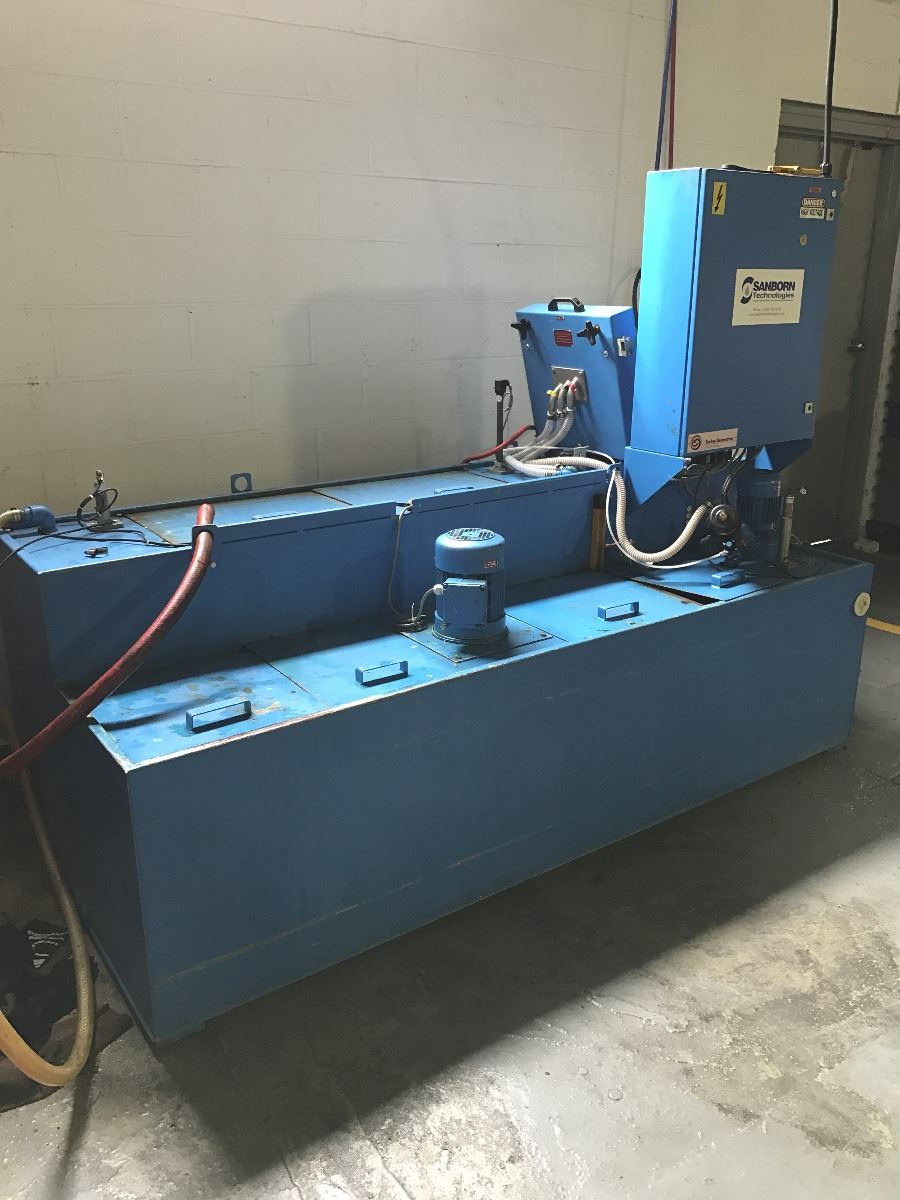

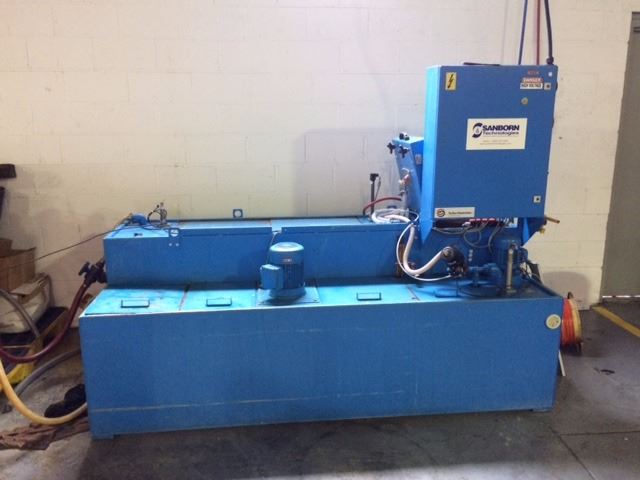

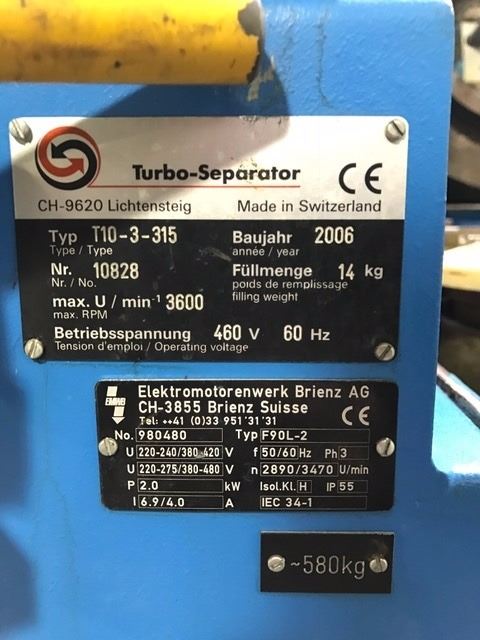

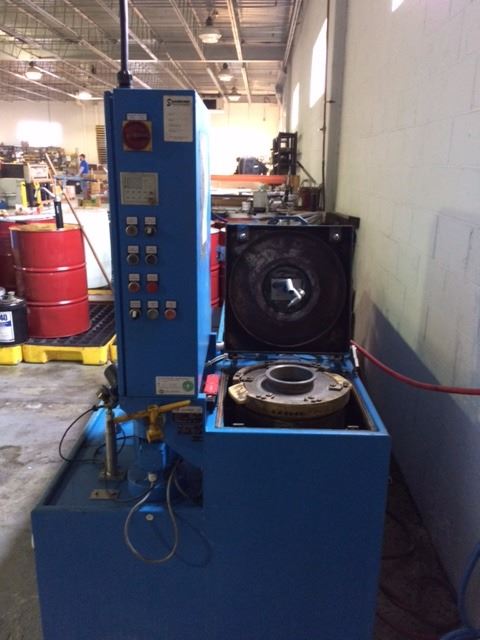

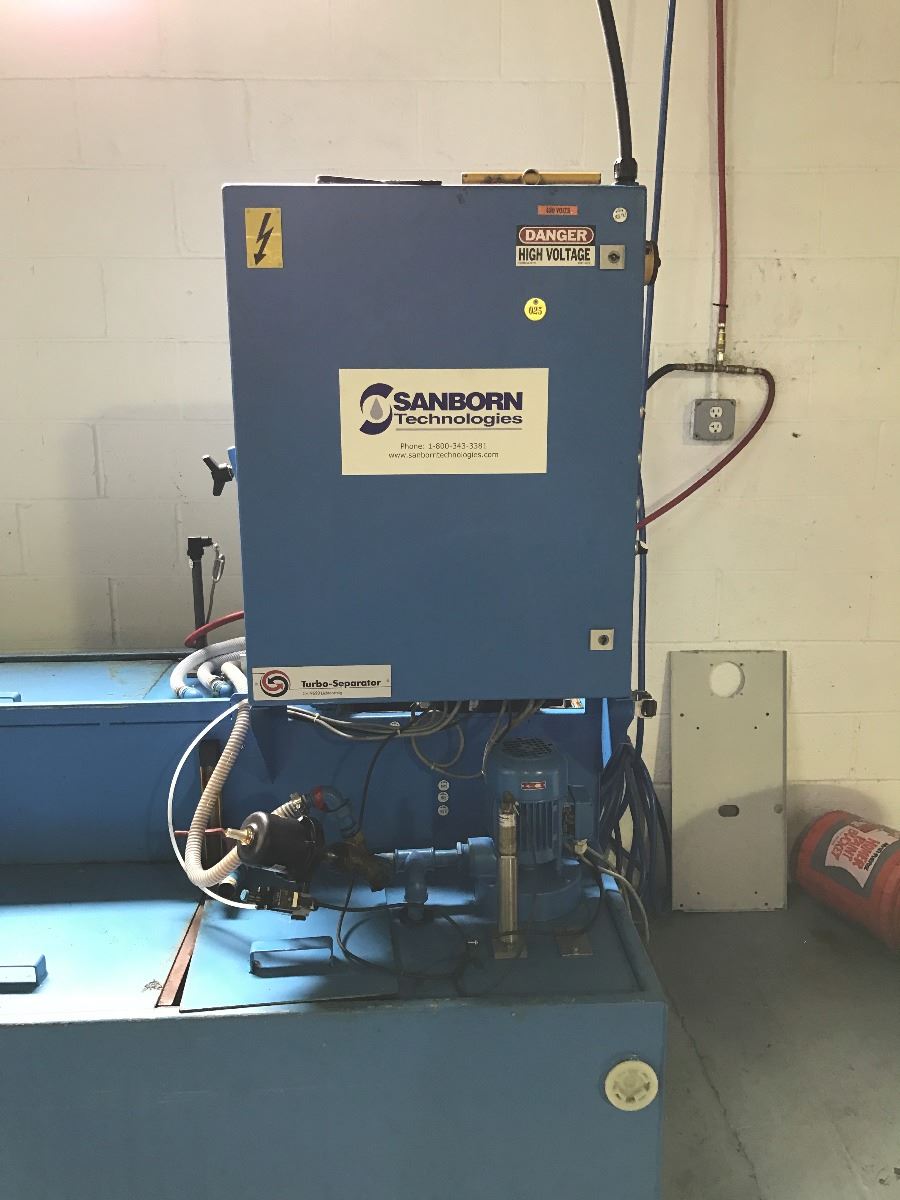

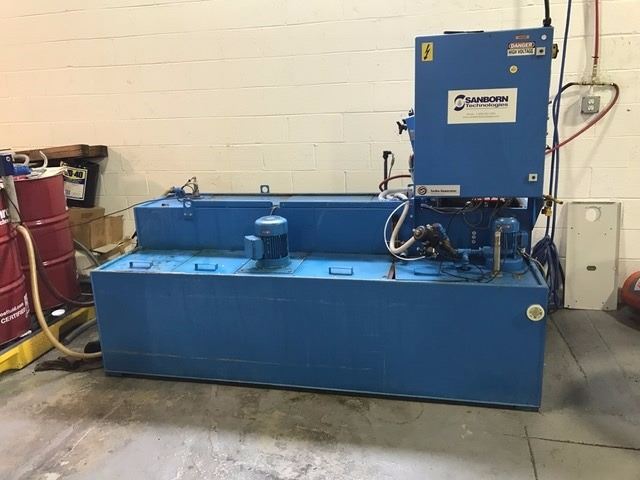

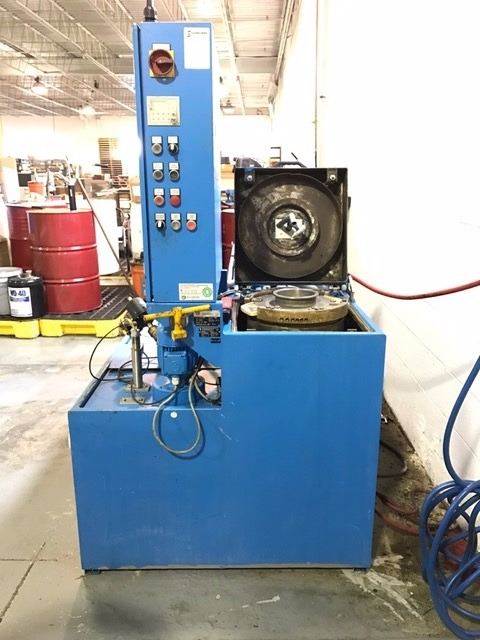

SANBORN TECHNOLOGIES Type TIO-3-315 Turbo Separator (Centrifuge)

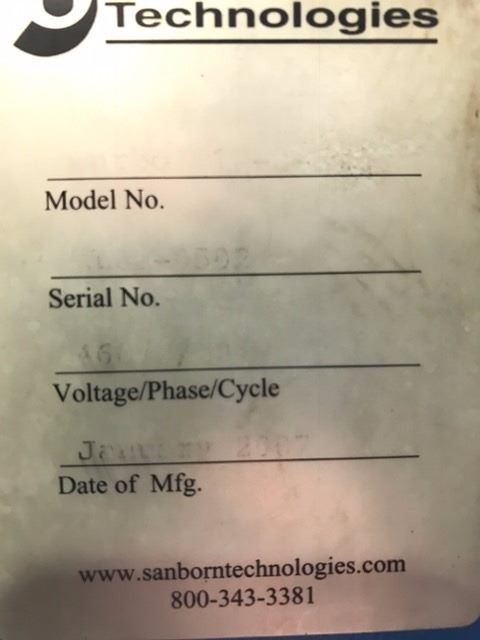

Serial 10828
NEW 2006
Voltage AC 3/60/460
INFO FROM Manufacturers Paperwork:
The T10-3-315 is a complete centrifuge system
that removes solids and tramp oil from
coolants. It discharges cleaned coolant into the
clean tank, removes tramp oil to an oil tank,
and solids are removed via a large easy-toclean
liner. Components include a 3 phase
centrifuge, dirty and clean holding tanks, transfer
and feed pumps, a coolant make-up system
and automatic valves and controls.
The T10 series can be installed as a free-standing
batch process unit, integrated with a single
machine tool, or used on-line as a side stream
processing unit for large central sumps.
Processing capacity is up to 90 GPH.
The T10-3-315 is the easiest commercially
available centrifugal coolant recycling system
to operate and maintain.
Turbo-Separator coolant recycling units operate
at high gravitational forces to pull loosely
and mechanically emulsified tramp oil away
from good coolant. The separator’s large
solids capacity and easy-to-clean bowl design
make it ideal for ferrous, non-ferrous, glass,
graphite and ceramic applications. Solids can
be removed down to 2 micron.
The T10-3-315 is a value priced coolant recycling
system that will reduce coolant waste.
FEATURES
3450 RPM rotating speed, generating 1180 G’s

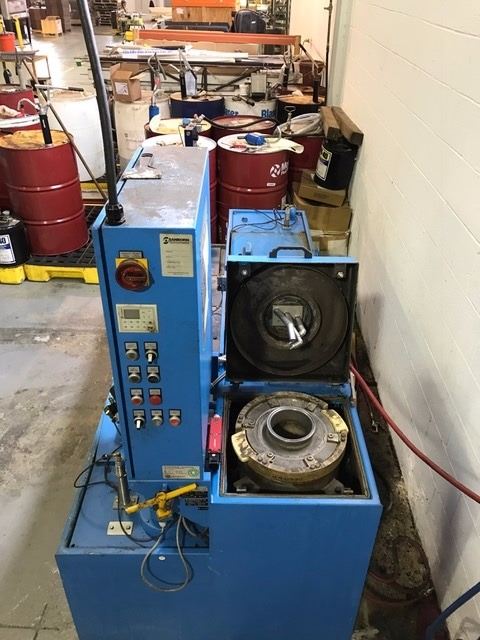

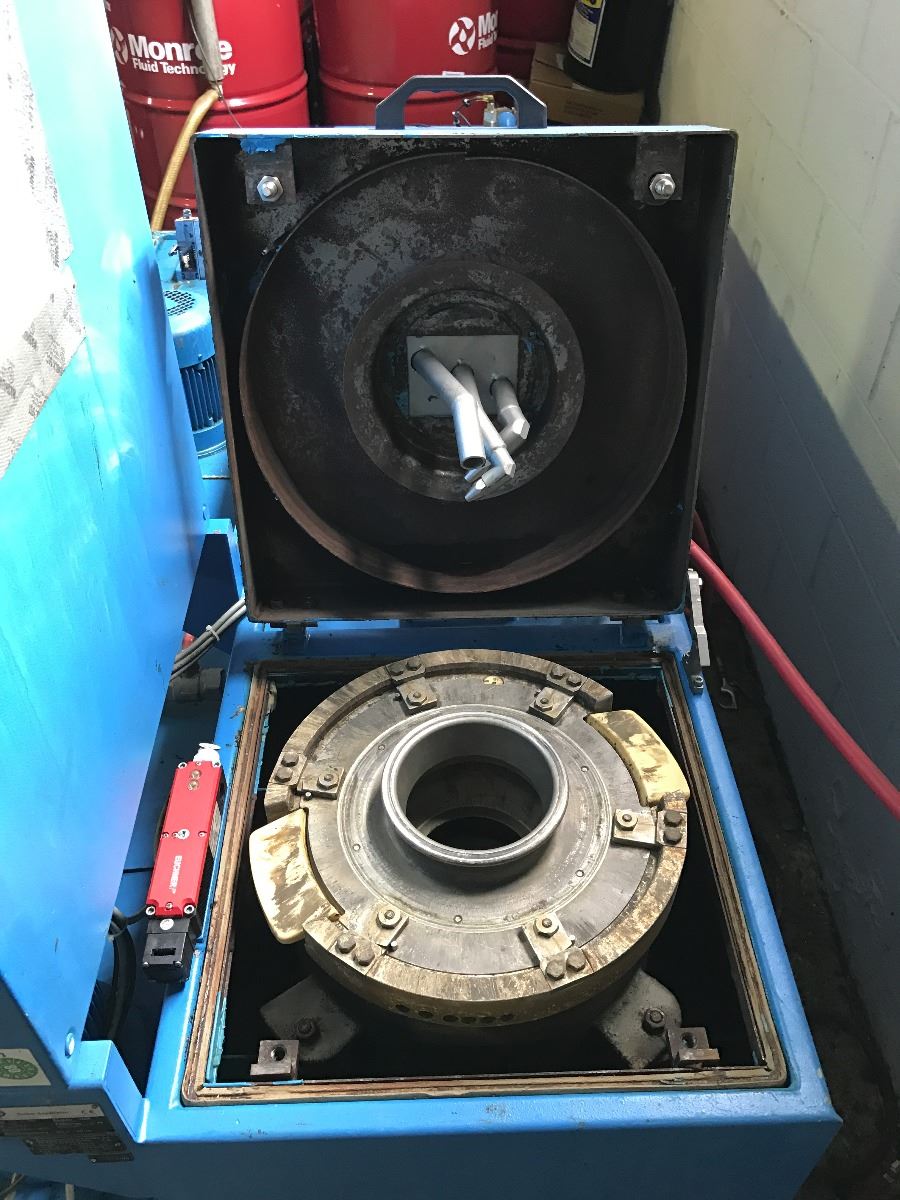

Unique bowl design for ease of solids removal
Heavy duty plastic liner with handles for ease of removal
Mixing in the dirty tank helps deliver all the contaminants
to the centrifuge
Available in corrosion-resistant materials
Complete packaged system with automatic coolant
make-up, tanks and pumps
Uses no consumable media
BENEFITS
Increased production quality and consistency
Reduced new coolant purchases
Reduced disposal volume of reusable coolant
Reduced machine tool sump maintenance and labor costs
Reduced tooling costs
GENERAL SPECIFICATIONS
DIMENSIONS (L x W x H) 92" x 40" x 70"
SHIPPING DIMENSIONS (L x W x H) 100" x 47" x 80"
MACHINE WEIGHT 1,400 lbs.
MAXIMUM FLOW 90 GPH
ROTOR VOLUME 2.4 gal.
SLUDGE CAPACITY/CLEAN OUT 1.0 gal. / 10 lbs.
SLUDGE LINER (D x H) 11" x 8"
ROTOR RPM 3,450
ROTOR MOTOR 3 HP
MIN. INLET HEIGHT 3"
TANK CAPACITY (Dirty) 132 gal.
TANK CAPACITY (Clean) 159 gal.
DECANT OIL TANK 24 gal.
INLET 3"
OUTLET 3/4"
SUPPLY PUMP (Optional) 20-30 GPM
SUPPLY PUMP (Optional) 40-200 PSI
