Parker Majestic 12” X 24” OD Cylindrical

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:1.00 USD
Parker Majestic 12” X 24” OD Cylindrical
SOLD
190.00USD+ buyer's premium (28.50)
This item SOLD at 2018 Jul 24 @ 13:15UTC-4 : AST/EDT
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.

Appointments for inspections are available upon request, 8am-5pm M-F for each location. Please call 616-745-5953 or email sales@btmindustrial.com.

Current Locations:
Grand Rapids, MI
Martin, MI
Logansport, IN
Parker Majestic 12” X 24” OD Cylindrical

Location Martin, Mi
Loading fee $150

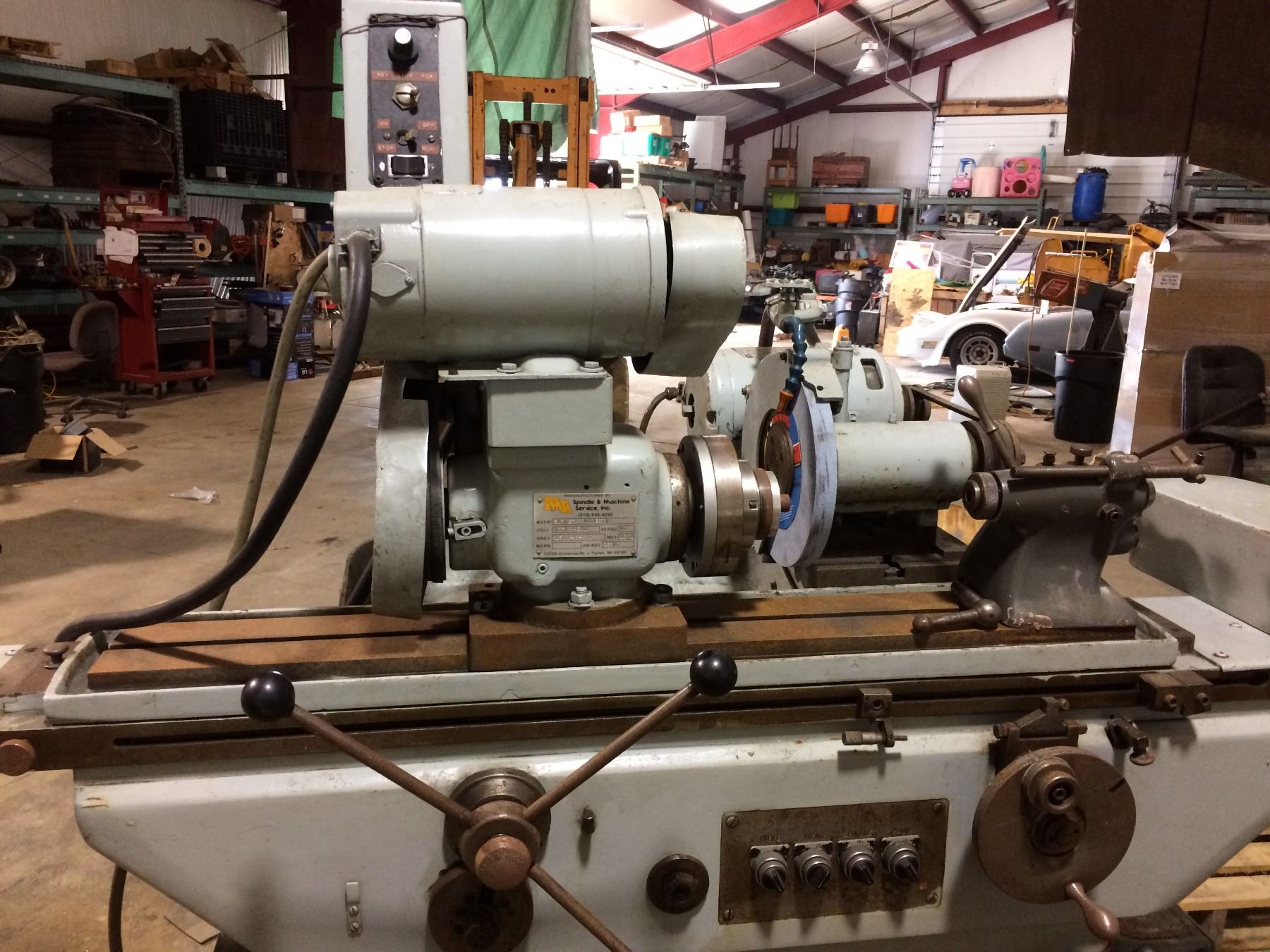

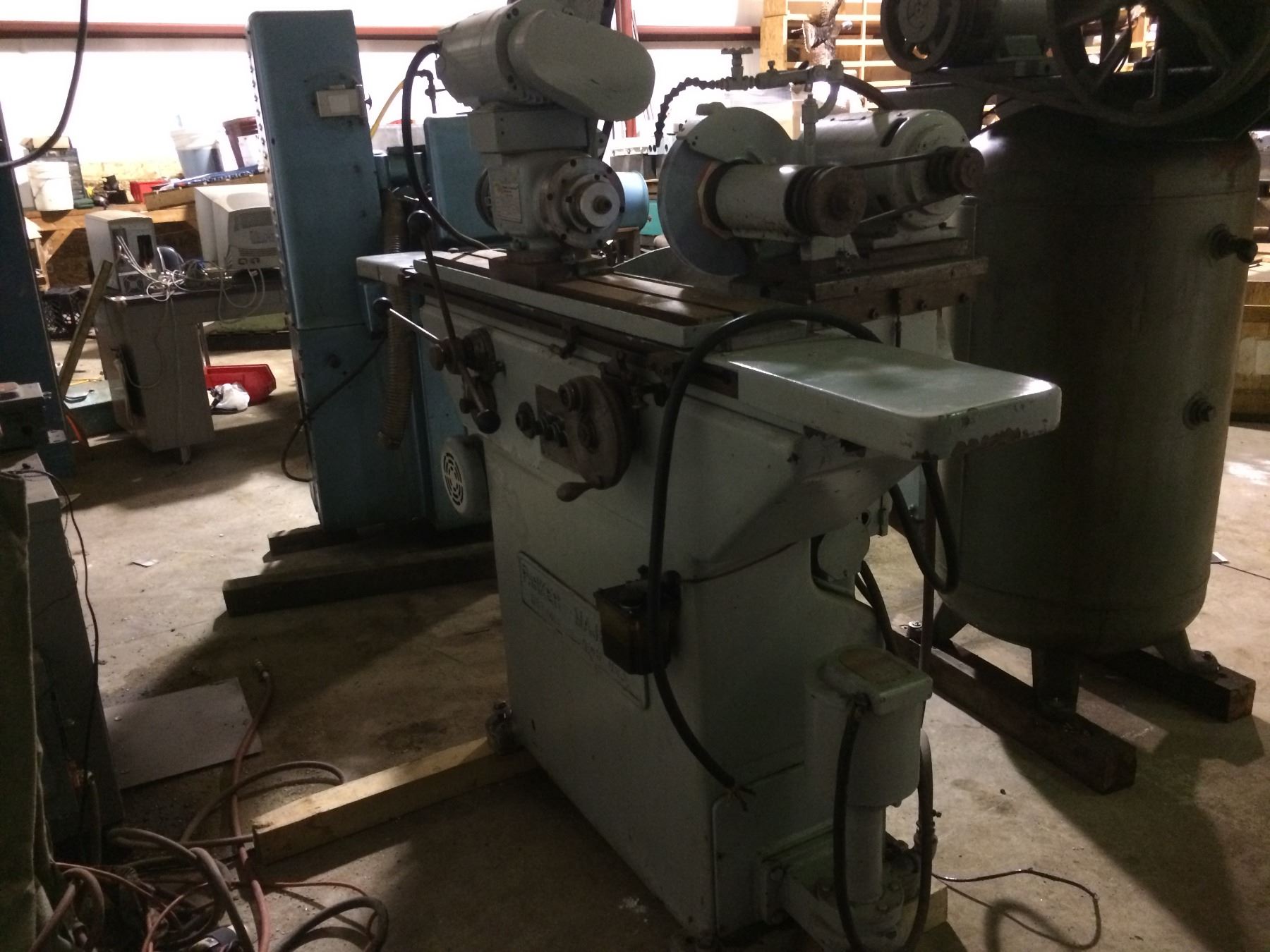

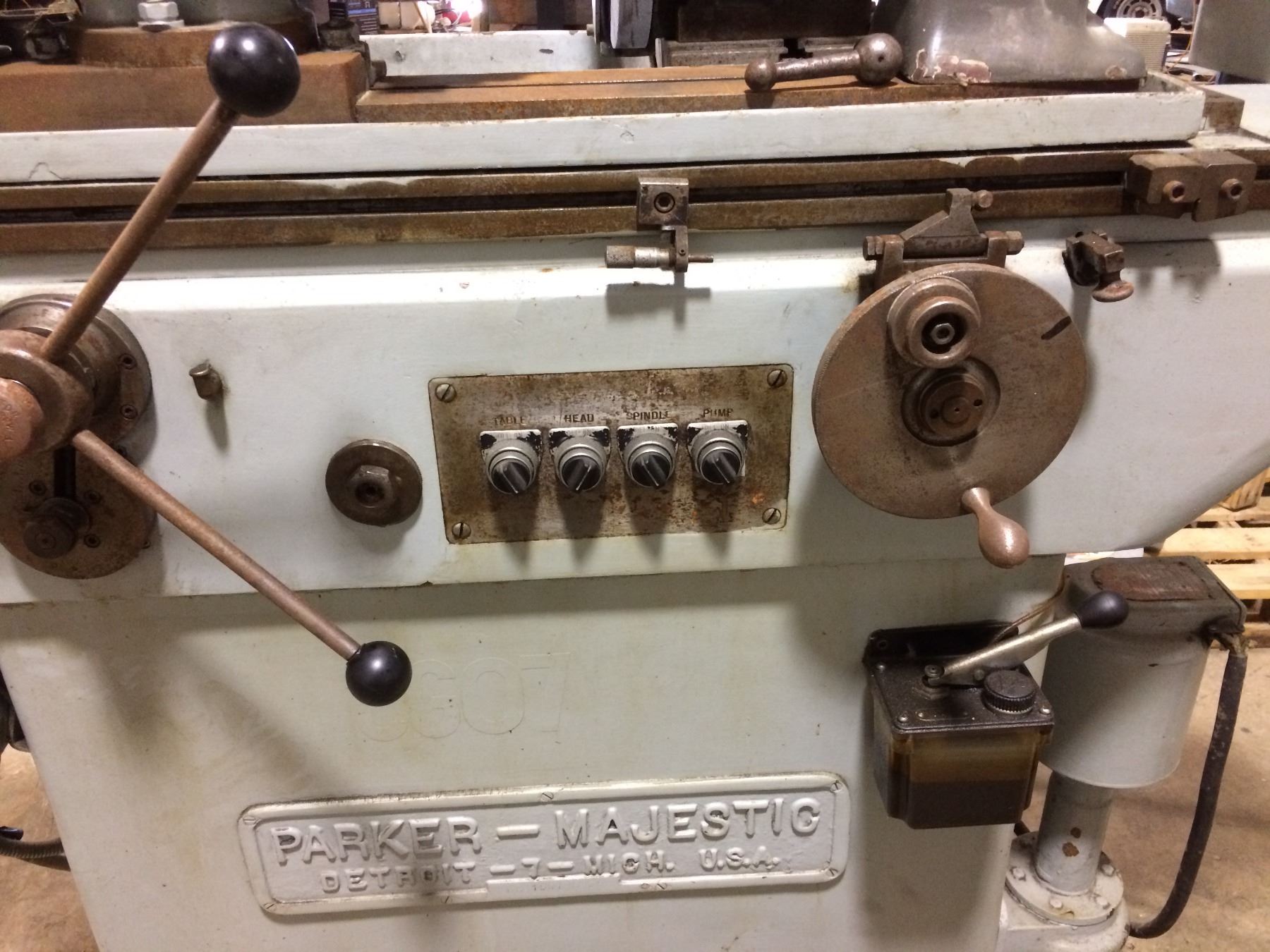

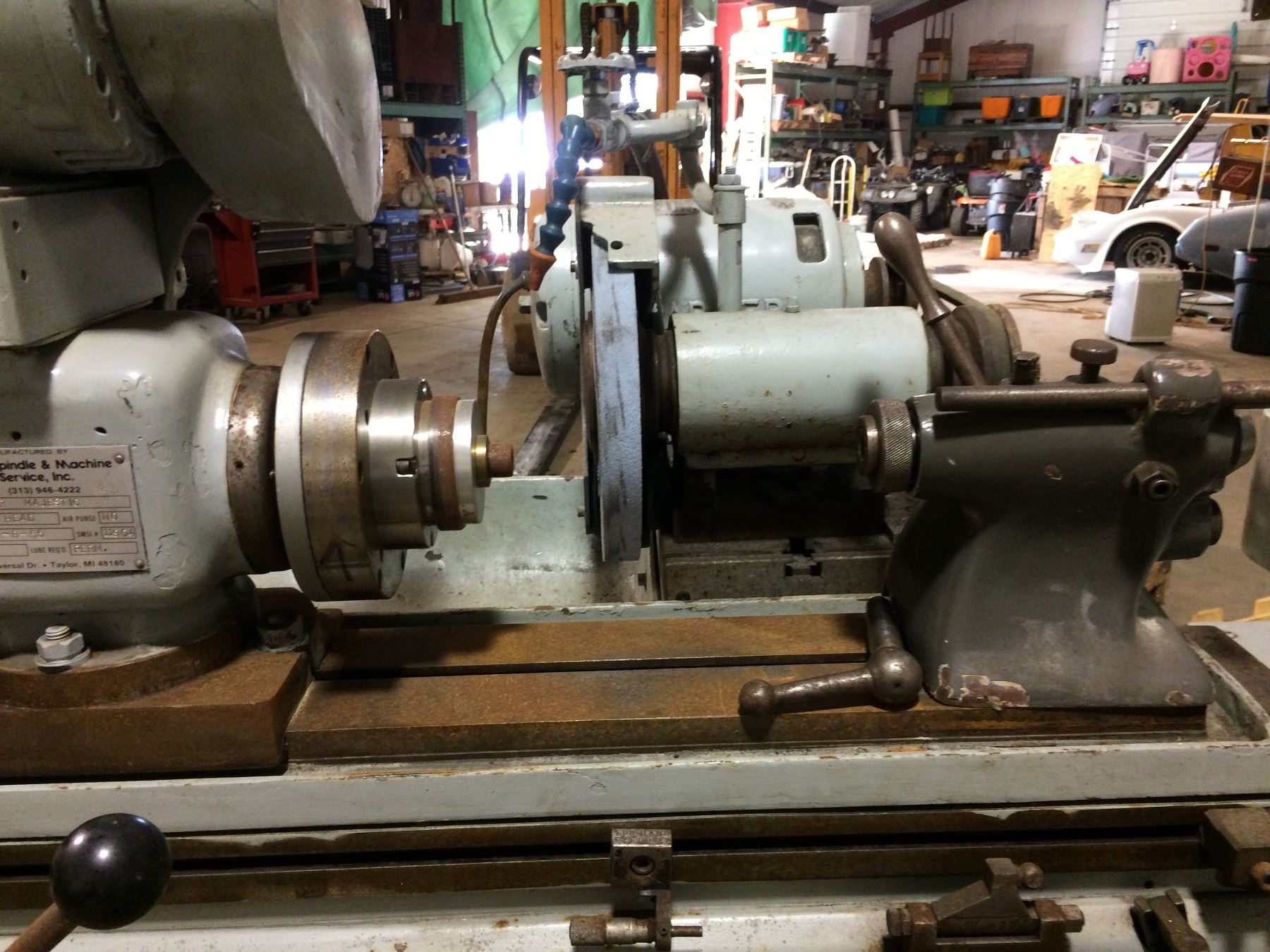

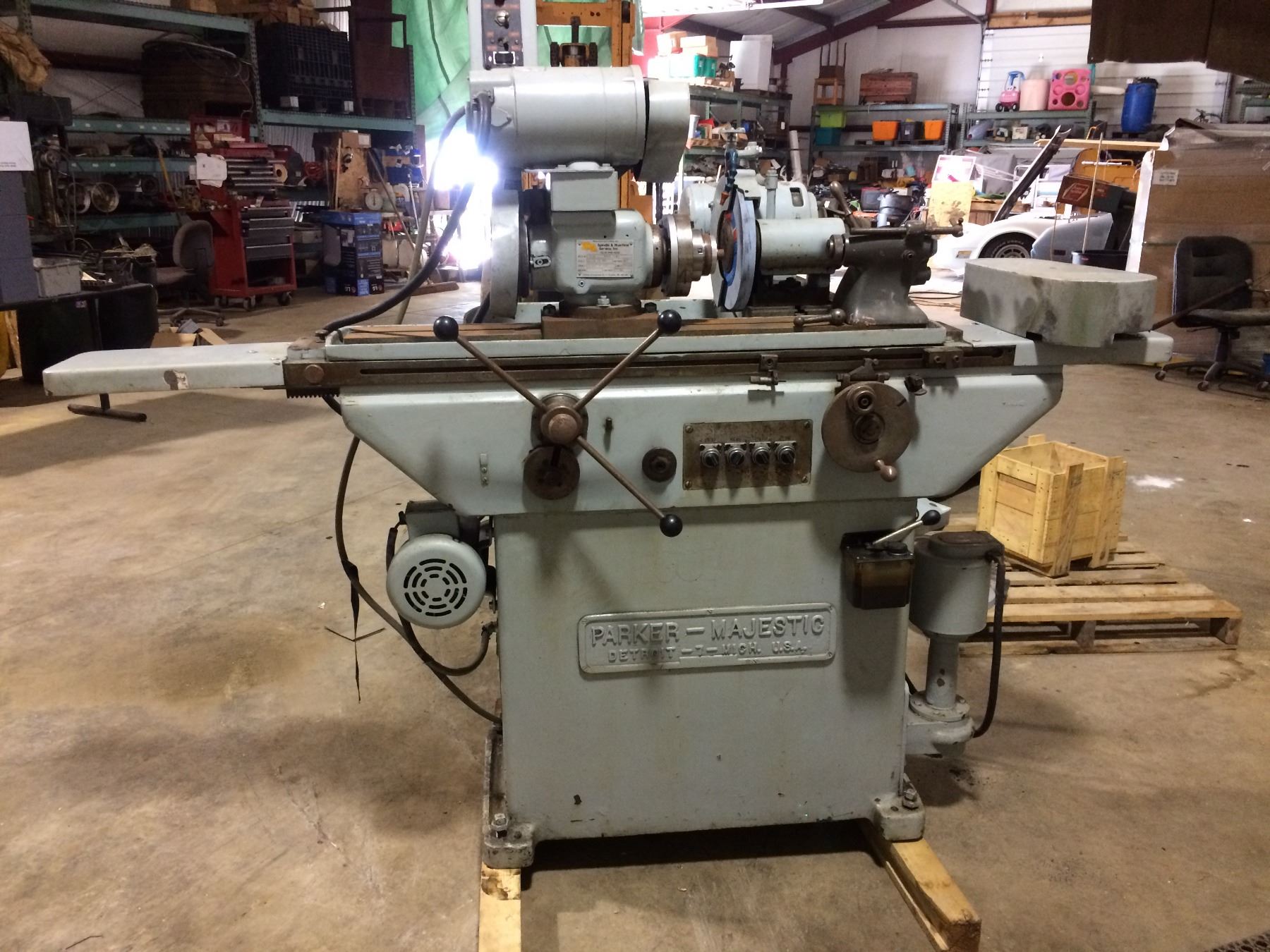

10" X 24" PARKER-MAJESTIC "HIGH-PRECISION GRINDER”

MADE IN USA
O.D. CYLINDRICAL GRINDER



SWING OVER TABLE: ...................... 10"
DISTANCE BETWEEN CENTERS:............... 24"
TABLE SWIVEL: .......................... 7 DEG.
TABLE SPEEDS, INF. VARIABLE: ........... 3" TO 30"
TABLE WORK SURFACE: .................... 5" X 42"

HEADSTOCK SWIVEL: ...................... 90 DEG.

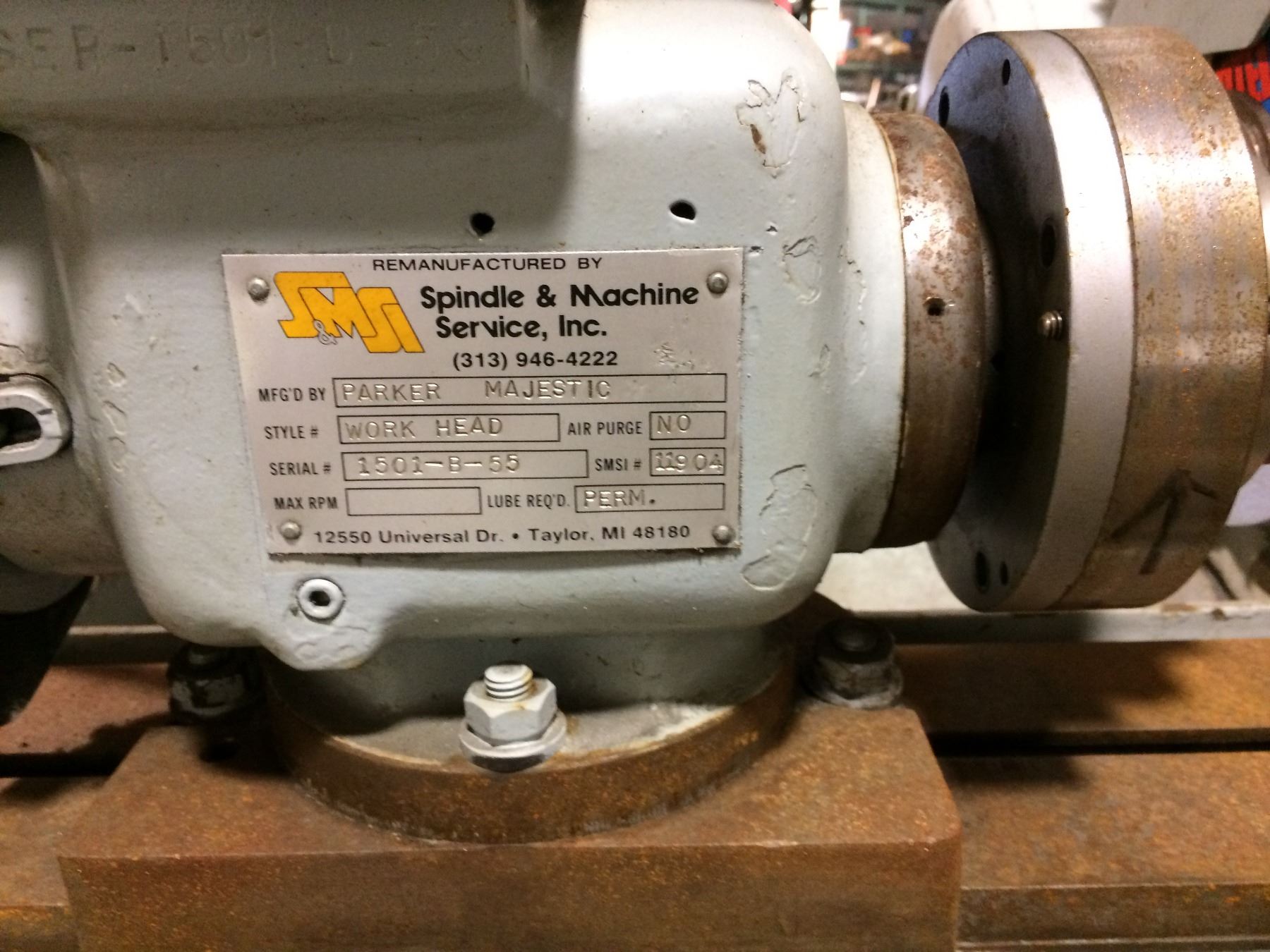

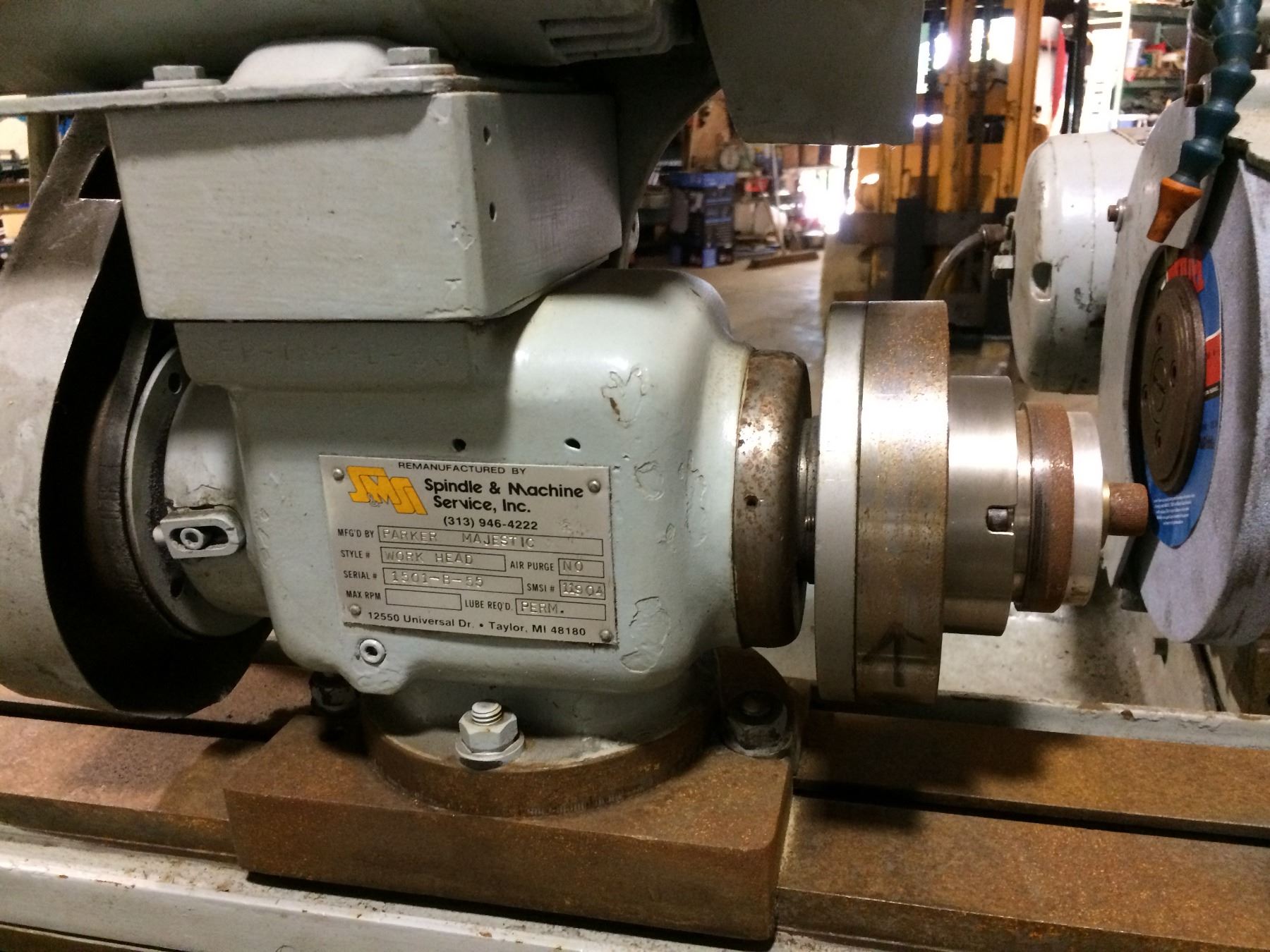

HEADSTOCK SPEED (INF. VARIABLE):
O.D. ................................. 20 TO 225 RPM
HOLE THRU SPINDLE: ..................... 1-1/2"
HEADSTOCK CENTER TAPER: ................ 6# JARNO

CROSS FEED TRAVEL: ..................... 3-1/2"
CROSS FEED ADJUSTMENT: ................. 4"
CROSS FEED HANDWHEEL GRADUATED:......... 0.0005"
CROSSFEED PRECISION DIAL GRADUATED: .... 0.00005"

DIAMETER OF INTERNAL SPINDLE: .......... 3"
DIAMETER OF EXTERNAL SPINDLE: .......... 3"
EXTERNAL GRINDING WHEEL: ............... 10" X 1" X 3"

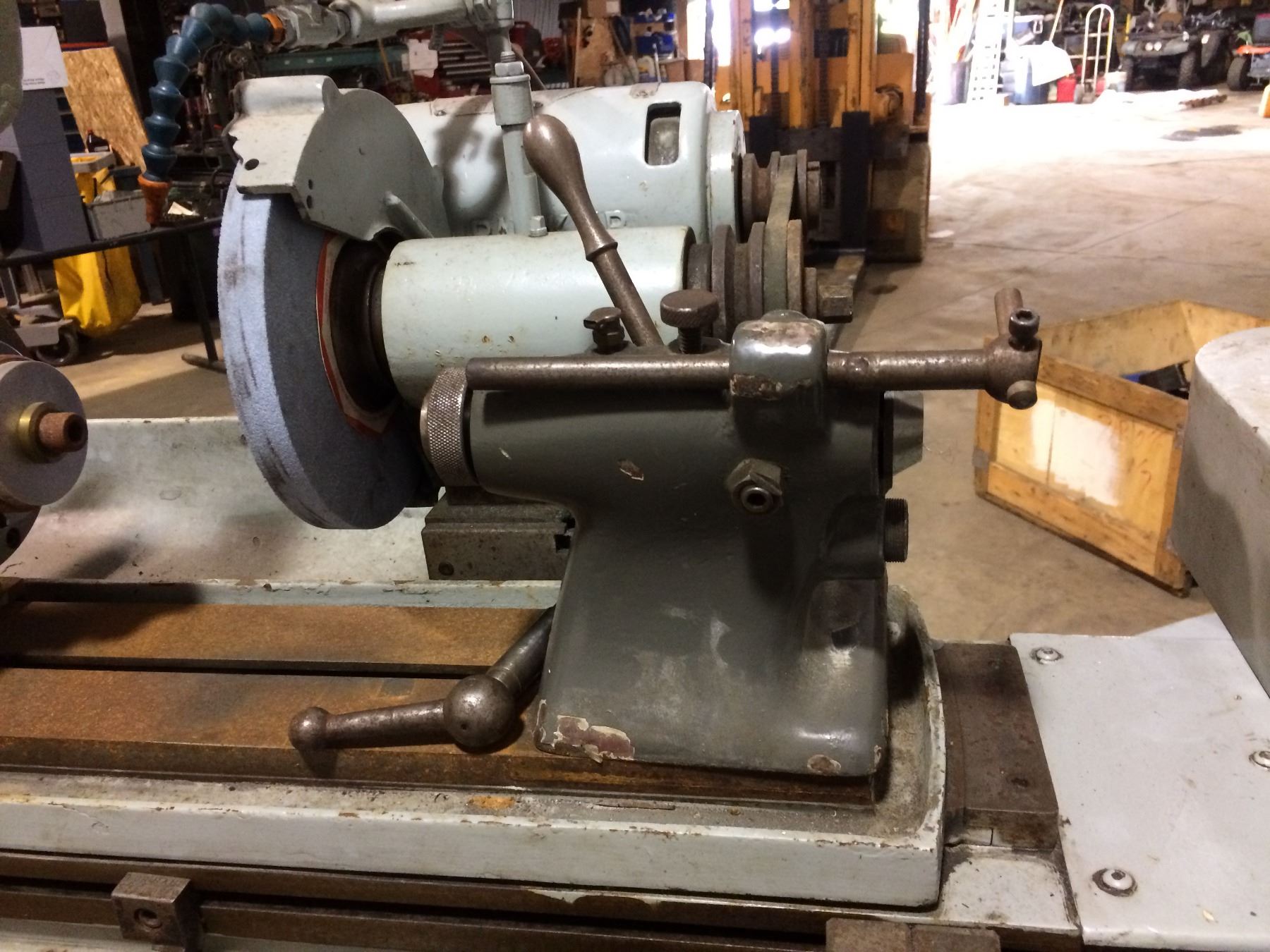

TAILSTOCK CENTER TAPER: ................ #6 JARNO
TABLE FEED MOTOR: ...................... 1 HP
WORKHEAD MOTOR: ........................ 1/2 HP
SPINDLE DRIVE MOTOR (External) : ....... 1- 1/2 HP

APPROXIMATE FLOOR SPACE: ............... 41" X 84"
APPROXIMATE WEIGHT: .................... 3,000 LBS
