Okamoto Surface Grinder Fully Automatic model ACCUGAR 124N

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
Okamoto Surface Grinder Fully Automatic model ACCUGAR 124N
SOLD
3,100.00USD+ (465.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2014 Feb 25 @ 13:25UTC-5 : EST/CDT

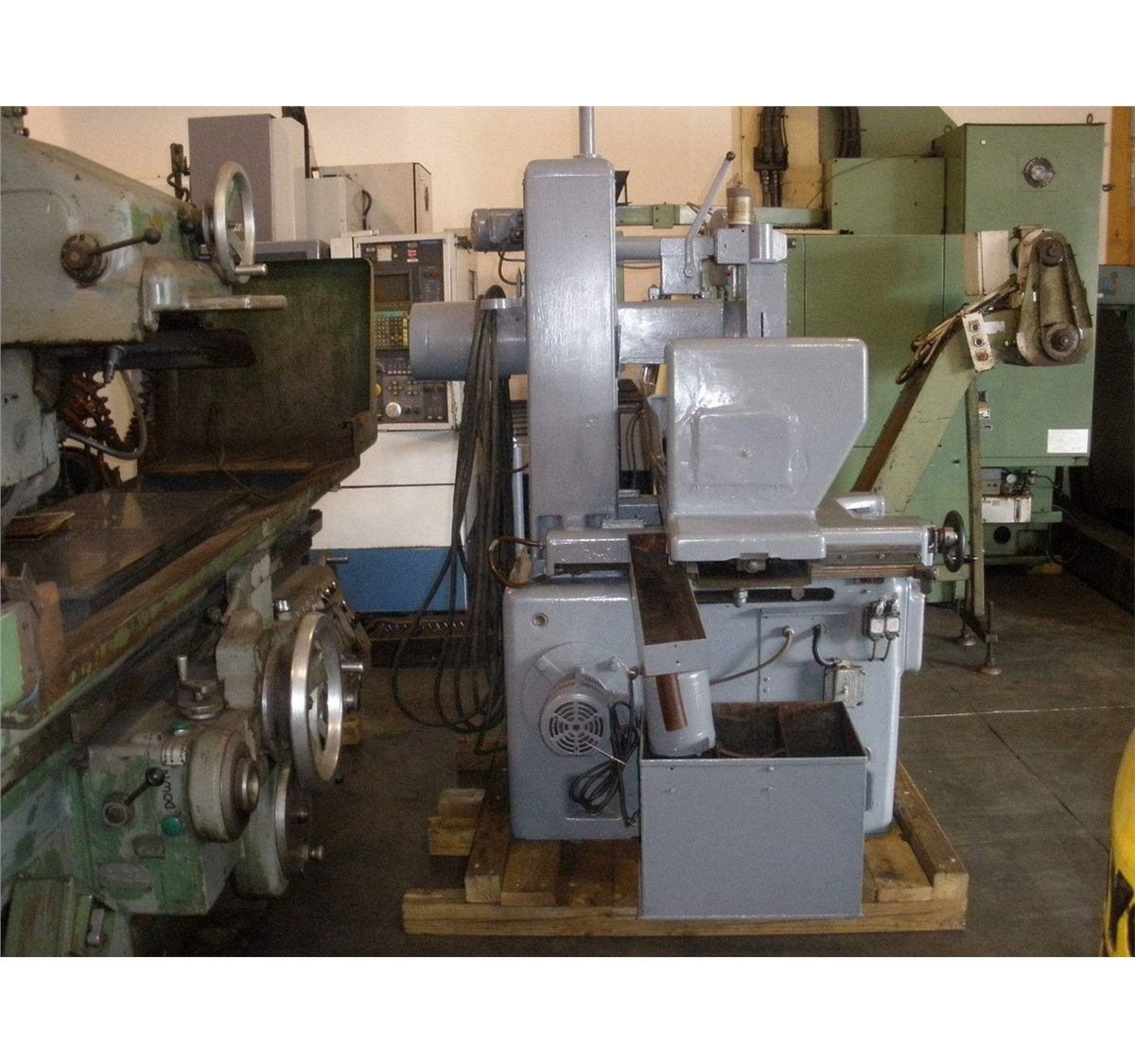

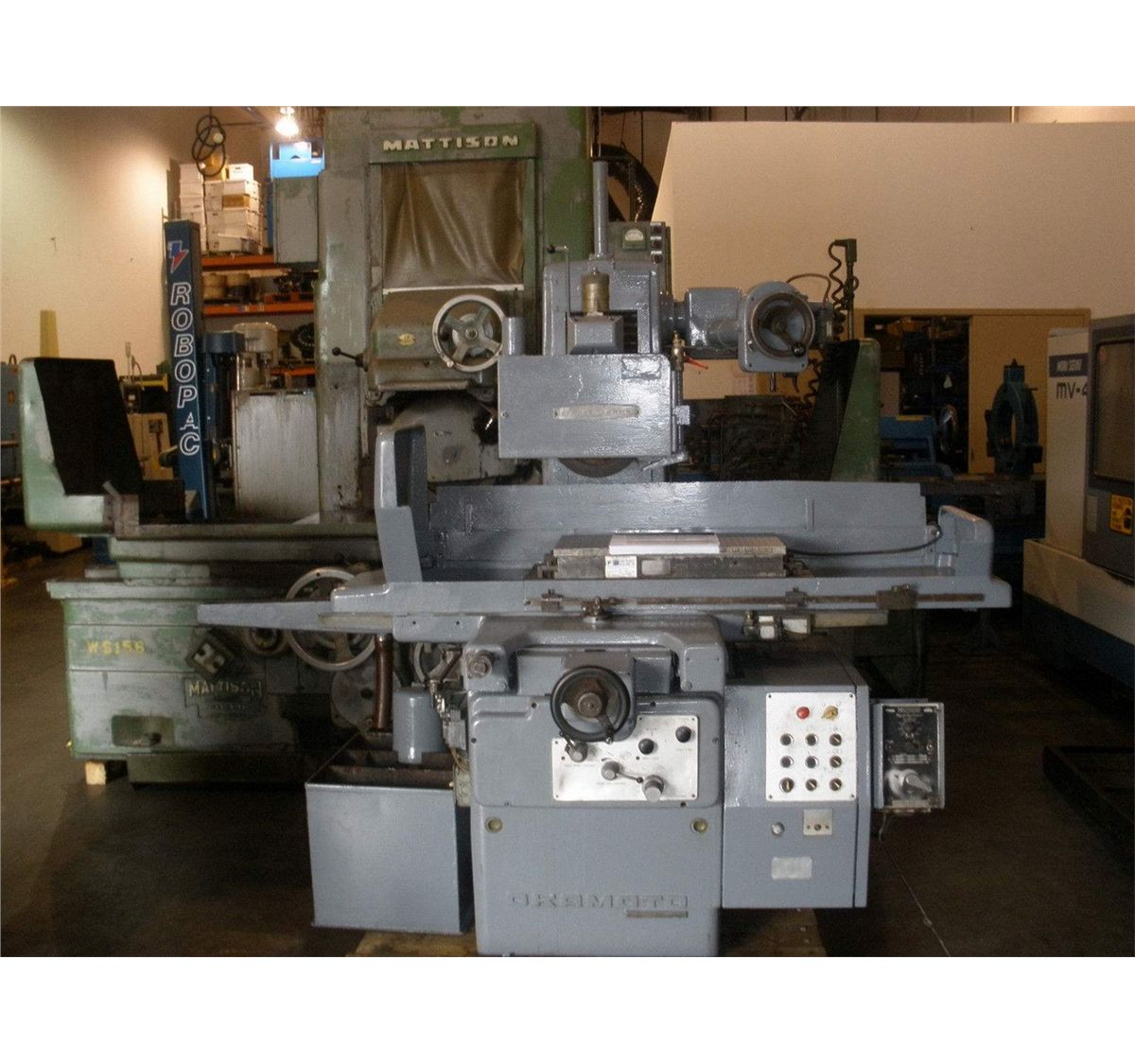

Okamoto Surface Grinder Fully Automatic model ACCUGAR 124N

Specifications:
Year 1979
Maximum Grinding Capacity 12" x 24"
Height Under 12" wheel - 13.7"
Maximum Workpiece Weight 930 lbs
Working Surface of Table 23.75" x 11.8"
Maximum Longitudinal Travel 29.5"
Maximum Cross Travel 13.6"
Rapid Elevation to Wheel Head 19 IPM
Maximum Grinding Wheel Size 12" x 5" x 1.5" bore
Grinding Wheel Speed 1800 RPM
Grinding Wheel Drive Motor 5 HP
Hydraulic Pump Motor 2 HP
Vertical Traverse Motor 2 HP
Electrics 230-460/3/60 AC (currently 460 V)
Floor Space 103" x 74" x 73" h
Machine weight approx. 5000 lbs

Equipped With:

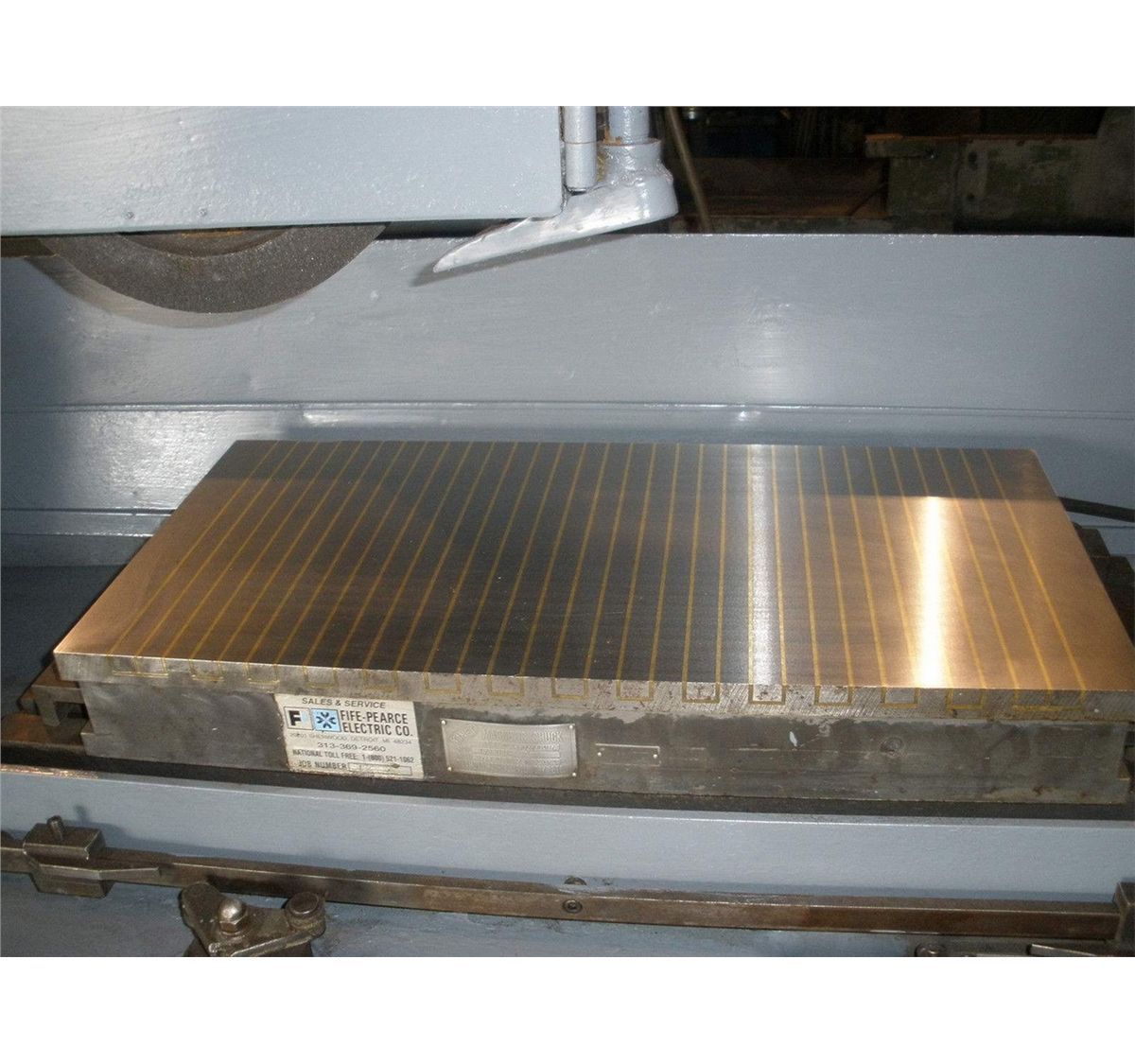

12" x 24" Magnetic Chuck

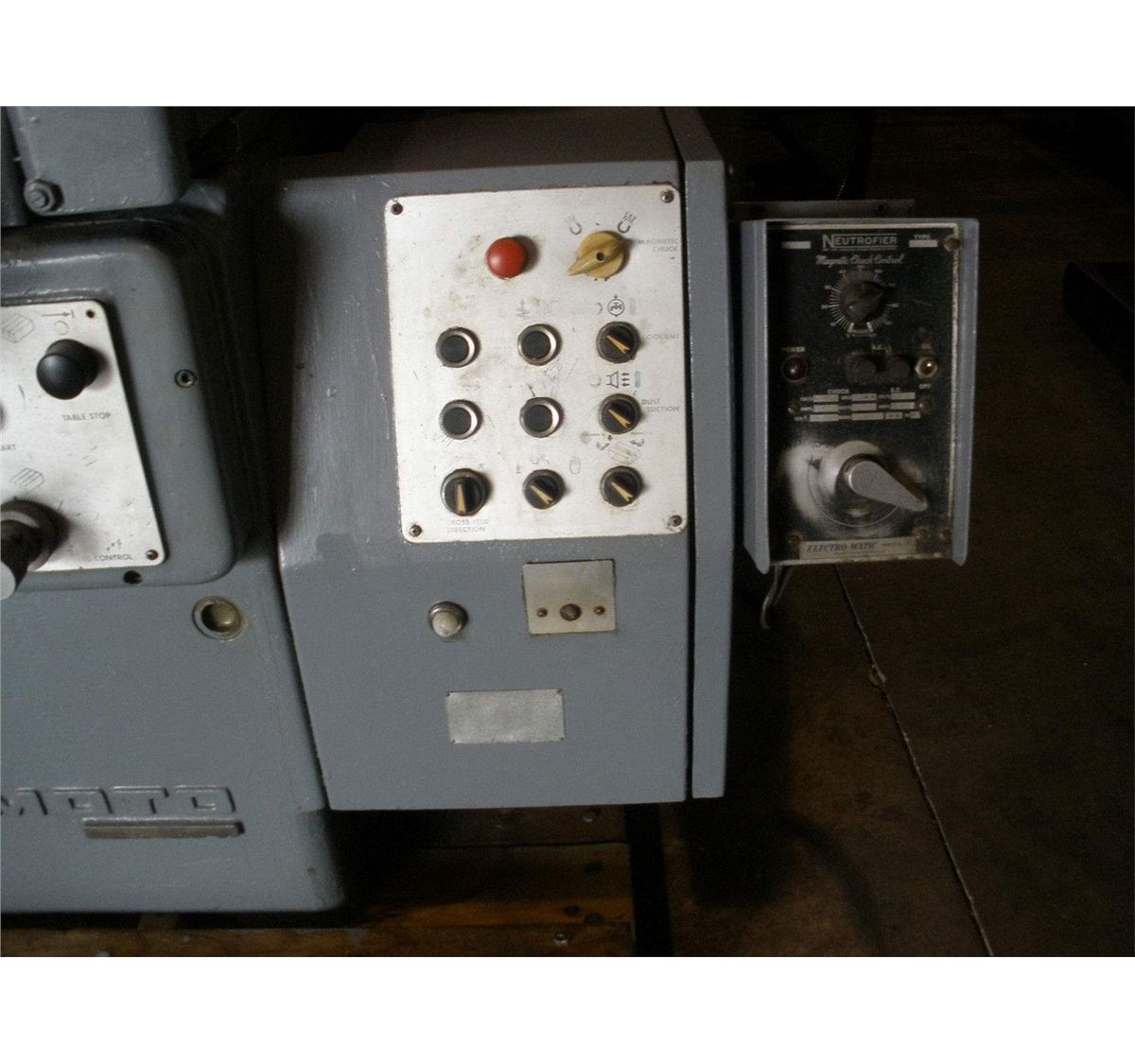

Neutrofie Chuck Controller
Coolant
Manual
Machine in good working order when removed from service.
LL ITEMS ARE SOLD AS IS, WHERE IS
Loading& Palletizing Fee: $375.00



LOCATION: ST Louis MO 63378
More information Call John 314-398-7414
