Miltronics VM17 Vertical Machining Center

Currency:USD Category:Business & Industrial / Manufacturing - Equipment Start Price:100.00 USD
Miltronics VM17 Vertical Machining Center
SOLD
1,375.00USD+ (206.25) buyer's premium + applicable fees & taxes.
This item SOLD at 2014 May 21 @ 14:05UTC-4 : AST/EDT
ALL ITEMS SOLD THRU BTM INDUSTRIAL AUCTIONS ARE SOLD AS-IS, WHERE-IS! Descriptions for lots are made to the best of our abilities, but it is the responsibility to inspect items when possible! There are no returns or refunds for items once removed from a premise!
There is absolutely NO ONSITE inspection for this machine! Bidding will be done via the photos and videos provided! Rigging Rate will be provided shortly, that rigger must be used!!!

LOCATION: Plainwell, MI (Customer Facility)
LOADING FEE: TBD

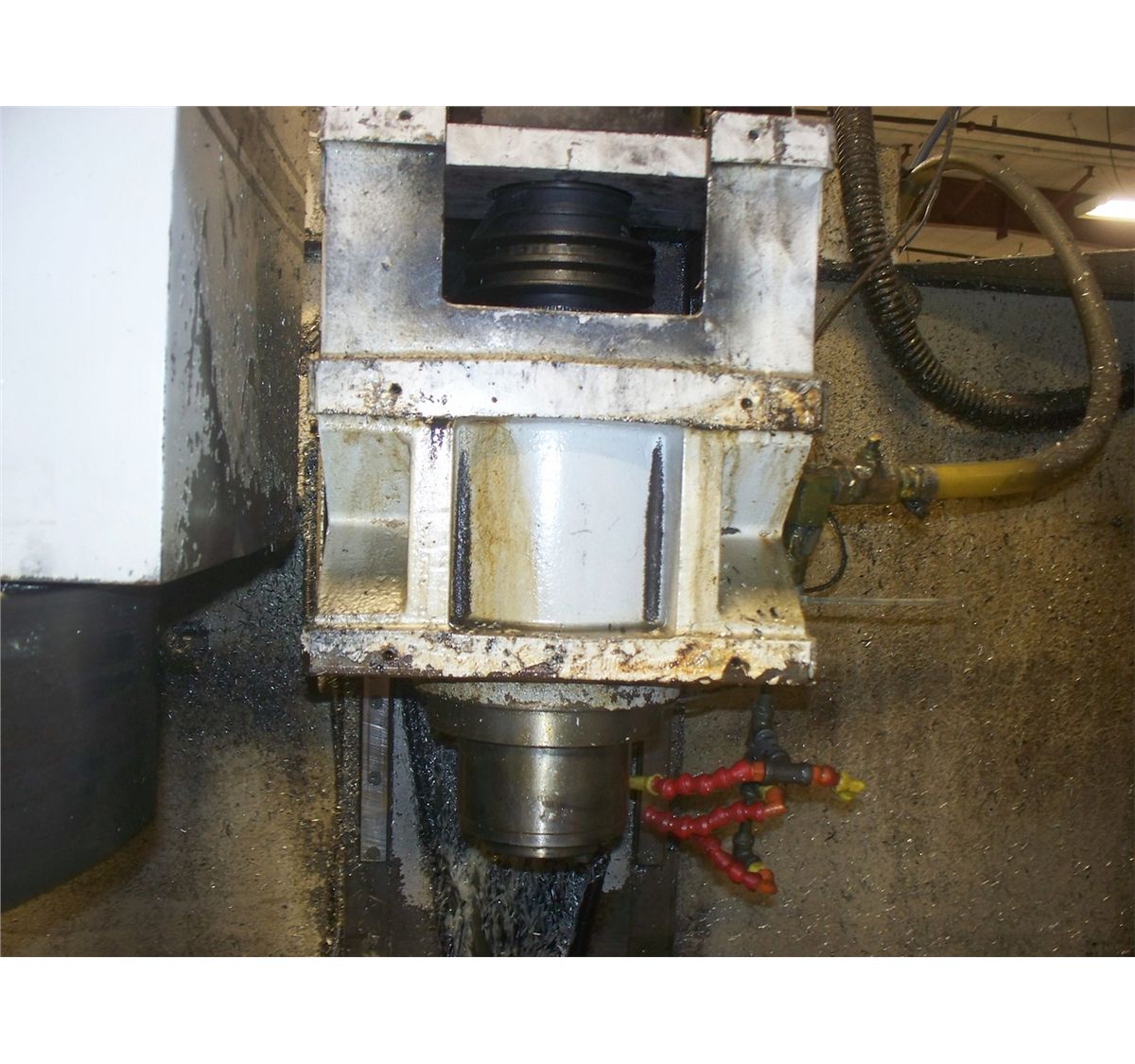

*NOTE* Machine in good running condition BUT there is a major problem! The company had the spindle reground and it was not done properly, spindle was ground oversize so it will drop tool. The spindle must be dealt with for the machine to be runnable!

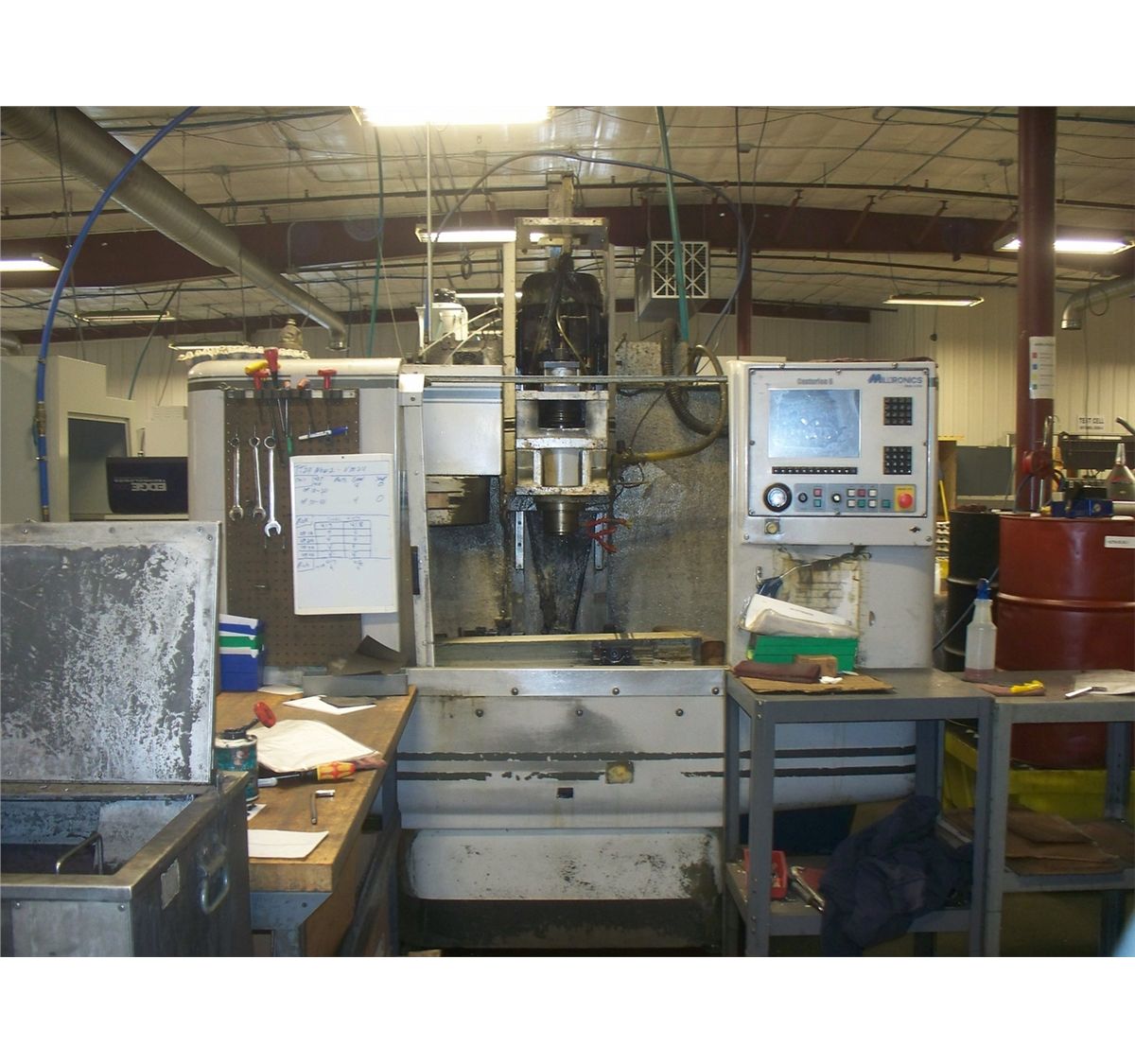

Miltronics VM17 Machining Center

Milltronics VM-17 CNC Mill


Specifications:
Control Centurion 6
Table Size 45”x16"
X Axis Travel 30”
Y Axis Travel 16”
Z Axis Travel 19.5”

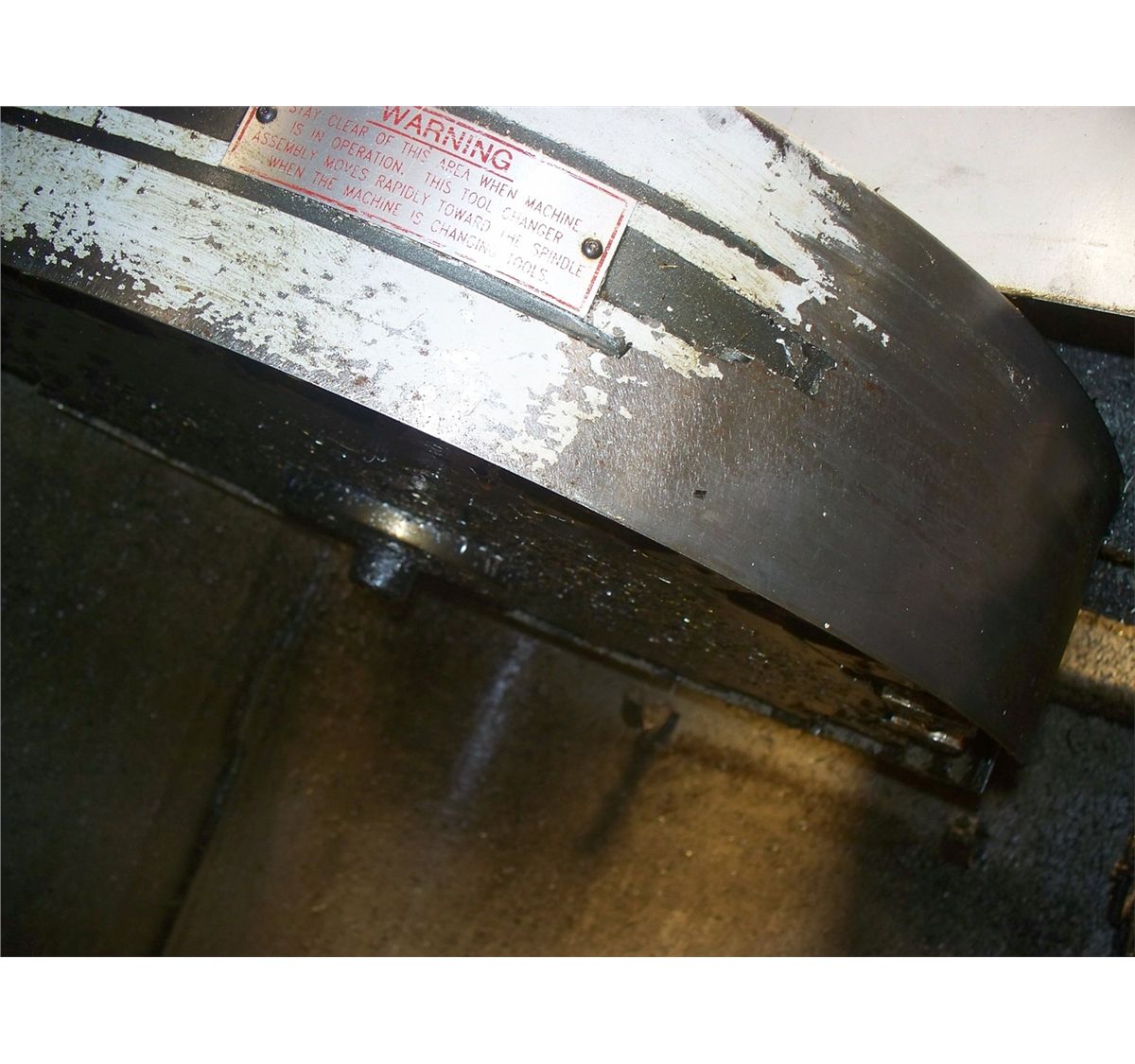

ATC 12 tool
Spindle Taper CT 40
Spindle Motor 10 HP
Spindle Speeds 6,000 RPM
Machine Weight 6,000 Lbs
Machine Dimensions 86”L x 68”W x 96”H


Equipped With:

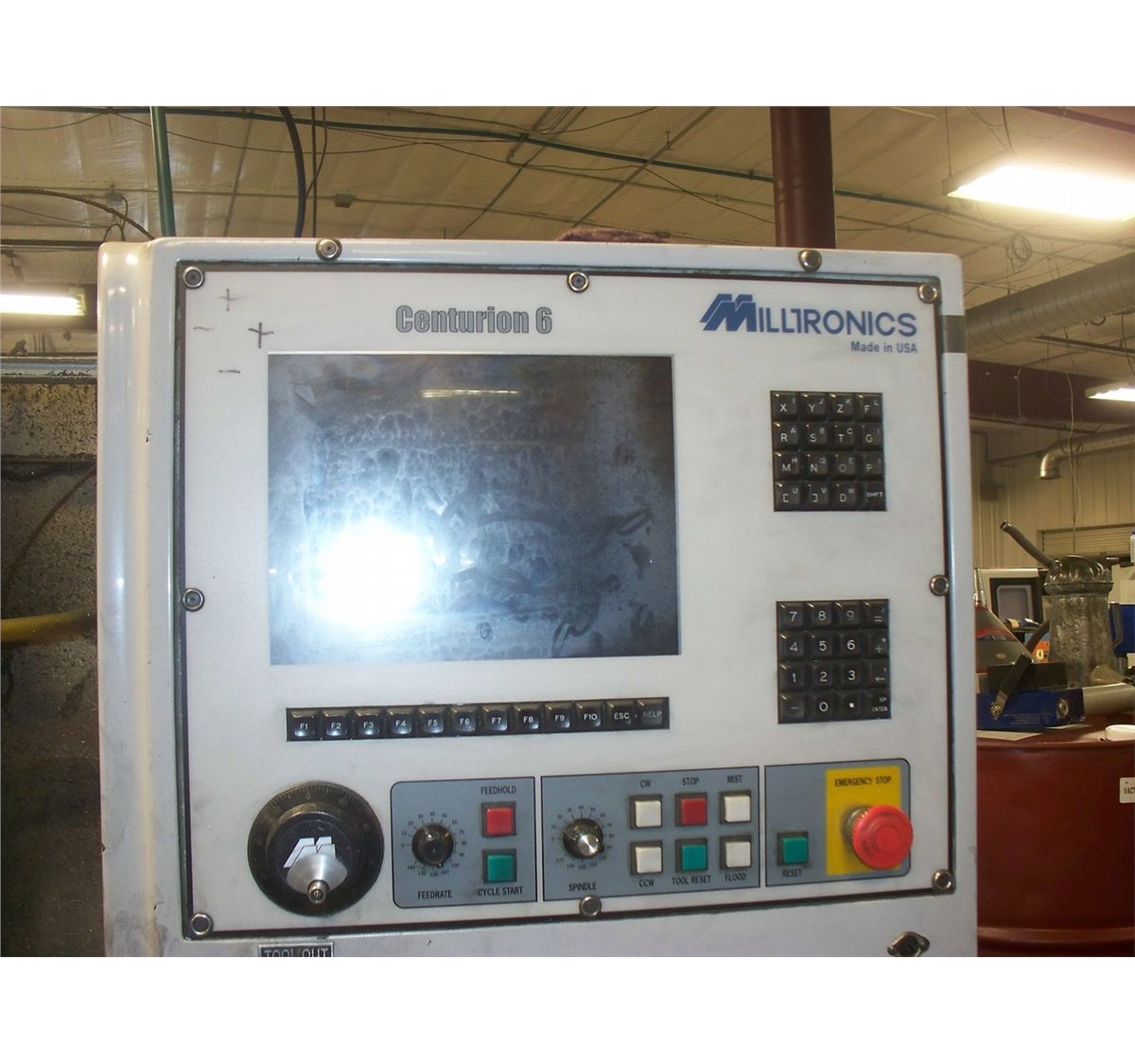

Centurion 6 Conversation & G Code Control
14" Color LCD Monitor
Coolant Tank
Coolant Tank & Pump
