SOLD
16,800.00USD+ (2,520.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2014 Aug 20 @ 13:00UTC-4 : AST/EDT
Did you win this lot?
A full invoice should be emailed to the winner by the auctioneer within a day or two.
All items are sold AS-IS! Items are described to the best of our ability, but inspections are both invited and encouraged! There are no returns or refunds for items once removed from a premise!
LOCATION: Ravenna, MI
LOADING FEE: $1250

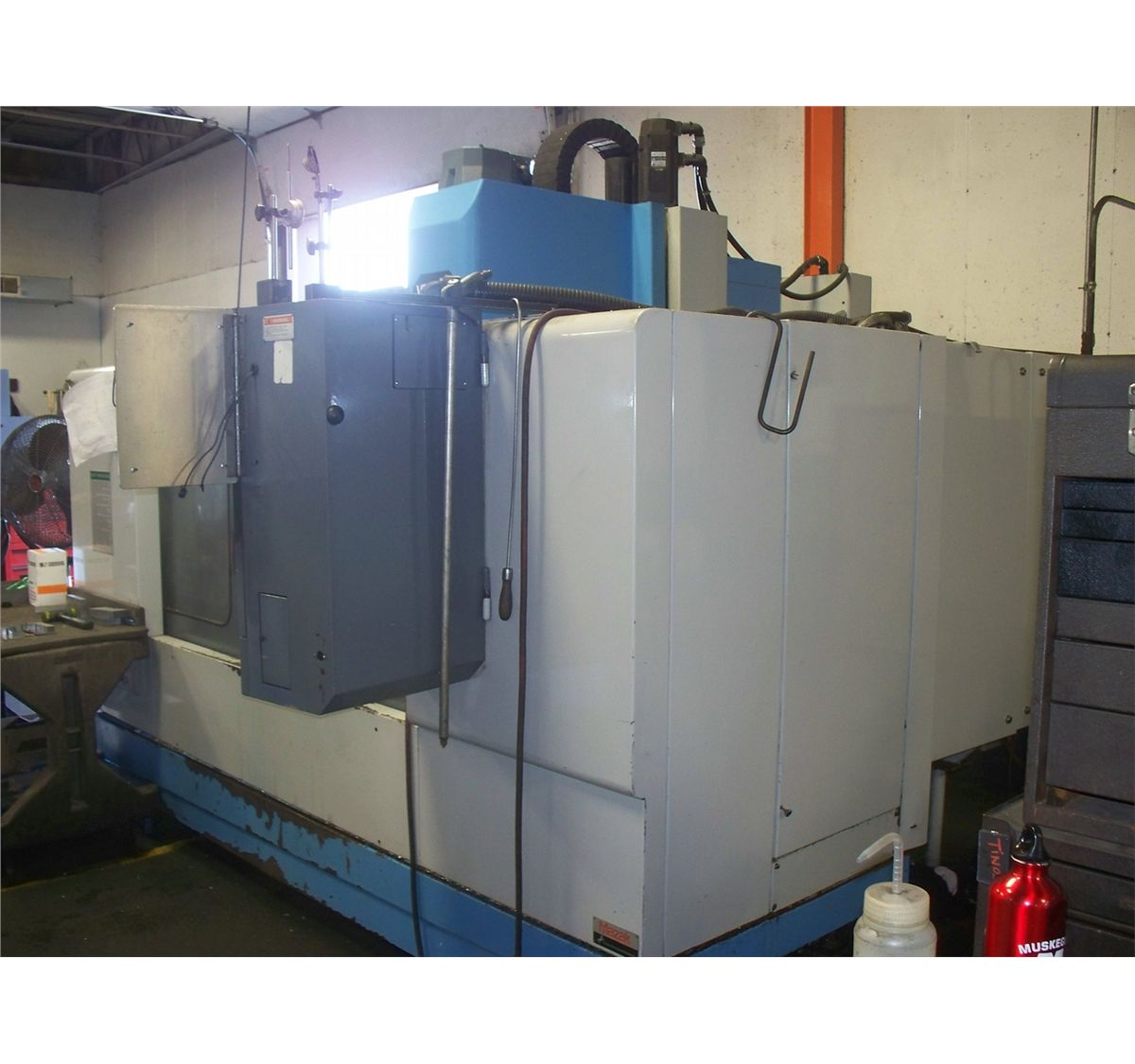

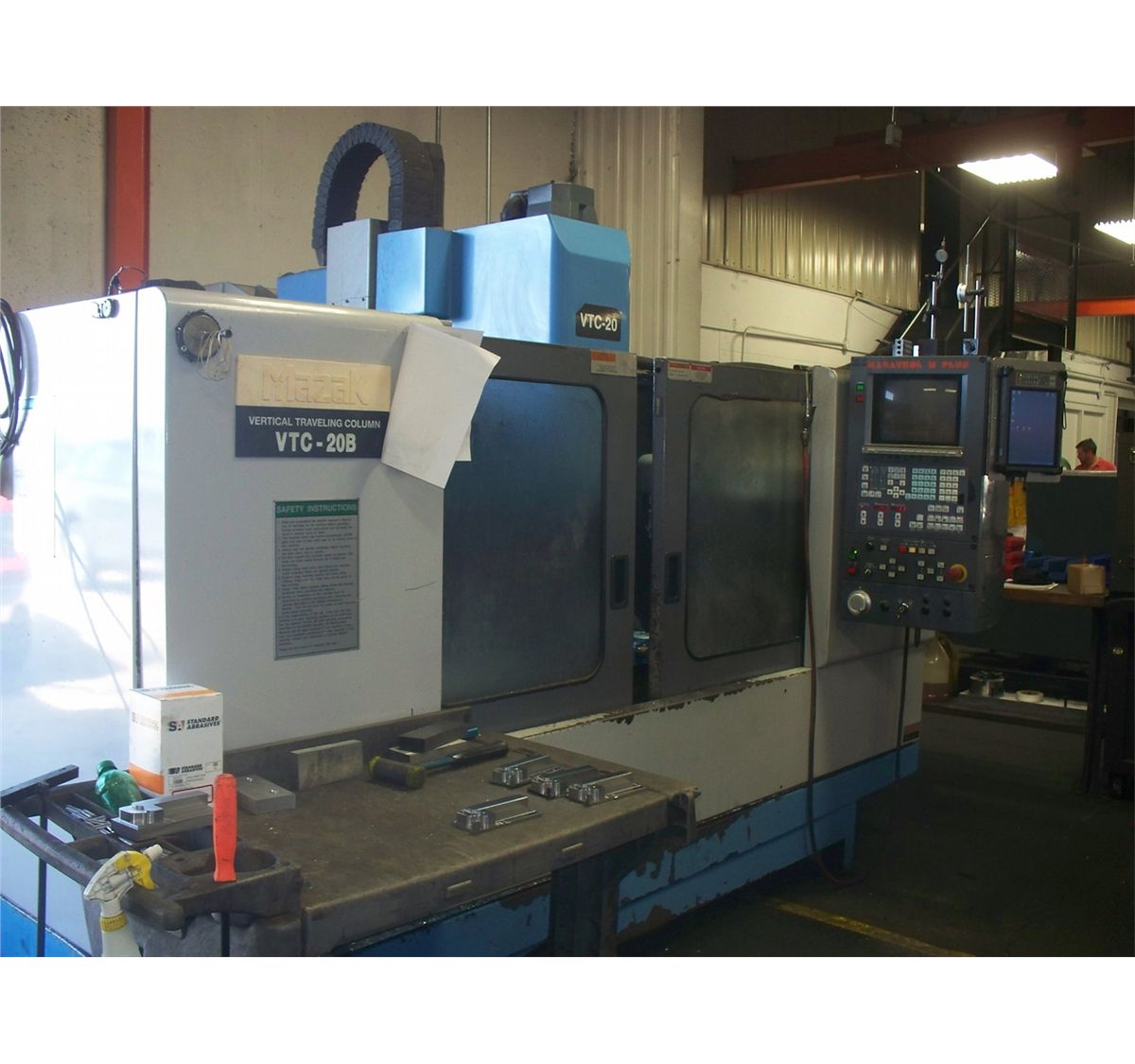

MAZAK #VTC-20B CNC VERTICAL MACHINING CENTER
Renishaw Probing system with Probe is INCLUDED plus tool touch probe. No tooling / vises shown are included!
NEW 1997
TABLE SIZE -------------------------------- 57.48" X 20.08"
TRAVEL --------------- ( X AXIS ) --------- 44.09"
TRAVEL --------------- ( Y AXIS ) --------- 20.08"
TRAVEL --------------- ( Z AXIS ) --------- 20.08"
DISTANCE SPINDLE NOSE TO TABLE TOP -------- 4.3" TO 24.4"
DISTANCE SPINDLE CENTERLINE TO COLUMN ----- 22.1"
SPINDLE NOSE ------------------------------ #40
SPINDLE SPEED ----------------------------- TO 7,000 RPM

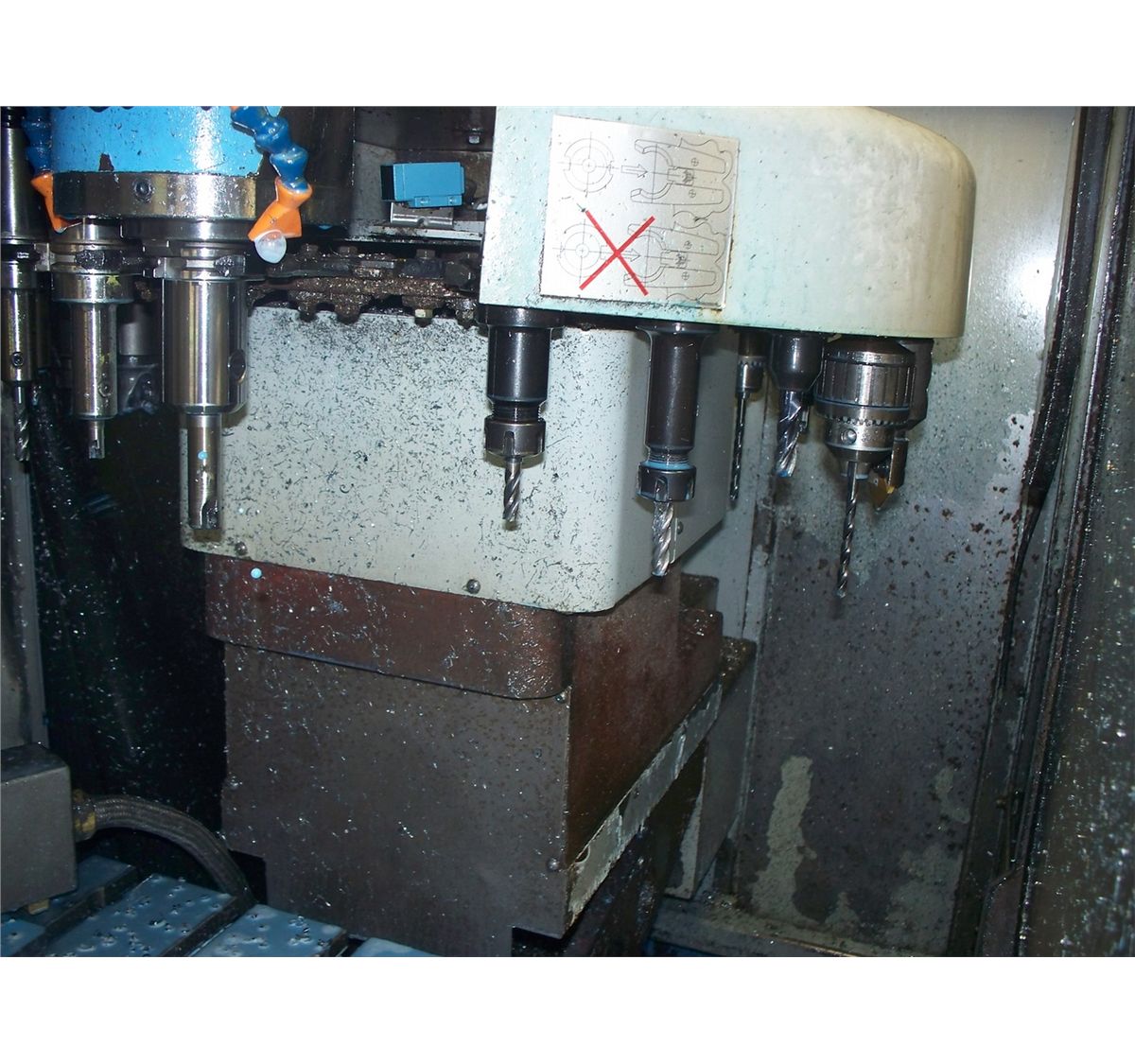

TOOL MAGAZINE CAPACITY -------------------- 24
MAXIMUM TOOL DIAMETER --------------------- 3.1"
WITH ADJACENT POCKETS EMPTY ------------- 4.3"
MAXIMUM TOOL LENGTH ----------------------- 13.8"
MAXIMUM TOOL WEIGHT ----------------------- 17.6 LBS.
RAPID TRAVERSE RATE -- ( X & Y AXIS ) ----- 787 IPM
RAPID TRAVERSE RATE -- ( Z AXIS ) --------- 590 IPM
MAIN MOTOR, 5 MIN./30 MIN./CONT. ---------- 15/10/7.5 HP A.C.
APPROXIMATE MACHINE WEIGHT ---------------- 12,000 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 118"(LR)x102"(FB)x106"(H)
EQUIPPED WITH ---
MAZATROL M-PLUS CNC CONTROL
BIJUR LUBRICATION SYSTEM
COOLANT SYSTEM
FULL ENCLOSURE
See Link Below for Video
Click Here
