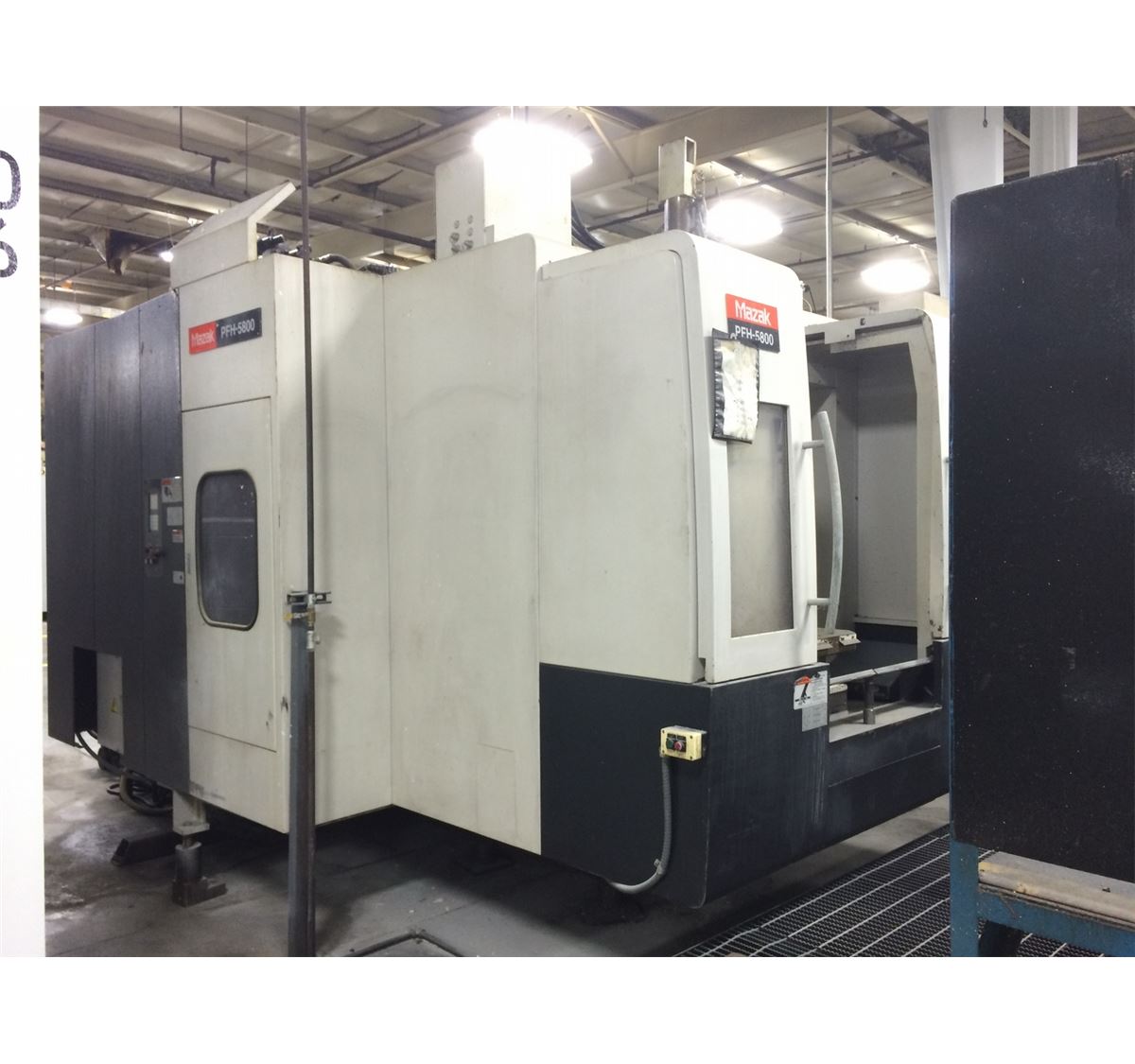

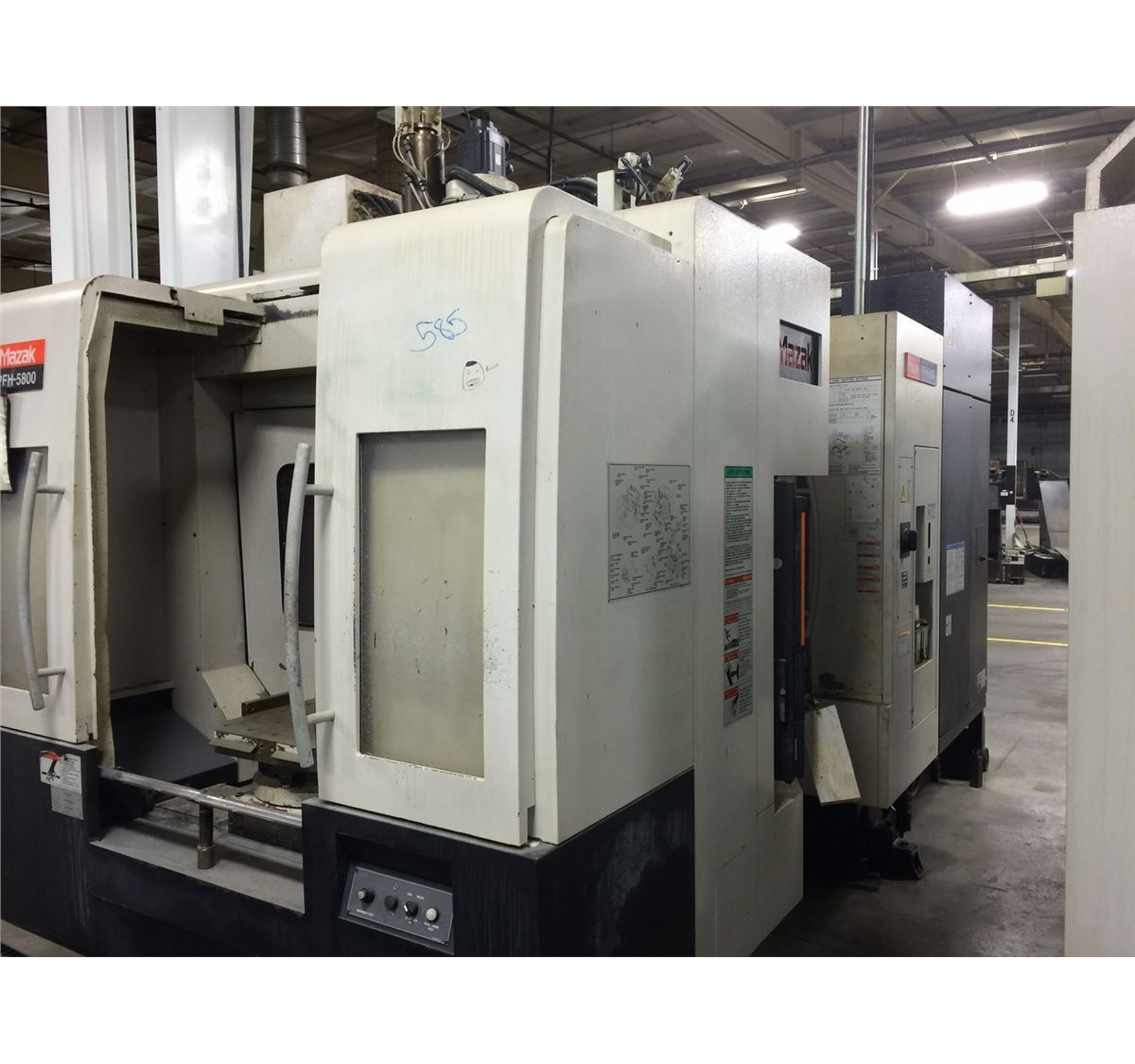

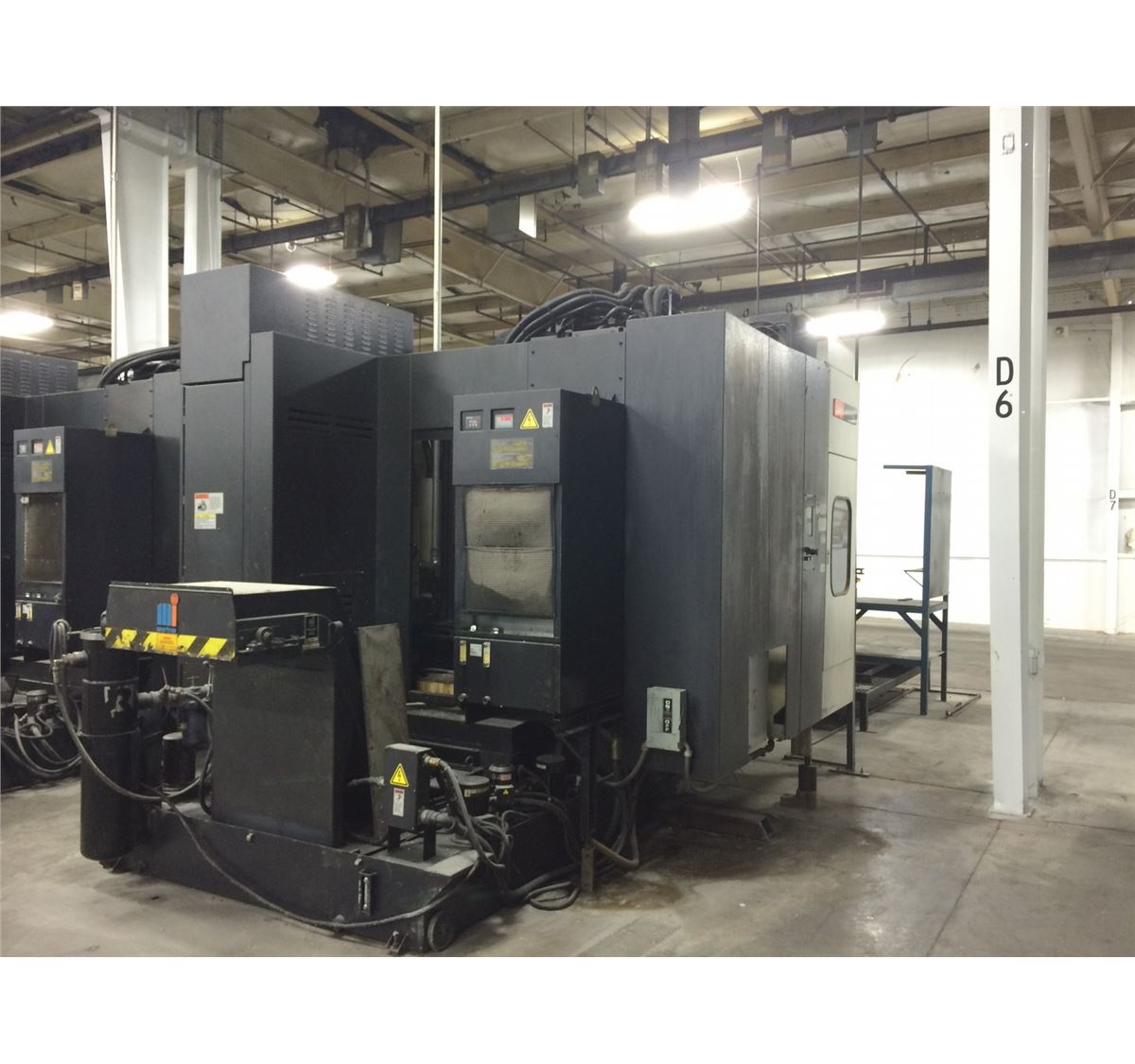

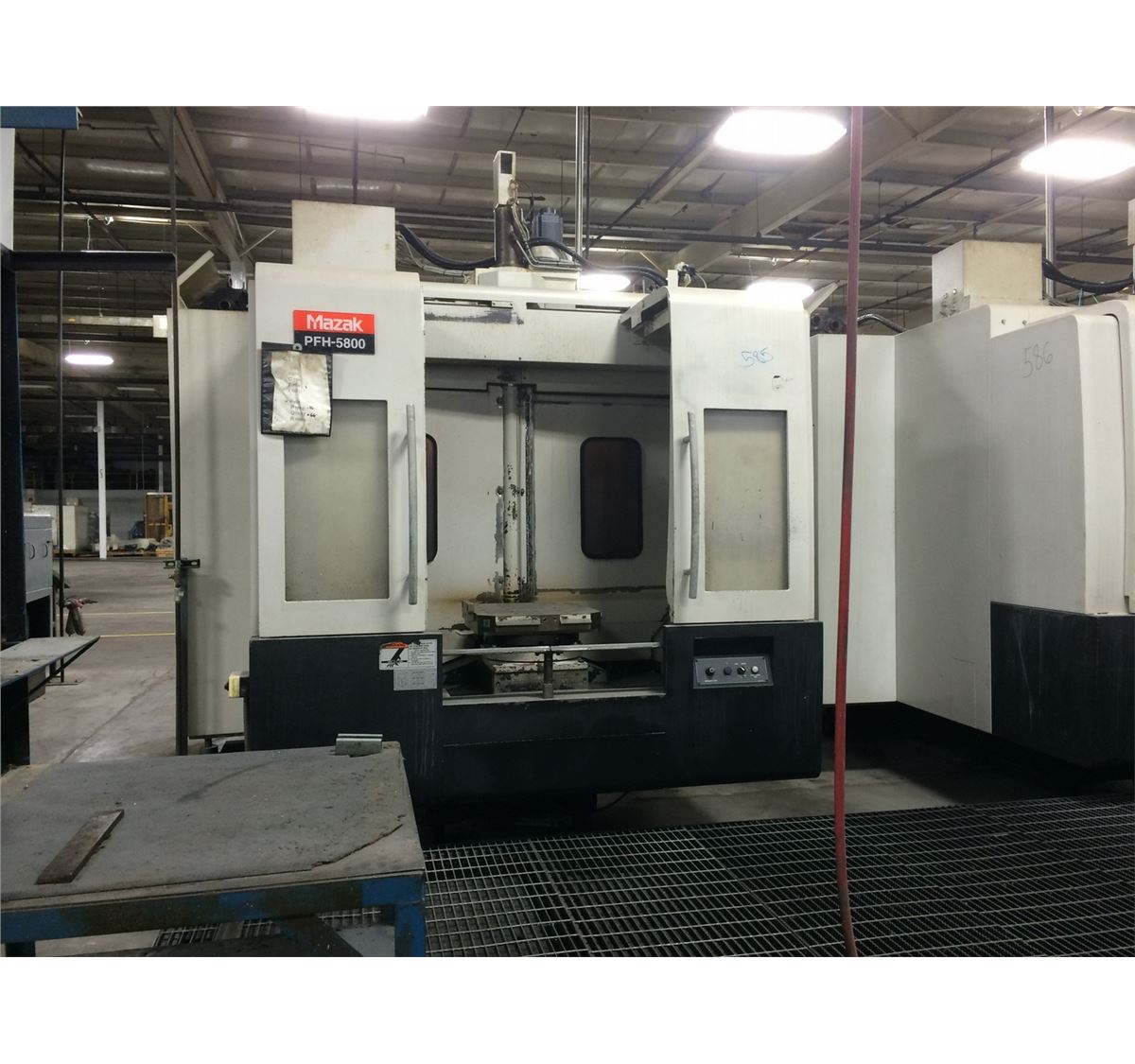

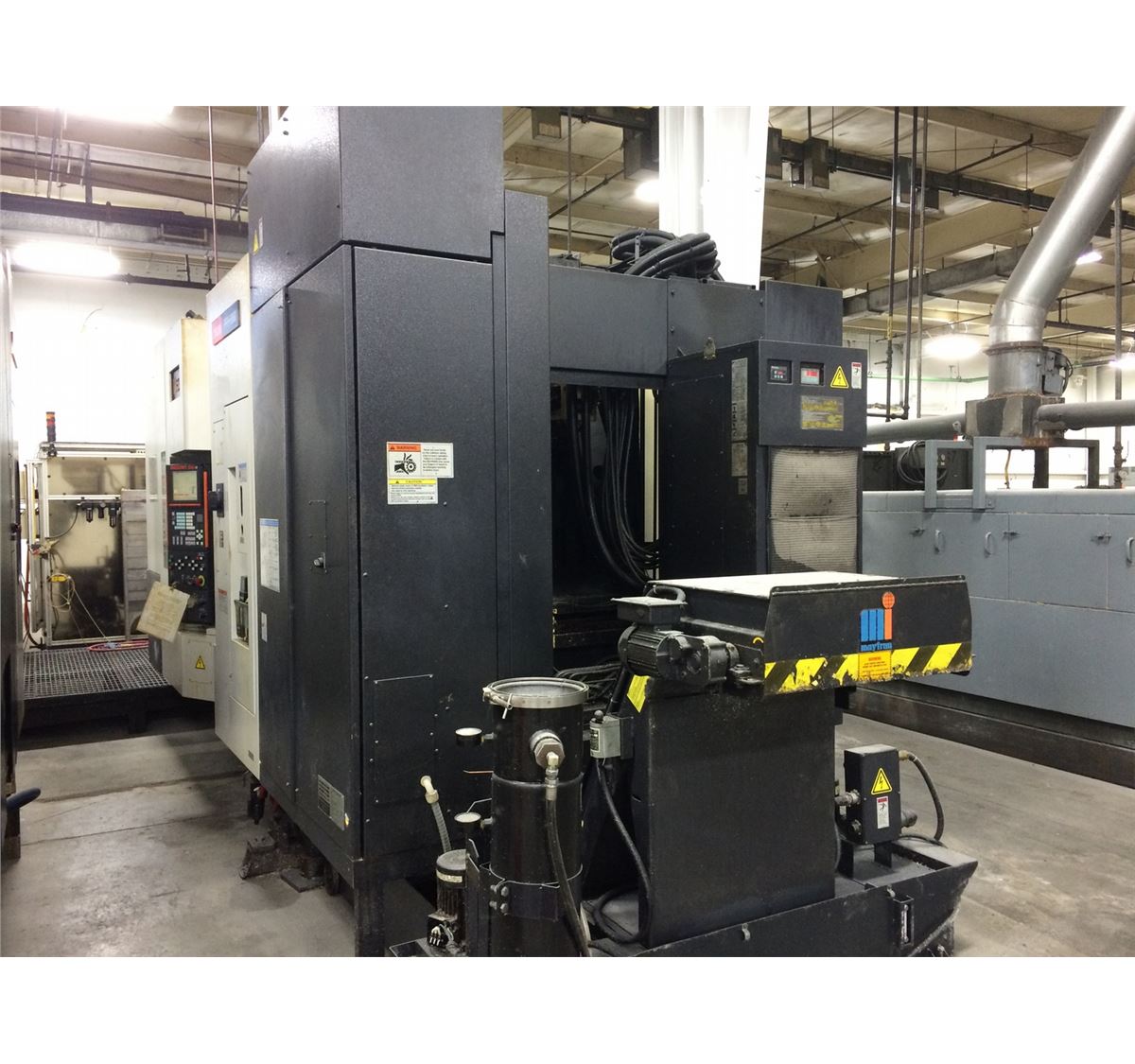

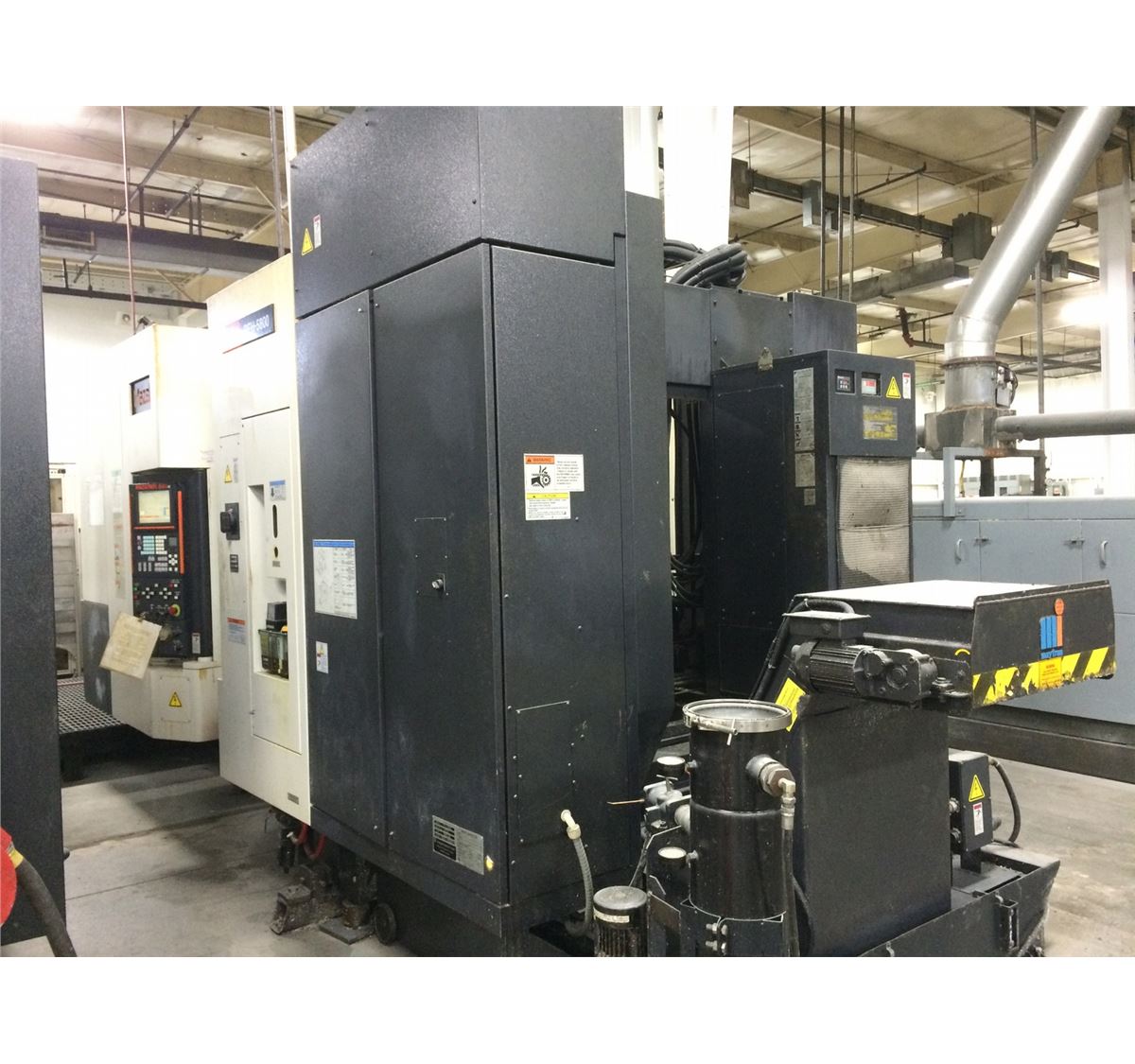

Mazak PFH-5800 Horizontal Machining Center

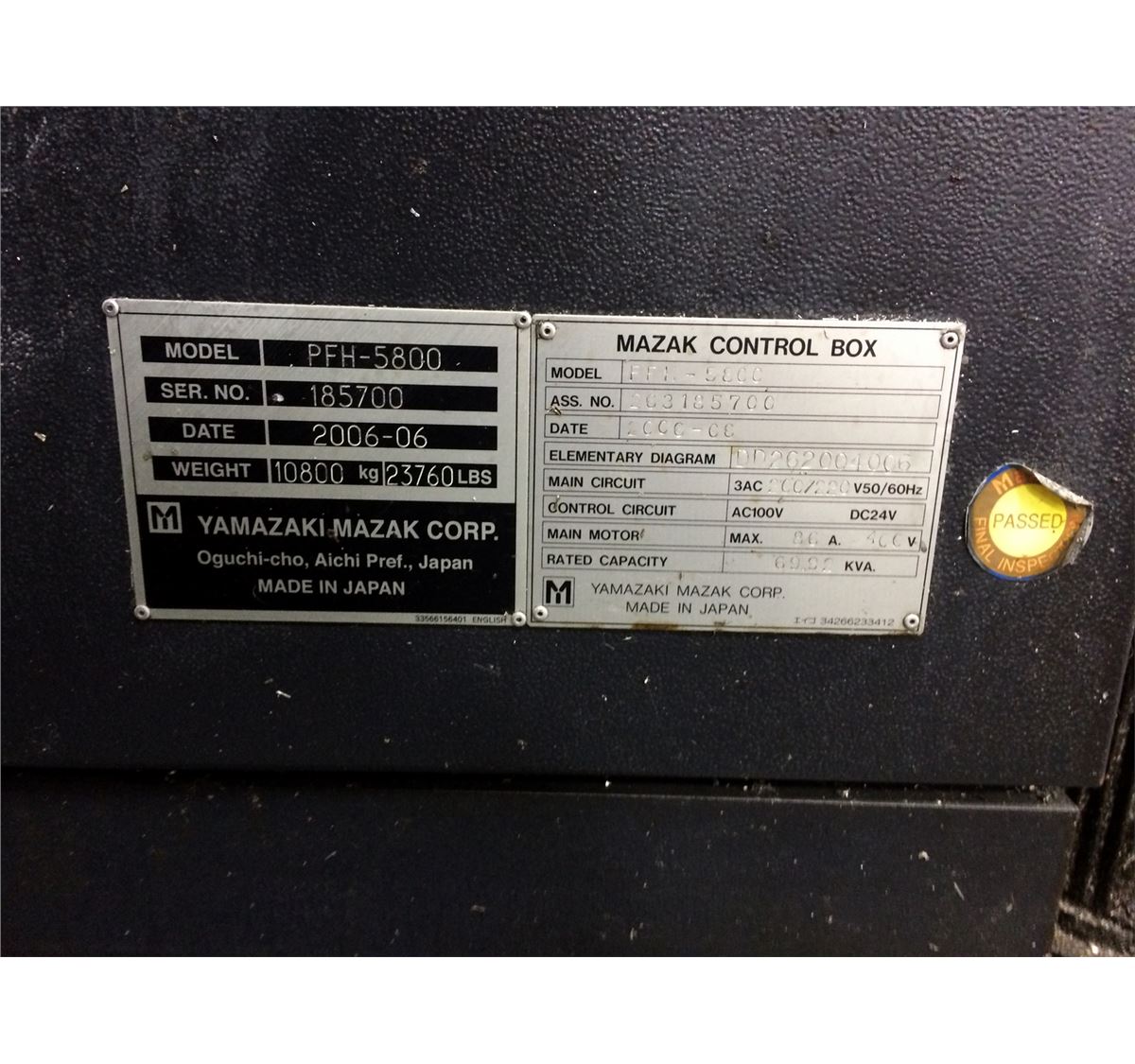

S/N 185700
MAZAK, PFH-5800, 28.74" X, 28.74" Y, 29.13" Z, MAZATROL 640M CNTRL
NEW: 2006

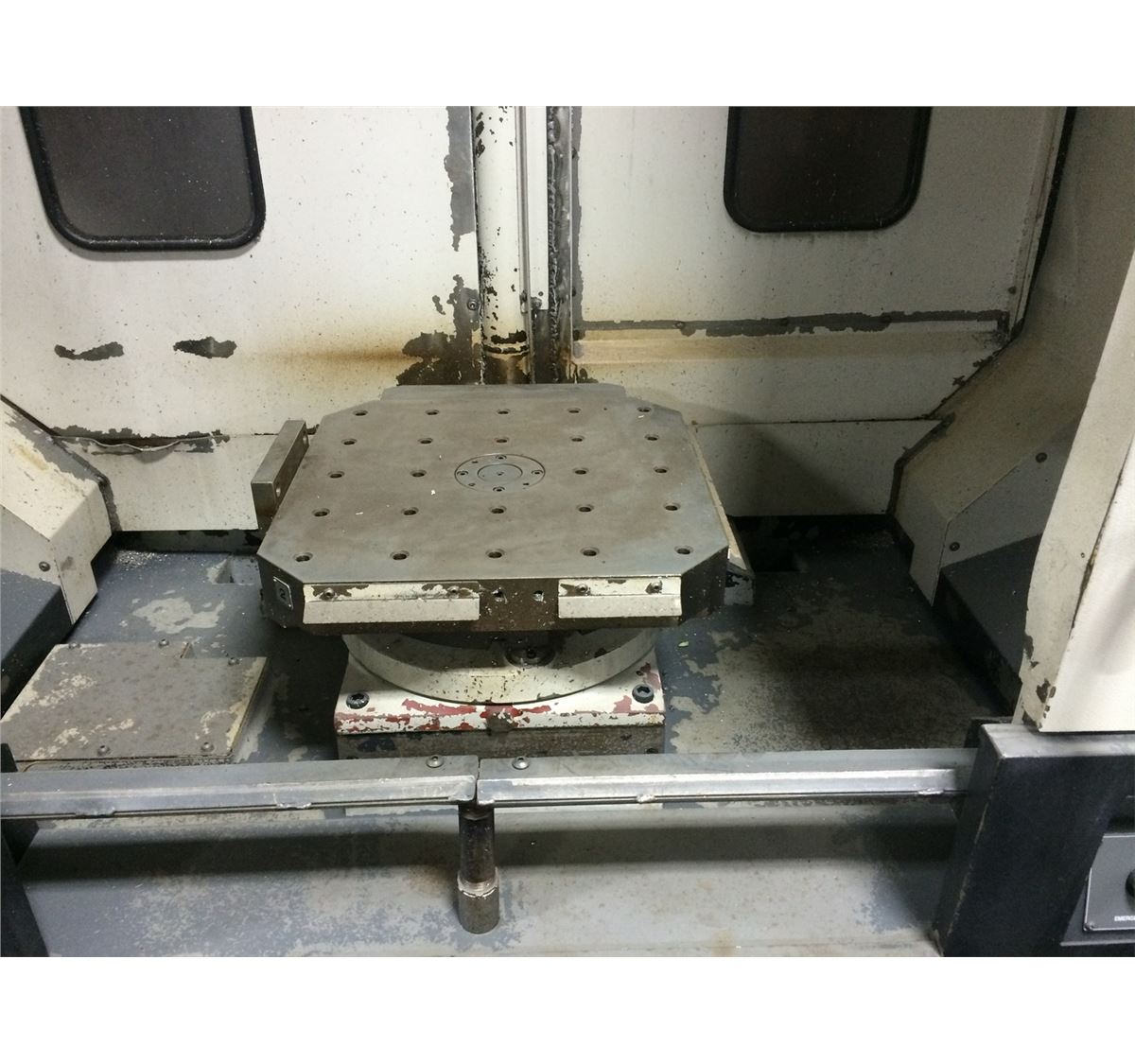

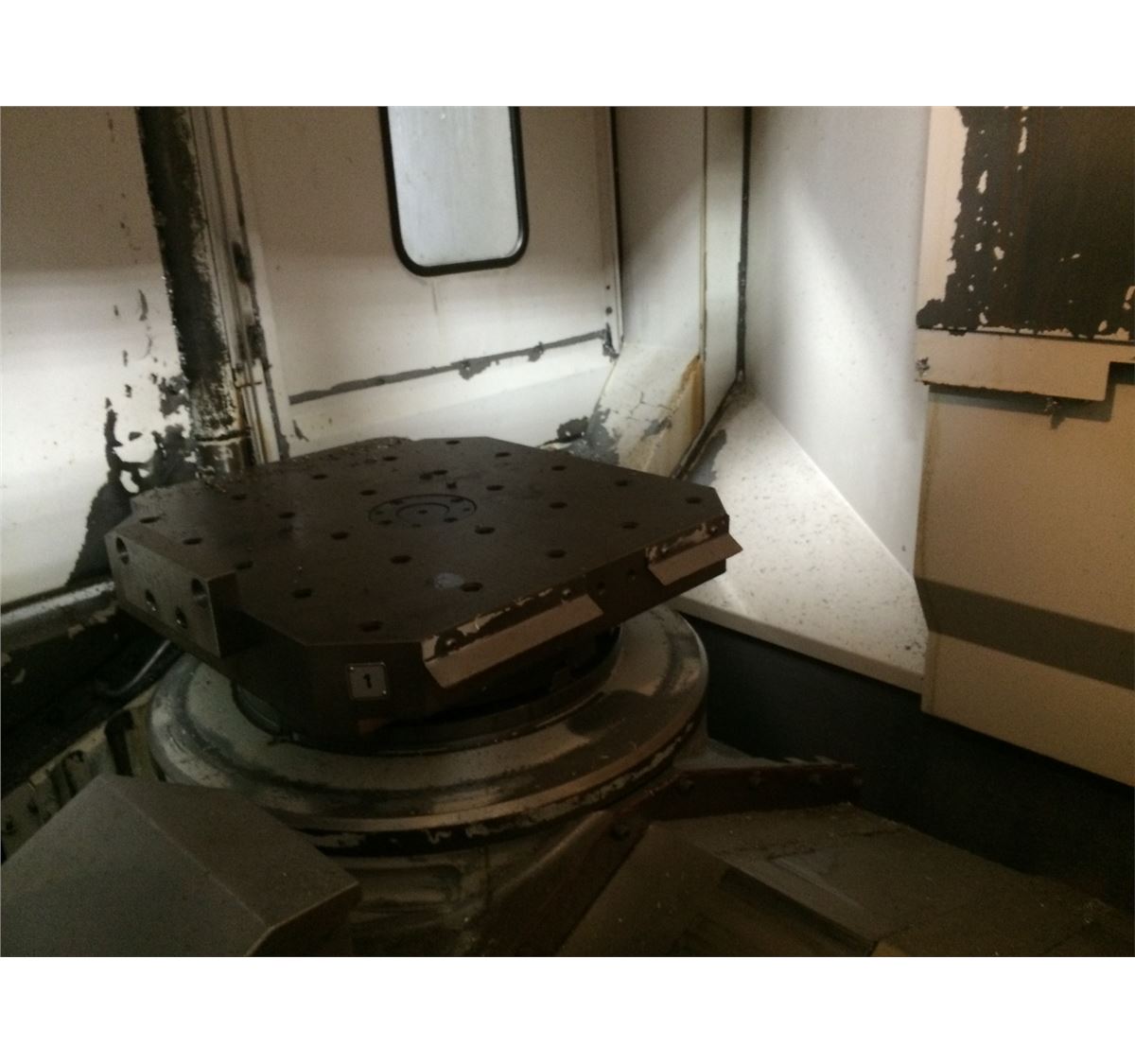

PFH-5800PALLET SIZE: 19.69" X 19.69"
PALLET INDEXING: 1 DEGREE / 360 POSITIONS
TRAVELS:
--X-AXIS TRAVELS: 28.74"
--Y-AXIS TRAVELS: 28.74"
--Z-AXIS TRAVELS: 29.13"
DISTANCE FROM SPINDLE CENTER TO TOP OF PALLET: 3.15" - 31.89"
DISTANCE FROM SPINDLE NOSE TO PALLET CENTER: 2.76" - 31.89"
MAXIMUM TABLE LOAD: 1543 LBS.
MAXIMUM WORKPIECE HEIGHT: 39.37"
MAXIMUM WORKPIECE DIAMETER: 31.49"

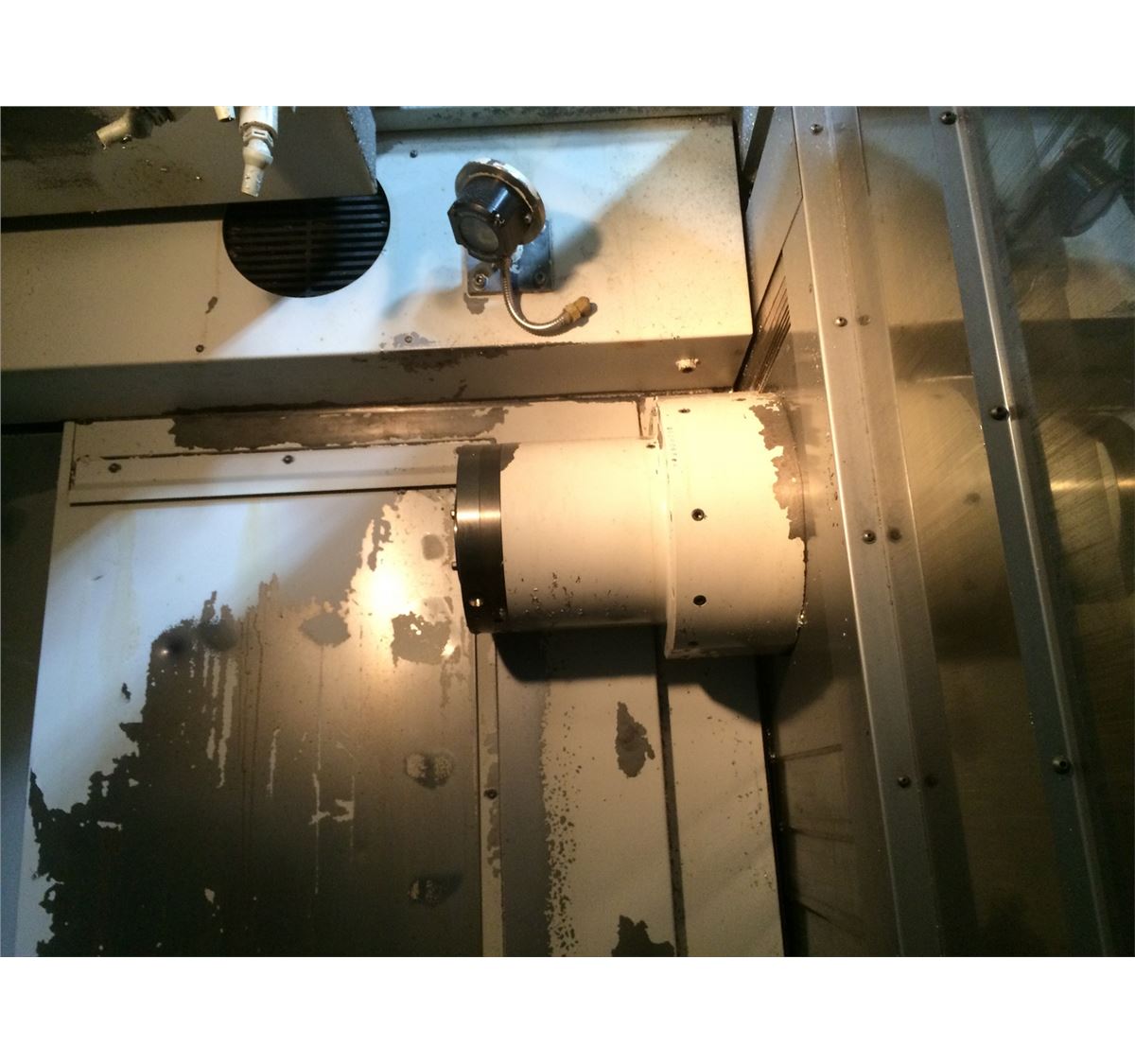

SPINDLE NOSE: CAT #40
SPINDLE SPEED INCREMENT: 1 RPM
SPINDLE HORSEPOWER : 30 HP
SPINDLE TORQUE: 224 FT./LBS.
SPINDLE RPM: 12,000 RPM
Thur coolant 1000 PSI

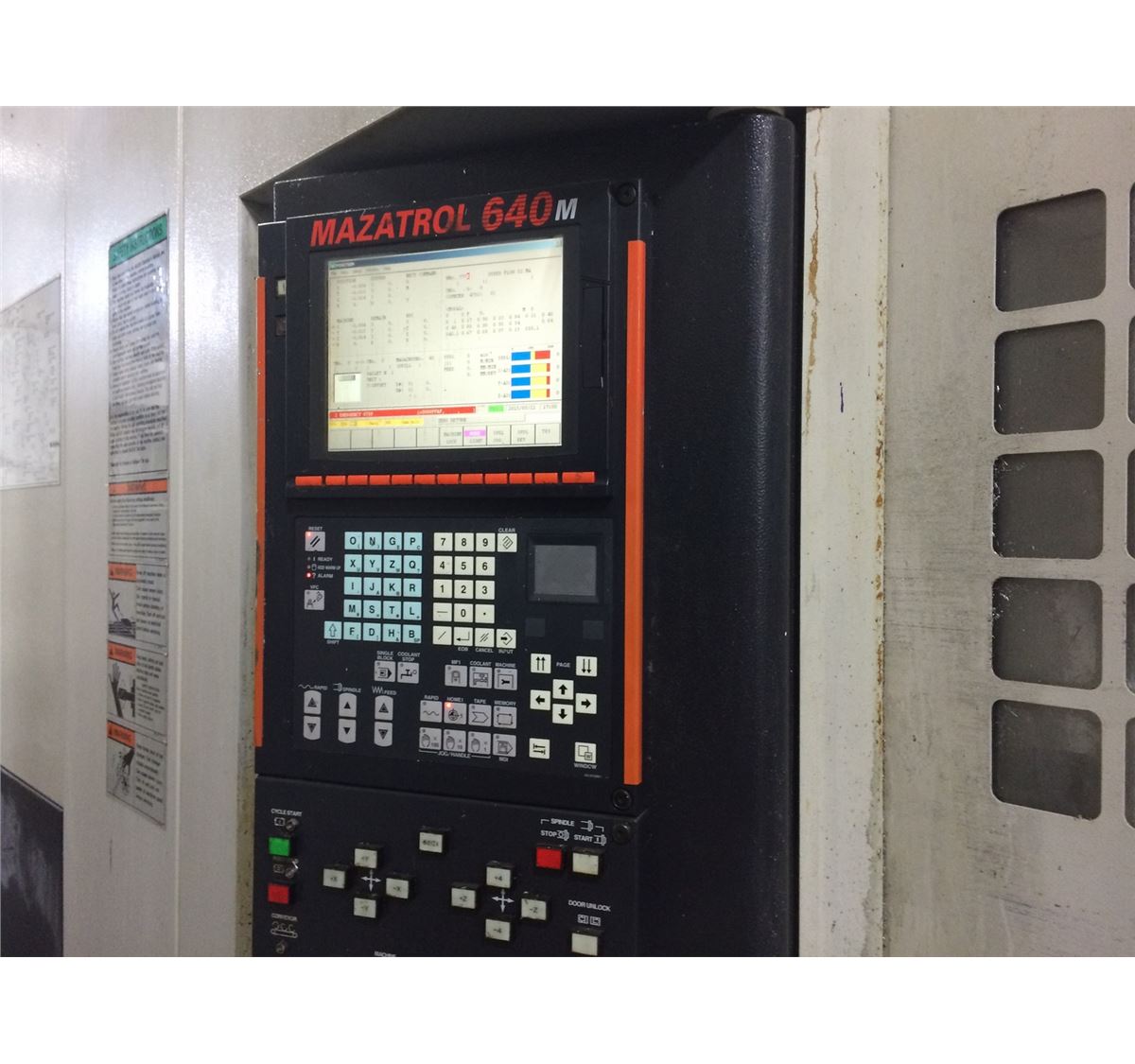

Control Mazatrol 640M

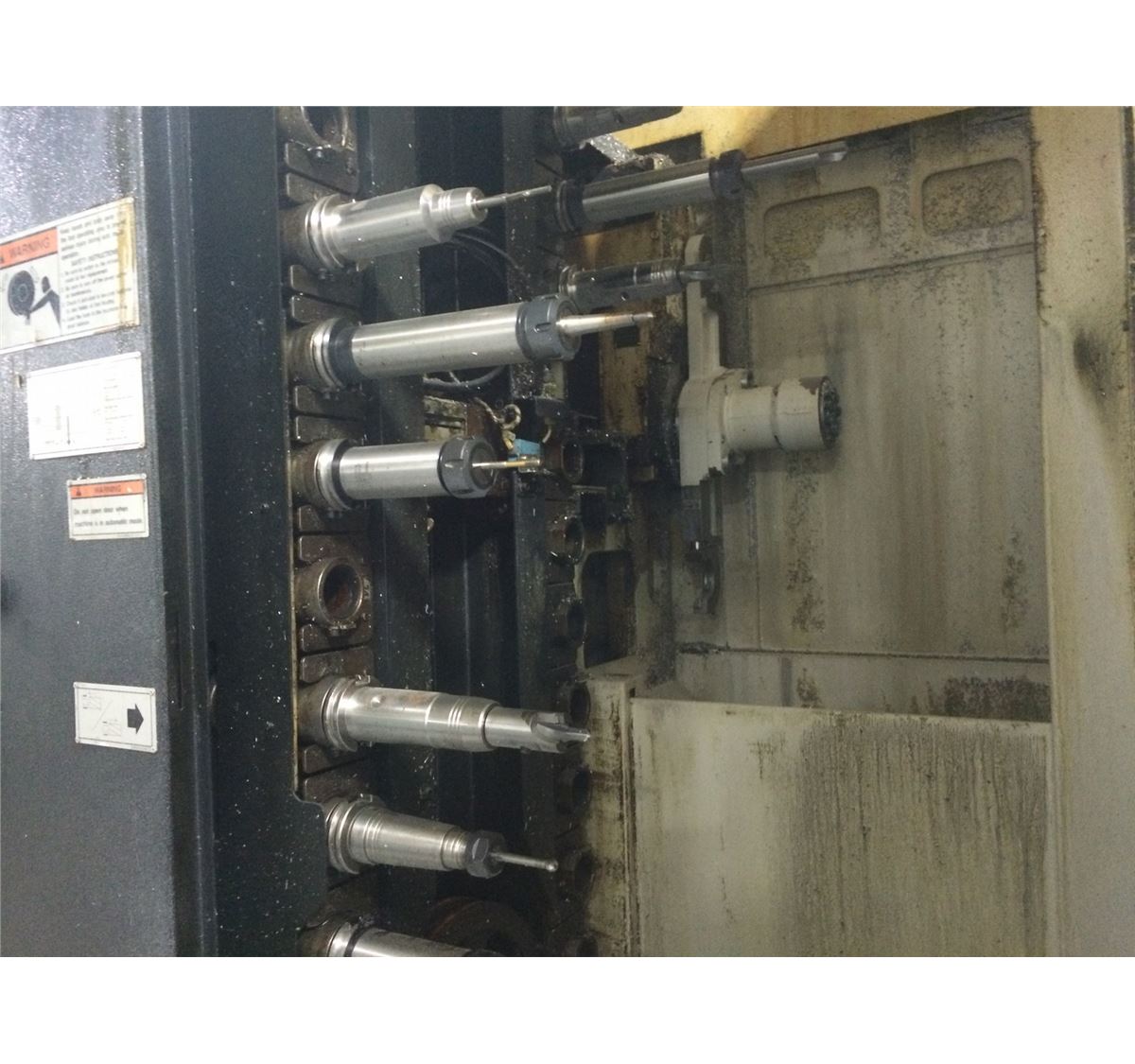

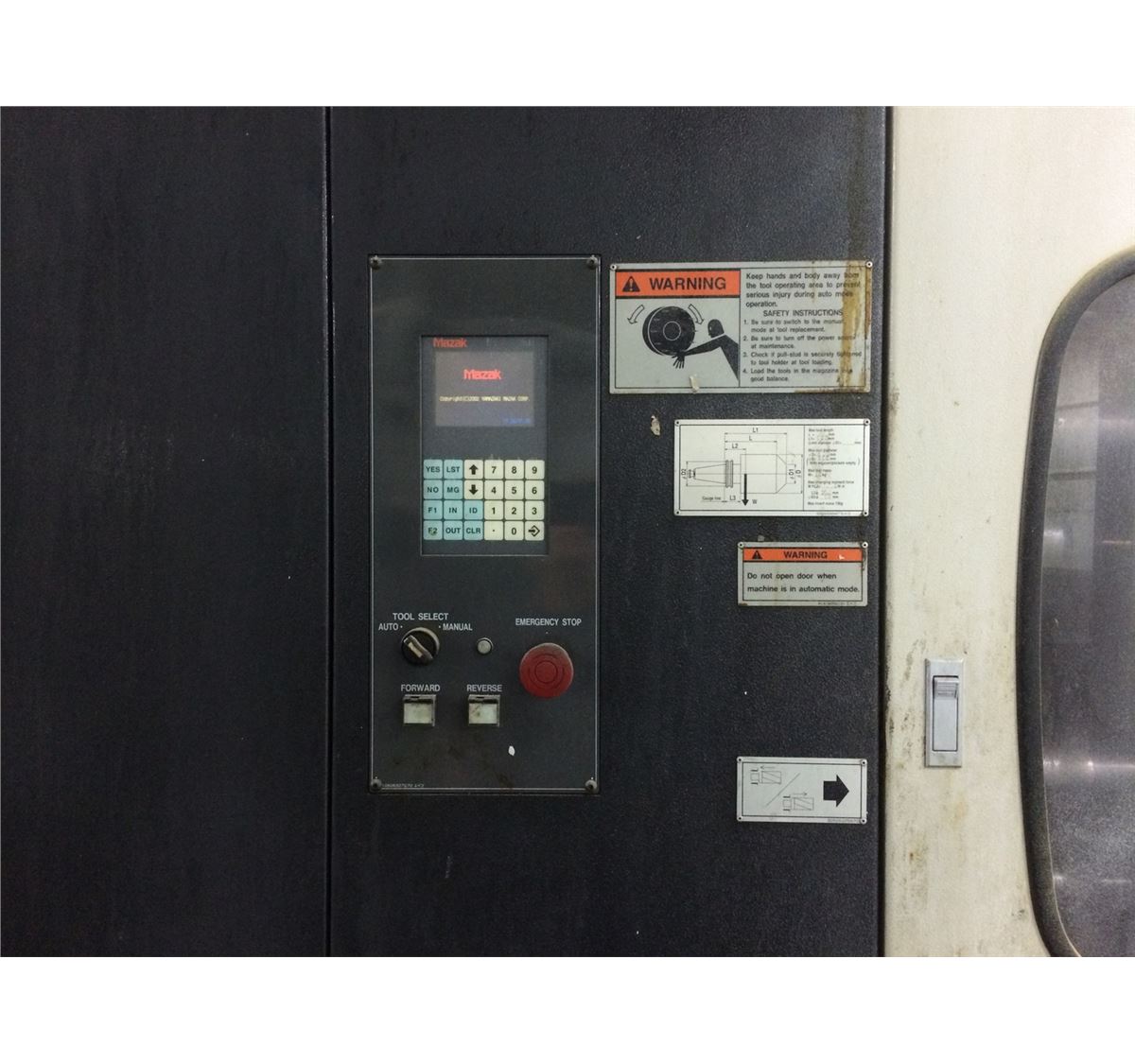

MAGAZINE CAPACITY: 40 ATC
TOOL-TO-TOOL TIME: 0.8 SECONDS
CHIP-TO-CHIP TIME (APPROX.): 2.7 SECONDS
MAXIMUM TOOL DIAMETER:3.74"
MAX.TOOL DIA.W/ADJACENT POCKETS EMPTY: 5.74"
MAXIMUM TOOL LENGTH: 15.75"
MAXIMUM TOOL WEIGHT: 26.5 LBS.
RAPID TRAVERSE RATE: 2362 IPM
FLOOR SPACE REQUIRED: 108.2" X 174.6" X 118.9”
MACHINE WEIGHT: 22,500 LBS.
THIS MACHINE NEED A POWER SUPPLY THE NUMBER IS
MITSUBISHI POWER SUPPLY MDS-CH-CV-370
a refurbished power supply is $4000
