Lagun FTV-1 Vertical Mill with DRO

Currency:USD Category:Business & Industrial / Metalworking - Equipment Start Price:1.00 USD
Lagun FTV-1 Vertical Mill with DRO
SOLD
1,000.00USD+ (150.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2018 Jun 21 @ 13:35UTC-4 : AST/EDT
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.

Appointments for inspections are available upon request, 8am-5pm M-F for each location. Please call 616-745-5953 or email sales@btmindustrial.com.

Current Locations:
Grand Rapids, MI
Muskegon, MI
Martin, MI
Kalamazoo, MI
Marne, MI
LOCATION: Walker, MI - CUSTOMER FACILITY
LOADING FEE: $50

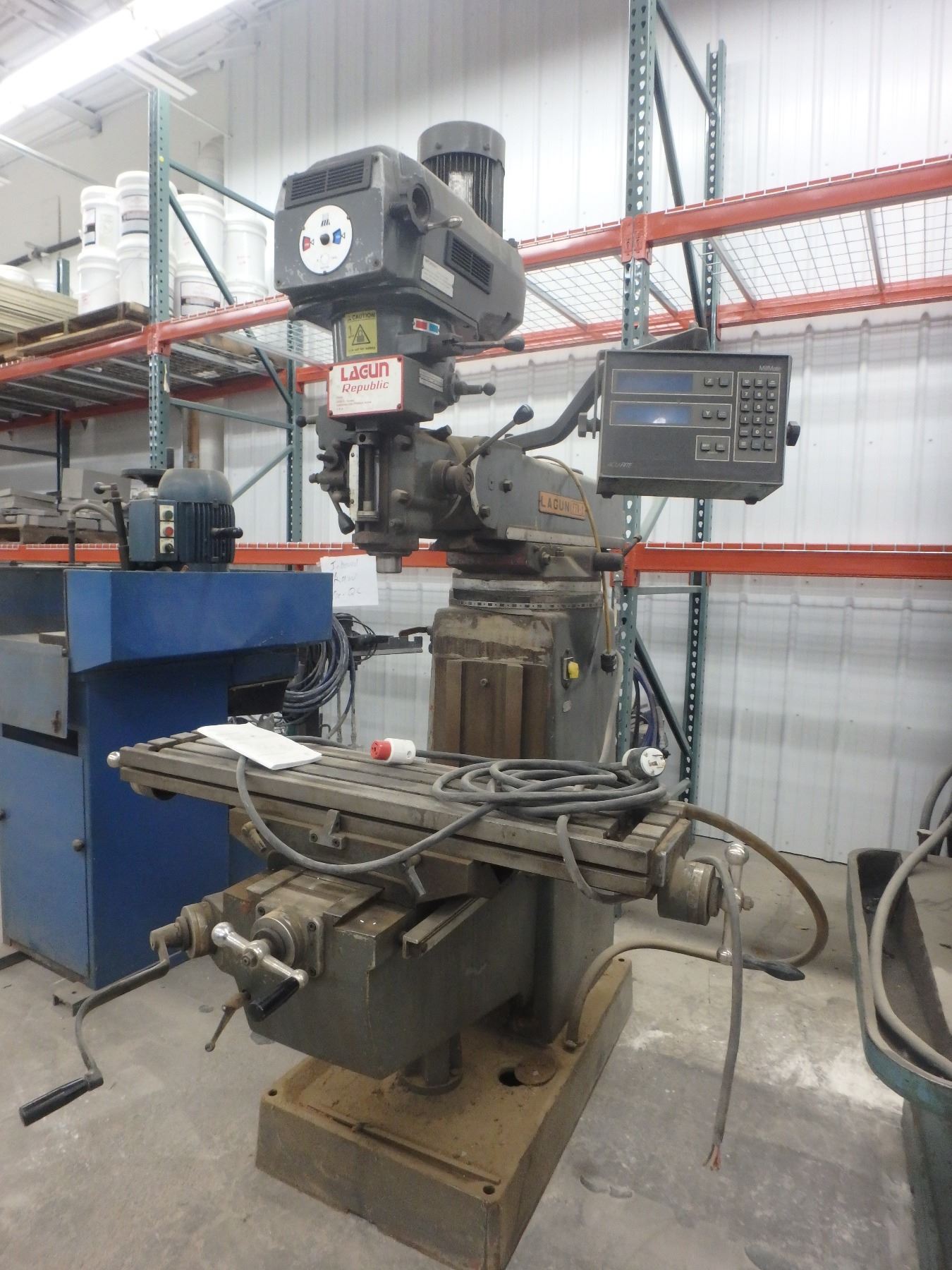

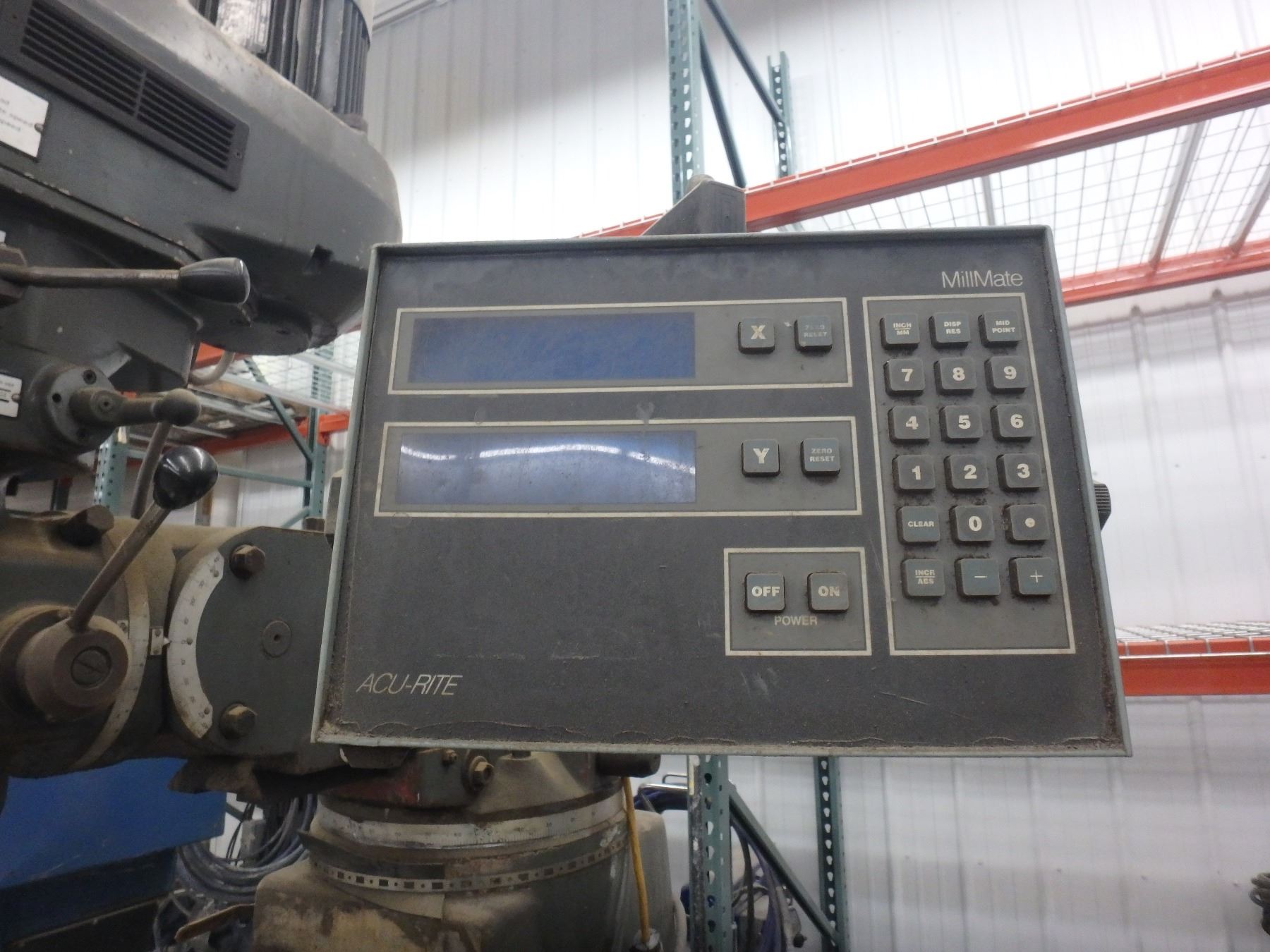

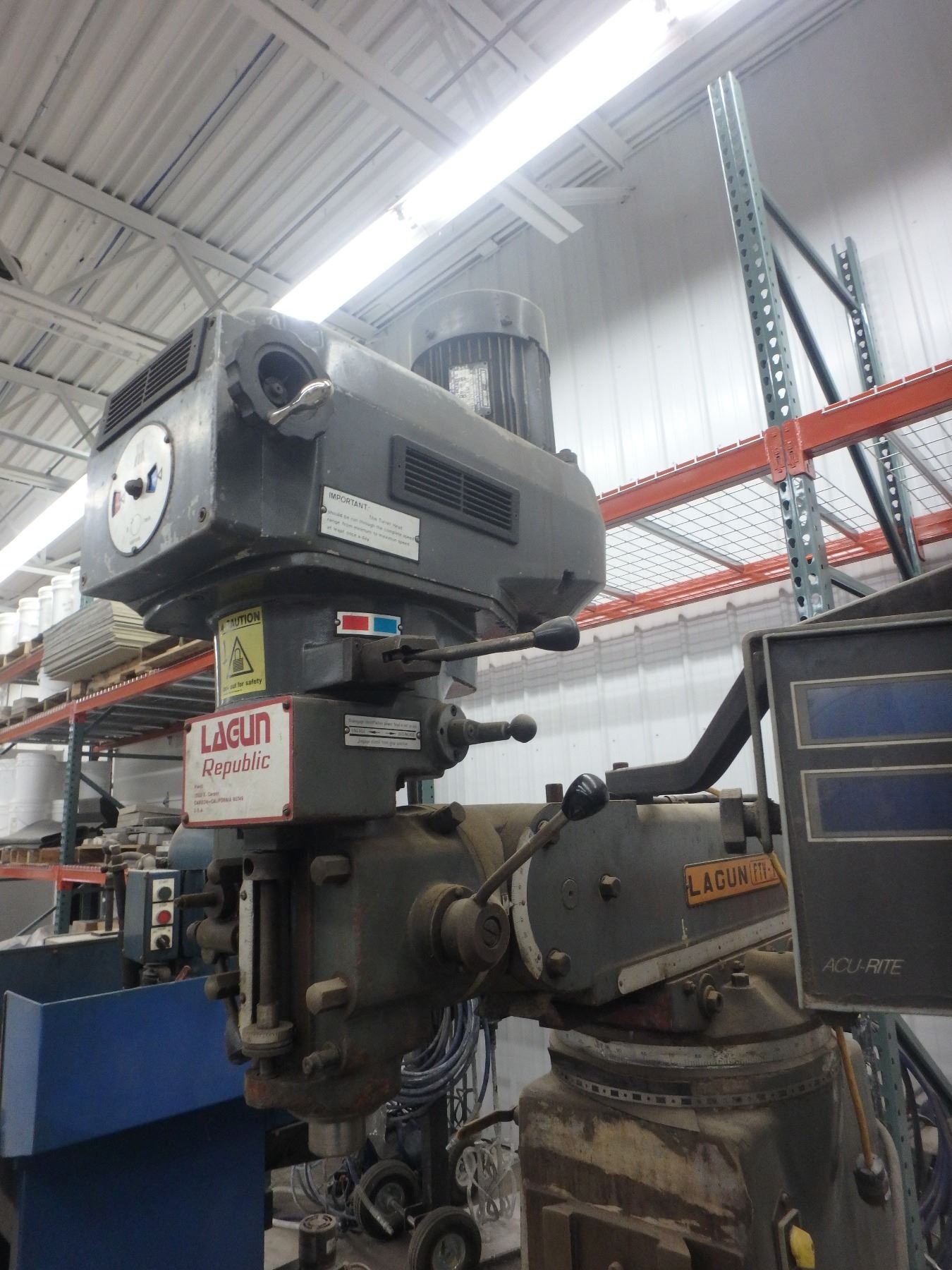

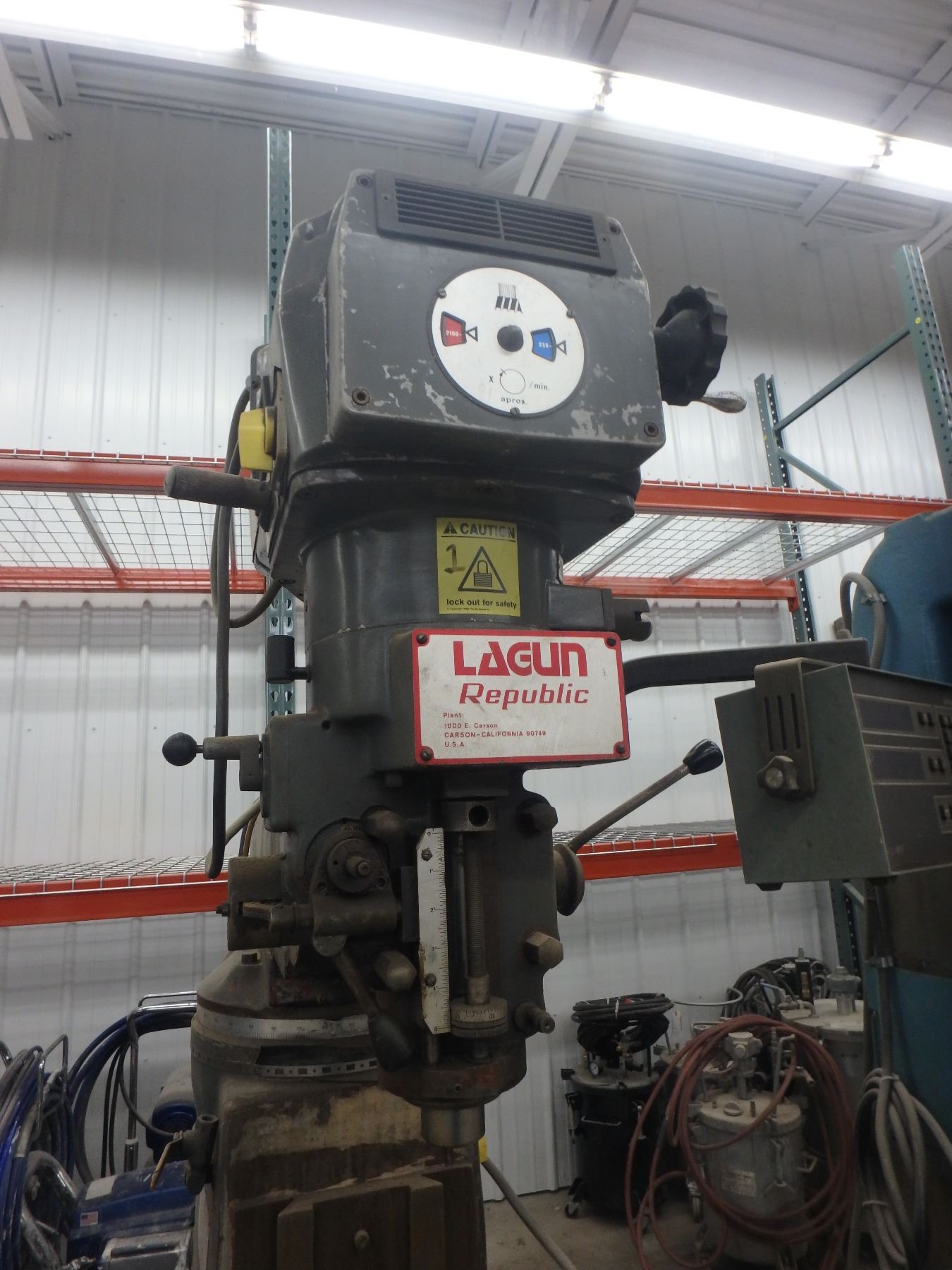

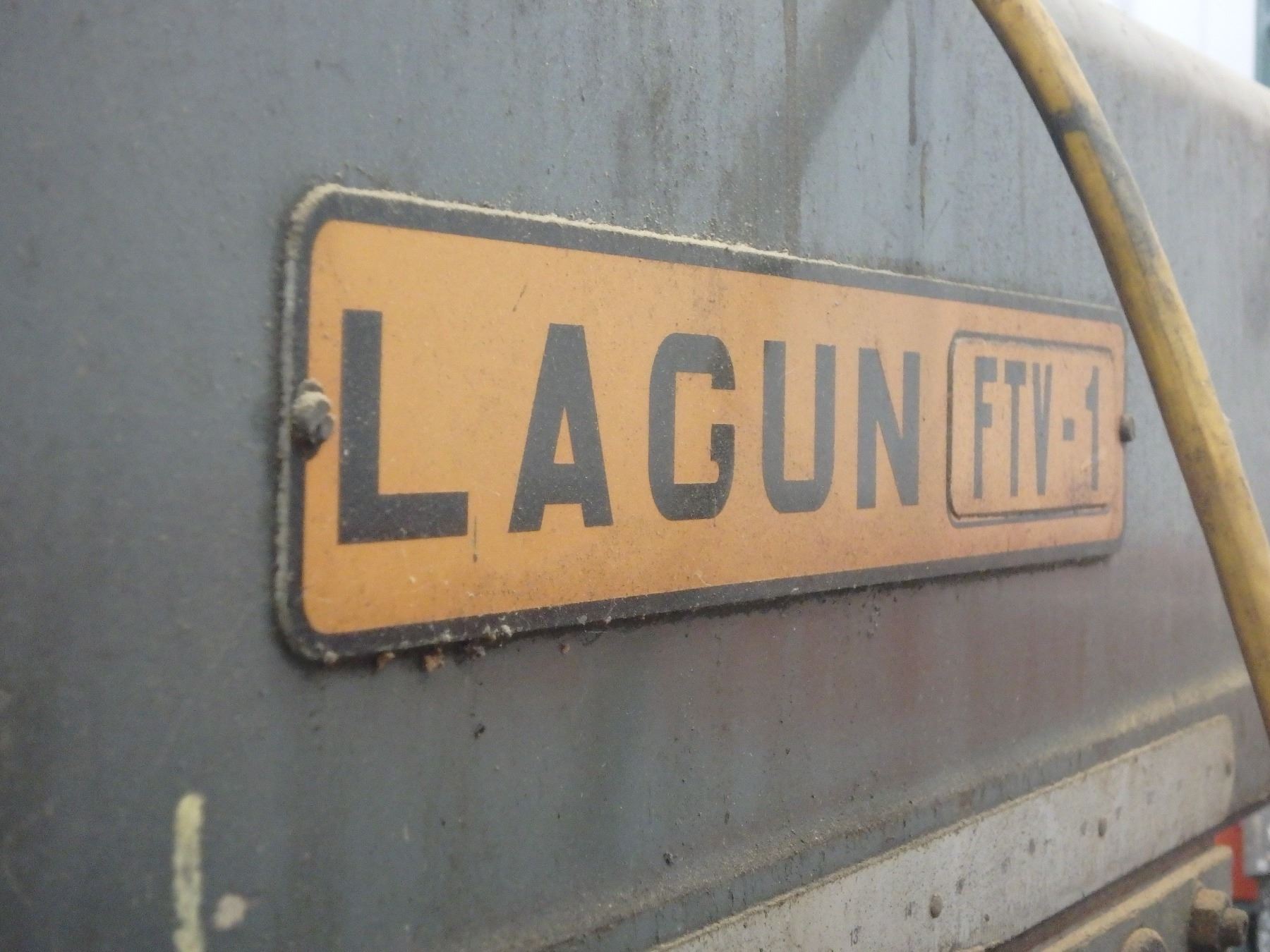

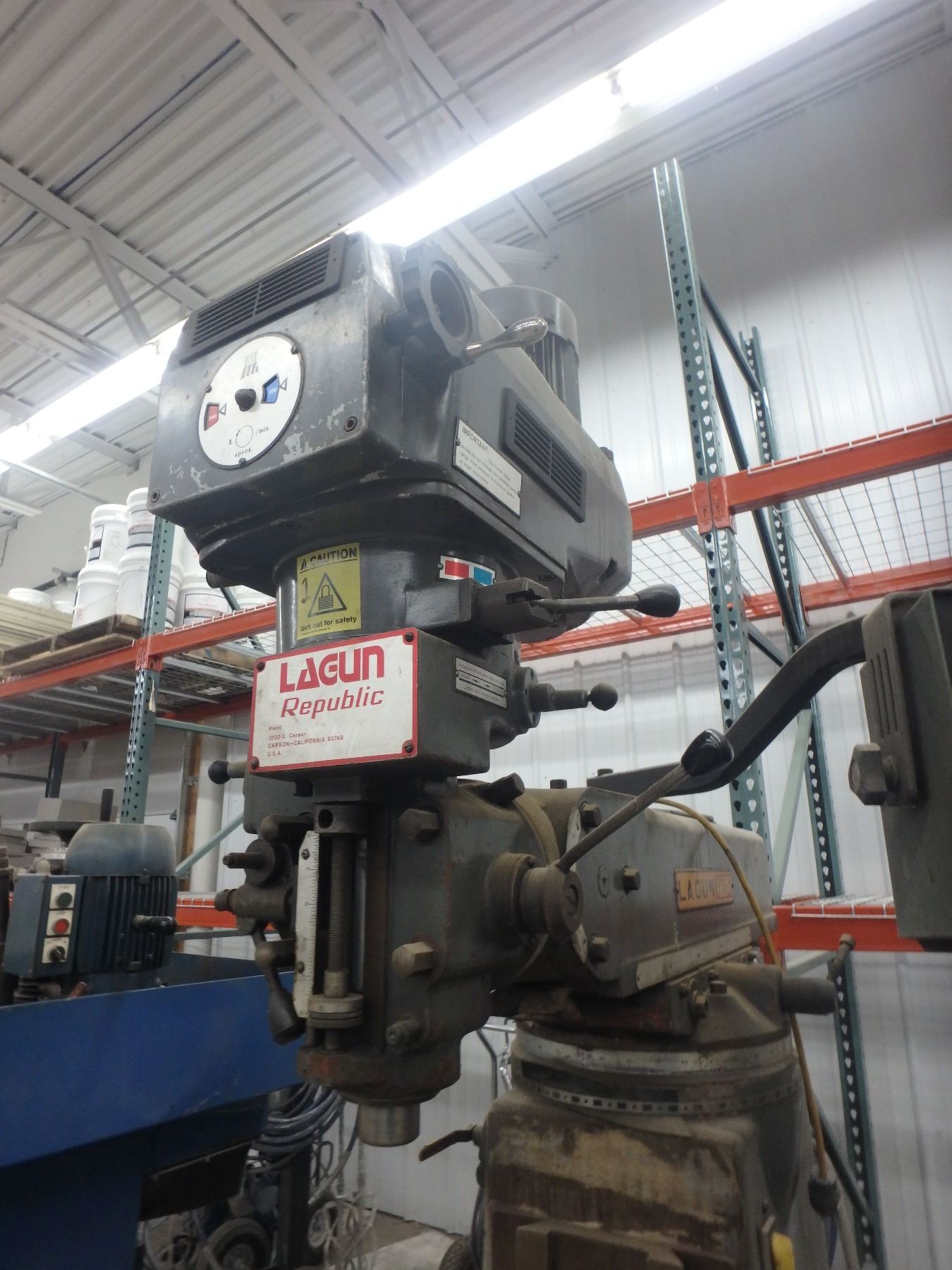

Lagun FTV-1 Vertical Mill with DRO

*NOTE*
Machine has been in storage for over a year, customer had thought they would put back in production, but that is no longer the case!

SPECIFICATIONS (found ONLINE, please verify independently)

Table Size 10 x 44


Weight on Table (max./lbs.) 750

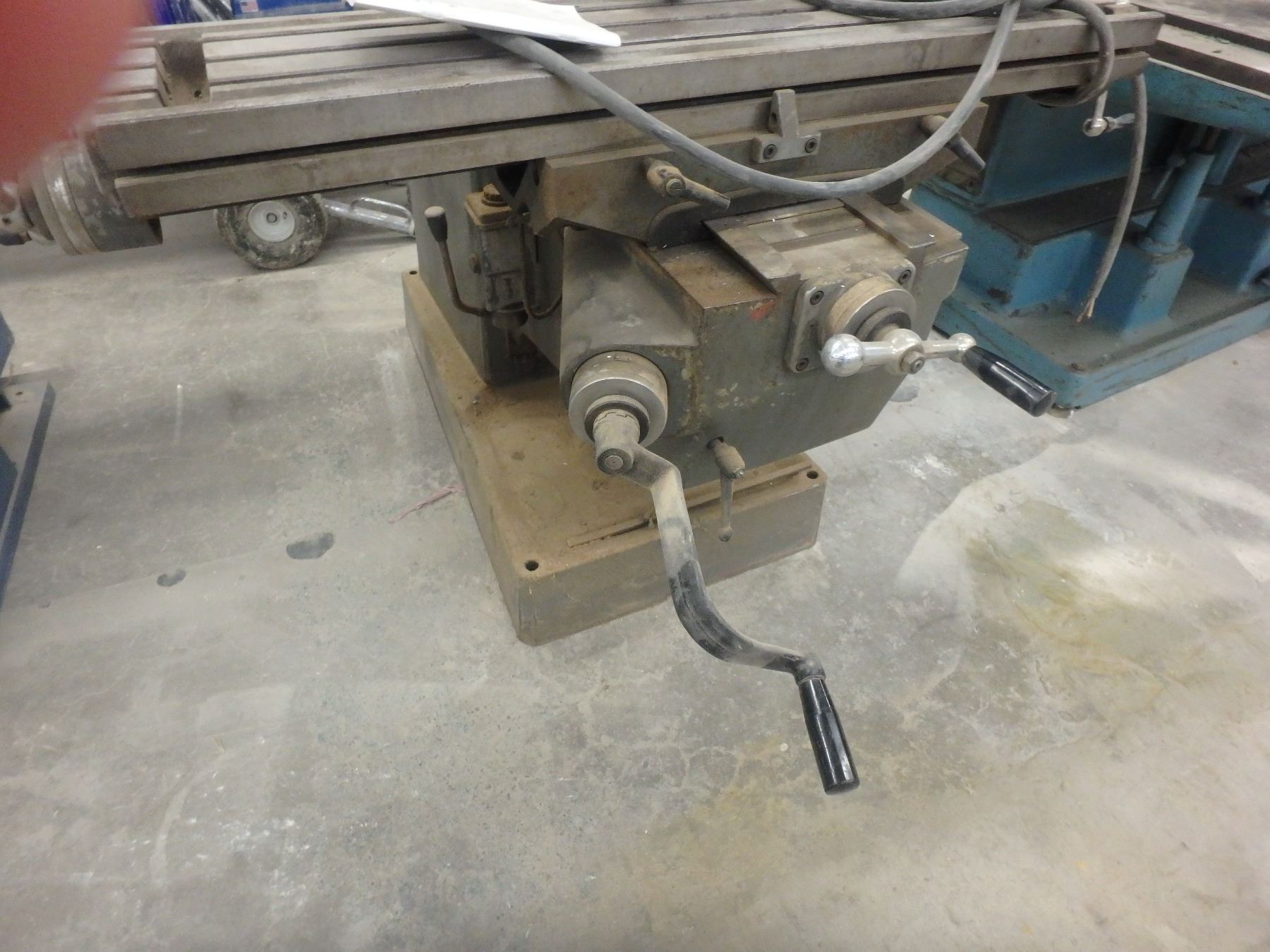

Table Longitudinal Travel - X-axis,
Manual/with Power Feed (in.) 30/26
Table Cross Travel - Y-axis (in.) 16
Table Knee Travel - Z-axis (in.) 16

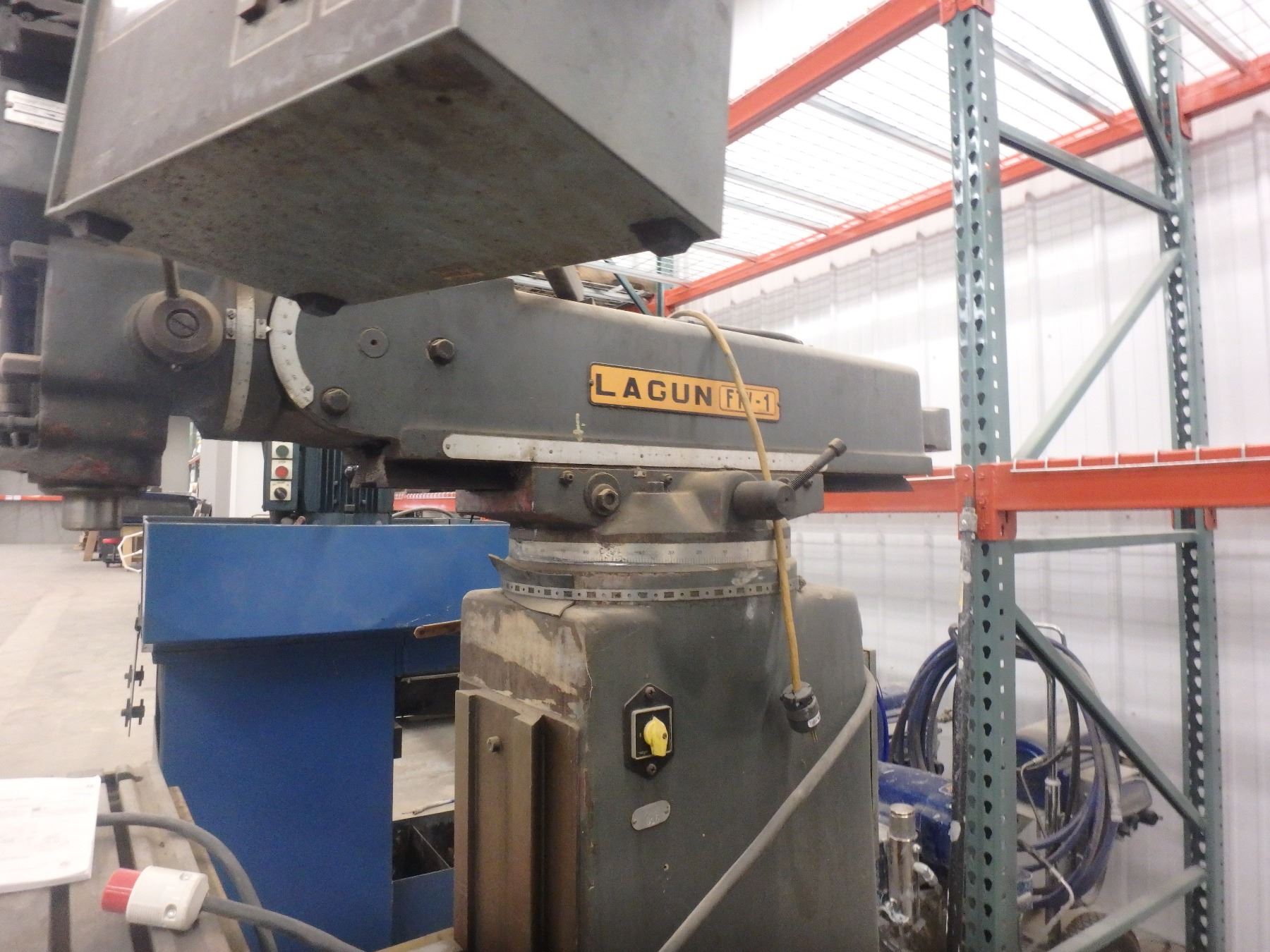

Ram Travel (in.) 22-3/16
Spindle Taper R-8
Quill Diameter (in.) 3-3/8
Quill Travel (in.) 5
Number of Spindle Speeds, Infinite Variable Speed
Range of Spindle Speeds (RPM) 55 - 4,250
Power Quill Feeds (in./rev.) 0.0015, 0.003, 0.006
Head Tilt, Front/Rear ± 45o
Head Swivel, Left/Right ± 90o
Distance Spindle to Table (max./in.) 18
Distance Spindle to Column (min./in.) 5
Distance Spindle to Column (max./in.) 27

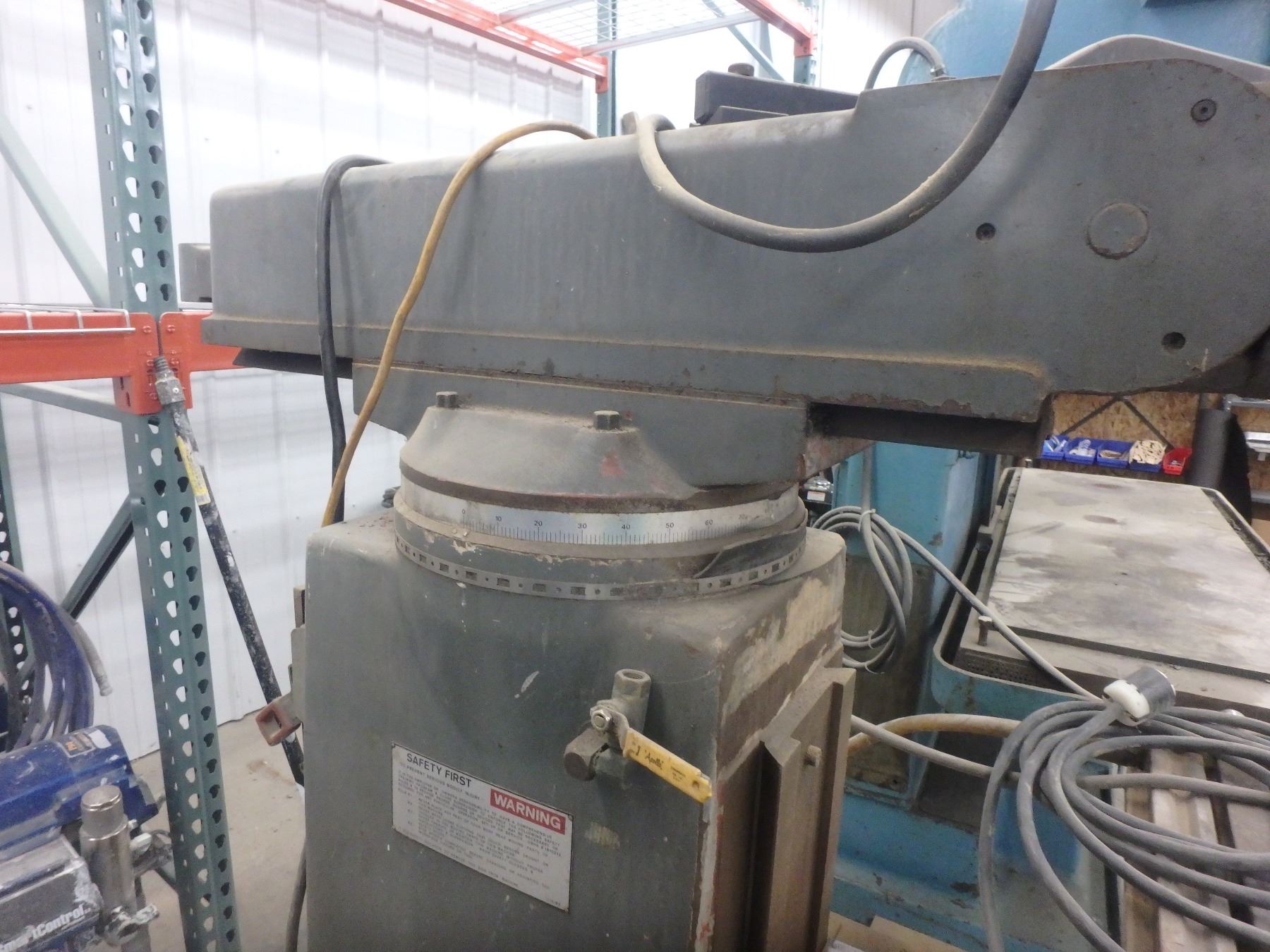

Column Turret Diameter, Graduated (in.) 15

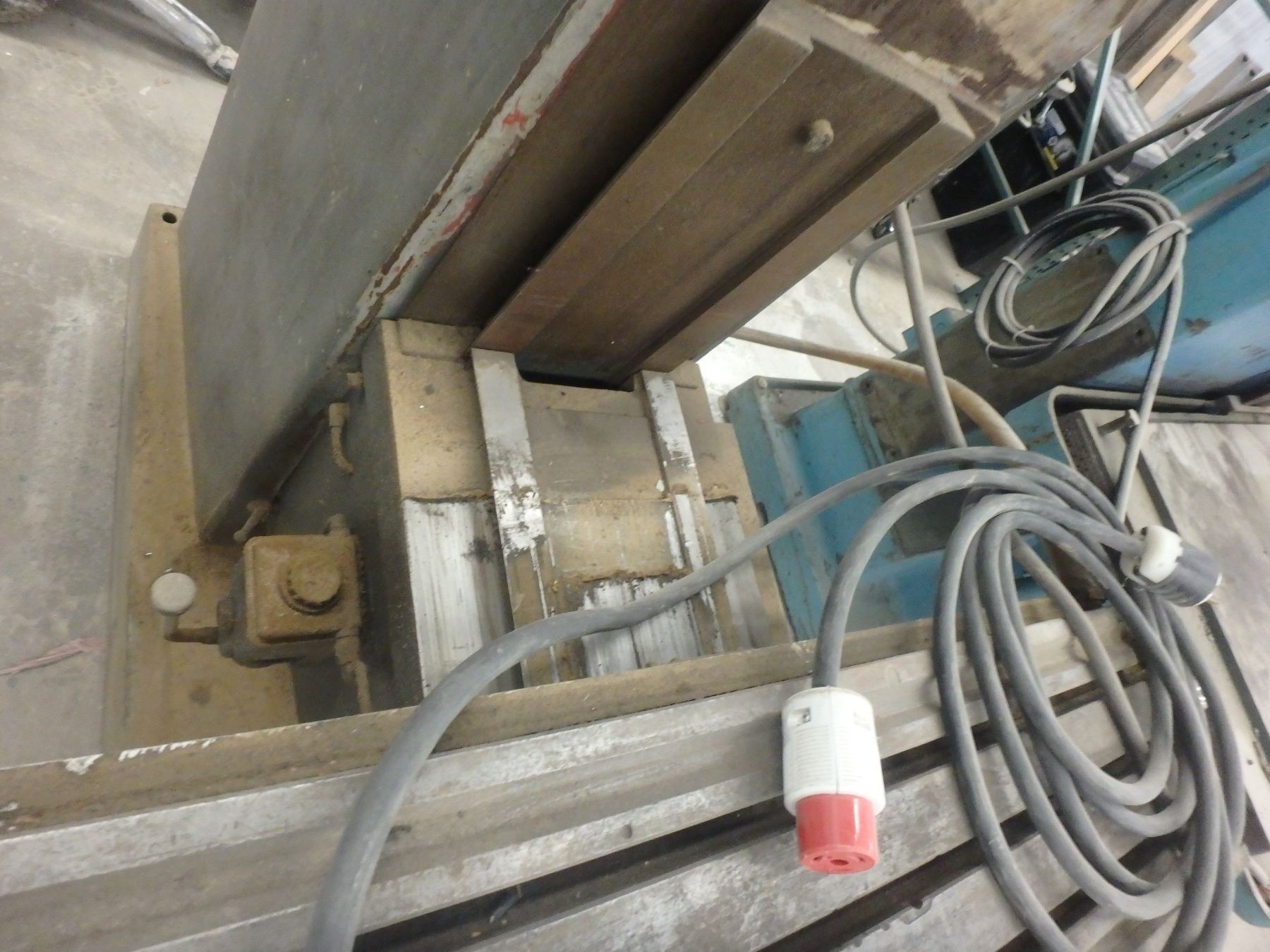

Knee Width (in.) 11-1/2
Knee to Column Bearing Length (in.) 18
Saddle and Table Bearing Length (in.) 20
Ram and Turret Bearing Length (in.) 19
Ram Length (in.) 36

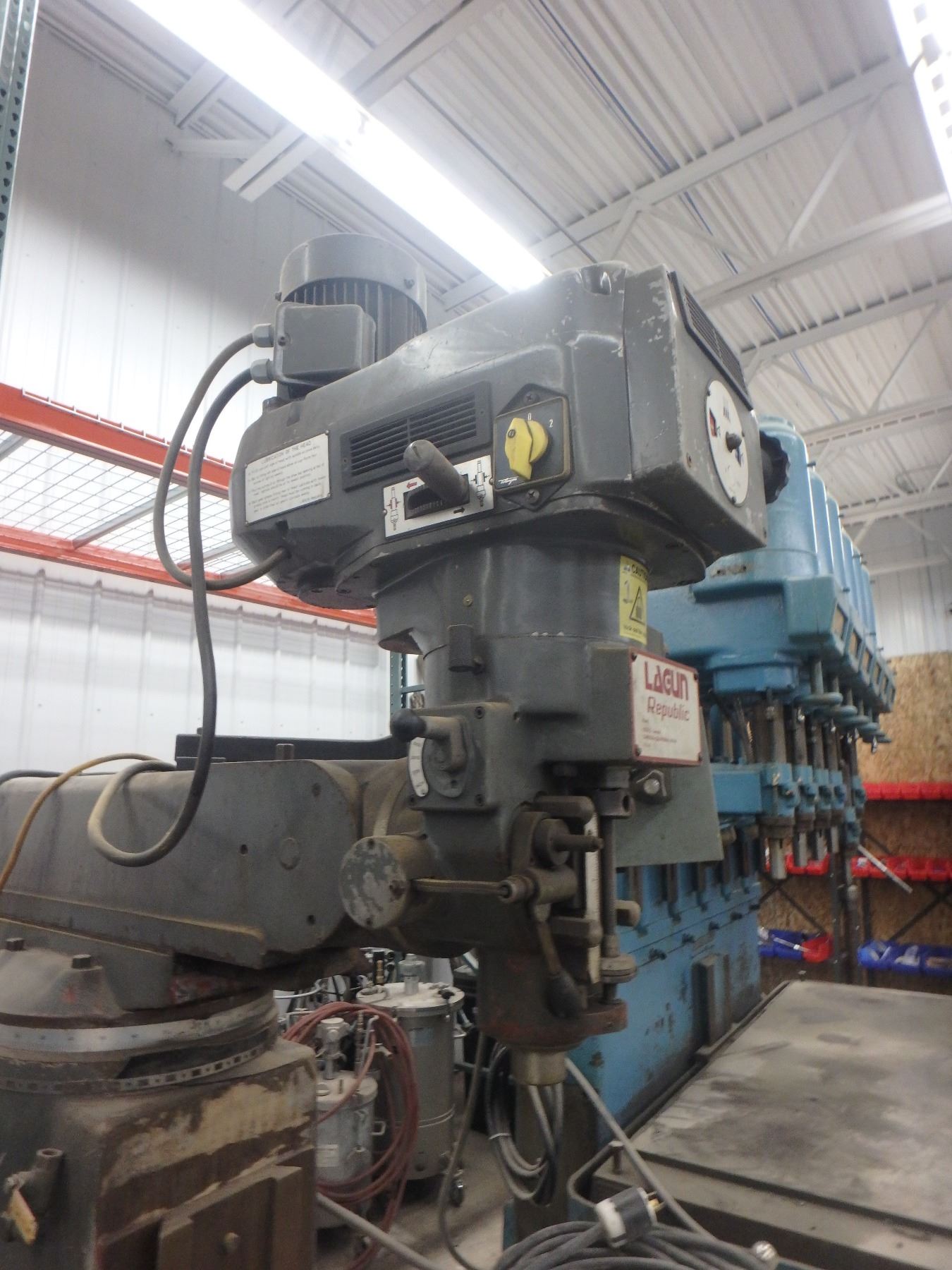

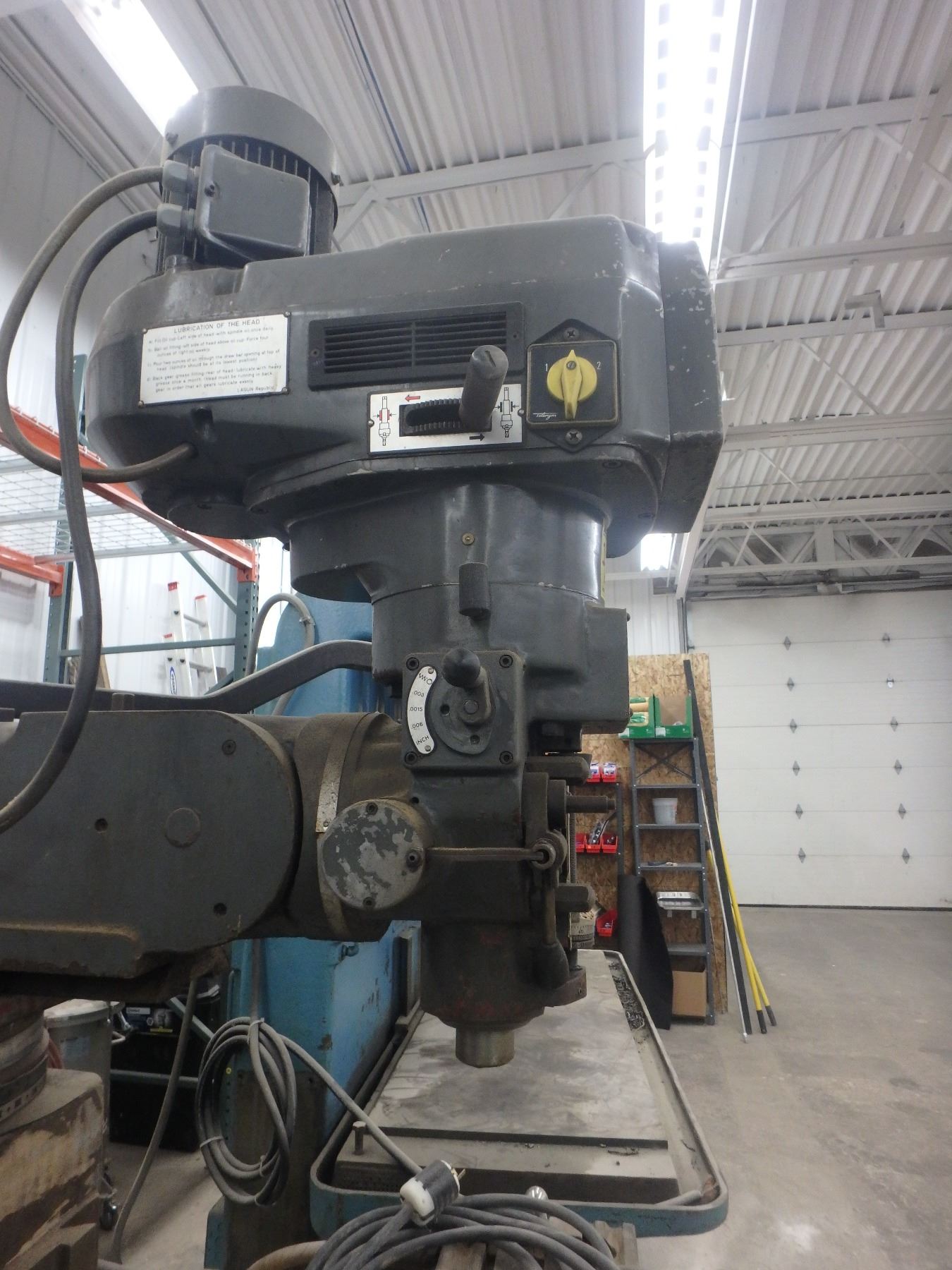

Main Motor 3 HP,
220V/440V/3 Phase, Prewired 220V
Overall Dimensions (in./W x D x H) 61-1/2 x 63 x 104
Net Weight (lbs.) 2,750
