Hyd Mech V-12A Vertical Bandsaw

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
Hyd Mech V-12A Vertical Bandsaw
SOLD
1,075.00USD+ (161.25) buyer's premium + applicable fees & taxes.
This item SOLD at 2014 Apr 17 @ 13:10UTC-4 : AST/EDT
LOCATION: Grand Rapids, MI Consignment Warehouse

LOADING FEE: $300

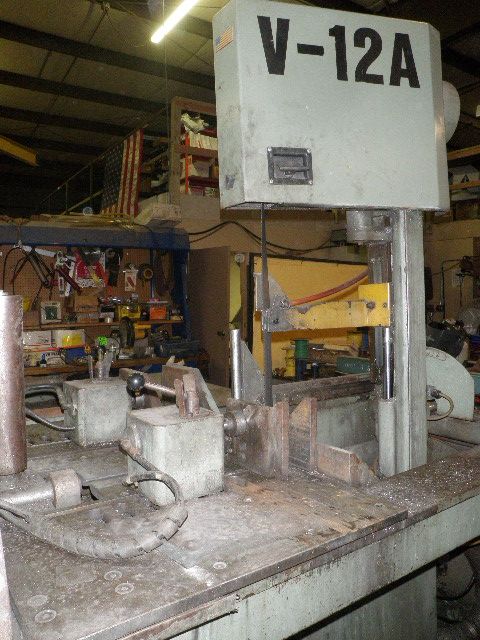

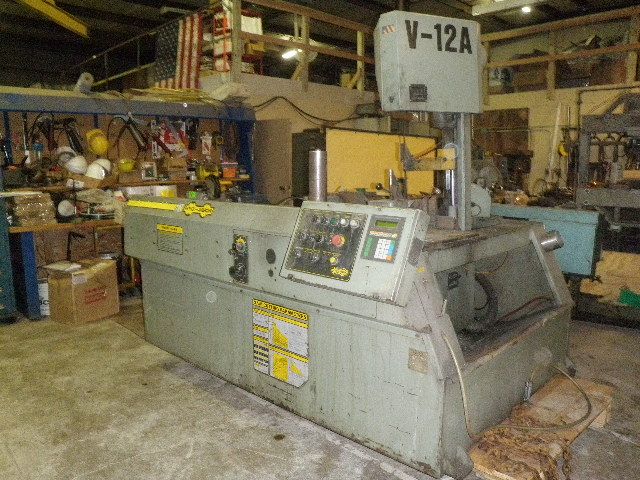

Hyd Mech V-12A Vertical Bandsaw.
Unit operational in manual, but auto feed does not function properly!

For Video click below
Click Here
Hydmech Bandsaw Model No. V-12A Sold AS-is
Capacity
At 90° Vertical
Rectangular:
Round:

14" (w) x 18" (h)
17.5" diameter


457 mm (w) x 508 mm (h)
445 mm diameter

With 6° Cant
Rectangular:
Round:
12" (w) x 12" (h)
17.5" diameter

457 mm (w) x 457 mm (h)
445 mm diameter
With Extended Head
Rectangular:
Round:
14" (w) x 24" (h)
17.5" diameter
457 mm (w) x 787 mm (h)
445 mm diameter
Extended Head & 6° Cant
Rectangular:
Round:
18" (w) x 28" (h)
17.5" diameter
457 mm (w) x 711 mm (h)
445 mm diameter
Bundling
Rectangular:
Round:
12" (w) x 12" (h)
12" diameter
304 mm (w) x 304 mm (h)
304 mm diameter

At 45° Tilt
Rectangular:
Round:
12" (w) x 13" (h)
13" diameter

457 mm (w) x 330 mm (h)
330 mm diameter
With 6° Cant
Rectangular:
Round:
12" (w) x 12" (h)
12" diameter
457 mm (w) x 304 mm (h)
304 mm diameter

With Extended Head
Rectangular:
Round:
18" (w) x 21" (h)
17.5" diameter
533 mm (w) x 533 mm (h)
445 mm diameter
Extended Head & 6° Cant
Rectangular:
Round:
18" (w) x 19" (h)
17.5" diameter
457 mm (w) x 482 mm (h)
445 mm diameter

Bundling
Rectangular:
Round:
12" (w) x 12" (h)
12" diameter

304 mm (w) x 304 mm (h)
304 mm diameter
Blade
Length:
Width:
Thickness:
13'
1 1/4"
.035"

4546 mm
32 mm
0.9 mm

Blade Speed: 65-385 SFM
20-117 m/min

Blade Guides: Carbide Carbide
Blade Wheel Diameter: 19" 482 mm
Blade Drive:
5 hp
5.5 kW

Hydraulic System:
650 psi
4482 kPa

Hydraulic Tank Capacity:
7 U.S. Gallons
26 litres

Hydraulic Drive: 2 hp 1.5 kW
Coolant Tank: 20 U.S. Gallons 75 litres
Vise Control:
Hydraulic
Hydraulic
Table Height: 38" 965 mm
Machine Weight: 4,500 lbs 2045 kg
Dimensions: 80" wide
108''" long
97" high 2032 mm wide
3048 mm long
2464 mm high
