Hurco KM-3 CNC mill

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
Hurco KM-3 CNC mill
SOLD
1,575.00USDto h********u+ buyer's premium (236.25)
This item SOLD at 2016 Jan 20 @ 14:55UTC-5 : EST/CDT
Location Grand Rapids MI
Loading Fee $200

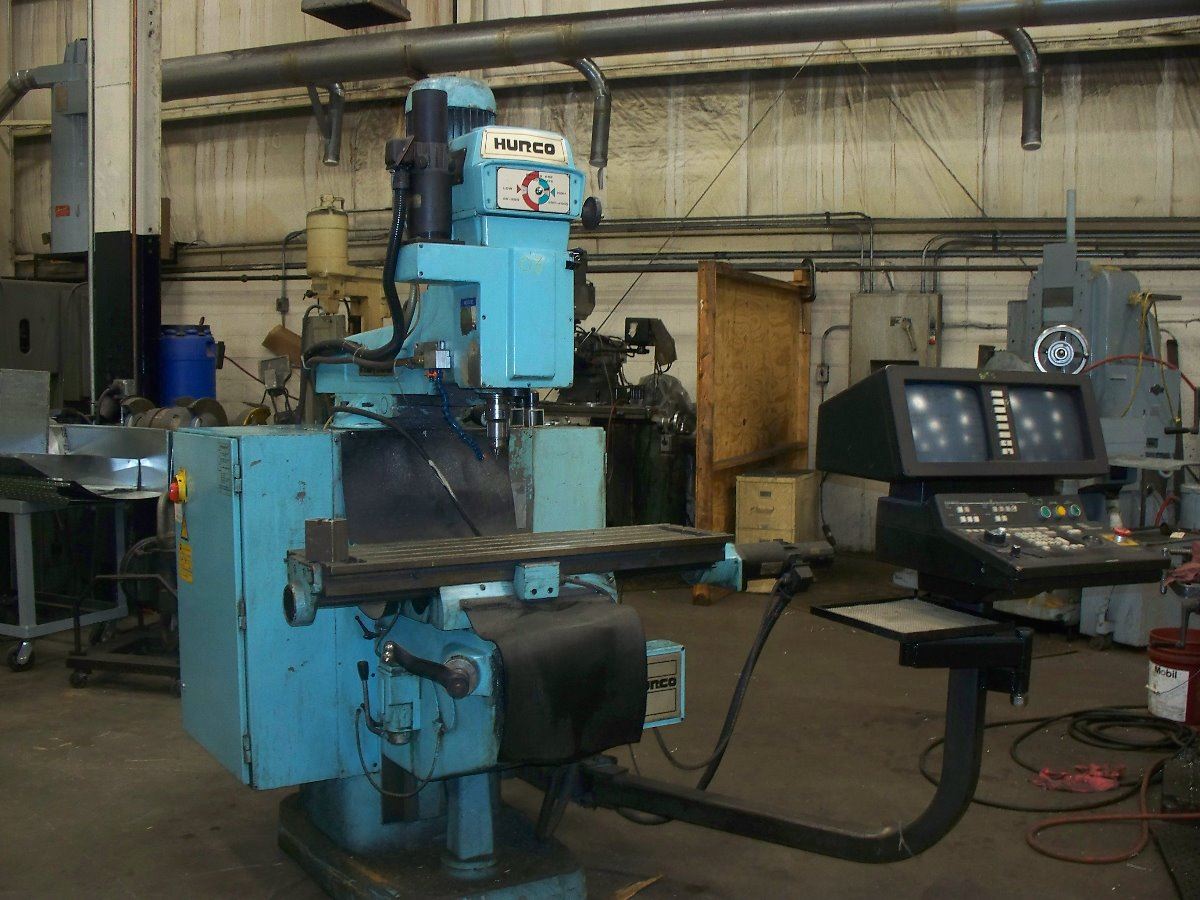

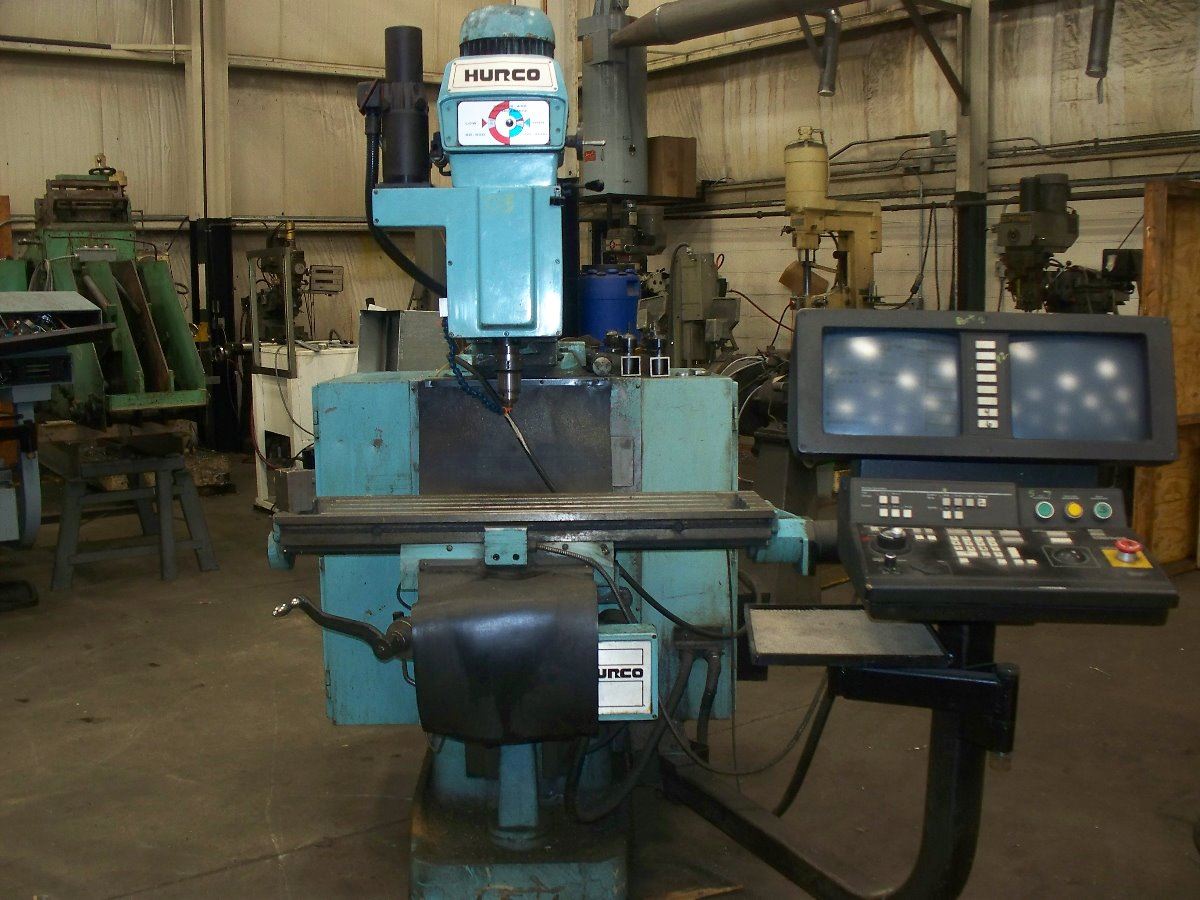

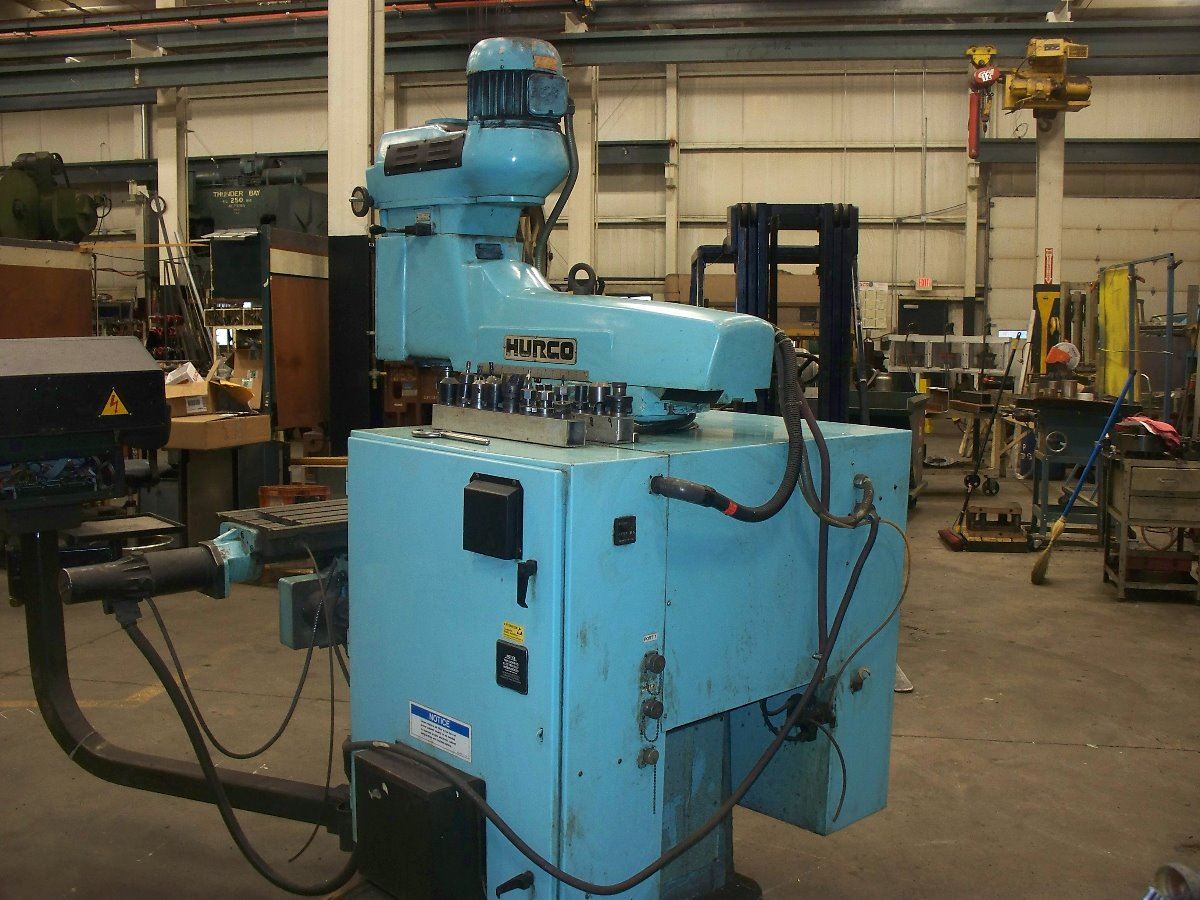

Hurco KM-3 CNC mill

Hurco KM3

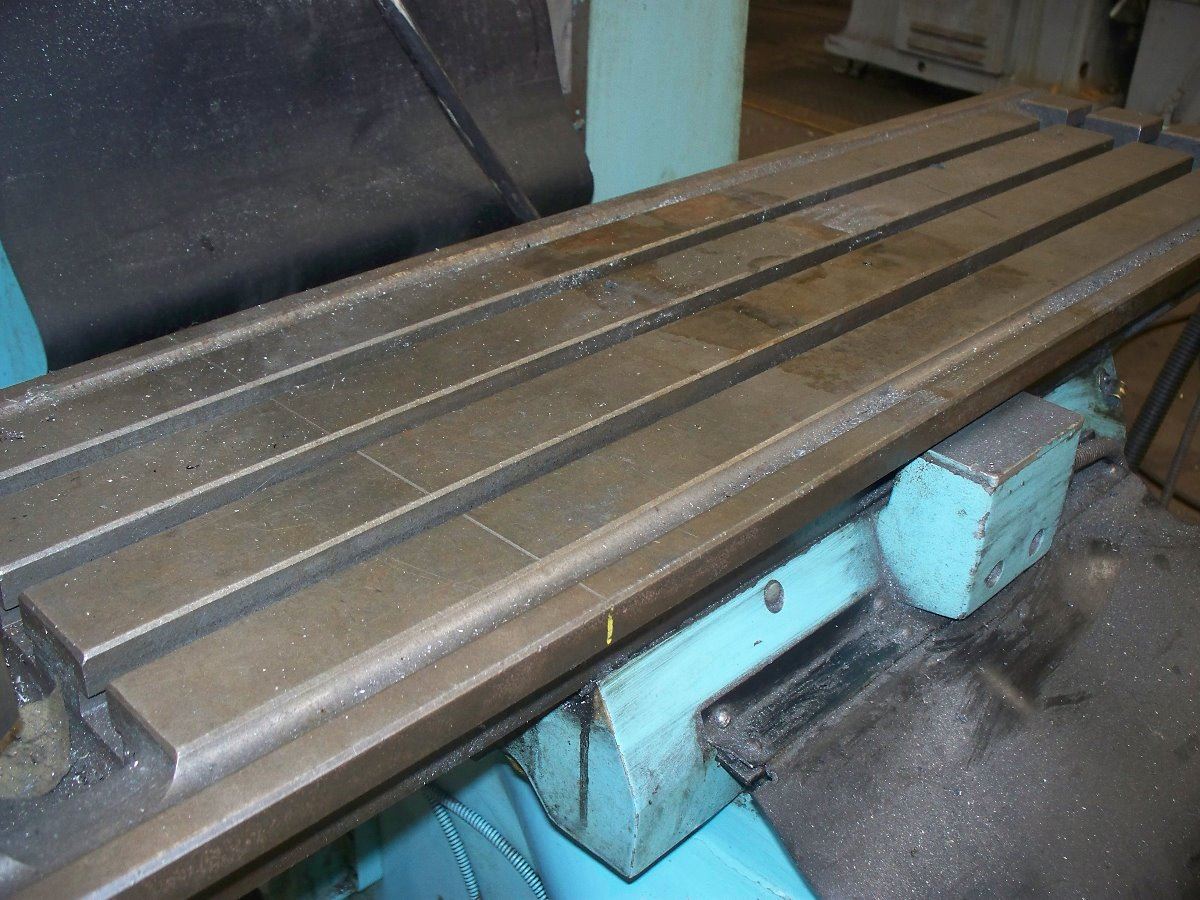

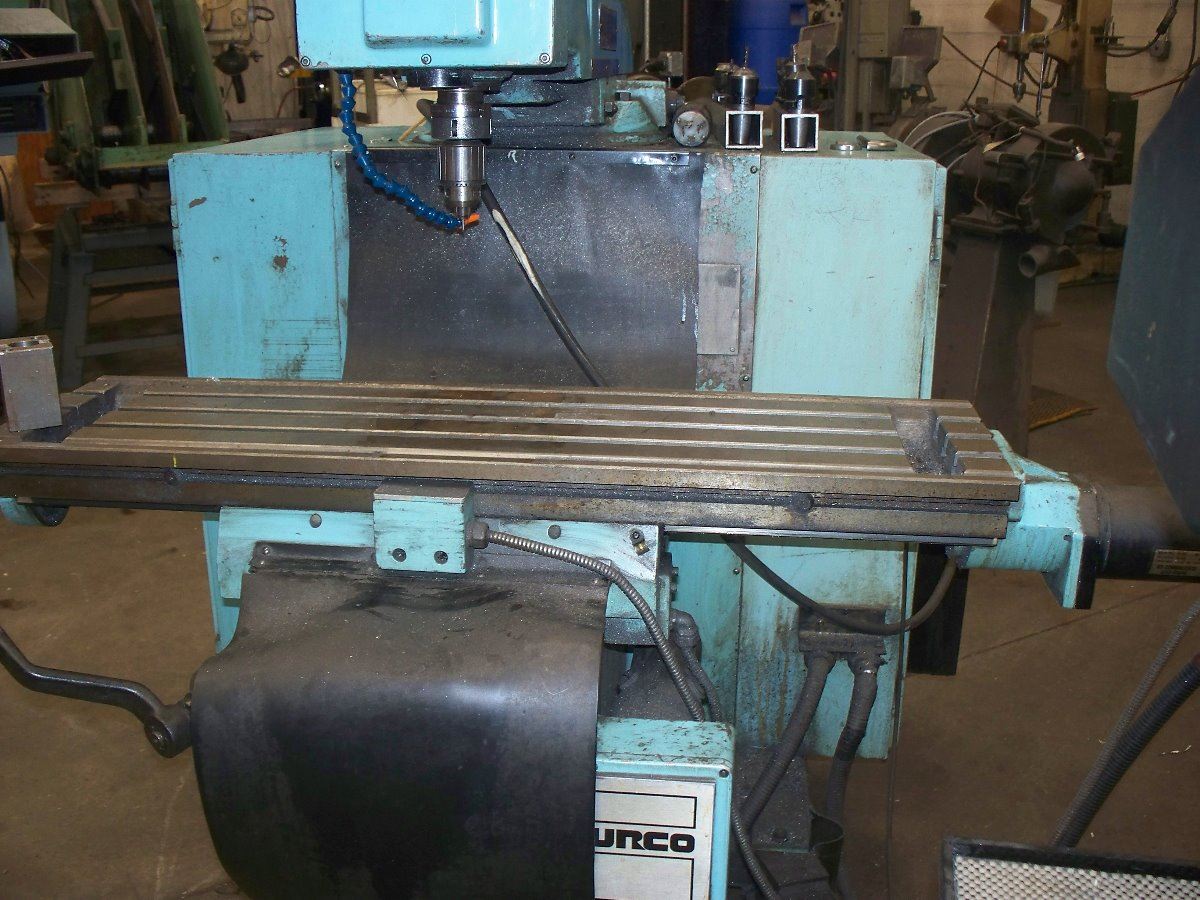

Table Working Surface................................ 12" x 42"
Table Load Capacity.................................. 500 LBS
Longitudinal Travel (X-Axis)......................... 24"
Cross Travel (Y-Axis)................................ 13.7"
Vertical Travel (Z-Axis)............................. 5"
Knee Travel (Manual)................................. 15.5"
Ram Travel........................................... 14"
Maximum Clearance Table Top to Spindle Nose.......... 19"
Maximum Feed Rate, All Axes.......................... 150 IPM
Rapid Traverse Rate, All Axes........................ 250 IPM
Spindle Horsepower................................... 3 HP

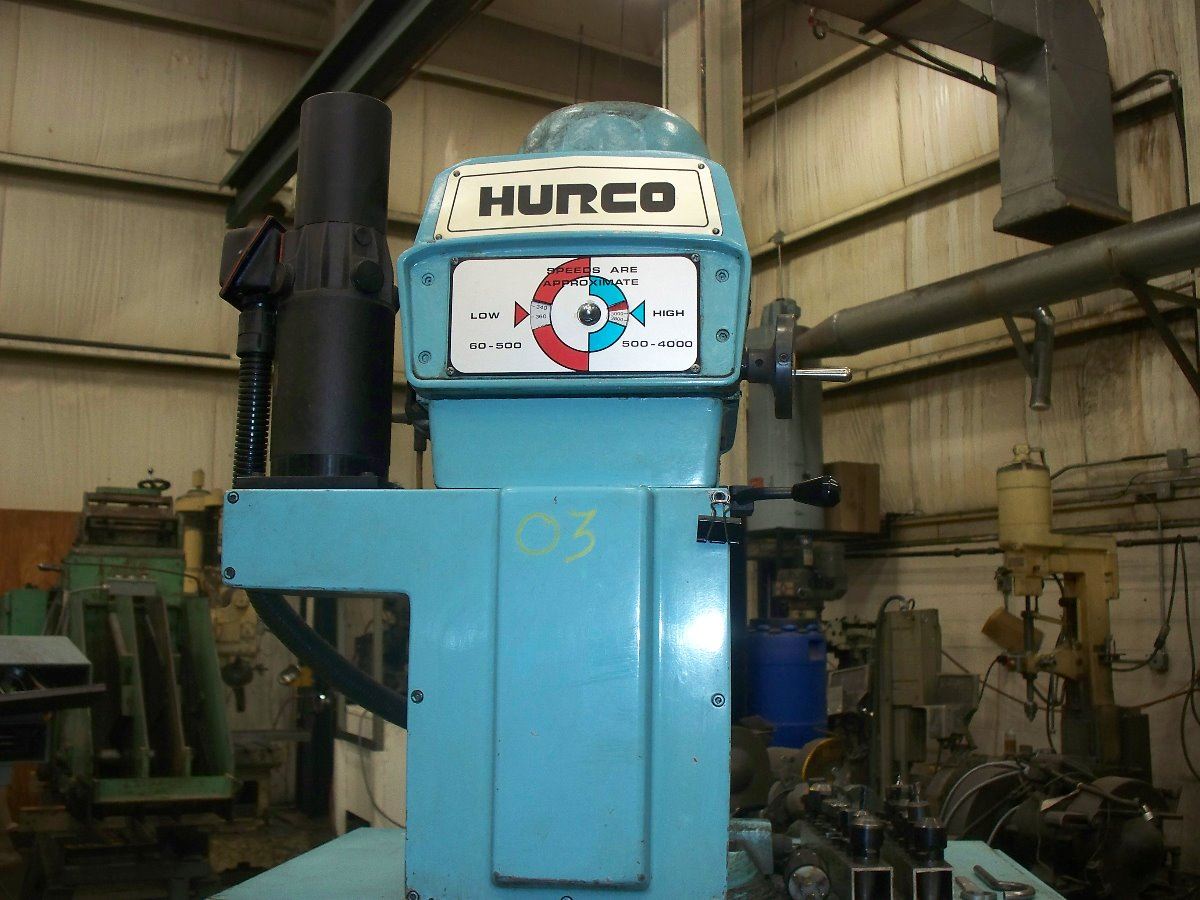

Spindle Speeds, Range................................ 60-4000 RPM

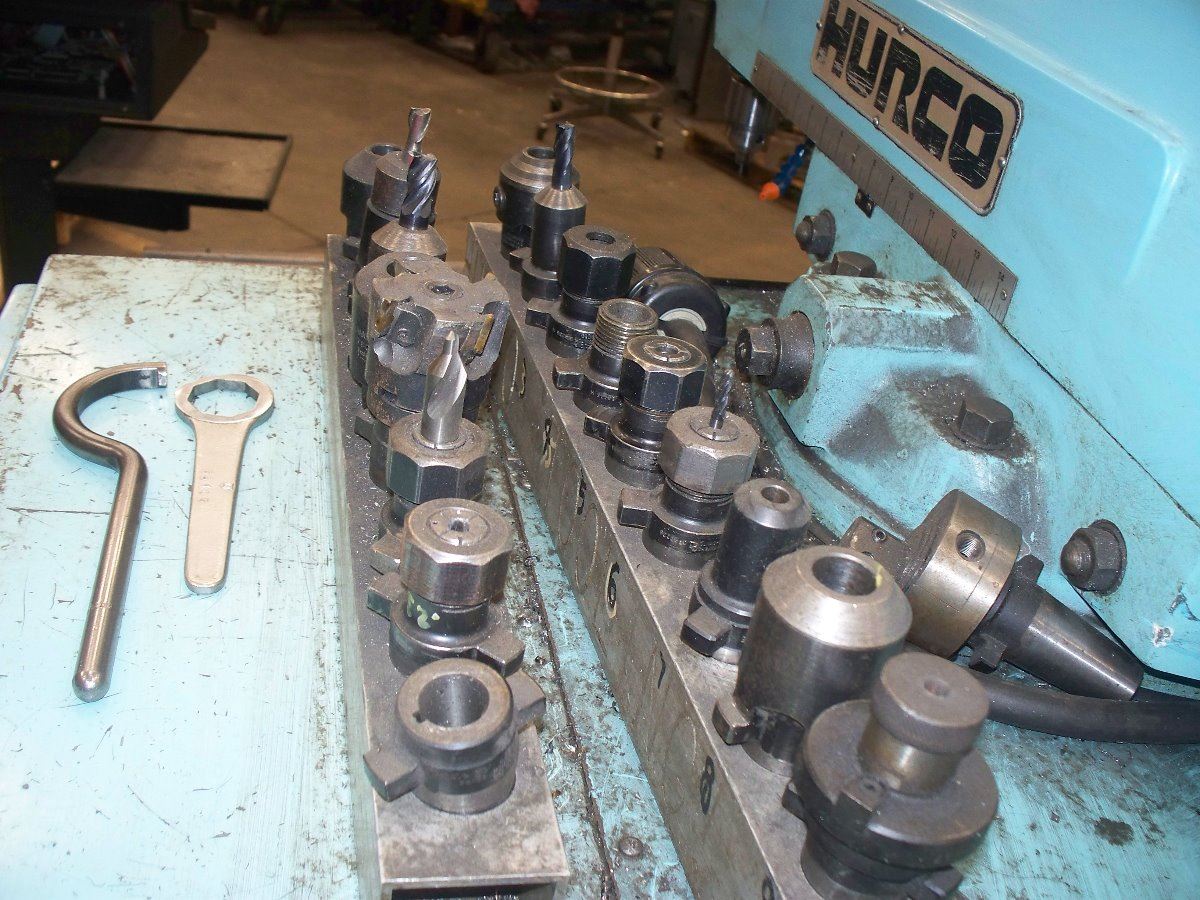

Spindle Taper........................................ Universal #200
Approximate Machine Dimensions....................... 98" x 101"
Approximate Machine Height........................... 83"
Approximate Machine Weight........................... 2,900 LBS

Machine not under power stored in heated building
