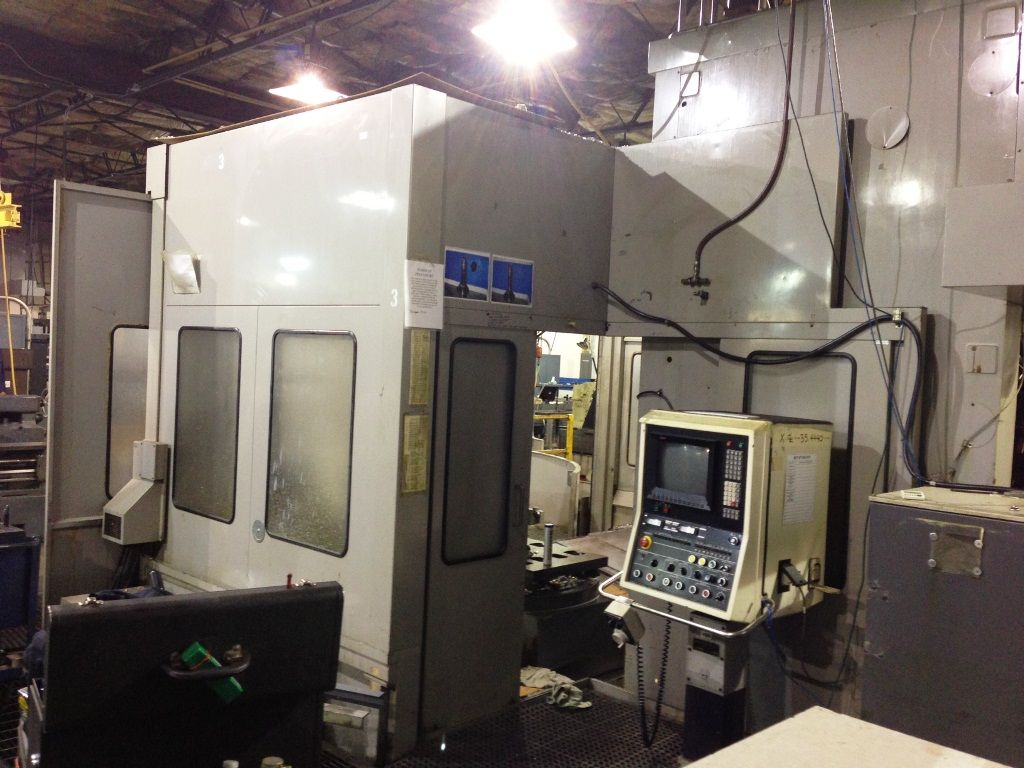

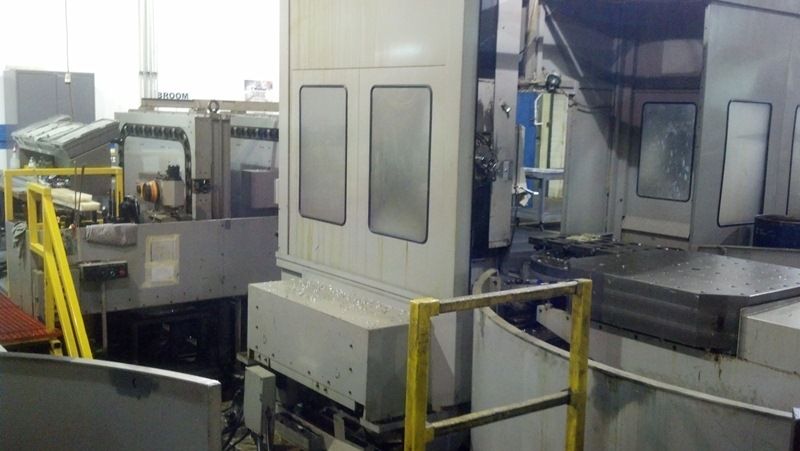

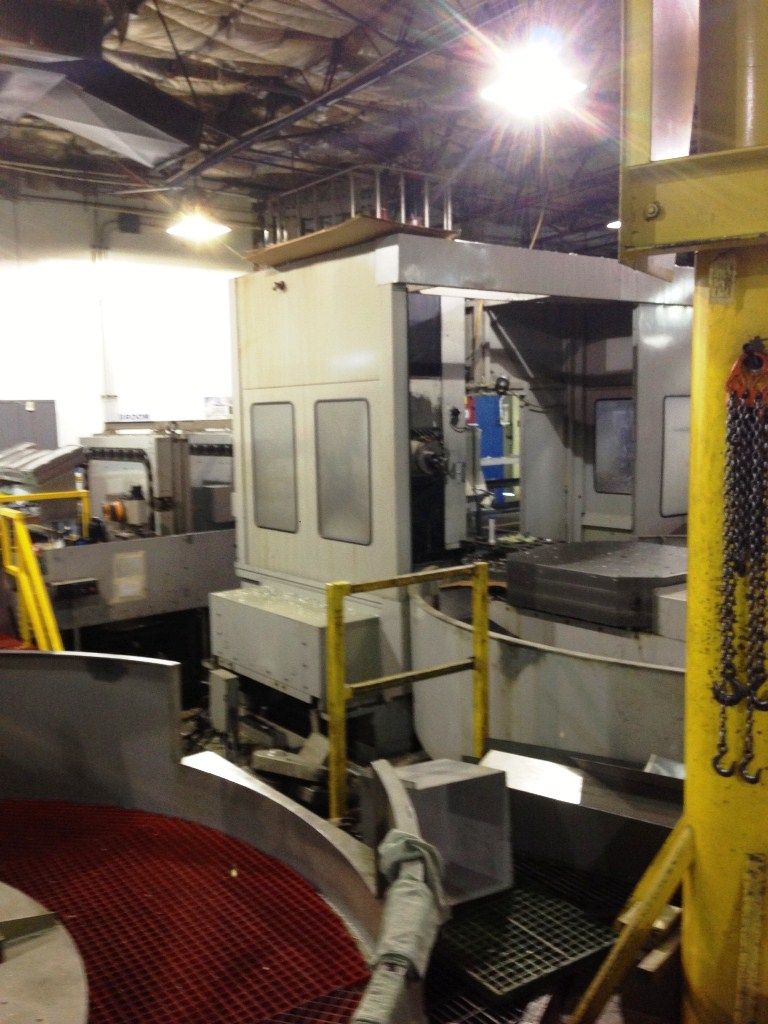

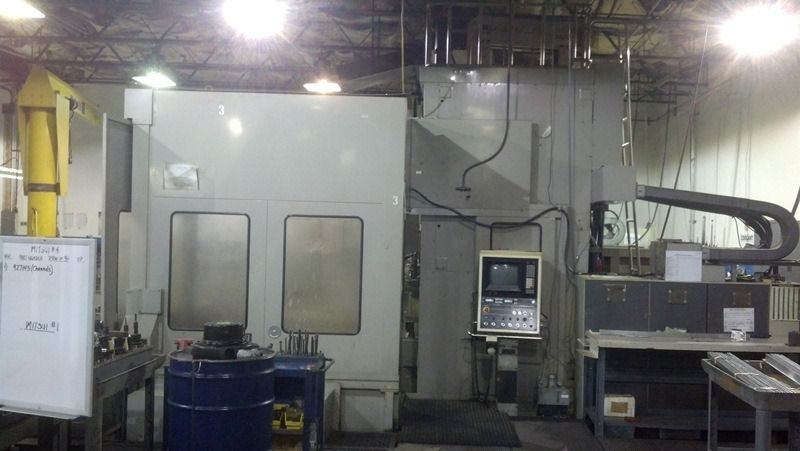

MITSUI SEIKI HR8 A MACHINING CENTER
NEW 1989
WORKING CAPACITY:(X) 70.87"
TABLE CROSS:(Y) 59.06"
SPINDLE HEAD VERTICAL:(Z) 47.24"
COLUMN LONGITUDINAL(Z) 19.69"
SPINDLE LONGITUDINAL(W) 19.06"
DISTANCE FROM SPINDLE AXIS TO TABLE SURFACE 59.06"
DISTANCE FROM SPINDLE NOSE TO TABLE COVER 19.69 - 59.06"
WORKING SURFACE 51.18 X 51.18"
TABLE INDEX ANGLE 0.001
MAX PERMISSIBLE LOAD 11,023.1"
PALLET DIMENSIONS 51.18 X 51.18 X 7.87"
SPINDLE TAPER ISO 50 (7/24)
SPINDLE DRIVE MOTOR AC 30 KW
SPINDLE SPEED (WITH QUILL INTO) 8-3150 RPM
SPINDLE SPEED (WITH QUILL OUT) 2250 RPM
SPINDLE DIAMETER 4.72"
SPINDLE TAPER CLEANING AUTO-AIR BLOW
FEED RATE:
RAPID FEED: 275.59"
X 393.70"
Y-Z 2000 GRAD/MIN
MAX CUTTING FEED:
X, Y, Z, W 157.48"
B 2000 GRAD/MIN
LAST INPUT INCREMENT 0.001 MM/GRAD
LAST COMMAND INCREMENT 0.001 MM/GRAD

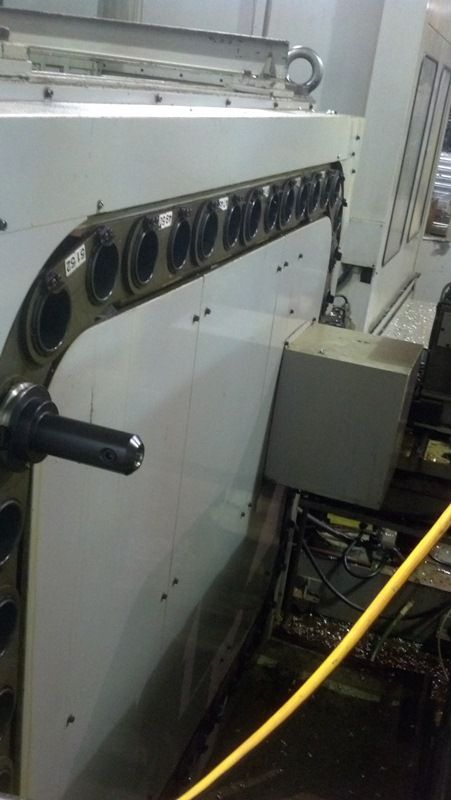

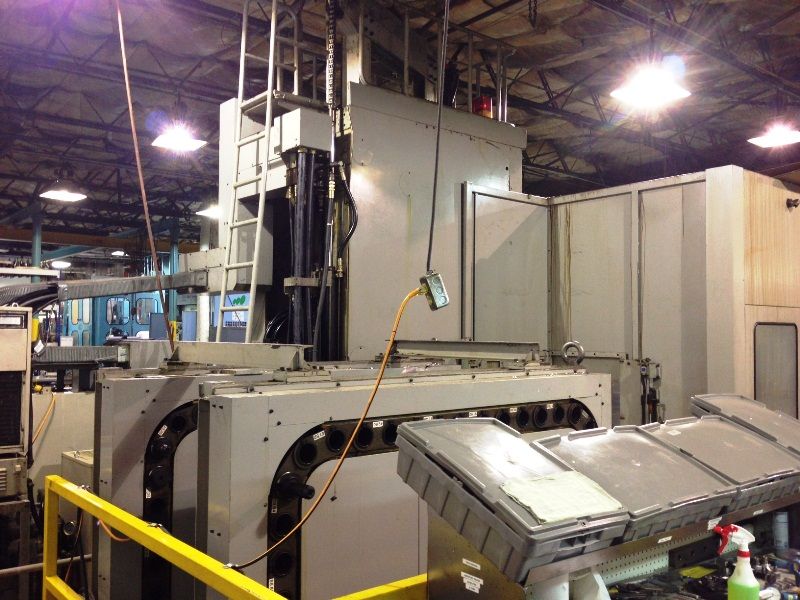

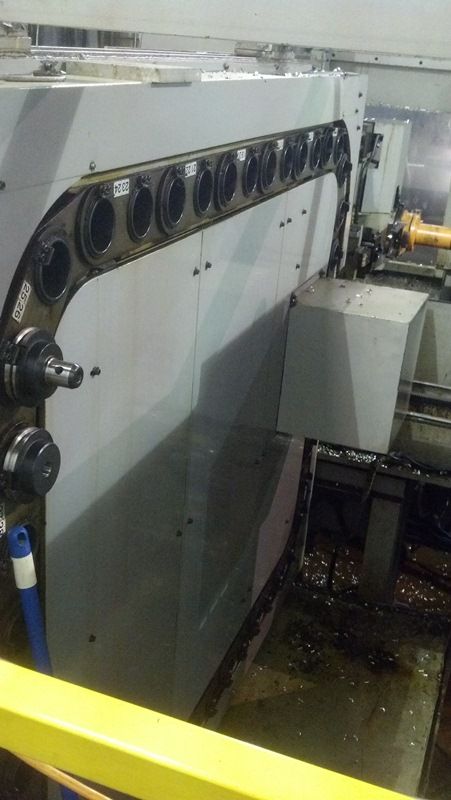

AUTOMATIC TOOL CHANGER:
TOOL STORAGE CAPACITY 92
TOOL SELECTION MODE RANDOM
TOOL SHANK MAS403 - CAT50
MAX TOOL DIAMETER TO BE CHANDED 4.92"
MAX TOOL DIAMETER TO BE CHANDED
WITHOUT ADJACENT TOOL 9.84"
MAX TOOL LENGTH 18.50"
MAX TOOL WEIGHT 66.4LBS
TOOL CHANGING TIME 15 SEC
TOOL CHANGING TIME, CHIP TO CHIP 25 SEC
POSITION TRANSDUCER: X,Y,Z LINEAR INDUCTOSYN SCALES
B ROTARY INDUCTOSYN SCALE
W RESOLVER
SERVO MOTORS:
X/Y/Z/B/W FANUC MODEL 30 M
MAX TRUST:
X,Y,W 4,409.25 LBS
Z 6,613.87 LBS
MACHINE WEIGHT APPROX. 66,138.68 LBS
ELECTRIC MOTORS:
MOTOR FOR SPINDLE DRIVING AC 30/35 KW
MOTOR FOR AXIS FEED (X,Y,Z,W,B) AC 2.8 KW
MOTOR FOR HYDRAULIC UNIT 5.5 KW
TWO SETS OF OIL COOLER ARE USED FOR SPINDLE HEAD
AND FOR HYDRAULIC UNIT
MOTOR FOR CHIP CONVEYOR 0.4 KW
MAXIMAL REQUIRED POWER 50 KW
MAXIMAL REQUIRED AIR PRESSURE OVER 4 KGS/CMSQ
AT 0.7 M3/MIN
CNC FANUC 11 ME
NUMBER OF CONTROLLED AXIS 5 (X,Y,Z,W,B)
NUMBER OF SIMULTANEOUSLY CONTROLLED AXIS 2(XY,ZX,YZ)
FLOOR SPACE 40 MSQ
ACCURACY
(AT TEMPERATURE CONTROLLED ROOM 20 GRAD) +/- 1 GRAD)
SPINDLE RUNOUT, NOSE END 0.01MM
SPINDLE RUNOUT 300 MM FROM NOSE 0.02MM
SPINDLE AXIS PLAY 0.005MM
POSITIONING ACCURACY:
X,Y,Z AXIS +/- 0.01MM/FULL STROKE
B AXIS (TABLE INDEXING ACCURACY) +/- 5 SEC
REPEATING ACCURACY X.Y.Z AXIS +/- 0.002MM
B AXIS +/- 2 SEC
EQUIPPED WITH:

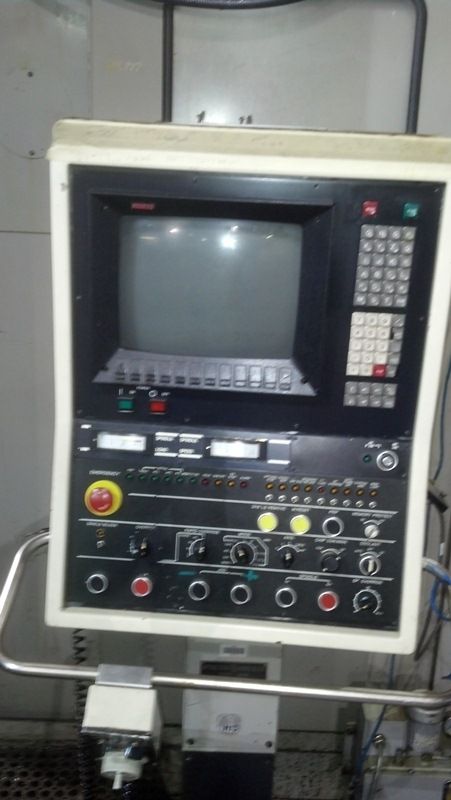

FANUC 11 ME NUMERICAL CONTROL

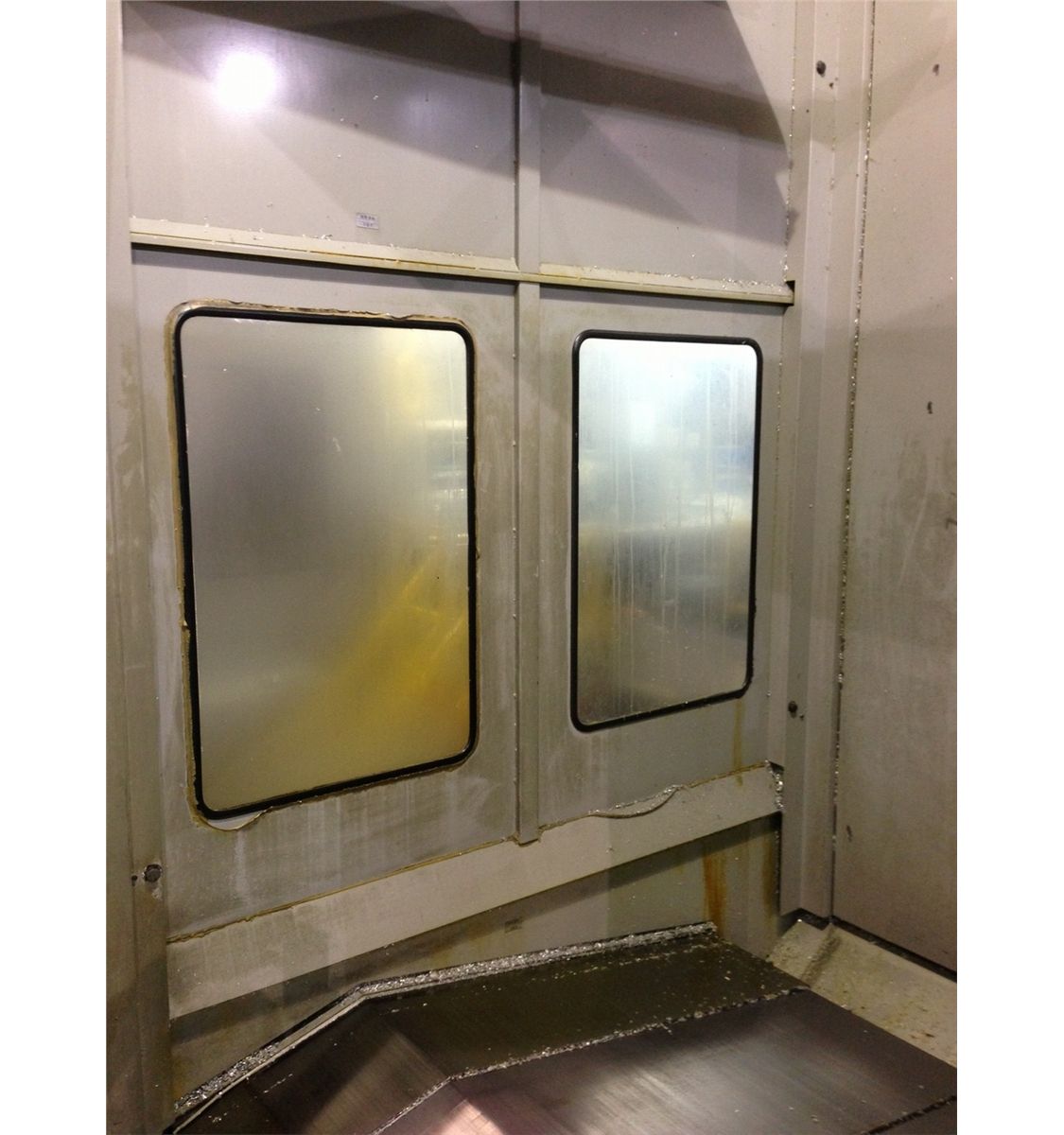

FULL SAFETY GUARDING
CHIP CONVEYOR

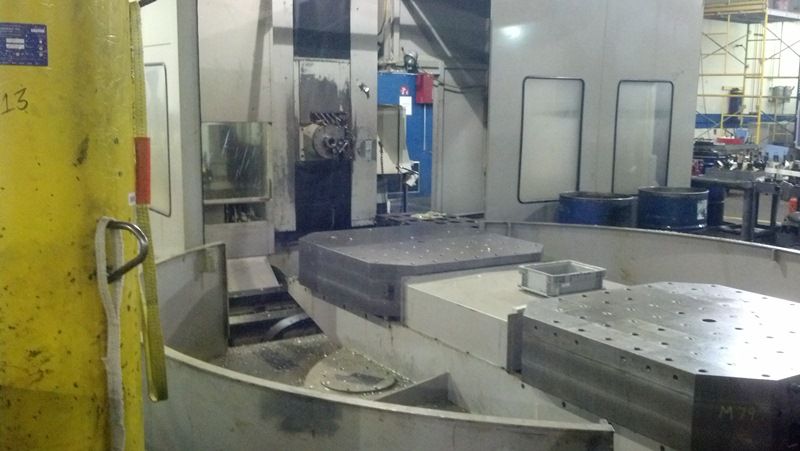

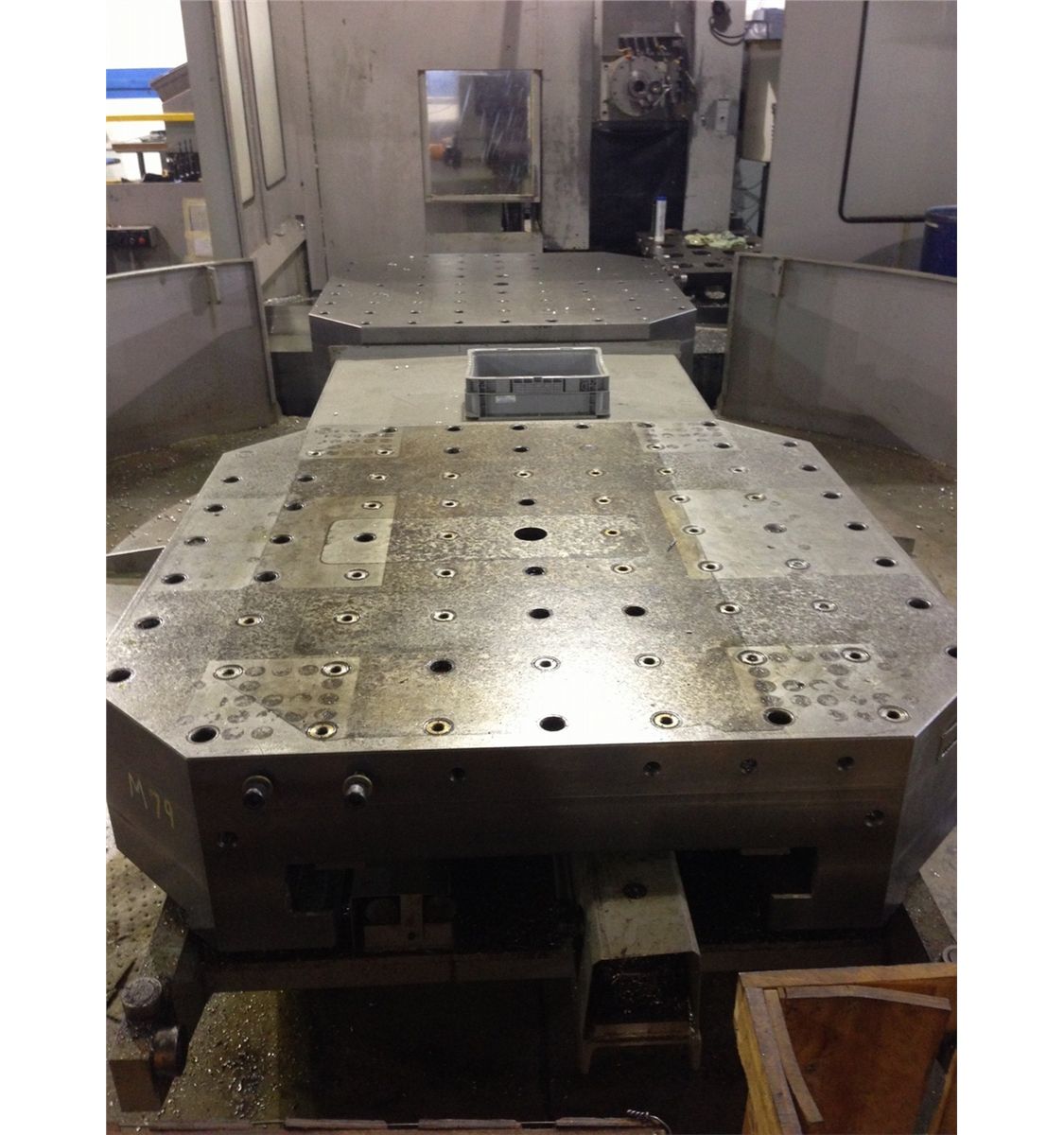

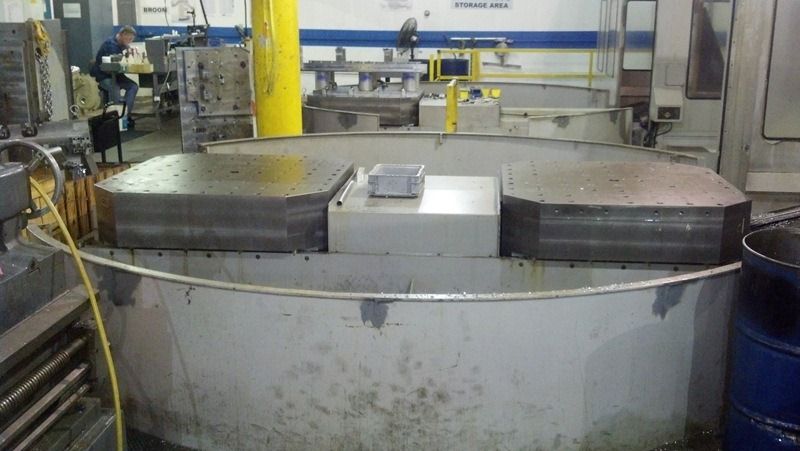

ROTARY PALLET SHUTTLE (X2)
INDUCTOSYN SCALES ON THE 3 AXIS
QUILL ( W AXIS - TRAVEL 19.69")
RENISHAW TOOL PROBING SYSTEM (WILL VERIFY IF AVAILABLE)
RS 232 INTERFACE
