HILL & JONES 10' x 3/8" Capacity Pyramid Type Power Bending Rolls

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
HILL & JONES 10' x 3/8  Capacity Pyramid Type Power Bending Rolls
SOLD
6,300.00USD+ (945.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2014 Feb 25 @ 14:30UTC-5 : EST/CDT

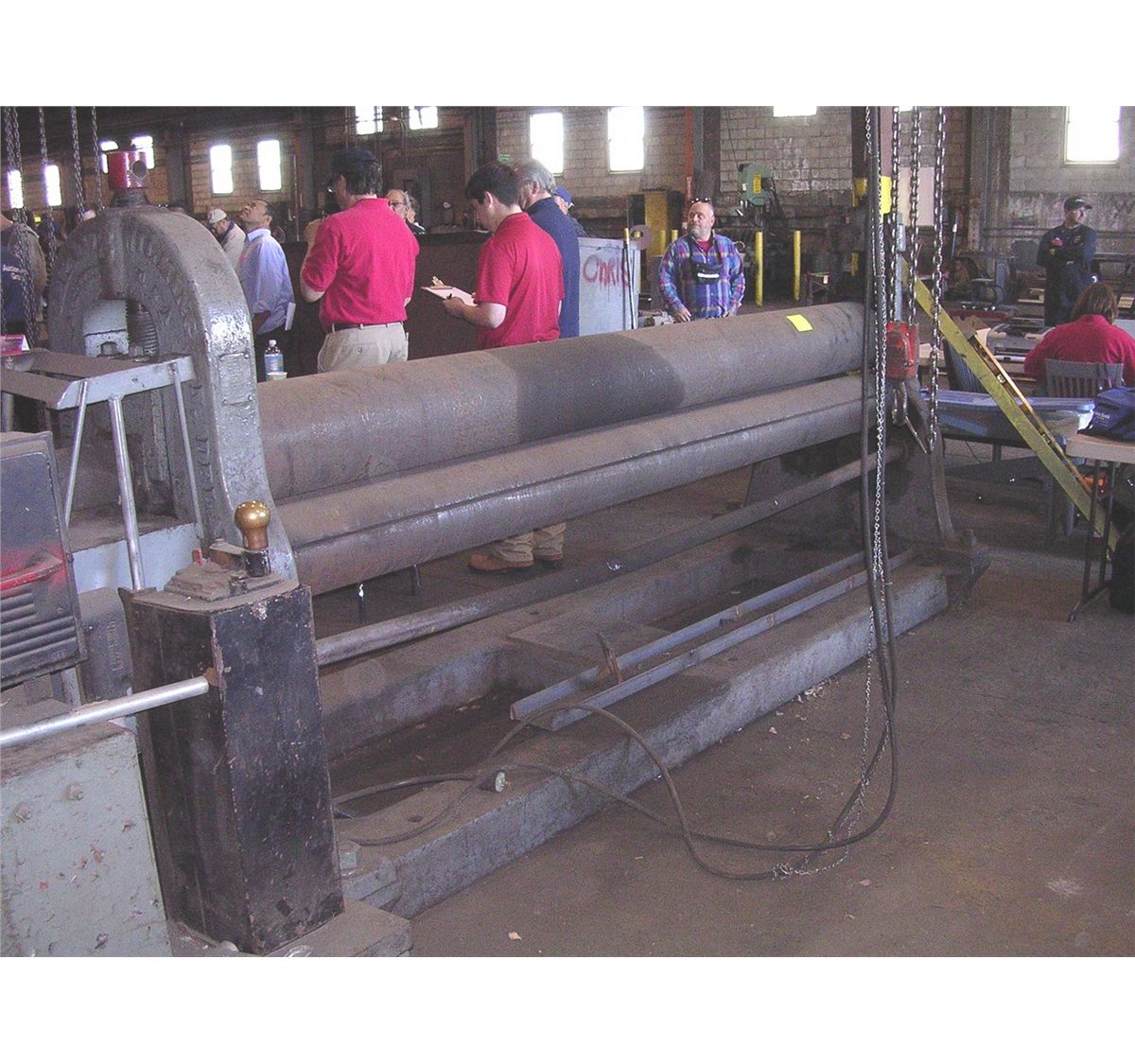

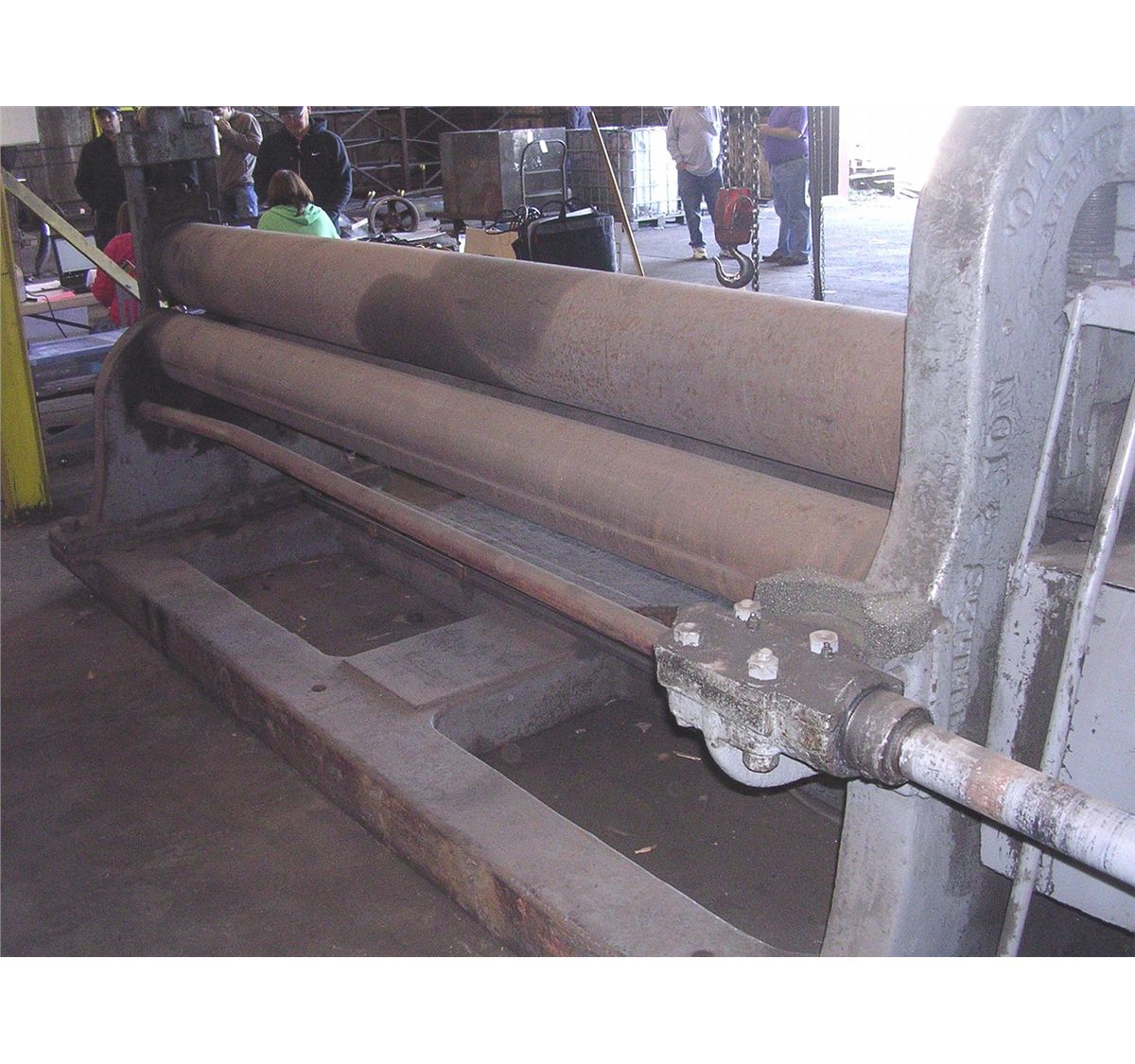

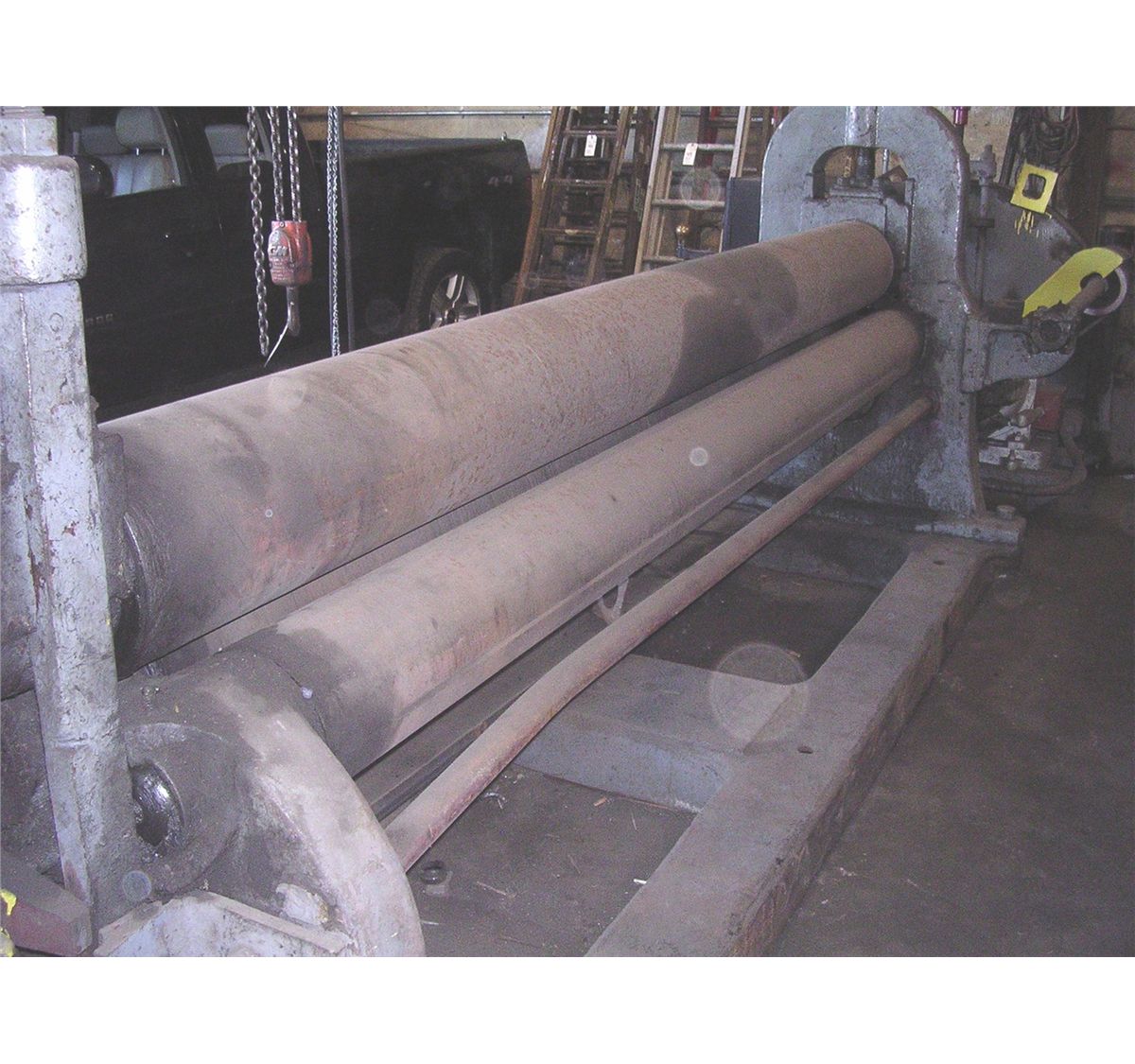

HILL & JONES 10' x 3/8" Capacity Pyramid Type Power Bending Rolls.

* Capacity; Based On Specifications Taken From a Competing Mfg's.
(WEBB) Catalog:

10' of 3/8" Mild Steel
Actual Length & Diameter of Upper Roll: 128" - 11-1/4"
Diameter of Lower Rolls: 9"

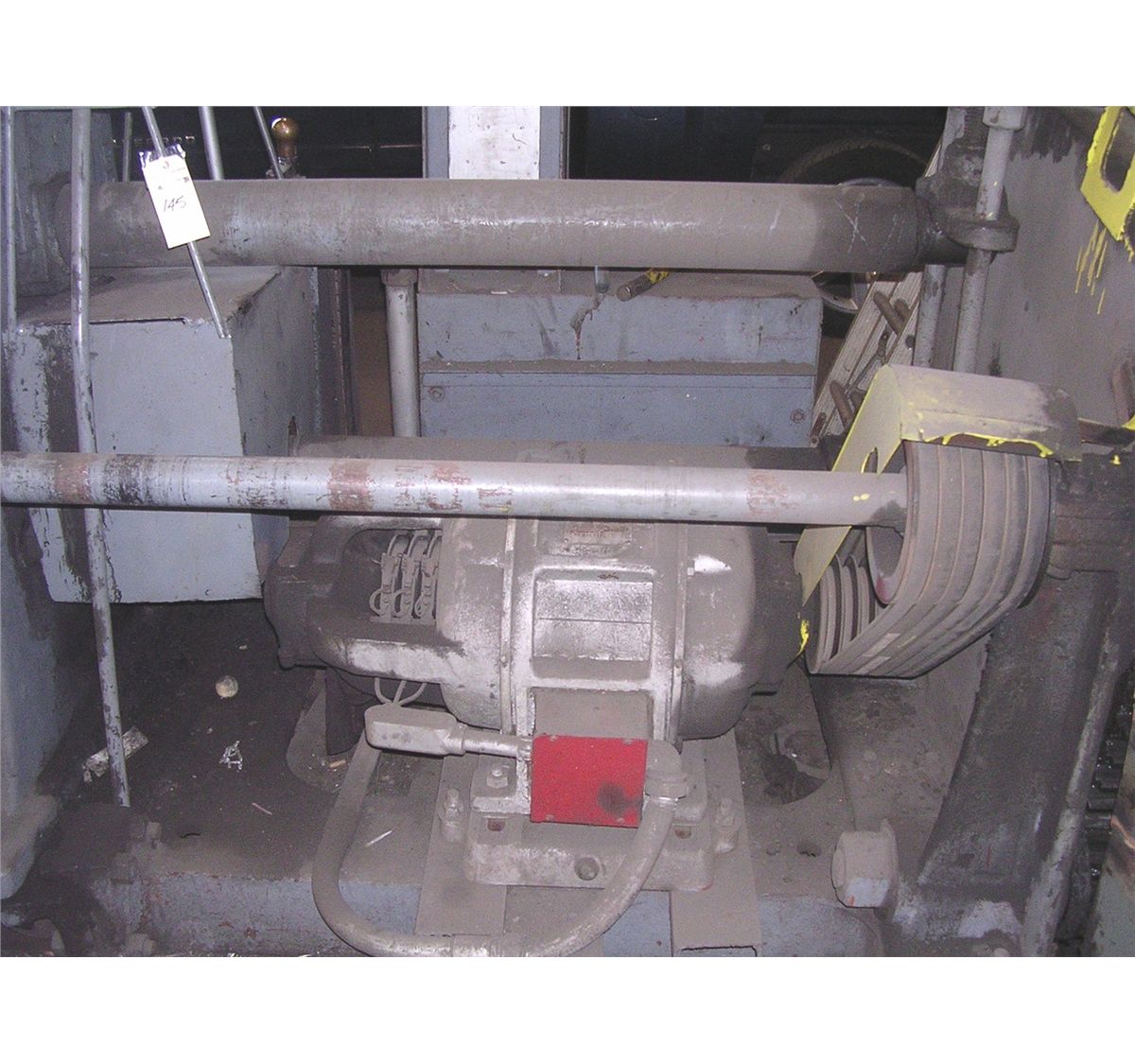

Main Drive Motor: 15 HP DC 3/60/220 (Full Load Speed 845 RPM) Amperage
Draw Of Motor: 40 Multiple Vee Belt Driven to Driving Shafts

Equipped With:

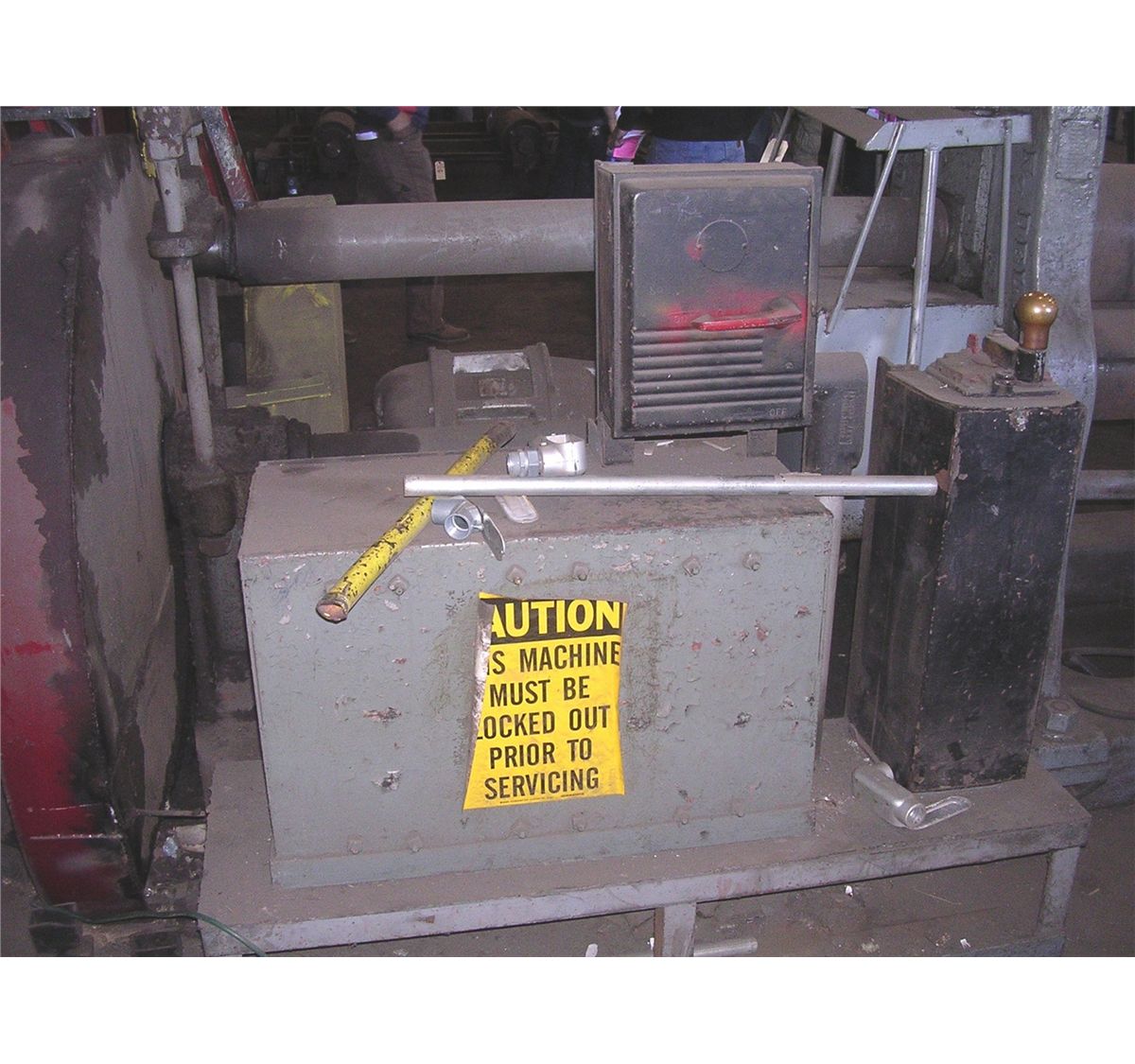

DC Motor Controls w/Variable Speed Control & FOR/REV Manual Drop End
Design (for easy removal of formed cylinders) Forged Rolls w/"Grip"
Grooves In All (3) Rolls Power Driven All (3) Rolls via "teeth" cut into Rolls for Positive Drive Manual Top Roll Adjustment Geared Drive to All (3) Rolls for Added Torque Front & Rear Support Guide Rolls Fused Knife Switch

Machine Mounted Onto Heavy Duty Cast Iron Base Frame For Added
Rigidity & Stability

GOOD CONDITION - FROM SERVICE - In Storage Now

LOCATION: Ephrata, PA

Loading Costs $500
