FEELER S600B DRILL PRESS

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
FEELER S600B DRILL PRESS
SOLD
360.00USDto JarzoeMachine+ buyer's premium (54.00)
This item SOLD at 2014 Oct 23 @ 13:15UTC-4 : AST/EDT
All items are sold AS-IS! Items are described to the best of our ability, but inspections are both invited and encouraged! There are no returns or refunds for items once removed from a premise!
LOADING FEES: $100

CLICK HERE FOR A VIDEO OF THE MACHINE RUNNING:

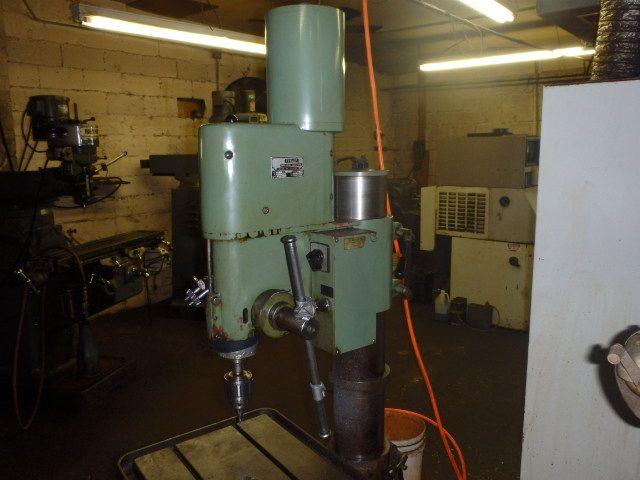

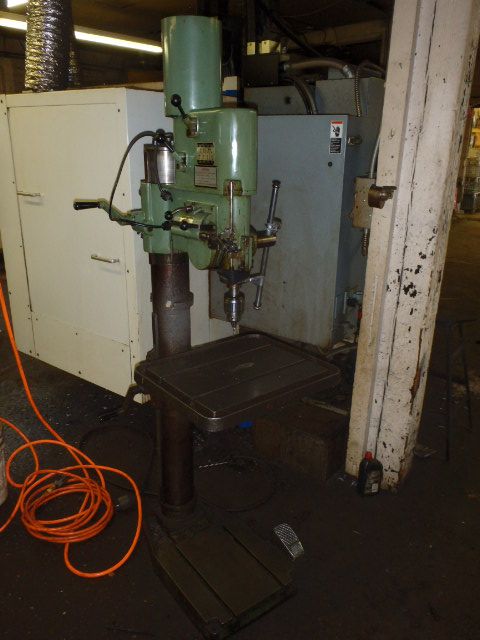

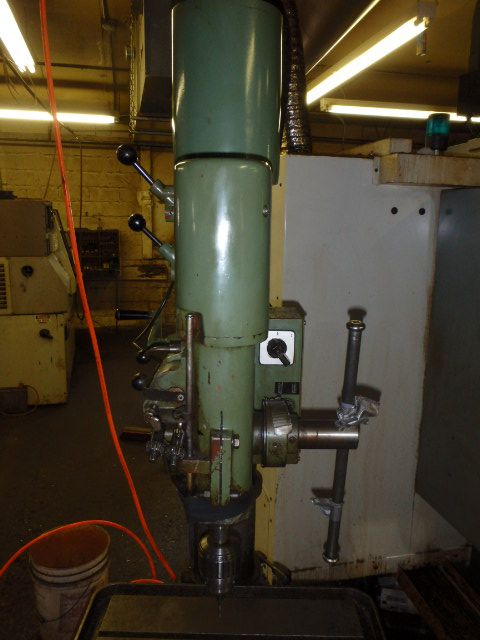

FEELER S600B DRILL PRESS
24" FEELER HEAVY-DUTY SINGLE-SPINDLE DRILL #26514

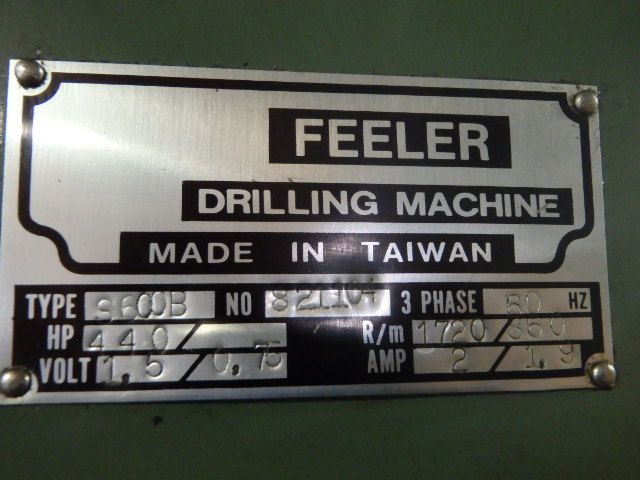

Serial No 821104, Model S600B

EQUIPPED WITH:

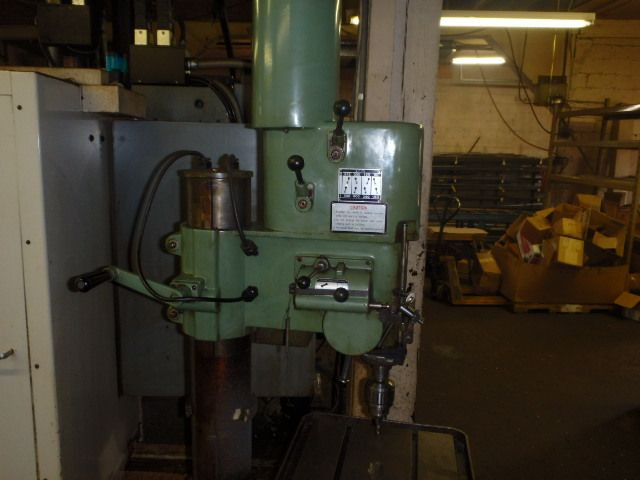

Geared Head Design
Hardened & Ground Round Column Design
Power Down-Feed to Spindle

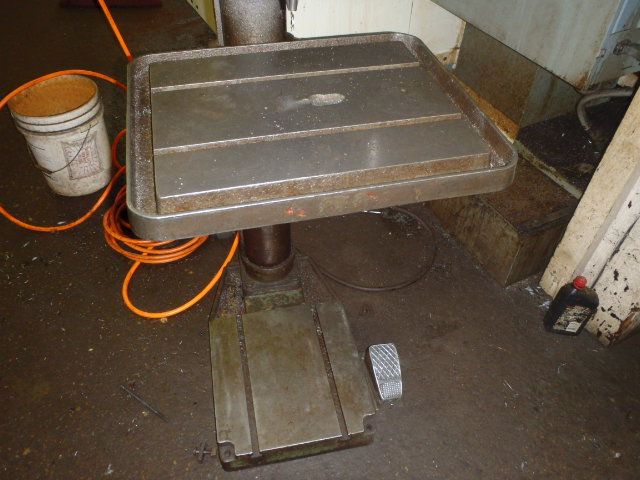

Adjustable Table
Forward & Reverse Foot Switch

CATALOGUE SPECIFICATIONS:
Drilling Capacity In Steel, Maximum.... 1.5" 38MM
Quill Vertical Travel.................. 6.625" 168MM
Column Diameter........................ 5.5" 140MM
Spindle-Nose to Table, Maximum......... 32.5" 828MM
Spindle-Nose to Base, Maximum.......... 47" 1197MM
Spindle-Center to Column............... 12" 300MM
Swing to Plane of Table................ 24" 600MM
Table Working Surface, W x L........... 16" x 20"
Base Working Surface, W x L............ 16" x 16.5"
Spindle Taper.......................... #4 MT

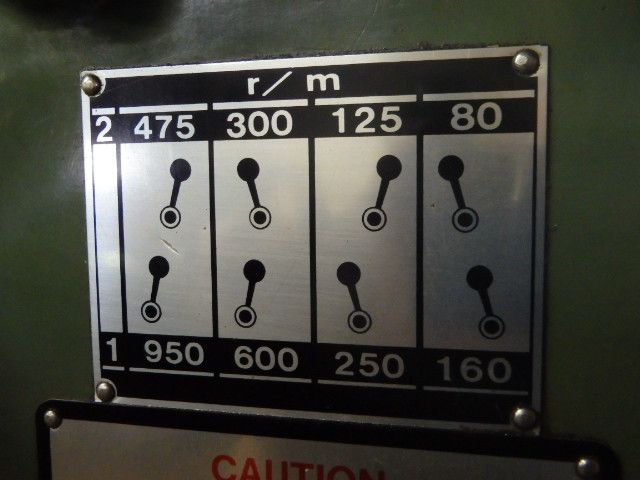

Spindle Speeds, Range................... 860 to 1720 RPM
Spindle Feeds, Range................... .004 to .007 IPR
Spindle Motor, Horsepower.............. 2 HP
440 Volt
Overall Height......................... 8'
Weight, Approximately.................. 590 LBS
1-1/2 HP Main Motor
App. 1-1/2” drill capacity
