SOLD
3,300.00USD+ buyer's premium (495.00)
This item SOLD at 2018 Dec 11 @ 13:40UTC-5 : EST/CDT
Did you win this lot?
A full invoice should be emailed to the winner by the auctioneer within a day or two.
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.
Appointments for inspections are available upon request, 8am-5pm M-F for each location. Please call 616-745-5953 or email sales@btmindustrial.com.
LOCATION: KALAMAZOO, MI
*NOTE: SELLER CAN NOT LOAD, WILL NEED A RIGGER. AUCTION HOUSE CAN HELP WITH HIRING A RIGGER.

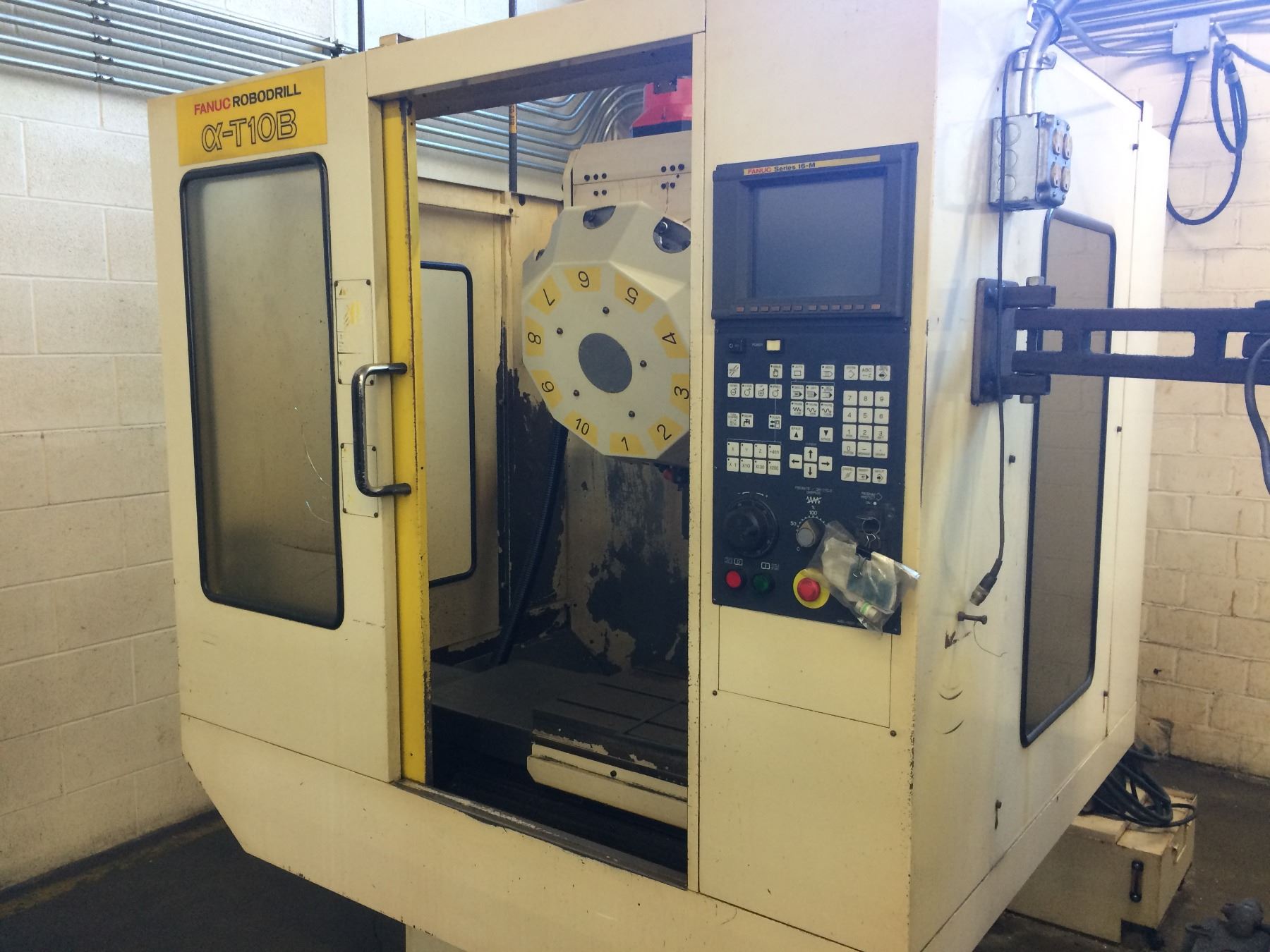

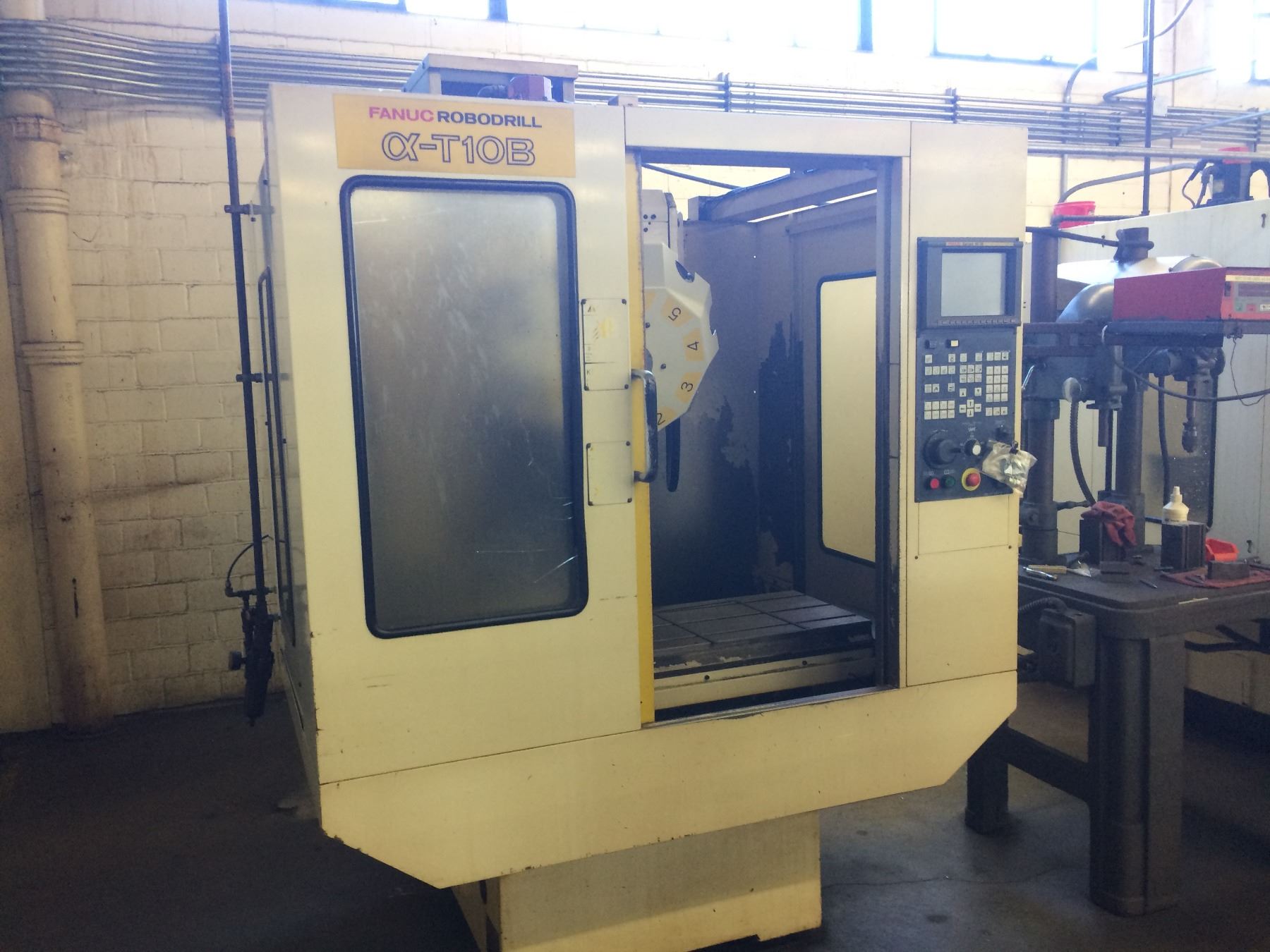

FANUC ROBODRILL ALPHA T10B
MACHINE HAS A BAD BOARD 3A16B-1212-0901/09A
MACHINE WILL NEED THIS BOARD BEFORE IT WILL RUN
N/C & CNC, DRILLING & TAPPING MACHINES
Specifications:
Specification Description
Approximate Age/Installed: MFG 4/1995
Max. Table Load: 330 lbs.
Spindle Nose to Table Top: 5.5" - 16.1"
X-Axis Travel: 20.0"
Y-Axis Travel: 14.96"
Z-Axis Travel: 11.81"
Rapid Traverse: X, Y, Z 1417 IPM / 1969IMP
Spindle Taper: BT 35
Spindle Speed: 8,000 RPM
Spindle During Tapping: 6,000 RPM (Max.)
Spindle Motor: 7.5 HP
Tool Changer Capacity: 10 + 1 Tools
Tool Change Time: 1.1Seconds
Chip to Chip Time: 1.8 Seconds
Approximate Dimensions: 77" x 105.2" x 95.7"
Equipped With:

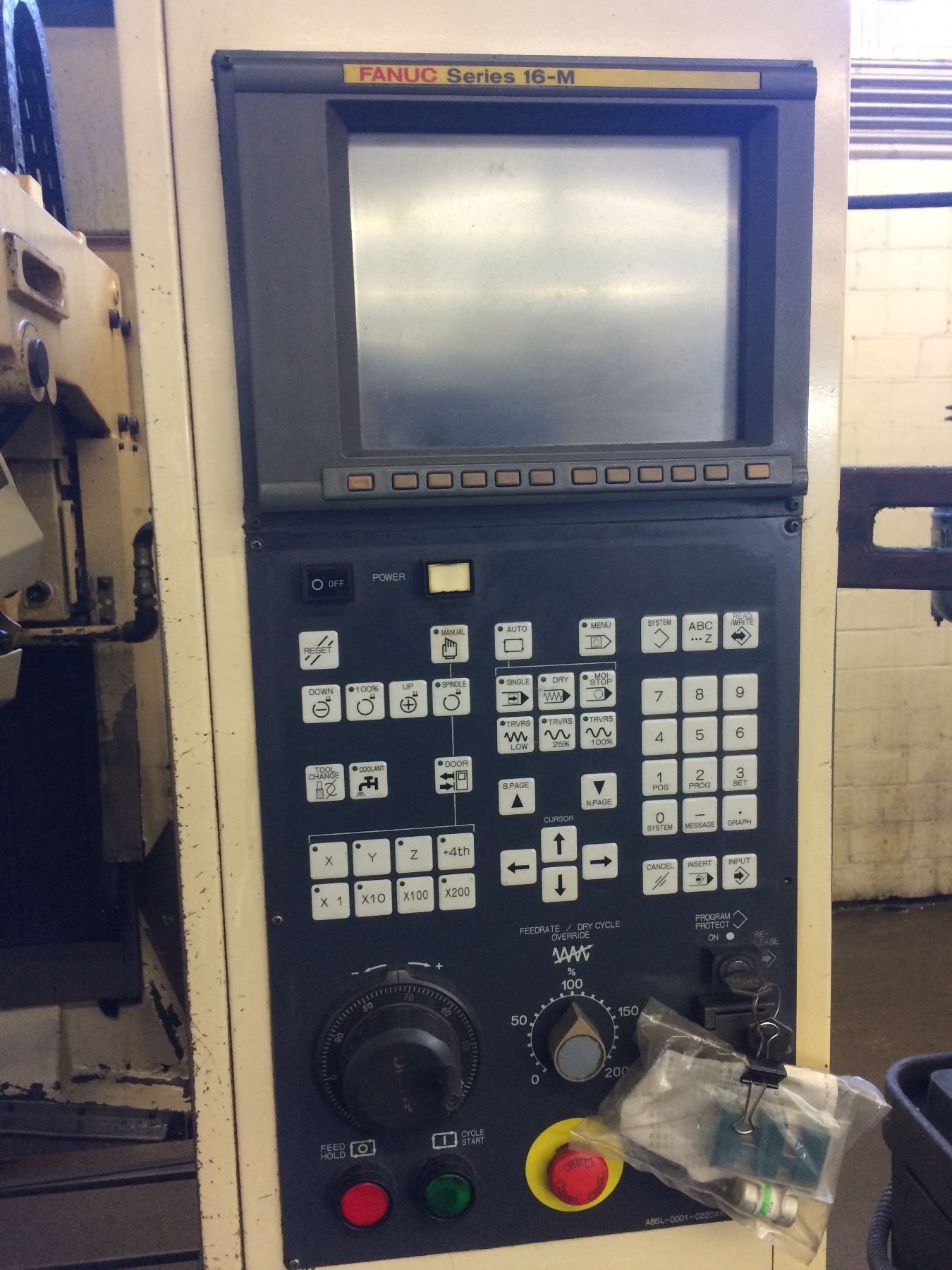

FANUC 16 M CNC CONTROL
Manual Pulse Generator
Front Door Interlock
Spindle Air Blast

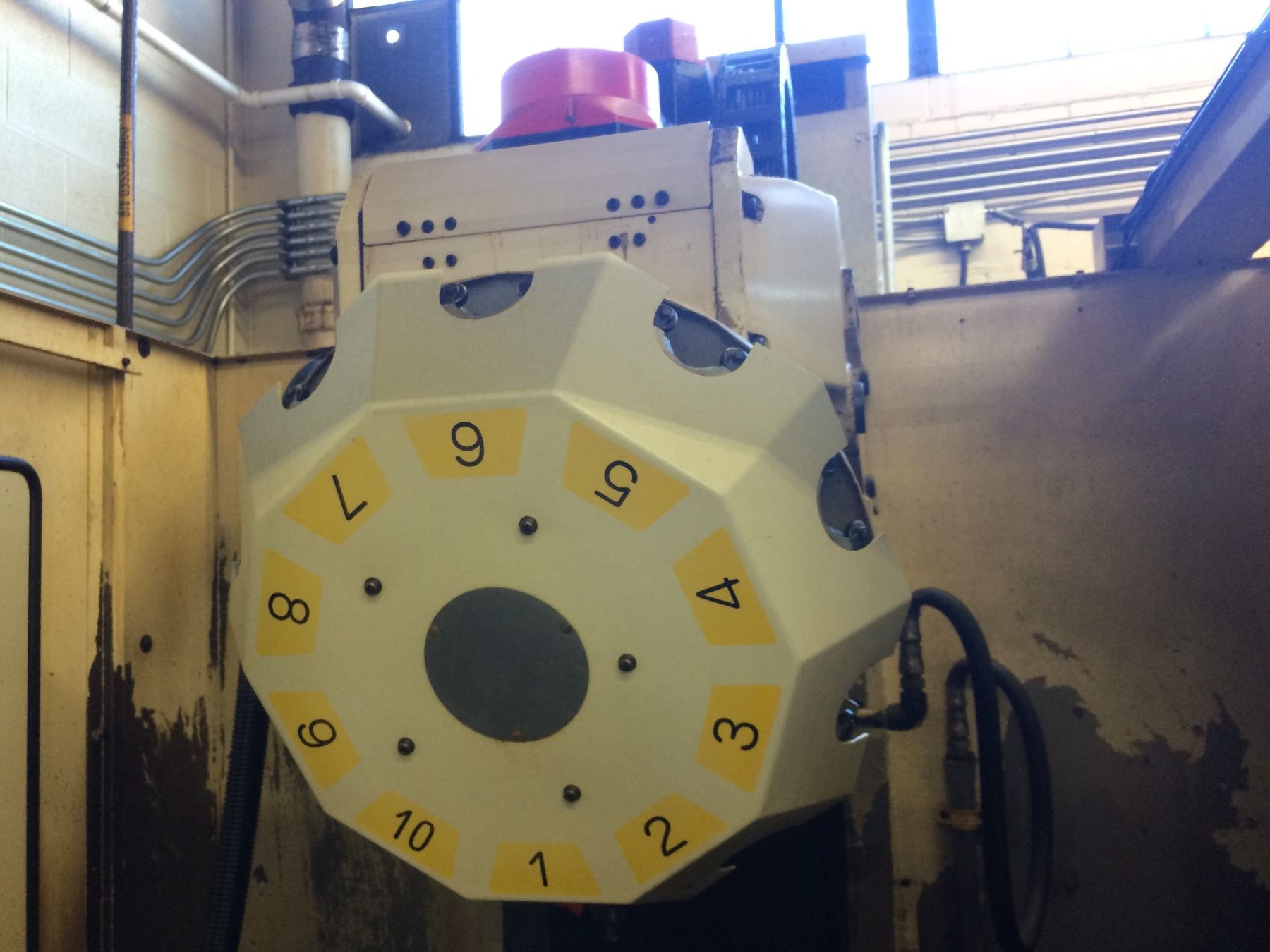

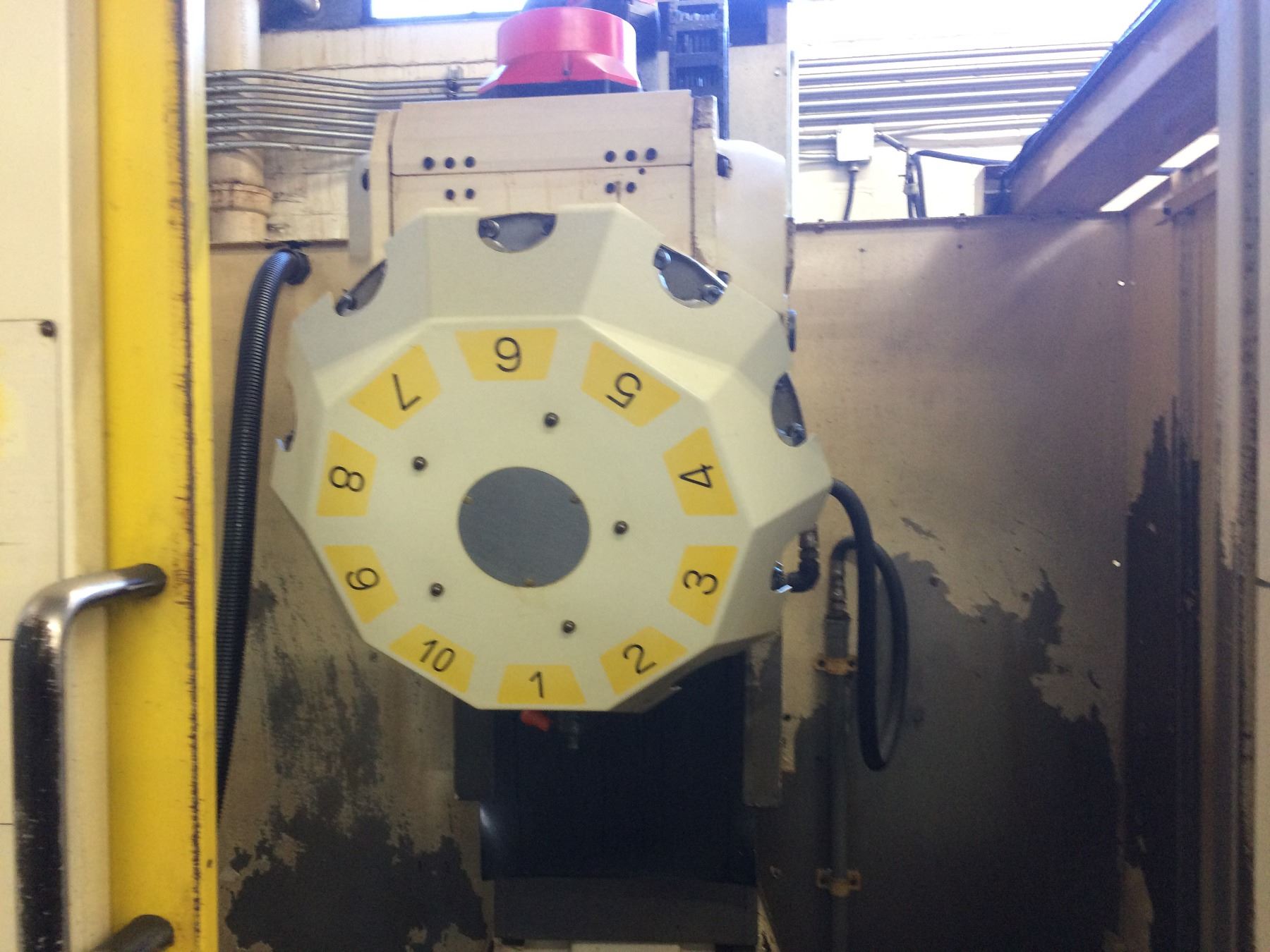

(10) Position Turret
4th axis ready
ALL AVAILABLE MANUALS

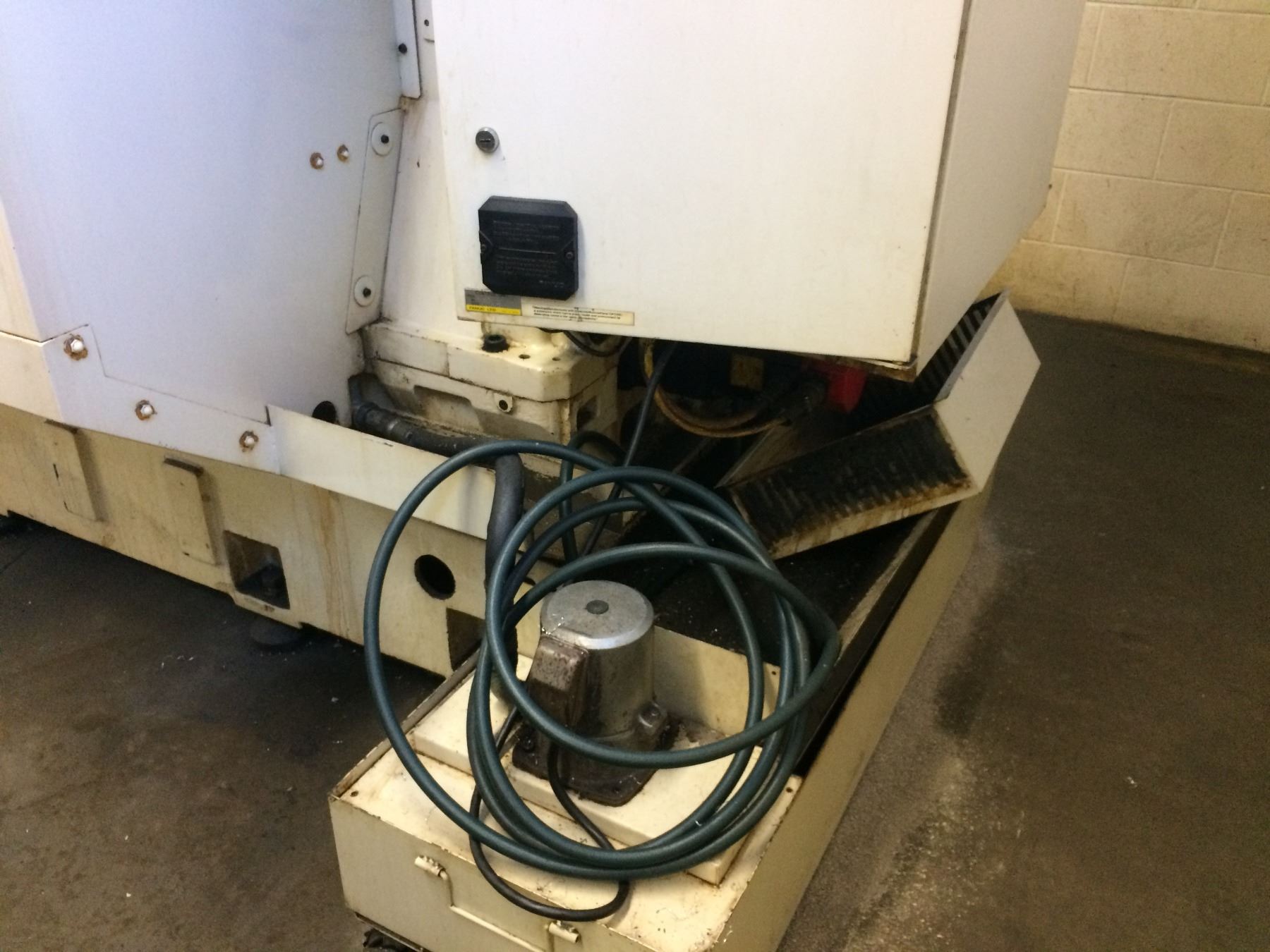

COOLANT TANK AND PUMP
Dimensions: 62" x 84" x 84"
Weight: 4000 LBS
