Enco Vertical Milling Machine, Model 100-1588

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:1.00 USD
Enco Vertical Milling Machine, Model 100-1588
SOLD
1,050.00USD+ (157.50) buyer's premium + applicable fees & taxes.
This item SOLD at 2015 Nov 24 @ 13:50UTC-5 : EST/CDT
REMOVAL:

All items MUST be removed by November 30th!!! No Exceptions! Limited timeframe as Building must be Vacated!!!
LOADING FEE: $80

This does NOT include any skidding for freight shipment!

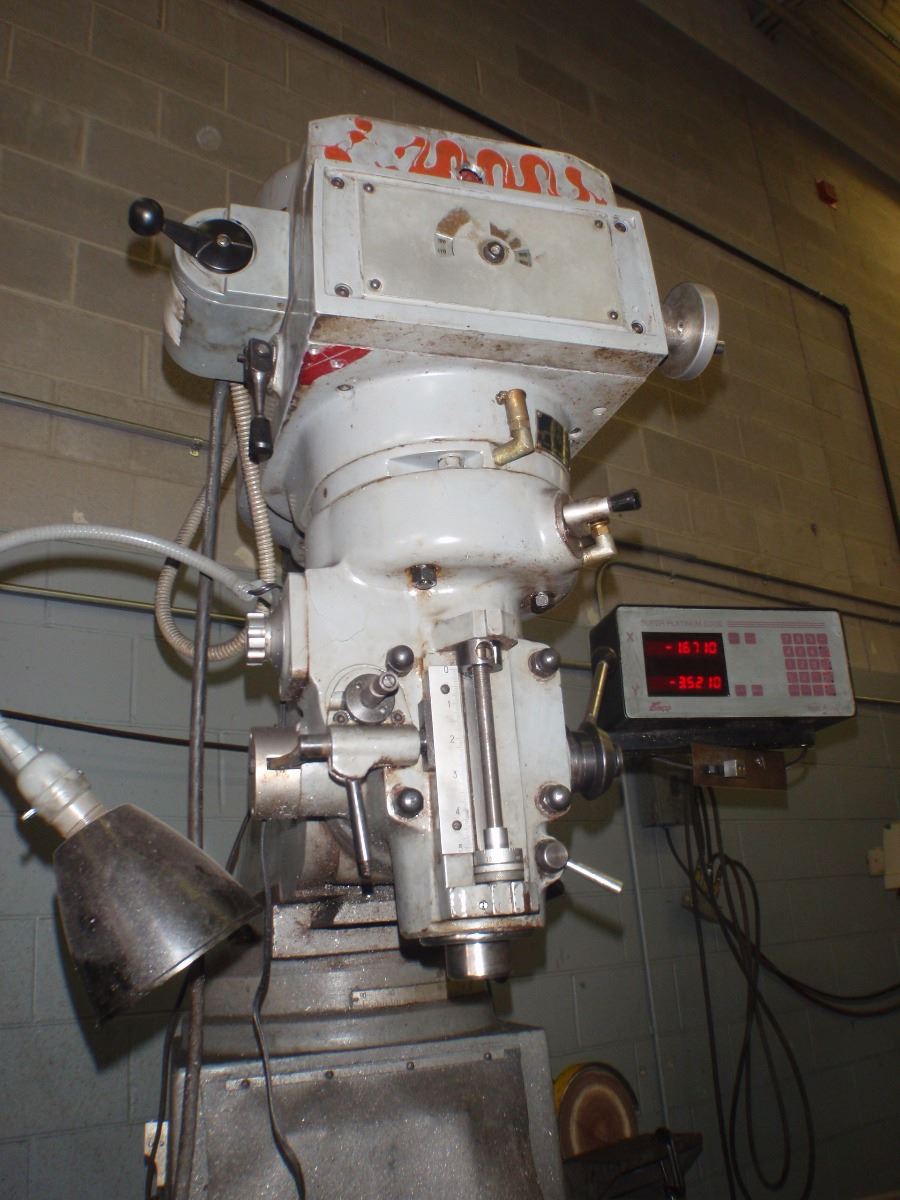

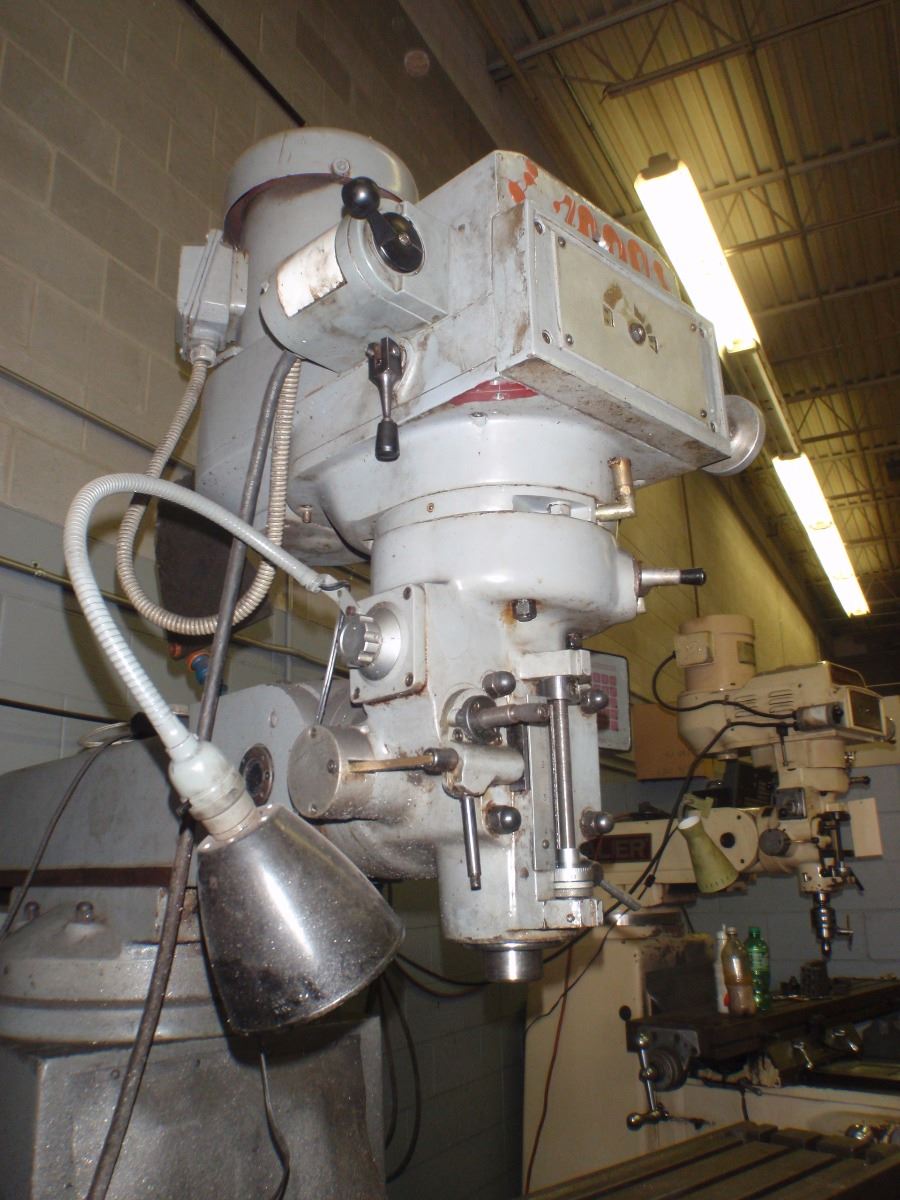

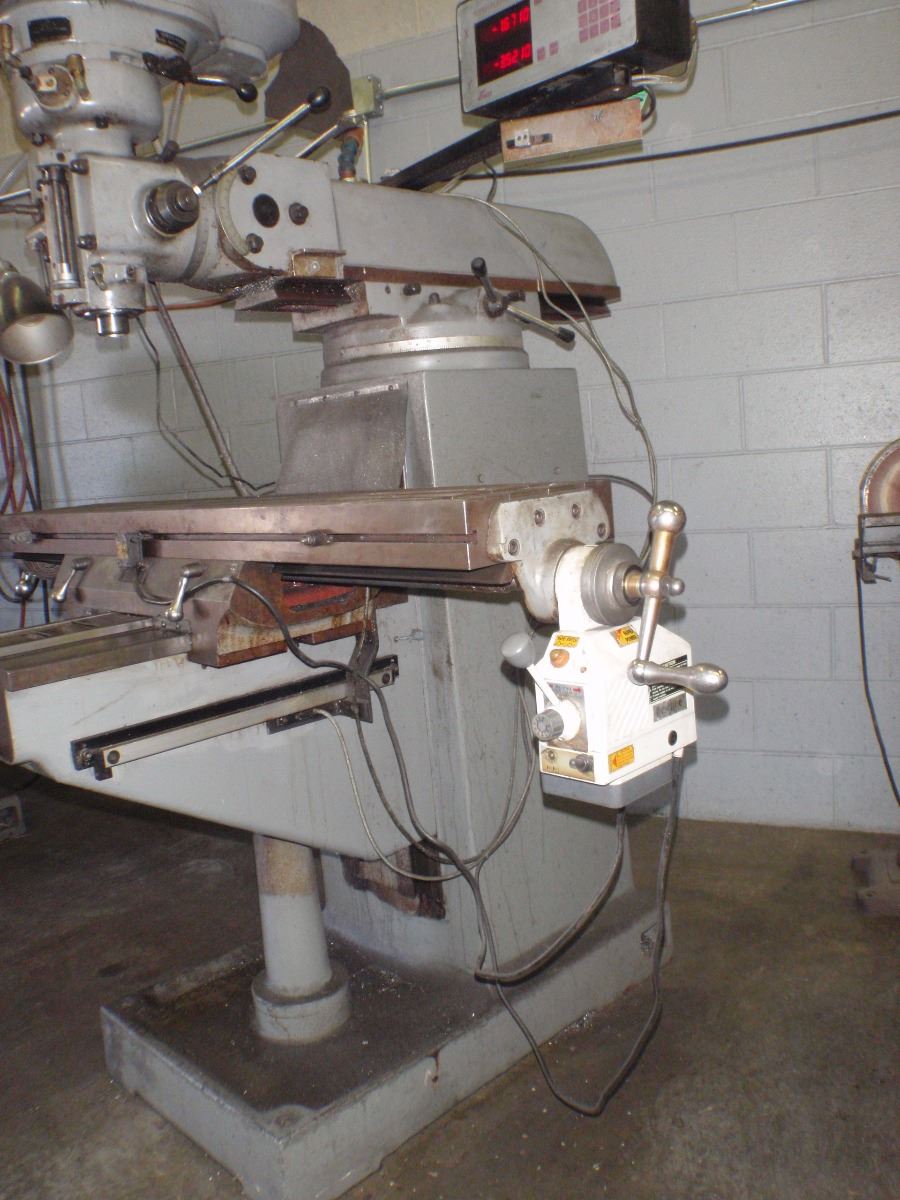

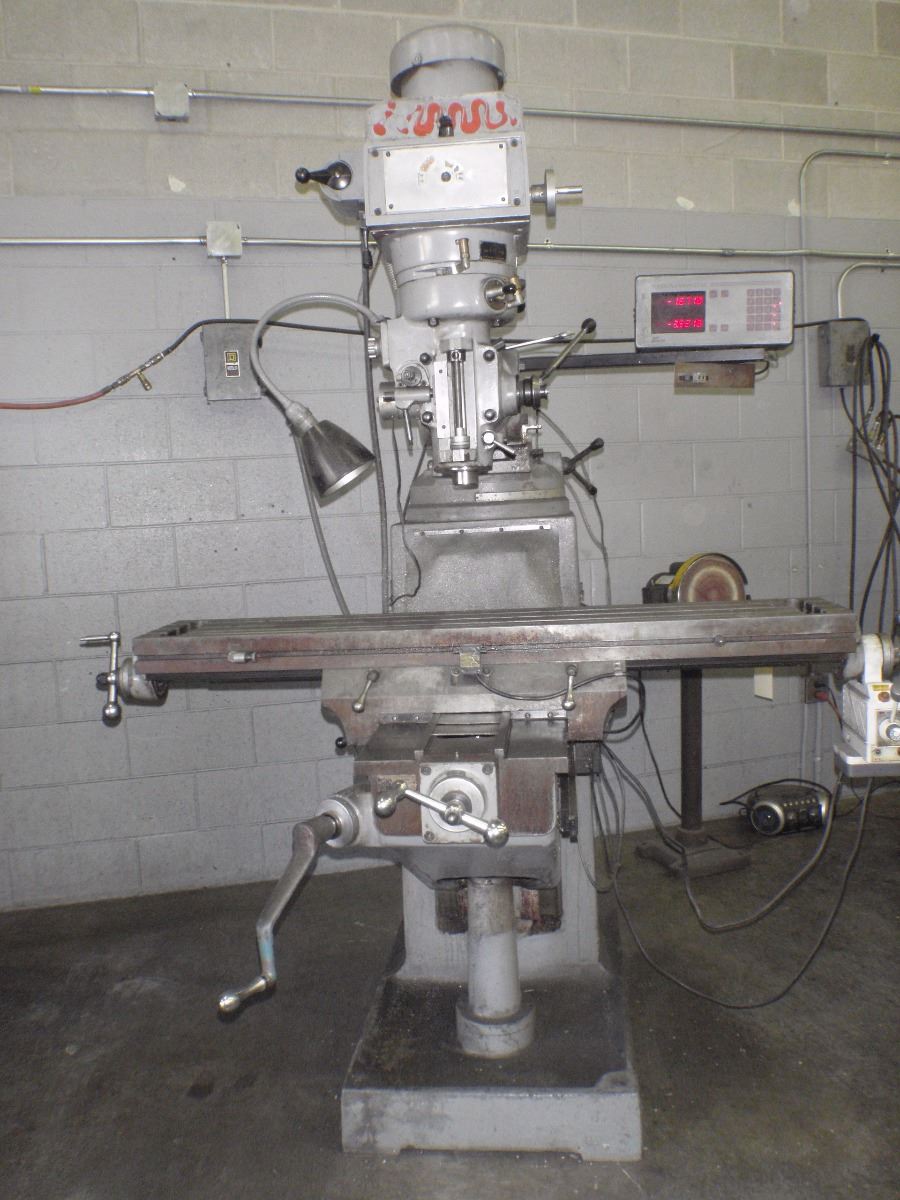

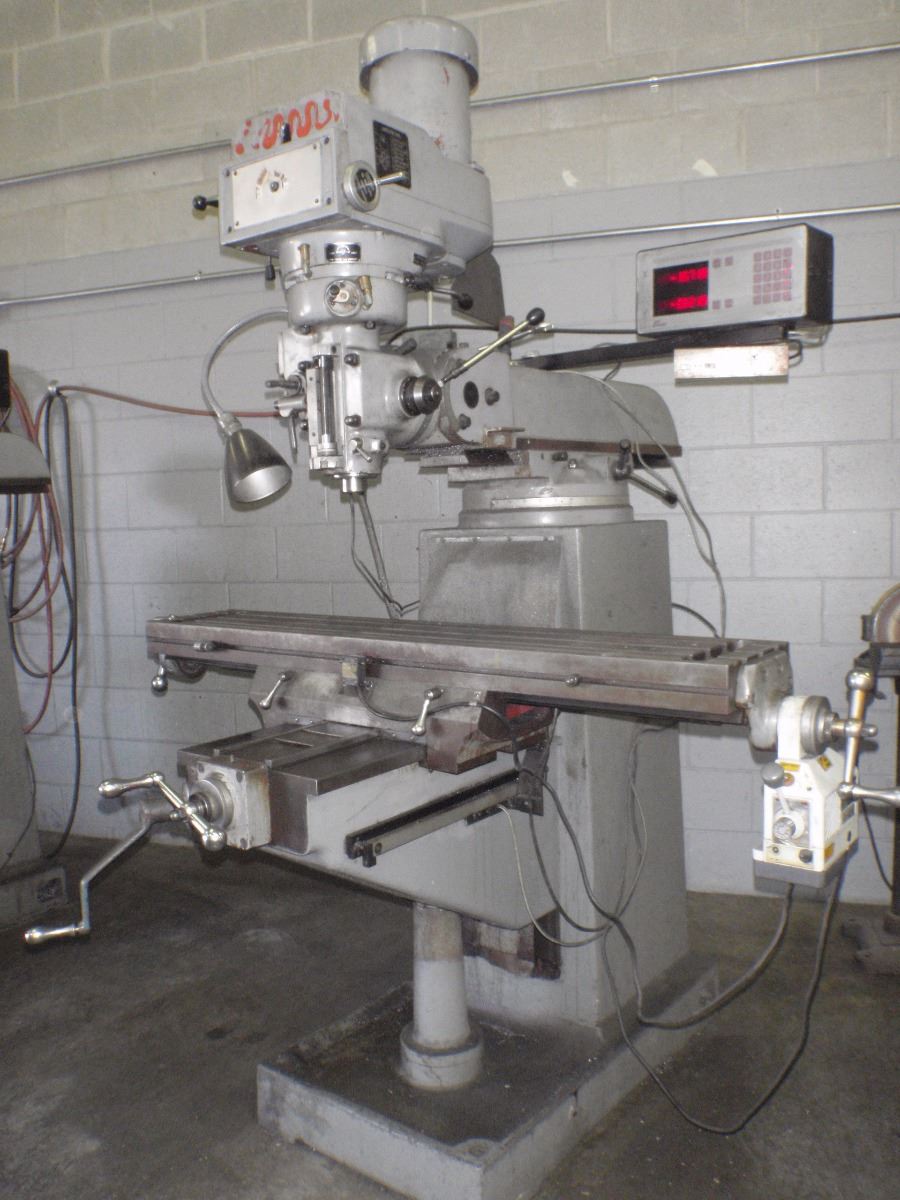

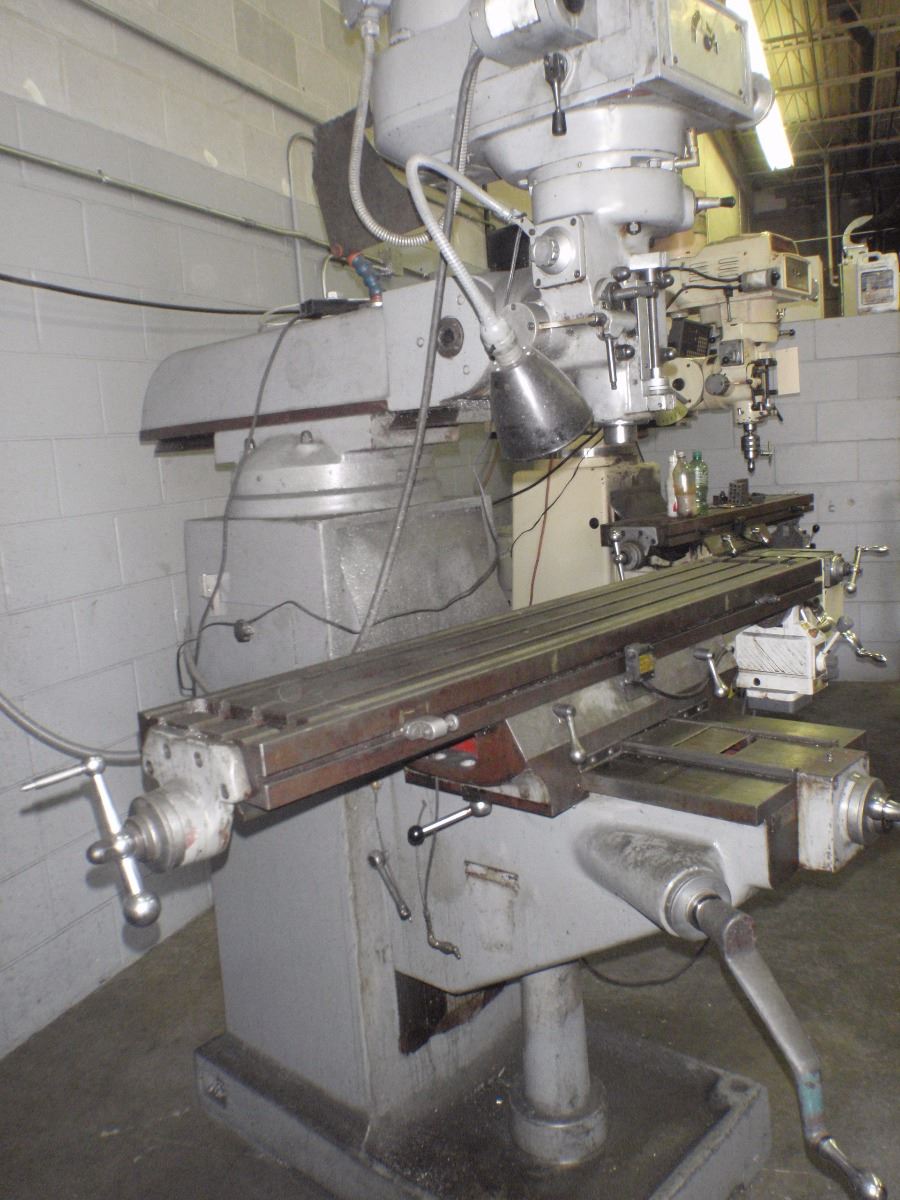

Enco Vertical Milling Machine
Model 100-1588

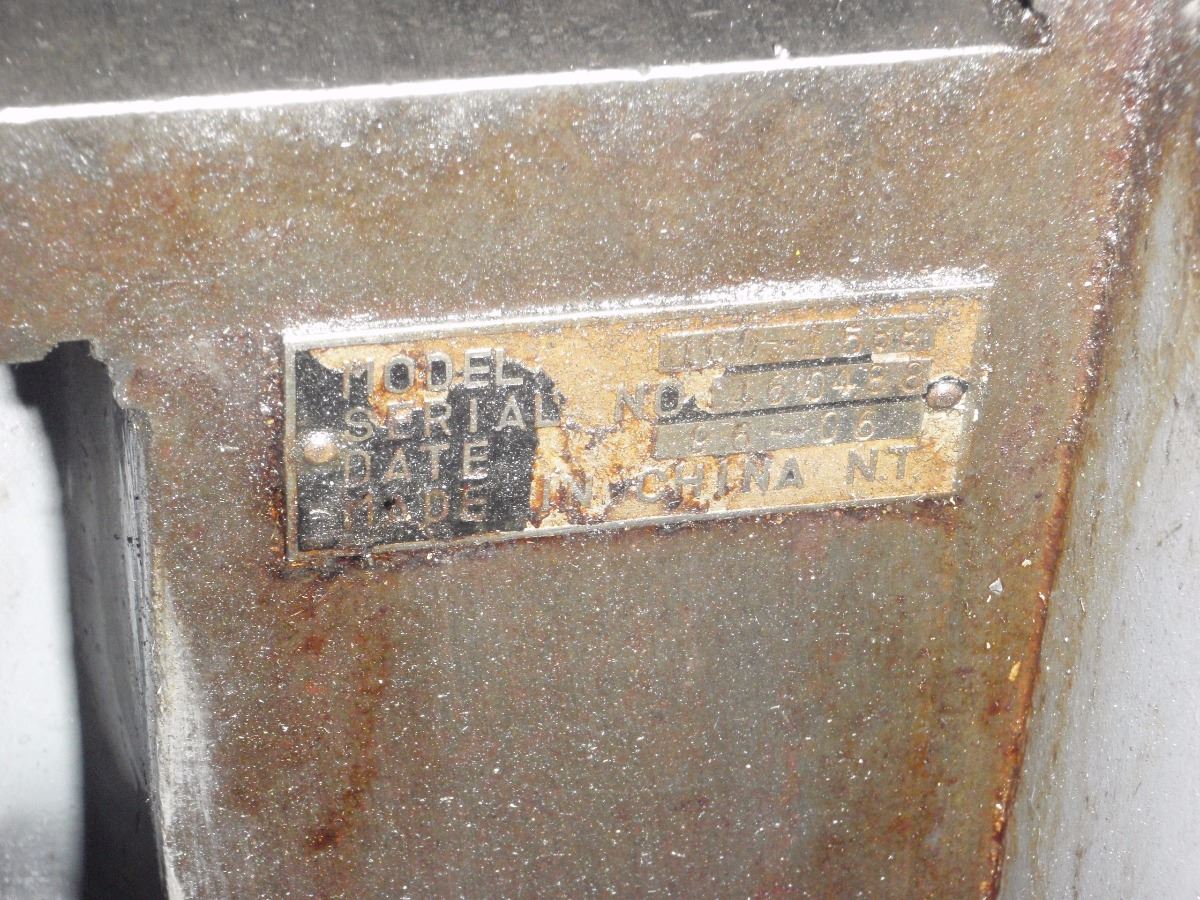

S/N 460488 (mfg 96-06)

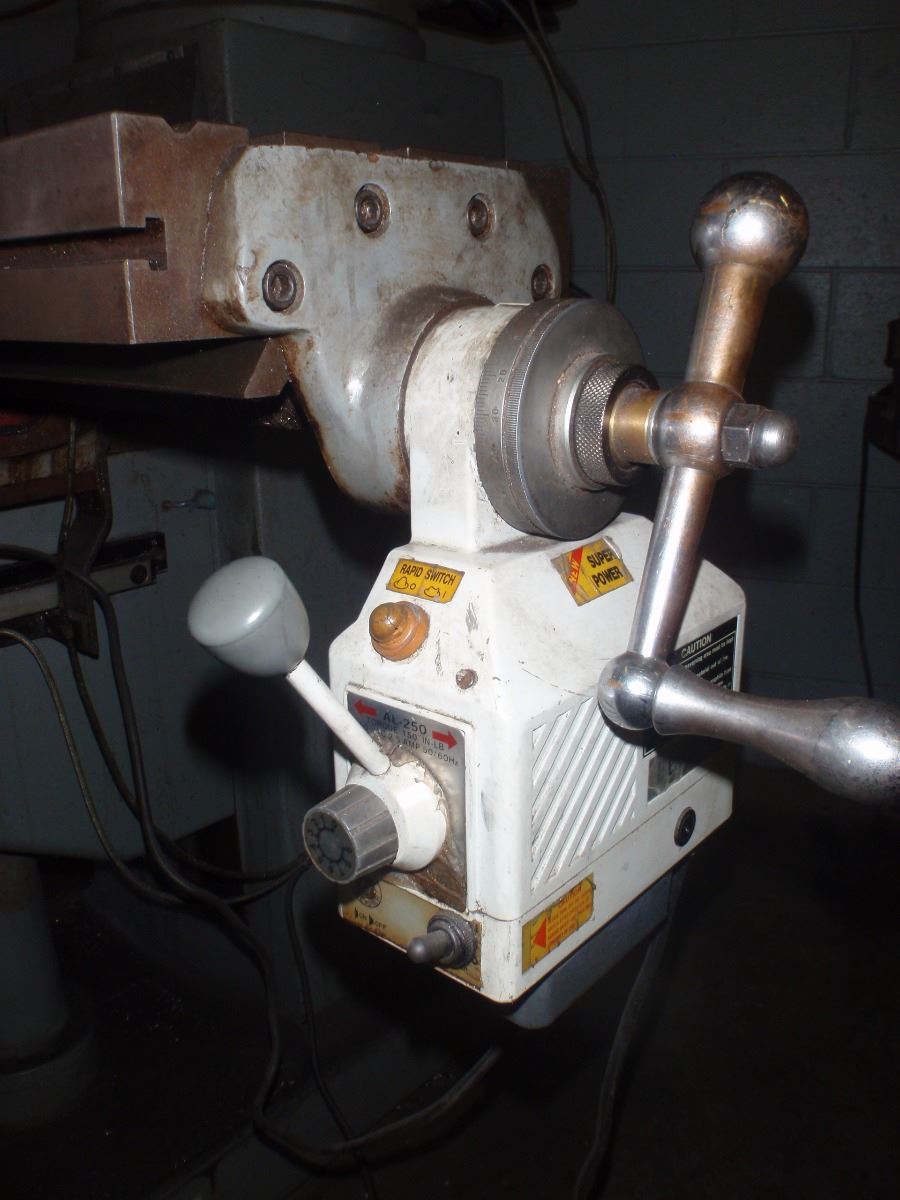

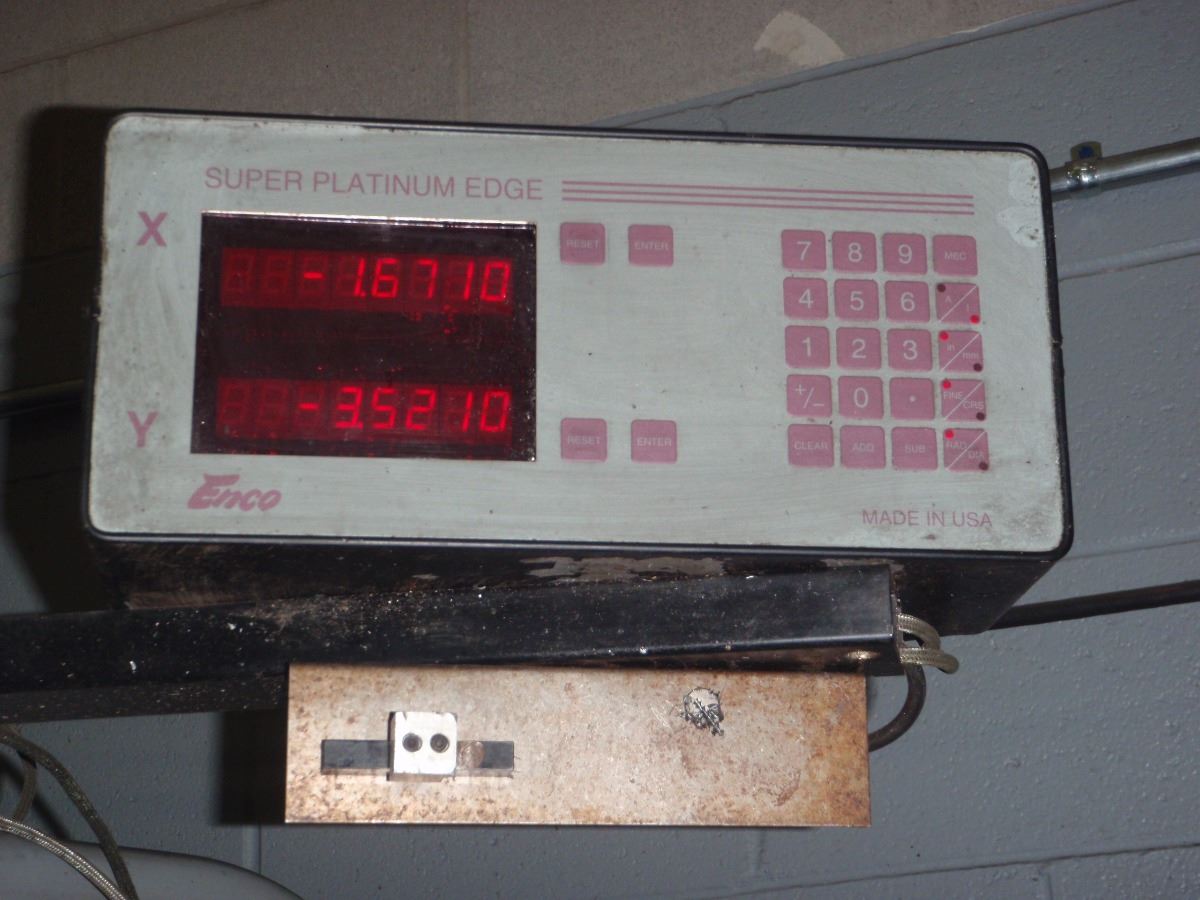

Equipped with Power Feed on Table, DRO System

BELOW ARE SPECS WE FOUND ONLINE FOR THIS MODEL MACHINE:
Enco Knee Milling Machines
Cross Travel (Inch): 17
Longitudinal Travel (Decimal Inch): 34.5000
Spindle Speed Control: Variable Speed Pulley
Machine Type: Knee Style
Table Length (Inch): 54
Table Width (Inch): 10
Horsepower: 3
X Axis Travel (Decimal Inch): 38.5000"
Y Axis Travel (Decimal Inch): 17"
Minimum Distance Spindle to Table Fract (Inch): 0
Maximum Distance Spindle to Table Fract (Inch): 18
Spindle Taper: R8
Spindle Travel: 5.1
Ram Travel (Decimal Inch): 19"
Quill Diameter (Decimal Inch): 3.3750
T-Slot Size (Inch): 5/8
Number of t-slots in the table: 3
Knee Travel (Inch): 17-1/2
Minimum Spindle RPM: 78
Maximum Spindle RPM: 4200
Power Down Feed: Yes
Number of Feedrates: 3.000
Feedrate for Power Downfeed: 0.0015, 0.003, 0.006
Voltage: 220/440
Phase: 3
Head Swivel LH Degree: 90.000
Head Swivel RH Degree: 90.000
Head Tilt Back Degree: 45
Head Tilt Forward Degree: 45
Maximum Floor Space Required Depth (Inch): 94
Maximum Floor Space Required Width (Inch): 104
Overall Length (Inch): 75
Overall Depth (Inch): 75
Overall Height (Inch): 84-1/2
