Cincinnati Hypowermatic 300 Milling Machine

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
Cincinnati Hypowermatic 300 Milling Machine
SOLD
1,025.00USDto j******1+ buyer's premium (153.75)
This item SOLD at 2014 Apr 17 @ 13:20UTC-4 : AST/EDT

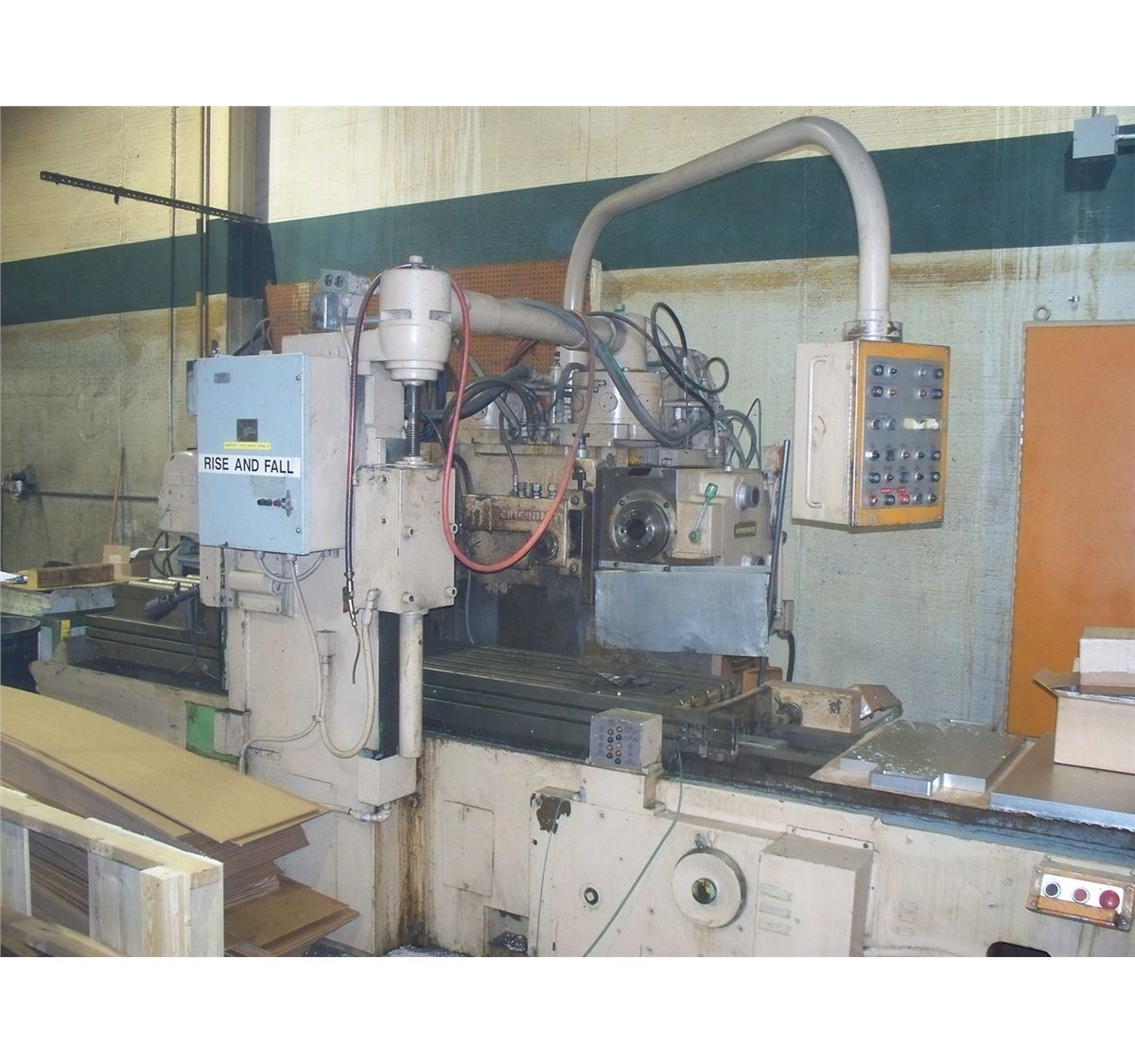

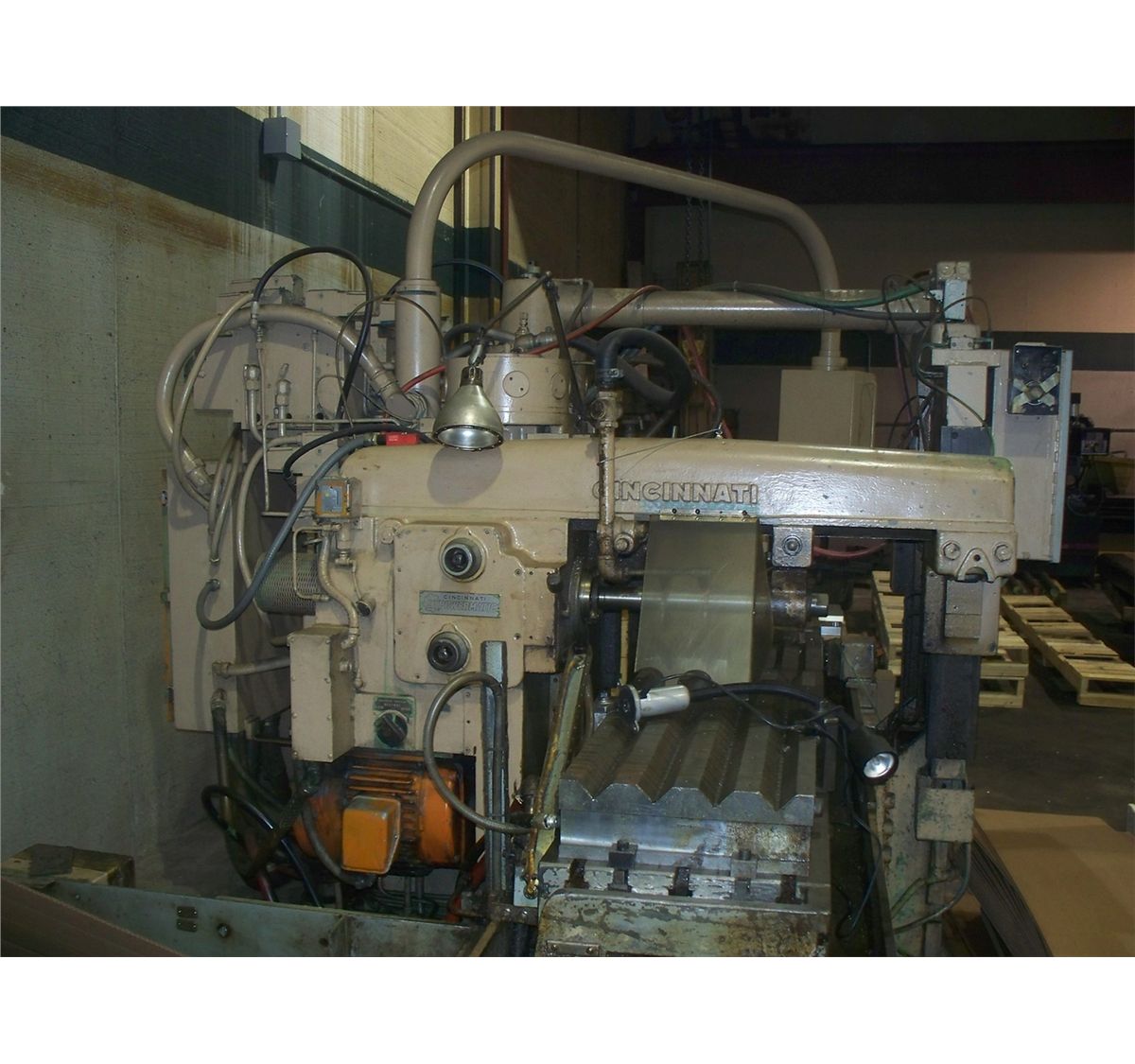

Cincinnati Hypowermatic 300 Milling Machine
Machine Location Grand Rapids MI
Loading fee $700
Machine in shop that no longer needs, machine appears to be in good condition not under power Sold AS-IS

Specification Description
TABLE WORKING SURFACE 18" X 84"
FEED RANGE 1 - 150 IPM
RAPID TRAVERSE 300 IPM
TABLE TRAVEL 60"
VERTICAL ADJUSTMENT SPINDLE CARRIER 17 1/4"
DISTANCE TABLE TO SPINDLE 4 3/4" MIN TO 22" MAX
QUILL ADJUSTMENT 6"
SPINDLE SPEEDS 16
SPINDLE NOSE
SPINDLE TAPER # 50 NST
MOTORS / ELECTRIC 25 HP, 3 PHASE, 60 CYCLE
RAPID TRAVERSE RATE 300 IPM
WEIGHT 17000 LBS

Equipped With:
AUTOCYCLE WITH AUTOMATIC SPINDLE STOP
AUTOMATIC BACKLASH ELIMINATOR
ASSORTED CHANGE GEARS

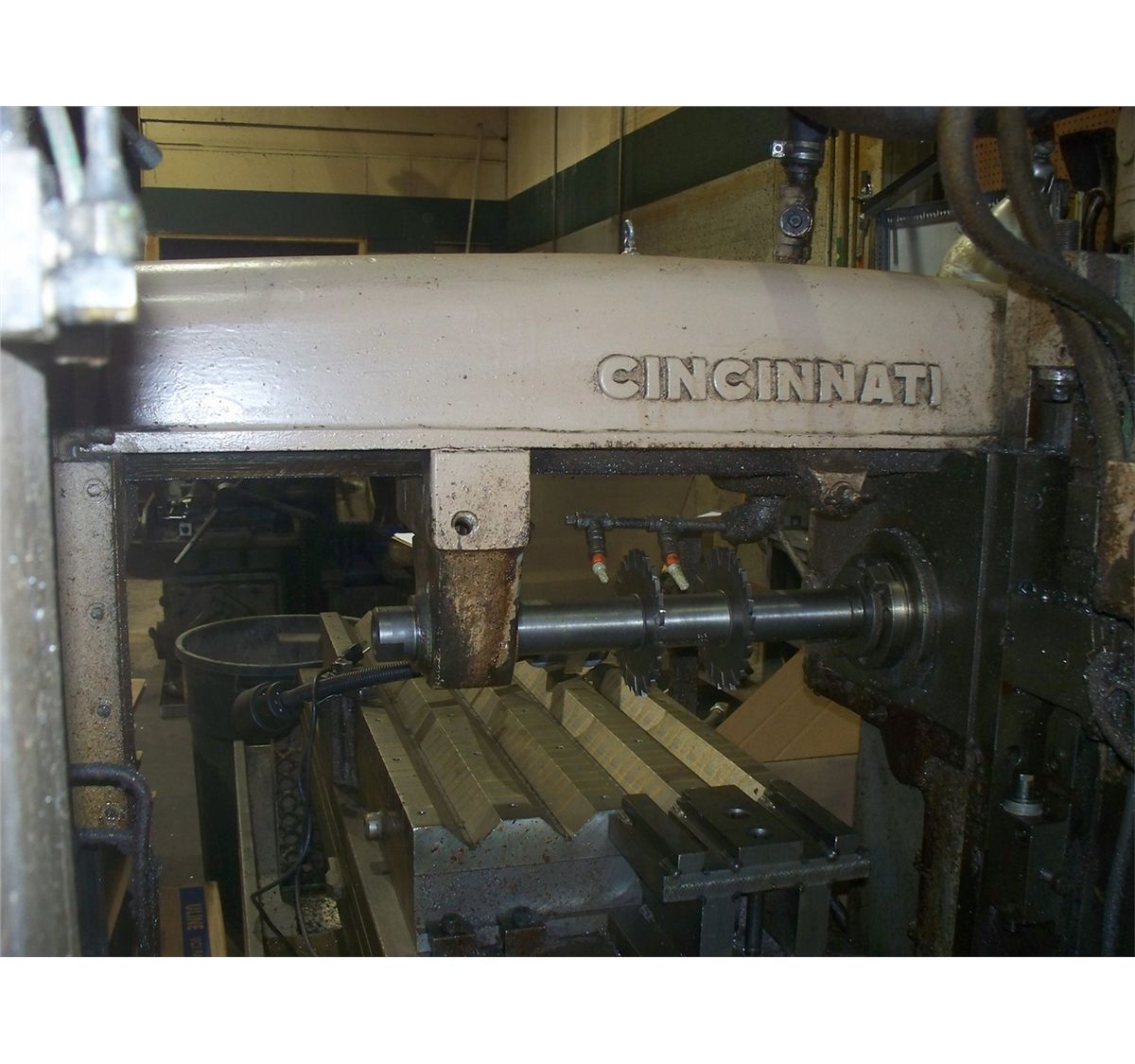

ARBOR SUPPORT
AC SPINDLE DRIVE MOTOR 7 1/2 HP

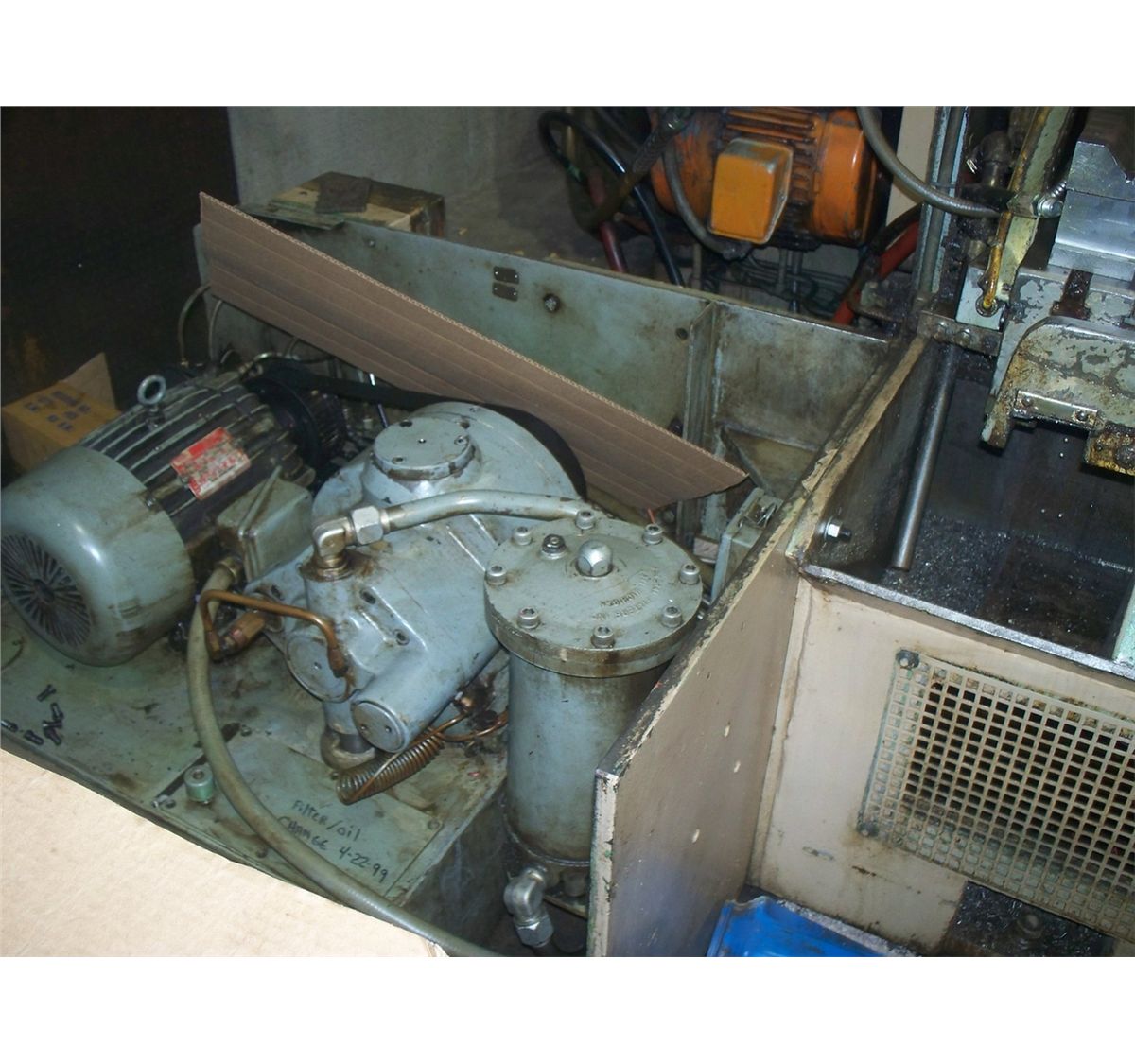

AC HYDRAULIC FEED DRIVE MOTOR

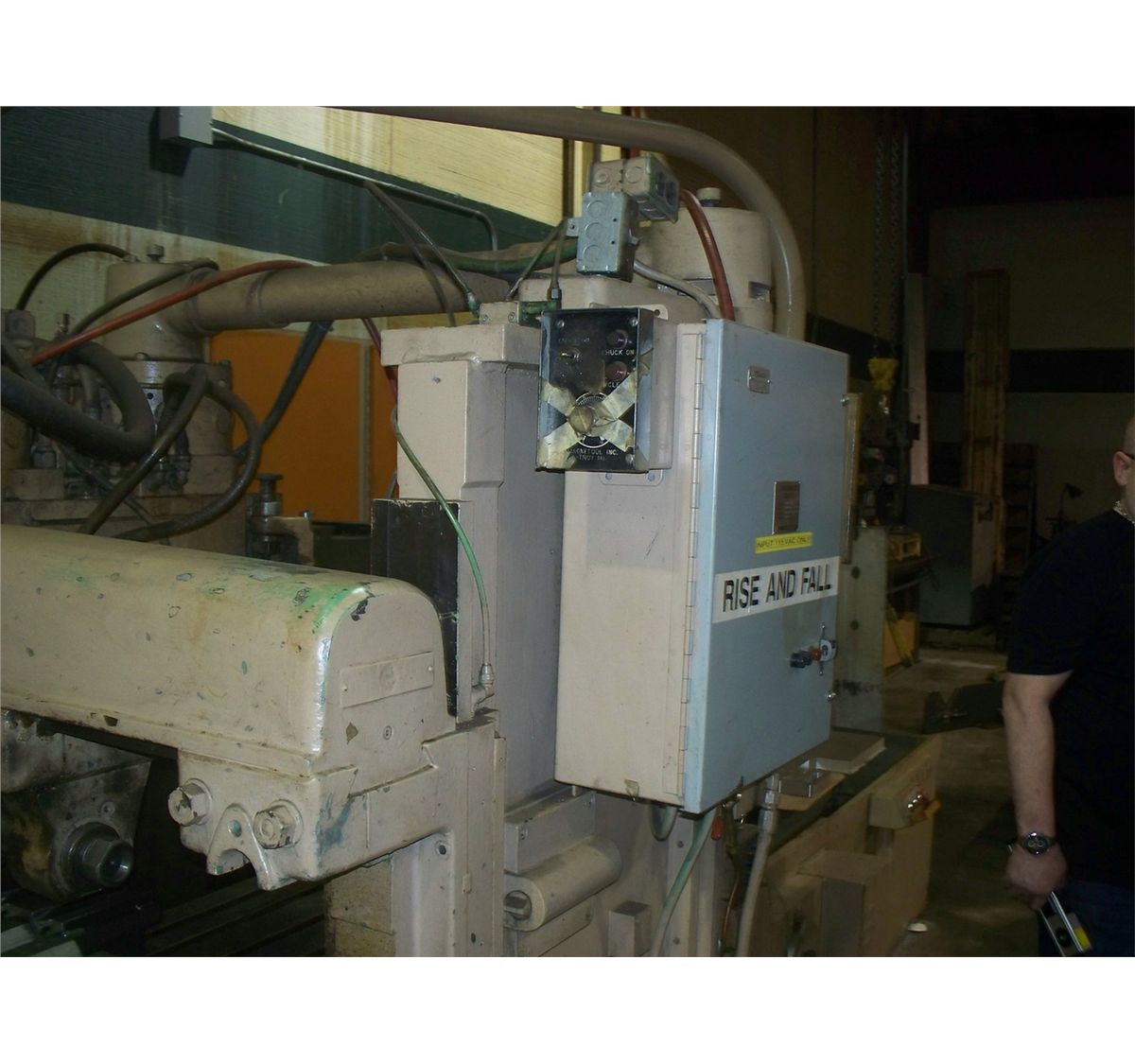

FREE STANDING ELECTRIC CONTROL CABINET
SWIVEL PENDANT TYPE OPERATROS MASTER CONTROL PANEL WITH MANUAL AND AUTOCYCLE SELECTORS
