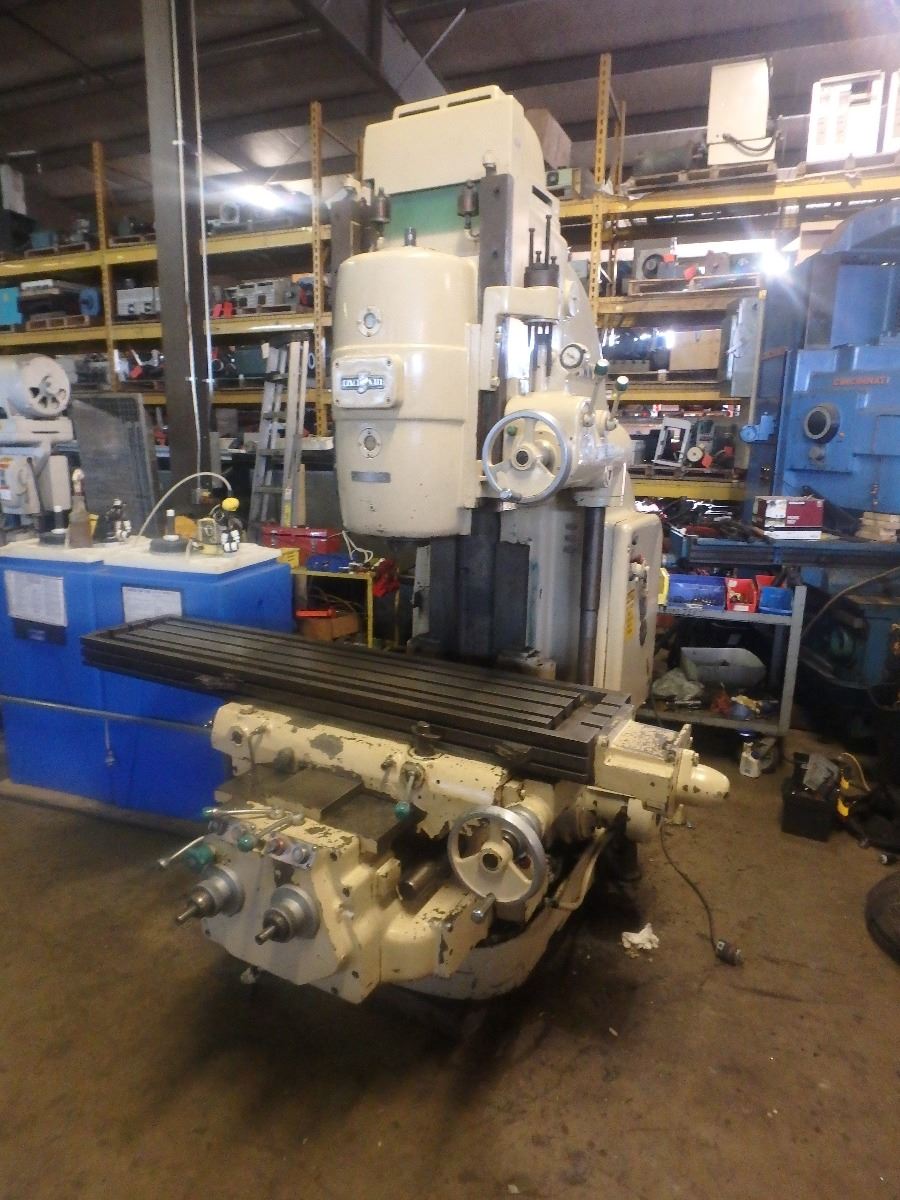

Cincinnati #315-15 Vertical Milling Machine

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:1.00 USD
Cincinnati #315-15 Vertical Milling Machine
SOLD
910.00USDto p*******k+ buyer's premium (136.50)
This item SOLD at 2016 Jul 14 @ 14:20UTC-4 : AST/EDT
LOCATION: Grand Rapids MI Consignment Warehouse
LOADING FEE: $325

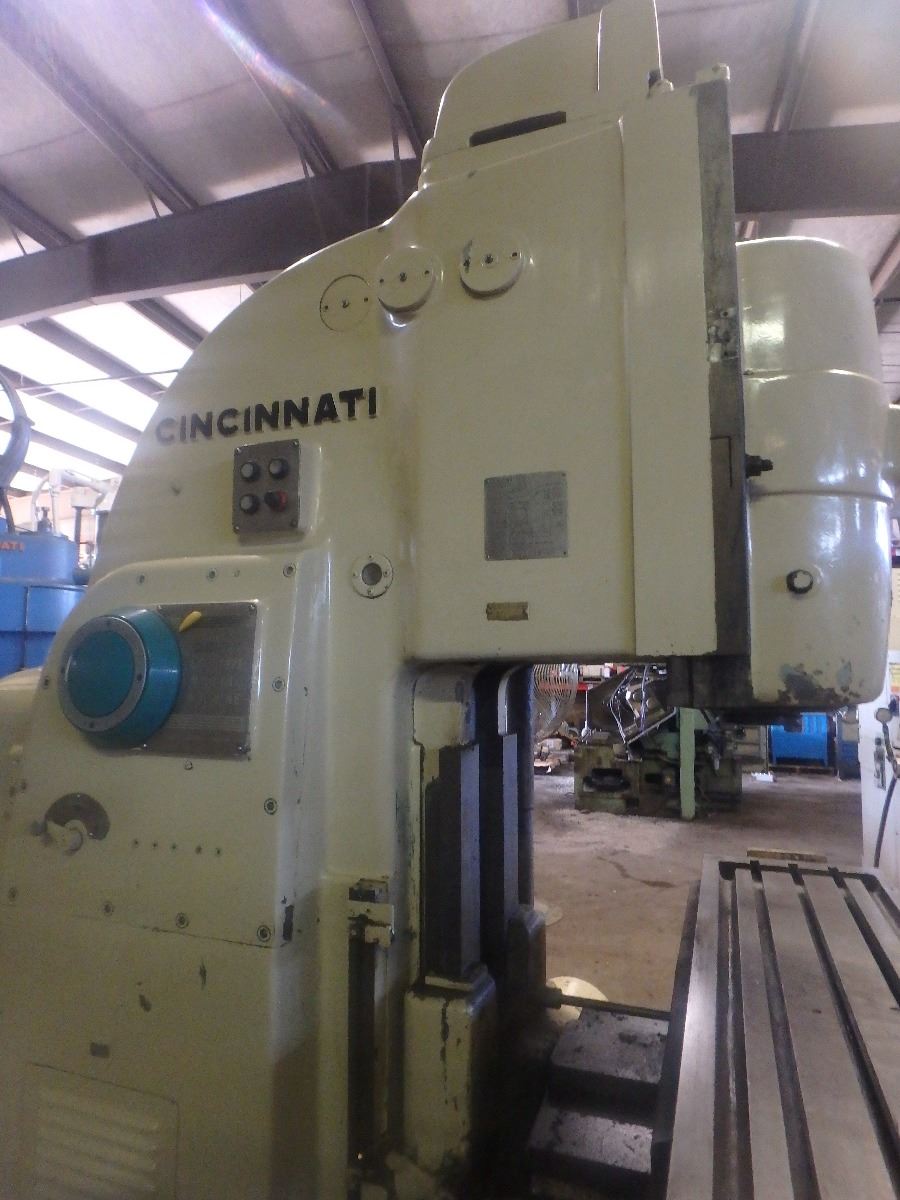

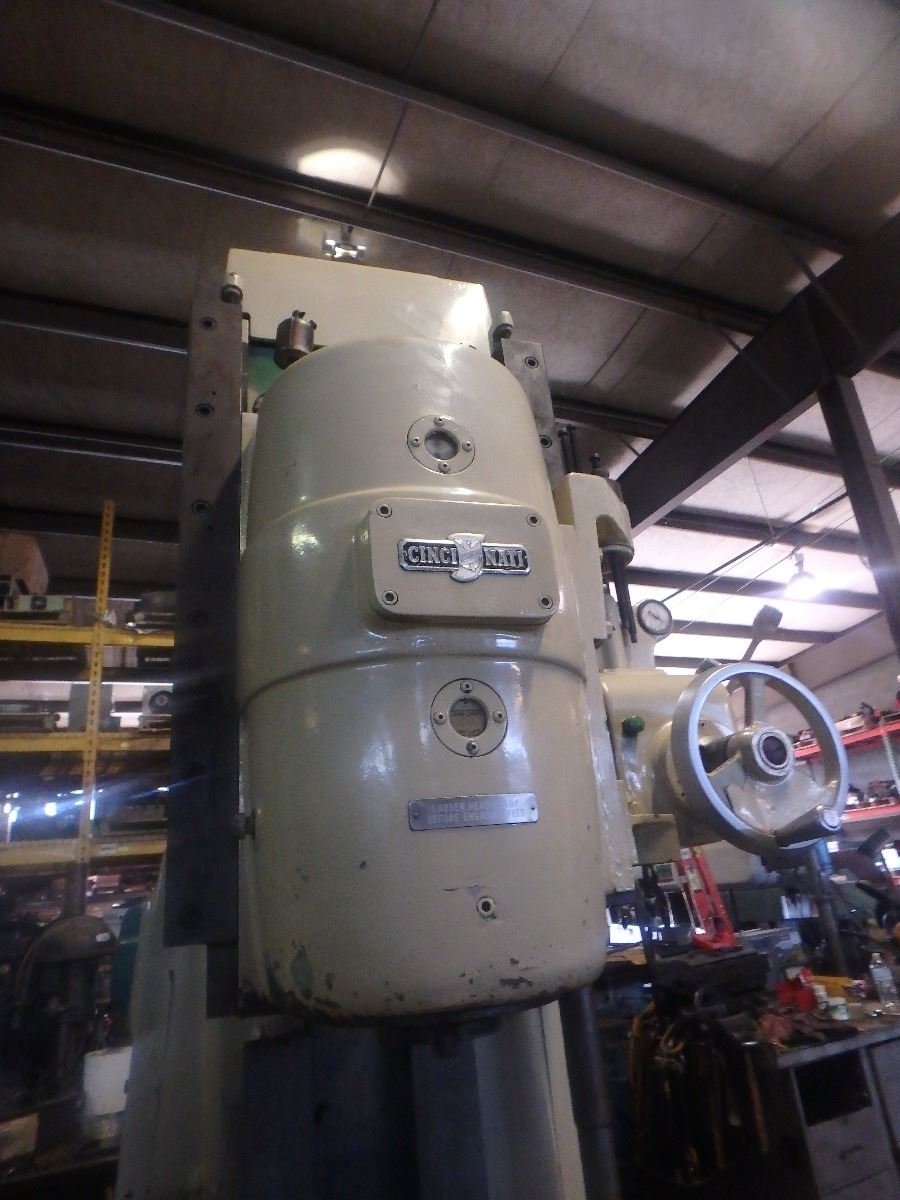

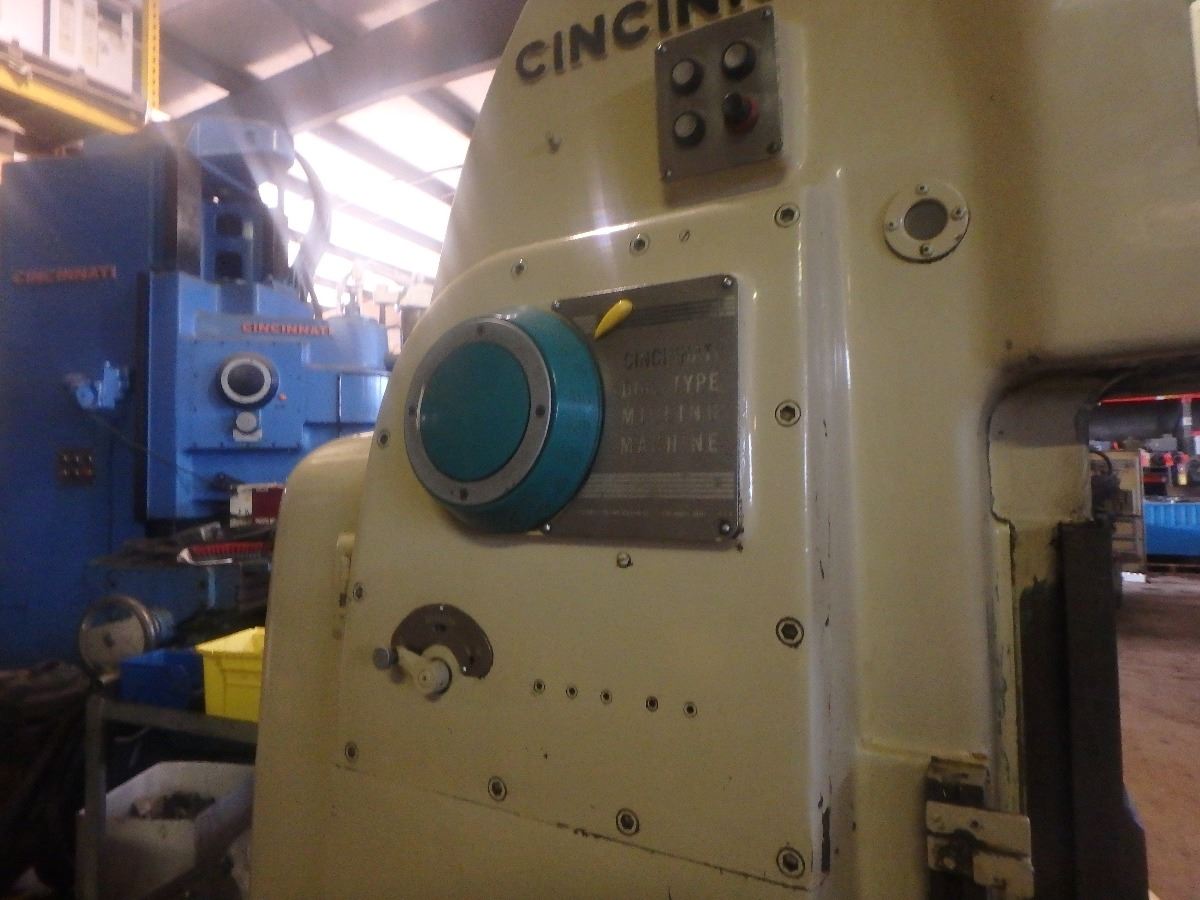

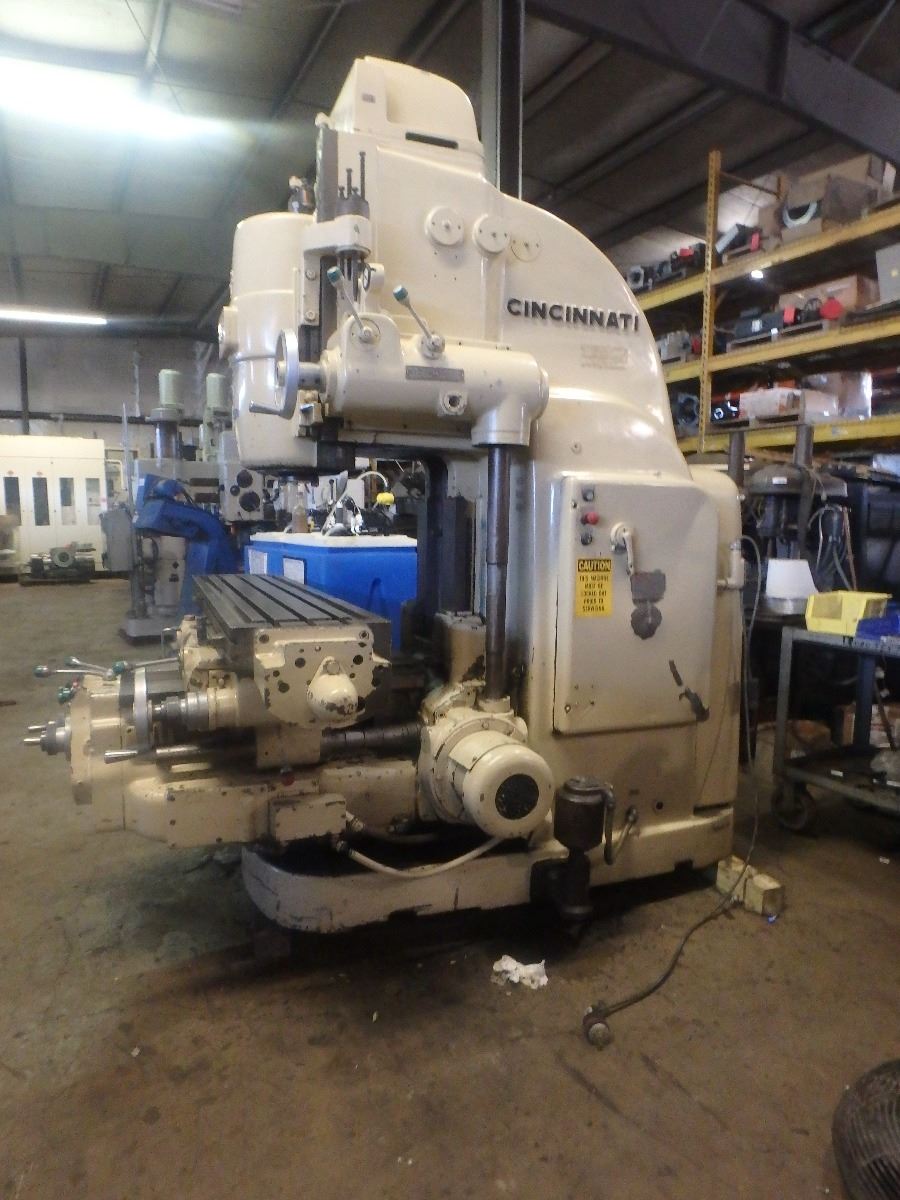

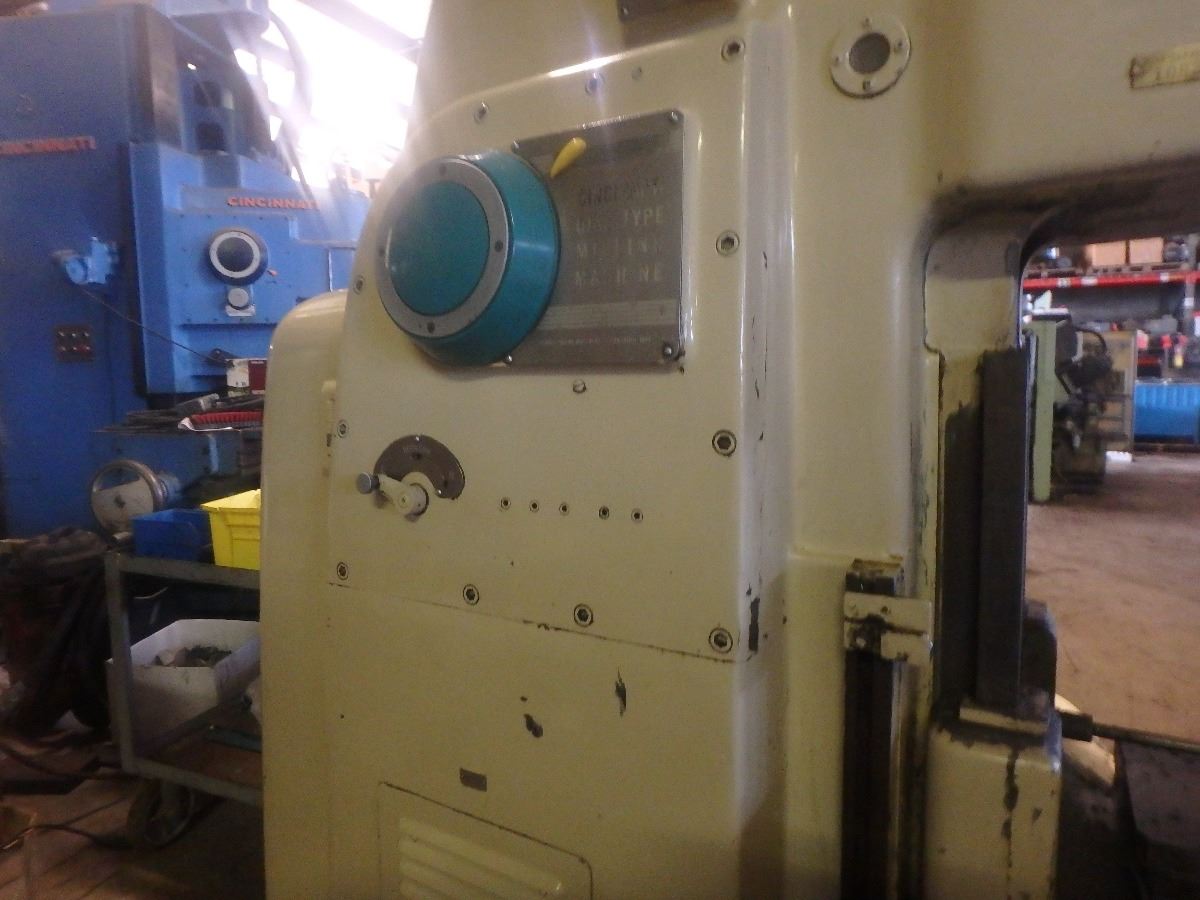

Cincinnati #315-15 Vertical Milling Machine


CATALOGUE SPECIFICATIONS (from online source - please verify independently):
Table Dimensions (Overall), W x L....... 15.25" x 68.5"
Table Working Surface, W x L............ 15.25" x 68.5"
Table Longitudinal Travel (X-Axis)...... 34"
Saddle Cross Travel (Y-Axis)............ 16"
Knee Vertical Travel (Z-Axis)........... 16"
Spindle-Head Vertical Travel (Z-Axis)... 6"
Spindle-Center to Column................ 18"
Spindle-Nose to Table, Minimum.......... 0"
Spindle-Nose to Table, Maximum.......... 22.125"
Spindle Taper........................... #50 NSTD
(24) Spindle Speeds, Range.............. 16 to 1600 RPM
(32) Longitudinal and Cross Feeds....... 3/8 to 90 IPM
(32) Vertical Head Feeds, Range......... 3/16 to 45 IPM
(32) Vertical Knee Feeds, Range......... 3/16 to 45 IPM
Power Rapid Traverse, Long & Cross...... 150 IPM
Power Rapid Traverse, Vertical.......... 75 IPM
Spindle Motor, Horsepower............... 15 HP
Feed Motor, Horsepower.................. 3 HP
Floor Space Required, W x D............. 11'6" x 10'
Weight, Approximately................... 11500 LBS
