CINCINNATI MONOSET TOOL & CUTTER GRINDER

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:10.00 USD
CINCINNATI  MONOSET TOOL & CUTTER GRINDER
SOLD
2,600.00USD+ buyer's premium (390.00)
This item SOLD at 2020 Jun 11 @ 16:45UTC-4 : AST/EDT
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.

Appointments for inspections are available upon request, 8am-5pm M-F for each location. Please call 616-745-5953 or email sales@btmindustrial.com.



LOCATION: GRAND RAPIDS, MI
LOADOUT FEE: $75.00

By Appointment only - Please contact Eric Rasikas 616.540.1279 or email Eric@btmindustrial.com

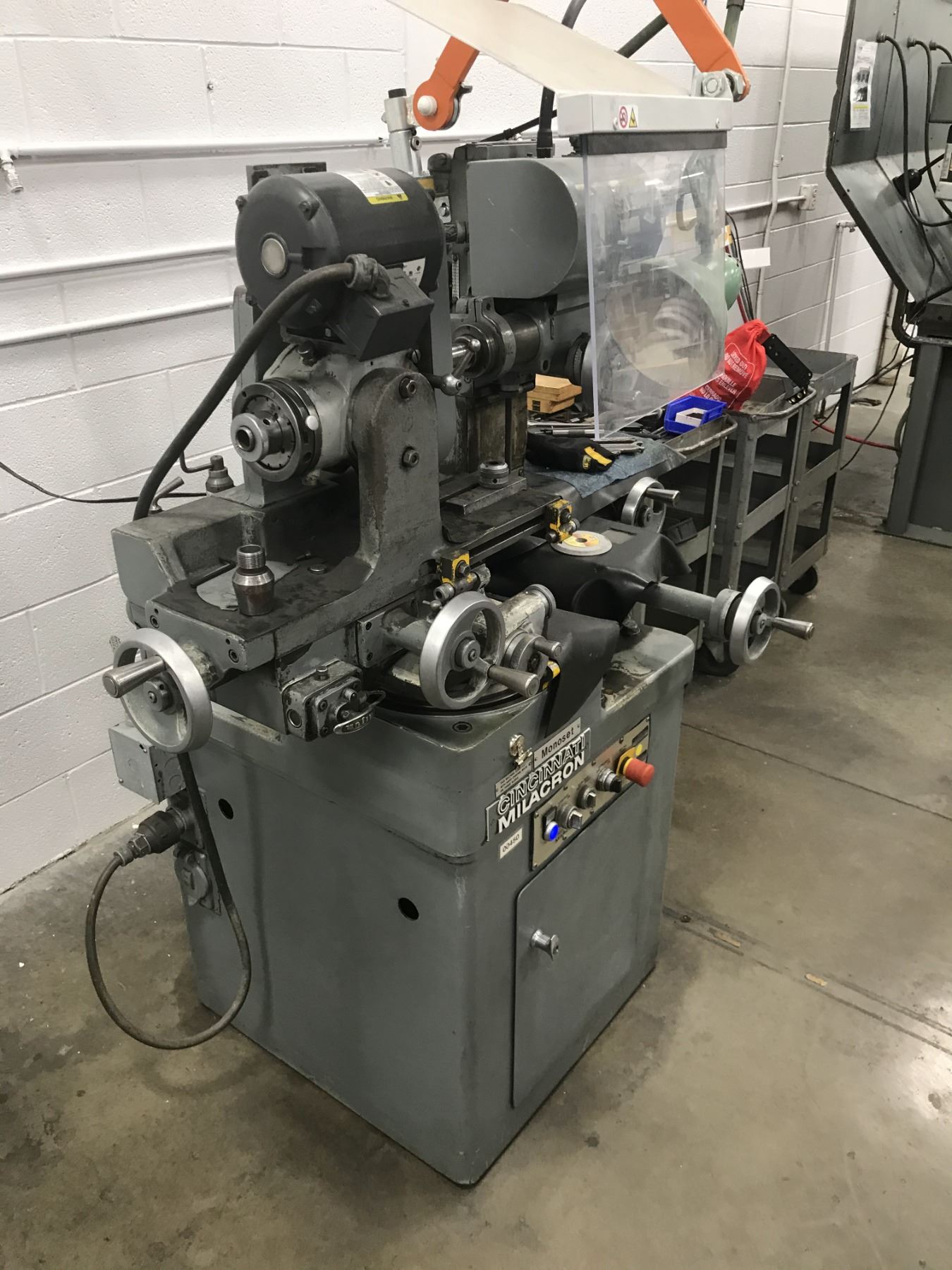

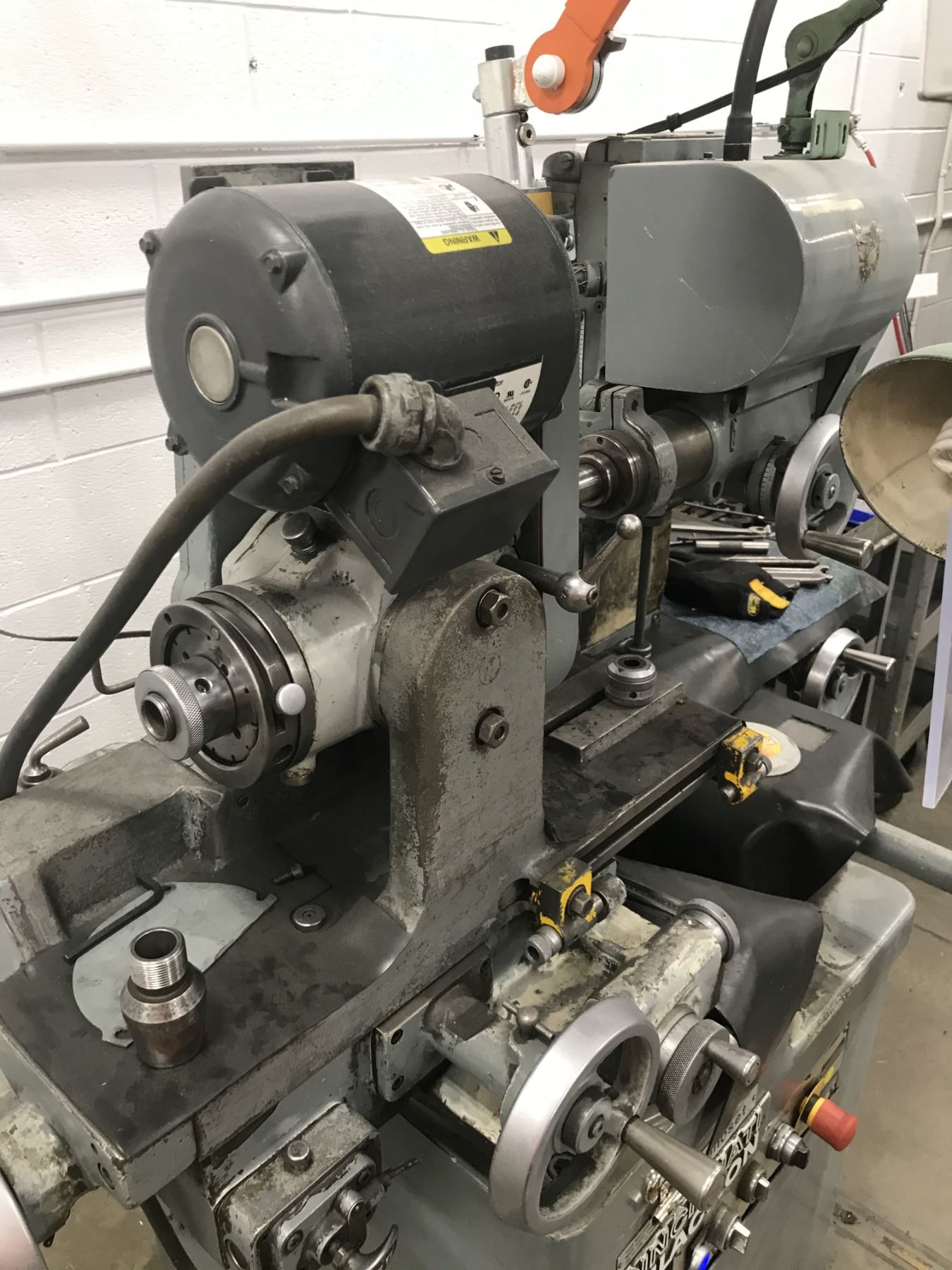

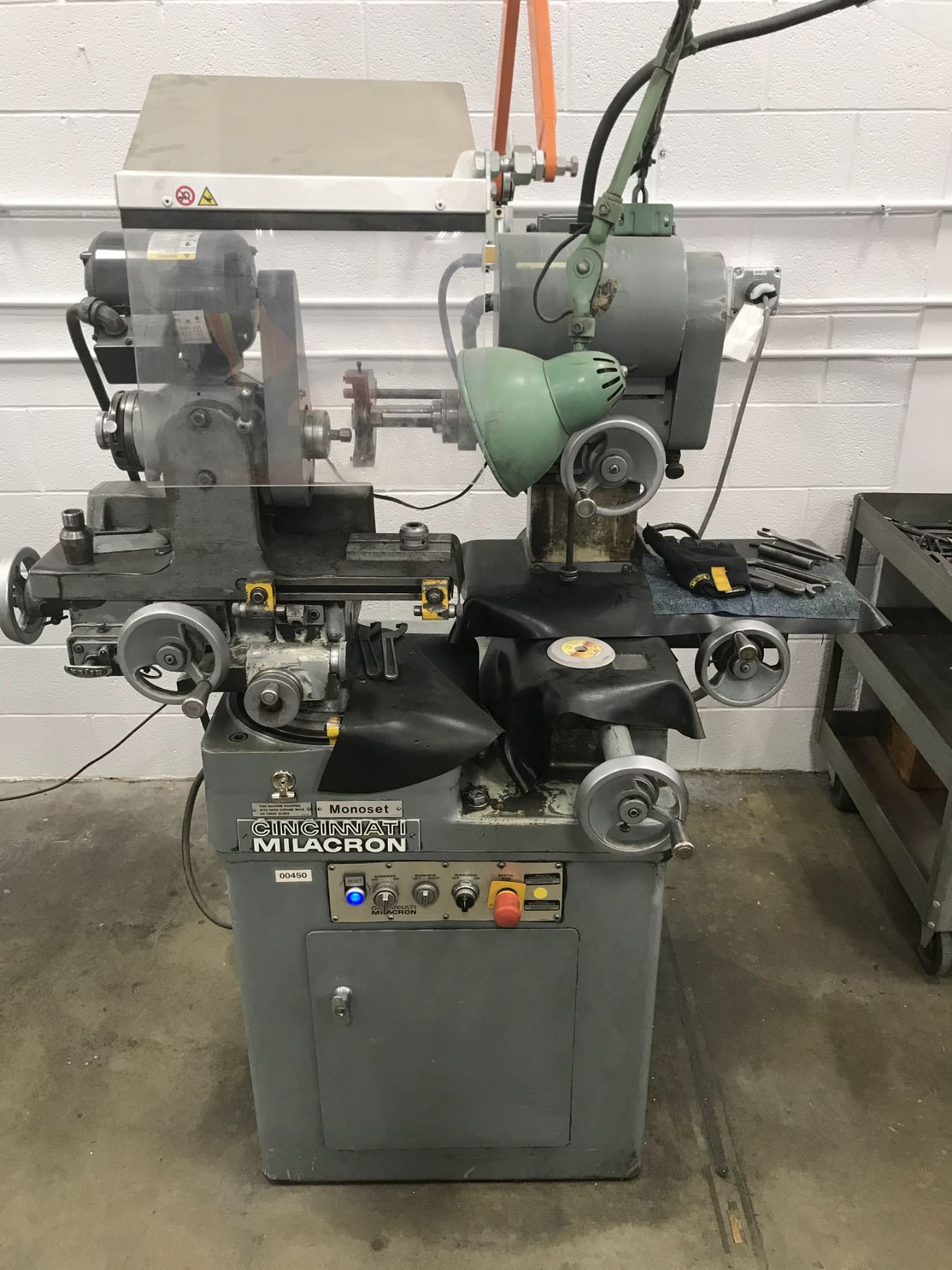

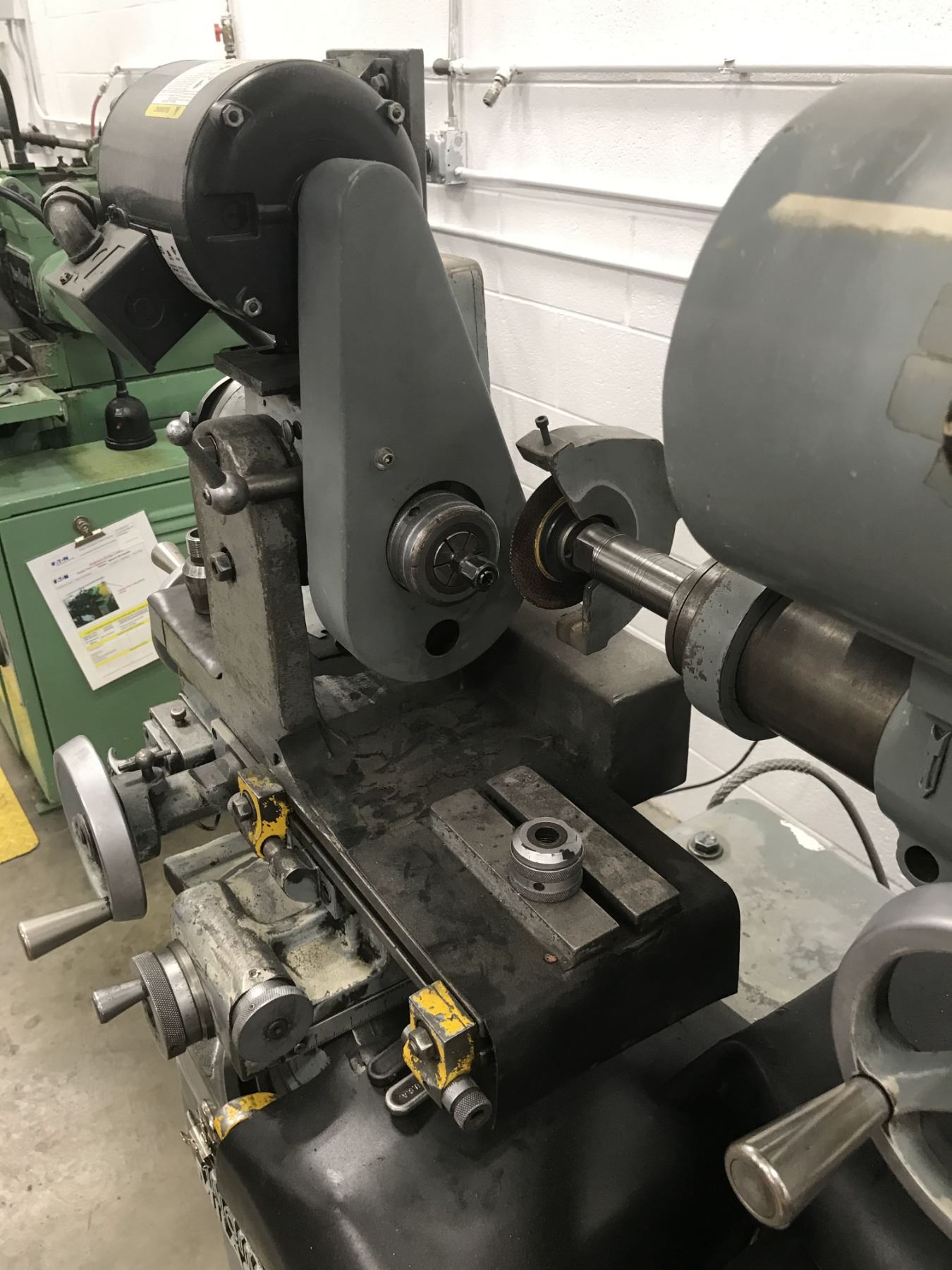

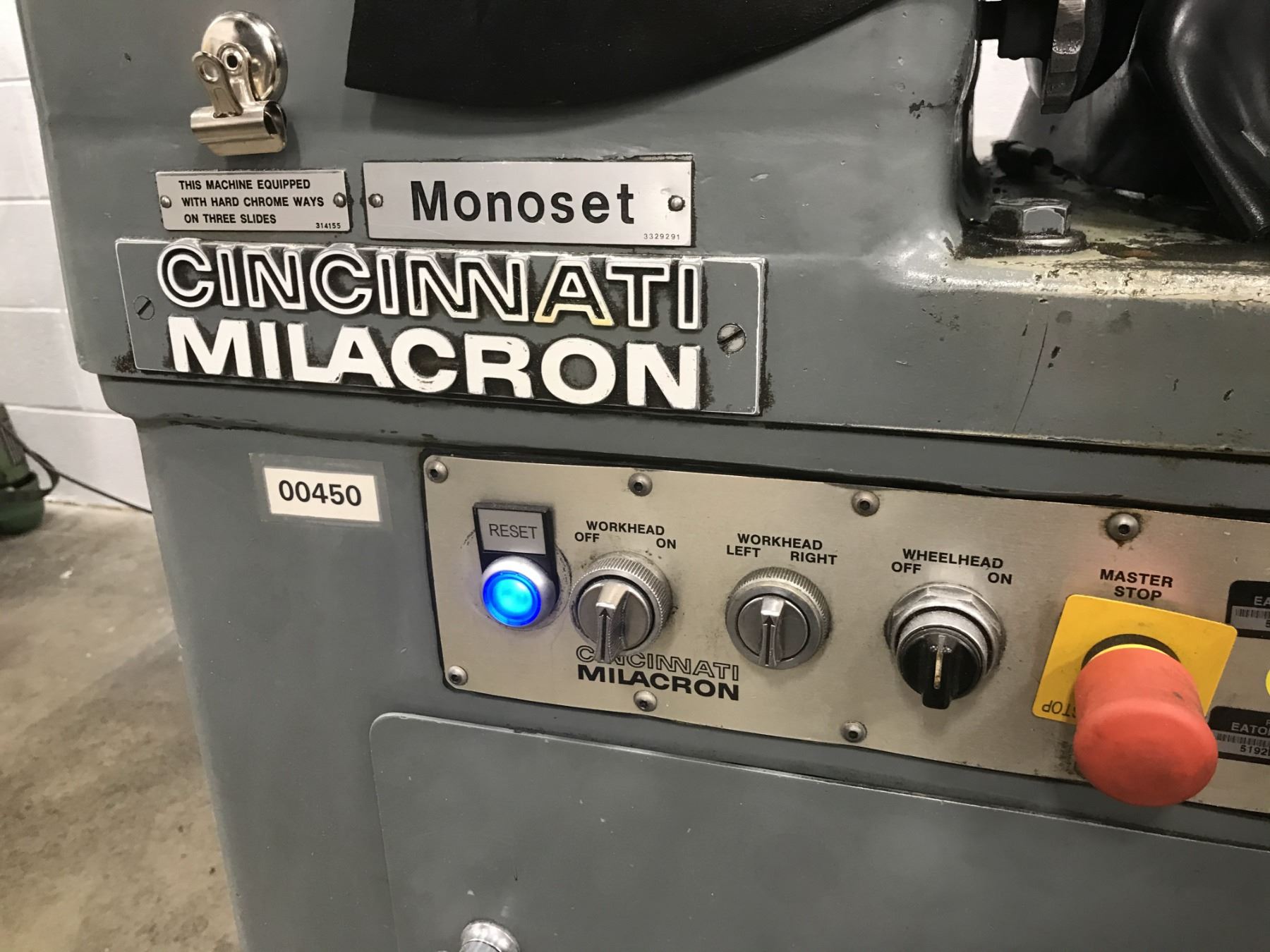

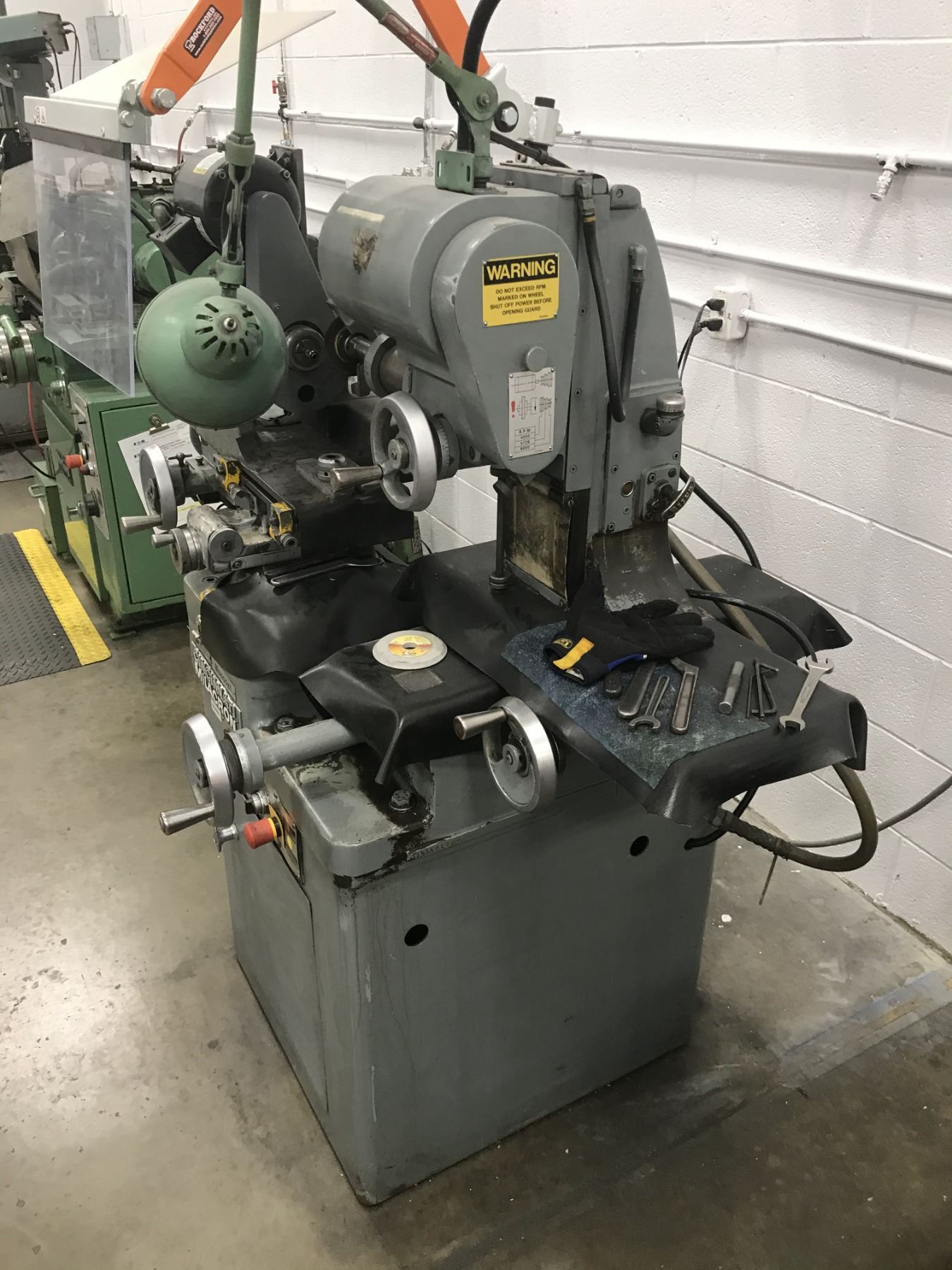

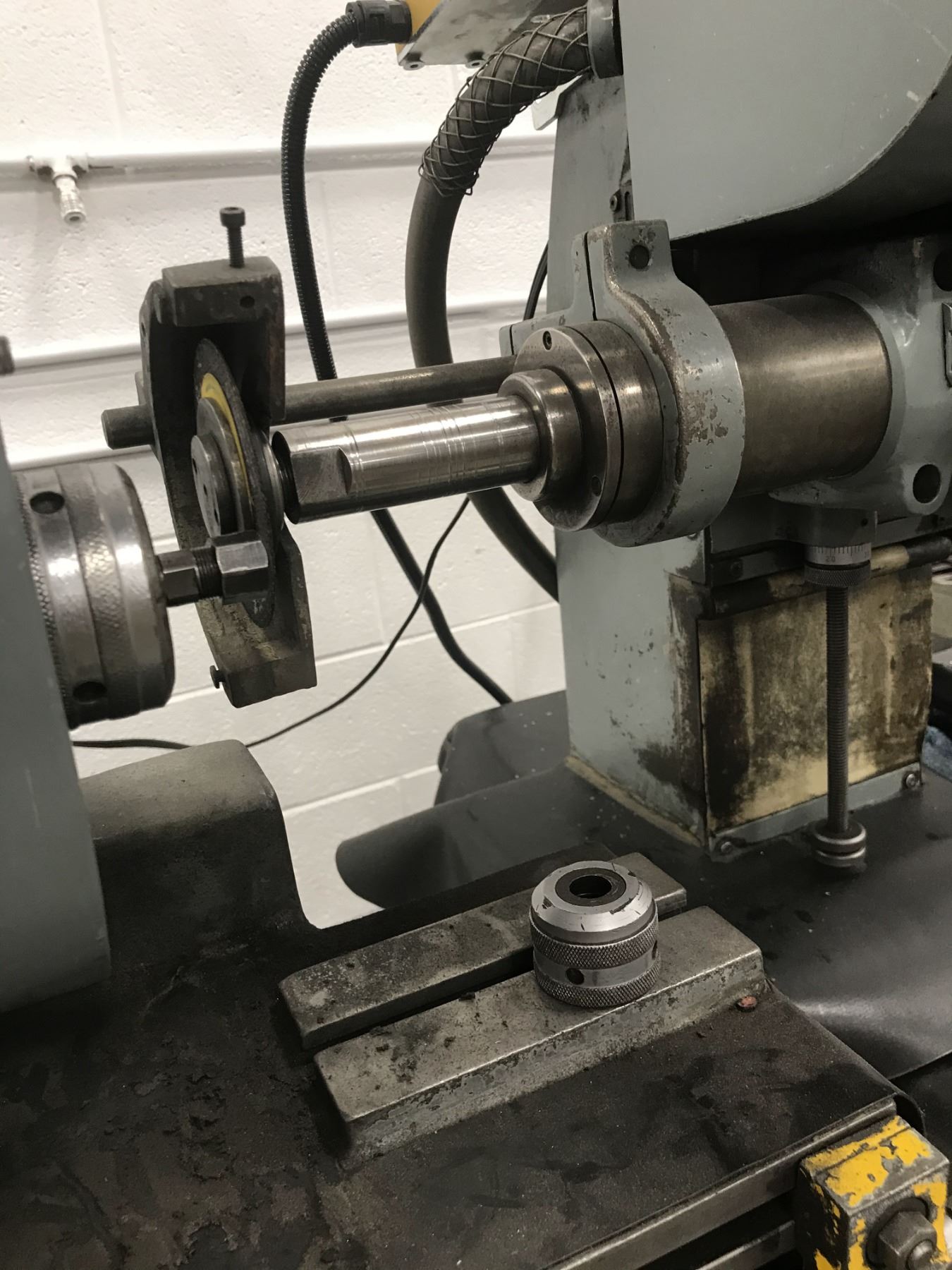

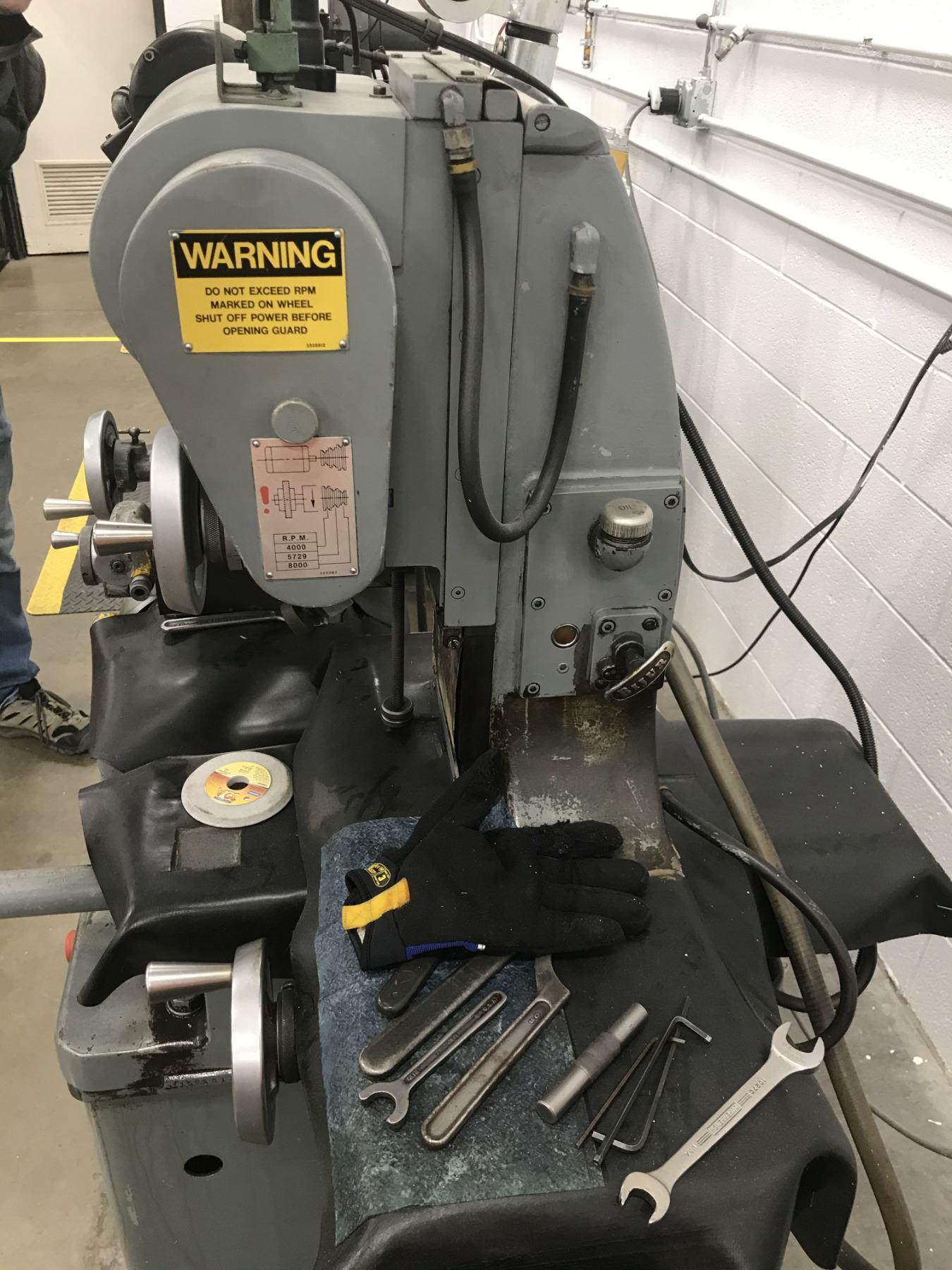

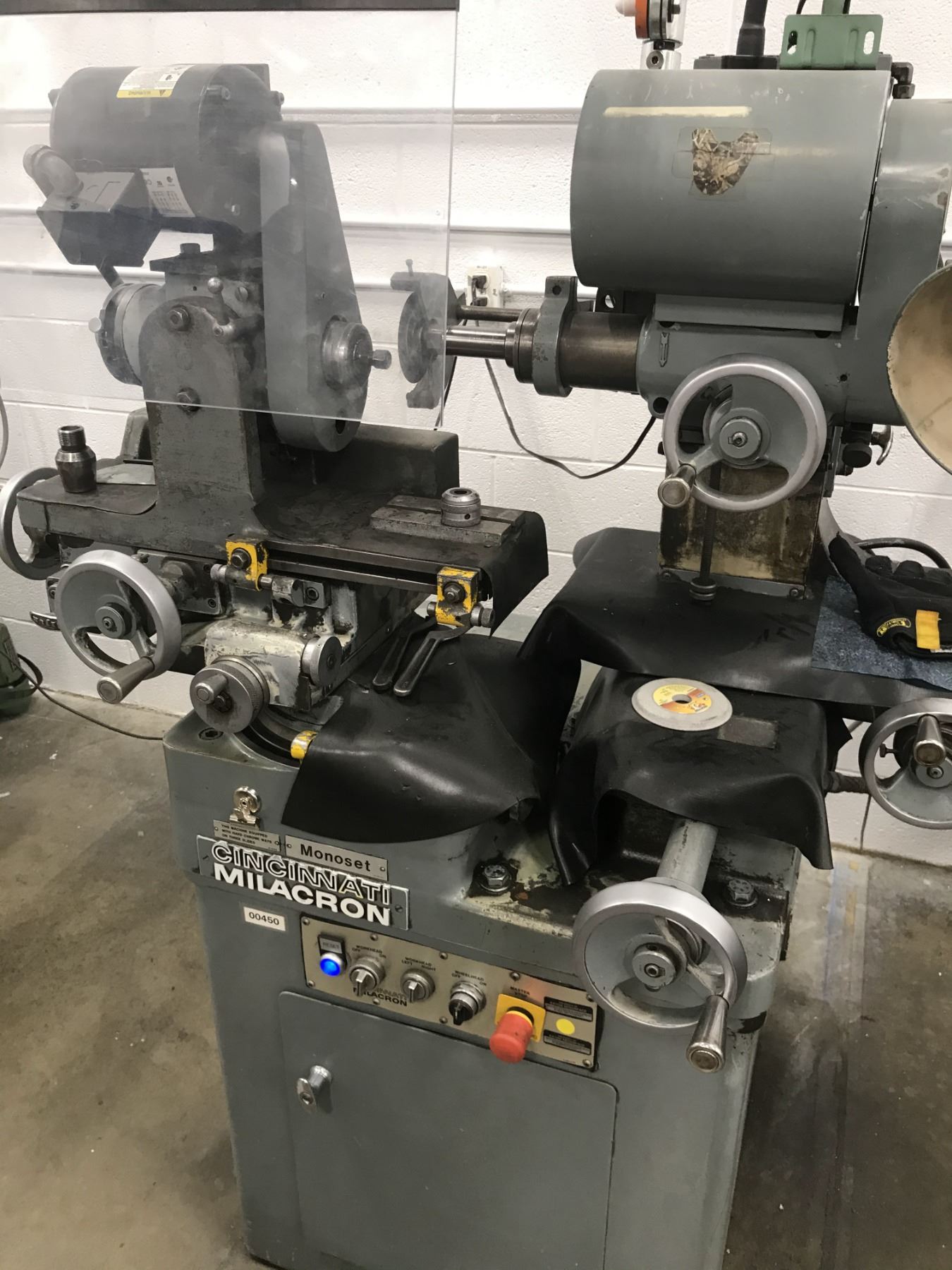

CINCINNATI Milacron MONOSET MT TOOL & CUTTER GRINDER

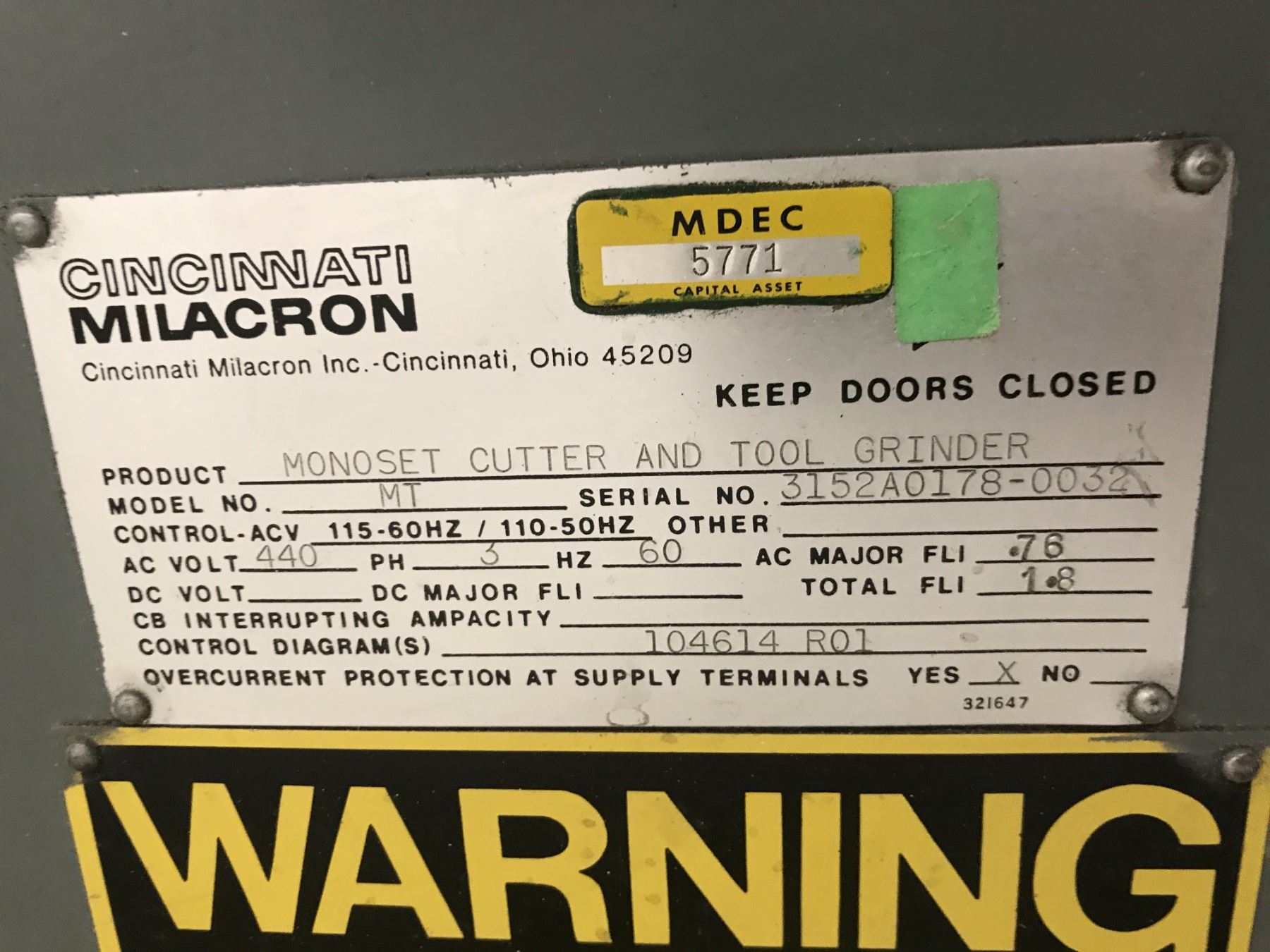

Model #: MT
Serial #: 3152A0178-0032
440 Volt
3 Phase 60hz

SPECS PULLED FROM ONLINE SOURCE:
Swing Over Main Slide: 12"
Maximum Length Between Spindle Nose & Tail Center: 6"
Maximum Wheel Diameter: 3-1/2"
Max Collet Work Diameter: 1-1/4"
Min Collet Work Diameter: 1/8"
Minimum Lead Generated by Spiral Lead Mechanism: 1-13/16"
Longitudinal Movement of Main Slide: 5-3/4"
Offset Slide Movement (Either Side of Center): 2-1/4"
Vertical Slide Travel of Wheelhead Above Center: 4-1/4"
Vertical Slide Travel of Wheelhead Below Center: 4-1/2"
Traverse Slide Travel of Wheelhead: 7-1/2"
Longitudinal Slide Travel of Wheelhead: 6"
3 Grinding Wheel Spindle Speeds: 4000, 5729, 8000 RPM (Via V Belt Pulley)
Workhead Spindle: 287 RPM
