SOLD
3,300.00USD+ buyer's premium (495.00)
This item SOLD at 2017 Jul 20 @ 13:15UTC-4 : AST/EDT
Did you win this lot?
A full invoice should be emailed to the winner by the auctioneer within a day or two.
Machine location Grand Rapids MI
Loading Fee $700

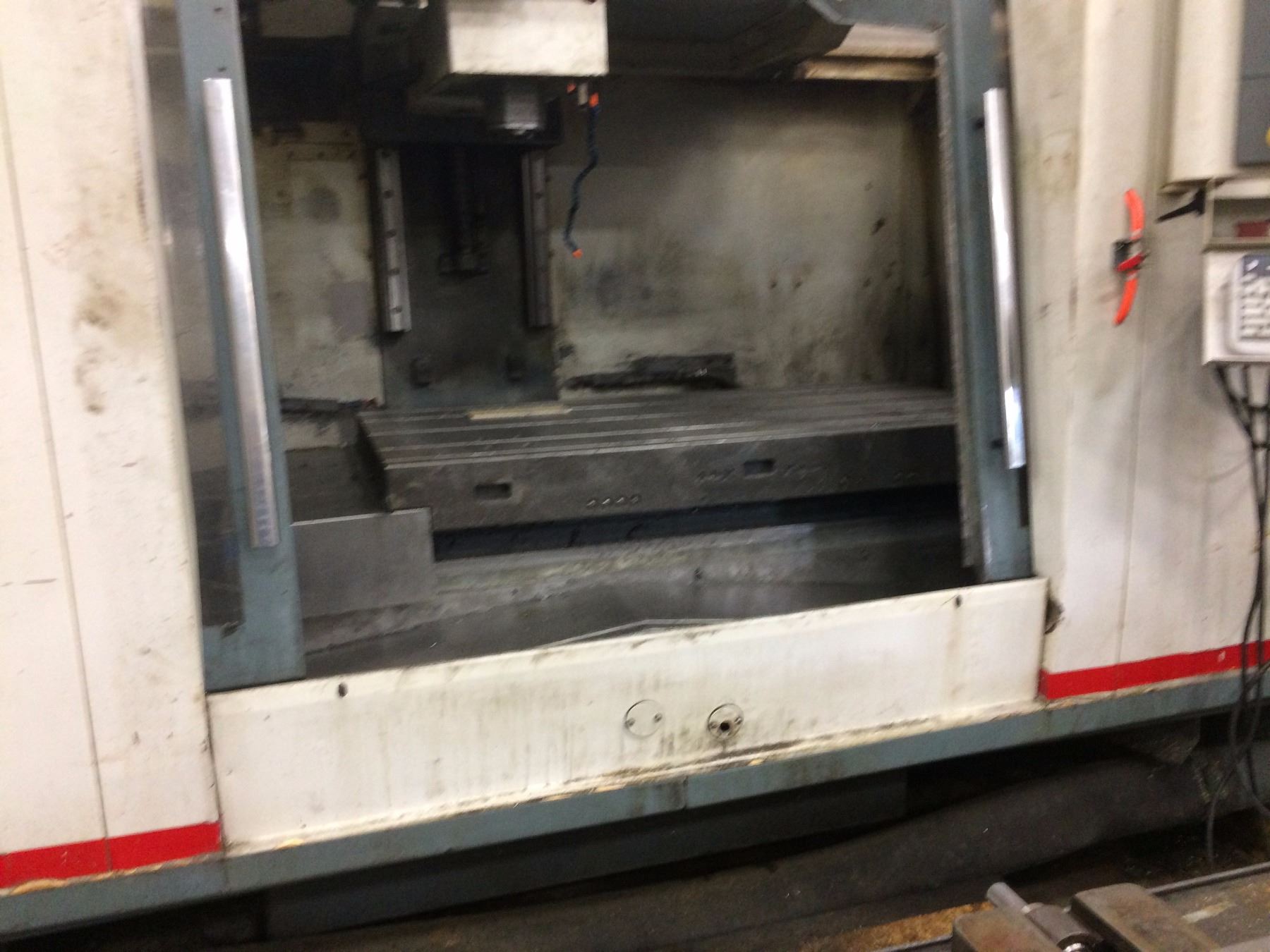

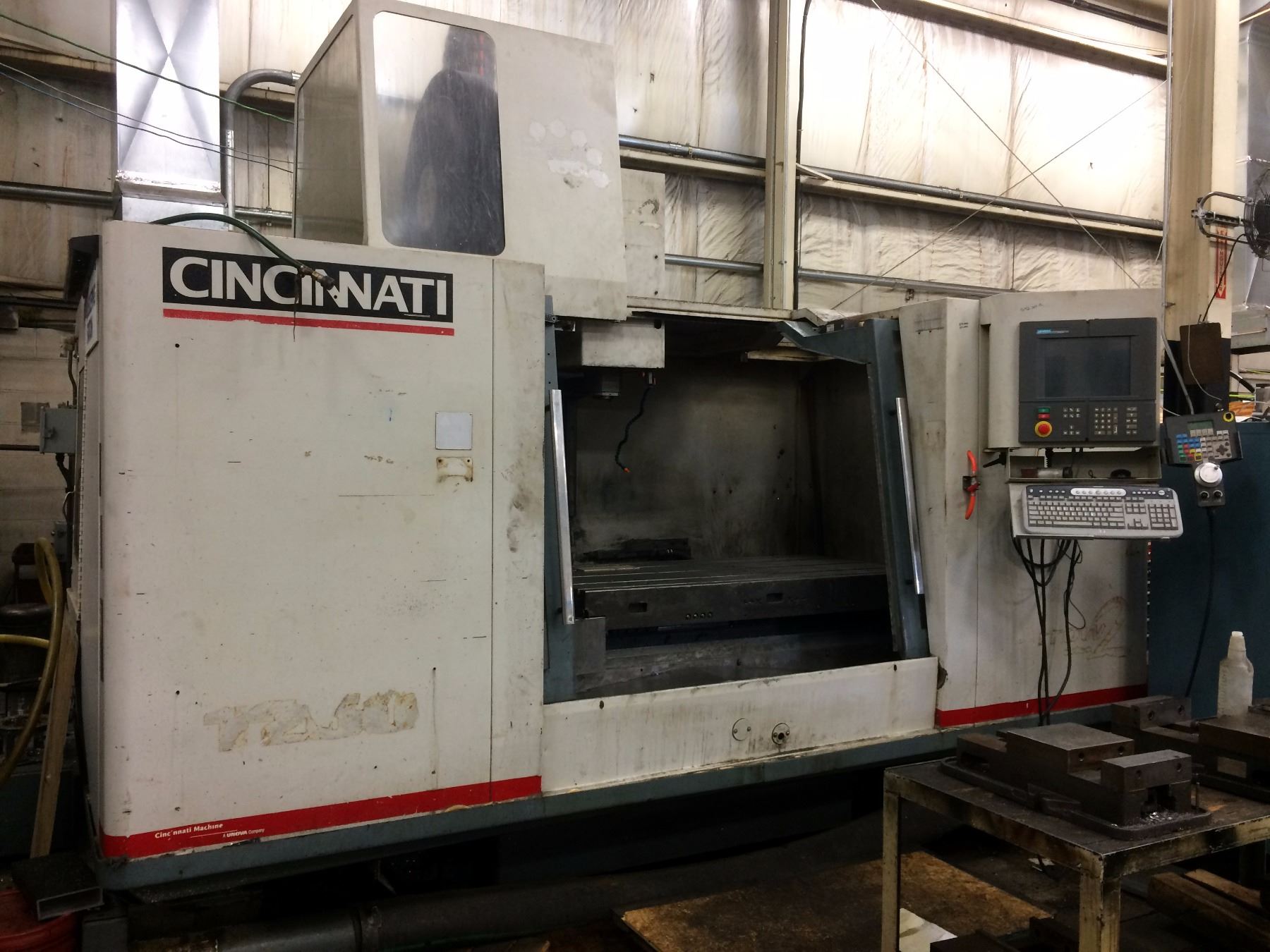

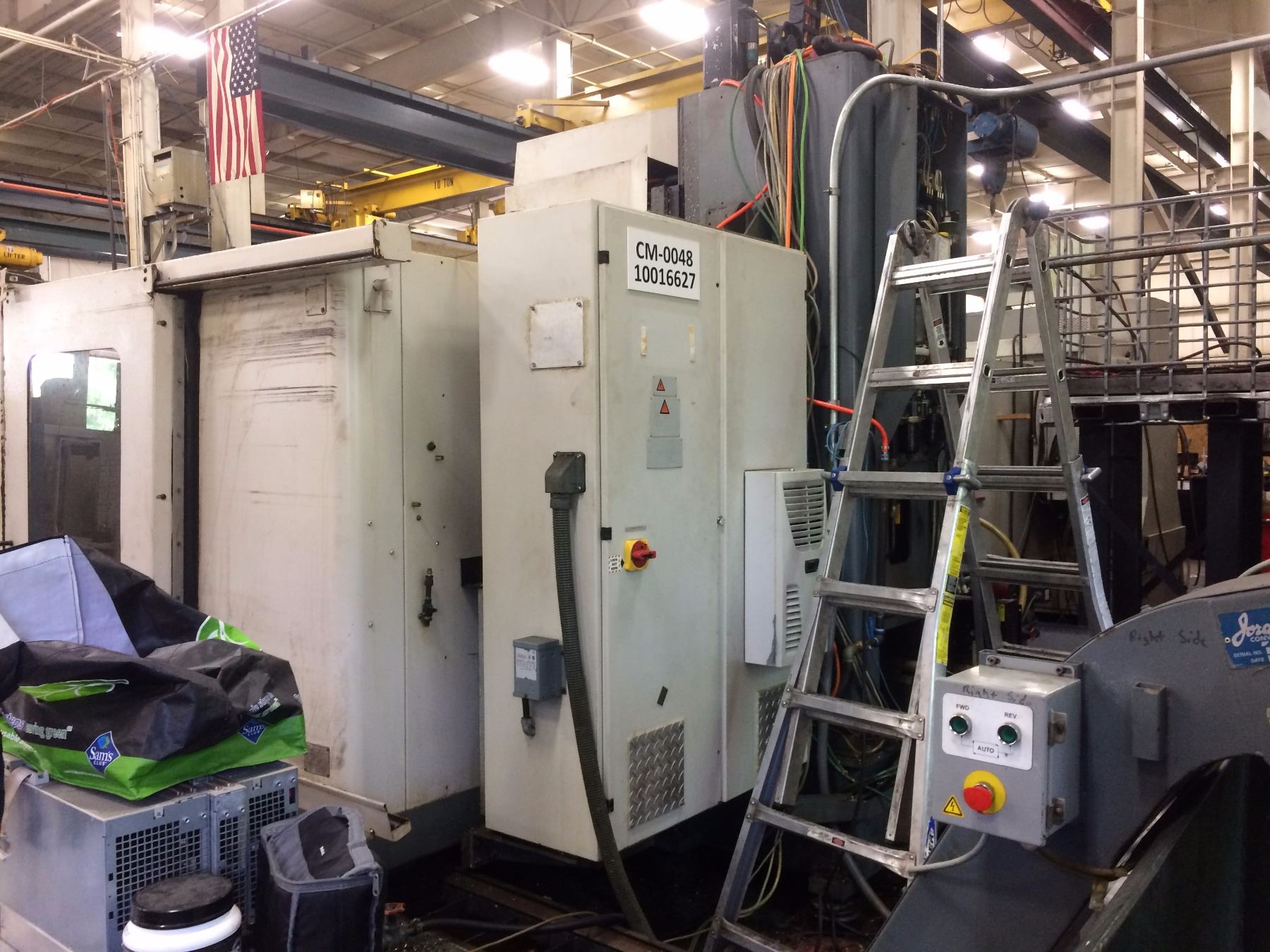

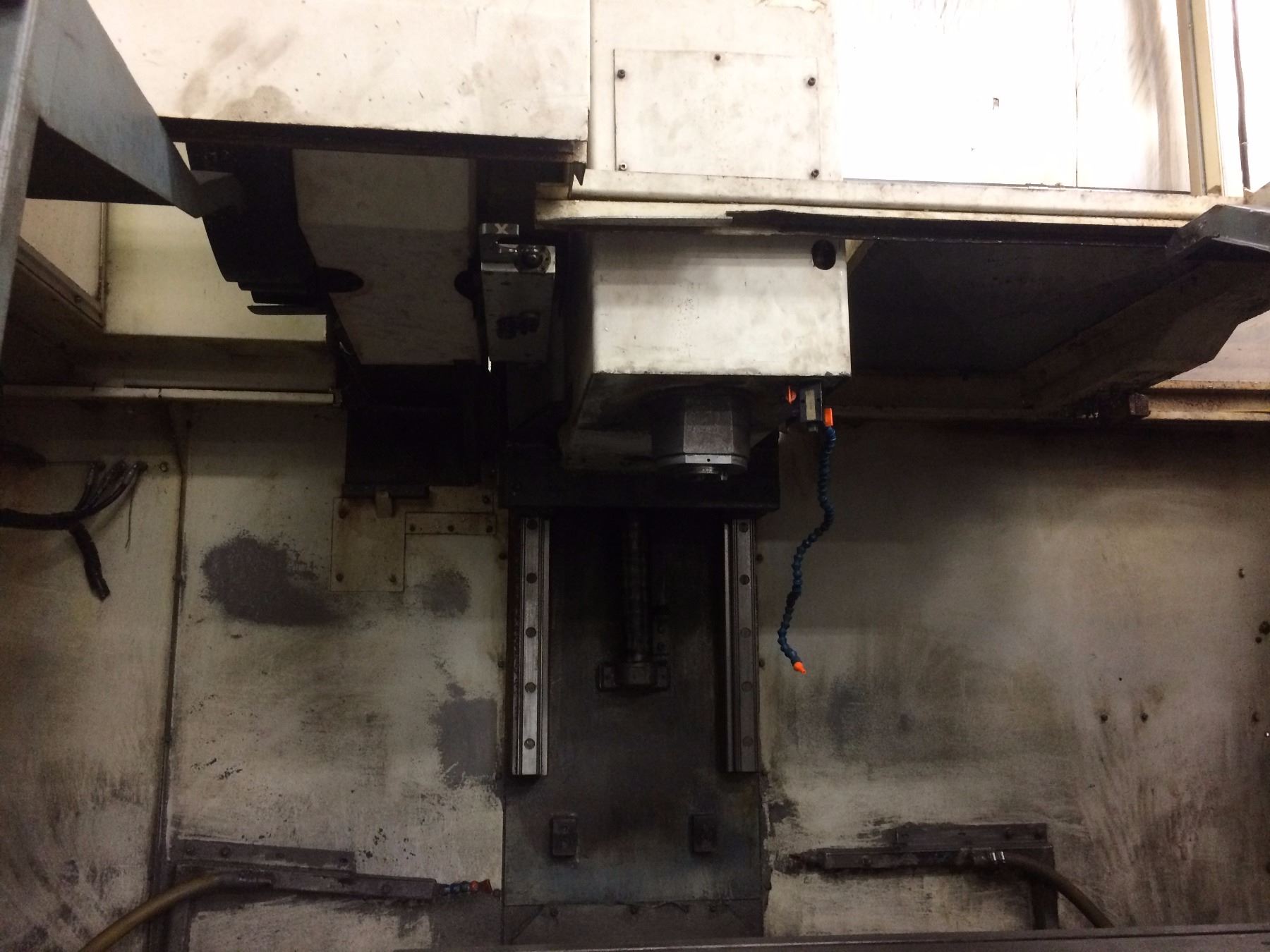

CINCINNATI MILACRON Arrow 1250 Vertical Machining Center

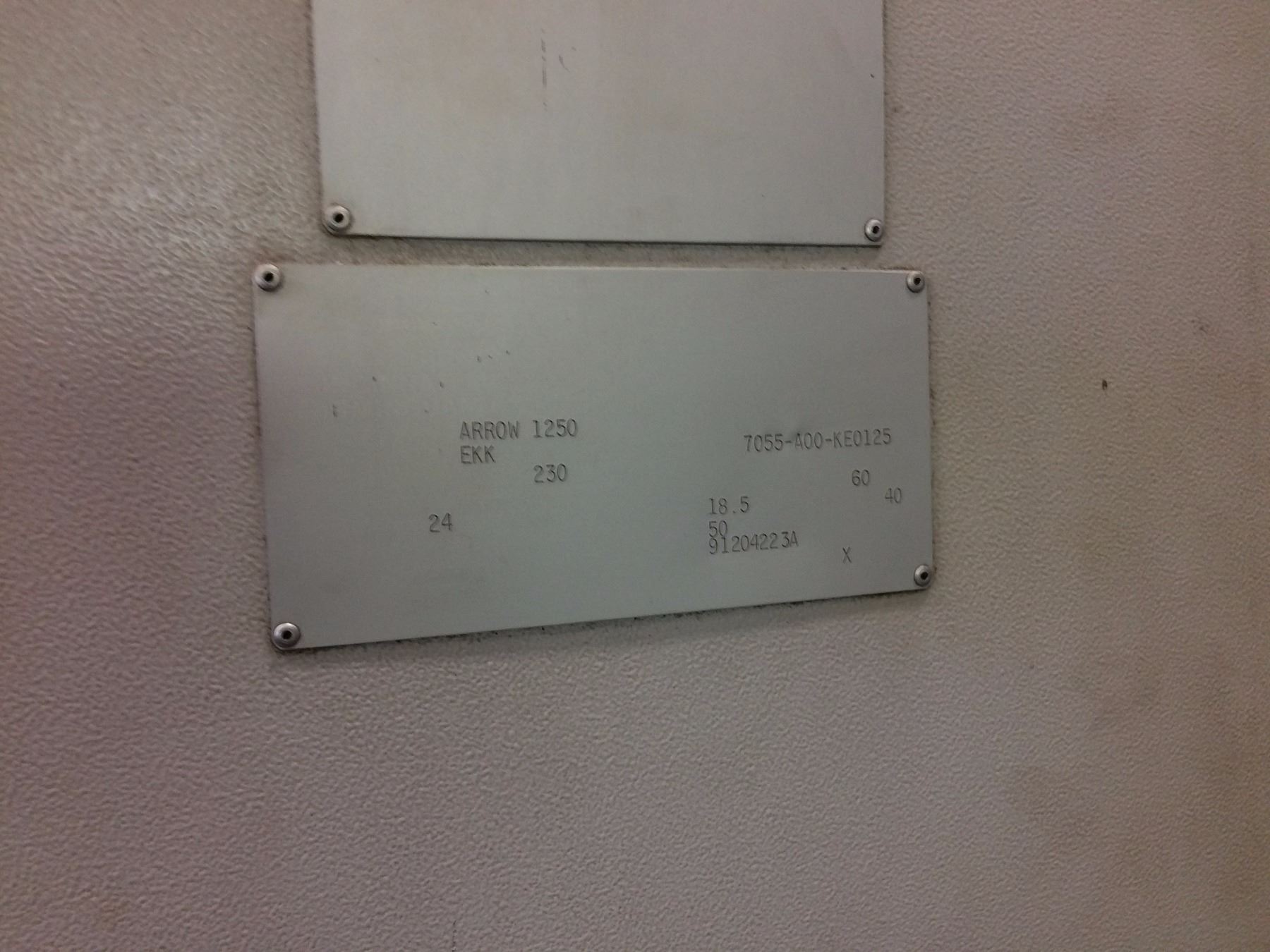

Serial Number: EKK 7055-A00-KEO 125
Age: New 1998
Specifications:
Machine in plant not under power can inspect machine is complete selling to make room for new machine
X Travel (Longitudinal)............................... 50"
Y Travel (Cross)...................................... 30"
Z Travel (Vertical)................................... 30"

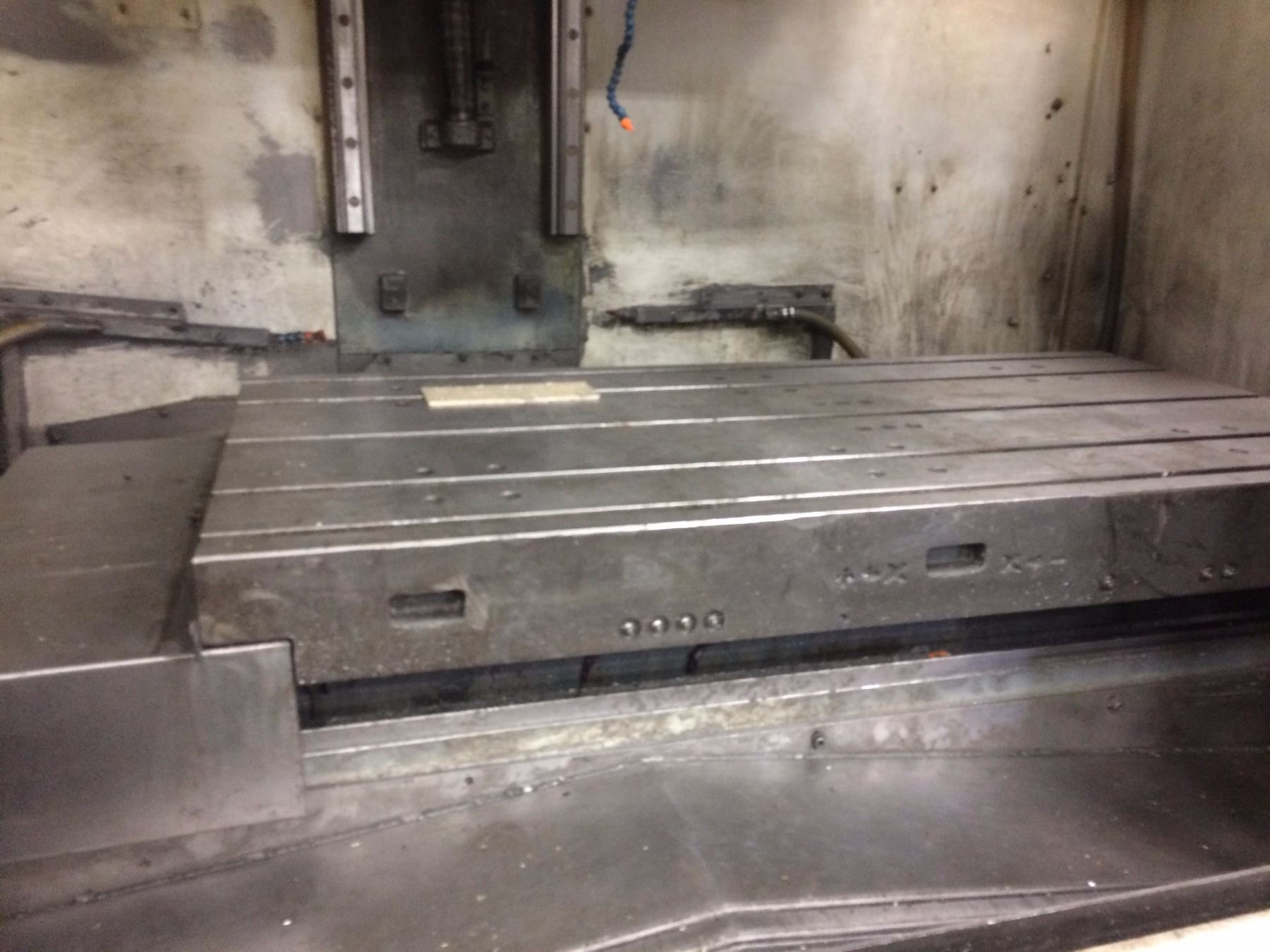

Table Working Surface................................. 60"x30"
Table Work Load Capacity.............................. 4410 LBS
Spindle Horsepower.................................... 15 HP
Spindle Speeds........................................ 50-5000 RPM
Spindle Taper......................................... CAT 40
Feed Rates, X & Y..................................... 0.1 to 590 IPM
Feed Rate, Z.......................................... 0.1 to 590 IPM
Rapid Traverse X & Y.................................. 944 IPM
Rapid Traverse Z...................................... 945 IPM
Tool Storage Capacity................................. 21
Approximate Dimensions................................ 145" x 112"
Approximate Height.................................... 142"
Approximate Weight.................................... 19,360 LBS

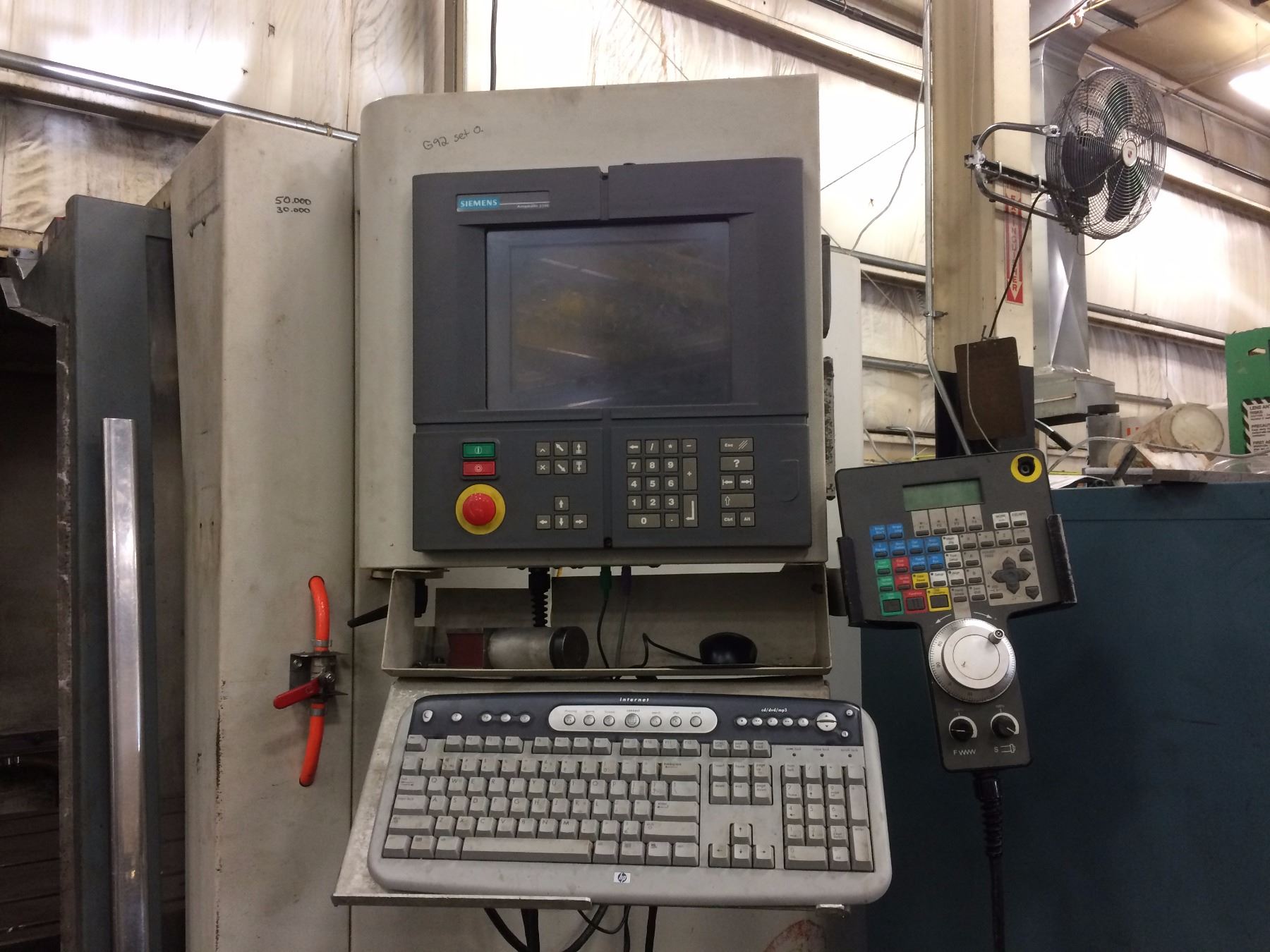

SIEMENS Acramatic A2100 three-axis CNC with hand-held operator's pendant, 3.5"
floppy disc drive, RS-232 port
HEIDENHAIN linear scales for position feedback on all axes

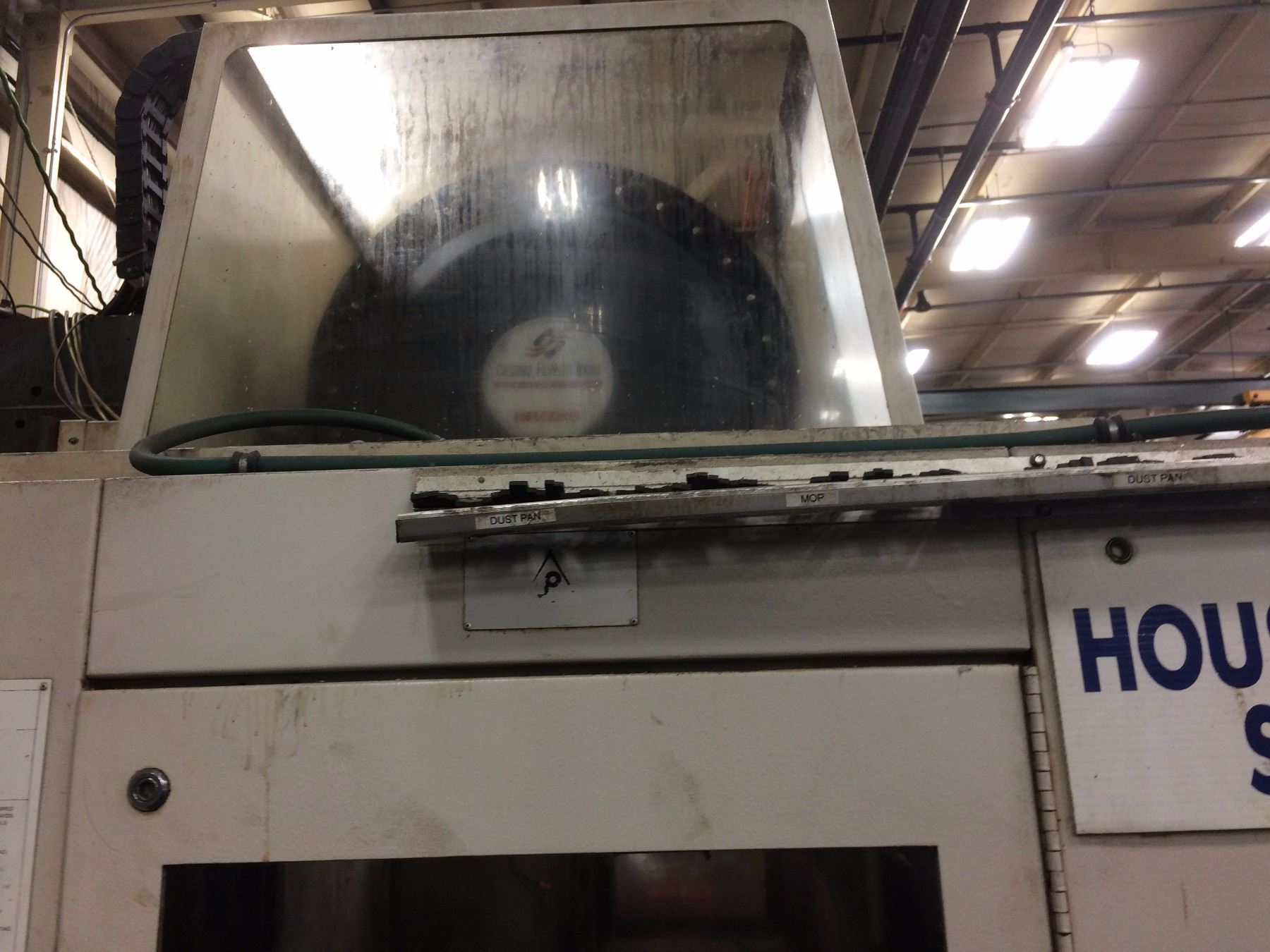

Twenty-one station automatic tool changer
Rigid tapping
AC Servo motors
Full machine enclosure
Telescopic way covers
Work light
Automatic lubrication system

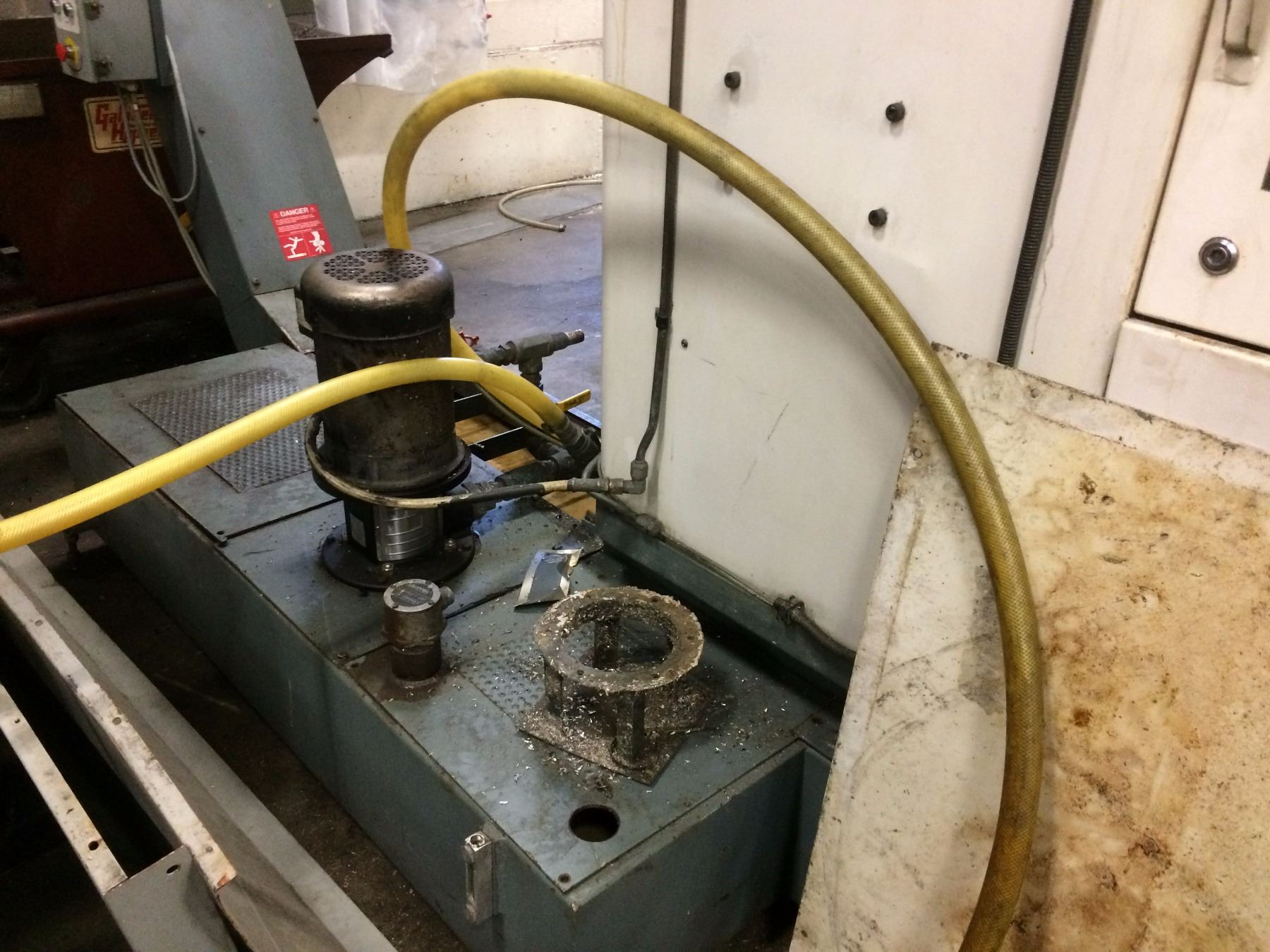

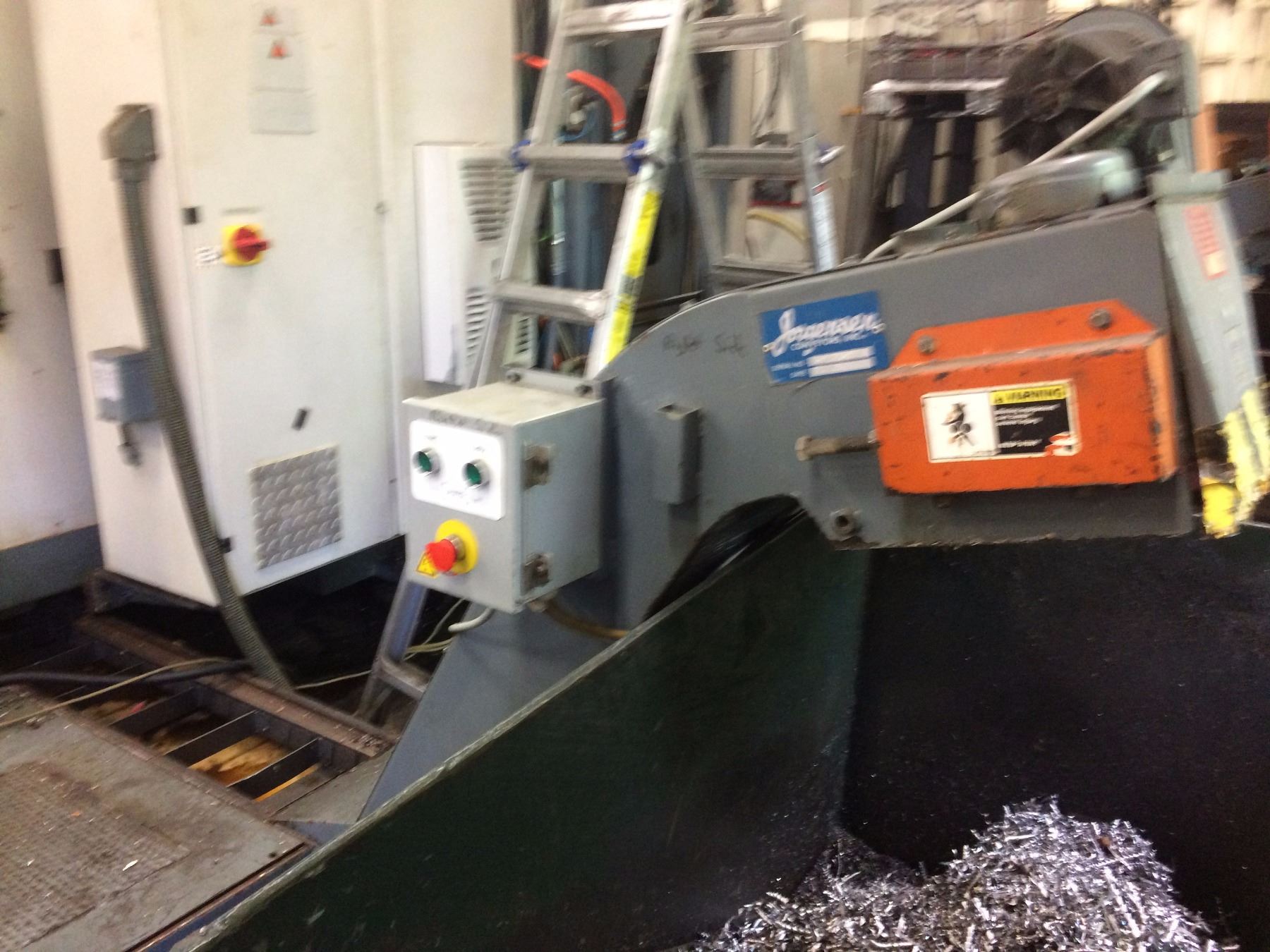

Dual JORGENSEN combination external coolant tank, pump, and chip conveyors
Multi-tap transformer
15 H.P. AC spindle motor and electrical controls
Machine is wired for 3/60/230 volt operation.
Approximate Weight (Machine Only): 19,400 Lbs.
Approximate Dimensions (Machine Only): 148" L-R x 112" F-B x 142" H
