SOLD
2,875.00USD+ (431.25) buyer's premium + applicable fees & taxes.
This item SOLD at 2016 Apr 21 @ 13:05UTC-4 : AST/EDT
Did you win this lot?
A full invoice should be emailed to the winner by the auctioneer within a day or two.
Location Centerville MI 49032
Loading Fee $200

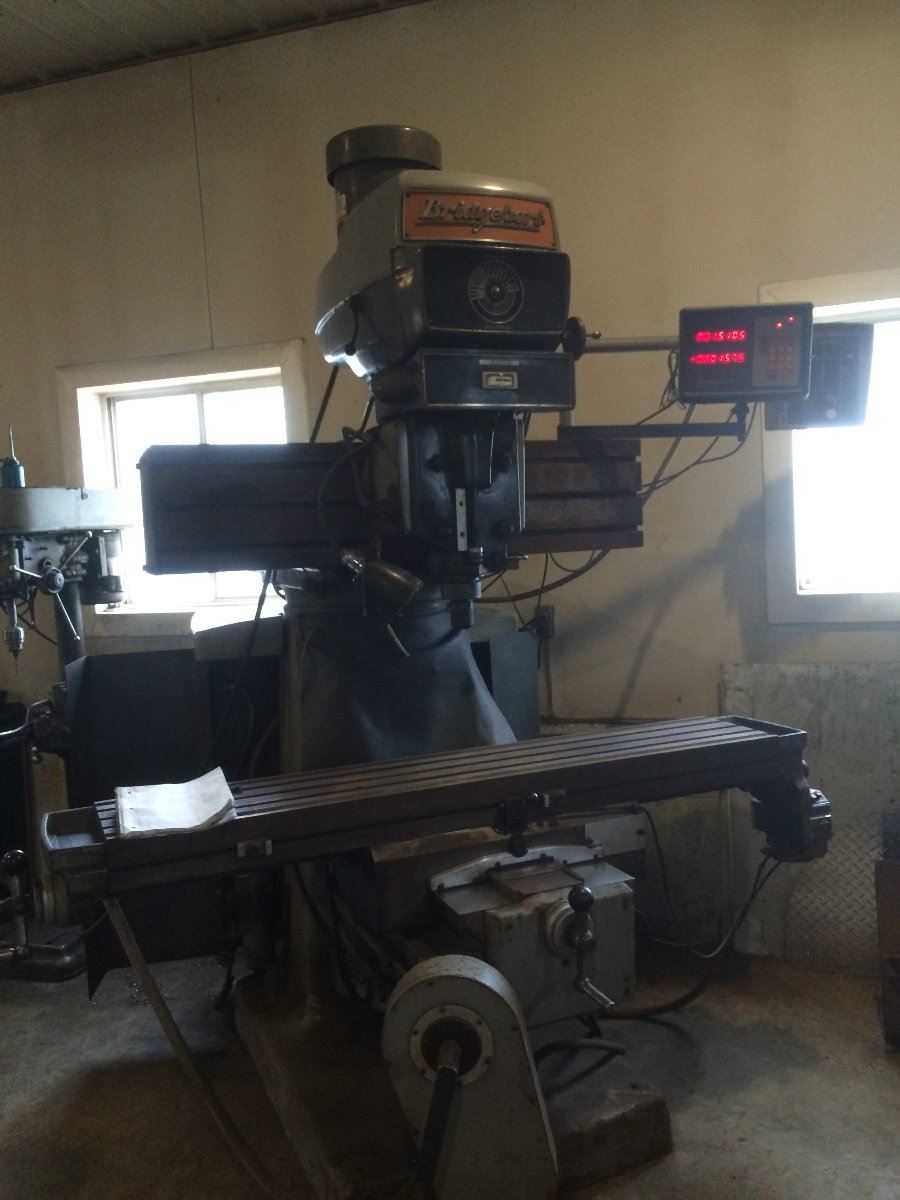

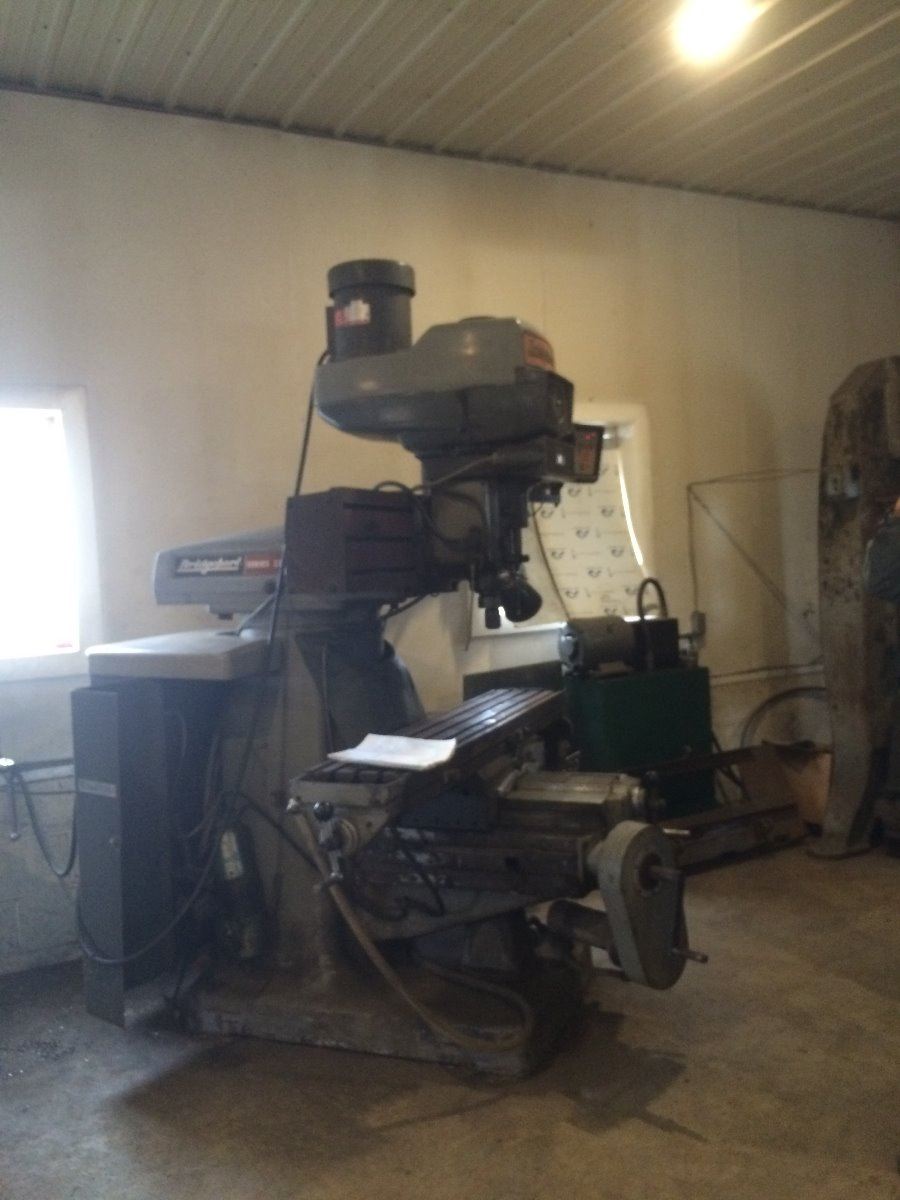

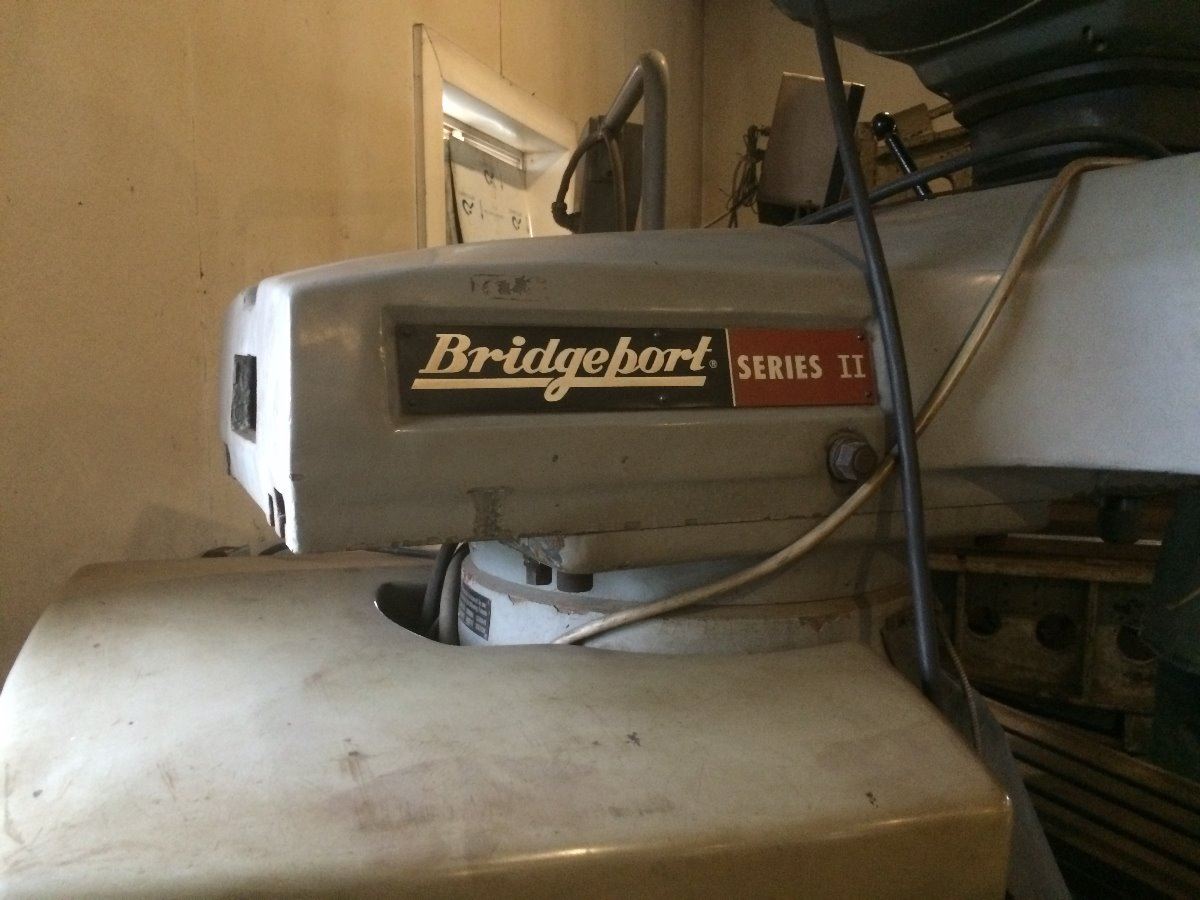

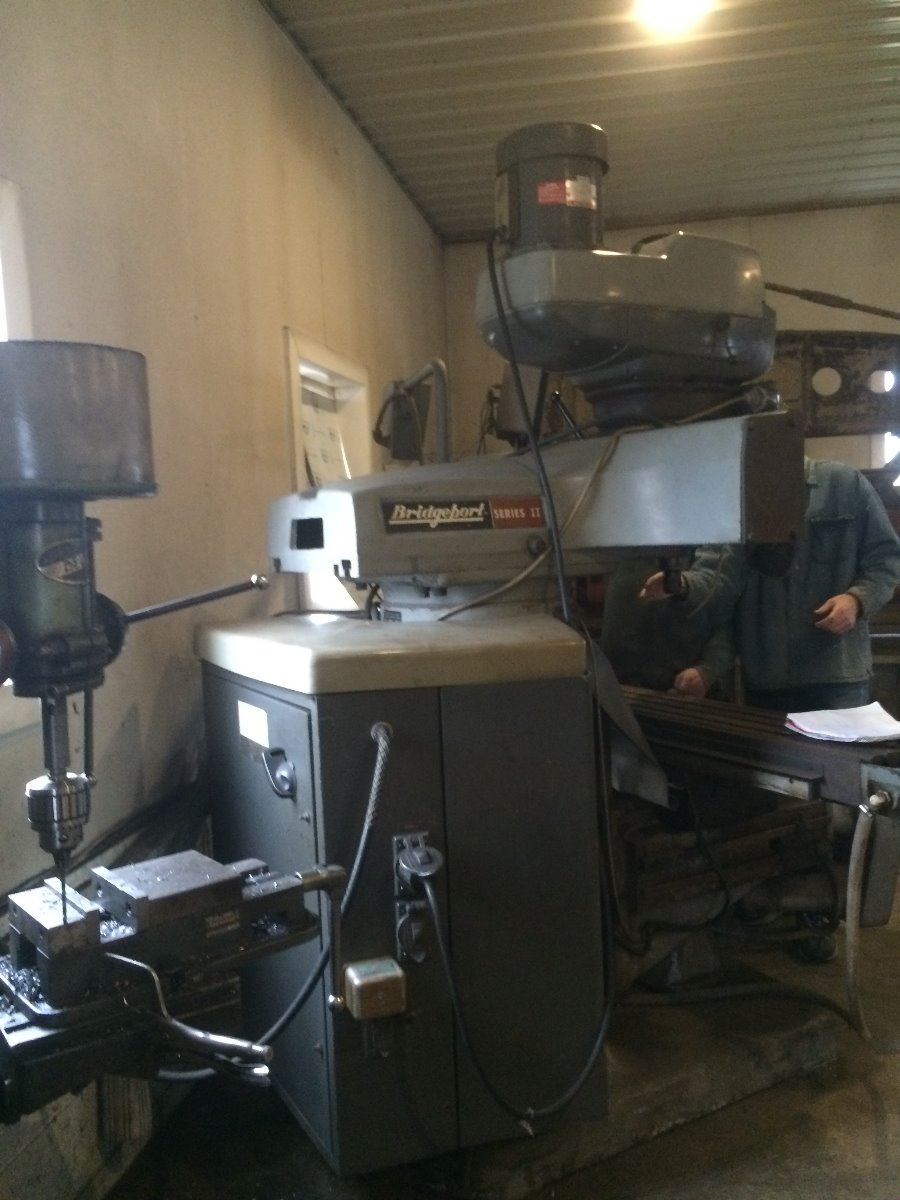

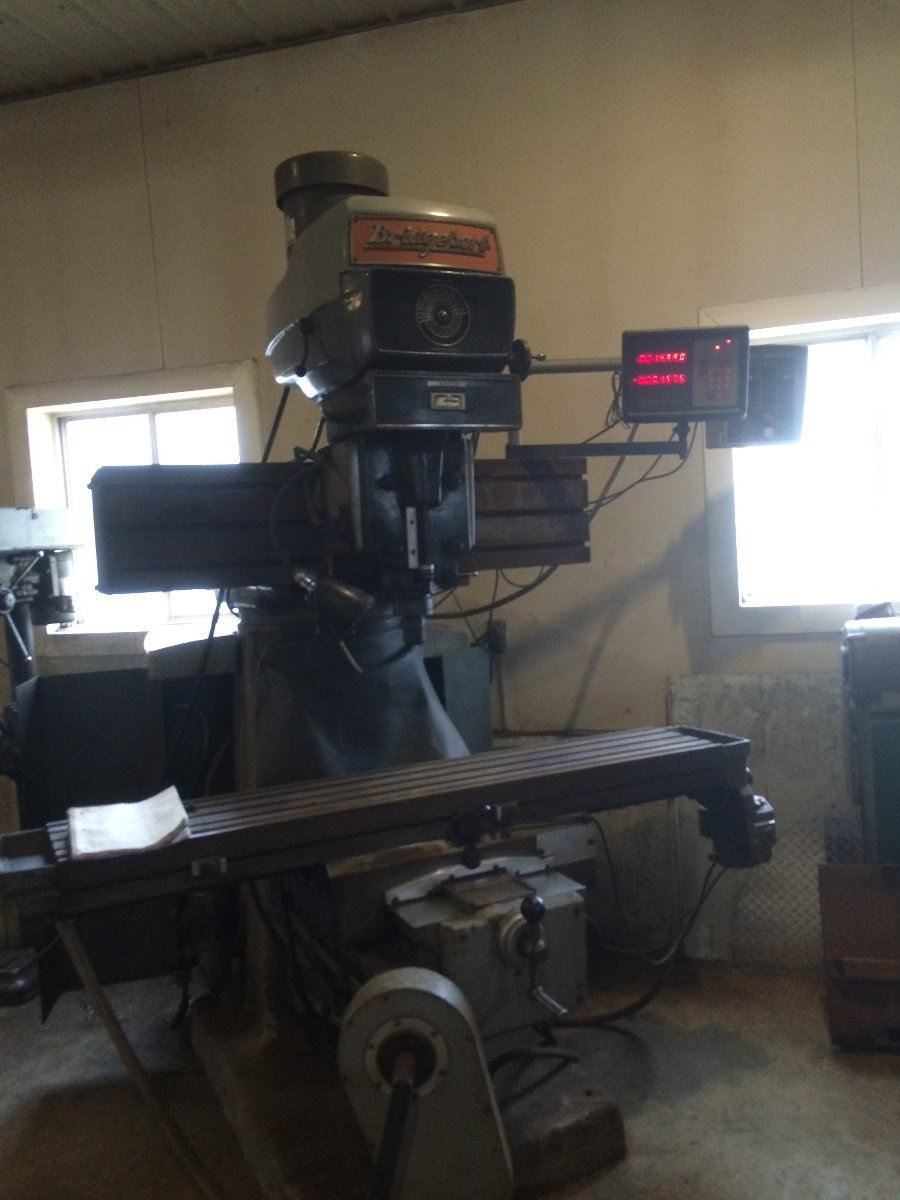

Bridgeport Series II Vertical Mill Technical Specification

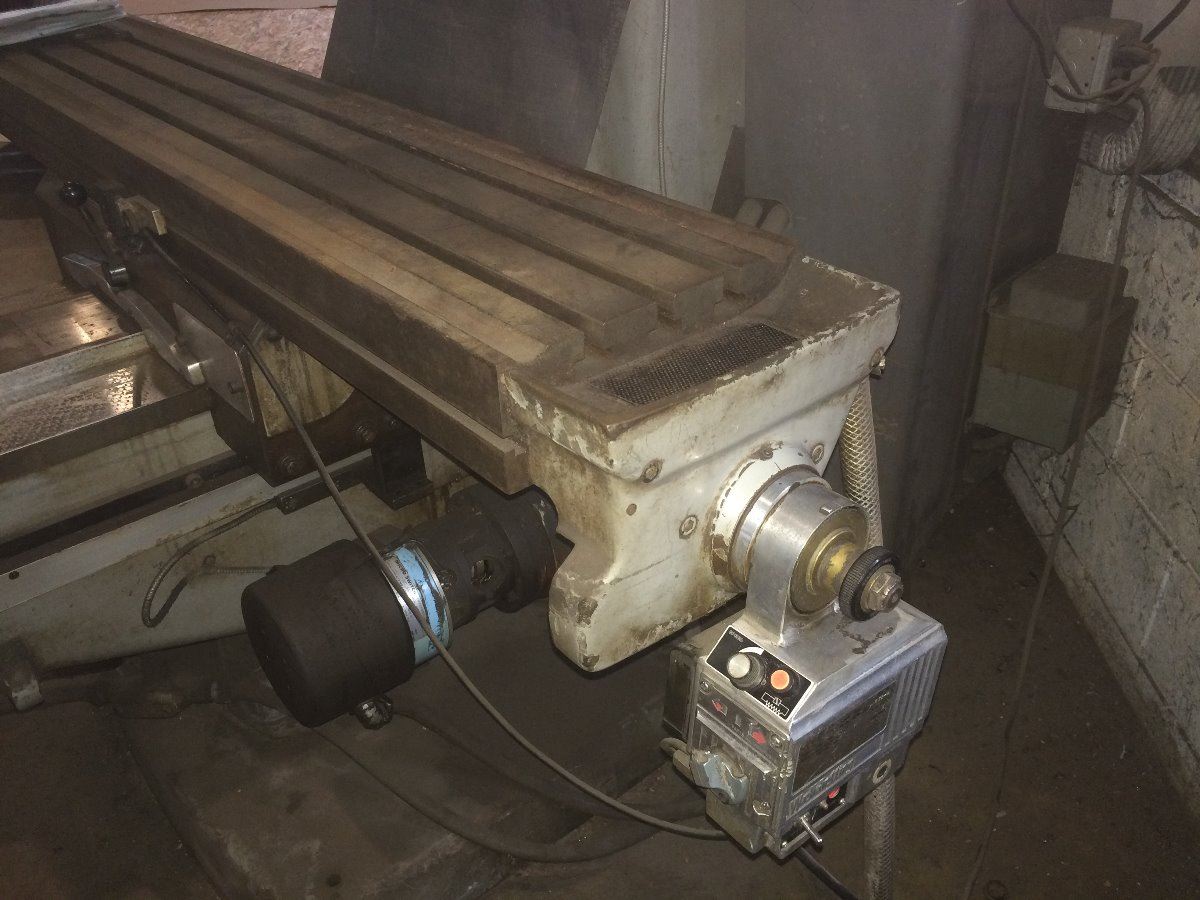

Table travel (X-axis) 30 in.
Saddle travel (Y-axis) 15 in.
Quill travel 5 in.
Knee travel (Z-axis manual) 16 in.
Ram travel (rack & pinion) 16 in.
Throat distance (min) (V-Ram) 10.625 in.
Throat distance (max) (V-Ram) 26.625 in.
Table to spindle nose gage line 1 in. (min)
Max. weight of workpiece 1000 lbs.

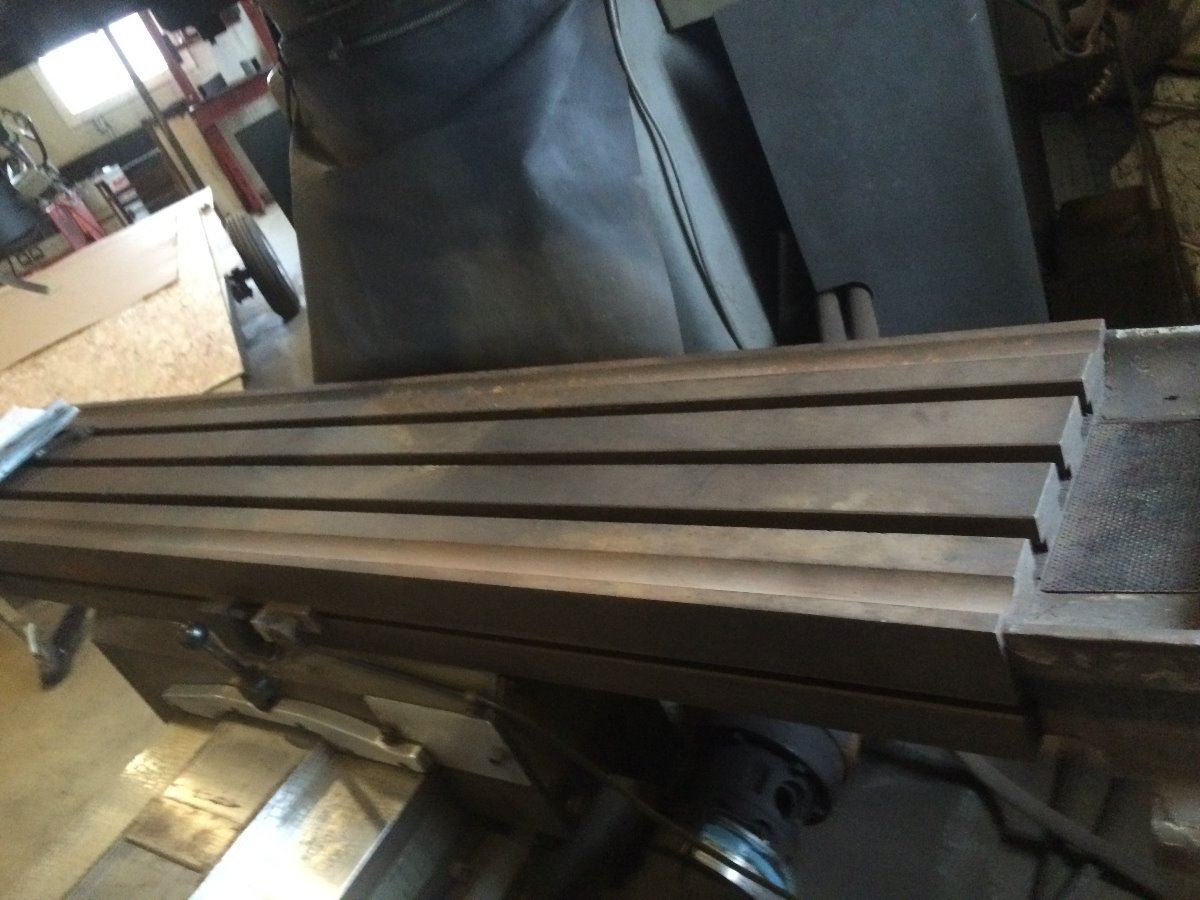

Table overall size 11 x 58 in.
T-slots-three 2.5 in. centers
T-slot size 0.625 in.
Table height above floor (max) 48.75 in.

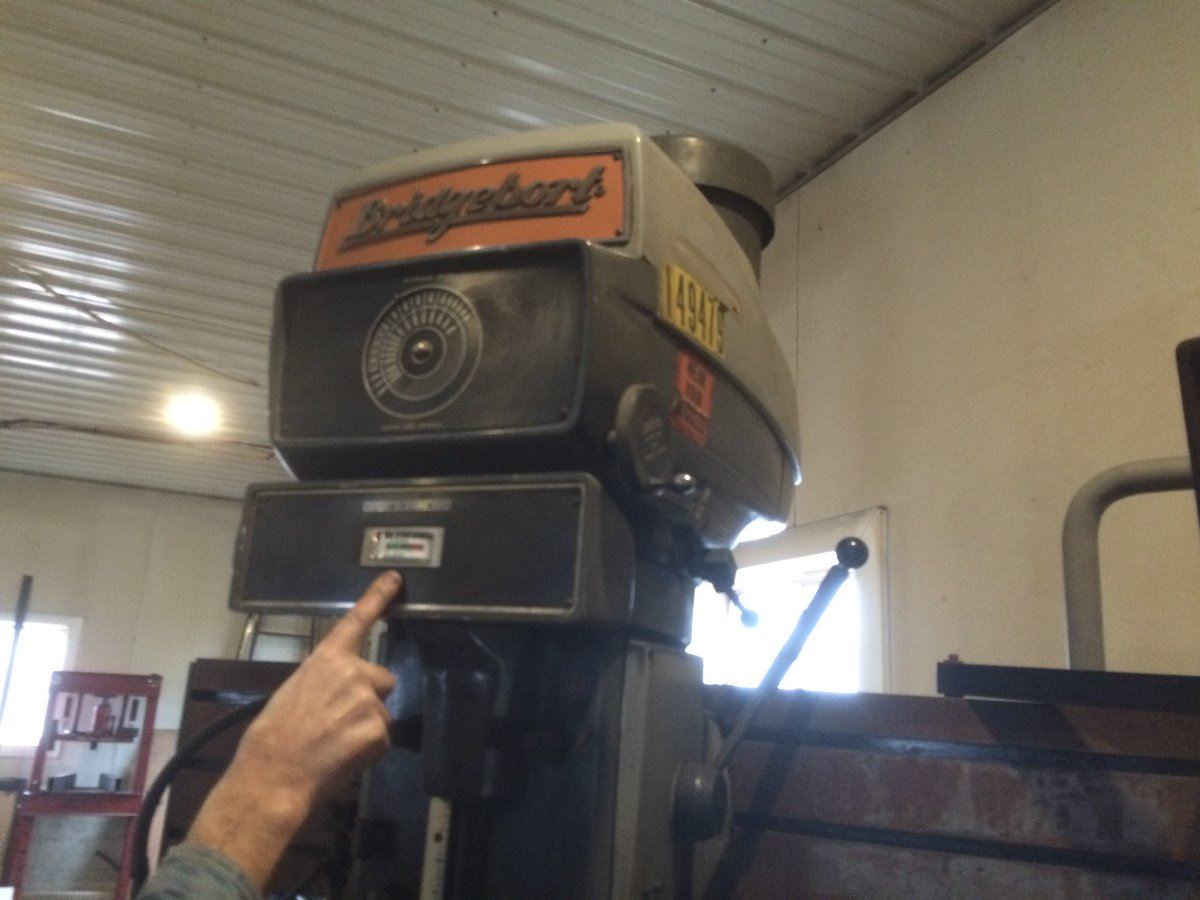

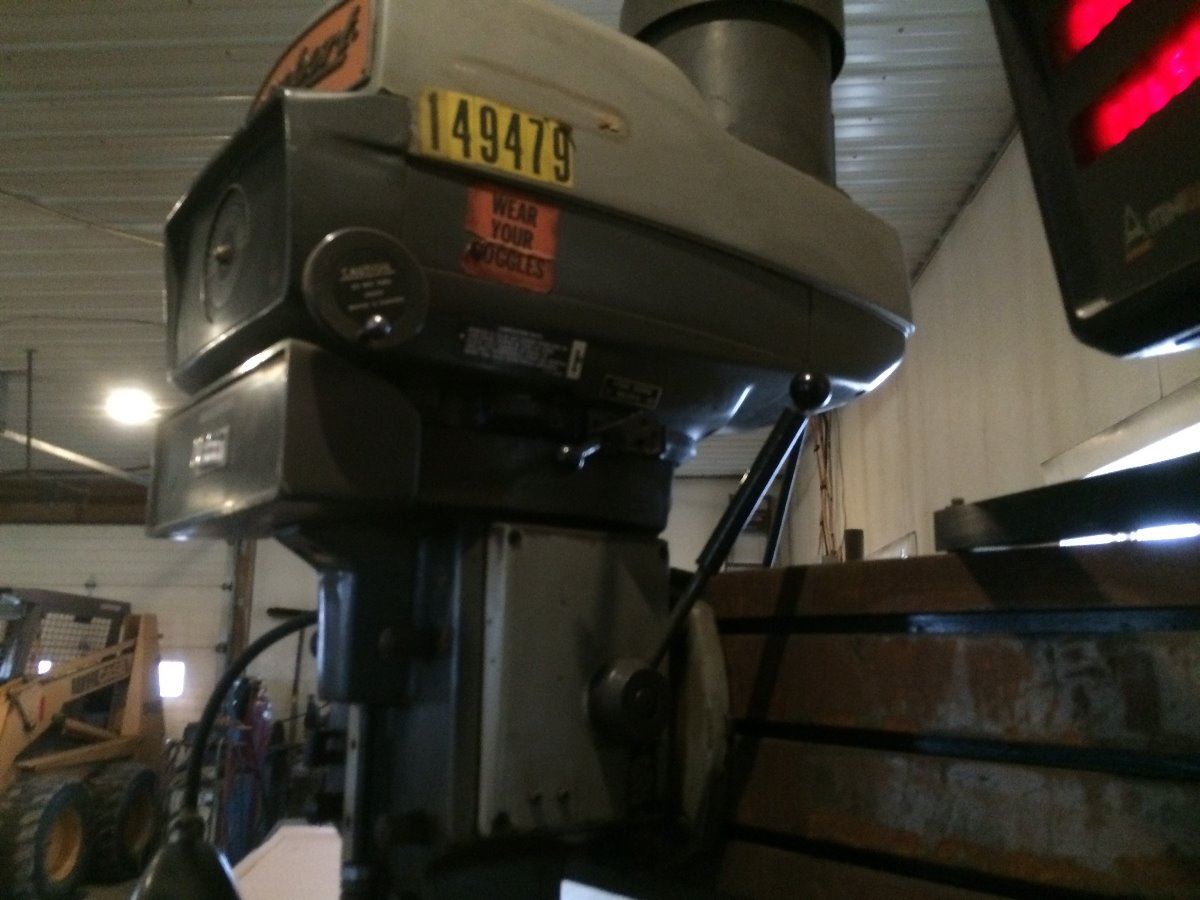

Spindle (in 4J Head) power rating 4 HP
Spindle (in 4J Head) taper No. 40 milling machine
Speed range low-infinitely variable 50-450 rpm
Speed range high-infinitely variable 450-3500 rpm
Feed range manual adjust 0.6-2.5 ipm
Drilling capacity - mild steel (manual) 1.25 in. diameter
Drilling capacity - mild steel (power feed) 0.75 in.
Milling capacity - mild steel 4 cu. in. /min
Boring range - mild steel to 8 in. diameter
Spindle diameter 2.125 in.
Quill diameter 4.25 in.
Milling feed rate - X & Y axis 0.375-24 ipm
Milling feed rate - Z axis 0.1875-12 ipm
Milling rapid feed rate - X & Y axis 24 ipm
Milling rapid feed rate - Z axis 12 ipm
Floor area 80 in. x 80 in.
Height 93 in.
Shipping weight 4750 lbs.

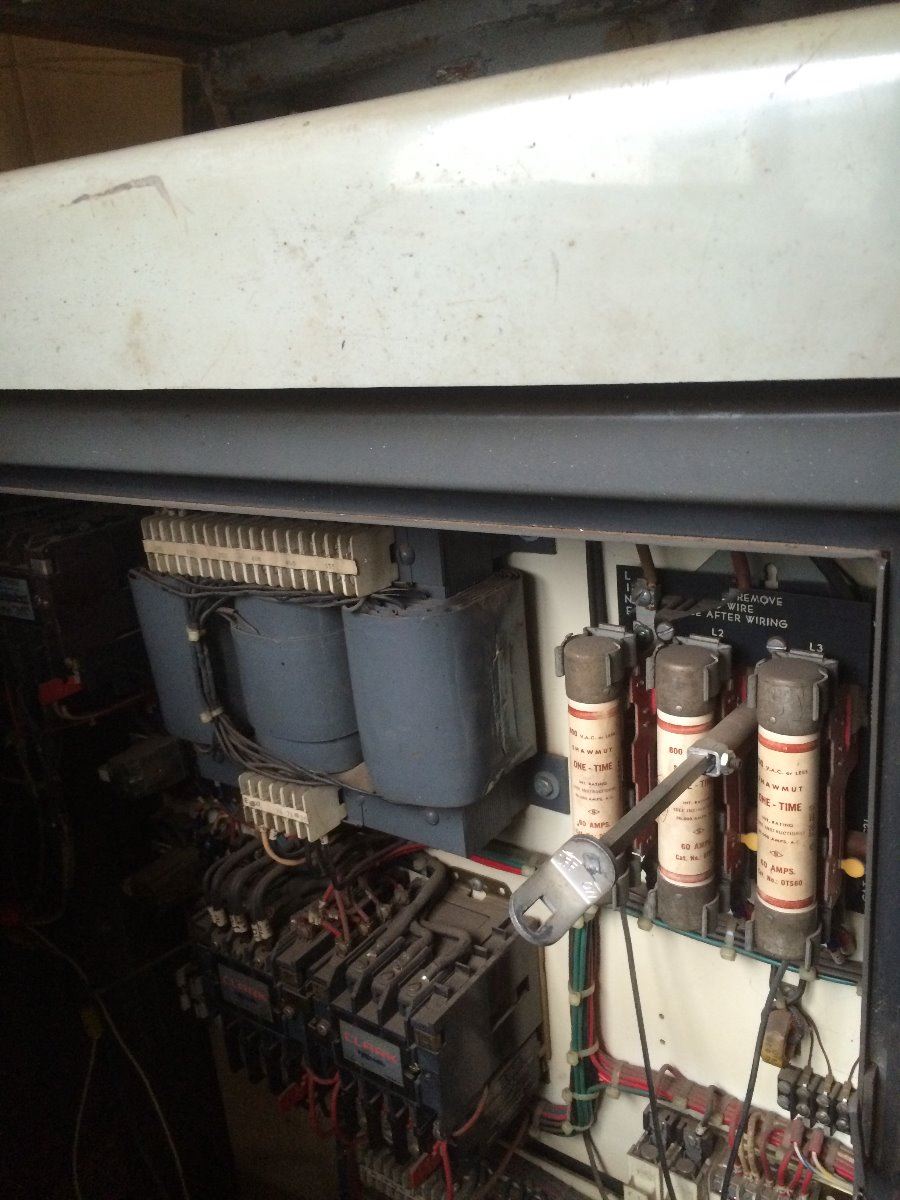

Electrical requirements 60 Hz, 208/230/460/575 V
