28" YOSHIDA YUD-700 Single Spindle Drill Press

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
28  YOSHIDA YUD-700 Single Spindle Drill Press
SOLD
860.00USDto H********p+ buyer's premium (129.00)
This item SOLD at 2014 Jan 22 @ 16:15UTC-5 : EST/CDT

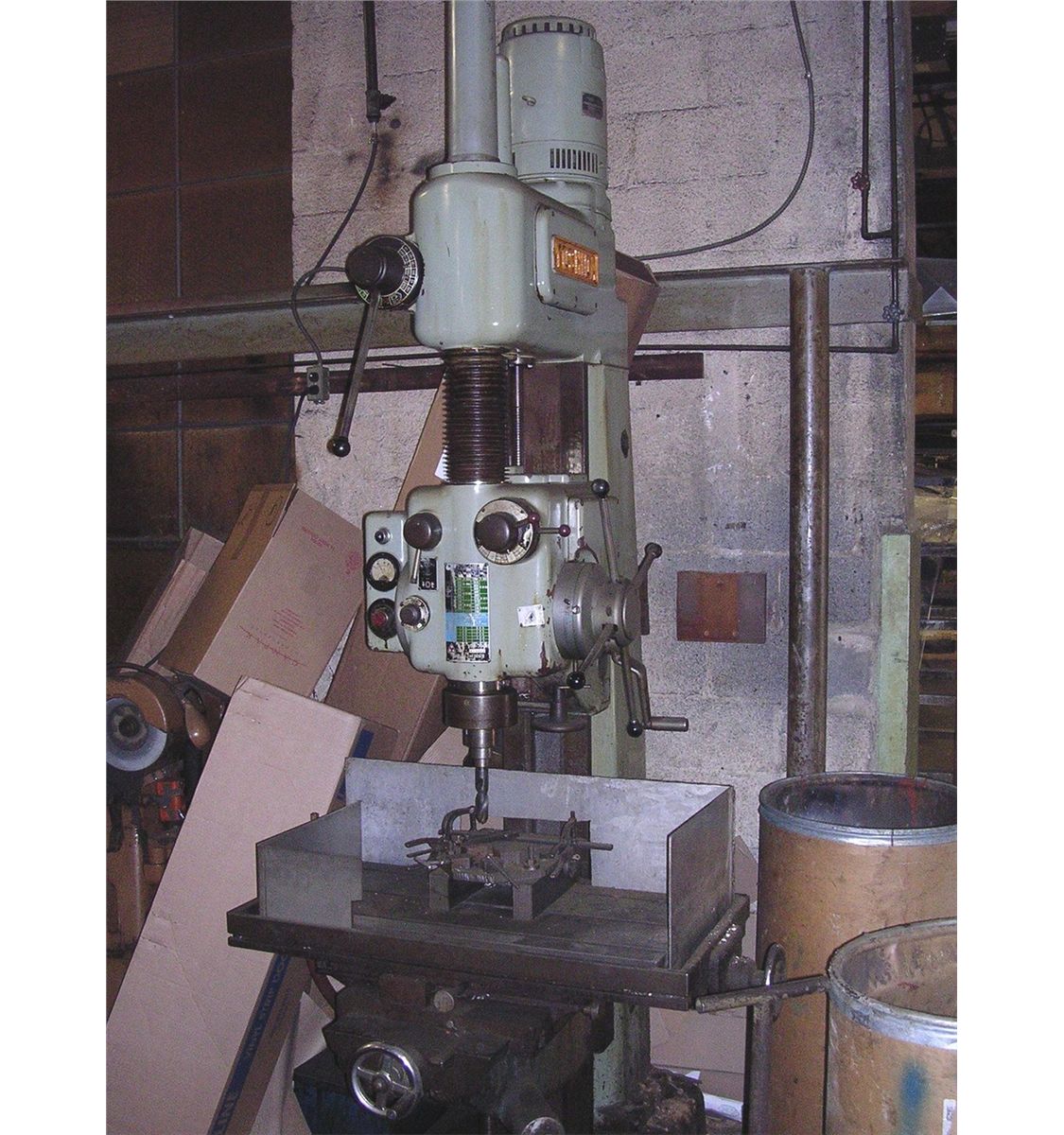

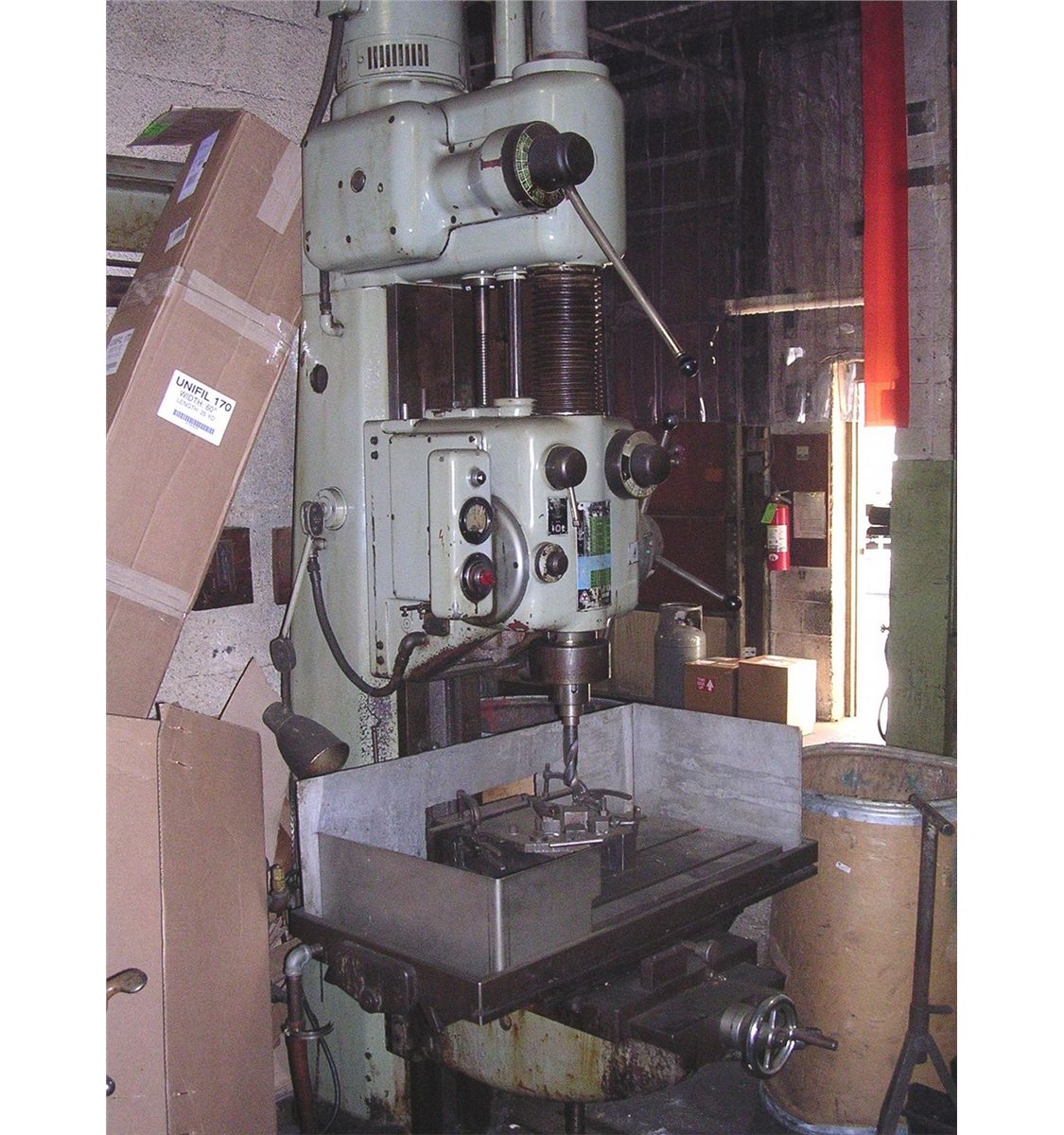

28" YOSHIDA Sliding Head Single Spindle Heavy Duty Drill Press, Model YUD-700, S/N 400423.

Tee Slotted Compound (X & Y) Knee Type Worktable Size OA: 19-1/4" x 39-1/4"

Work Surface Of Table: 16-1/4" x 33-3/4"

Vertical Travel Of Knee: 19-1/2"

Sliding Head Travel (Manual Adjust): 13-1/2"

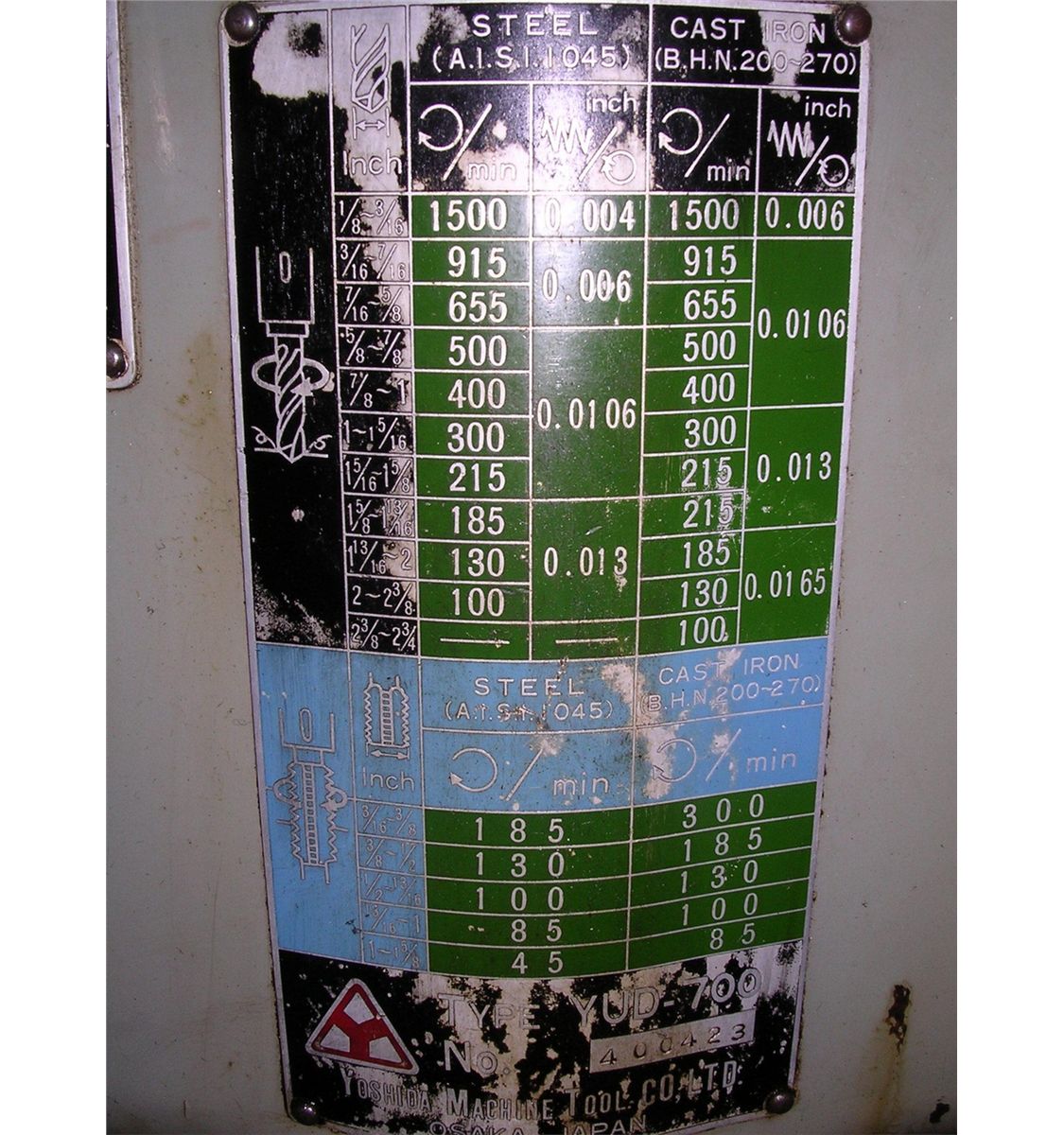

Spindle Speeds: 24, Range: 37 to 1500 RPM

Spindle Taper: #5 MORSE

Spindle Quill Travel: 8" plus (that we can measure without removing Vise)

Spindle Power Feeds: 9

Range Of Power Feeds: .0106, .0040, .0080, .0165, .0060, .0130, .0031, .0012 &

.0025 IPR



Equipped With:



Compound Type (X & Y Travels) Work table W/Knee (Z) Travel

Worktable Engraved Handle & Vernier Scale Readout

Coolant

Load Meter & ON/OFF Switch

EXCELLENT running machine!!!


LOADING COST: $130

LOCATION: Pennsylvania
