26" X 96" LEBLOND REGAL BED ENGINE LATHE With Anilam DRO

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
26  X 96  LEBLOND REGAL BED ENGINE LATHE With Anilam DRO
SOLD
9,100.00USDto t********0+ buyer's premium (1,365.00)
This item SOLD at 2016 Dec 15 @ 13:50UTC-5 : EST/CDT
Location Mishawka IN

Loading fee $400 must alien with new machine arrival otherwise fee will increase make sure you have truck ready for loading week of December 19 not sure yet which day

Machine in plant cannot be removed till week of December 19

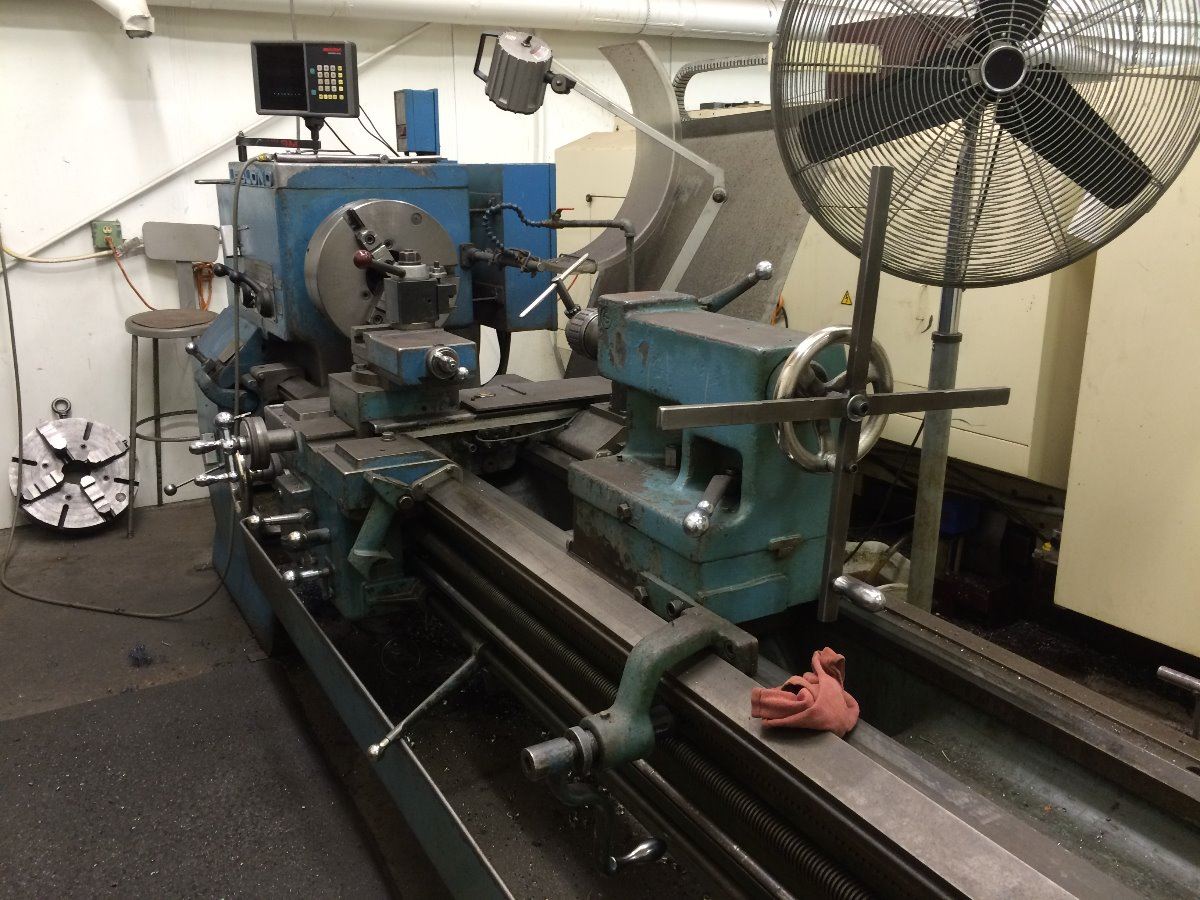

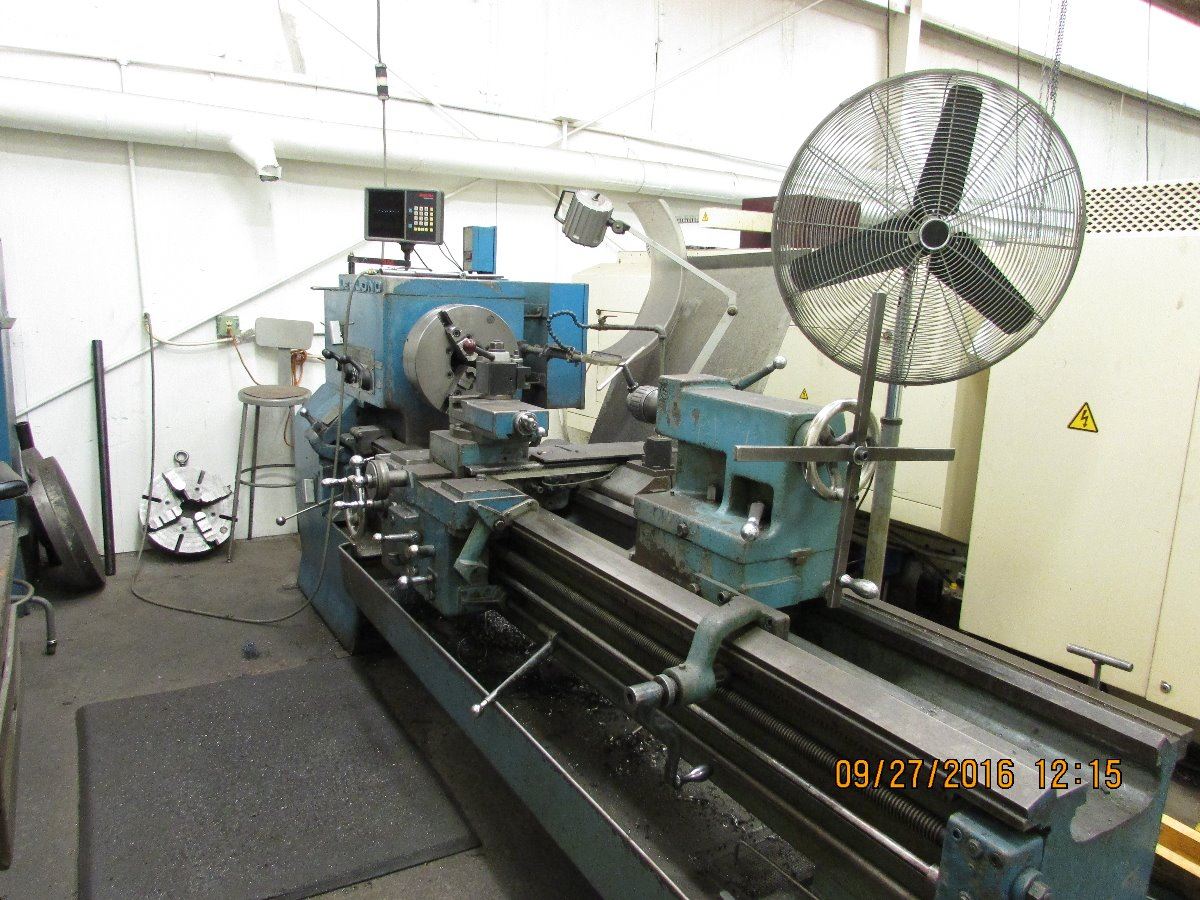

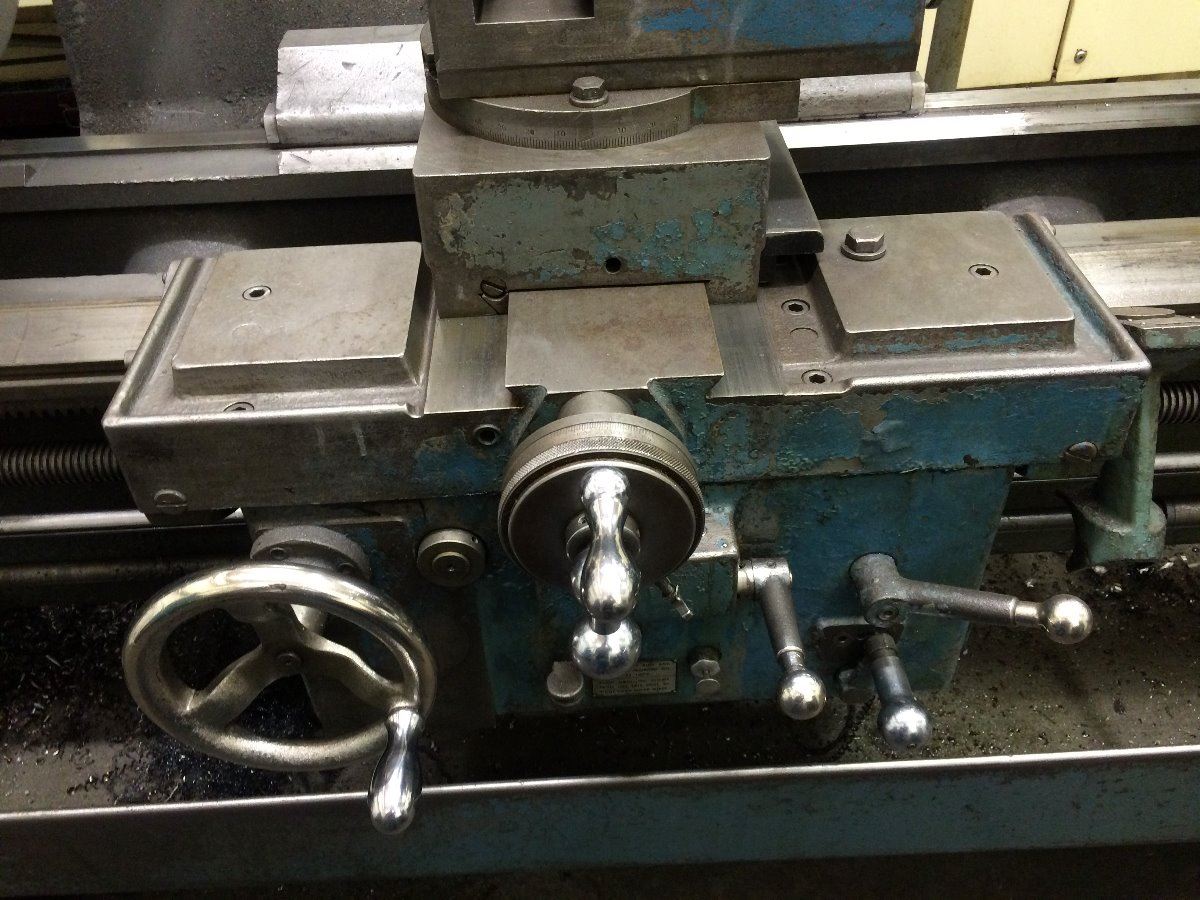

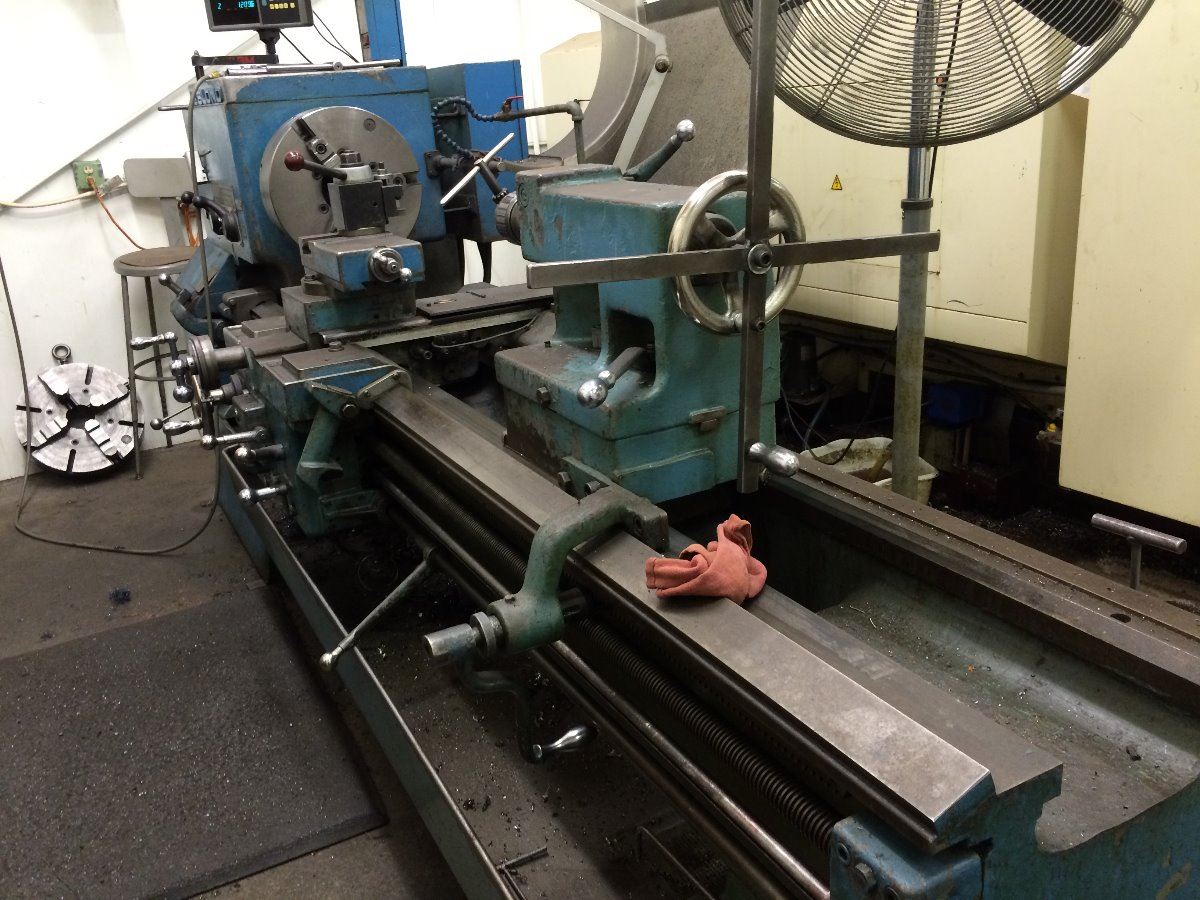

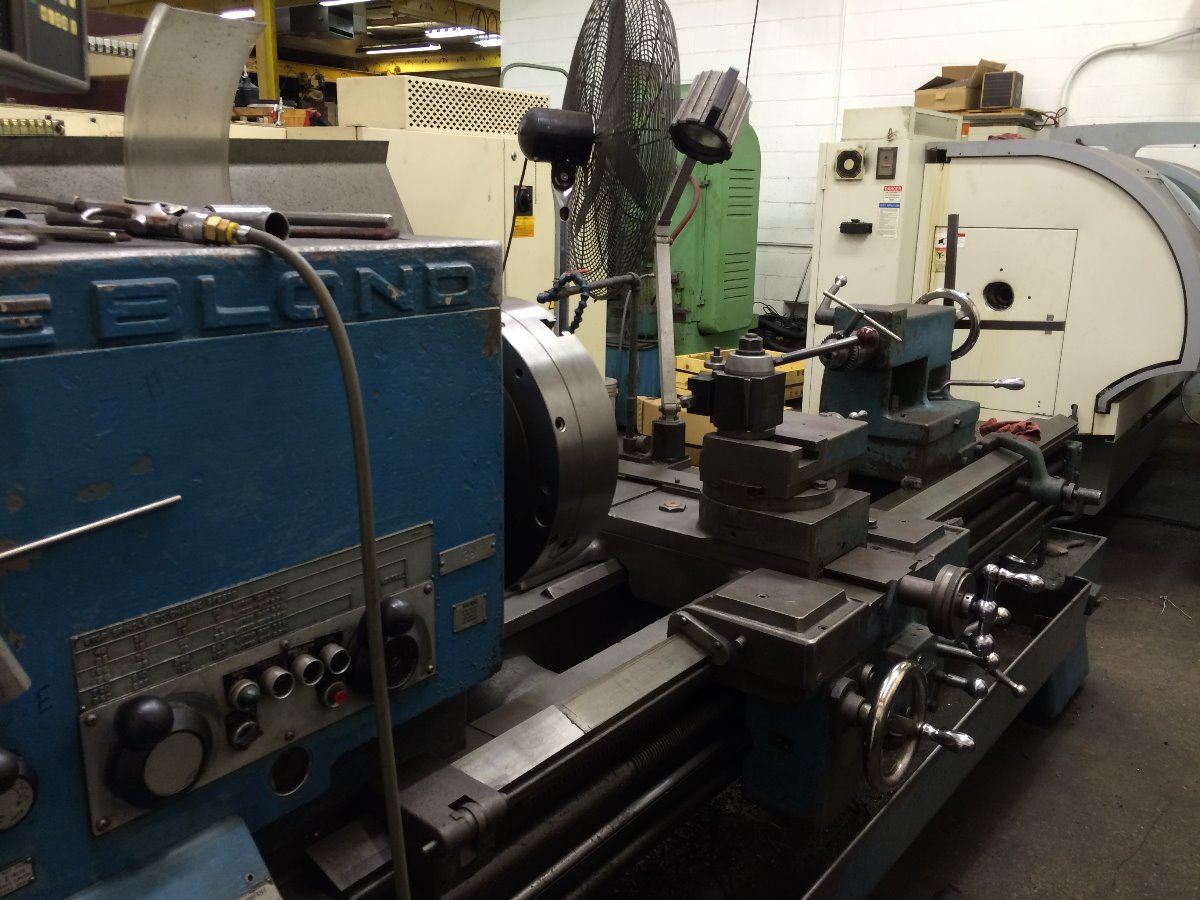

26" X 96" LEBLOND REGAL BED ENGINE LATHE
SERIAL .......................... 3H102
MODEL ........................... REGAL
SWING OVER WAYS ................. 26"
SWING OVER CROSS SLIDE .......... 18-1/4"
SWING THROUGH GAP ............... 37"
DISTANCE SPINDLE TO END OF GAP .. 12-1/4"
DISTANCE BETWEEN CENTERS ........ 96"
SPINDLE HOLE .................... 2-1/8"
SPINDLE NOSE .................... L-2

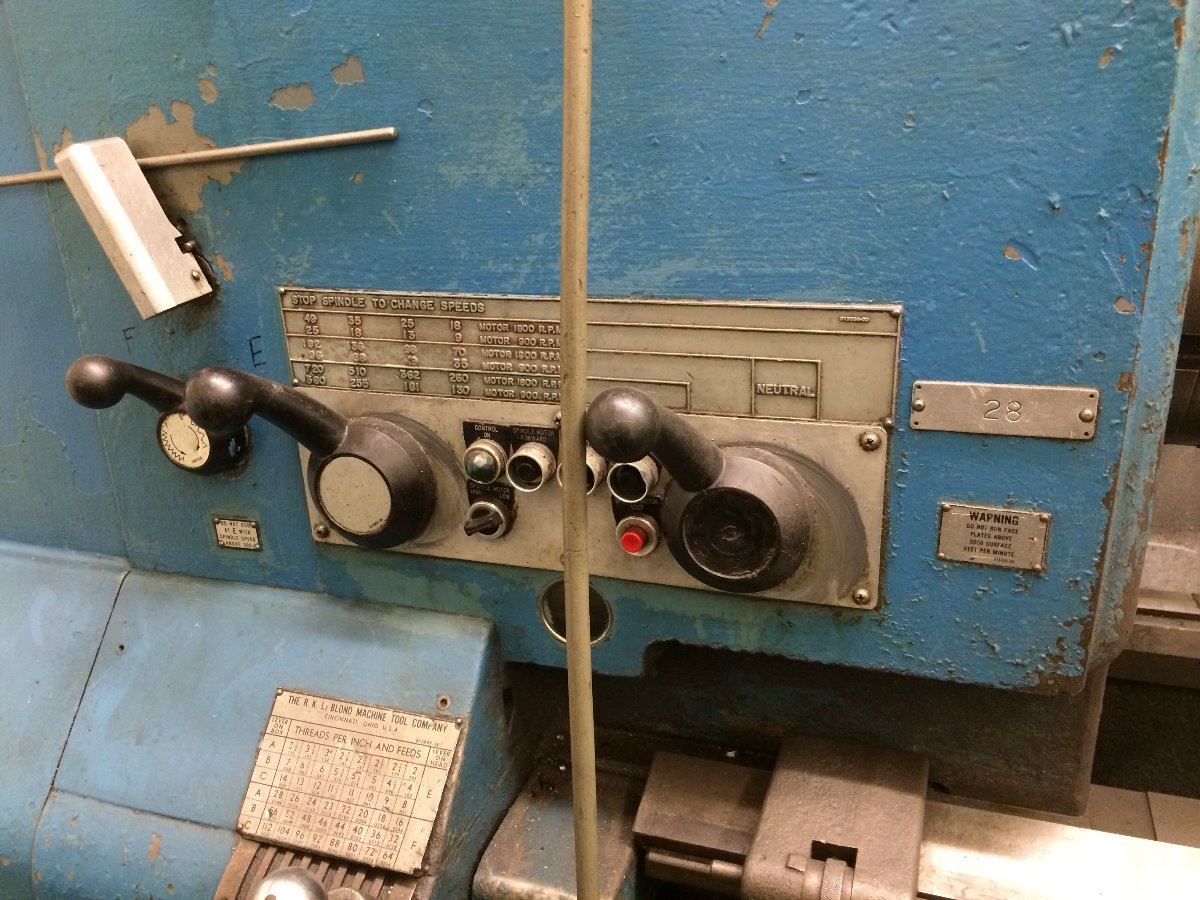

SPINDLE SPEEDS .................. (12) 27 TO 1080 RPM
FEEDS ........................... (48) .0036" TO .205"

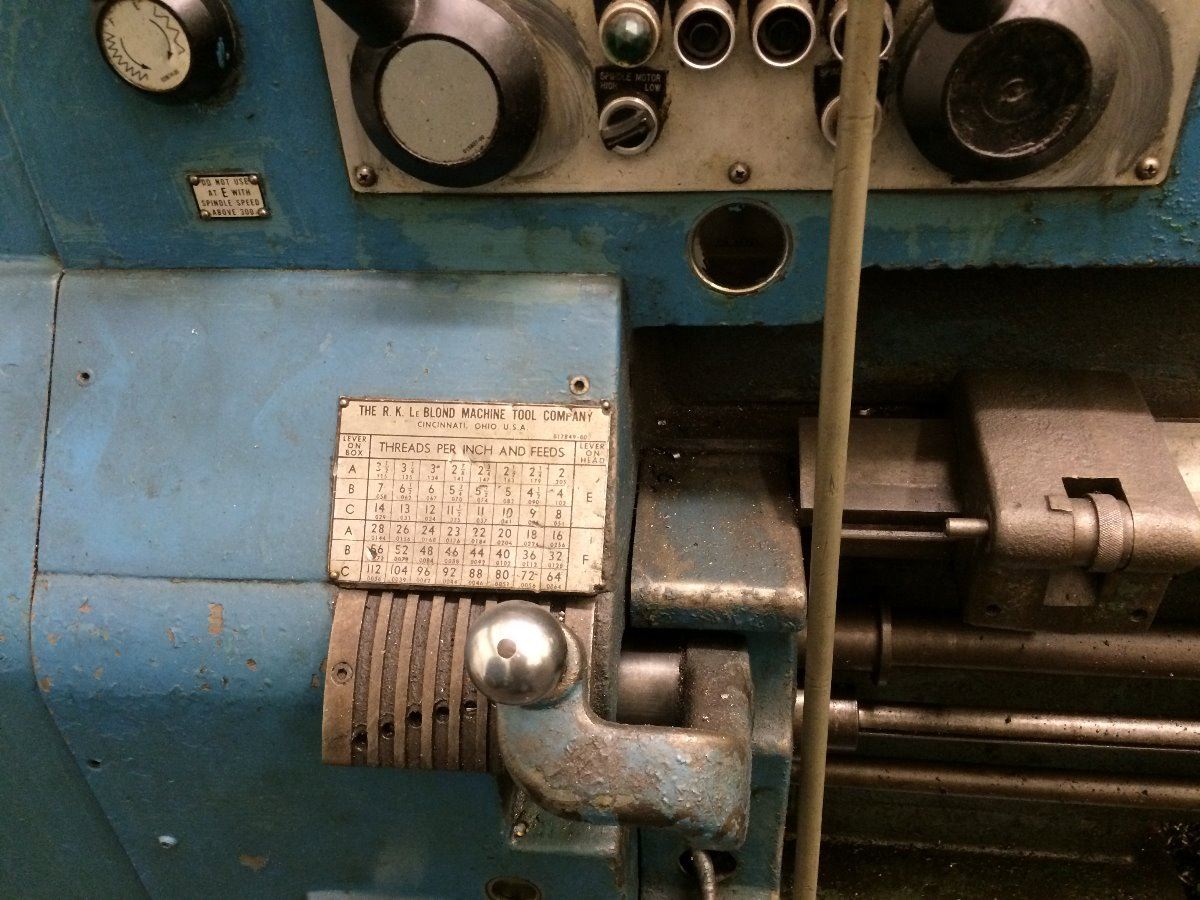

THREADS ......................... (48) 2 TO 112 TPI

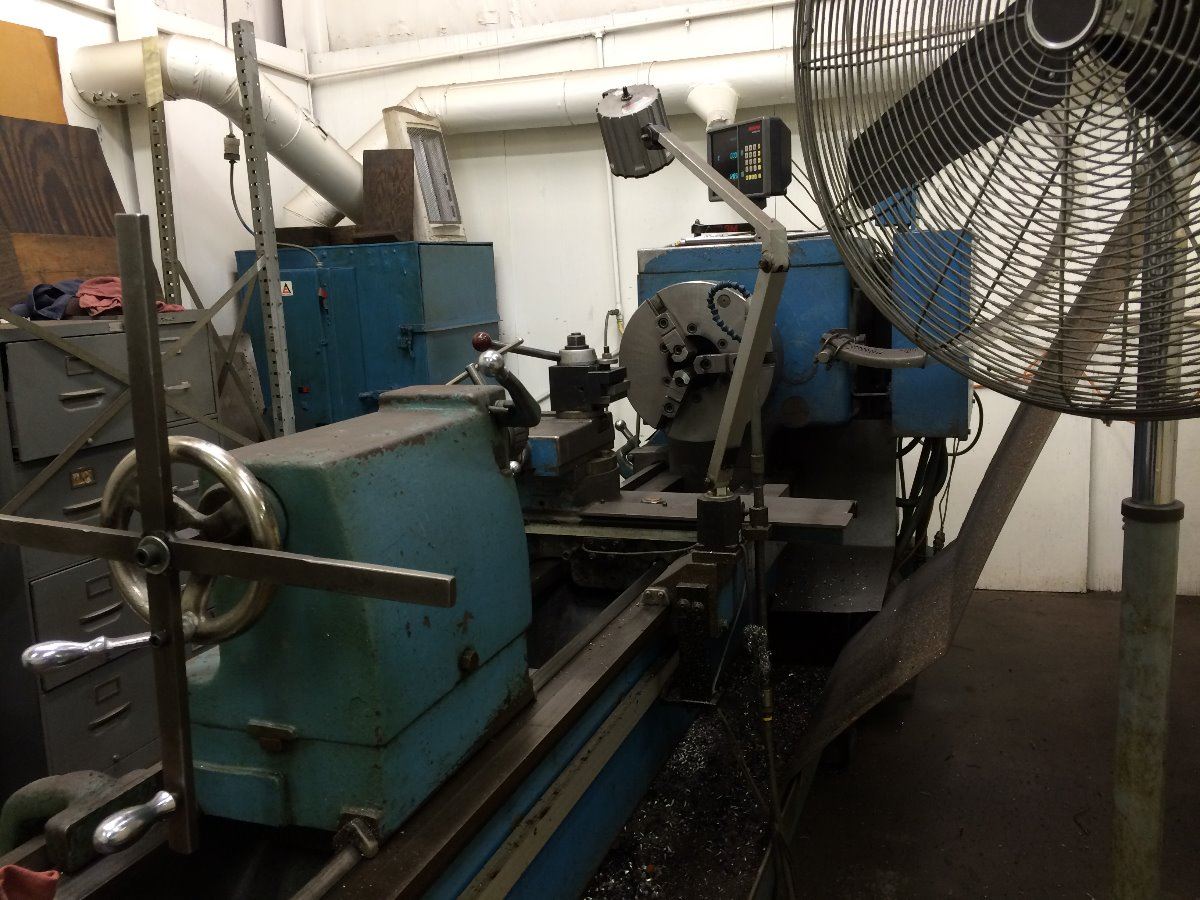

TAILSTOCK SPINDLE DIAMETER ...... 3-1/8"
TAILSTOCK SPINDLE TAPER ......... NO. 5 MT
TAILSTOCK SPINDLE TRAVEL ........ 4-3/4"
CROSS SLIDE TRAVEL .............. 13"
COMPOUND REST TRAVEL ............ 4-3/4"
MOTOR ........................... 10 HP

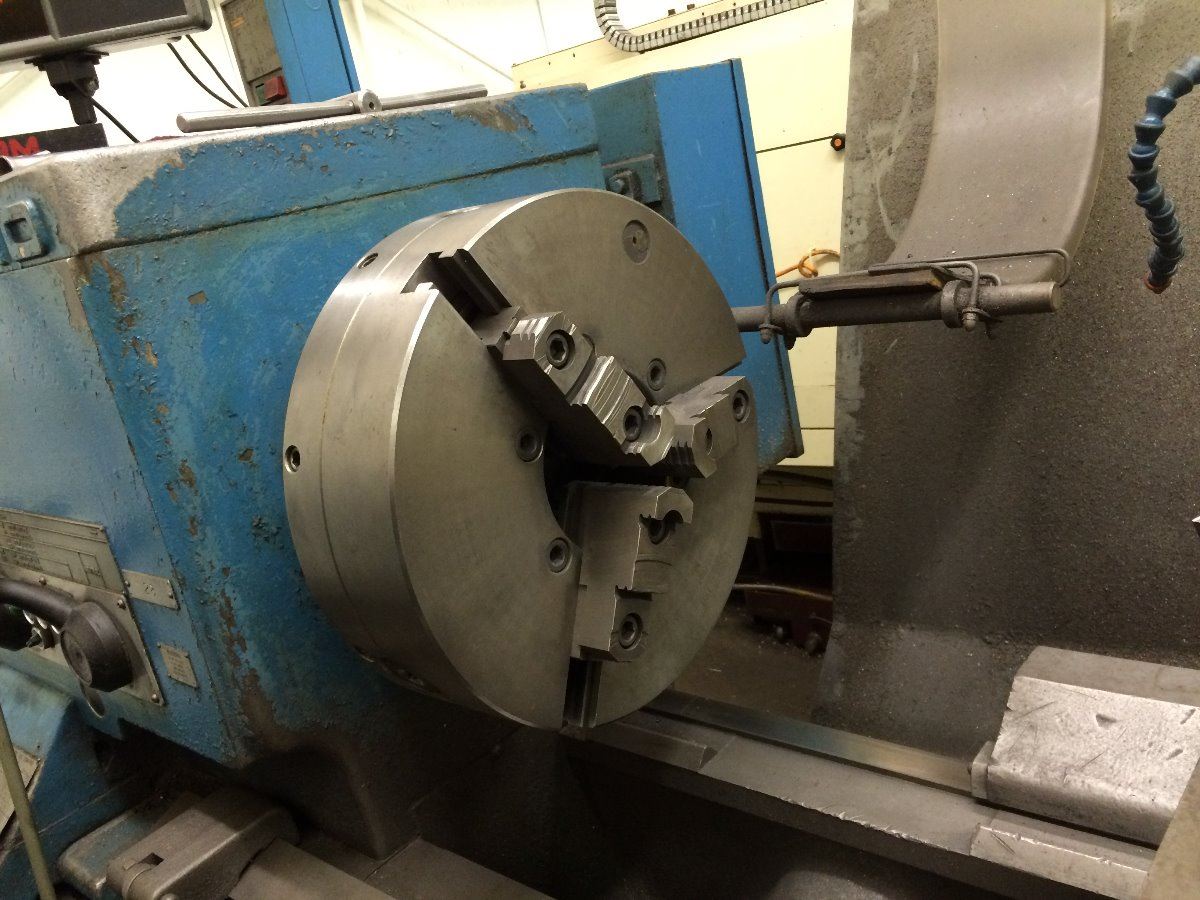

CHUCK ........................... 18" 3 JAW adjust thru

TAPER ATTACHMENT ................ No
STEADY REST ..................... NO
THREAD DIAL ..................... YES
CHIP PANS ....................... YES

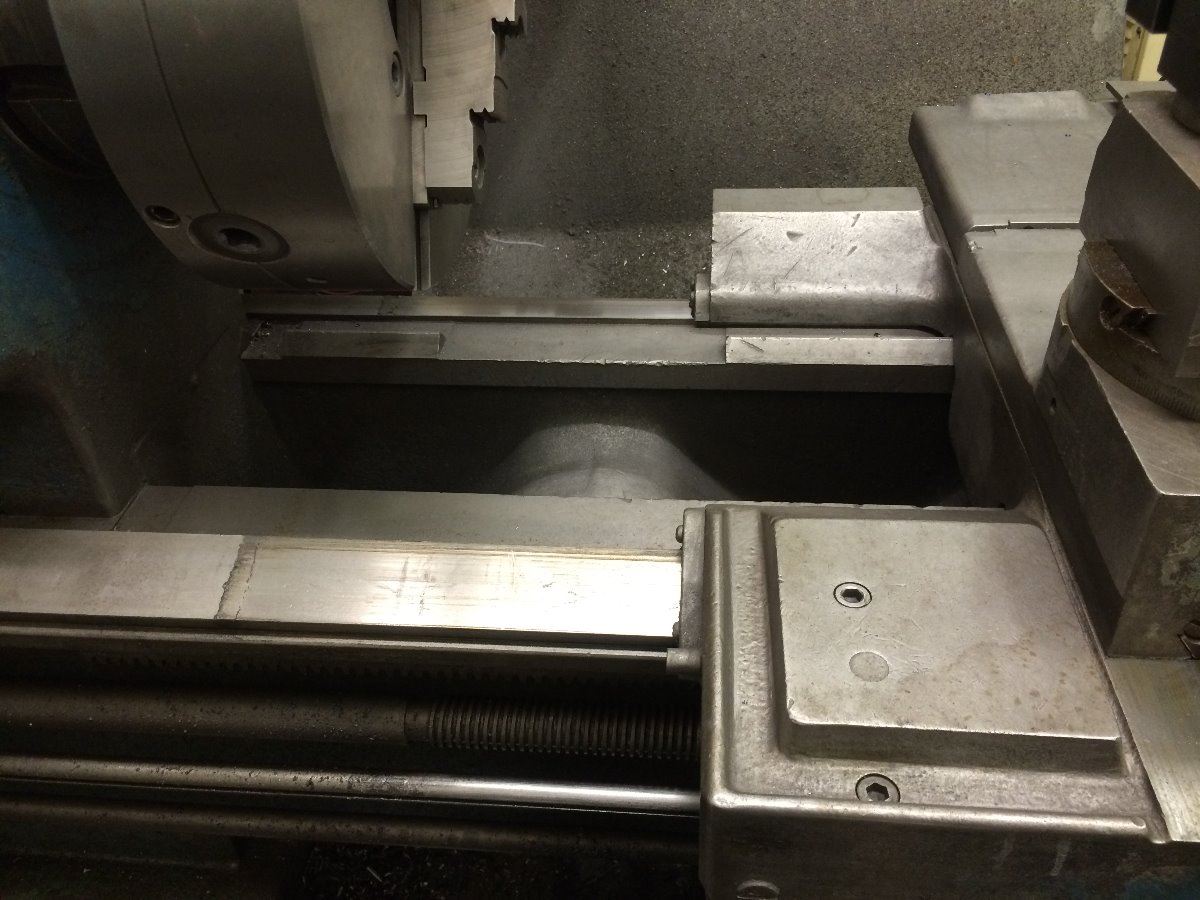

HARDWAYS ........................ YES

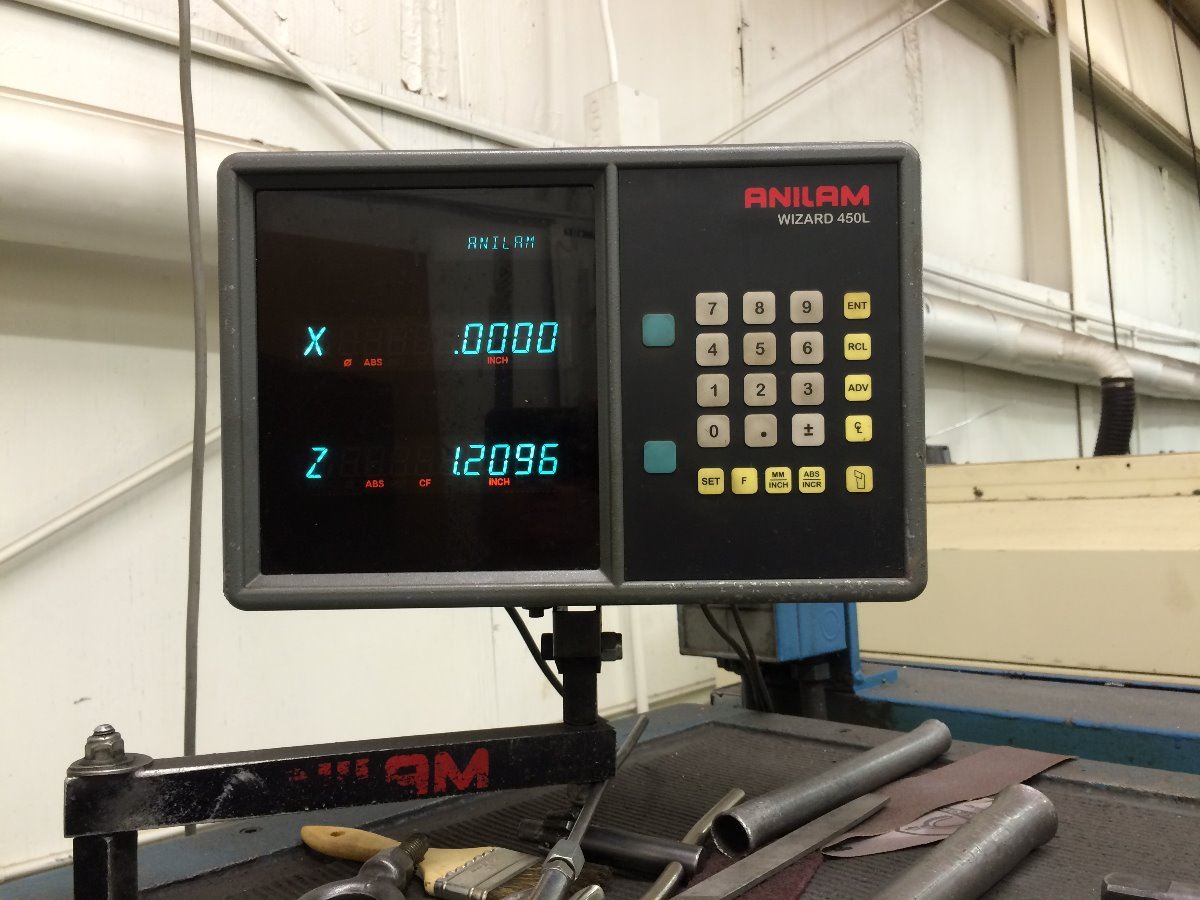

With Anilam Wizard 450L Read out system


Machine Still in Plant can not be leased till mid to end of December
