SOLD
192,000.00USD+ (19,200.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2020 Sep 08 @ 16:00UTC-4 : AST/EDT
Did you win this lot?
A full invoice should be emailed to the winner by the auctioneer within a day or two.
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.
Appointments for inspections are available upon request, 8am-5pm M-F for each location. Please call 616-745-5953 or email sales@btmindustrial.com.
LOCATION GRAND RAPIDS, MI
By Appointment only - Please contact Eric Rasikas 616.540.1279 or email Eric@btmindustrial.com
*Machine has a minor issue with the B Axis, please see photos 14 and 15*. It
was machining D2 and WP7 metal. It was primarily set up for detail/gun drilling work.

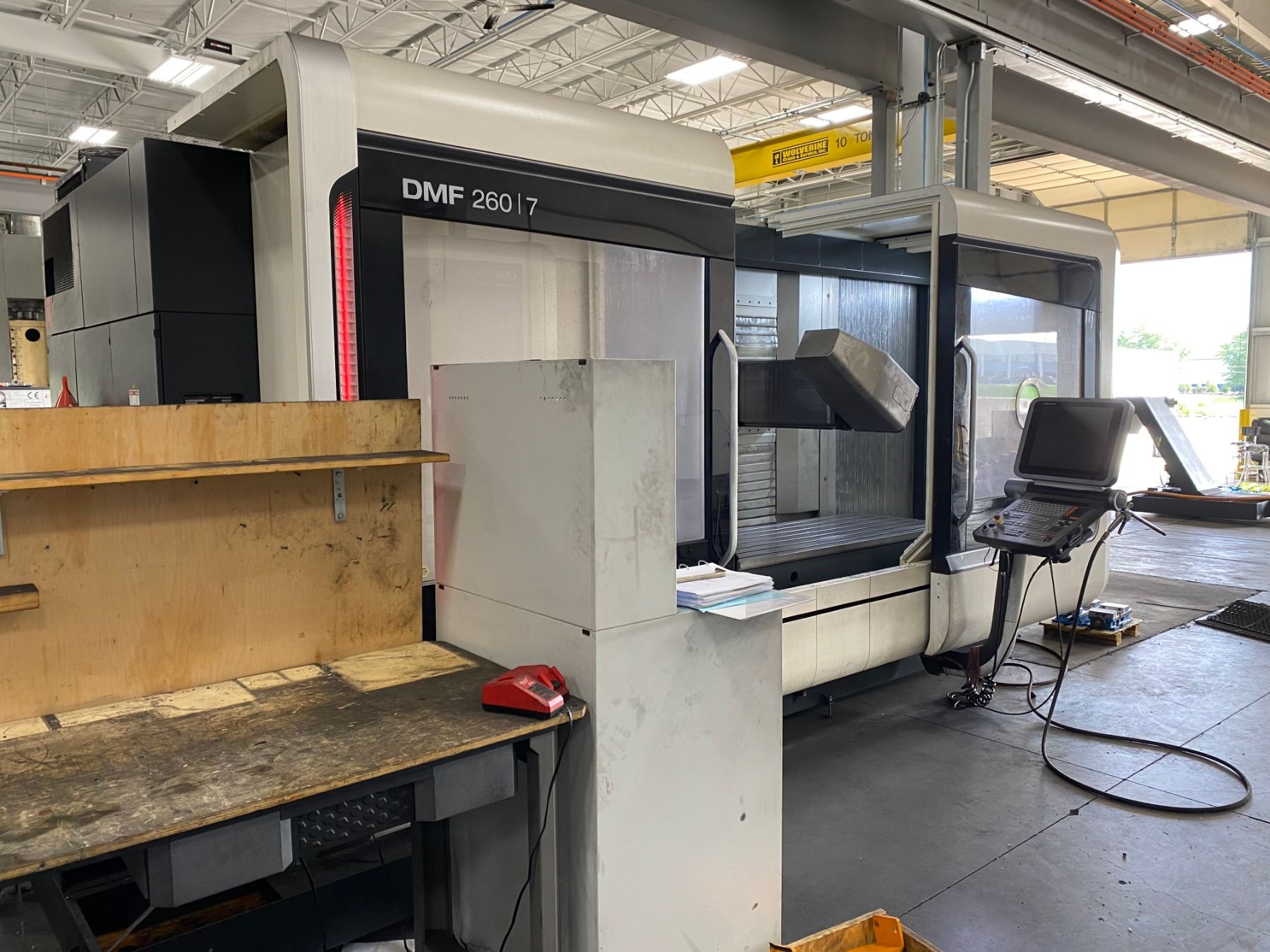

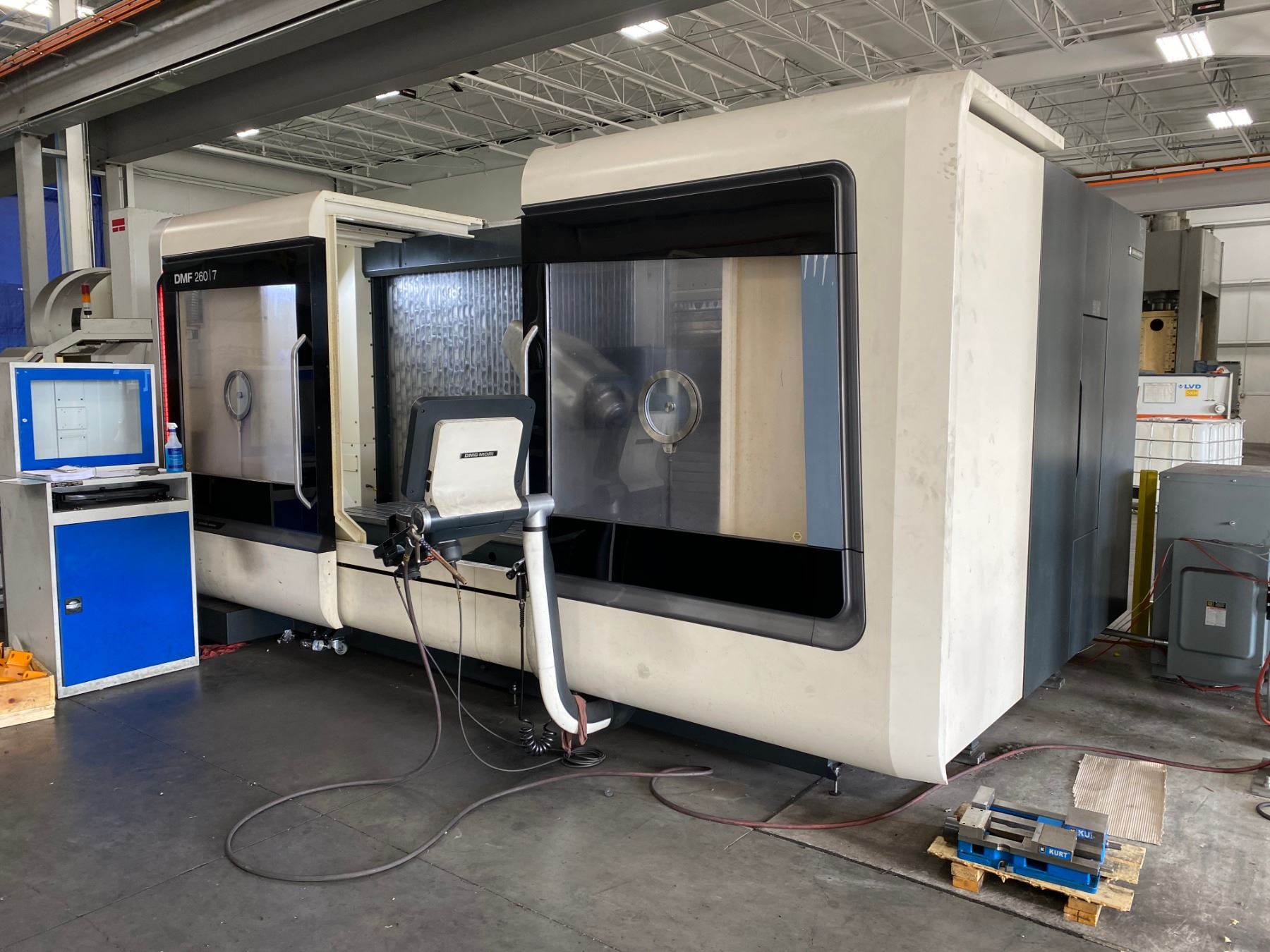

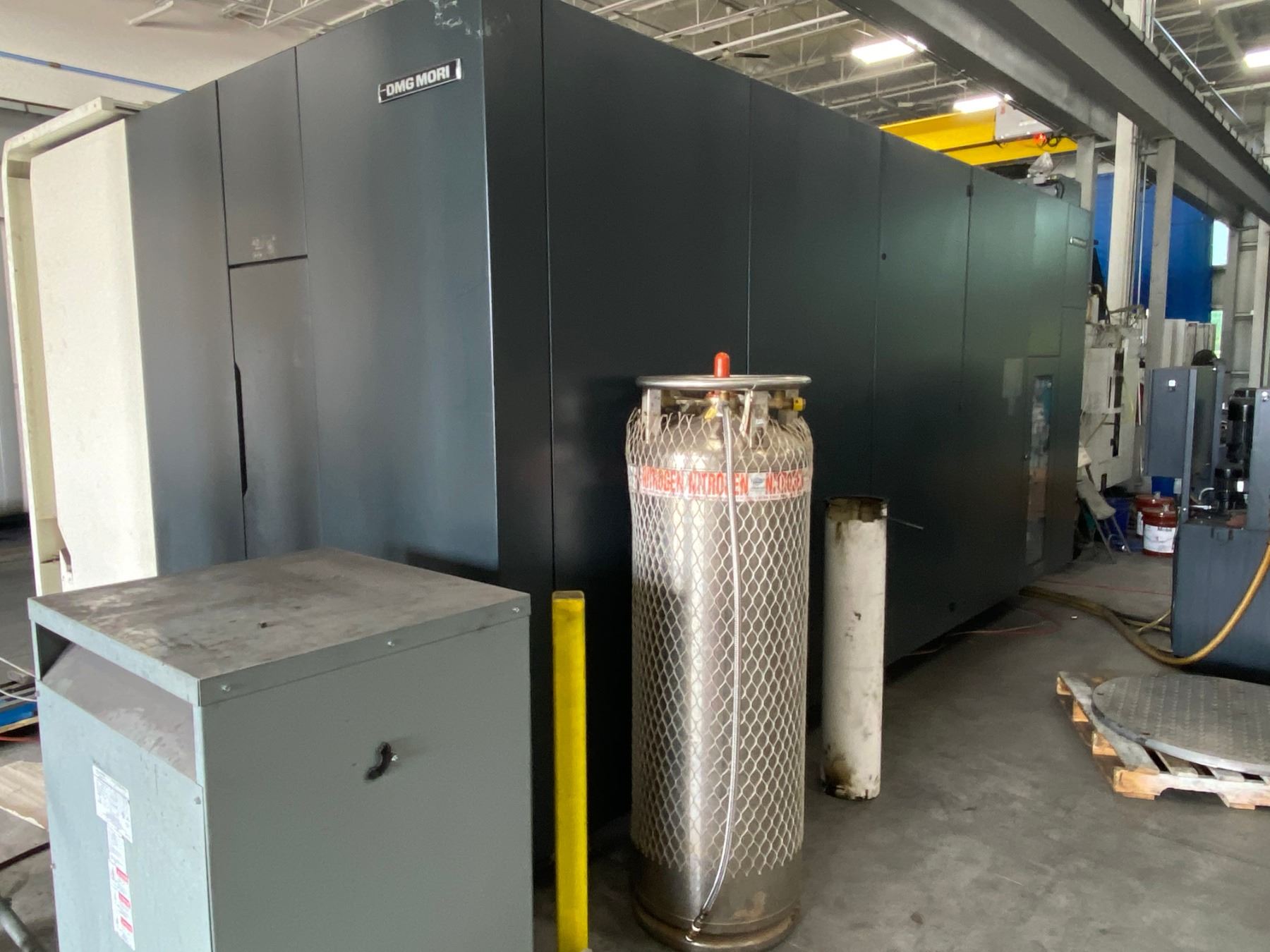

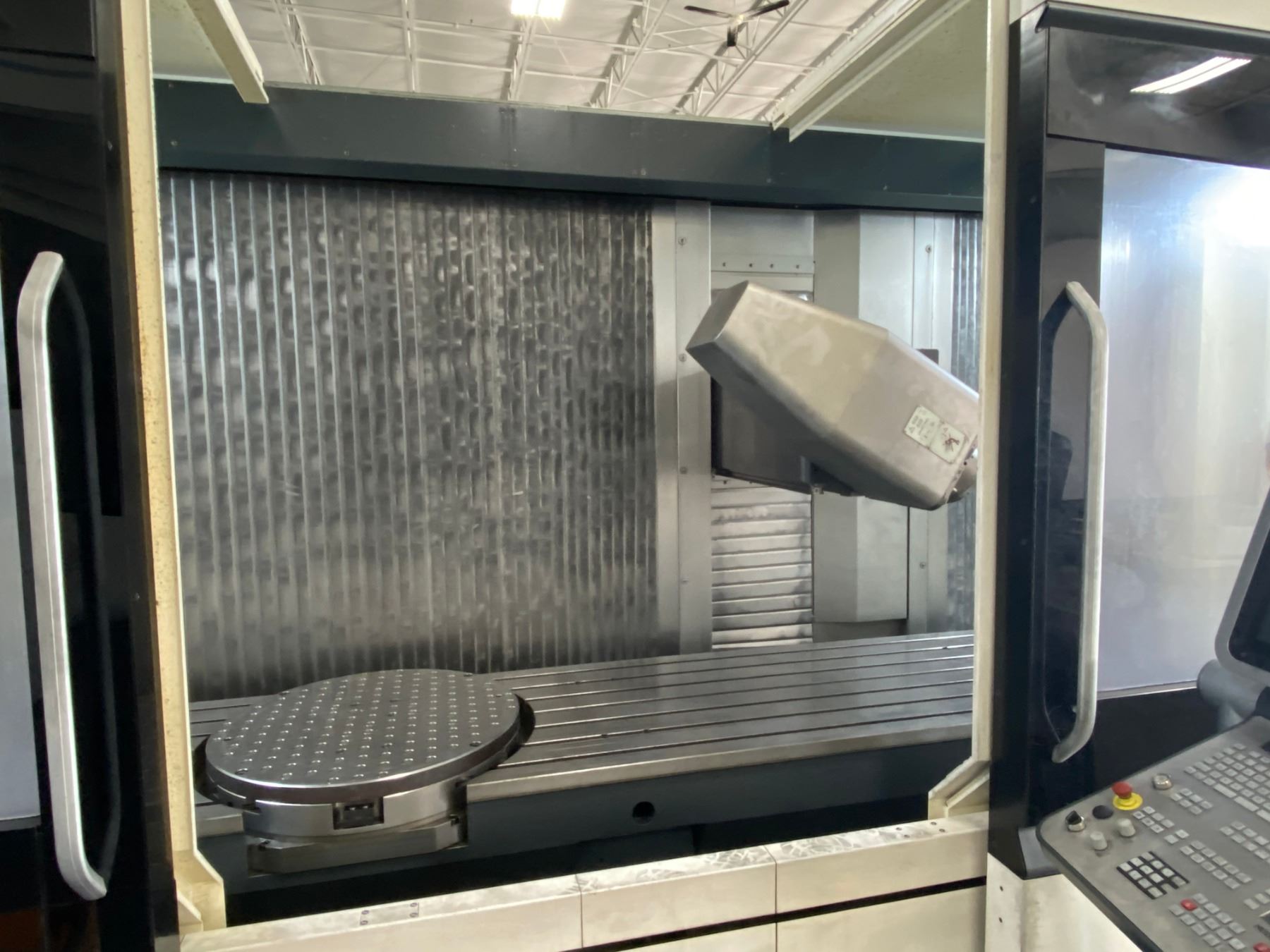

DMG DMF 260-7 Linear Traveling Column CNC Machining Center, 2017

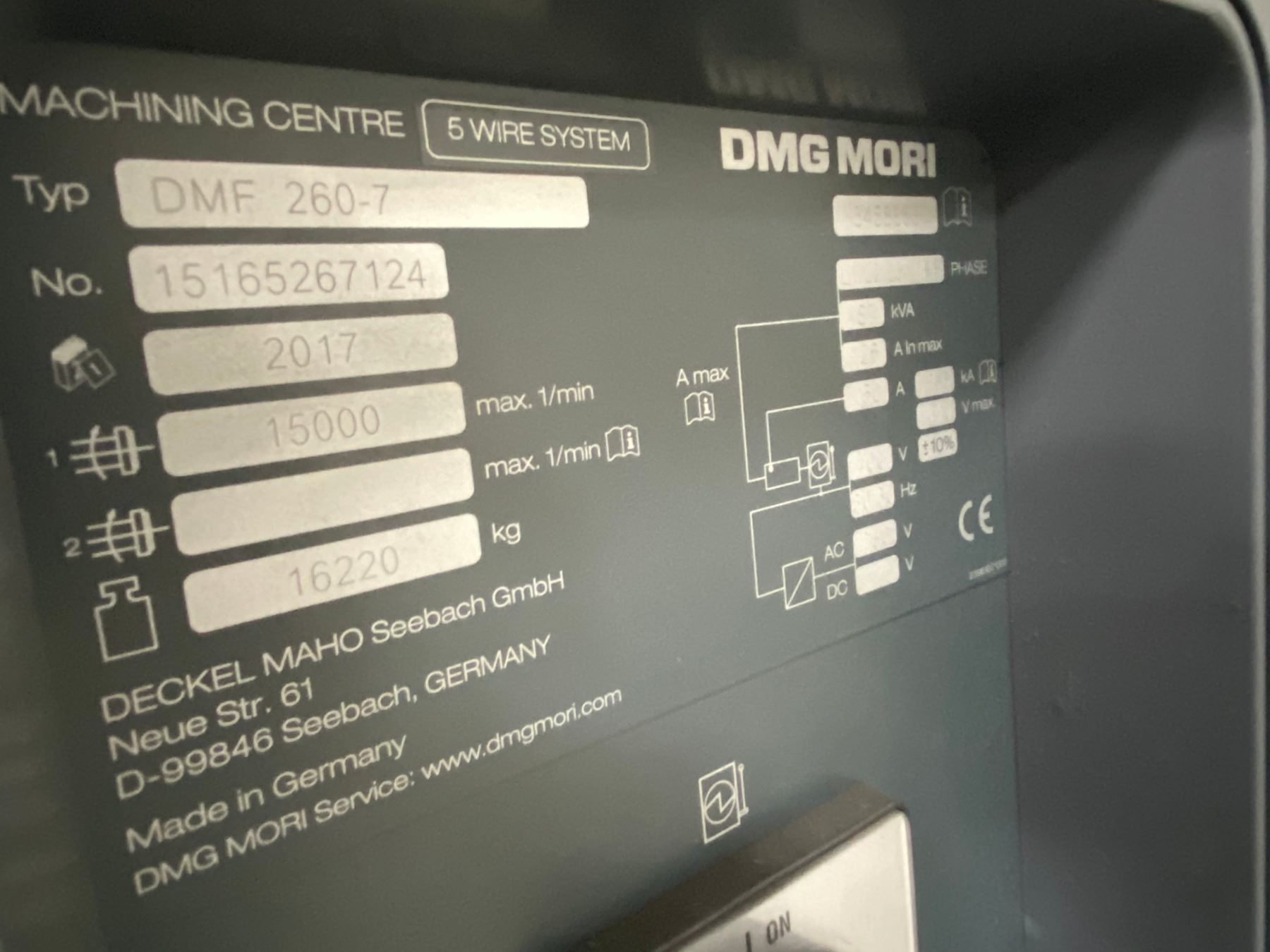

Serial # 15165267124
Hours: 16,300 (from last service report)
Specifications:
Work Envelope 33.8” x 35.6” x 102”
Max. Workpiece Height 21.7”

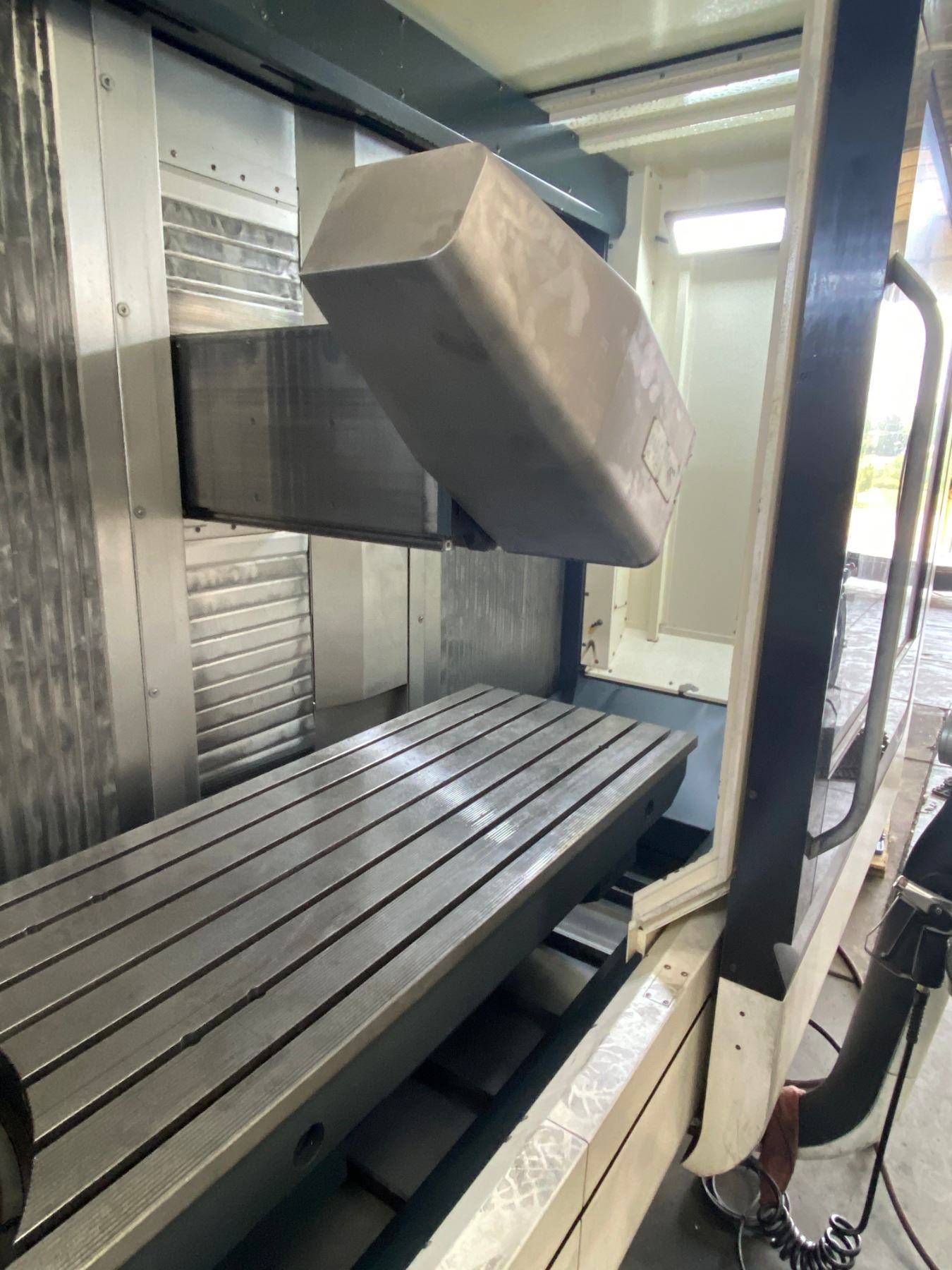

Rigid Table Size 114” x 27.56”
T-Slot Distance 3.937”
Weight of Table 1,477 lbs.
Max. Table Load 4,740 lbs.

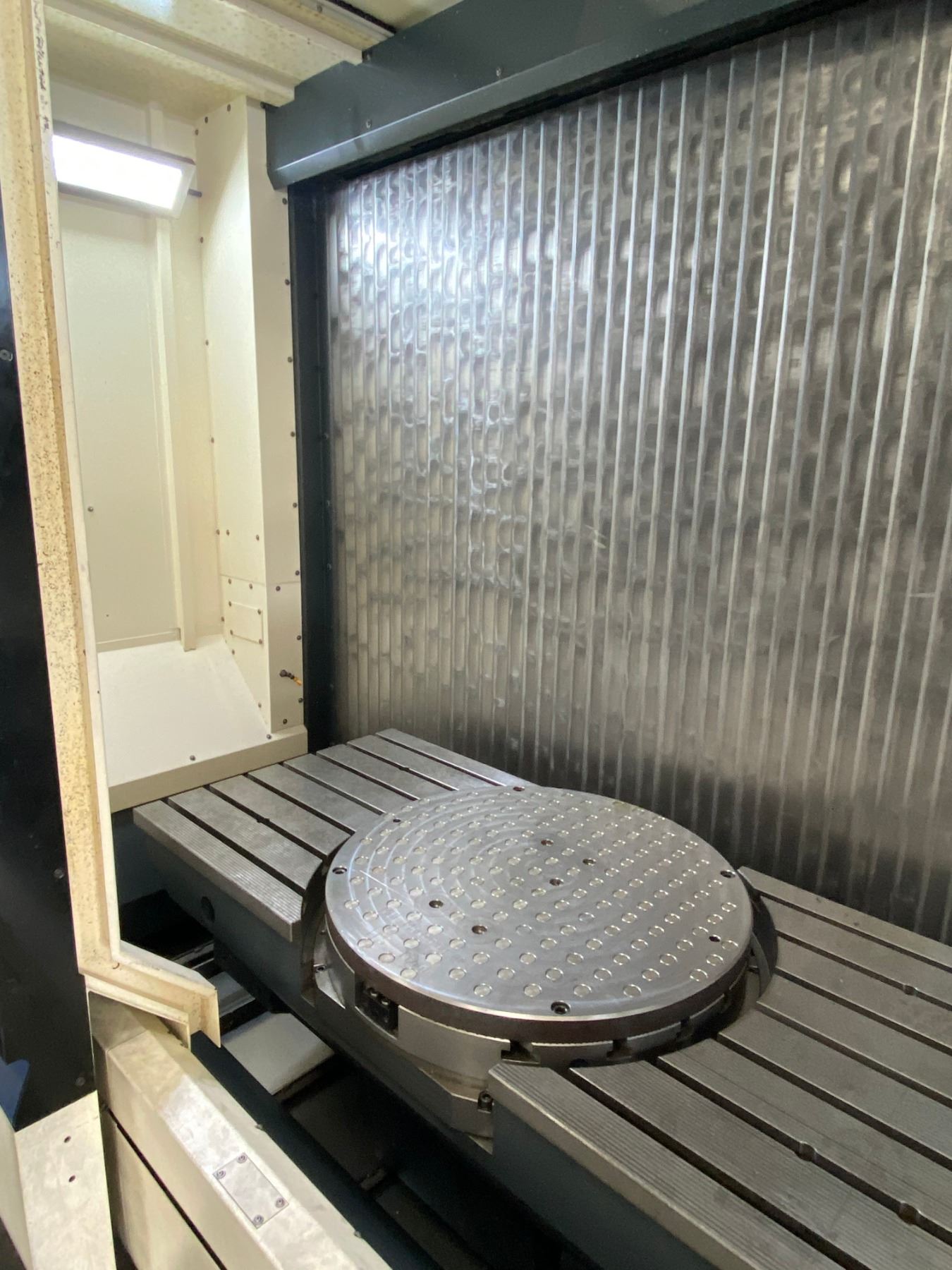

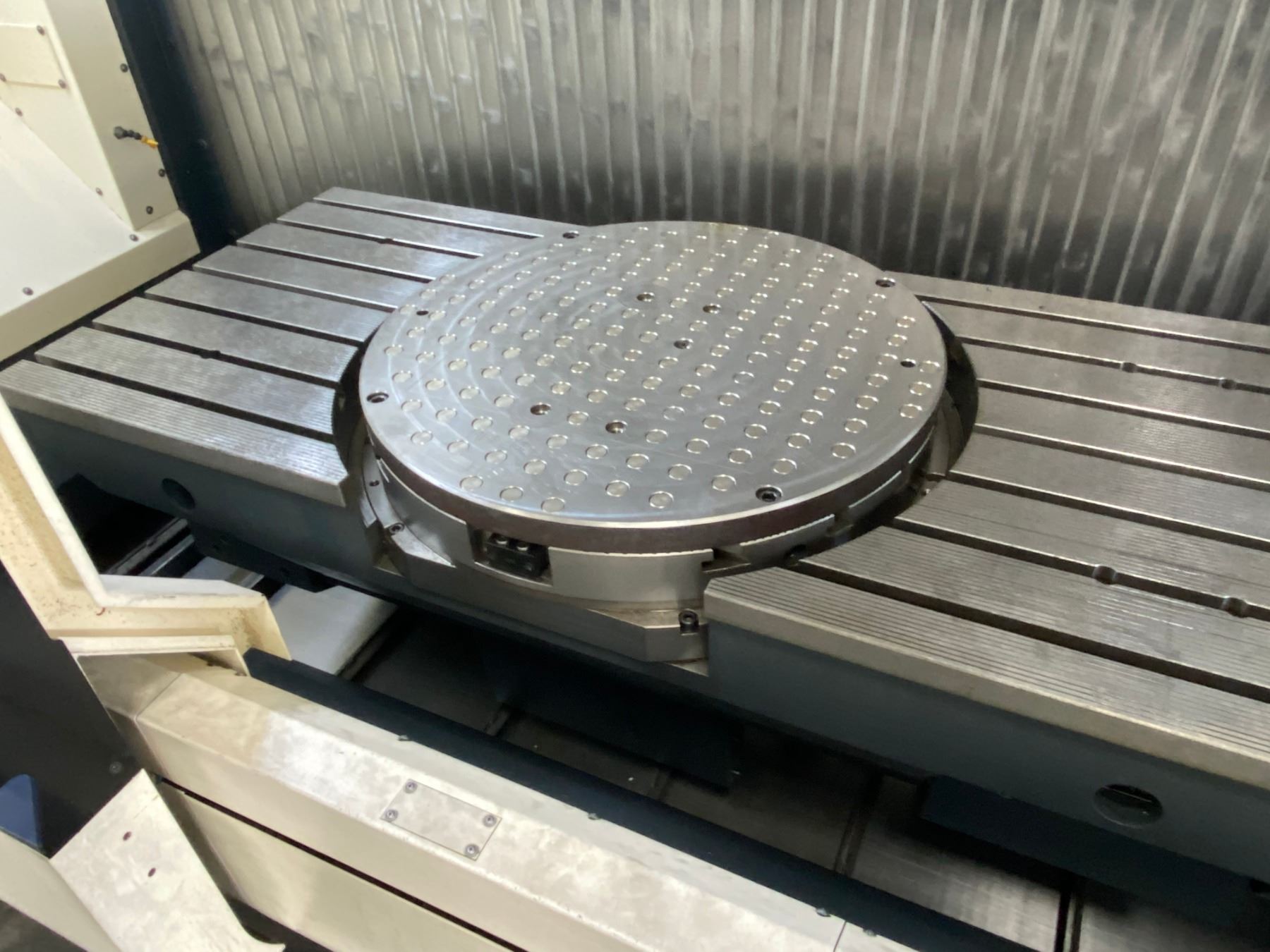

Integrated NC Circular Table
Axis Type C Axis
Clamping Surface Rotation Axis 29.52
T-Slot Distance 100 mm
Number of Clamping Slots/Size 6/18H12
Reference Groove / Size 1/15H7
Location Bore 30H6 mm
Table Torque, 100% ED 2000 Nm
Max. Speed of the Table Top (Rotation Axis) 50 RPM
Range of Rotation 360 Degrees
Max Load on Table 1,102 lbs.
Spindle Speed, Infinitely Variable 20-15,000 RPM
Spindle Taper 40 Taper
Tool Holder SK40
Power (40%/100%) 61 HP / 40 HP
Feed Rate on X, Y, Z Axis up to 787 in/min
Rapid Speed on X, Y, Z Axis 131 ft/min
X Axis Travel 102”
Y Axis Travel 27.56”
Z Axis Travel 27.56”
B Axis Min/Max +/- 100 Degrees
C Axis 360 Degrees
Spindle Nose to Table 35.6″
Spindle Center to Column 33.8″ Max.
