2007 Chevalier QP2040-L VMC

Currency:USD Category:Business & Industrial Start Price:1.00 USD Estimated At:NA
2007 Chevalier QP2040-L VMC
SOLD
7,900.00USD+ (1,461.50) buyer's premium + applicable fees & taxes.
This item SOLD at 2019 Aug 27 @ 13:00UTC-4 : AST/EDT
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.

Appointments for inspections are available upon request, 8am-5pm M-F for each location. Please call 616-745-5953 or email btmjeff@outlook.com.



Location: Grand Rapids, MI (Customer Location)
*Note: Loading Fee: $700
Midway Machinery Movers Approved Rigger

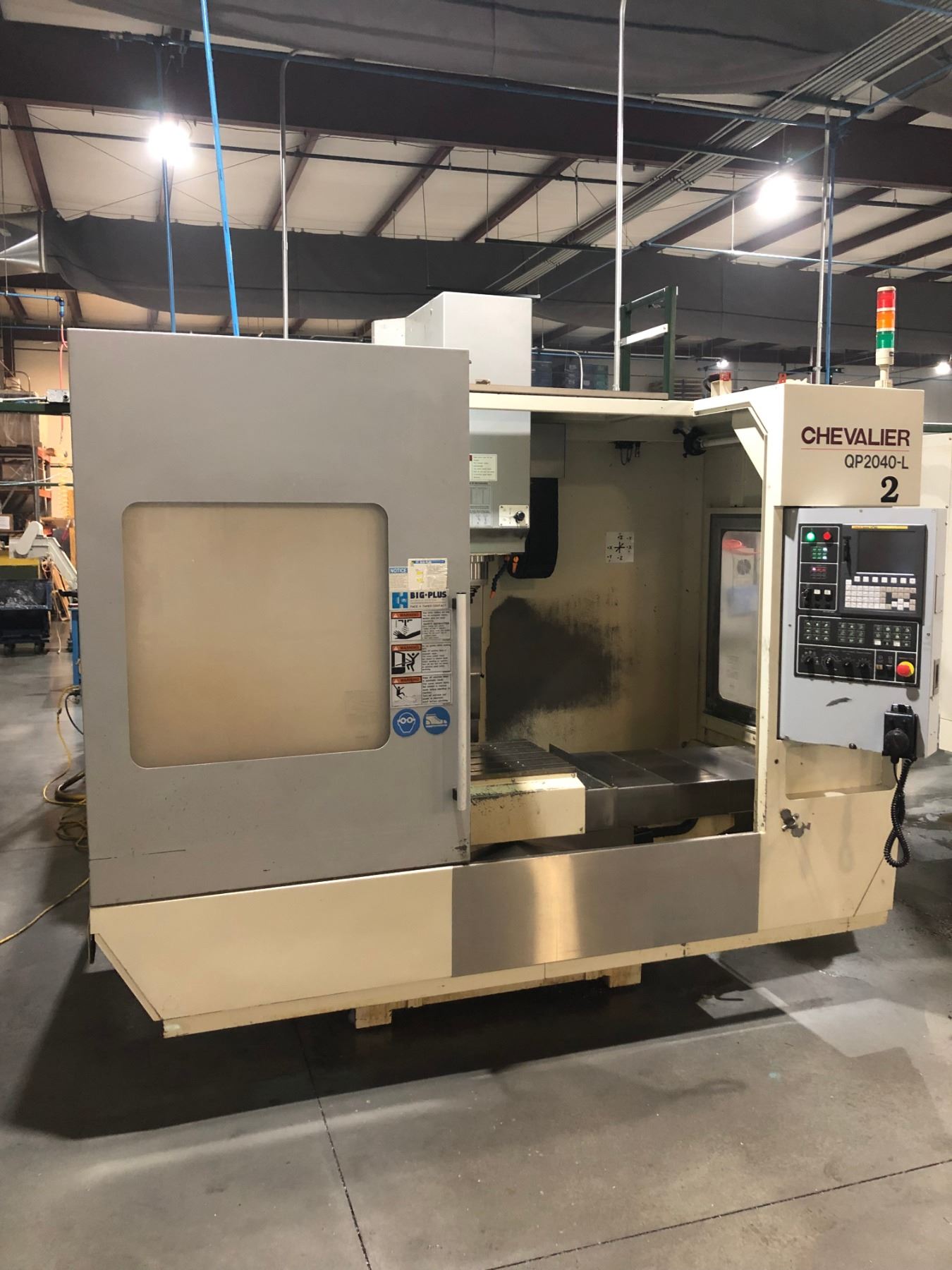

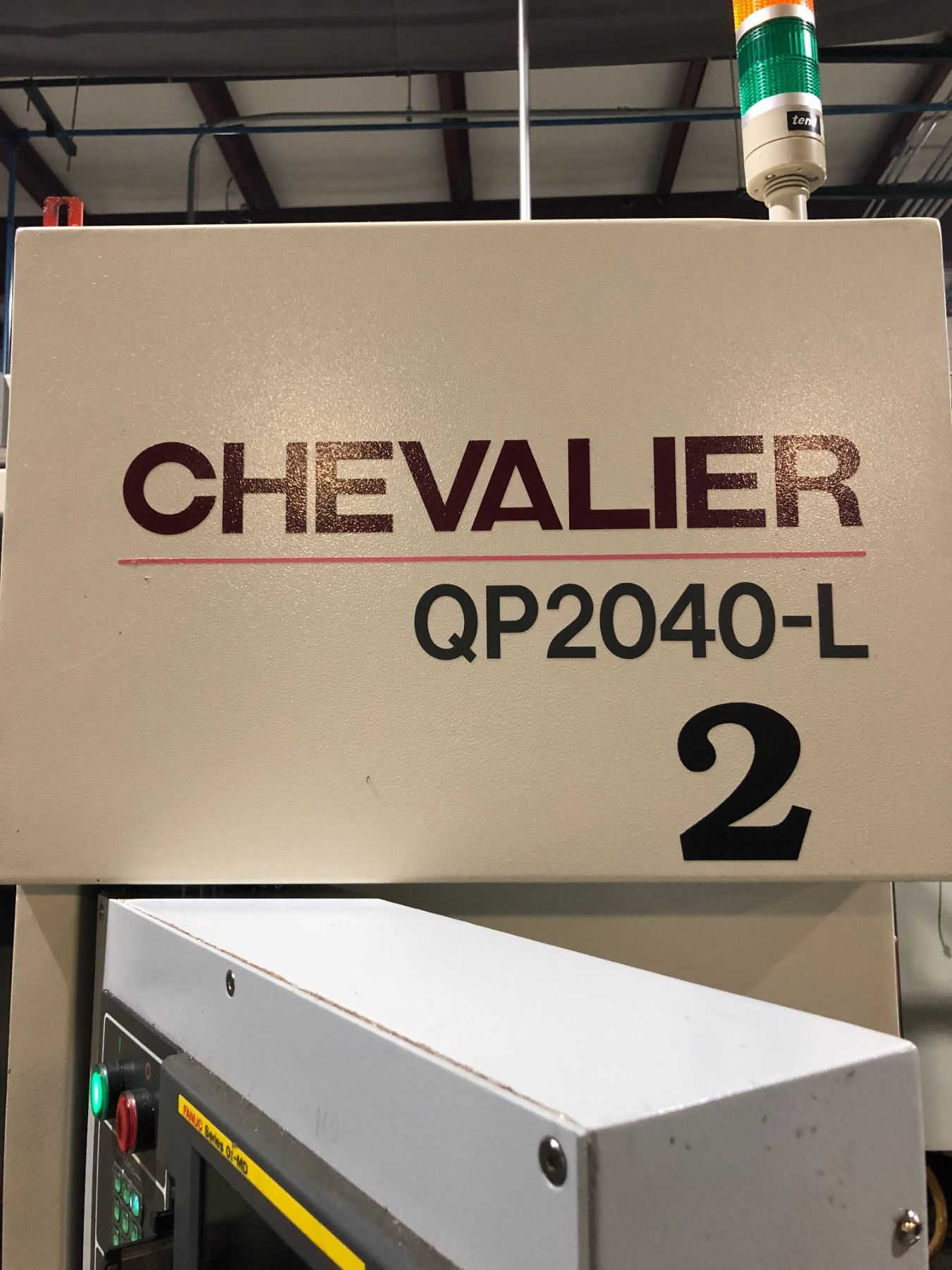

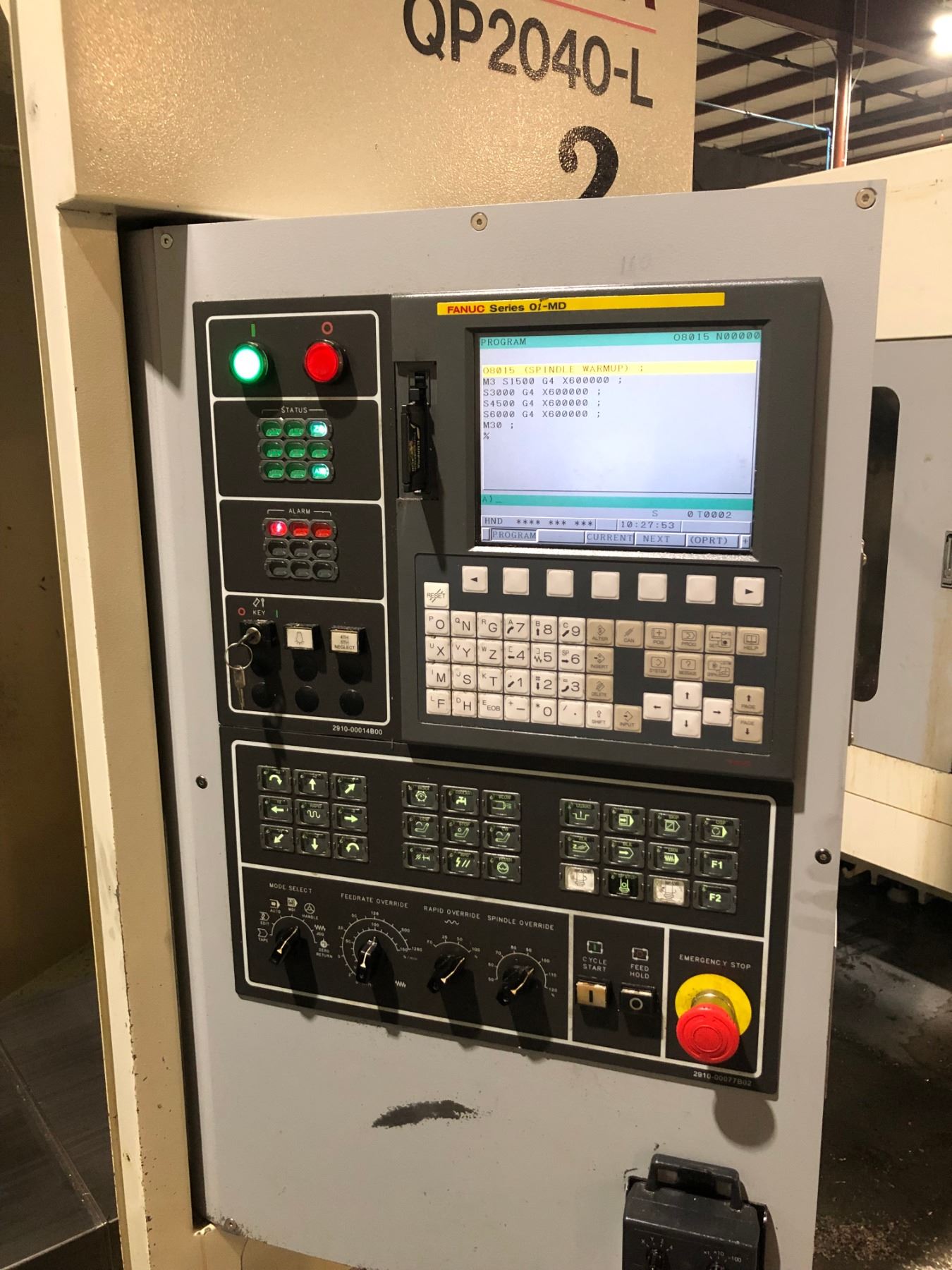

Chevalier QP2040-L VMC

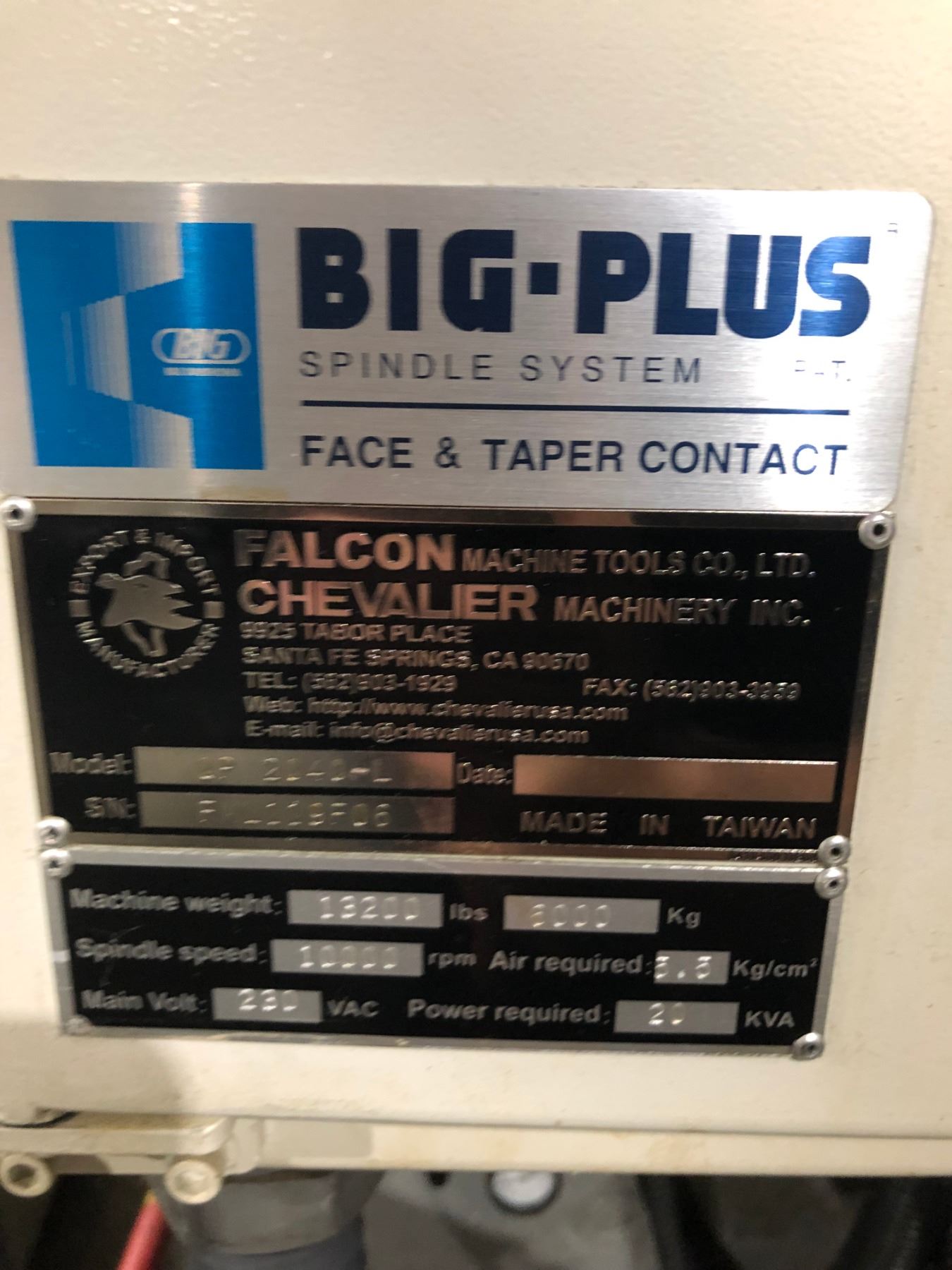

230V
Machine Weight 13200lbs
Spindle Speed 10,000

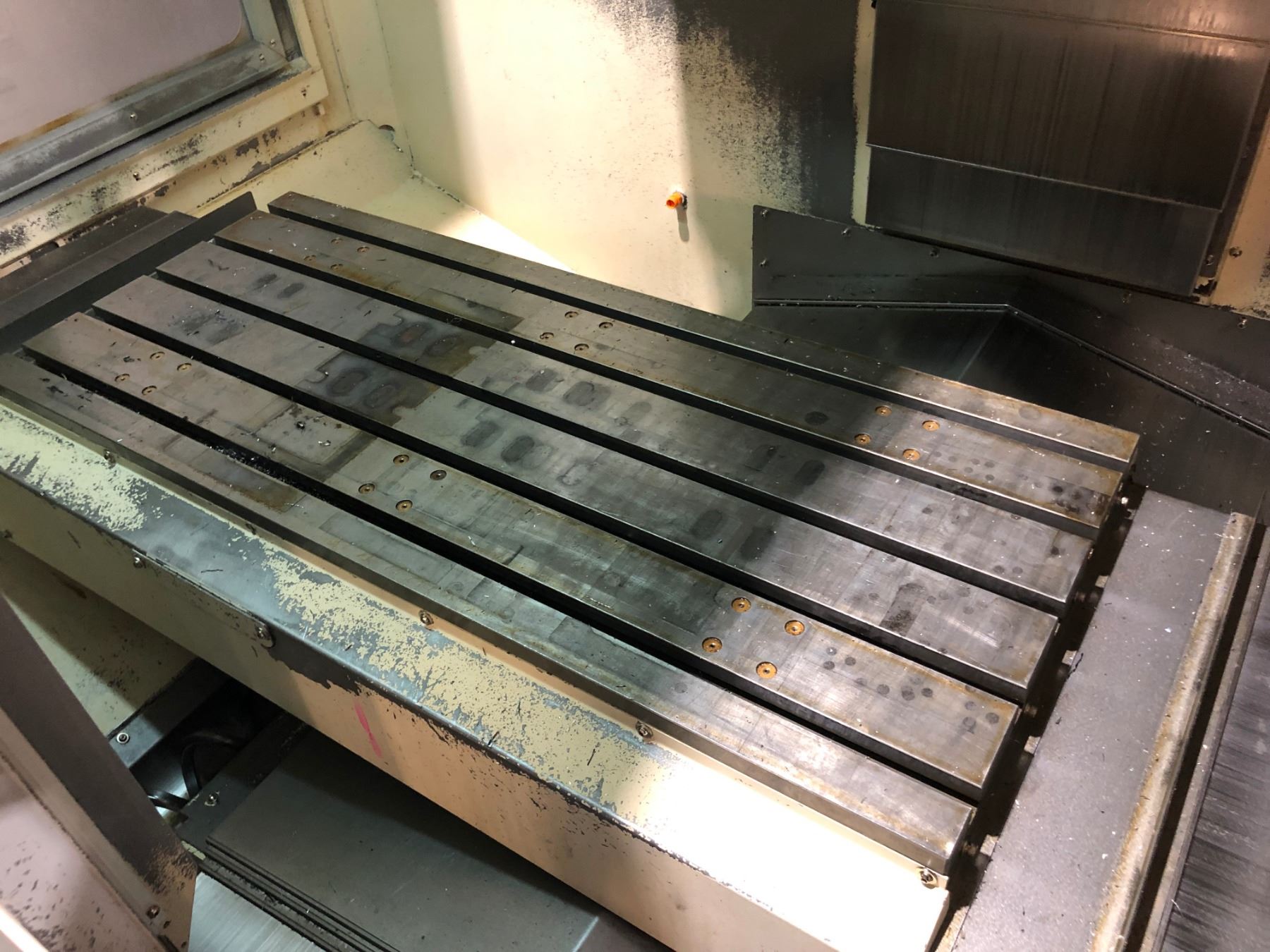

TABLE/WORK SUPPORT
Table Size L x W (in.) 47.200 x 20.100
Max. Workpiece Weight (lbs) 1,320

SPINDLE(S)
Num. Main Spindles 1
Orientation Vertical
Taper #40
Top RPM 10,000
Horse Power (30 min rating) 20.00
# Speed Ranges 1
Type Fixed

TOOLING
Primary Tool Carrier(s) ATC
Number of Tools 24 Opt. 32
Tool Change Time C-to-C (sec) 4.35 1.80 sec tool-to-tool
Max. Tool Length (in.) 11.800
Max. Tool Diameter (in.) 3.140 (with empty adacent pockets)
Max. Tool Weight 15.40
AXES AND TRAVELS
Number of Axes: 3 Options: (4 ) U Axis: None
Travel Max Feed Rapid Rate
X1 Std. 40.200 in. 394 ipm 1,417 ipm
Y1 Std. 20.900 in. 394 ipm 1,417 ipm
Z1 Std. 20.100 in. 394 ipm 1,180 ipm
B1 Std. 360.000 deg
WEIGHTS AND MEASURES
Machine Dimensions (l x w x h)(in.) 110 x 83 x 102
Machine Weight (lbs) 13,640
Spindle Nose To Table (Max) 25.200
Spindle Nose To Table (Min) 5.100
Spindle Center To Column 23.000
