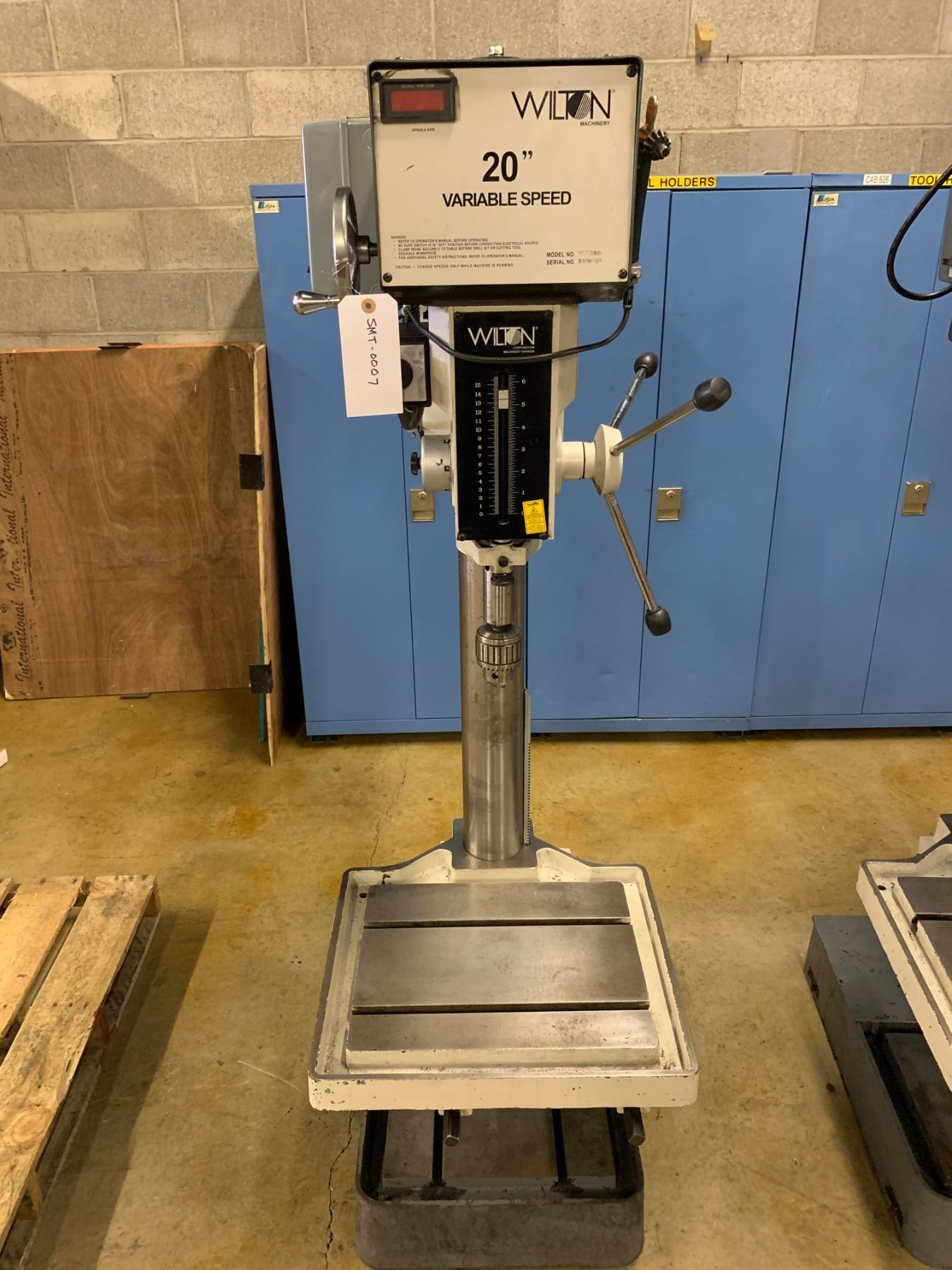

2005 20" Wilton 2221VS Drill Press

Currency:USD Category:Business & Industrial / Metalworking - Equipment Start Price:1.00 USD
2005 20  Wilton 2221VS Drill Press
SOLD
720.00USD+ (108.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2019 Feb 26 @ 13:15UTC-5 : EST/CDT
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.

Appointments for inspections are available upon request, 8am-5pm M-F for each location. Please call 616-745-5953 or email sales@btmindustrial.com.



Location: Lansing, MI
*Note: Loading Fee $30

On Consignment from Major Automotive Manufacturer

Manual Speed Control Models Inverter Speed Control Models
Make: Wilton

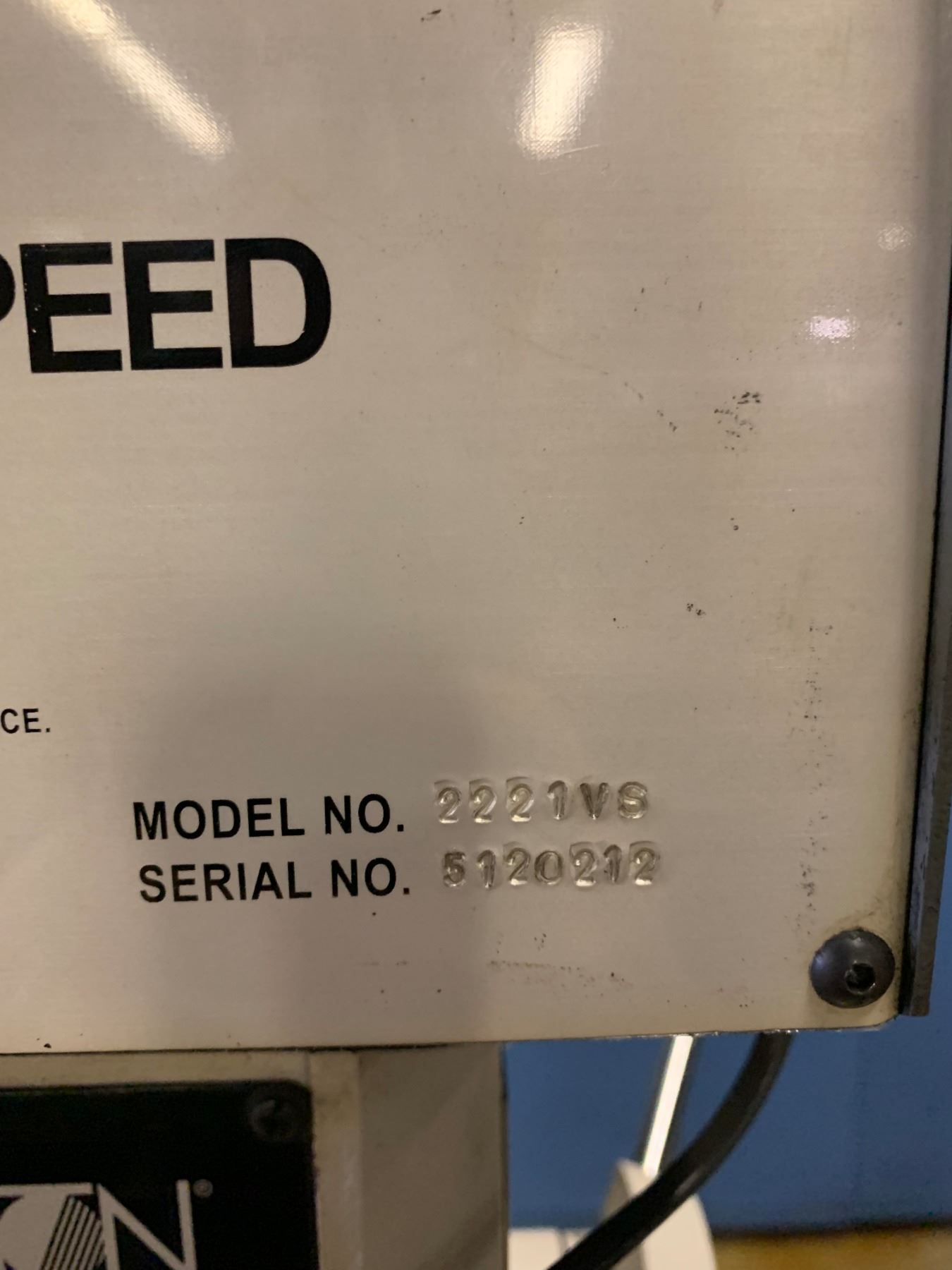

Model: 2221VS
Year: 2005
Drilling Capacity
Cast Iron .............................................. 1-1/4 In
Steel .................................................... 1 In.
Spindle to Table (Max.) ................................. 32-3/8 In.
Spindle to Base (Max.) ................................ 44-1/2 In.
Spindle to Column (Max.) ............................ 10-7/16 In.

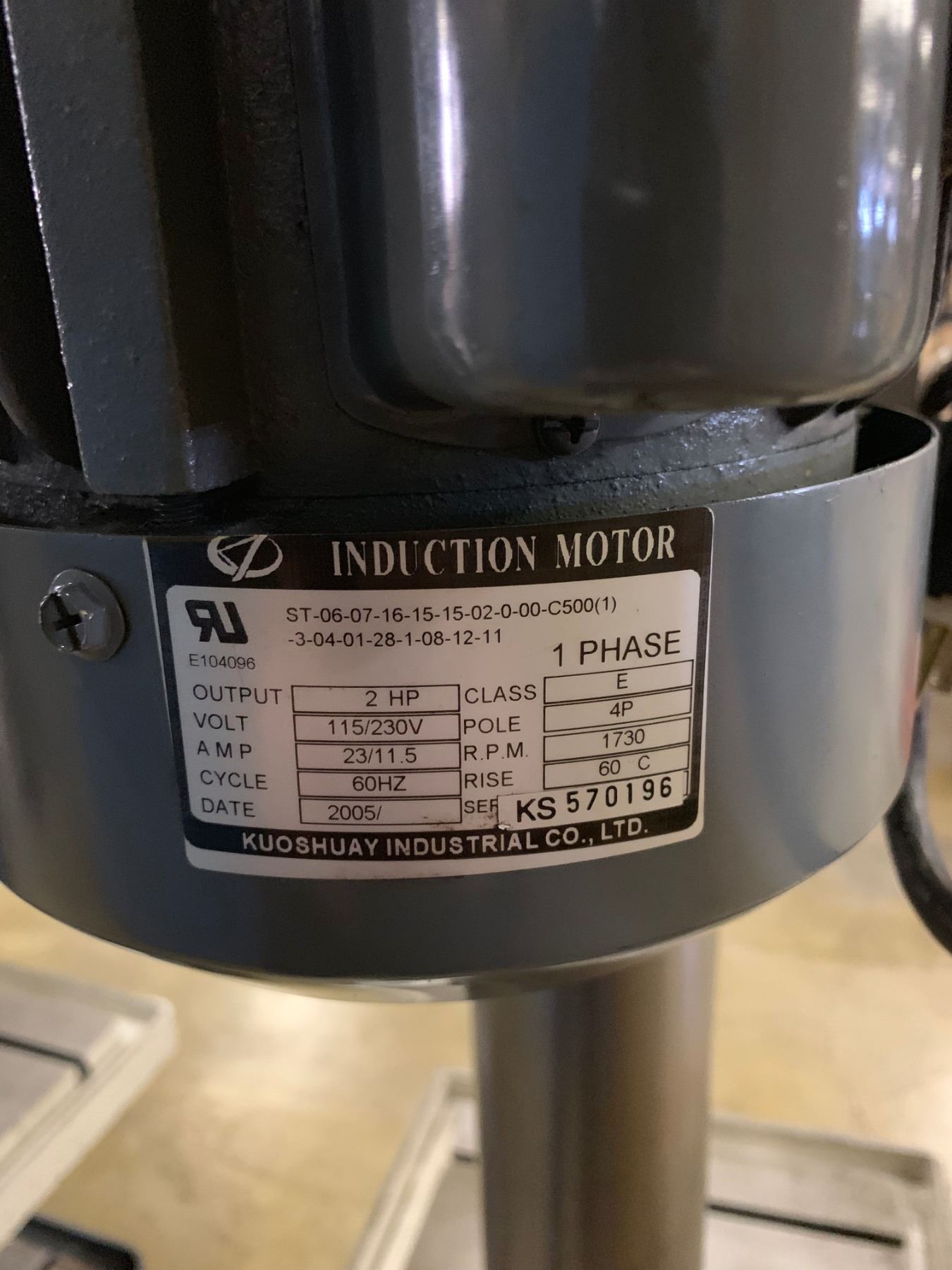

Motor
Rating .................................................. 2 hp, 1-Phase
Voltage ................................................ 115/220 V
Pre-wired Voltage ................................ 115
T-Slots (Table/Base)
Number ............................................... 2
Size ..................................................... 5/8 In.
Column Diameter ........................................ 4-1/2 In.
Spindle
Travel .................................................. 6 In.
Taper ................................................... MT-3
RPM (Variable) .................................... 300-2000
Quill
Diameter ............................................. 3 In.
Travel .................................................. 6 in.

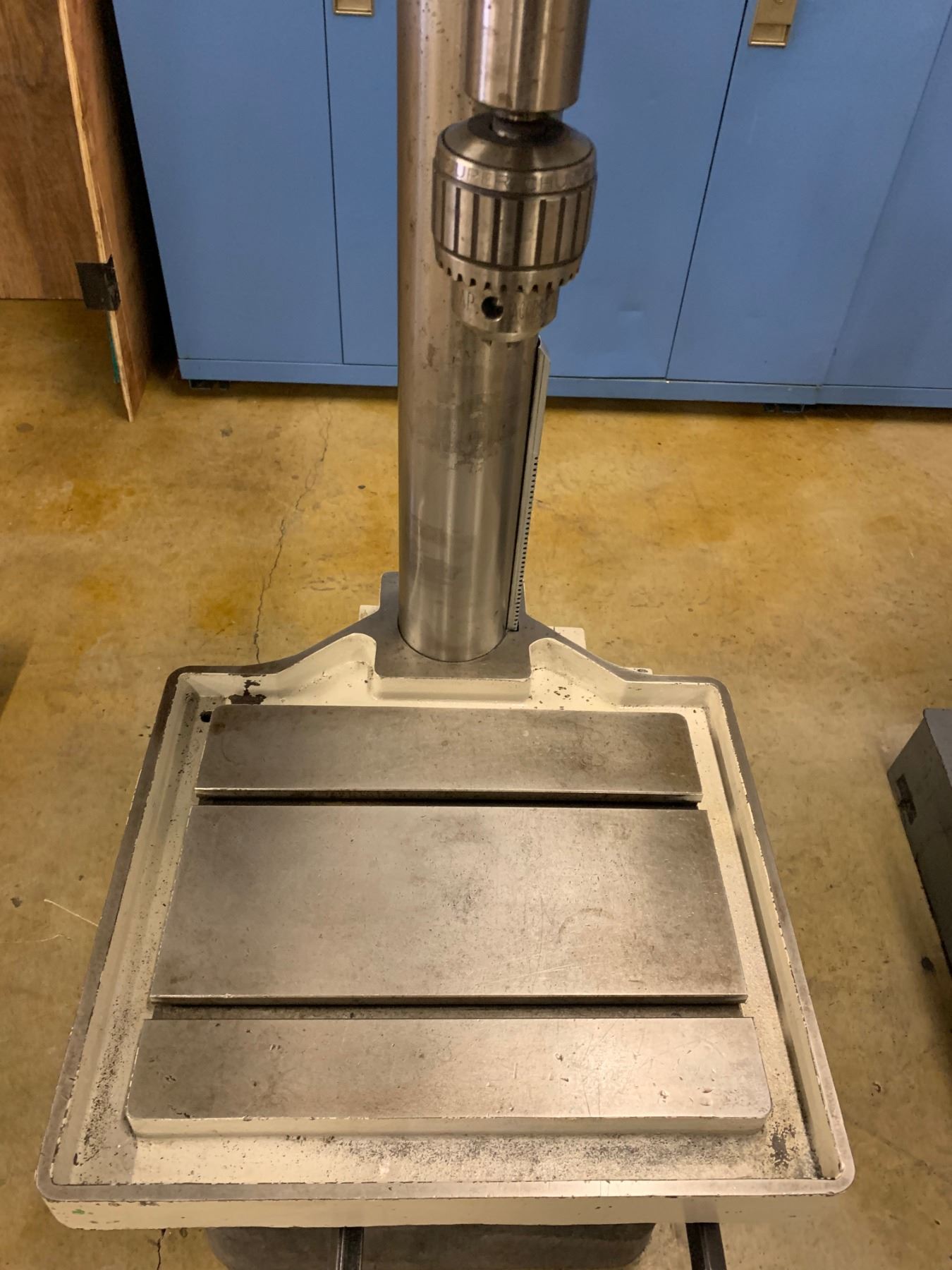

Table
Overall ................................................. 22x18-3/4 In.
Working Surface .................................. 18-1/8x14-3/4
Travel .................................................. 32-3/8 In.


Base
Overall ................................................. 26x19 In.
Working Surface .................................. 15-1/4x12-1/16
Overall Dimensions
Length ................................................. 34-1/4 In.
Width ................................................... 27 In.
Height .................................................. 77-1/4 In.
Weight
Net ...................................................... 715 lbs.(325 kgs)
Gross .................................................. 803 lbs.(365 kgs)
