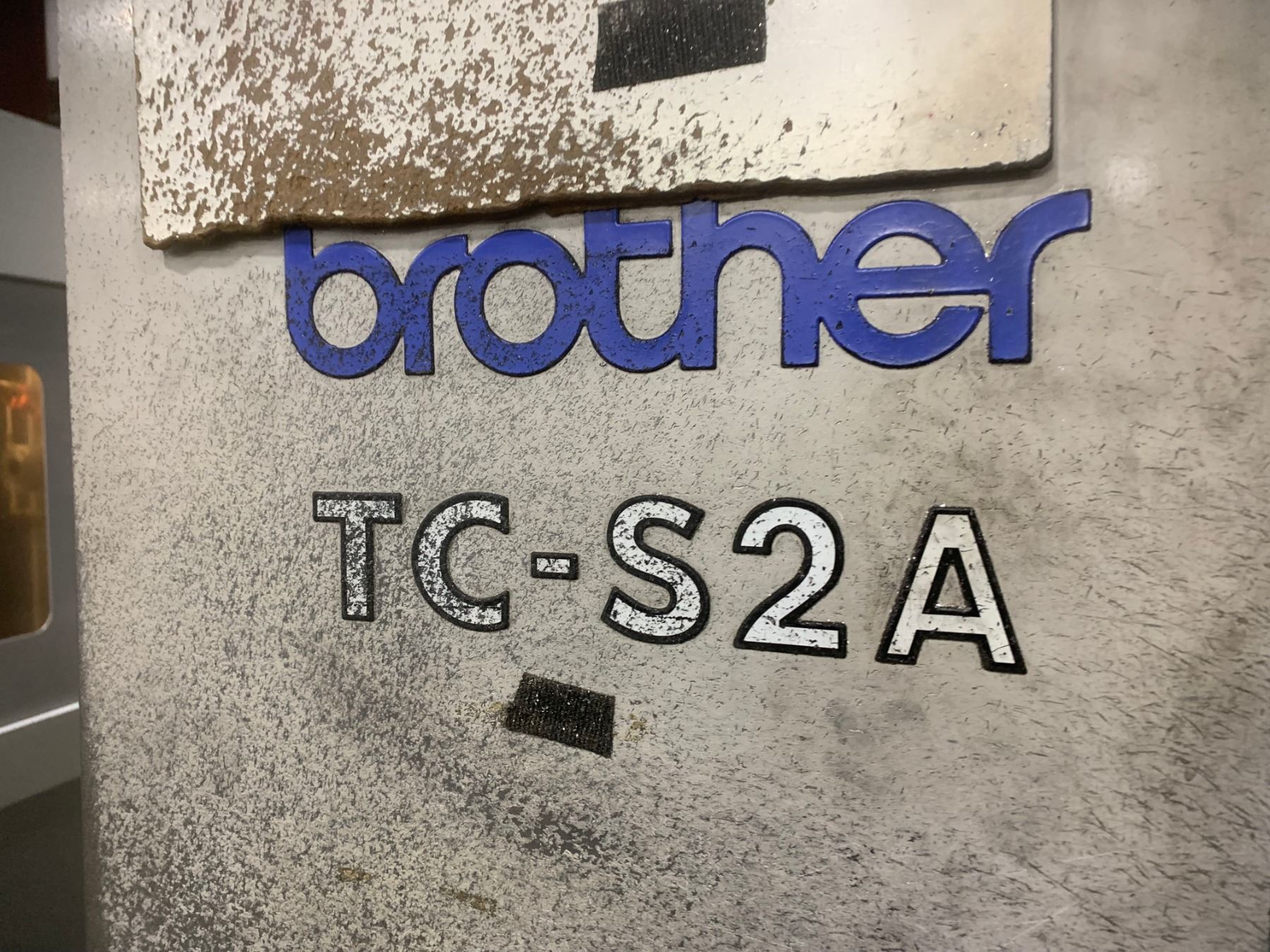

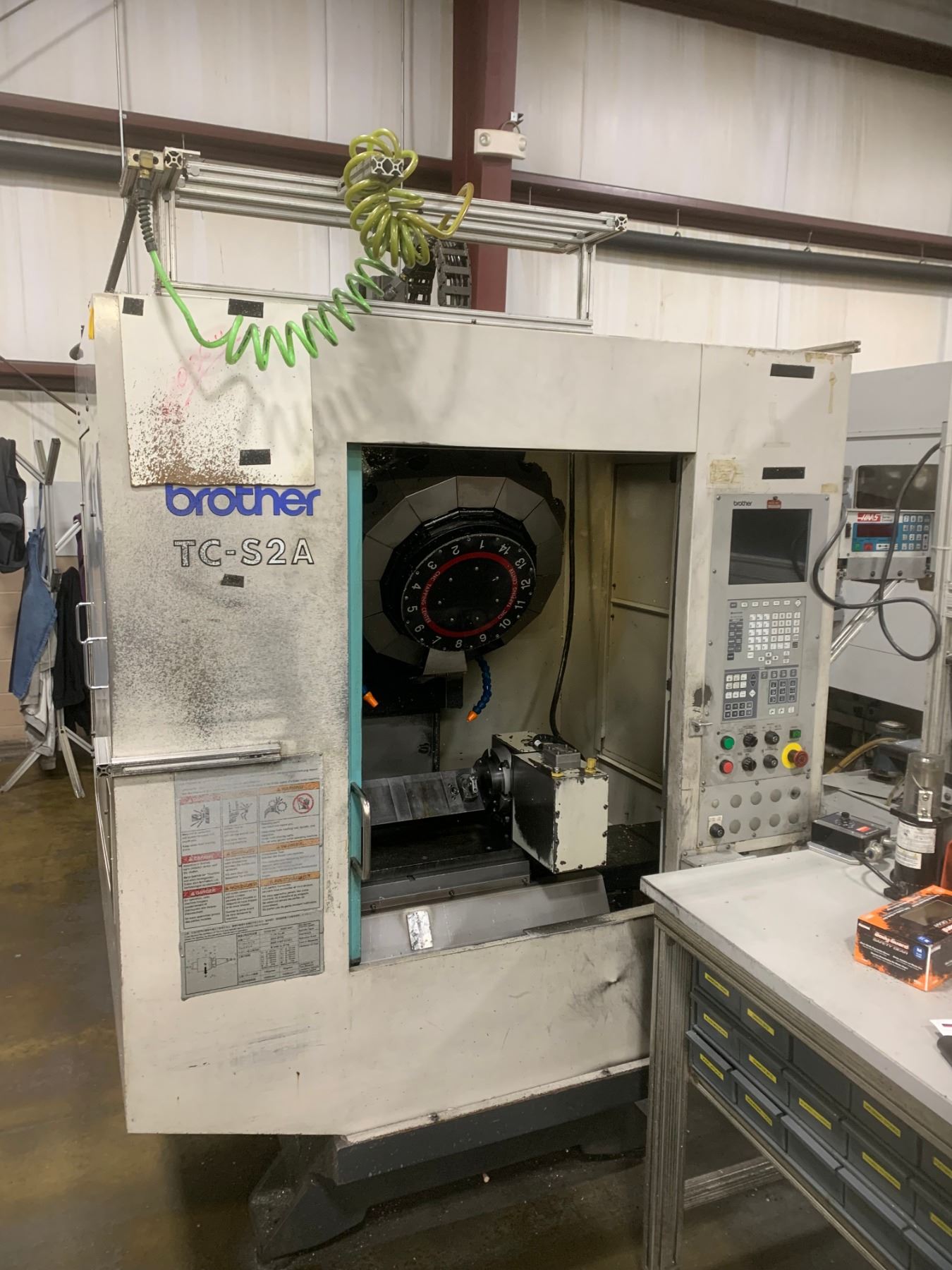

2001 Brother TC-S2A Tapping Center

Currency:USD Category:Business & Industrial / Metalworking - Equipment Start Price:100.00 USD
2001 Brother TC-S2A Tapping Center
SOLD
2,425.00USD+ (363.75) buyer's premium + applicable fees & taxes.
This item SOLD at 2020 Feb 26 @ 08:36UTC-5 : EST/CDT
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.

Appointments for inspections are available upon request, 8am-5pm M-F for each location. Please call 616-745-5953 or email sales@btmindustrial.com.



Location: Grand Rapids MI (Consignment Warehouse)
*NOTE: Loading Fee $350

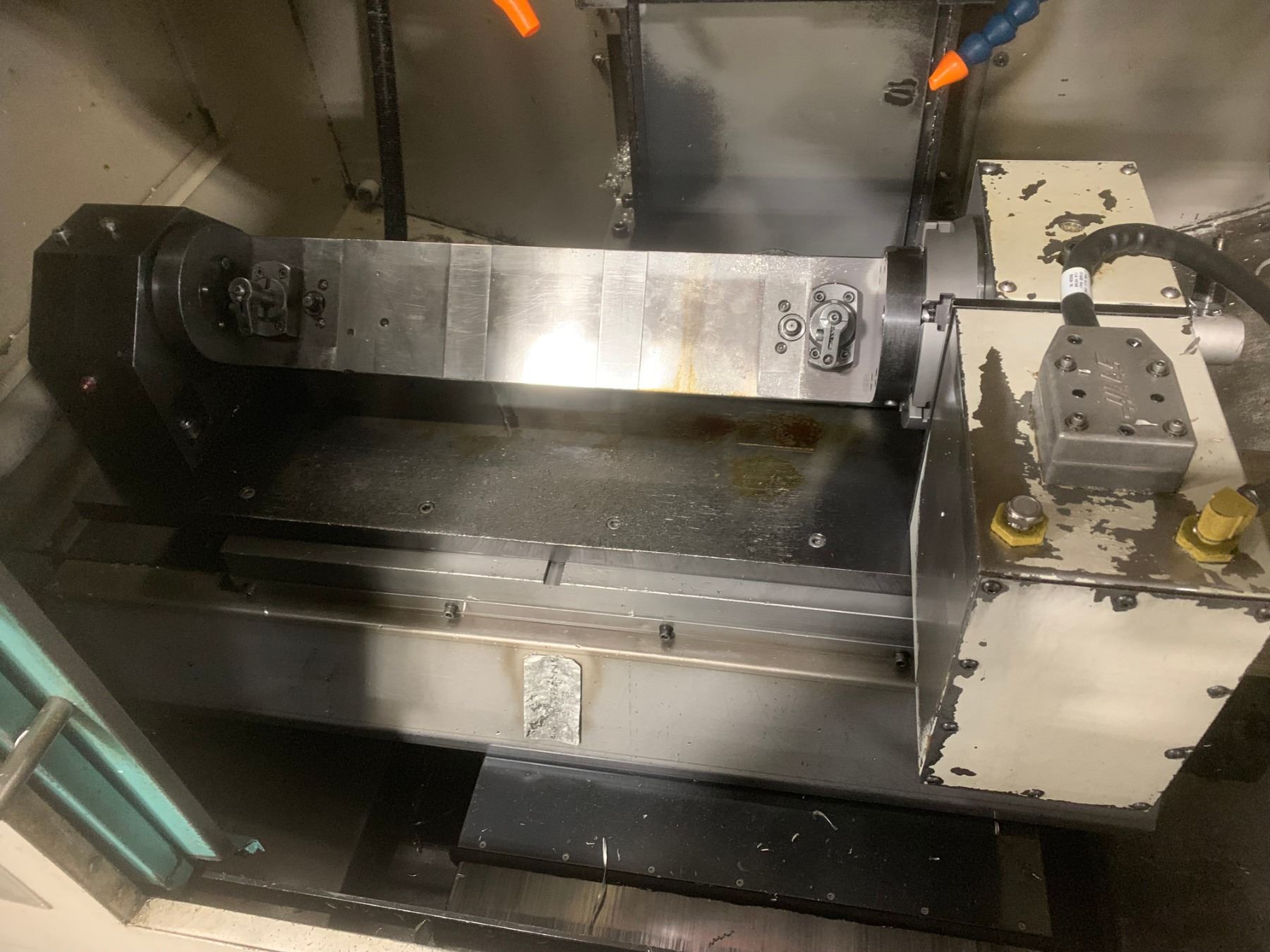

*NOTE: Haas 4th axis/controller NOT included

Specs taken from online source:
Table Work Area: 31.5" L x 12.6" W
X-Axis Travel: 27.5"
Y-Axis Travel: 14.2"
Z-Axis Travel: 16.1"
Table to Spindle Nose: 5.5" Min. - 16.1" Max.
Spindle Speeds: 16-10,000 RPM
Max. Spindle Speed in Tapping Mode: 6,000 RPM
Spindle Taper: # 30
Spindle Motor (10 Minutes / Continuous): 11.2 HP / 6.6 HP
Rapid Traverse (X, Y): 1,417 IPM
Rapid Traverse (Z): 1,969 IPM
Cutting Feedrate (X,Y,Z): 2.0 IPM - 394 IPM
Manual Feedrate (X,Y,Z): 2.0 IPM - 155 IPM
Maximum Table Load Capacity: 330 Lbs.

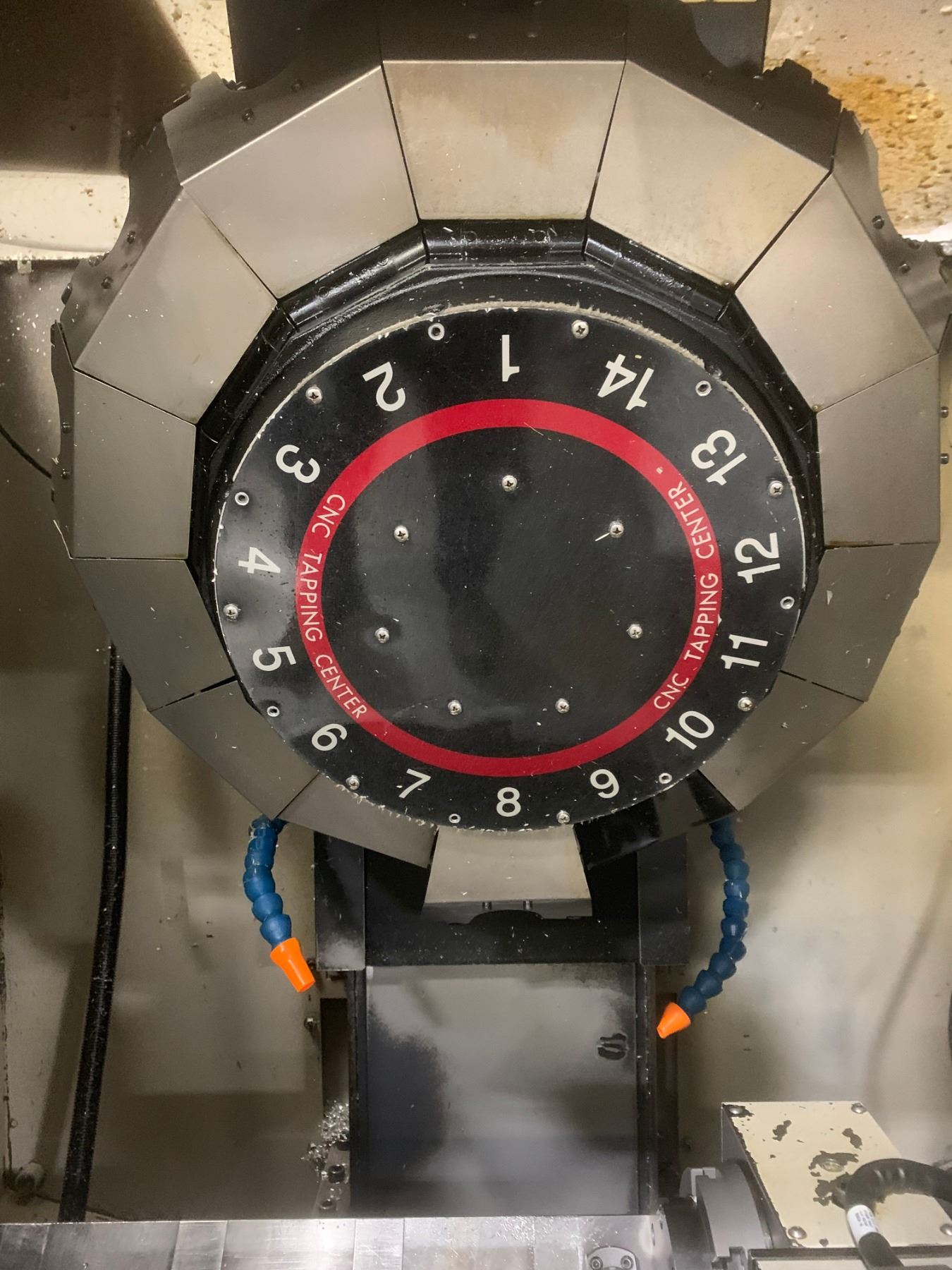

ATC: 14 Positions
Maximum Tool Weight: 6.6 Lbs.
