1999 Mazak HTC 400 Machining Center

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
1999 Mazak HTC 400 Machining Center
SOLD
7,600.00USD+ (1,140.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2014 Jan 22 @ 17:15UTC-5 : EST/CDT

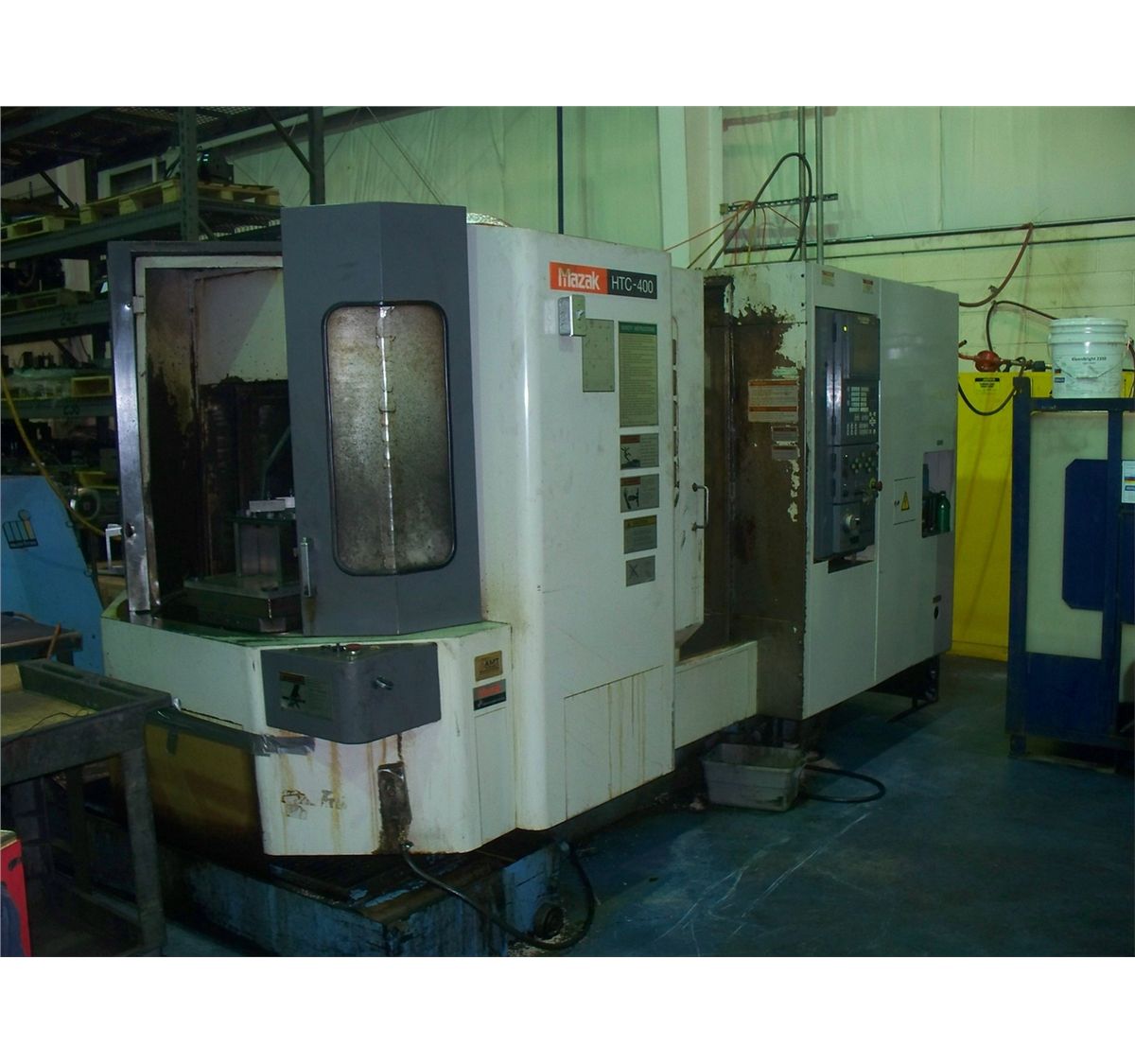

1999 Mazak HTC400 Machining Center w/ Mazatrol Fusion CNC Control.
X Axis Travel 22.05"
Y Axis Travel 20.08"
Z Axis Travel 20.08"
Pallet Size ( 2 ) 15.7" X 15.7"
Spindle Speeds 10,000 Rpm
Spindle Taper Cat #40
Index Resolution 360 Position
Maximum Load Capacity Per Pallet 660 Lbs.
Rapid Traverse Rate - 1181 Ipm
Main Drive Motor - 15 Hp
Electrics - 208/60/3
Approximate Machine Weight: 18,900 Lbs.
Approximate Machine Dimension - 92"Lr X 142"Fb X 95"H

Equipped With:

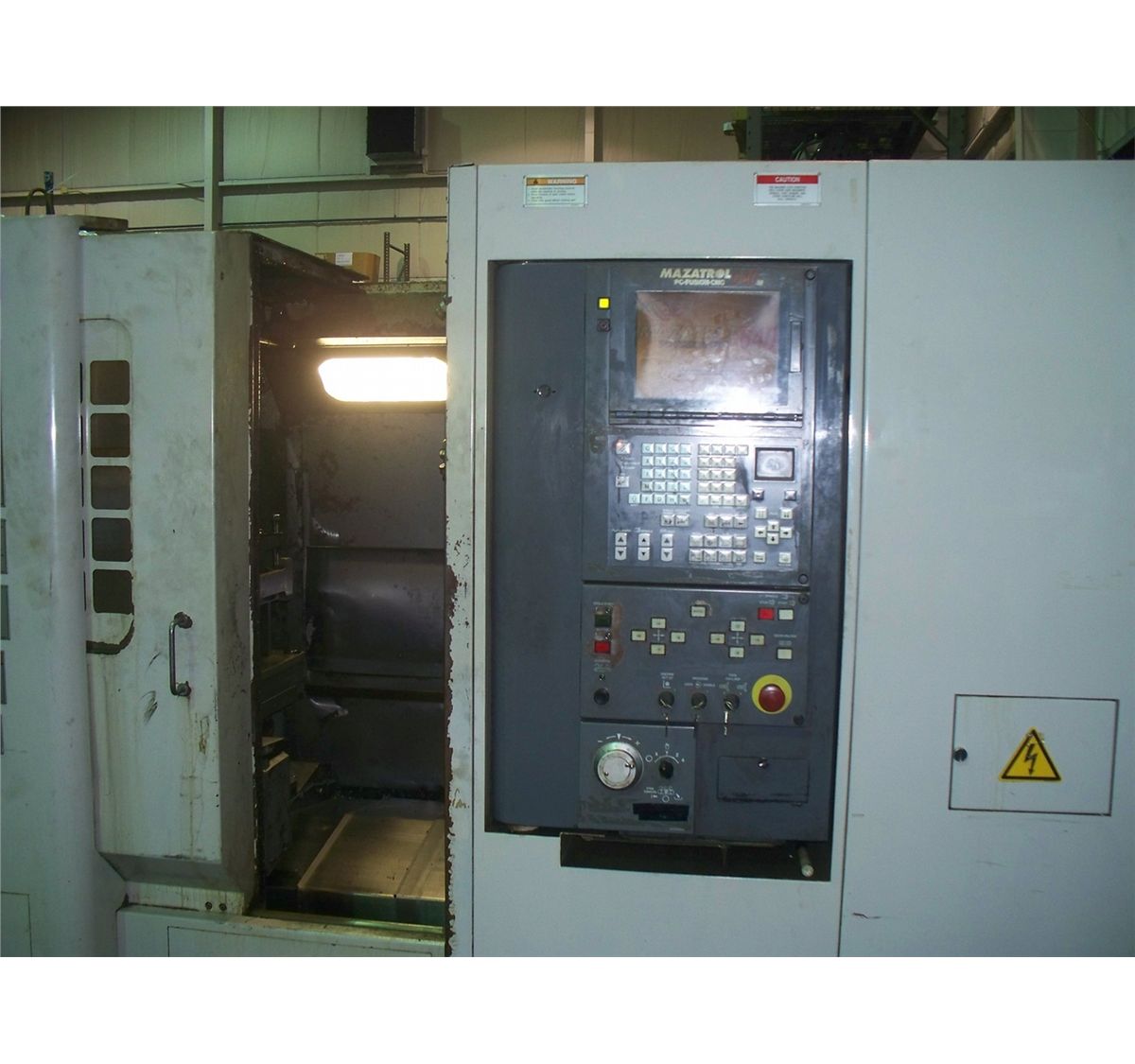

Mazatrol Fusion Cnc Control
Rs-232 Port plus floopy disk
Thru-Spindle Coolant
Spindle Oil Cooler
Rigid Tapping
Dula Internal Screw-Typr Chip Auger

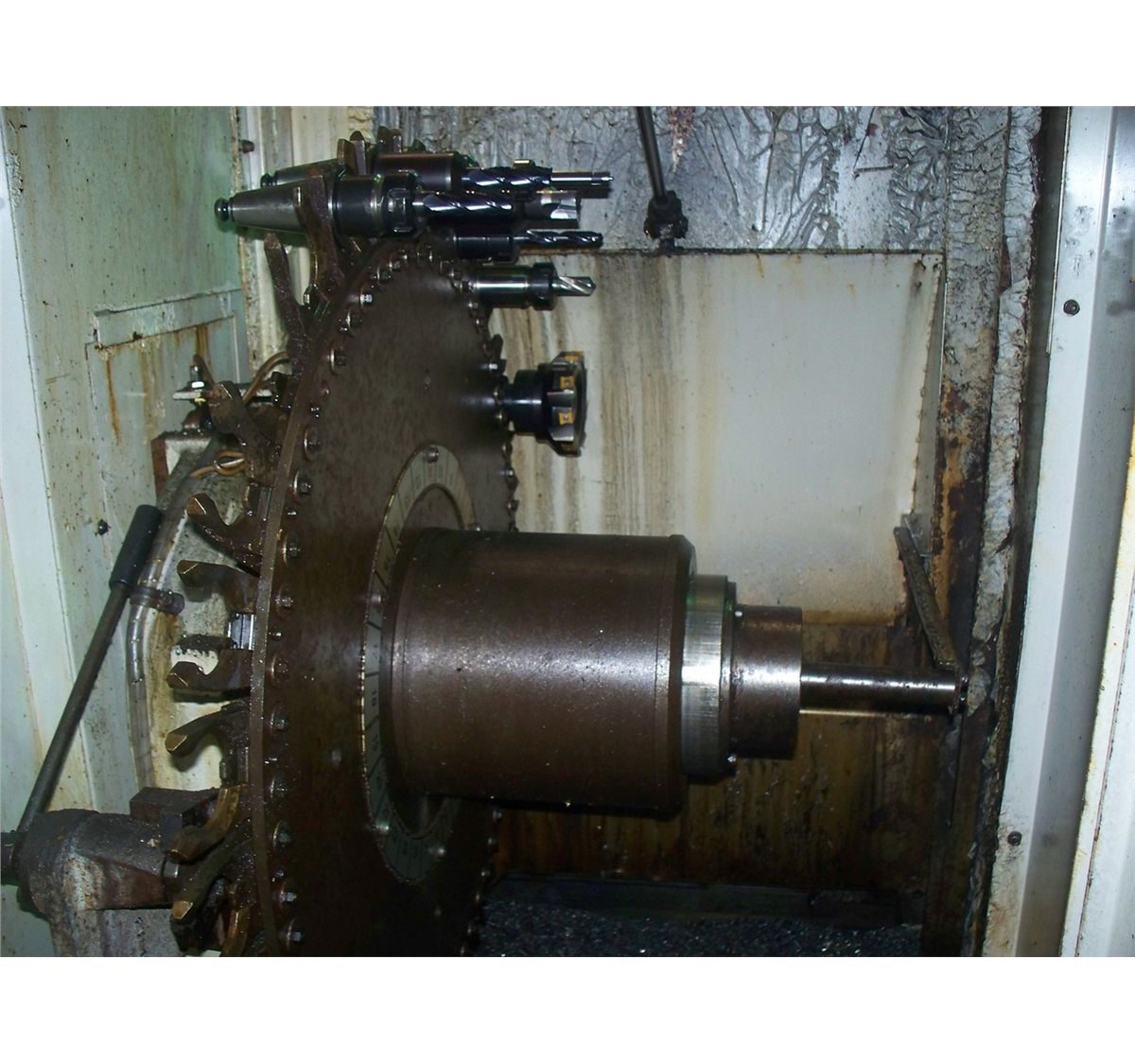

30 Position Automatic Tool Changer
(2) 15.75" Pallets W/1 Degree Indexing
Wayfran Chip Conveyor W/Coolant Pump & Tank & Chip Wash-Down System
3 Hp 230-460/60/3 External Coolant Pump & Tank
Multi-Tap Transformer

*NOTE* Inspection report Machine ran production till about one month ago .Machine Spindle has some issue , was told it need to be re keyed and could cost as much as $6500 .This machine is a one owner machine ,selling because they have a new machine coming in the next few weeks and no long need. Machine will need some work done to it but still has life left to it. Machine is under power and can be inspected in plant.


*NOTE* No tooling Included!!

LOADING FEE: To be Determined, not to exceed $700

LOCATION: Mid - Michigan
