SOLD
4,400.00USD+ (660.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2016 Oct 20 @ 13:45UTC-4 : AST/EDT
Did you win this lot?
A full invoice should be emailed to the winner by the auctioneer within a day or two.
LOCATION: Grand Rapids MI Consignment Warehouse
LOADING FEE: $1000

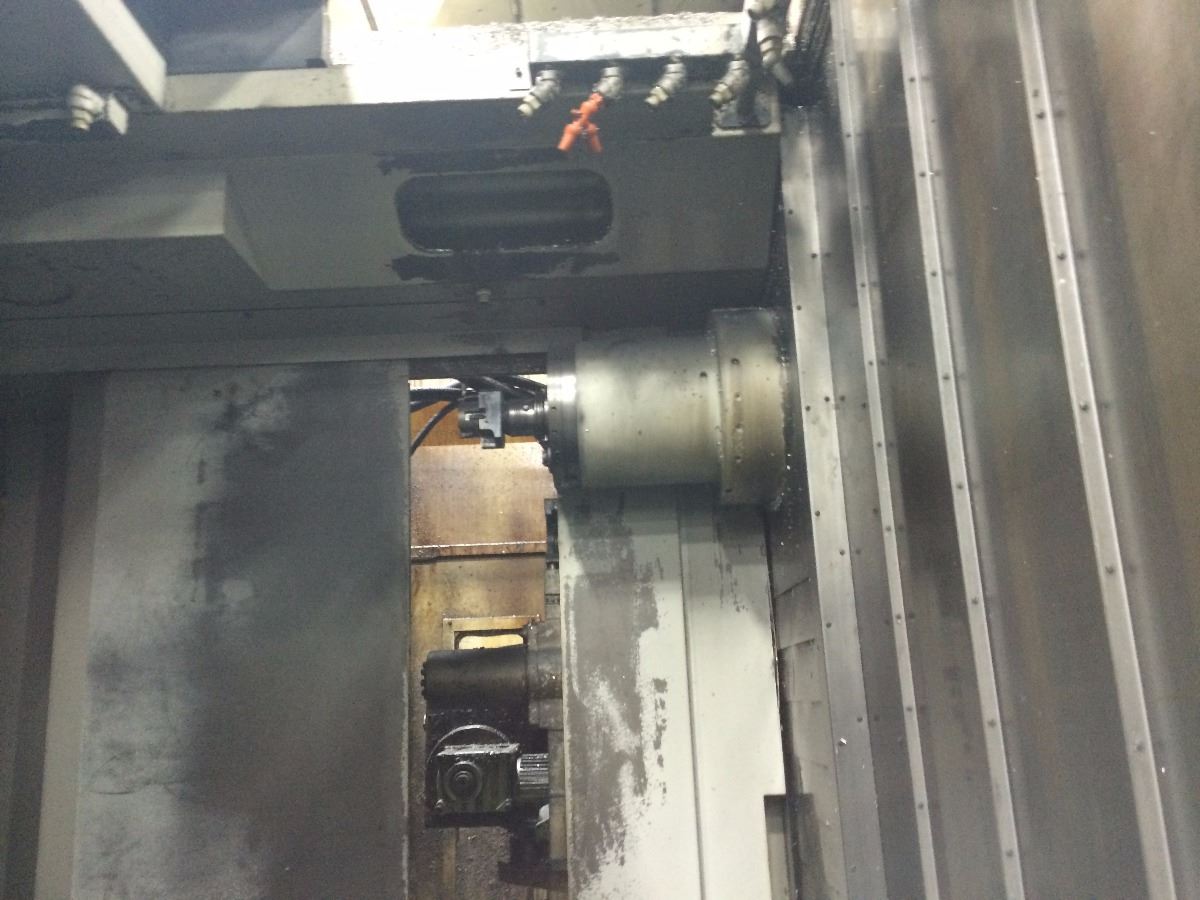

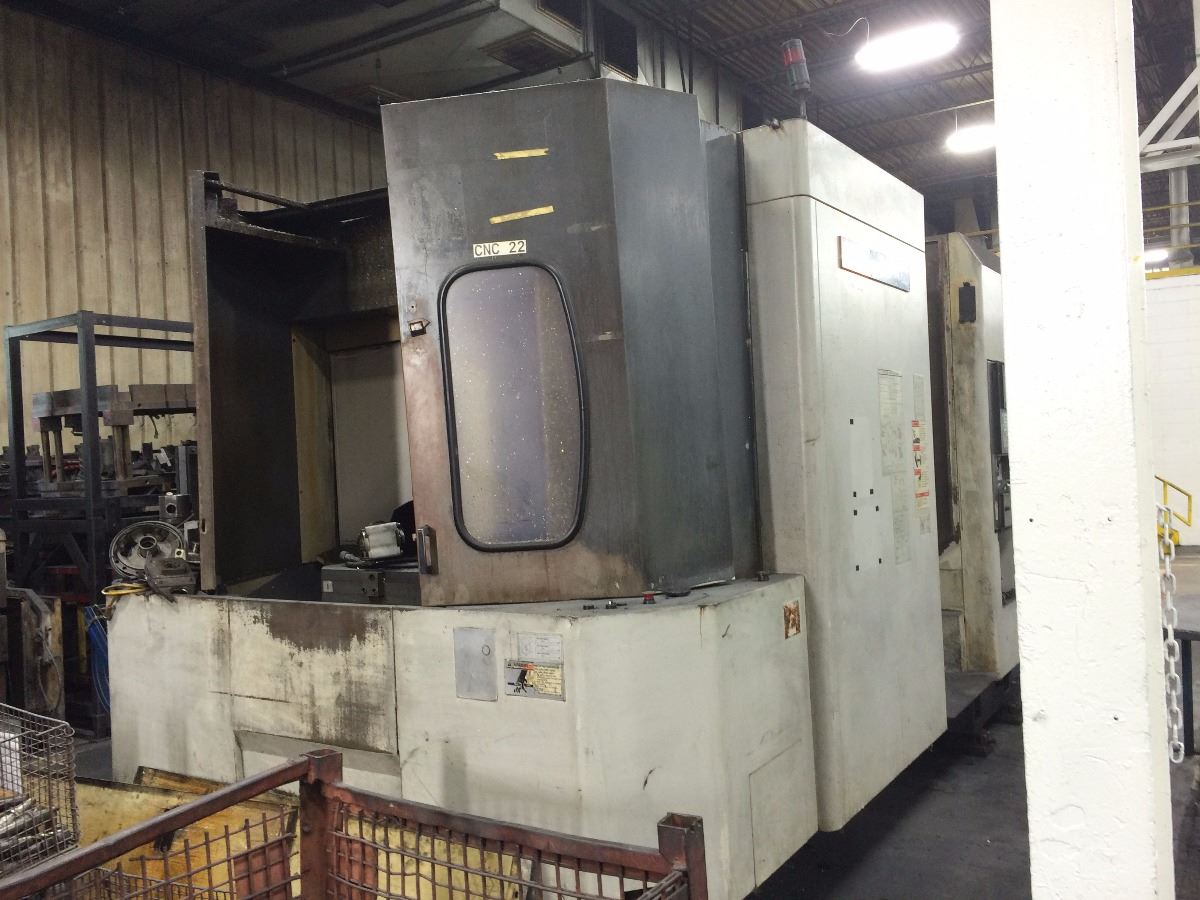

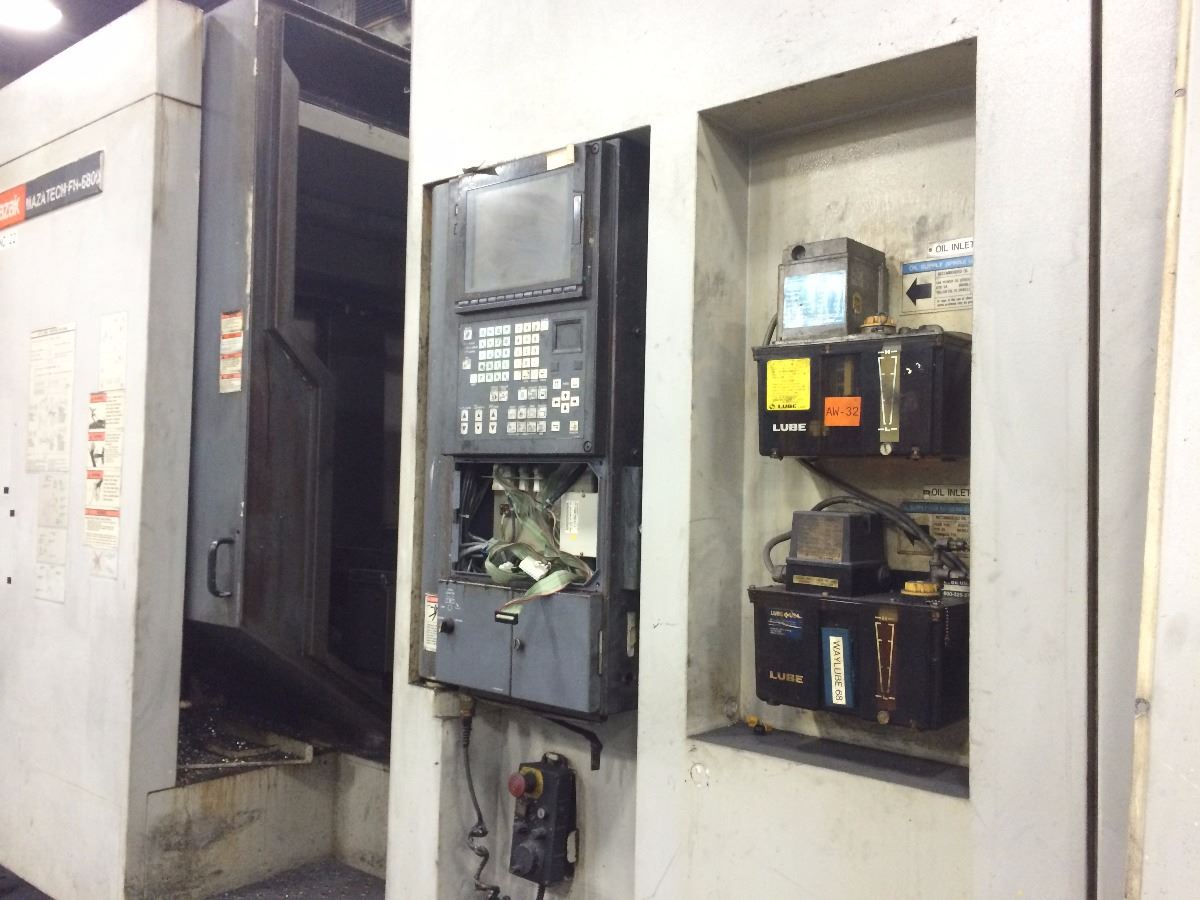

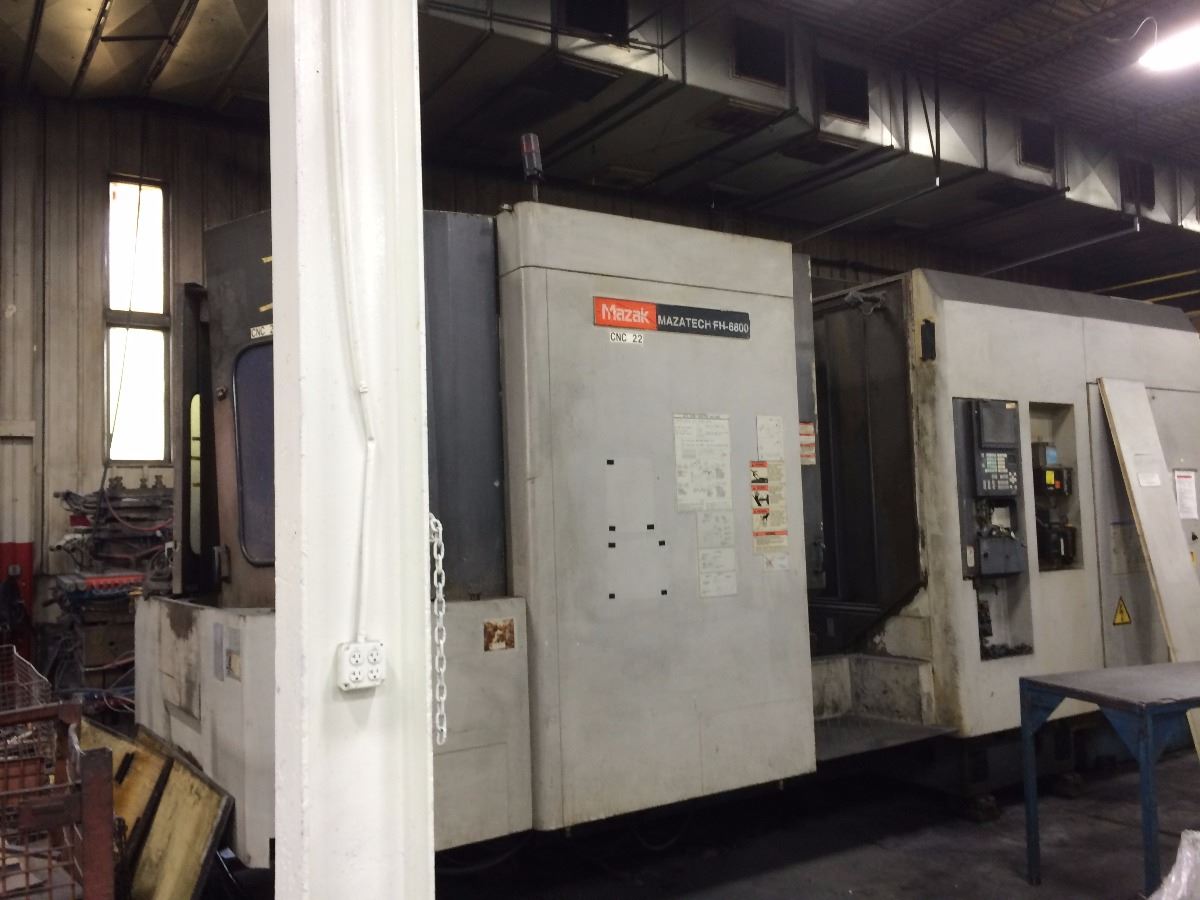

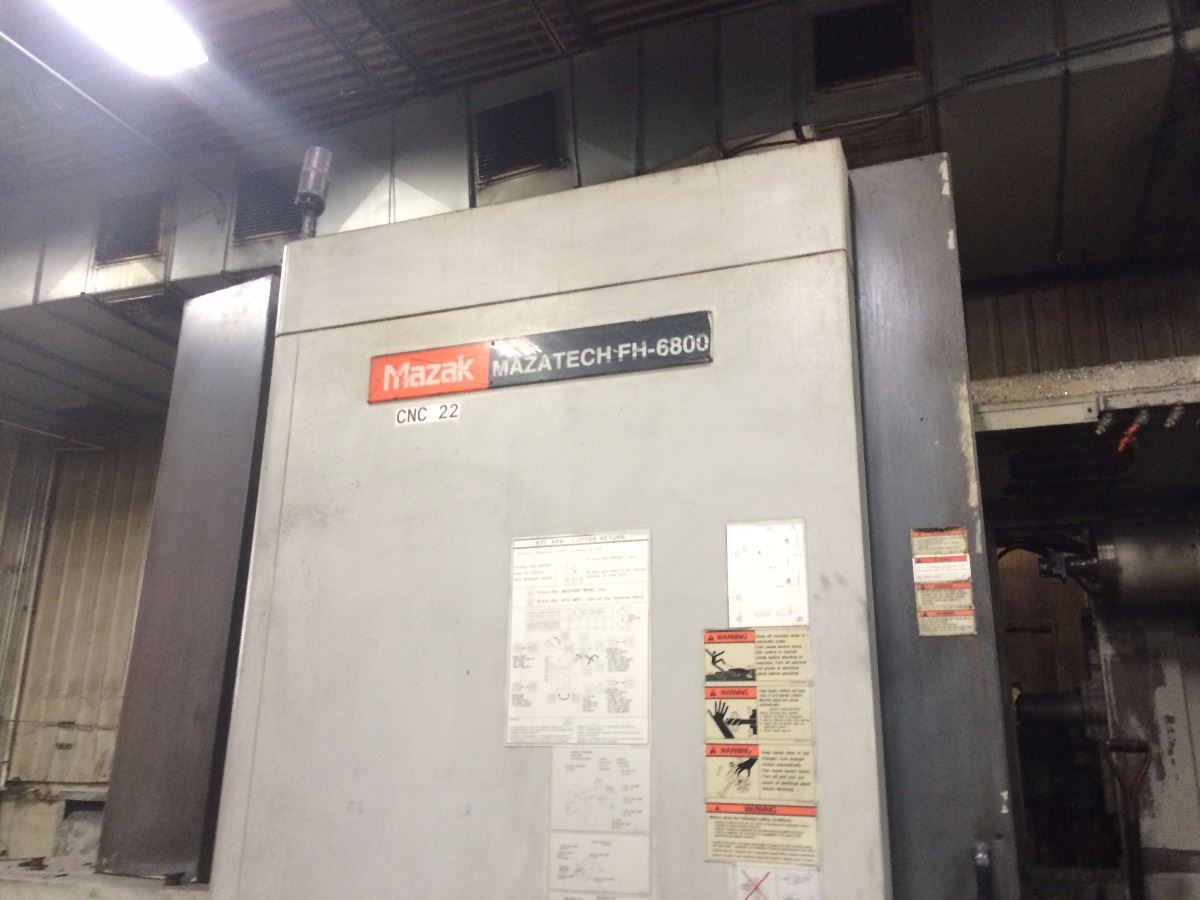

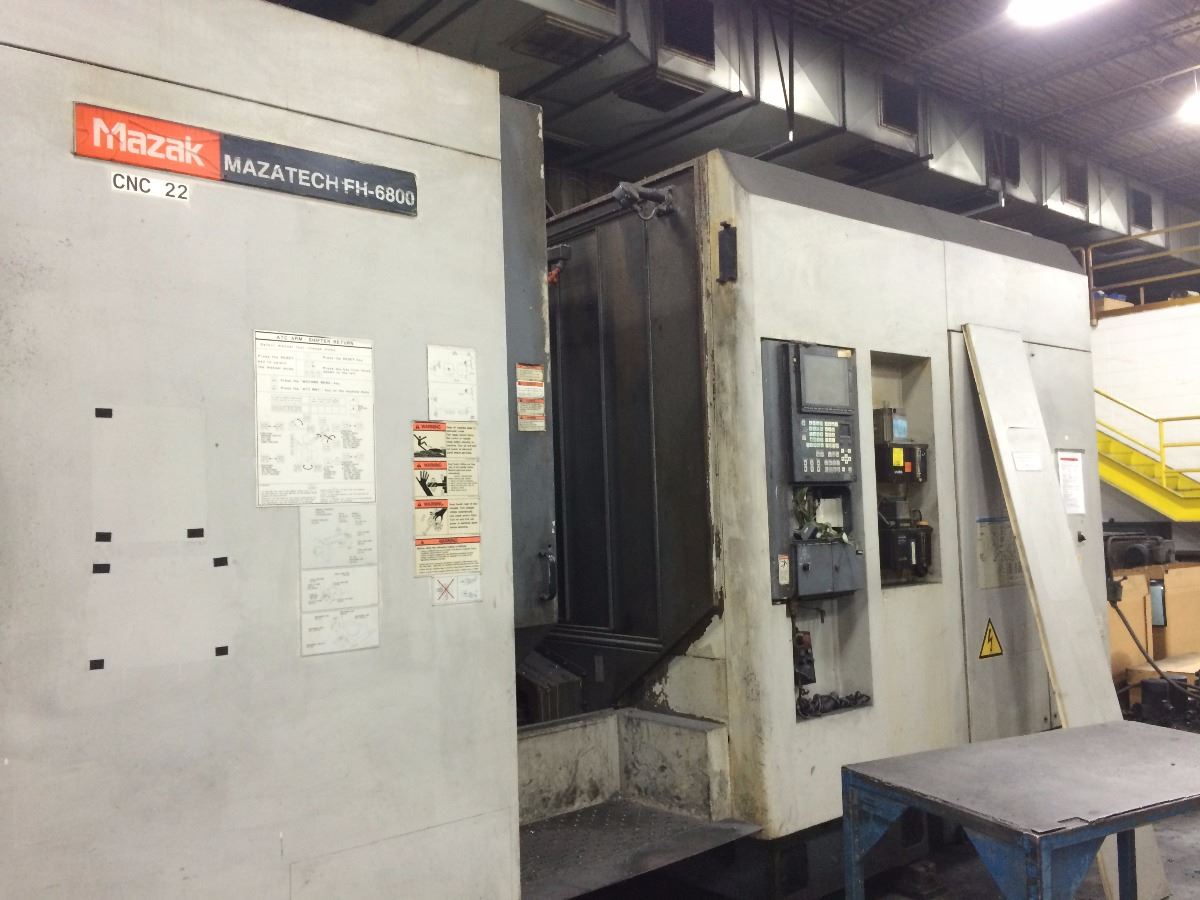

1999 Mazak FH6800 Horizontal Machining Center
*NOTE* It has not run in several years but appears to be complete! Inspection is HIGHLY ENCOURAGED as I would say machine is rough cosmetically!
SPECSIFICATION FOUND ONLINE - PLEASE VERIFY ACCURACY BEFORE PURCHASE!!!
1999 MAZAK FH-6800 Horizontal Machining Center
SPECIFICATIONS:
Pallet Size........................24.8" x 24.8"
TRAVELS
X-Axis Travels.....................41.3"
Y-Axis Travels.....................31.5"
Z-Axis Travels.....................34.7"
Distance from Spindle Nose to
Pallet Center...................5.9" - 40.6"
WORKPIECE SIZE
Maximum Table Load.................3,315 lbs.
Maximum Workpiece Height...........39.4"
Maximum Workpiece Diameter.........41.3"
SPINDLE
Spindle Nose.......................Cat #50
Spindle Horsepower.................50 HP
Spindle Torque.....................386.9 ft./lbs.
Obtains Full HP @..................480 RPM
Constant Torque Range..............35 - 480(243) RPM
Spindle RPM........................7,000
Spindle Speed Increment............1 RPM
Number of Ranges...................1 Ranges(2)
Tool Clamping Force................4,630 ft./lbs.
Spindle Cooling System.............Spindle Chiller Unit
AUTOMATIC TOOL CHANGER
Magazine Capacity..................80 (OPTION)
Tool-to-Tool Time....................1.8 Seconds
Chip-to-Chip Time (Approx.)........5 Seconds
Maximum Tool Diameter..............5.31"
Max. Tool Dia. w/Adjacent Pockets Empty.10.2"
Maximum Tool Length................19.7"
Maximum Tool Weight................66 lbs.
SERVO/AXIS DRIVES
Type of Servo Drives...............Digital AC Motors
Rapid Traverse Rate................1,575 IPM
Y-Axis Thrust.....................1,760 lbs.
Z-Axis Thrust......................3,500 lbs.
Floor Space Required...............146" x 250.5"
Machine Height From Bottom of Base.125.5"
X-Axis Thrust......................3,520 lbs.
KVA Rating Will Be Greater.
Machine Weight.....................43,750 lbs.
