1998 VF3 HAAS CNC VERTICAL MACHINING CENTER

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
1998 VF3 HAAS CNC VERTICAL MACHINING CENTER
SOLD
8,000.00USD+ (1,200.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2014 Jun 18 @ 13:50UTC-4 : AST/EDT
All items are sold AS-IS! Items are described to the best of our ability, but inspections are both invited and encouraged! There are no returns or refunds for items once removed from a premise!
LOCATION: Grand Rapids, MI (consignment warehouse)
LOADING FEE: $500

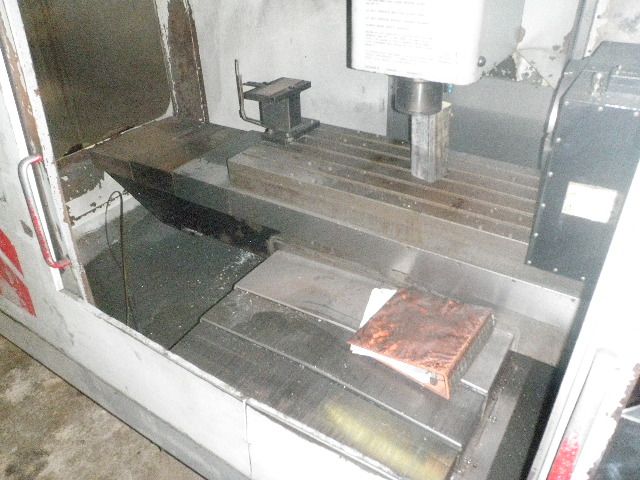

VF3 HAAS CNC VERTICAL MACHINING CENTER

*NOTE* 4th Axis Table NOT INCLUDED - sold separately lot #56

This machine was taken from manufacturing floor two weeks ago, currently in storage. The machine was not ran at the facility for almost one year before it was removed. We are not sure if there were any known problems with the machine!


SPECIFICATIONS:
TABLE SIZE: 48" X 18"
TABLE LOAD CAPACITY: 3,500 LBS.
TABLE TOP TO SPINDLE NOSE: 4" - 29"
TRAVELS:
--X: 40"
--Y: 20"
--Z: 25"
SPINDLE TAPER: CAT 40
SPINDLE SPEED: 0 - 7,500 RPM
SPINDLE MOTOR: 15 HP (BRUSHLESS)
SPINDLE TORQUE: 250 FT./LBS.
TRANSMISSION: 2 SPEED GEARED
TOOL MAGAZINE CAPACITY: 20 POSITION ATC
RAPID TRAVERSE: 710 IPM
MACHINE DIMENSIONS: 118"X110"X120"
MACHINE WEIGHT: 12,500 LBS.
