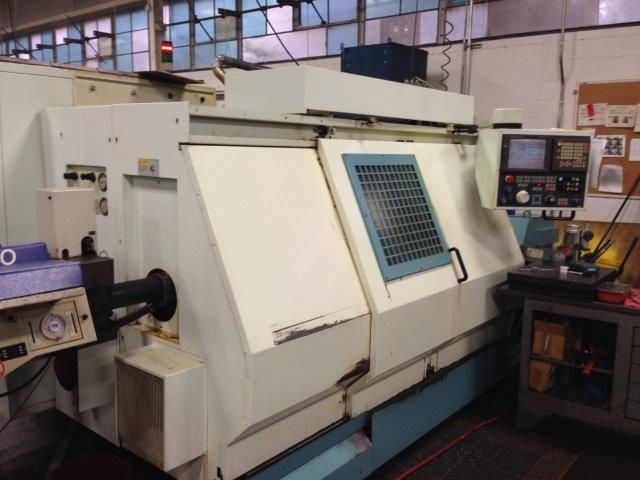

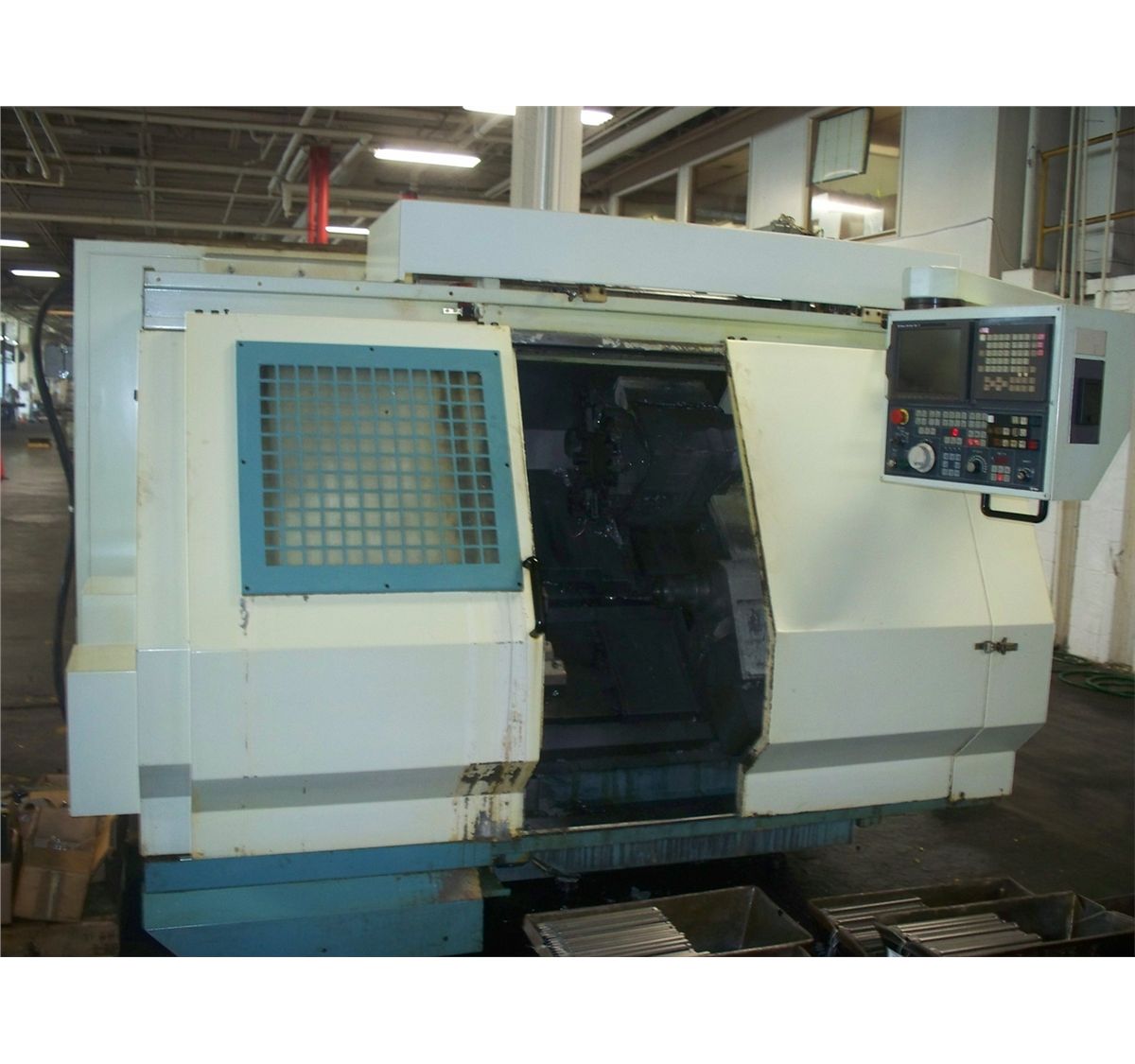

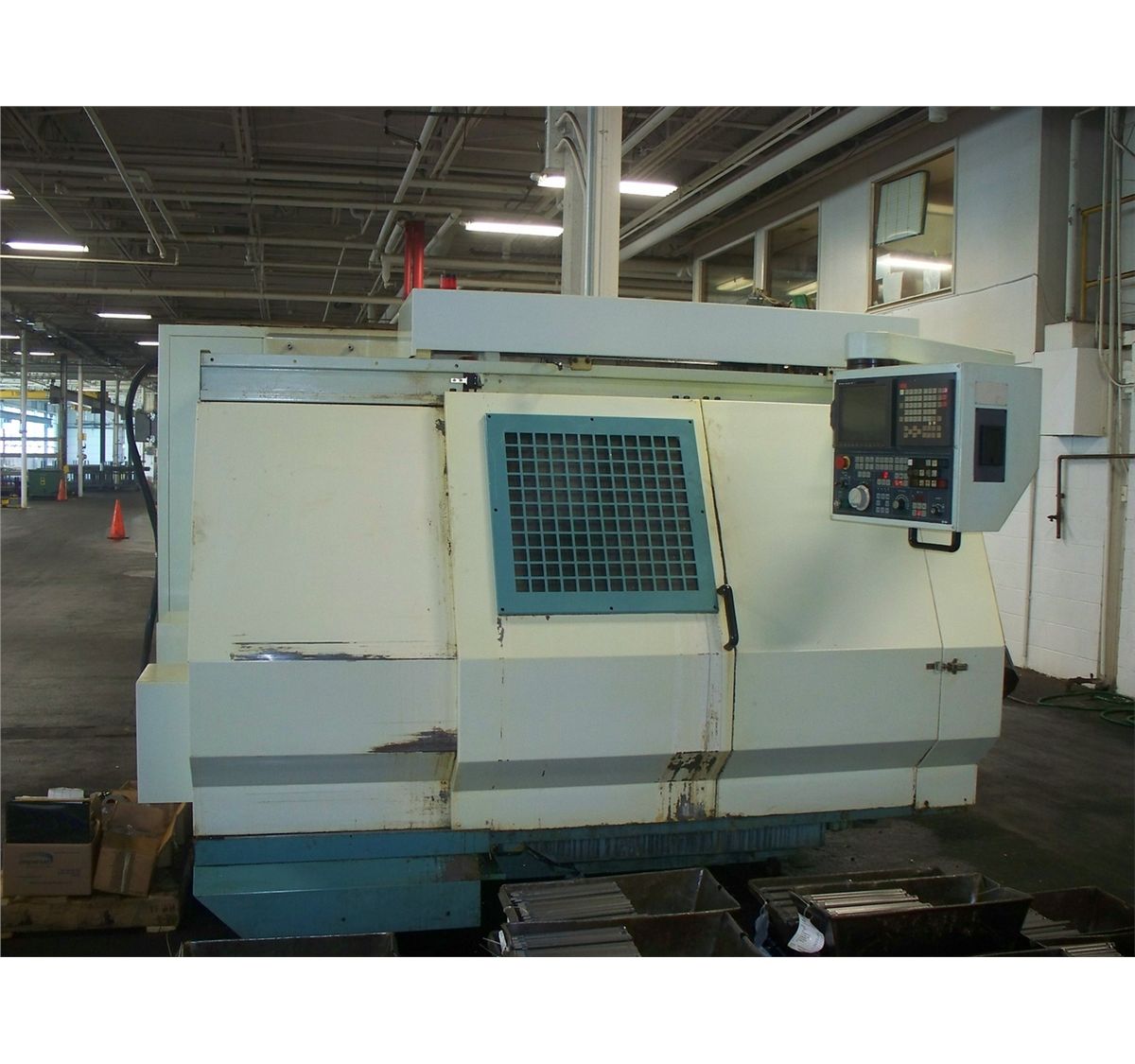

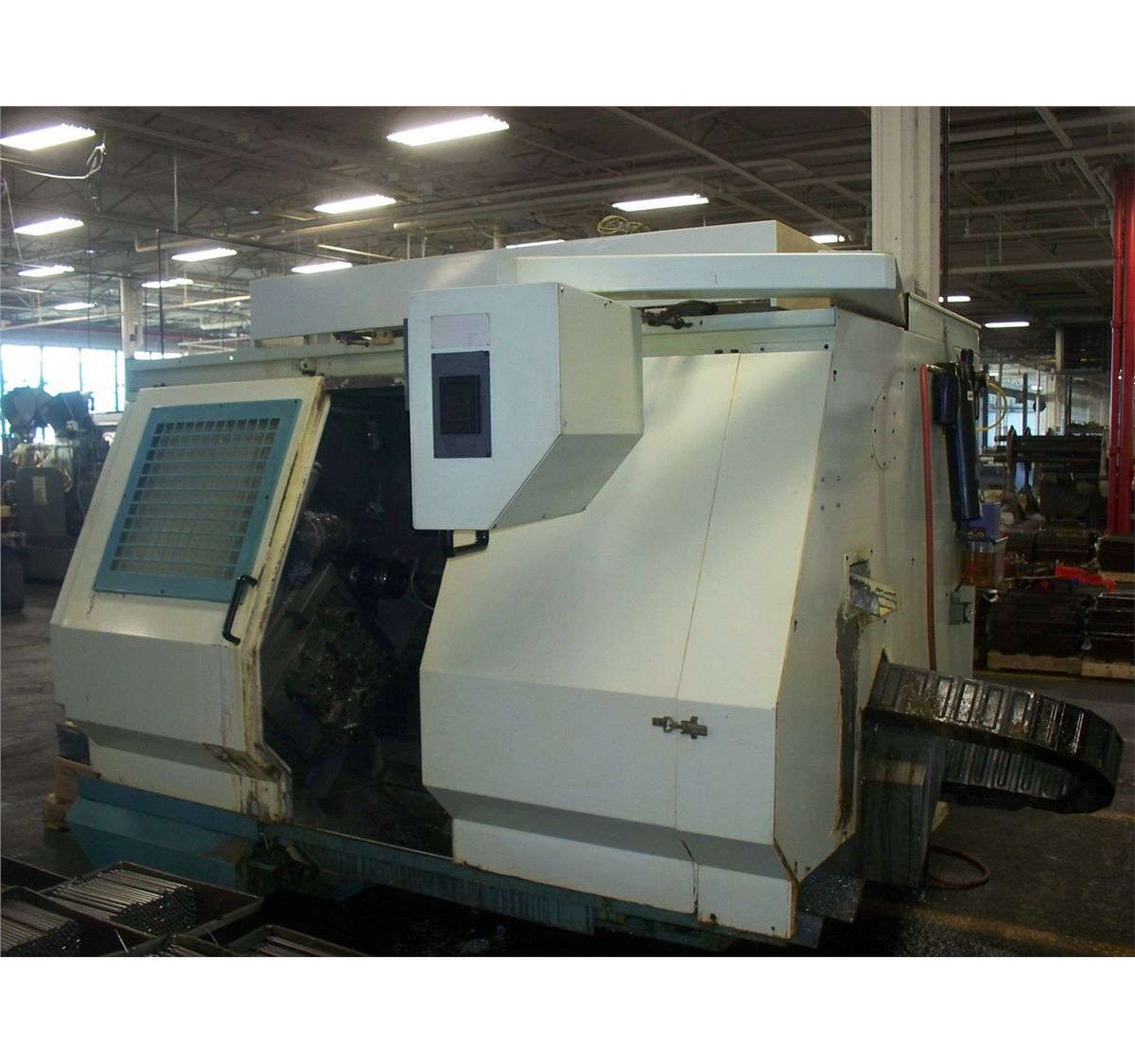

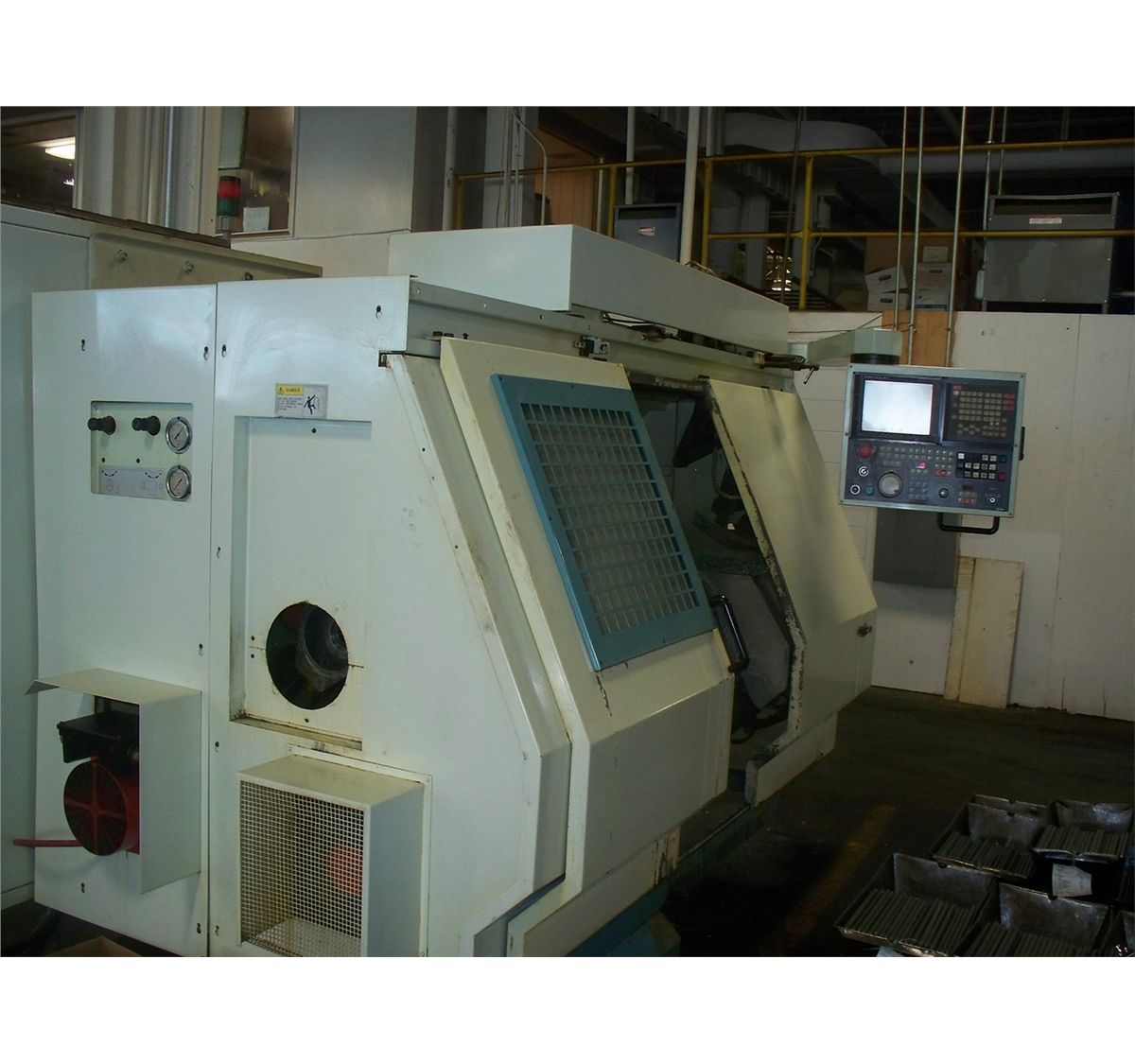

1998 Eurotech 710-SLL CNC Turning Center
Chuck Size 8.25"
Max Diameter Bar Capacity 2.75"
Max Turning Diameter (Main / Sub Spindle) 7.87" / 6.3"
Distance Between Spindles 27.55"
Max Machining Length (Main / Sub) 11.81" / 7.87"
Spindle Motor 35 / 30 HP
Spindle Speed 100 - 5000 RPM
Spindle Bore 3.15"
Spindle Nose A2-6
Spindle Torque 160 ft. lbs.

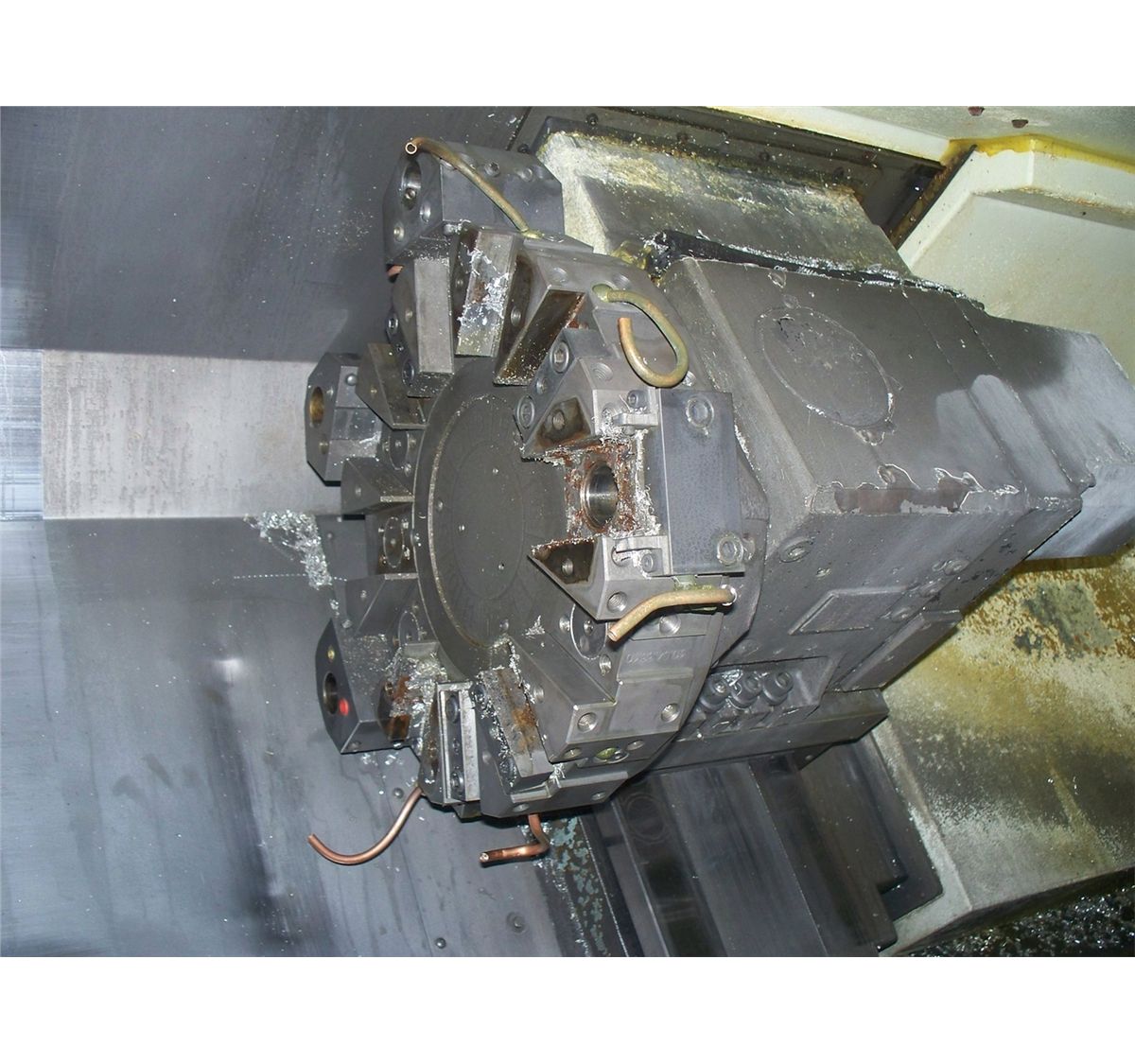

Tools (Upper / Lower Turret) 12 / 8 (All Live)
Milling Speed 100 - 4000 RPM
Milling Motor 5 HP
Sub Spindle Chuck 6.5"
Sub Spindle Bore 2.2"
Sub Spindle Nose A2-5
Sub Spindle Speed 100 - 5000 RPM
Sub Spindle Motor 15 / 12 HP
Sub Spindle Travel (X / Z) 4.72" / 16.53"
Rapid Traverse Rates (X / Z) 472 / 787 IPM
X-Axis Travel (Upper / Lower Turret) 6.5" / 6.22"
Z-Axis Travel (Upper / Lower) 14.96" / 9.45"
C-Axis Index (Main & Sub Spindle) .001 Degree
Machine Dimensions (L x W x H) 161.7" x 83.8" x 86.8"
Machine Weight 15,200 lbs.
FEATURES:

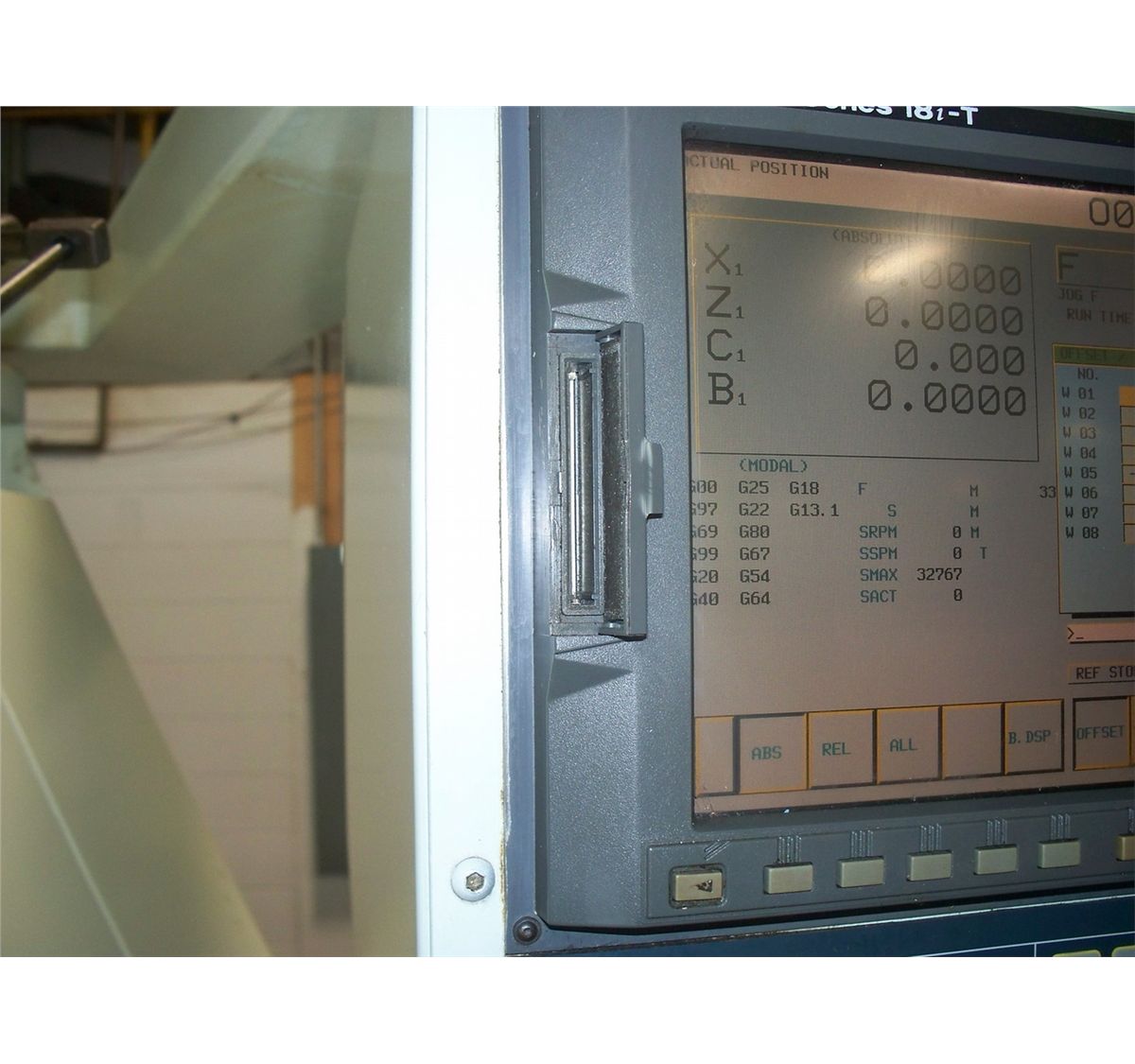

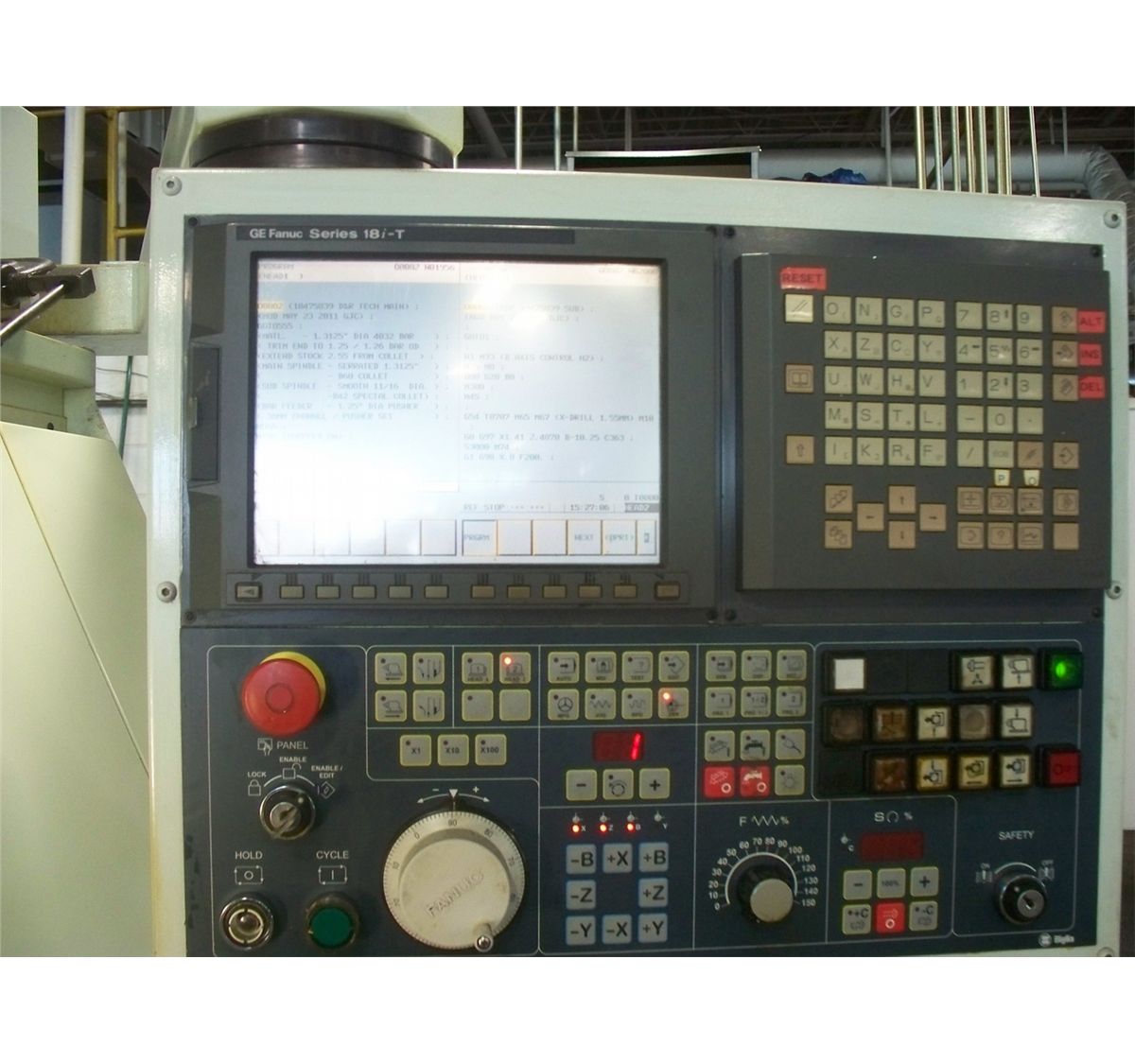

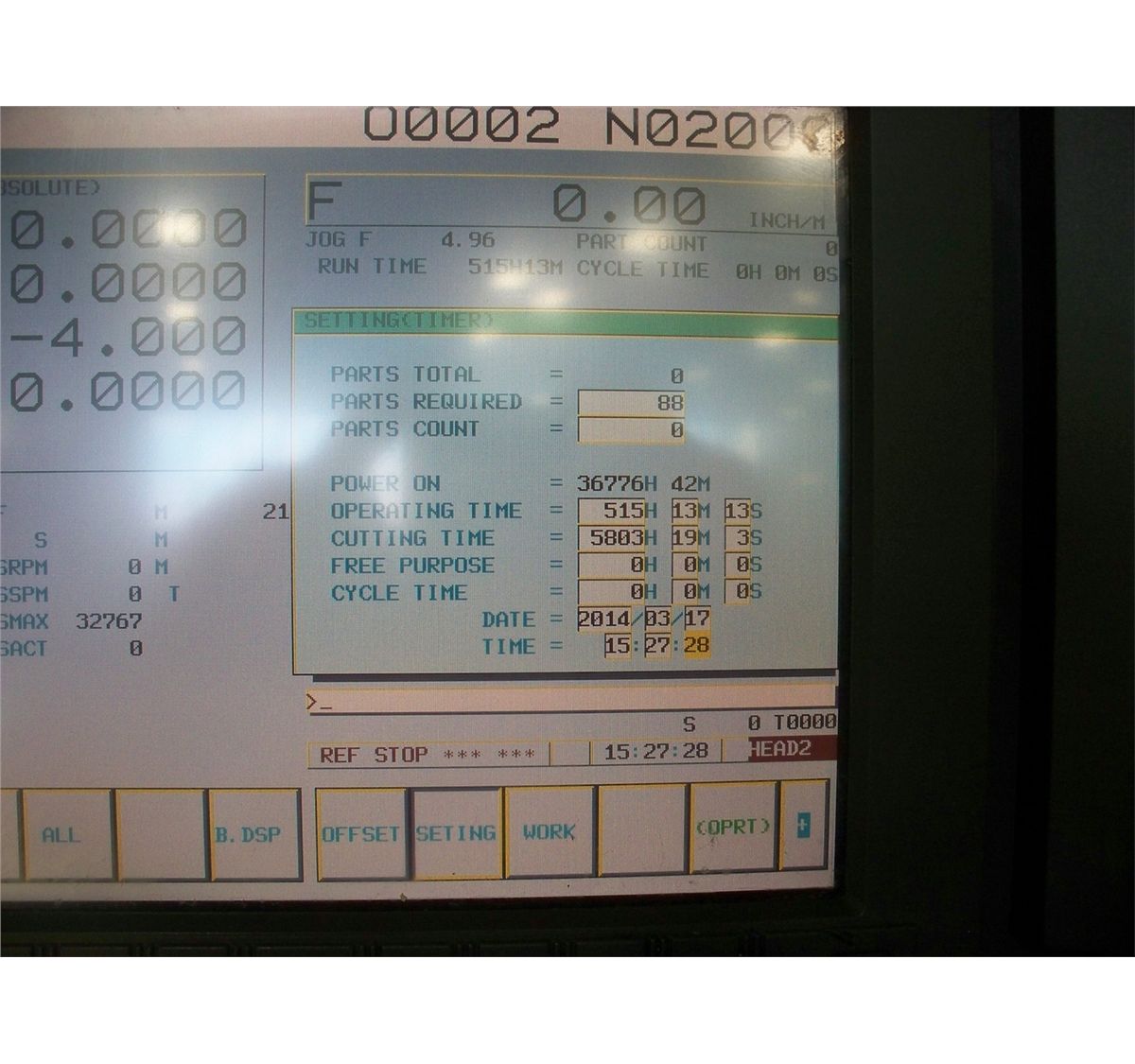

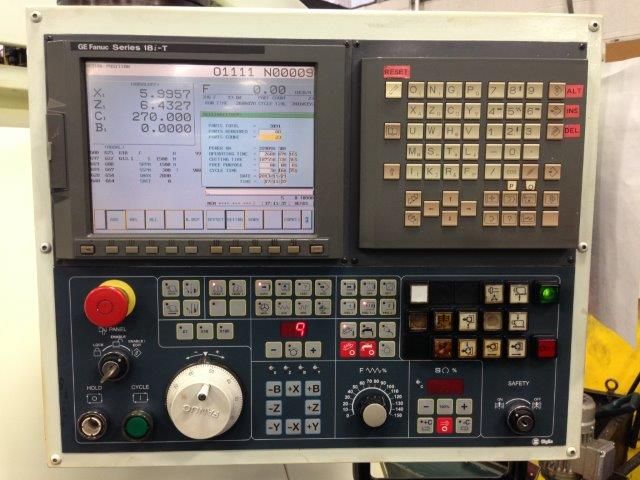

GE FANUC 18i-T CNC CONTROL
10.4" Color LCD

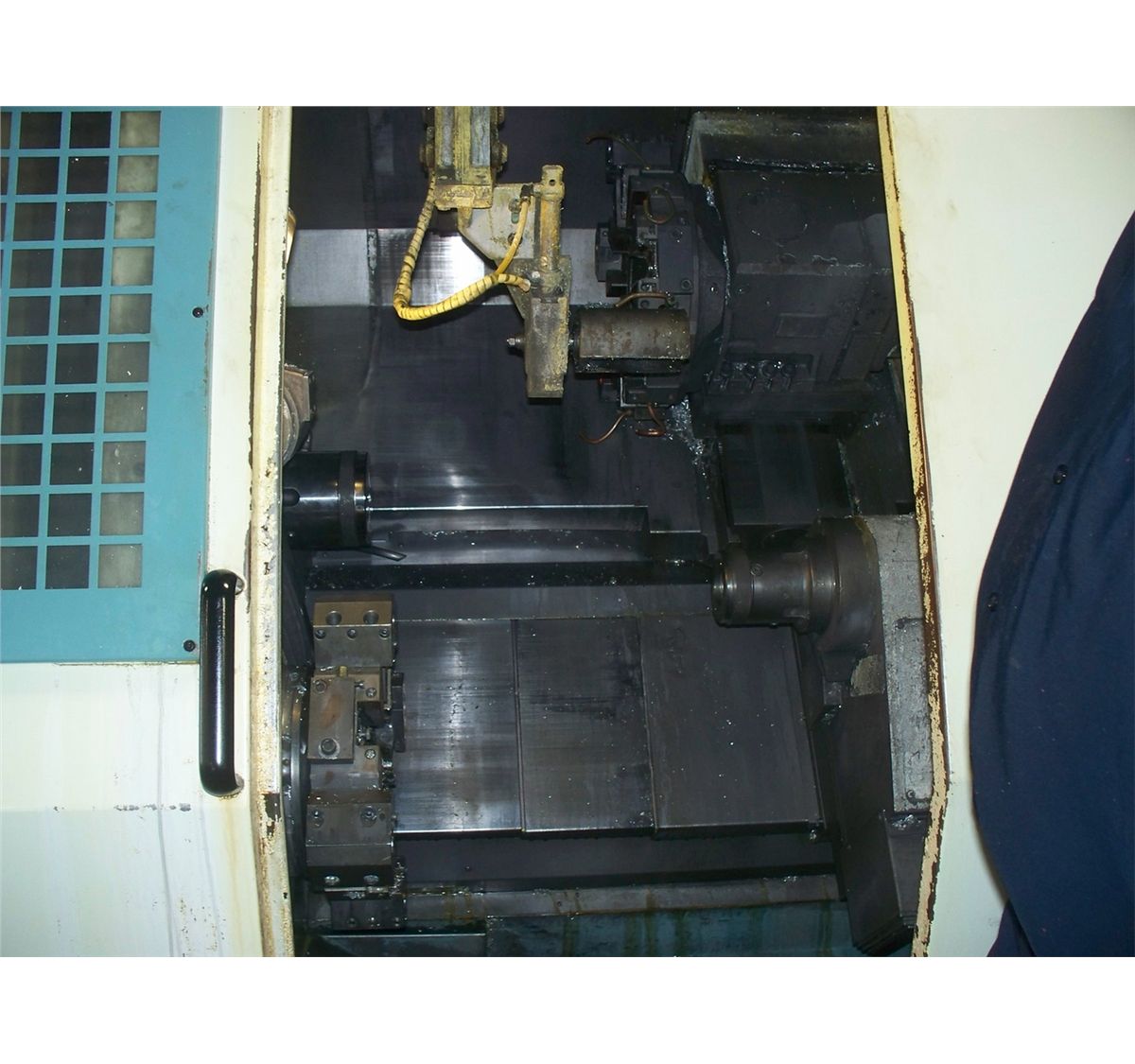

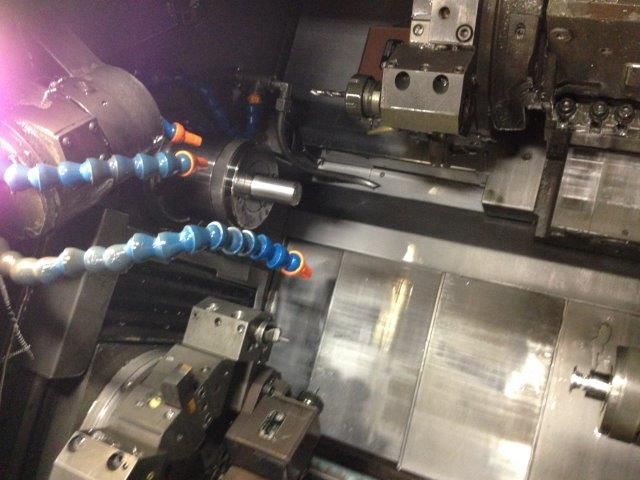

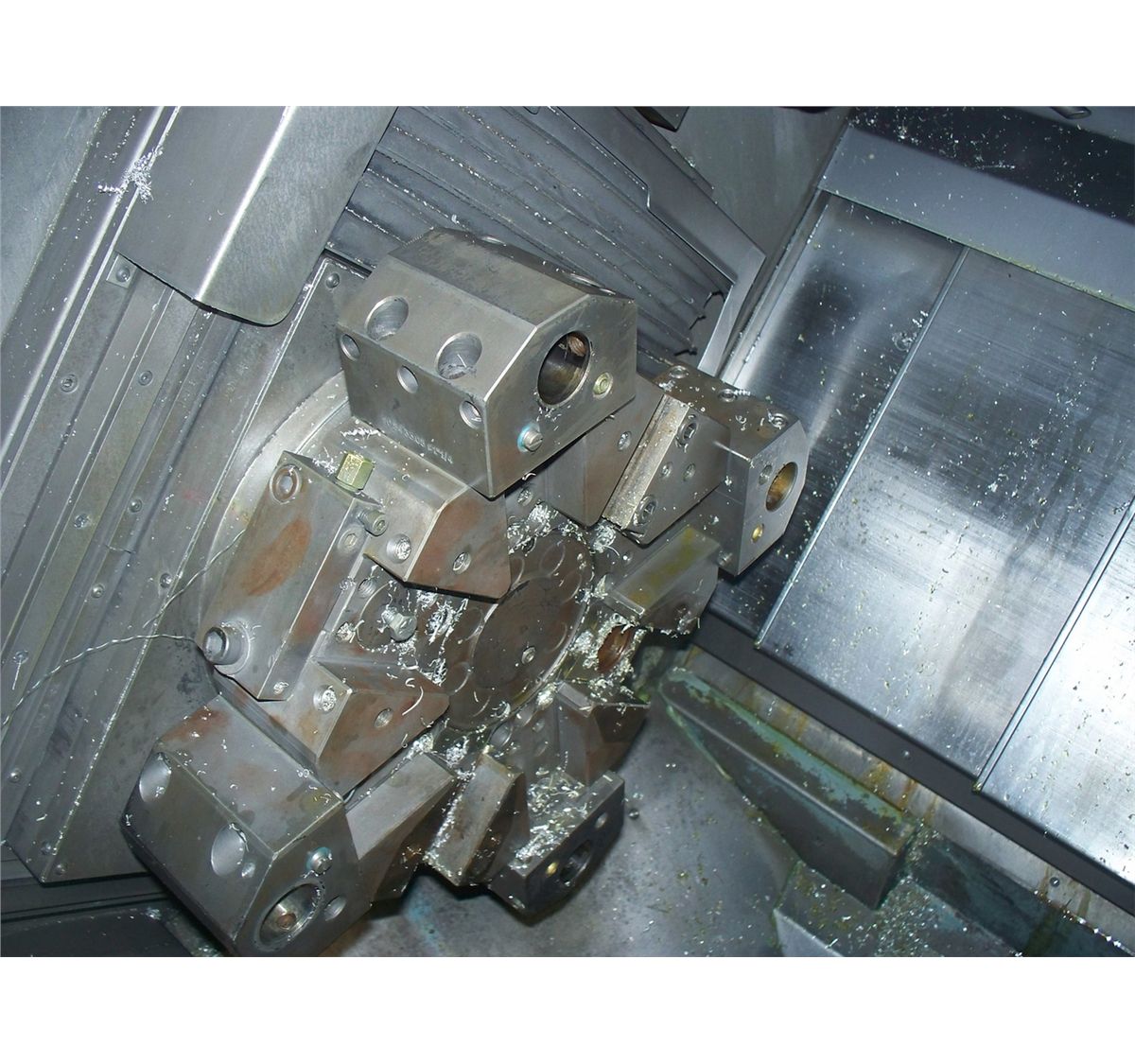

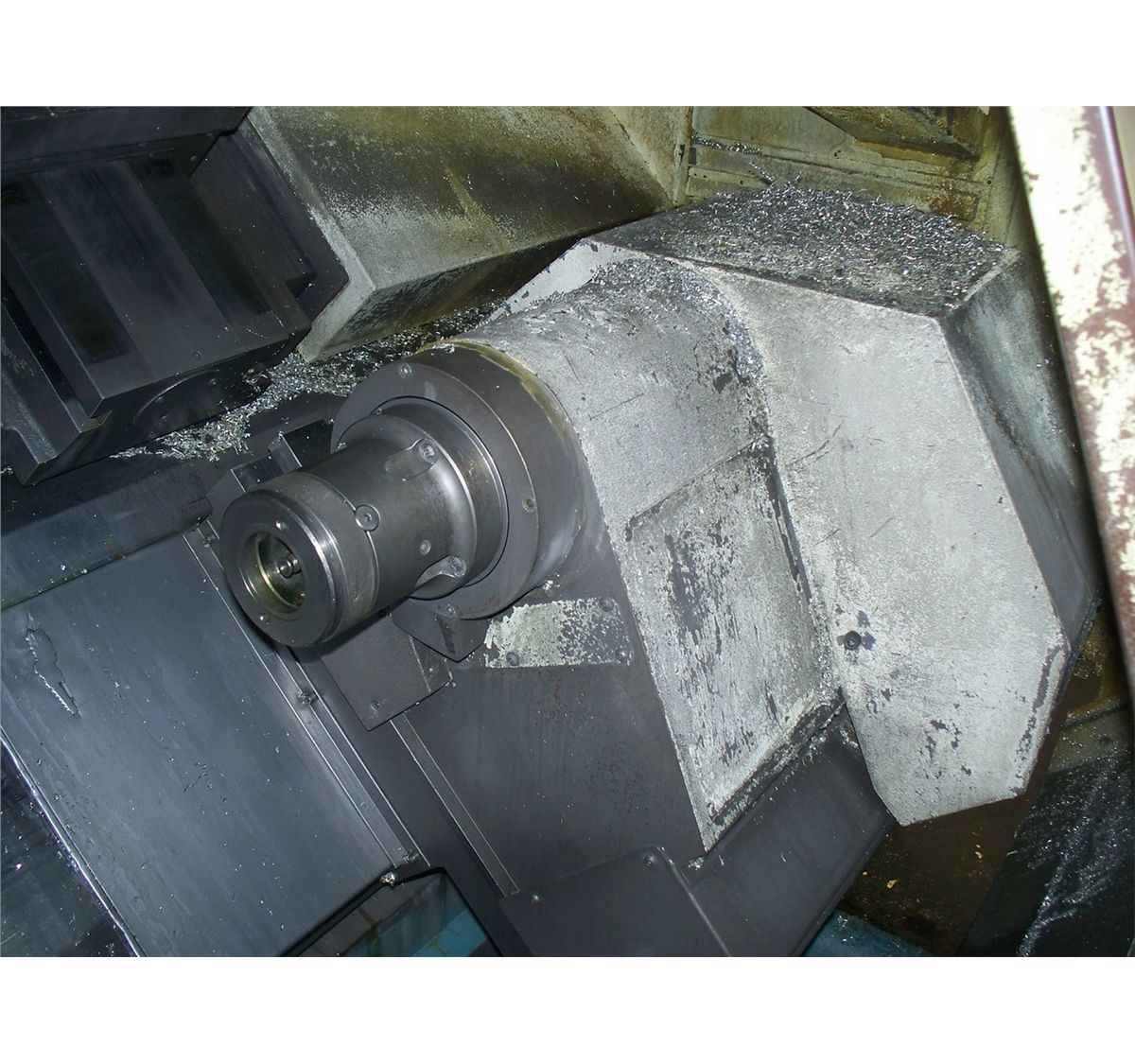

Upper & Lower Turrets with Main & Sub Spindle
C-Axis Milling Capability on Both Turrets
Programmable Sub Spindle Moves in X & Z-Axes
Tool Presetter (Removable)

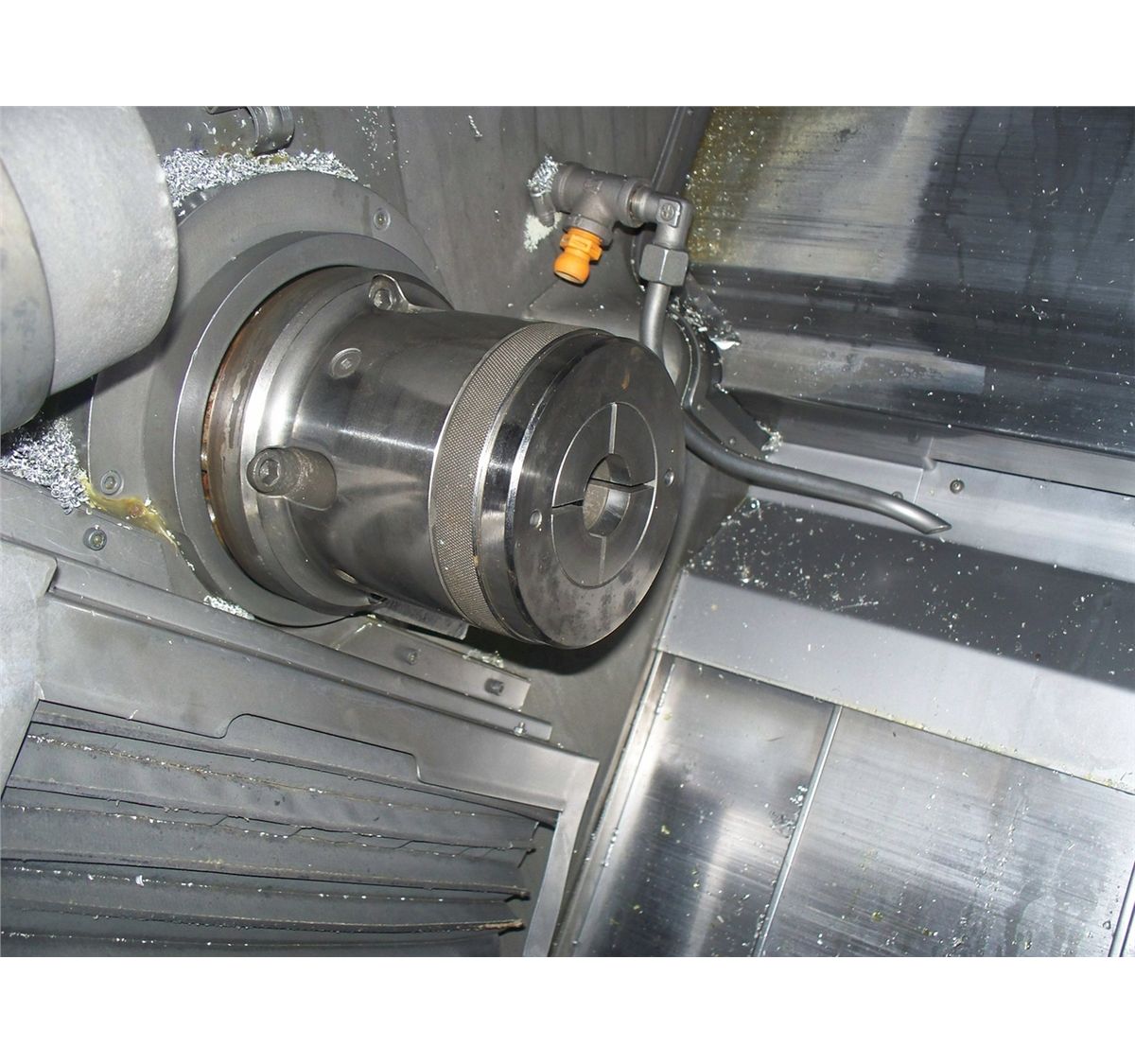

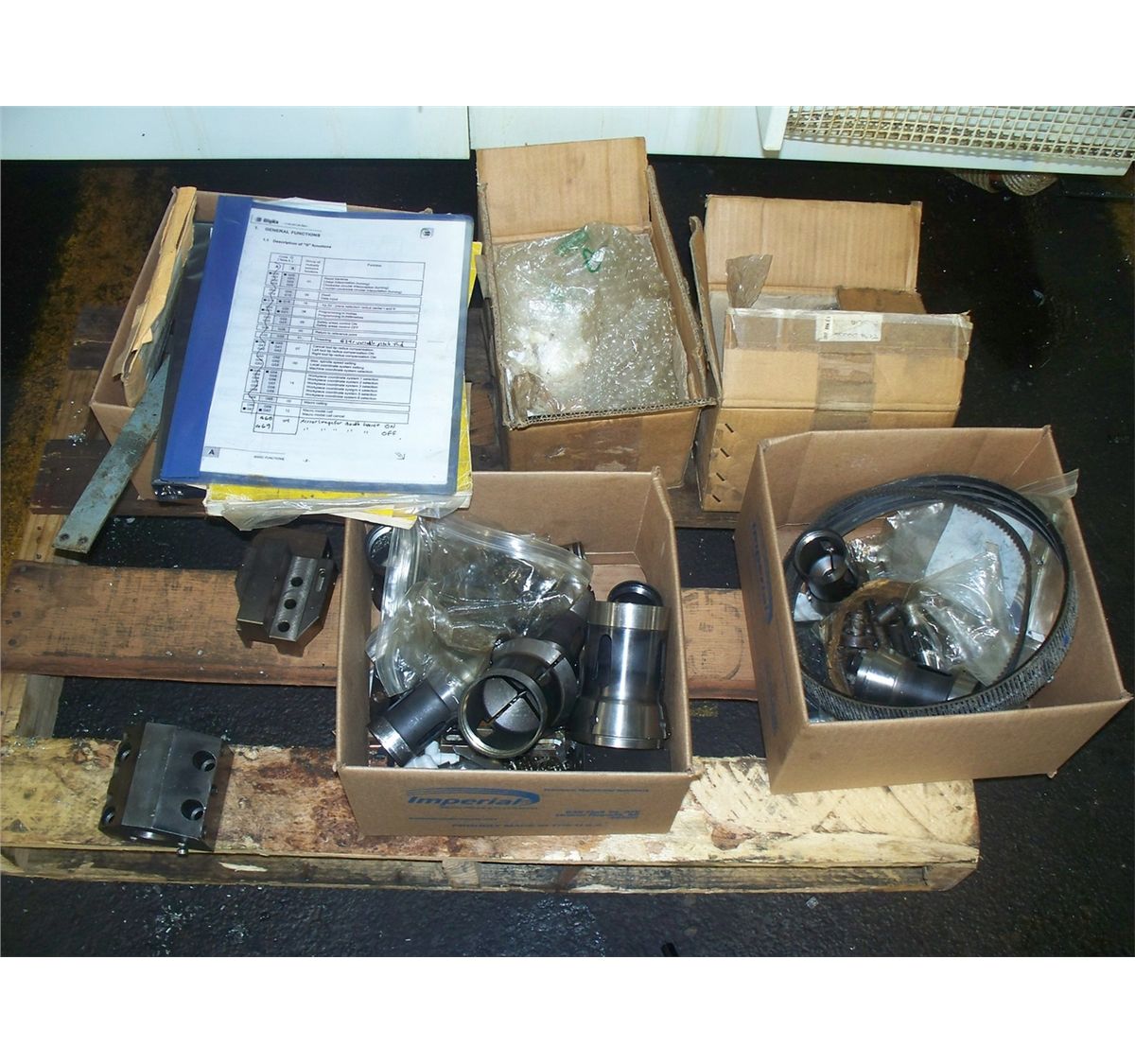

Collet Chucks for Main and Sub Spindle
Auto Parts Catcher

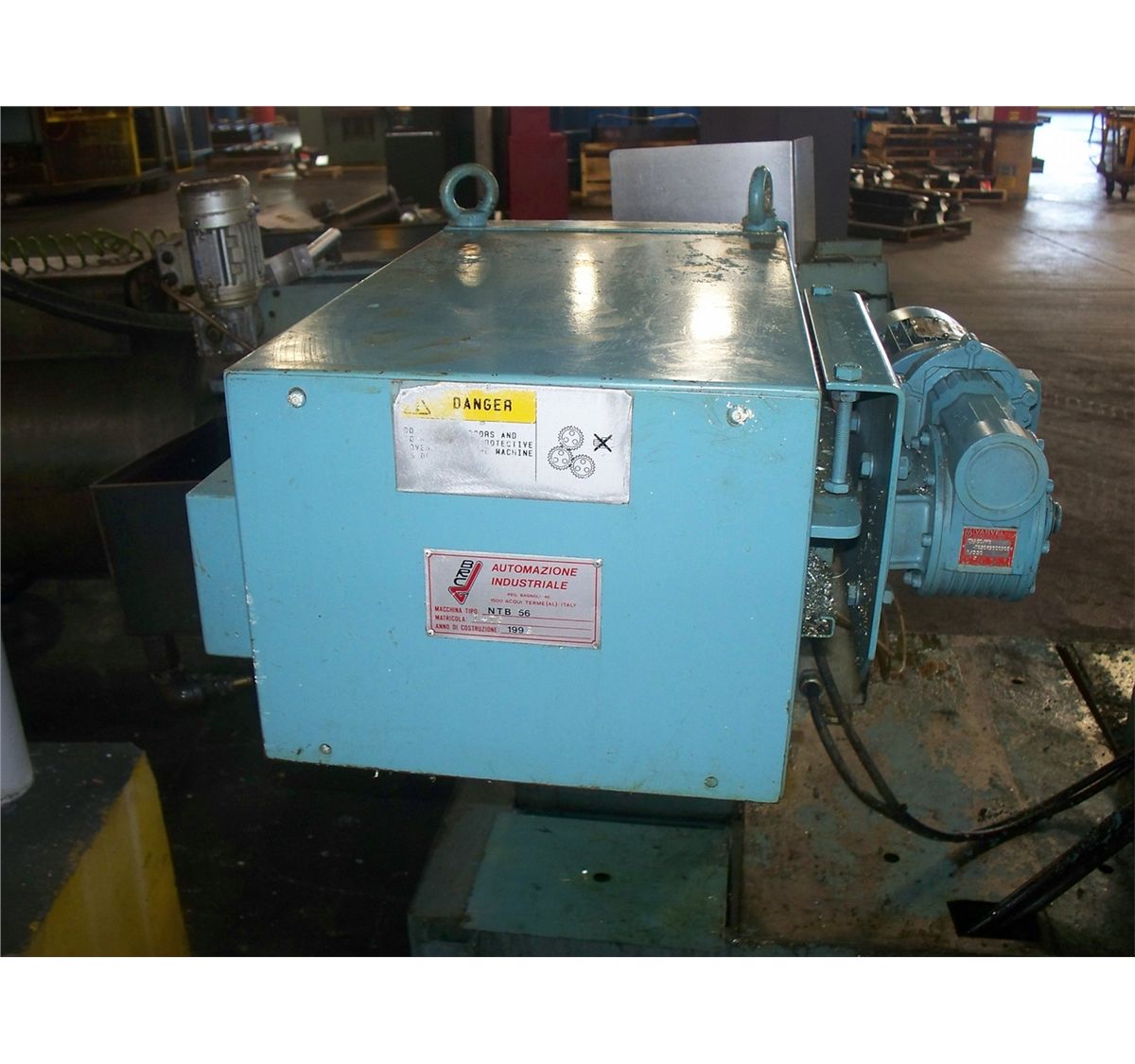

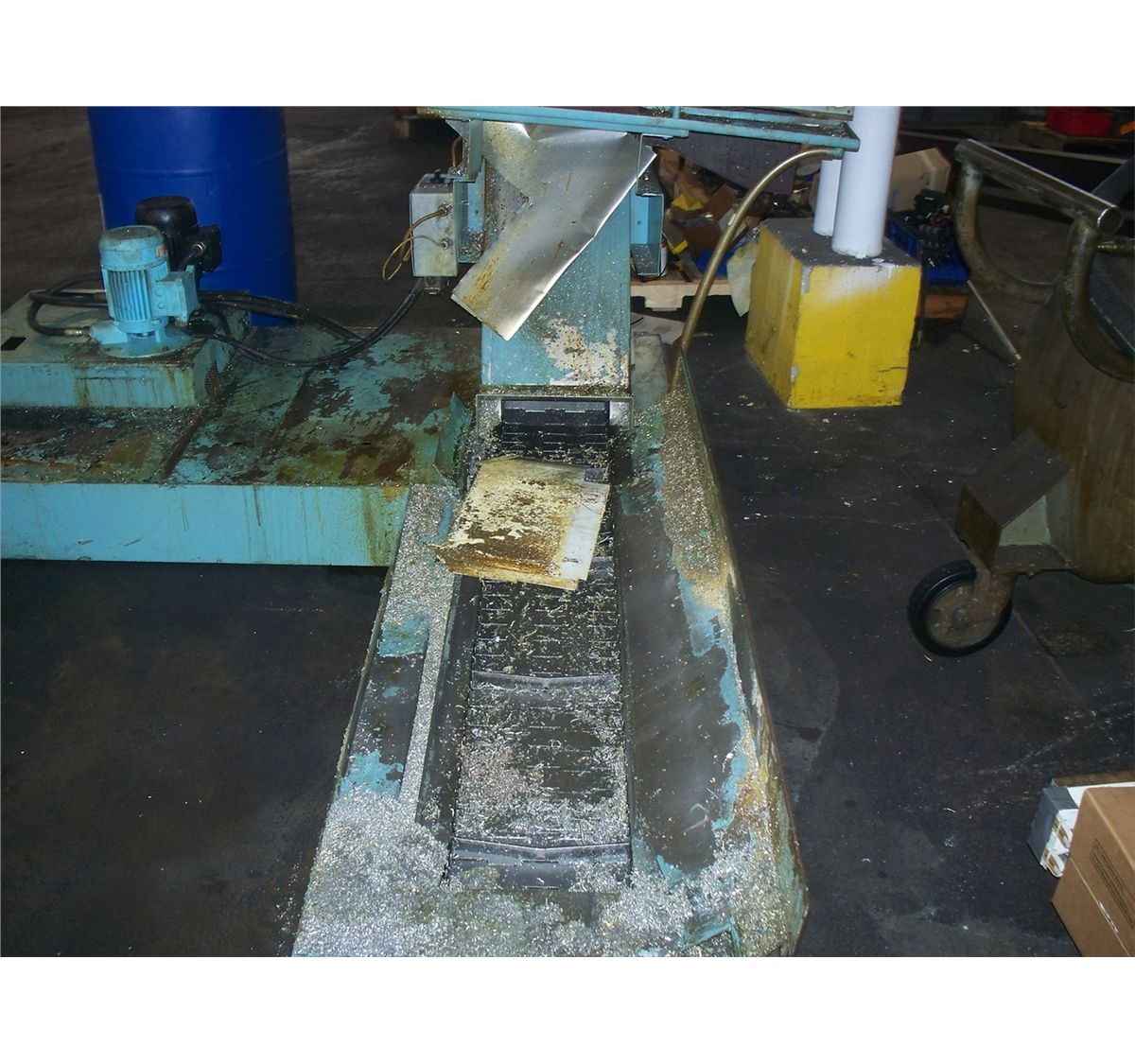

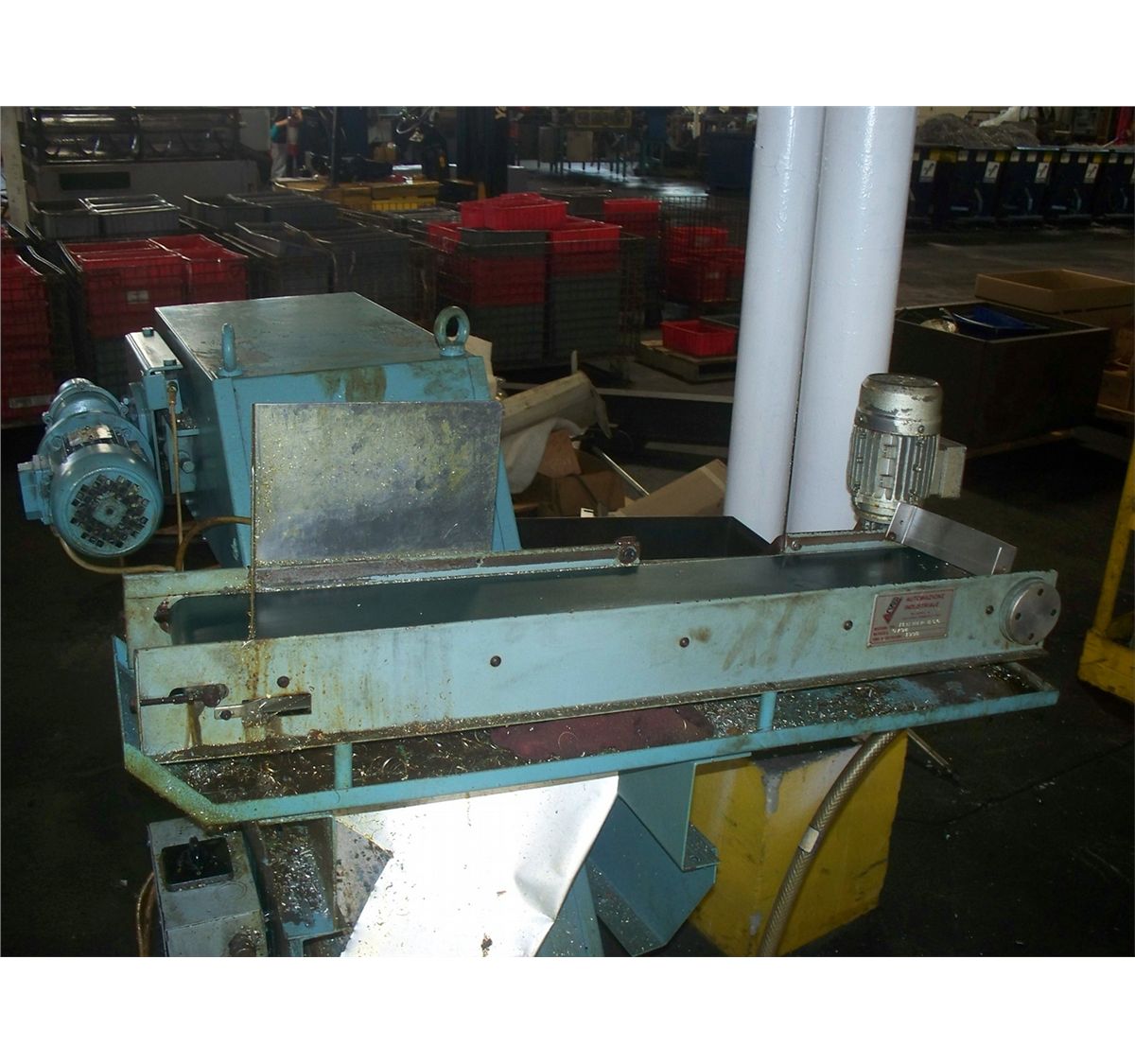

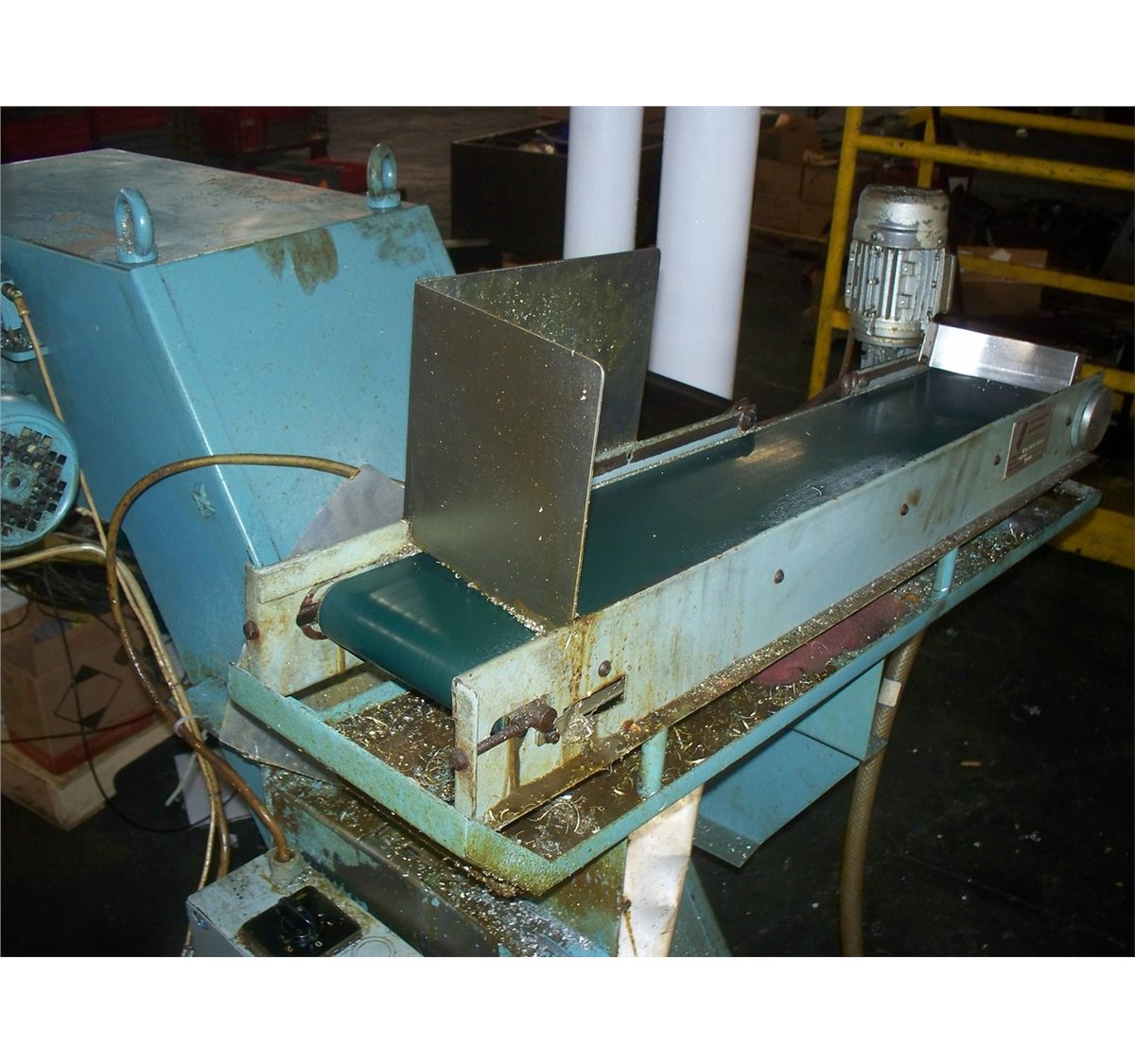

Parts Exit Conveyor
Upper & Lower Turrets with Main & Sub Spindle, C-Axis Milling Capability on Both Turrets, Programmable Sub Spindle Moves in X & Z-Axes, Tool Presetter (Removable), Collet Chucks on for Main & Sub Spindle, Iemca TAL-65 12 ft. Magazine Barfeed, Auto Parts Catcher, Parts Exit Conveyor, Chip Conveyor (Side Exit)

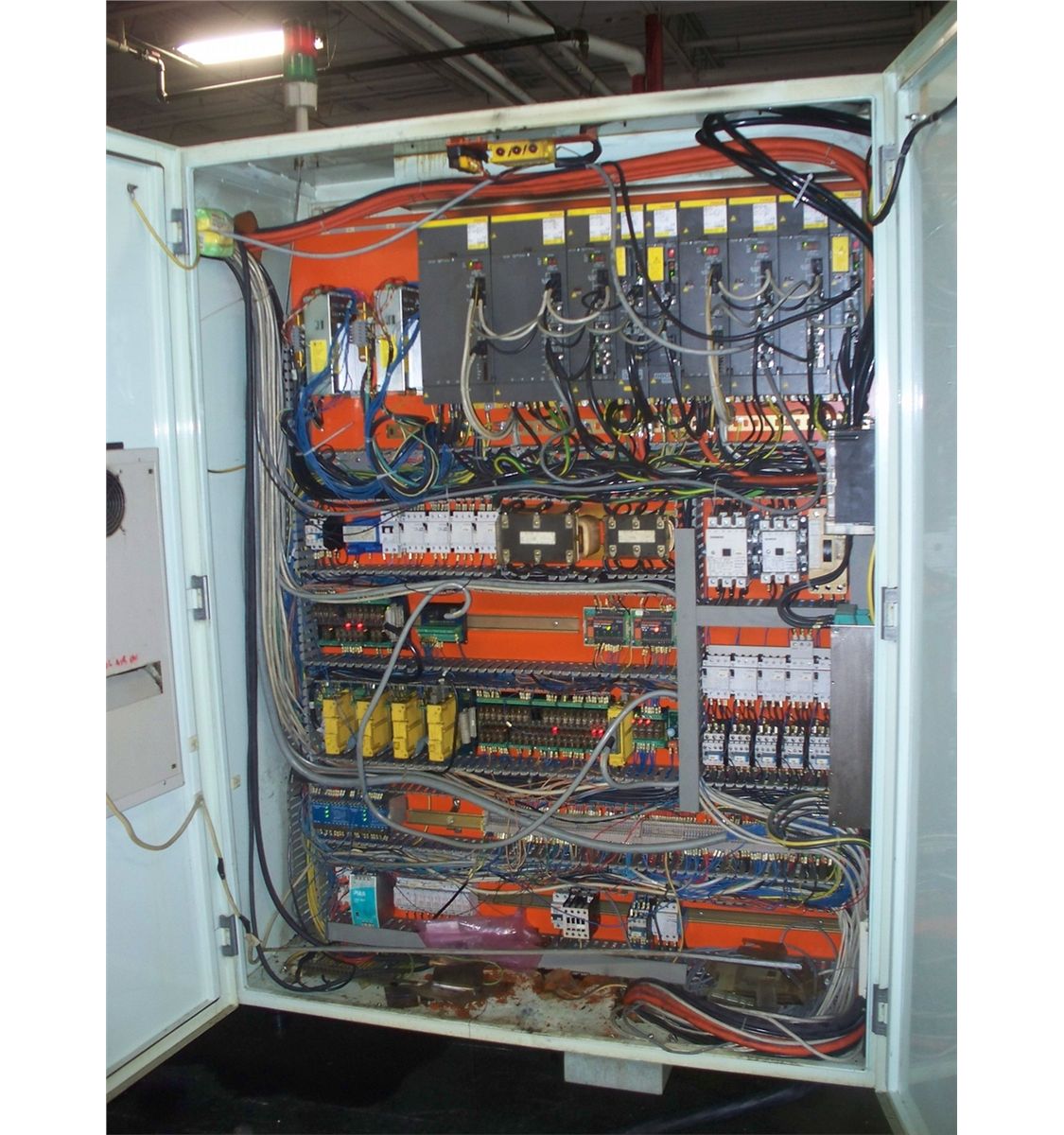

Additional notes: Both turrets have new, upgraded controllers,
additionally we invested in servo modules so the controls are in good
shape.
PLEASE NOTE:
1. Live toolholders are being sold individually
2. Barfeed shown NOT included in sale!!!
https://www.youtube.com/watch?v=T4uHRs9-SME&feature=youtube_gdata_player)
MACHINE IN PLANT - UNDER POWER - GOOD RUNNING MACHINE!!!
Sold AS-IS
