1996 Mazak QT-20 HP Turning Center

Currency:USD Category:Business & Industrial / Metalworking - Equipment Start Price:1.00 USD

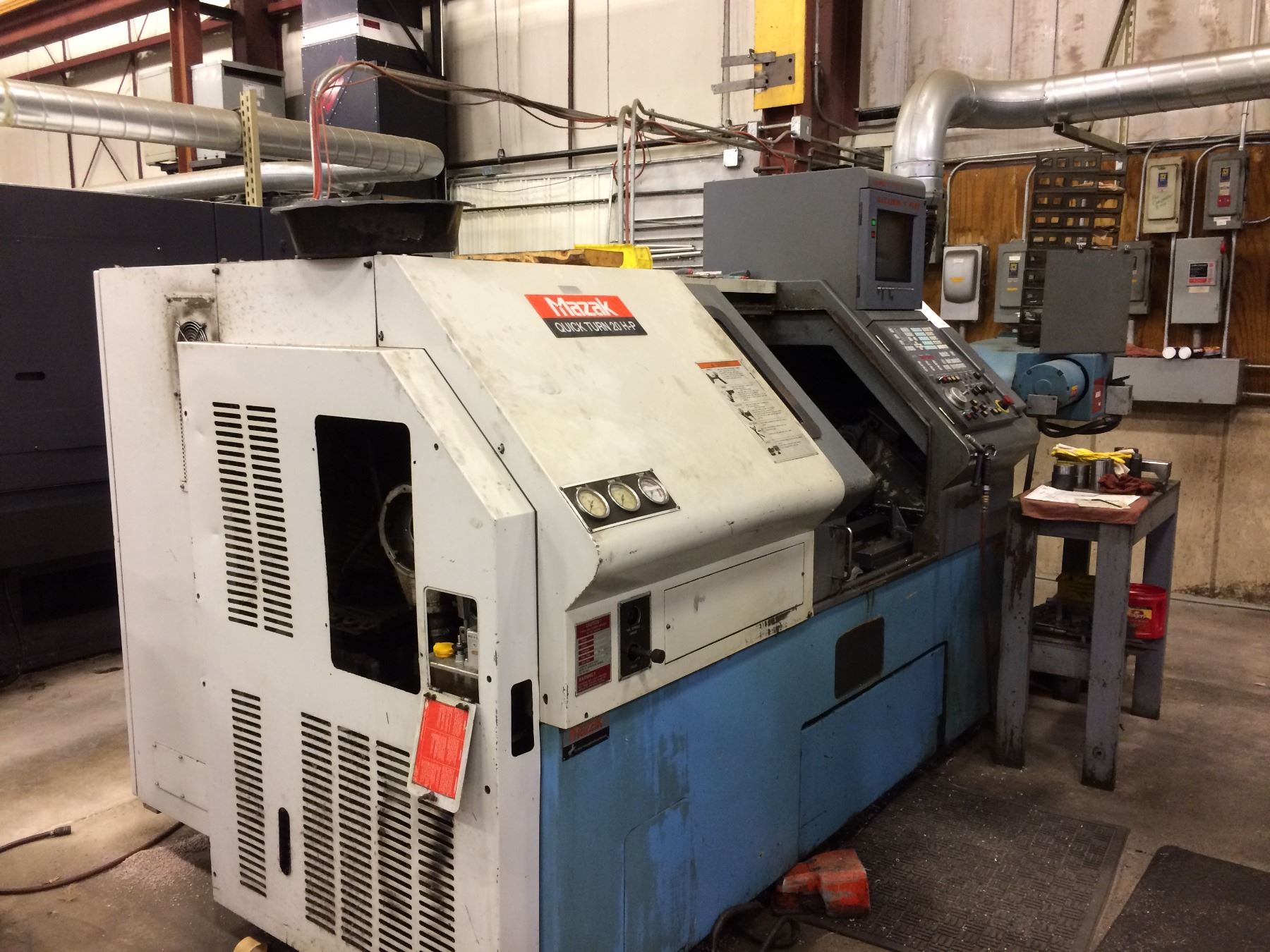

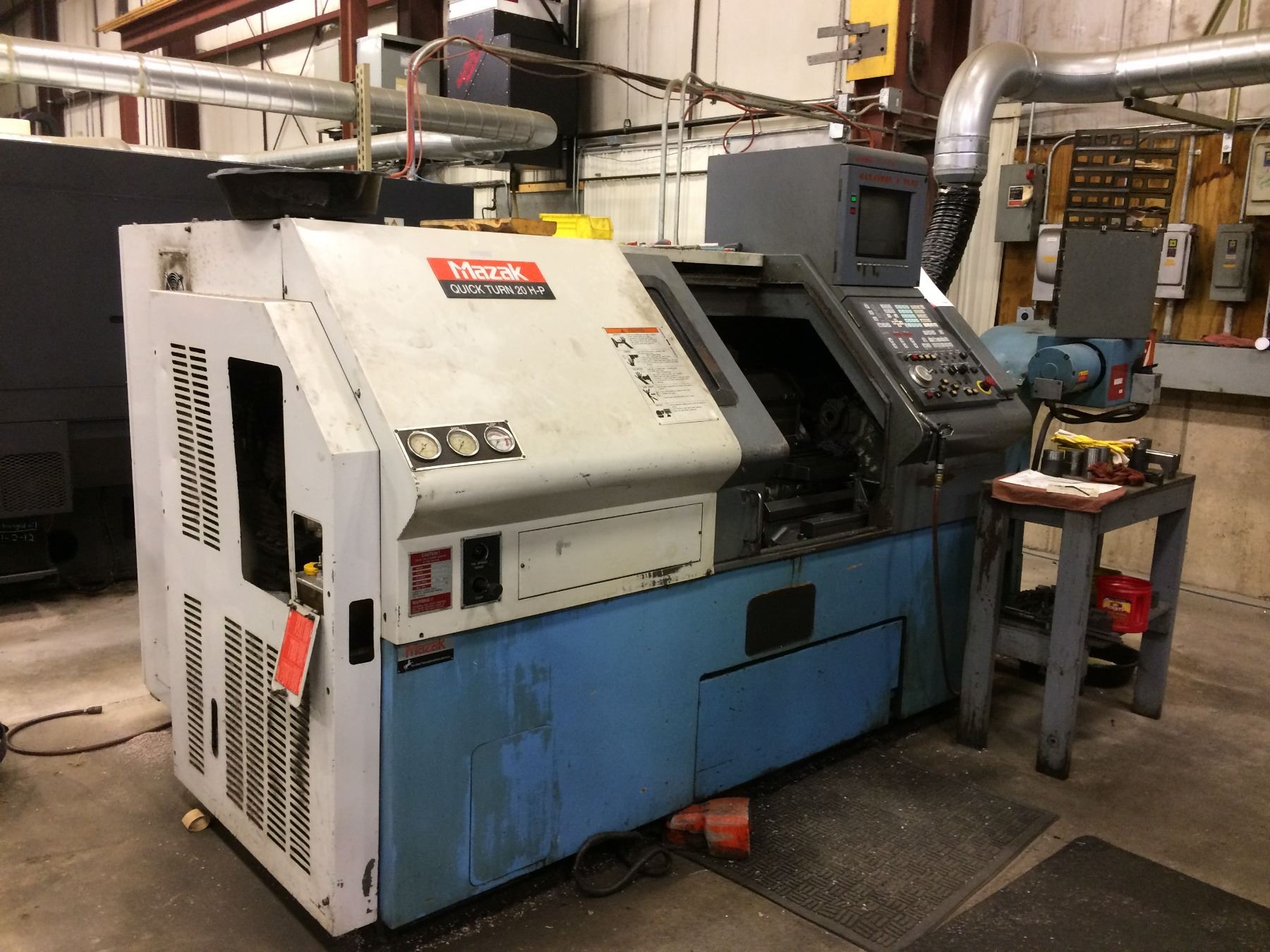

1996 Mazak QT-20 HP Turning Center
SOLD
5,850.00USD+ (877.50) buyer's premium + applicable fees & taxes.
This item SOLD at 2019 Dec 19 @ 14:25UTC-5 : EST/CDT
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.

Appointments for inspections are available upon request. Please see each lot description of inspection instructions. Any questions please call 616-745-5953 or email sales@btmindustrial.com.

Have surplus machinery or tooling to sell? Contact us TODAY to see about getting your items in our next sale!



Location: Martin, MI (Customer Location)
*NOTE: Loading Fee $400 (Customer can load, no rigger required)
*NOTE: Chip Conveyor NOT included

Maximum Swing.........................17.32 In
Swing Over Carriage...................10 In
Maximum Cutting Diameter..............10.62 In
Maximum Machining Length..............16.75 In
Maximum Bar Work Size.................2.75 In
X Axis Travel.........................7.125 In
Z Axis Travel.........................20.125 In
Spindle Speed.........................40 - 4,000 RPM
Spindle Nose..........................A2-8
Spindle Bore..........................3.15 In
Tool Capacity.........................8 tools
Rapid Traverse X......................1200 IPM
Rapid Traverse Z......................1300 IPM
Stroke of Tailstock Body..............18.11 In
Tailstock Center......................MT4
Stroke of Tailstock Quill.............5.12 In
Spindle Drive Motor (30 min/cont).....AC 20HP/ 15HP
Floor Space...........................105 In x 68.5 In
Machine Weight........................9,600 lbs.
EQUIPPED WITH:

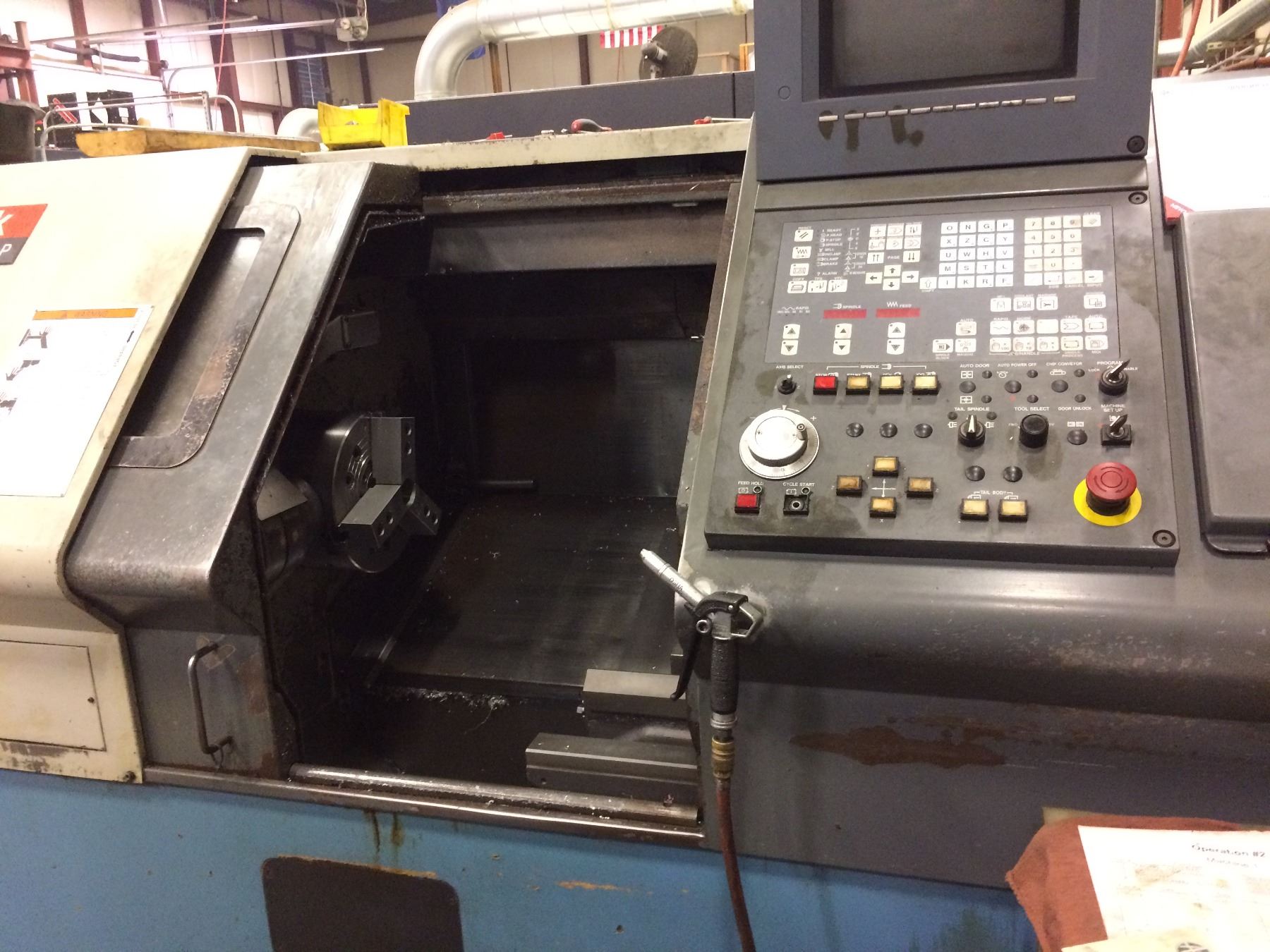

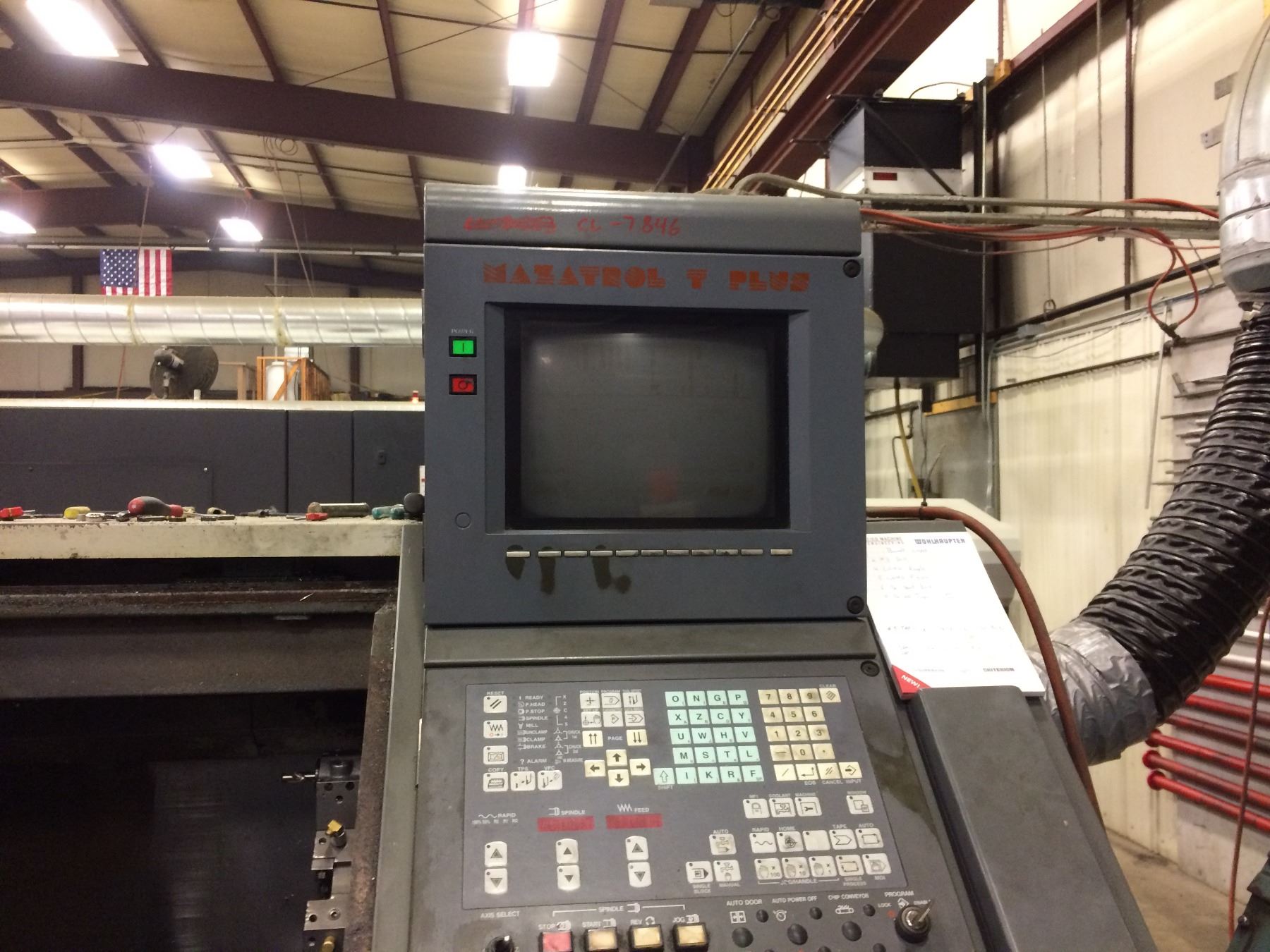

Mazatrol T-Plus Control
10” Chuck no jaws included with machine can be seen under power

Inspection Information on this lot: Please call Tim at 269-217-2390 to set up inspection appointment.
