1995 Mazak Hyundai copy QT-18N Turning Center

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
1995 Mazak Hyundai copy   QT-18N Turning Center
SOLD
4,700.00USDto t********0+ buyer's premium (705.00)
This item SOLD at 2017 Jan 19 @ 13:05UTC-5 : EST/CDT
All items are sold AS-IS! Items are described to the best of our ability, but inspections are both invited and encouraged! There are no returns or refunds for items once removed from a premise!
Location Muskegon MI
Loading Fee $400

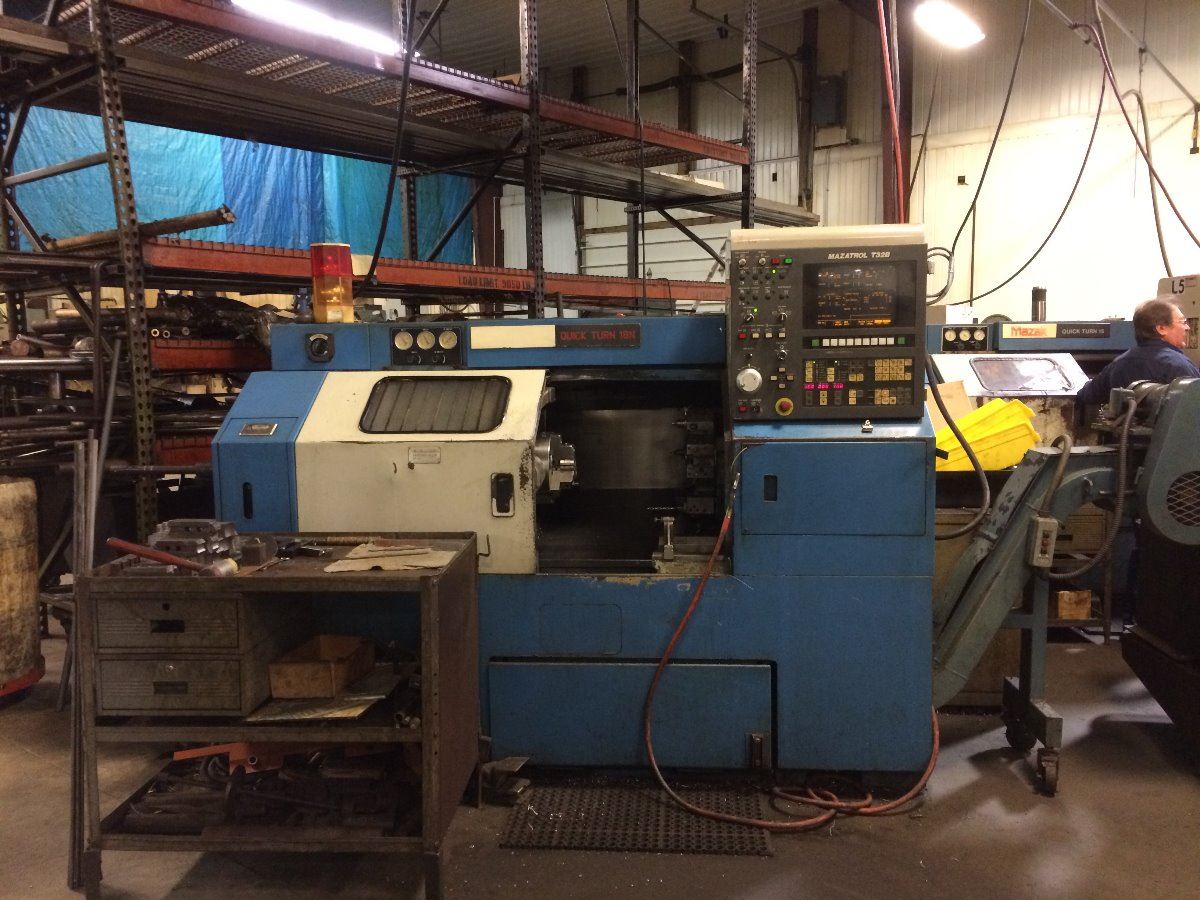

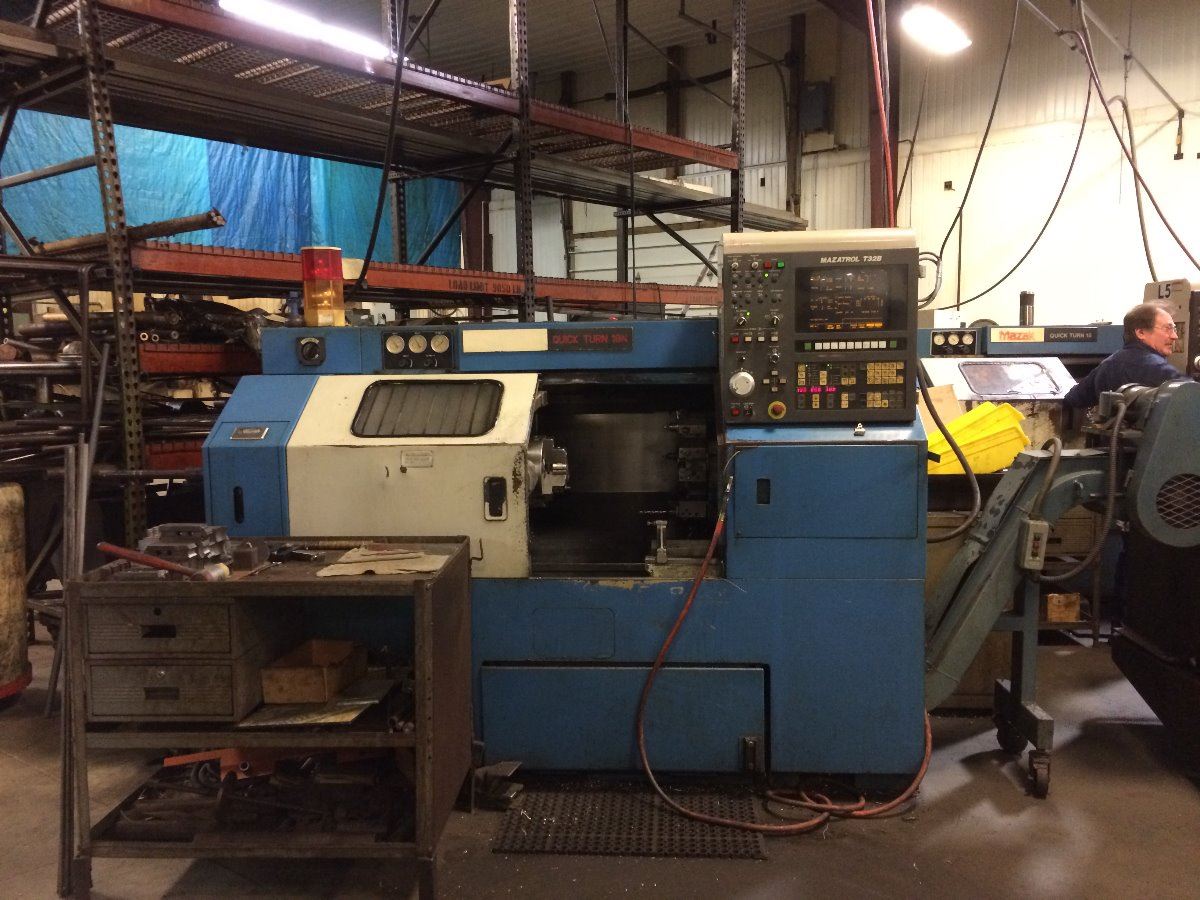

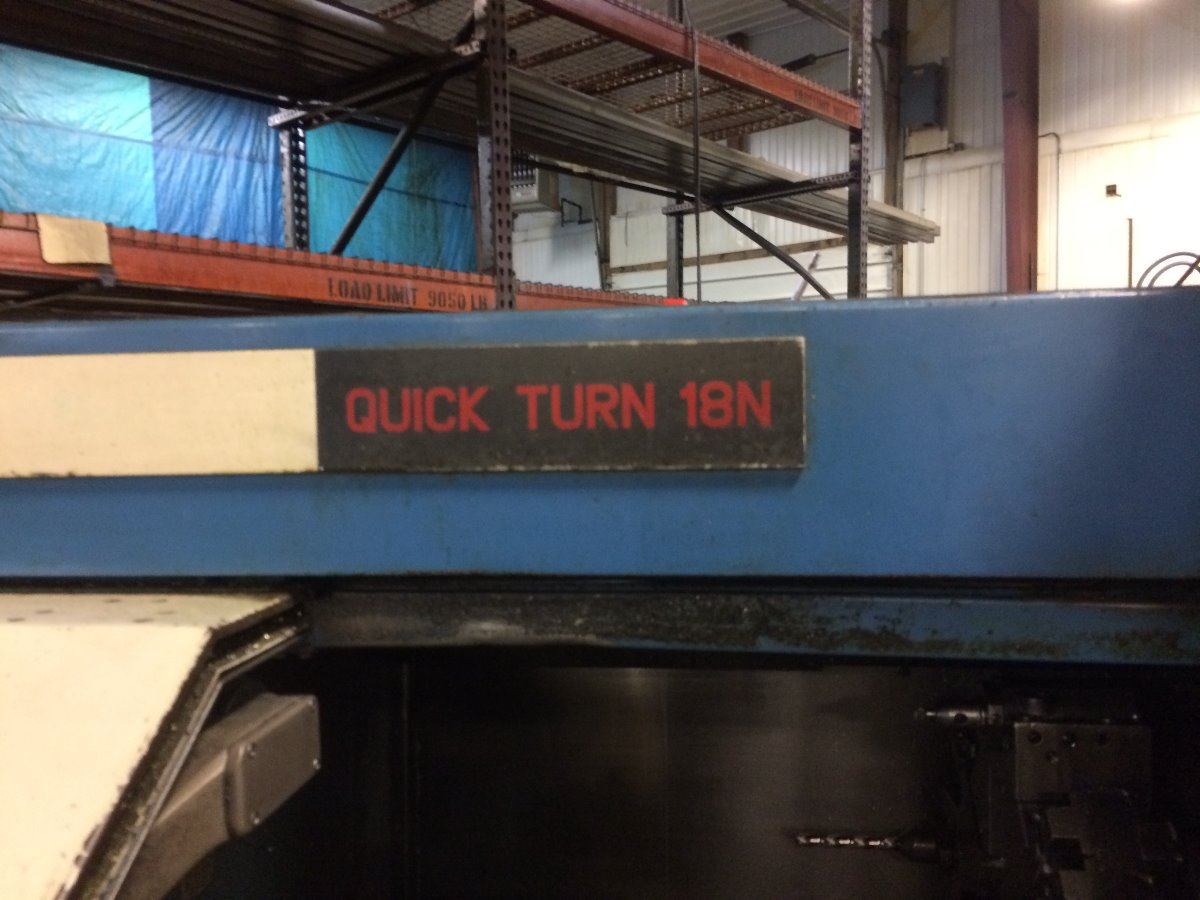

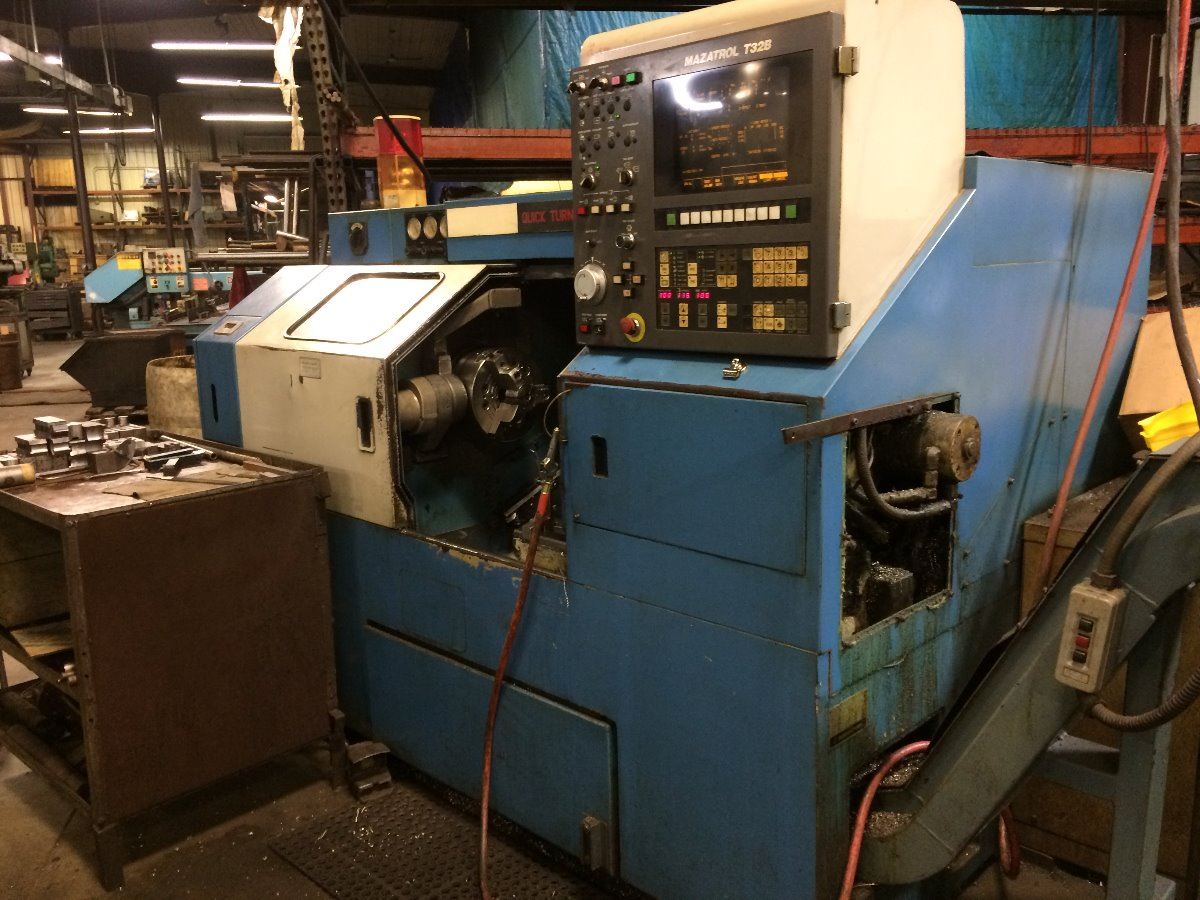

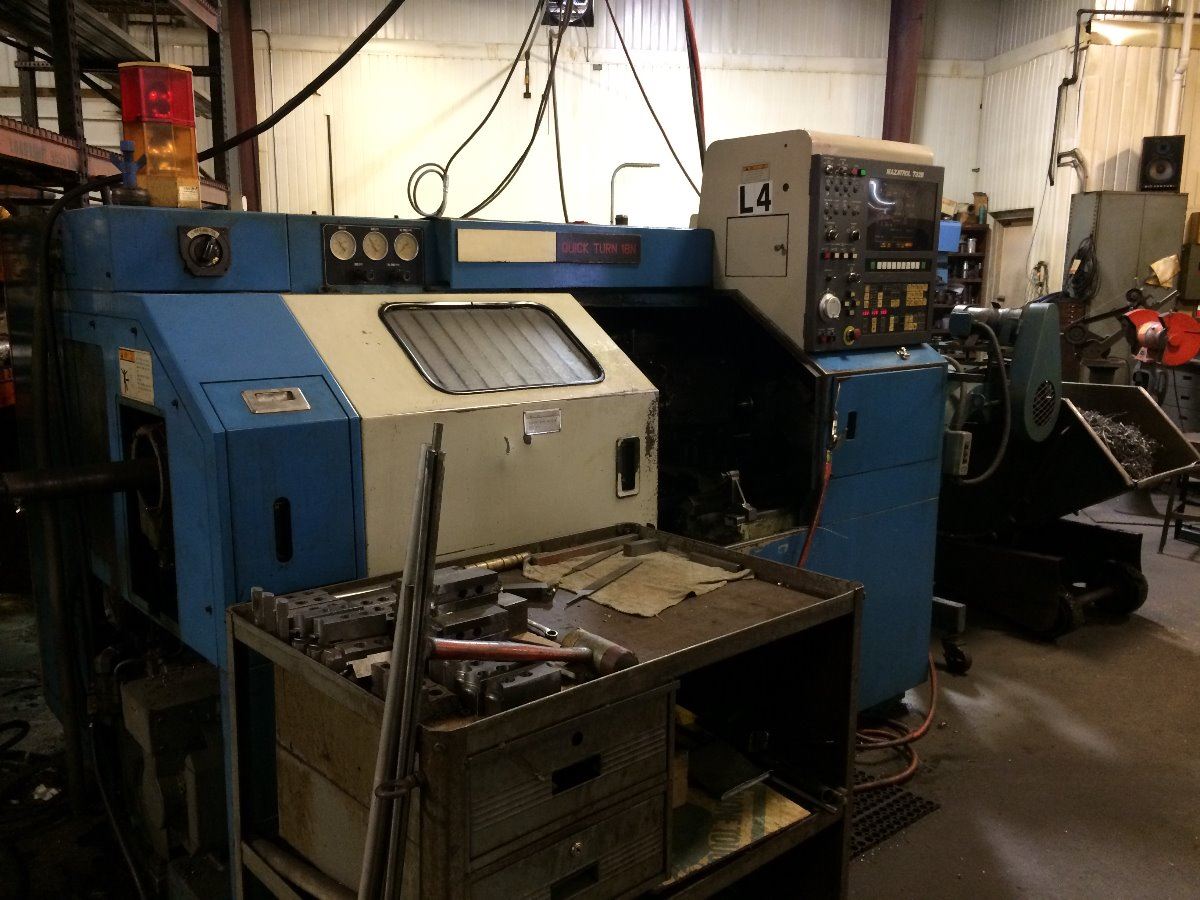

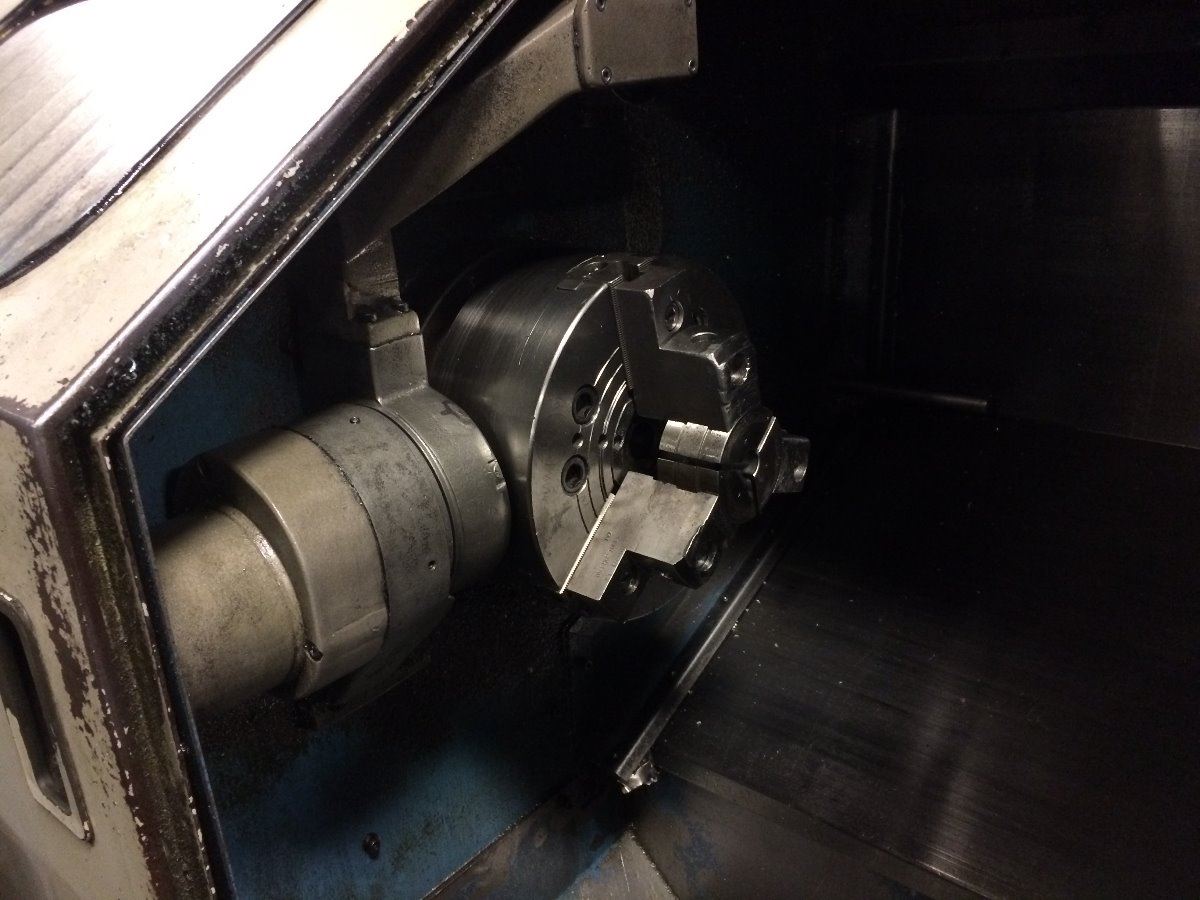

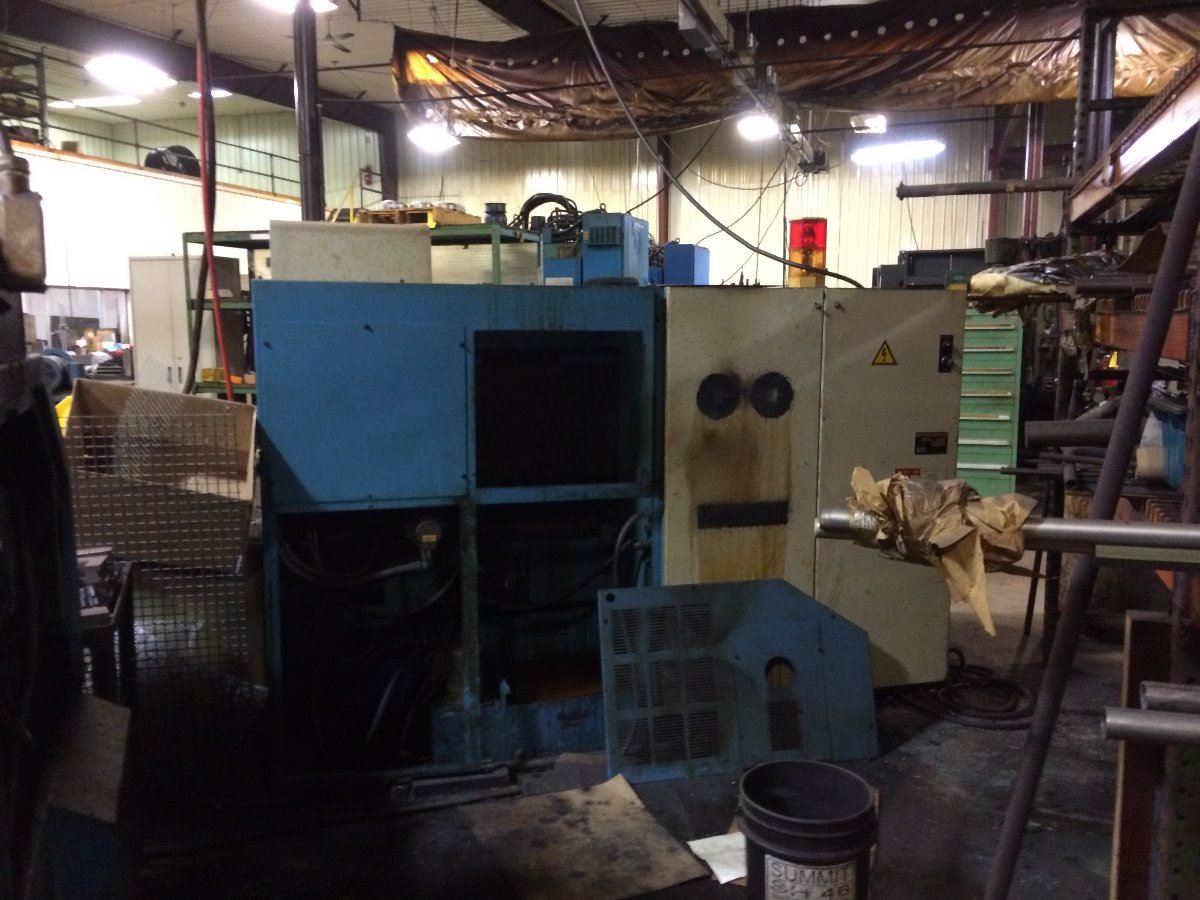

1995 Mazak Hyundai copy QT-18N Turning Center

Note Chip conveyer not included with machine sale

Specification Description
Maximum Swing 17.32"
Swing Over Bed 10"
Maximum Cutting Diameter 11.81"
Maximum Machining Length 19.69"
X-Axis Travel 7.09"
Z-Axis Travel 20.08"
Spindle Nose A2-6
Spindle Bore 2.44"
Spindle Speed Range 45 - 4500 RPM
Spindle Motor 20/15 HP

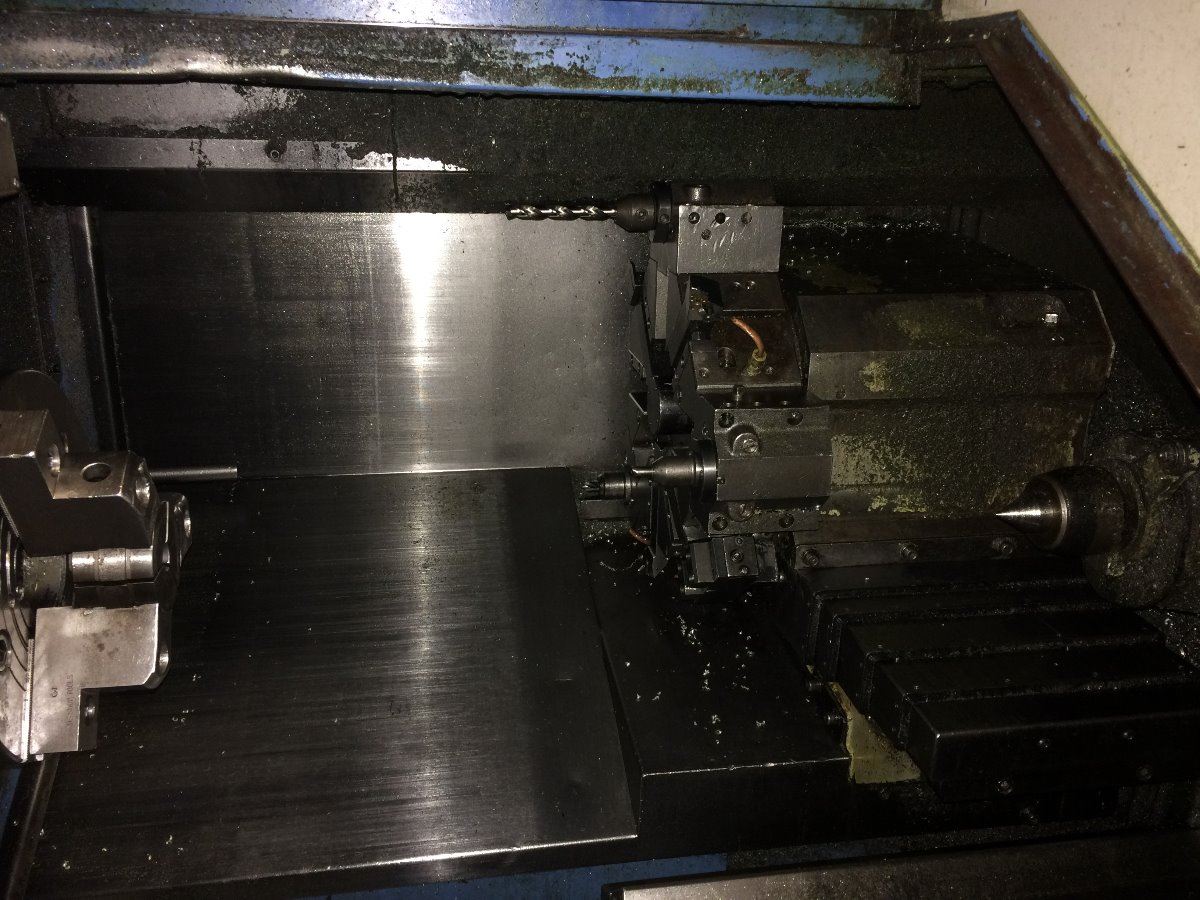

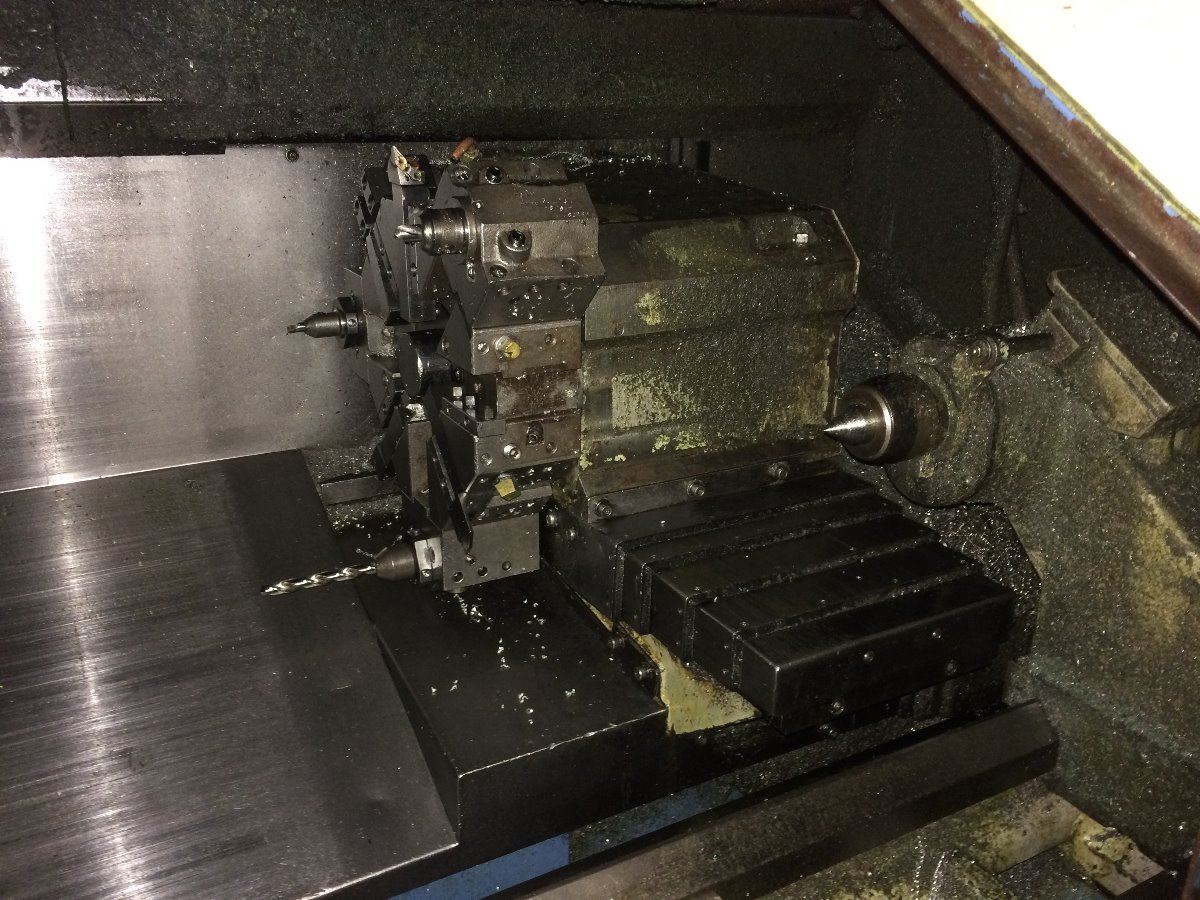

Number of Tool Stations in Turret 8
Rapid Traverse Rate 1180 IPM
Cutting Feed Rates 197 IPM
Tailstock Quill Diameter 3.15"
Tailstock Center MT #4
Approximate Machine Weight 9300 LBS

Equipped With:

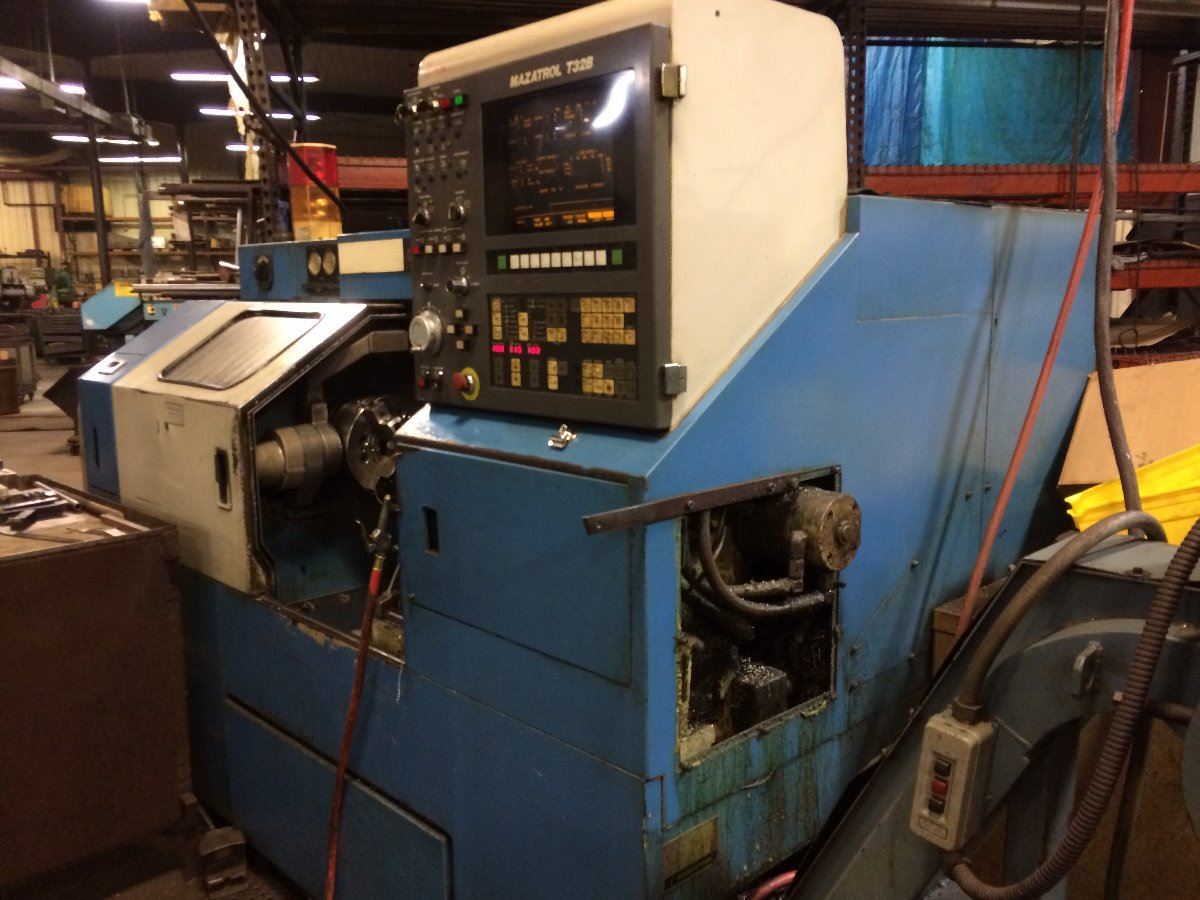

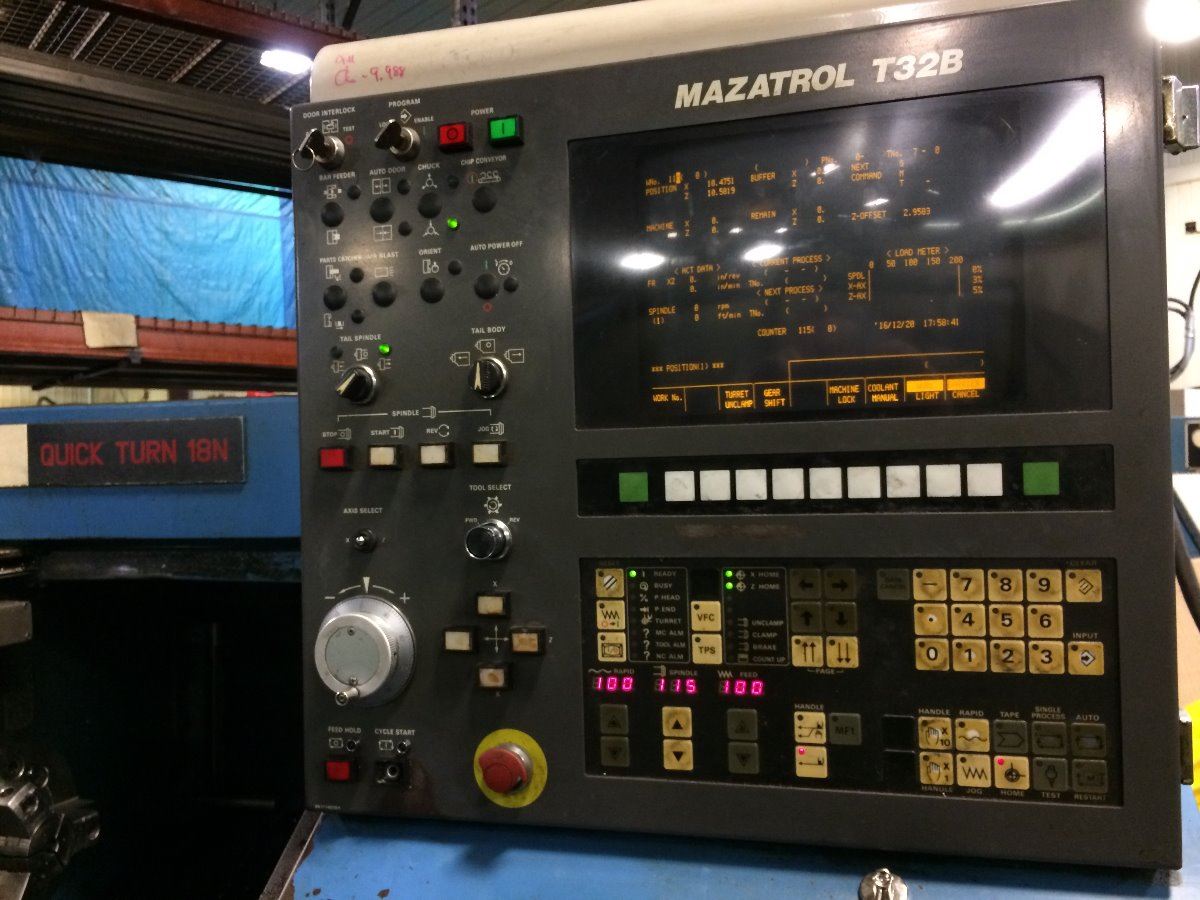

Mazatrol T32 CNC Control

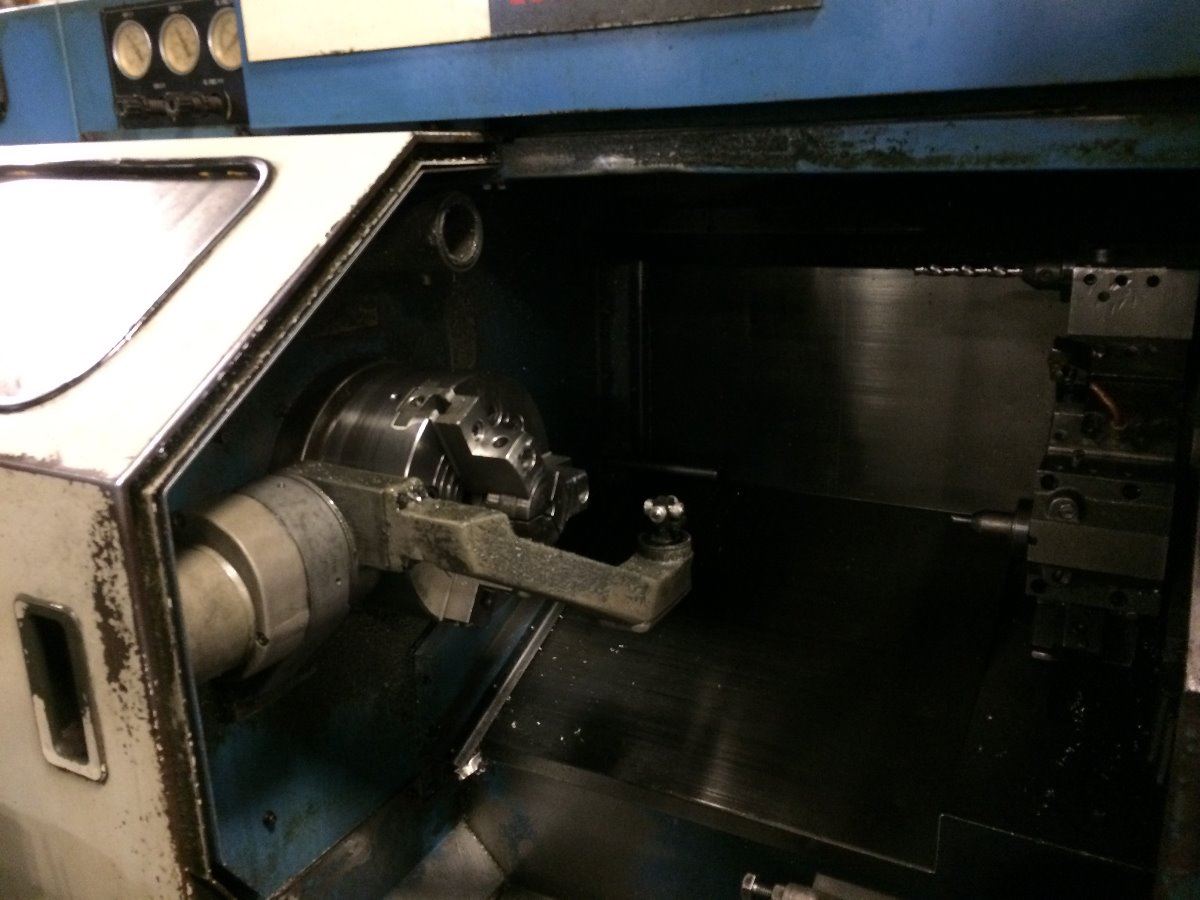

Tool Presetter
Tailstock
