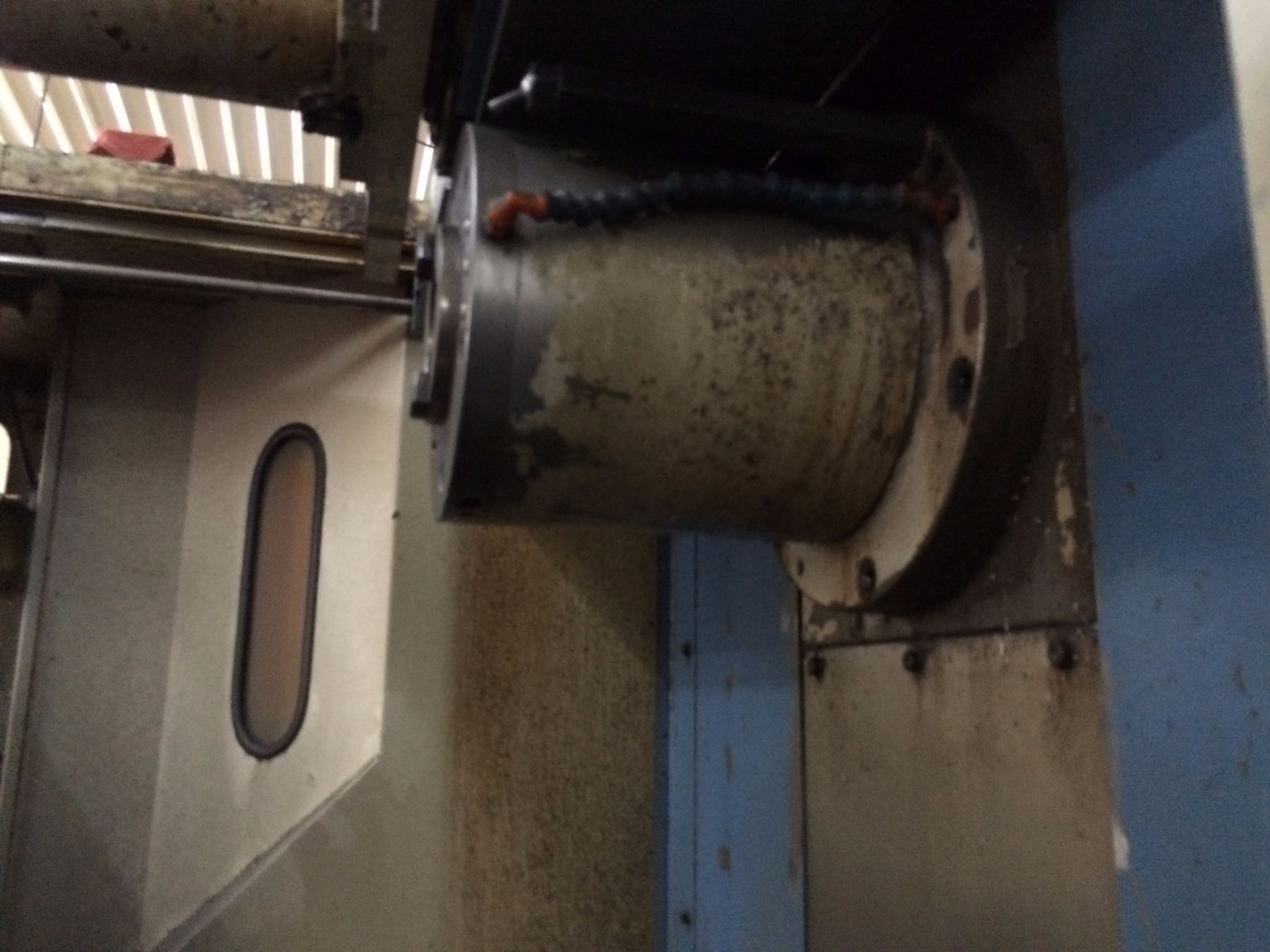

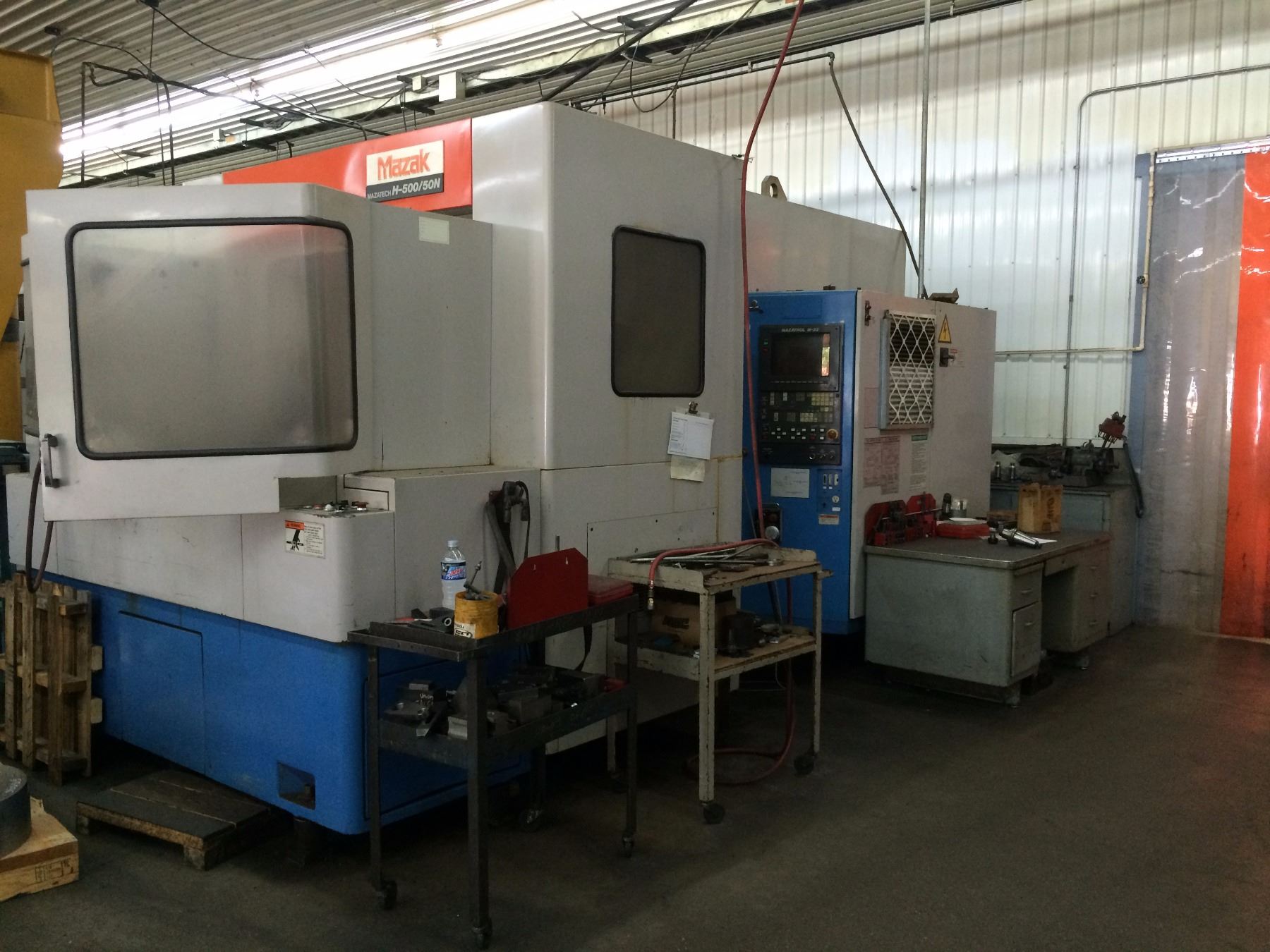

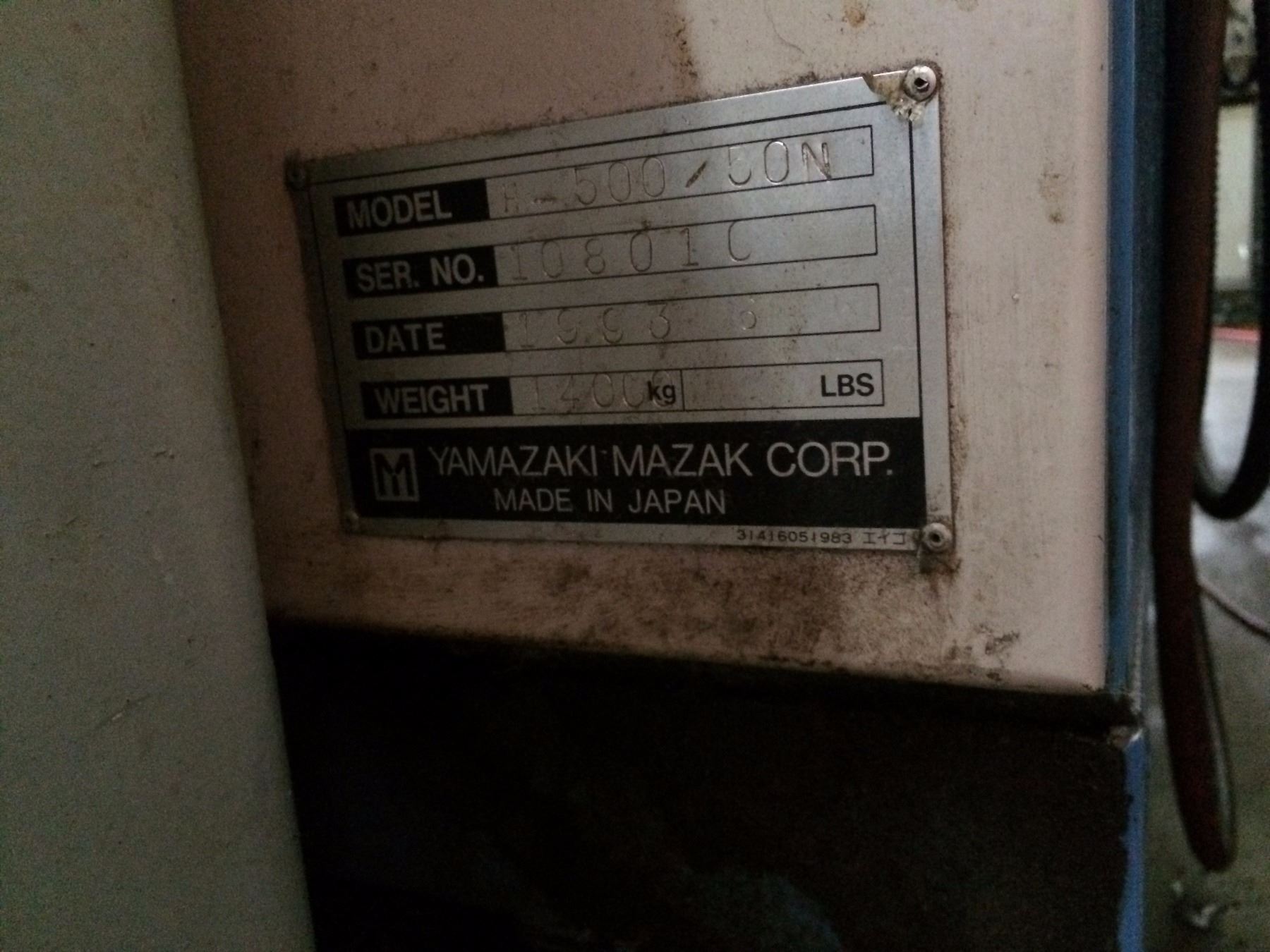

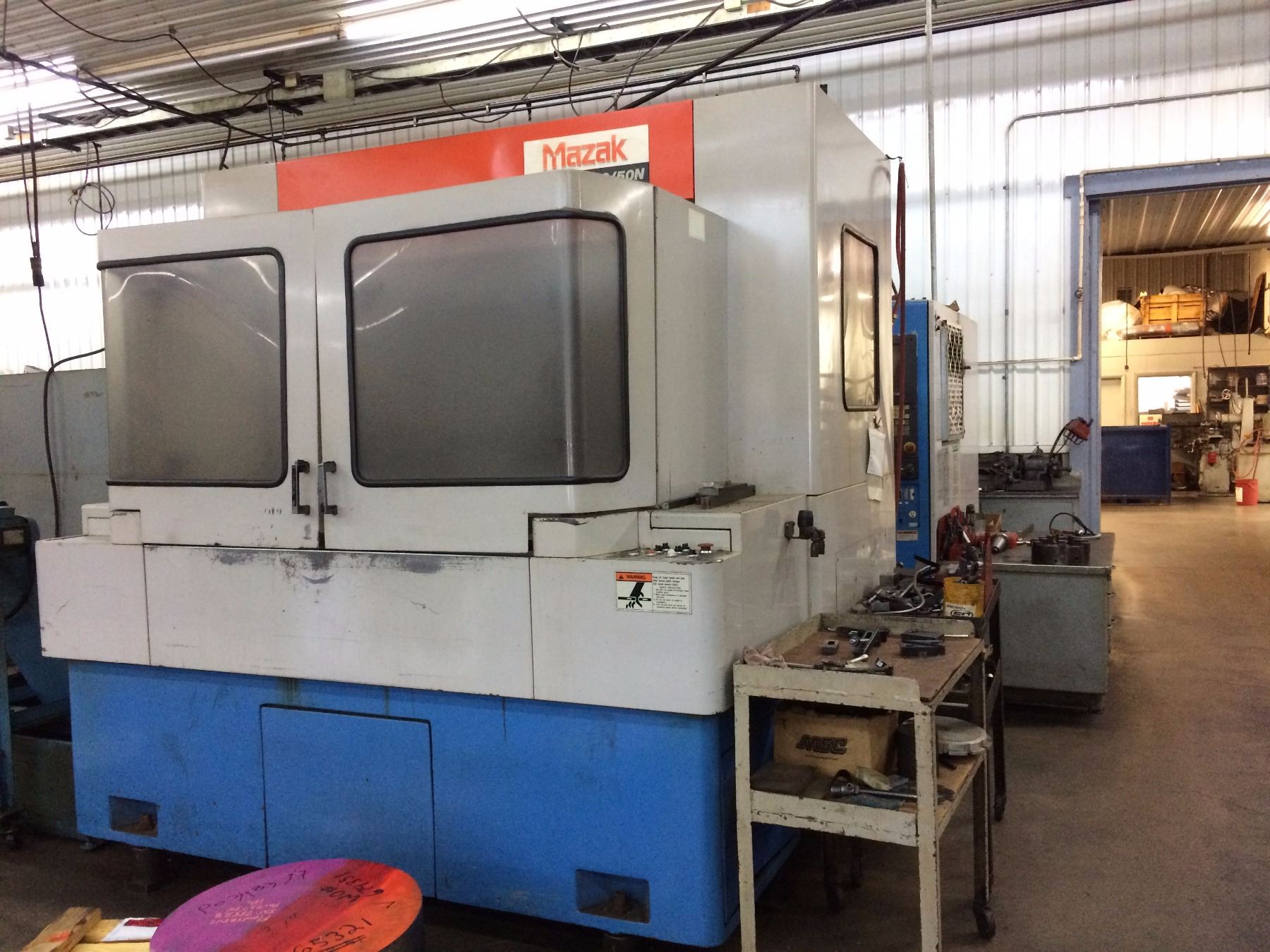

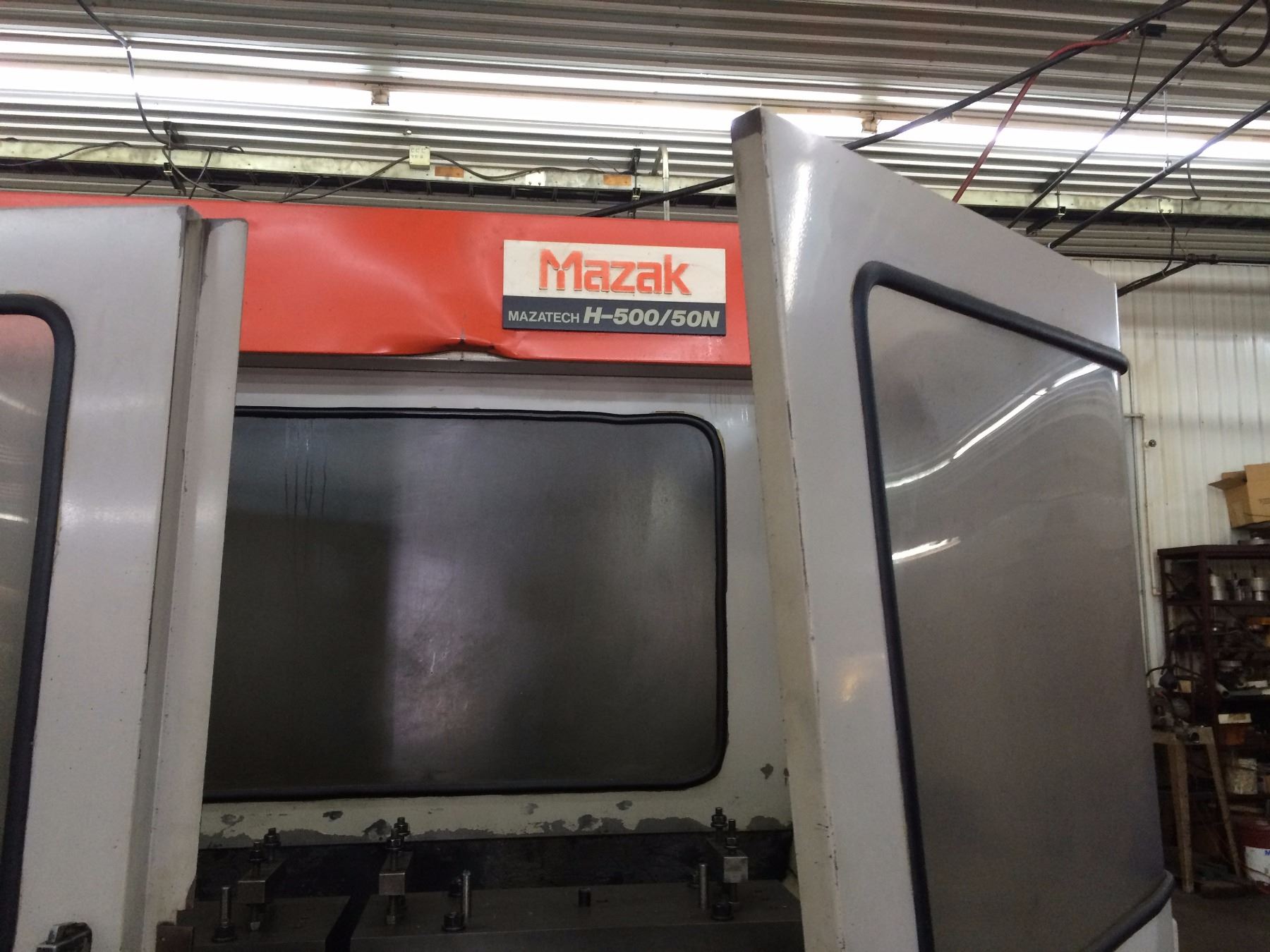

1993 Mazak H-500/50 Horizontal Machining Center
Note Machine needs batteries’ has lost it parameters
Specifications:

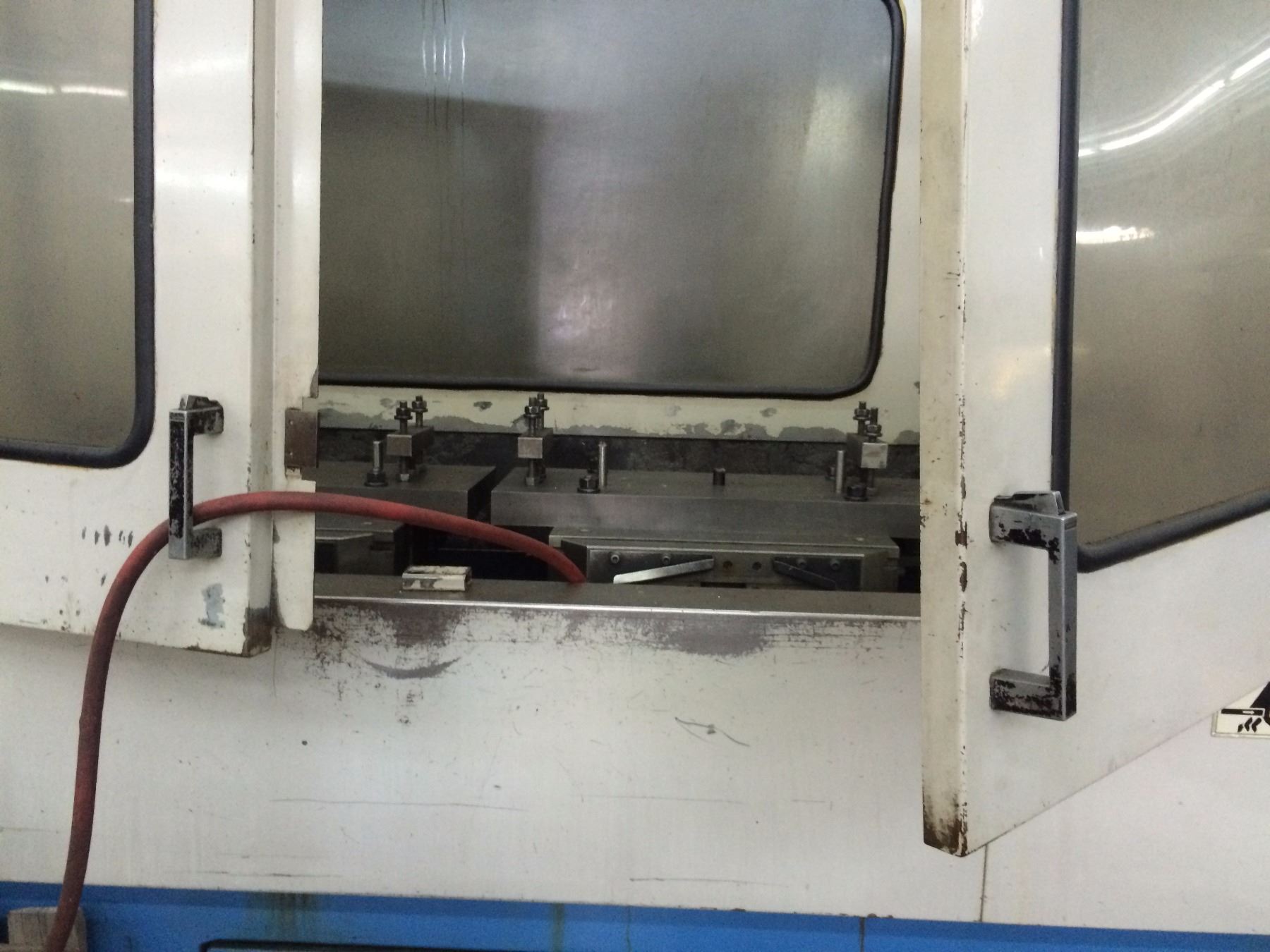

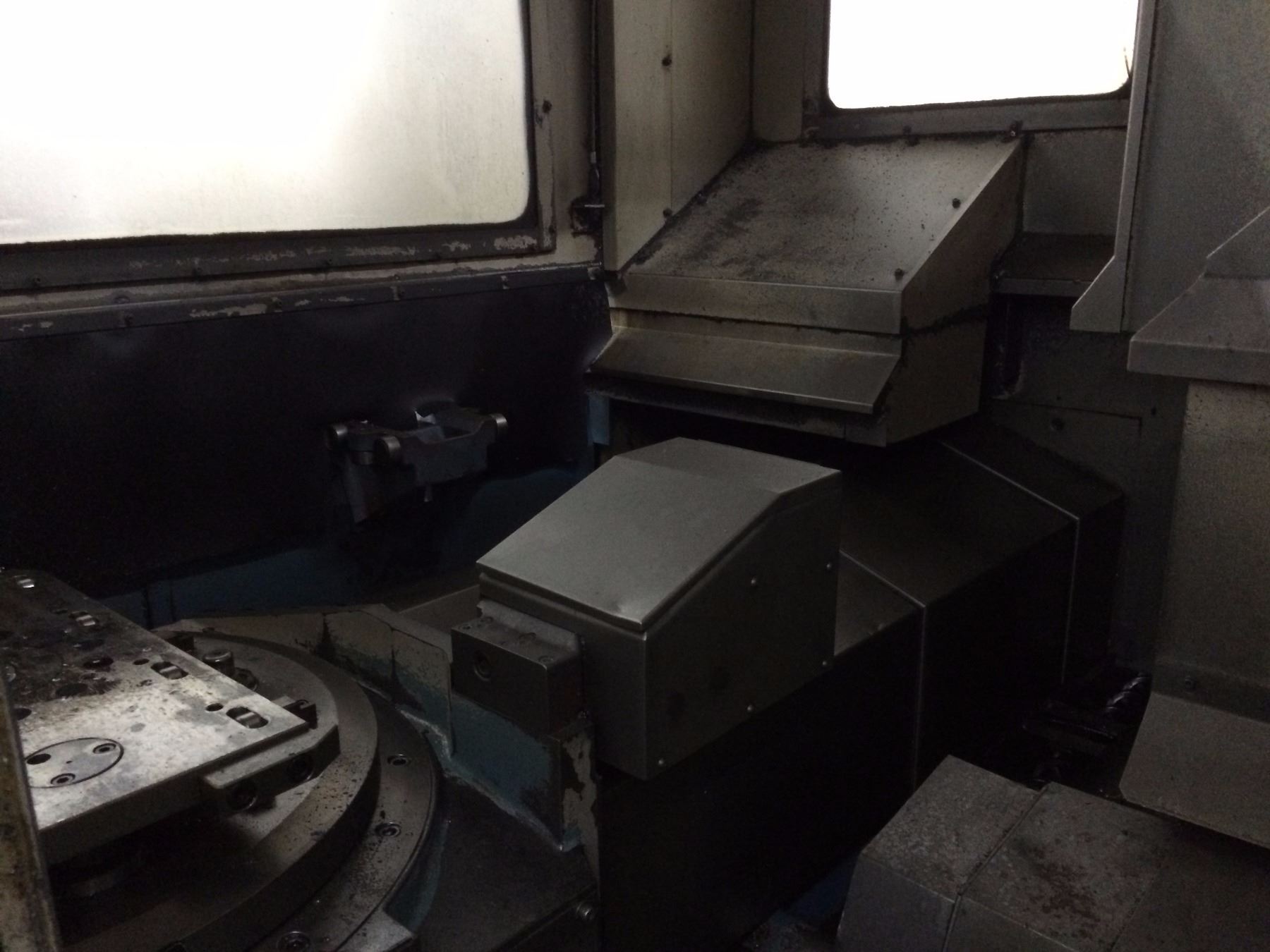

Pallet Size.............................................. 19.7"
Number of Pallets................................... 2
Travel: X-Axis......................................... 27.95"
Travel: Y-Axis......................................... 25.59"
Travel: Z-Axis......................................... 25.59"
Pallet Index.......................................... 1 Degree
Spindle Speed....................................... 22 – 5,000 RPM
Spindle Motor......................................... 20 / 15 HP AC
Spindle Taper........................................ CAT 50
Spindle Center to Table Top................. 1.97" - 27.6"
Spindle Nose to Table Center................ 5.91" - 31.50"
Spindle Torque....................................... 443 ft. lbs.
Tools..................................................... 40
Tool Change Time (C - C)..................... 7.5 Seconds
Rapid Traverse Rates........................... 945 IPM
Pallet Load Capacity............................. 2,200 lbs
Pallet Change Time.............................. 14 Seconds
Max Workpiece Size (Dia. / Height)....... 28.34" / 24.4"
Max Tool Diameter................................ 5.12" / 10.24"
Max Tool Length.................................... 15.7"
Max Tool Weight.................................... 59.4 lbs
Machine Dimensions (L x W x H)........... 104" x 196.8" x 107"
Machine Weight..................................... 30,800 lbs
Equipped with:

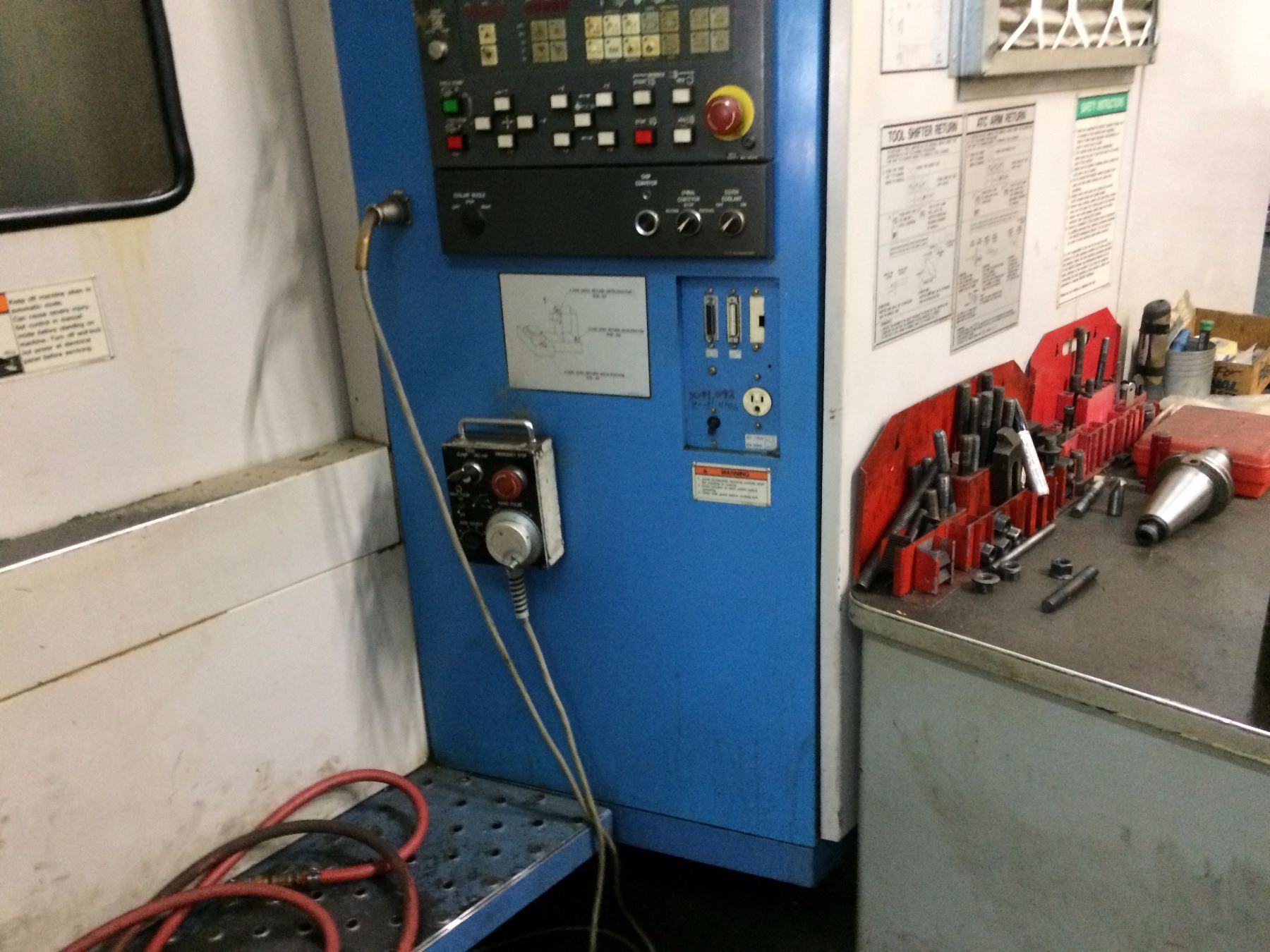

Mazatrol M-32 CNC Control Conversational Programming
Rigid Tapping
Spindle Chiller Unit
Probe Ready (No Probe)
Adaptive Feedrate Control
Tool Life Monitoring
Tool Breakage Detection

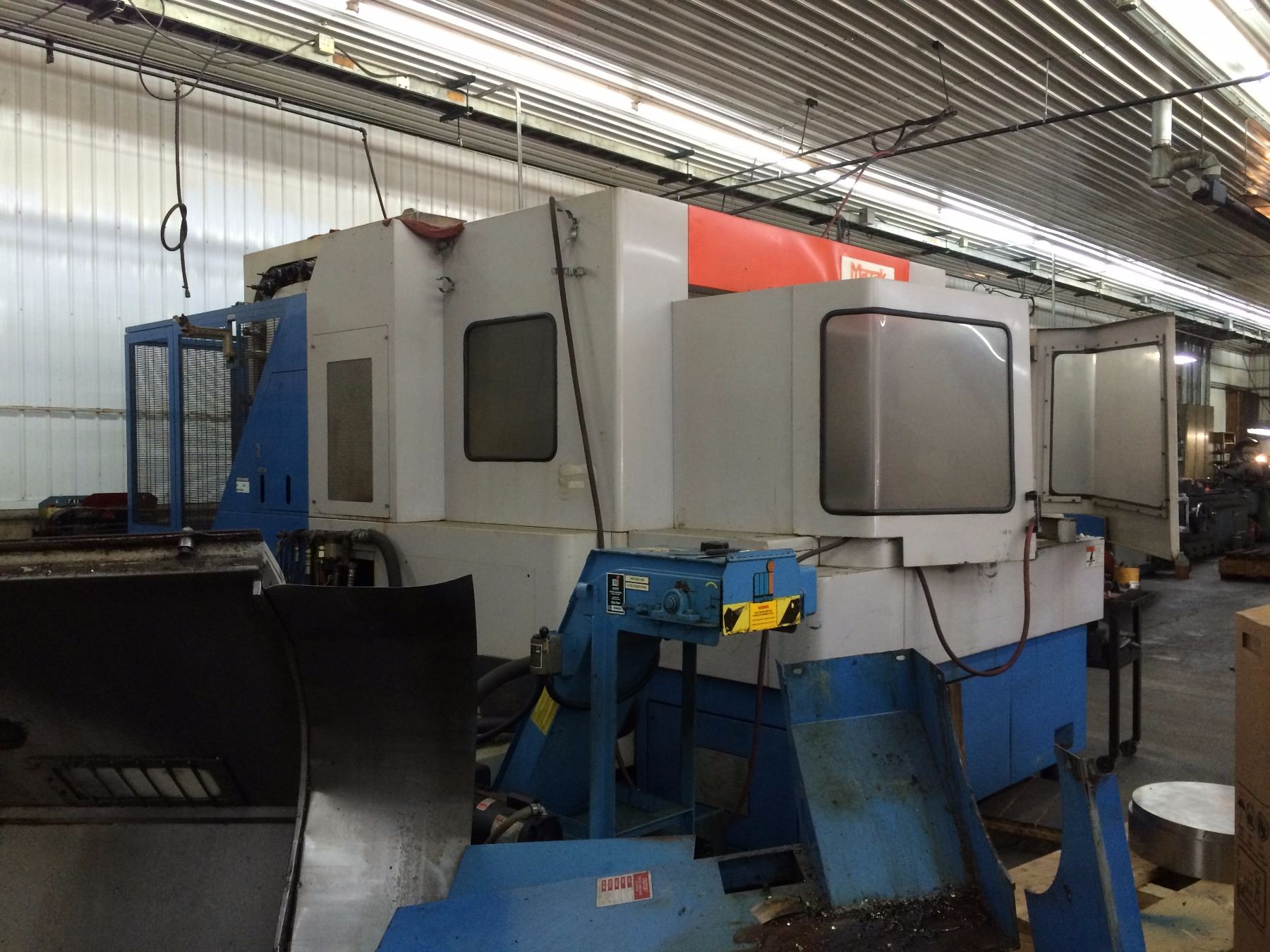

Chip Conveyor
