1991 Wasino LJ - 6MC 3 Axis CNC Lathe Turning Center live milling

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:100.00 USD
1991 Wasino LJ - 6MC 3 Axis  CNC Lathe Turning Center live milling
SOLD
5,200.00USD+ (780.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2015 Jun 17 @ 13:15UTC-4 : AST/EDT
LOCATION: Grand Rapids, MI Consignment Warehouse
LOADING FEE: $350

1991 Wasino L J-6MC

*NOTE* Good operating condition, customer is replacing with a brand new machine! Taken from service on 5-29-15!

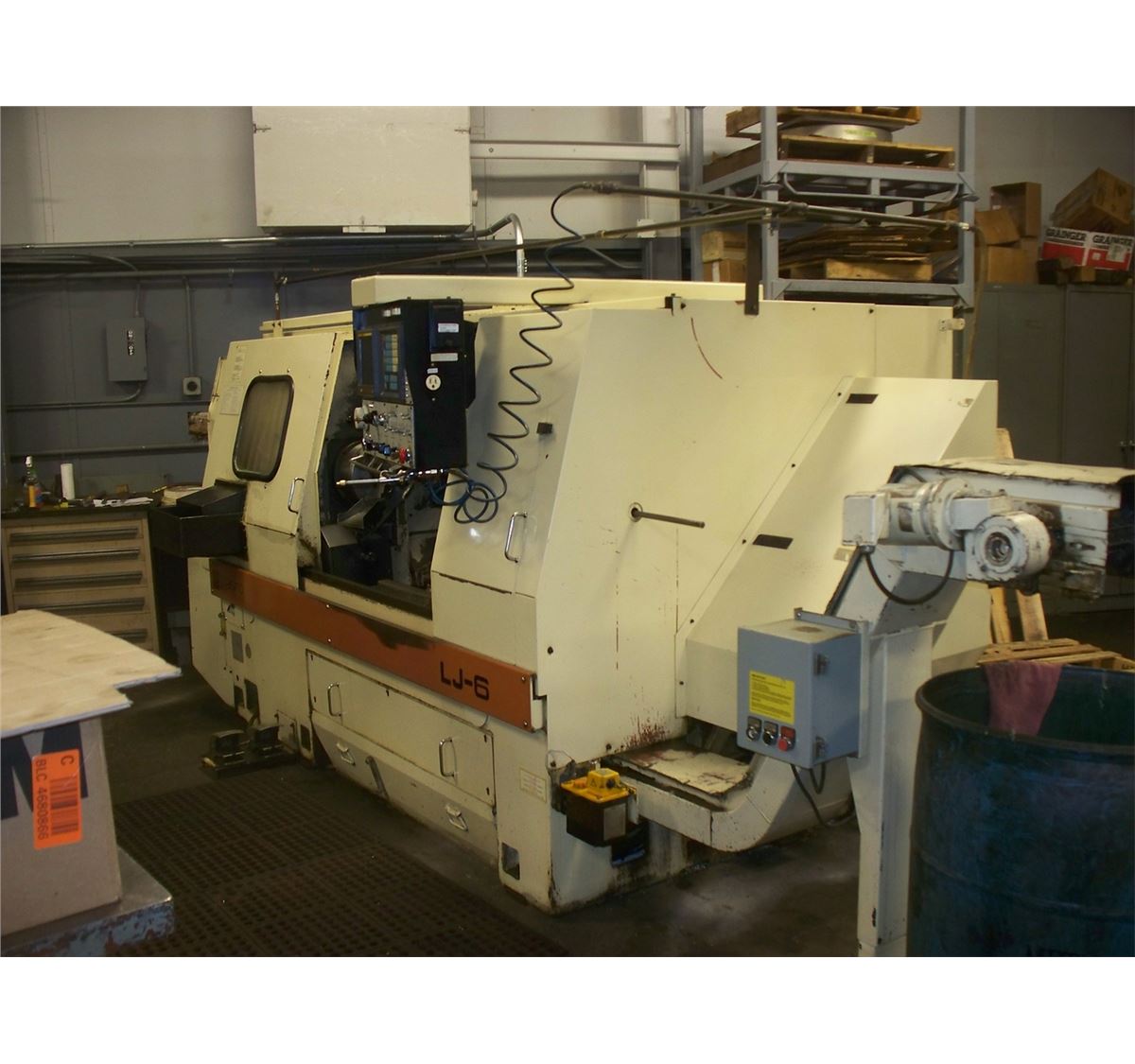

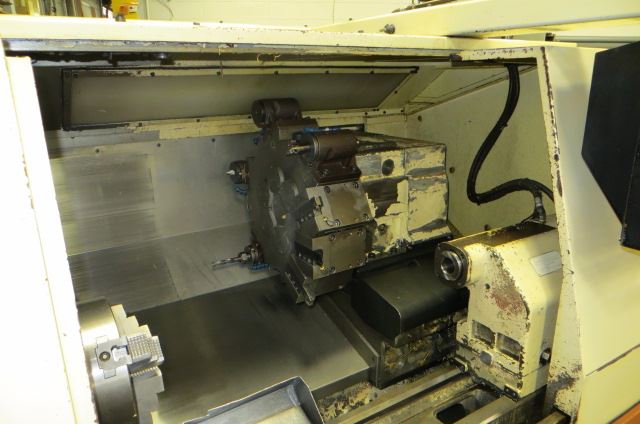

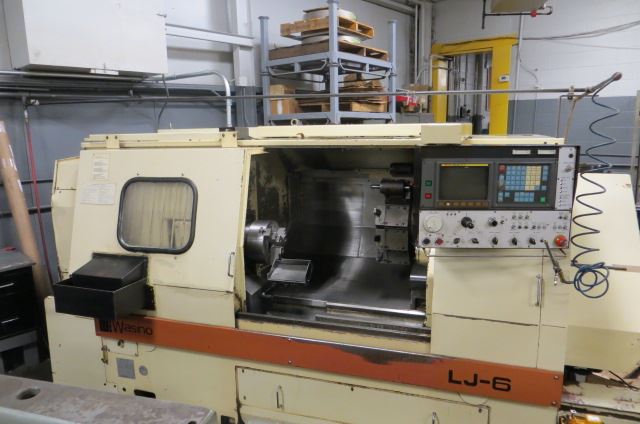

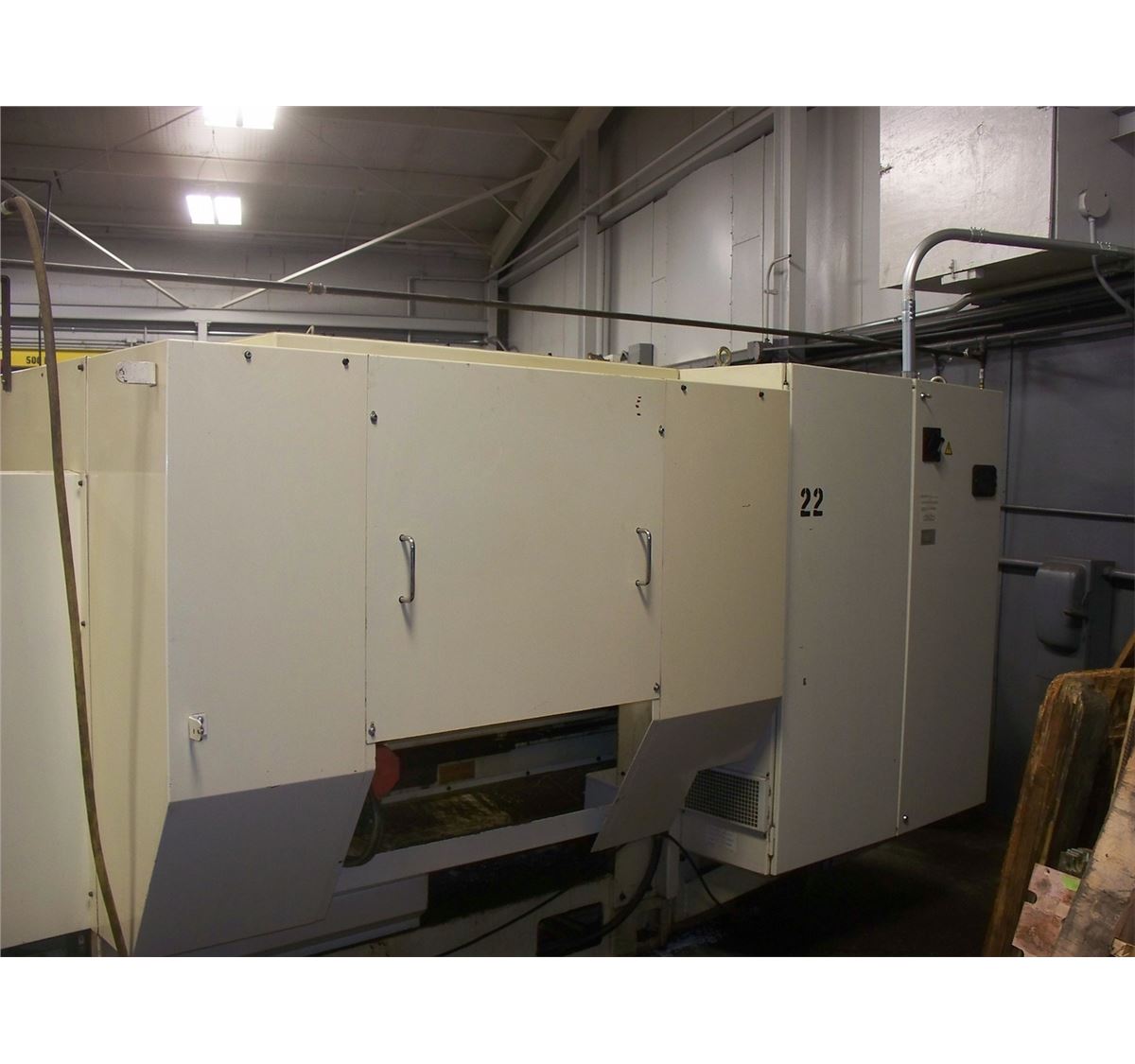

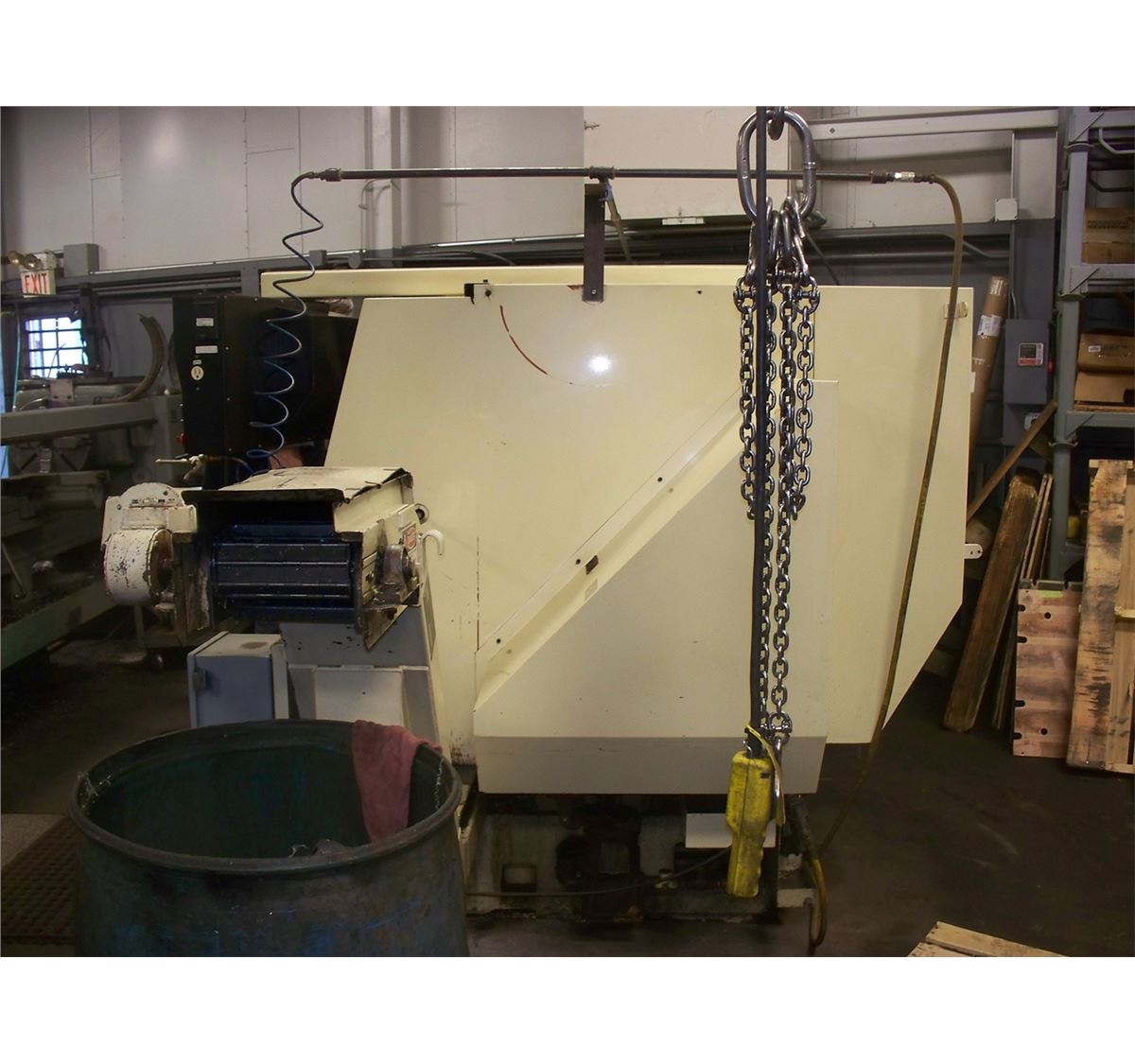

1991 Wasino LJ - 6MC 3 Axis CNC Lathe Turning Center w/ live milling


Model LJ-6MC
Year 1991

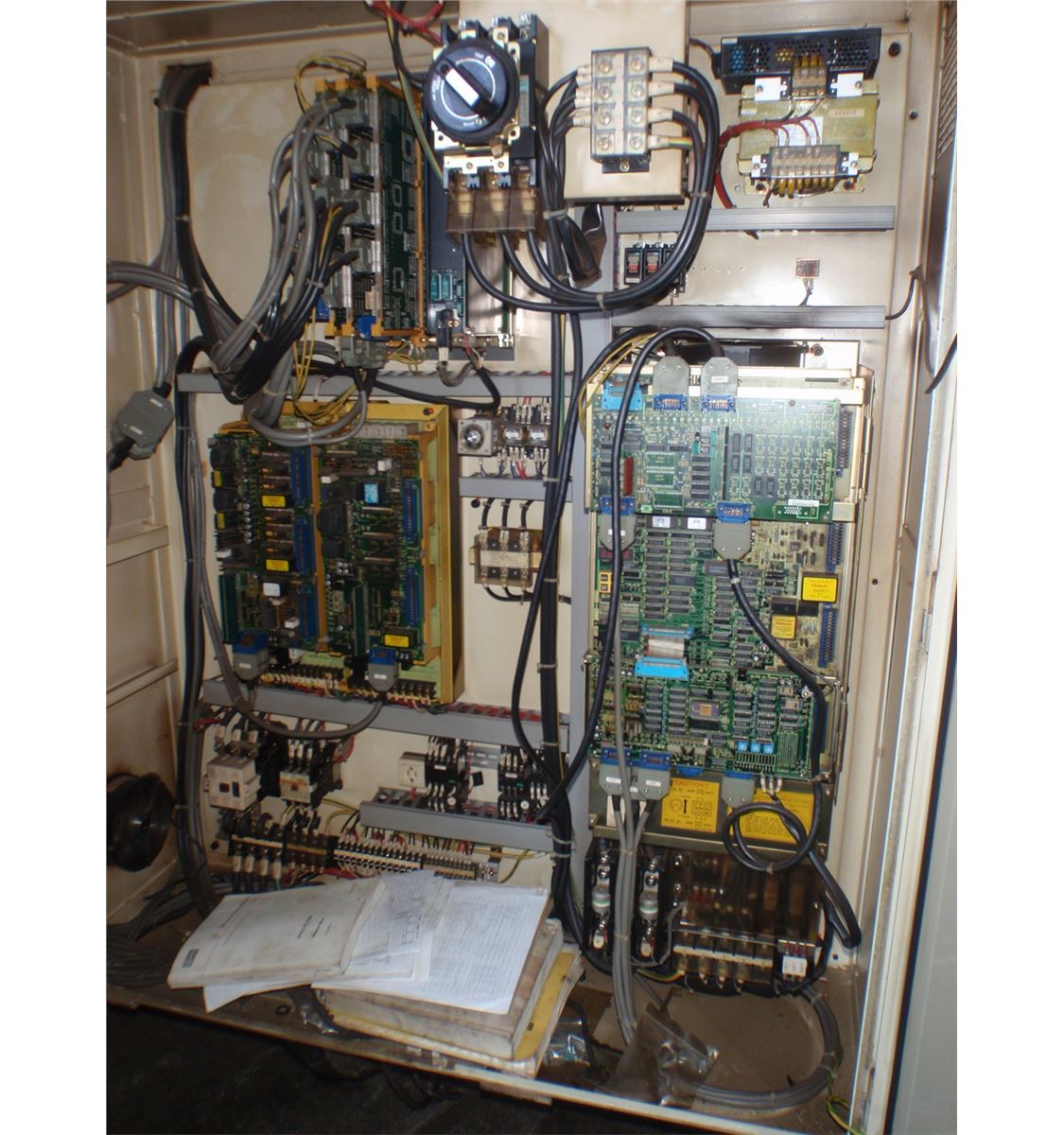

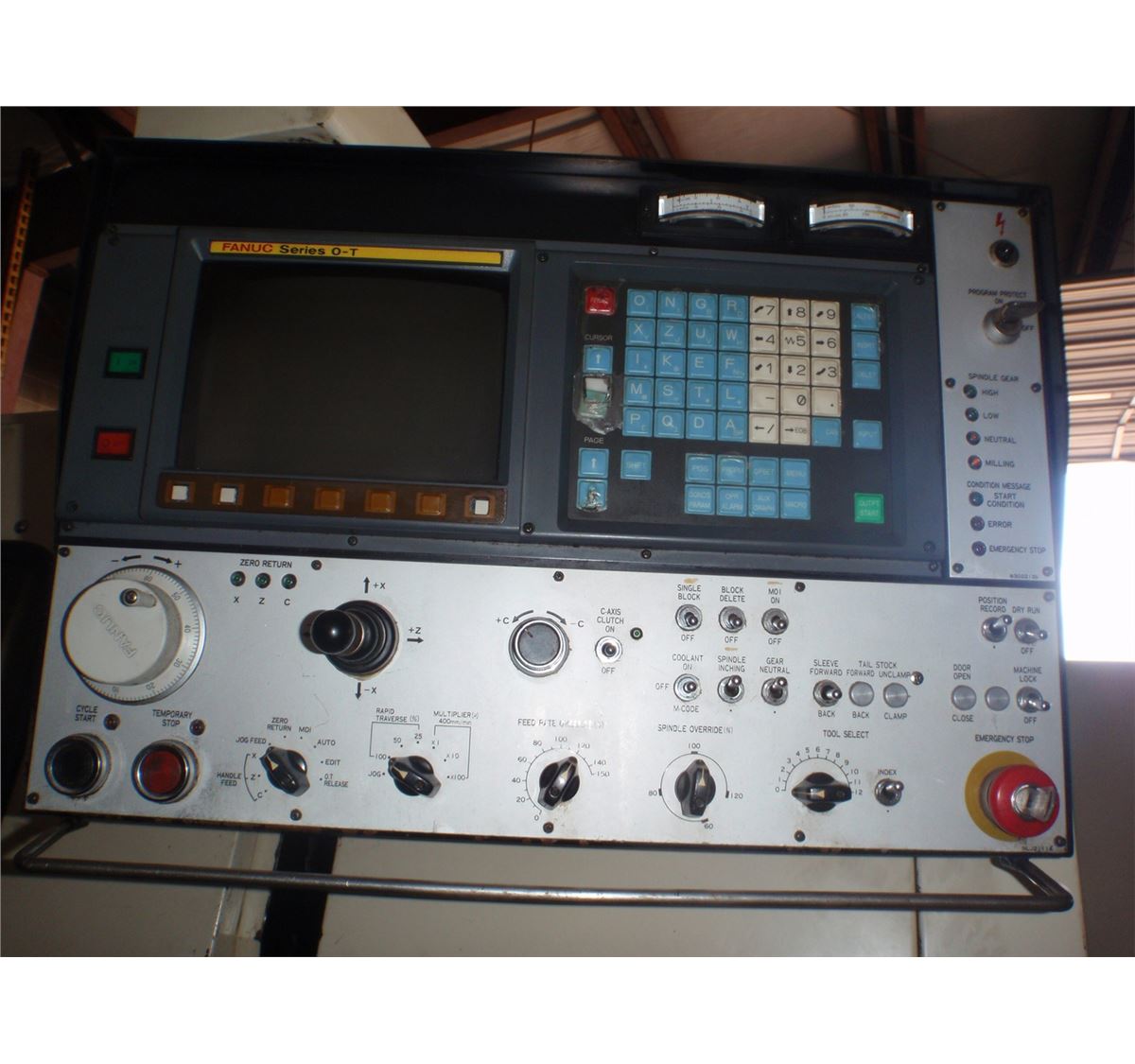

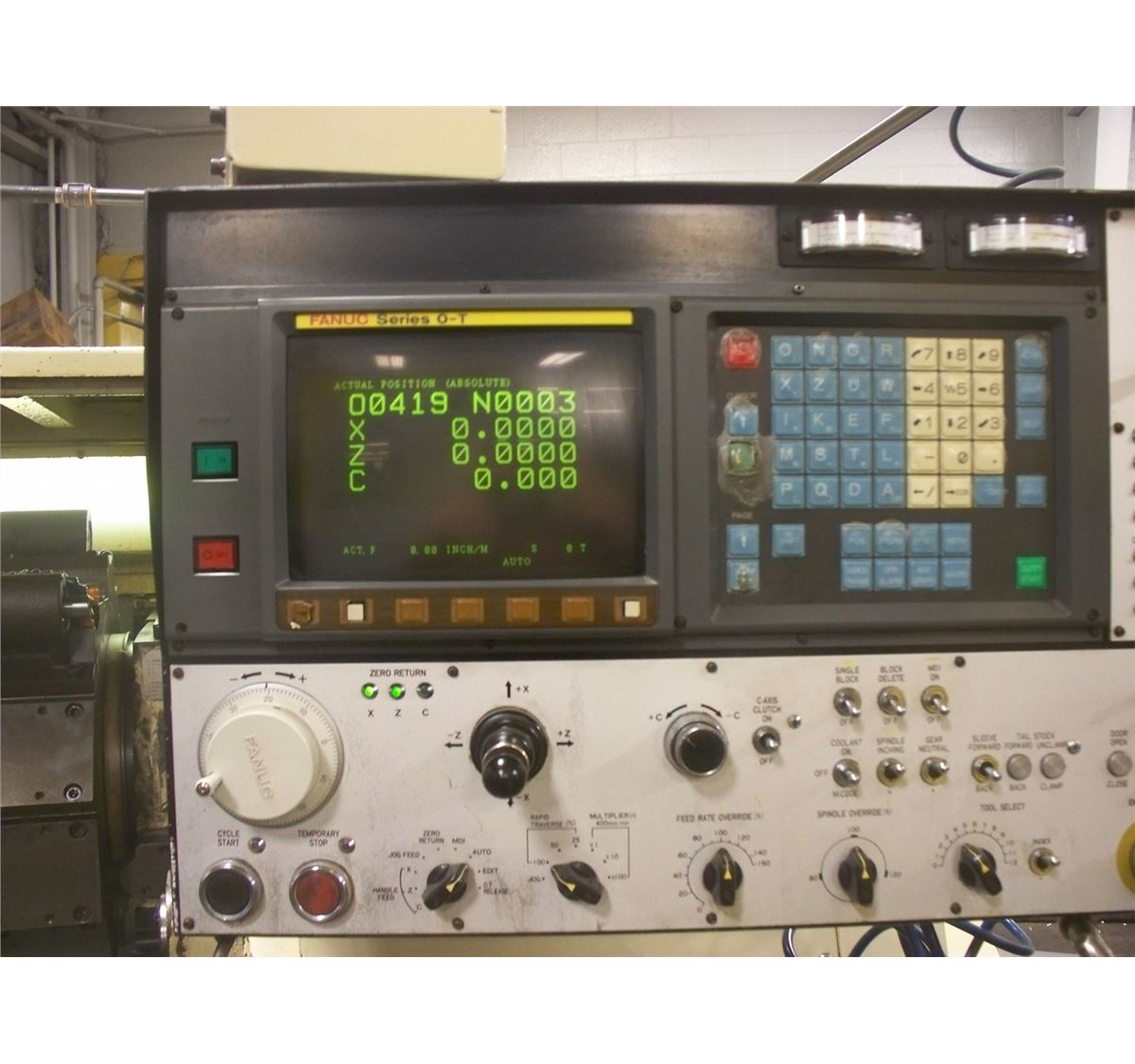

Fanuc O-T CNC Control
9" monitor CRT
C-Axis Milling capability

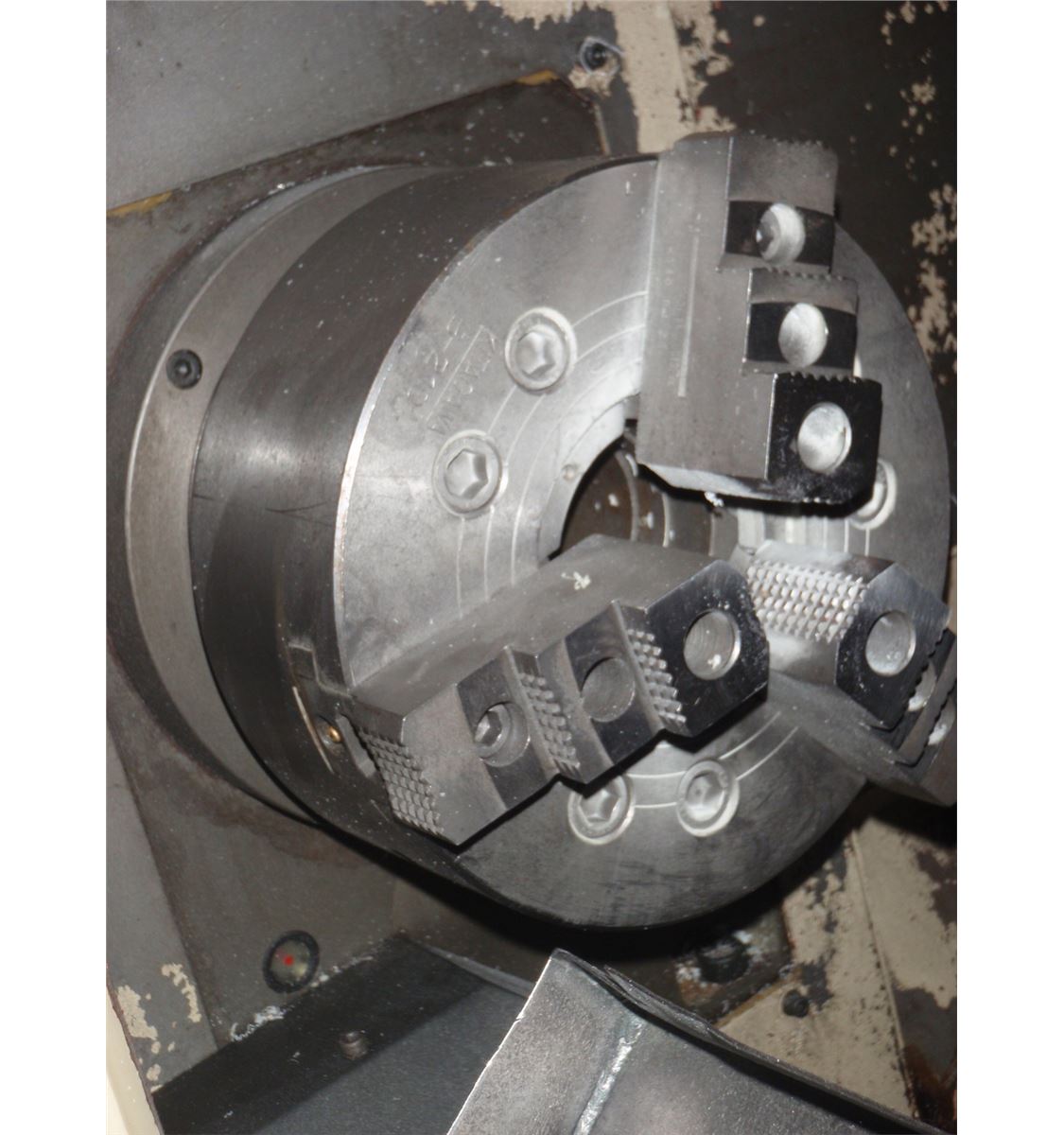

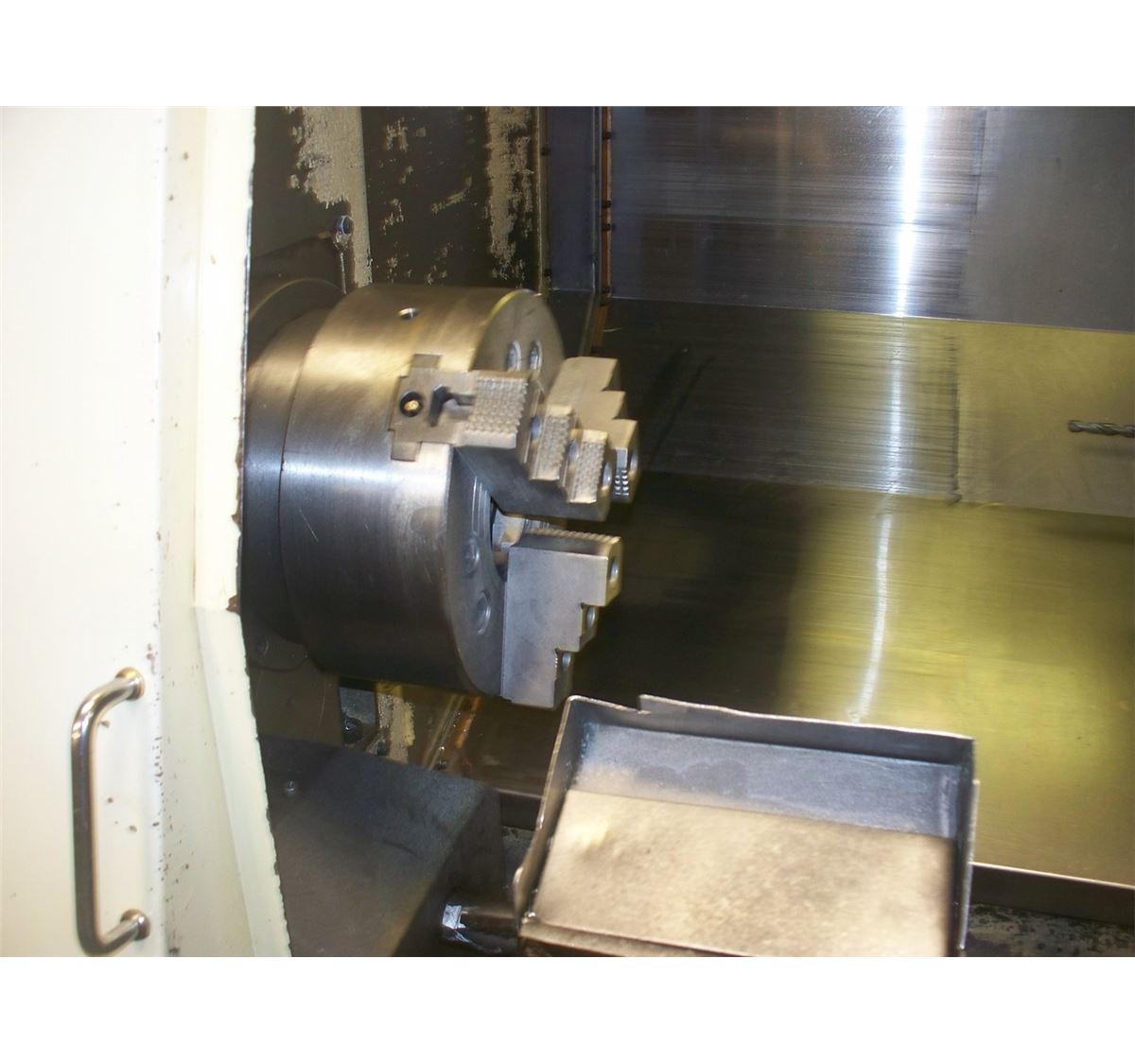

10" Hydraulic power chuck

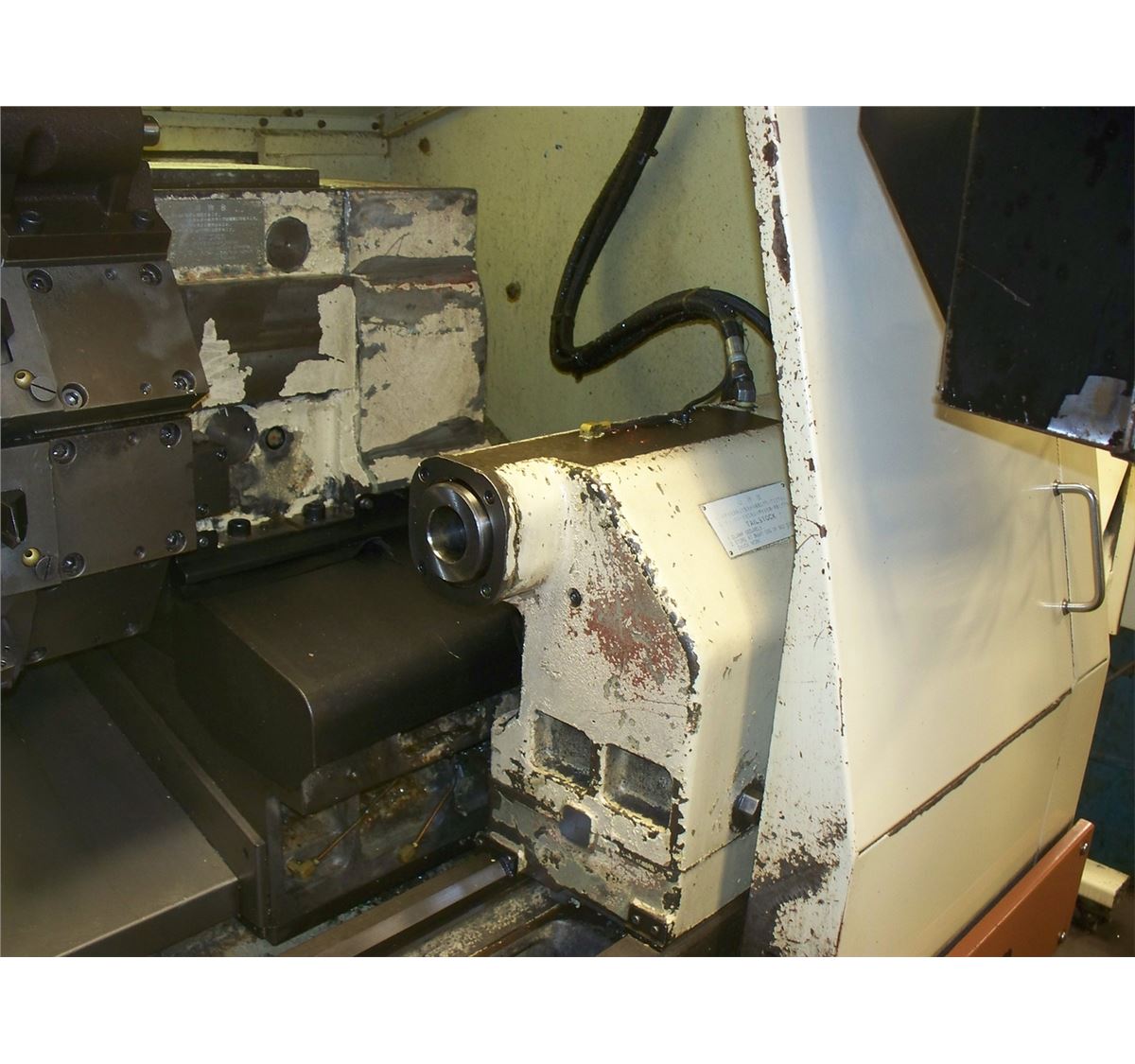

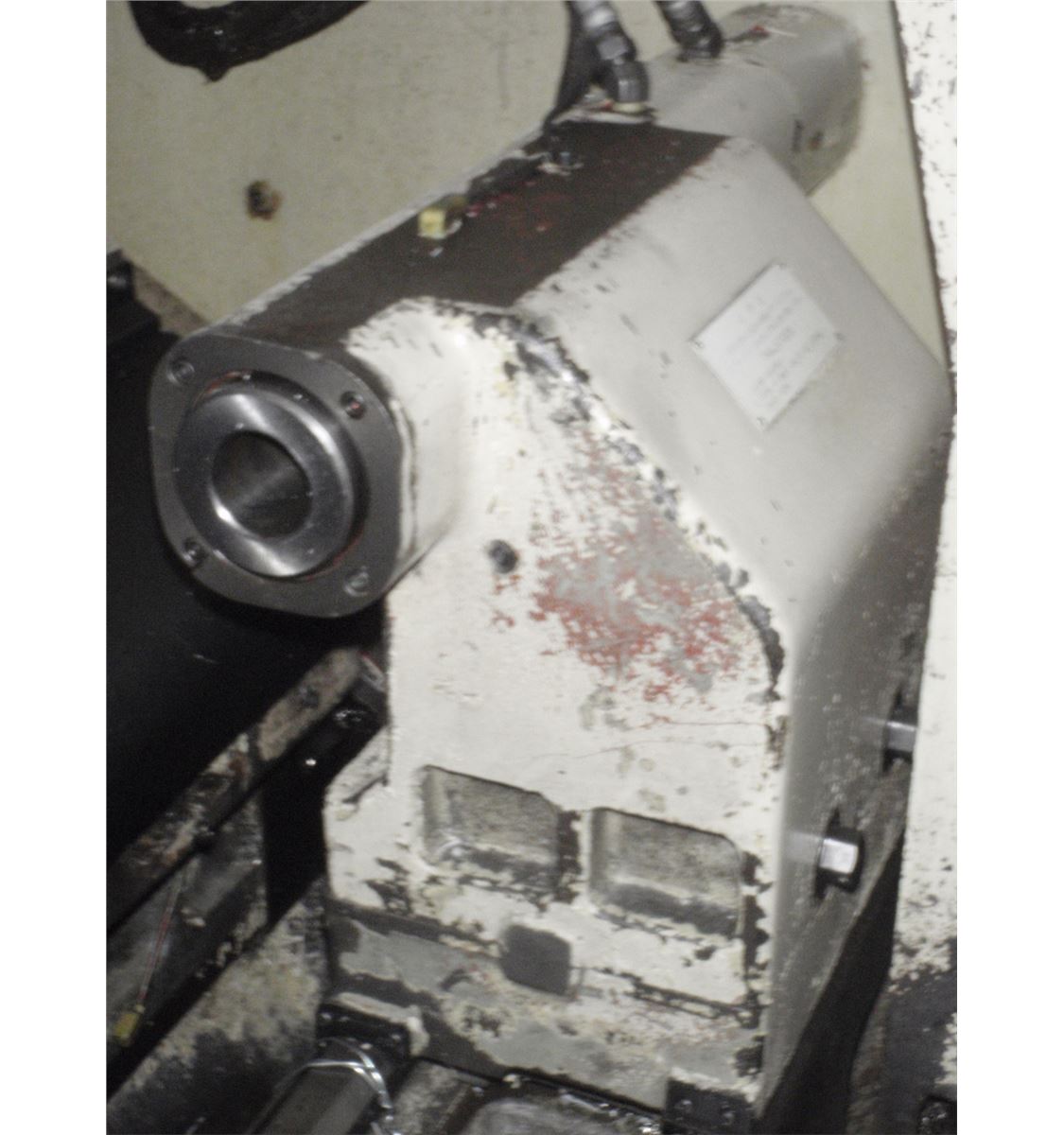

Tailstock

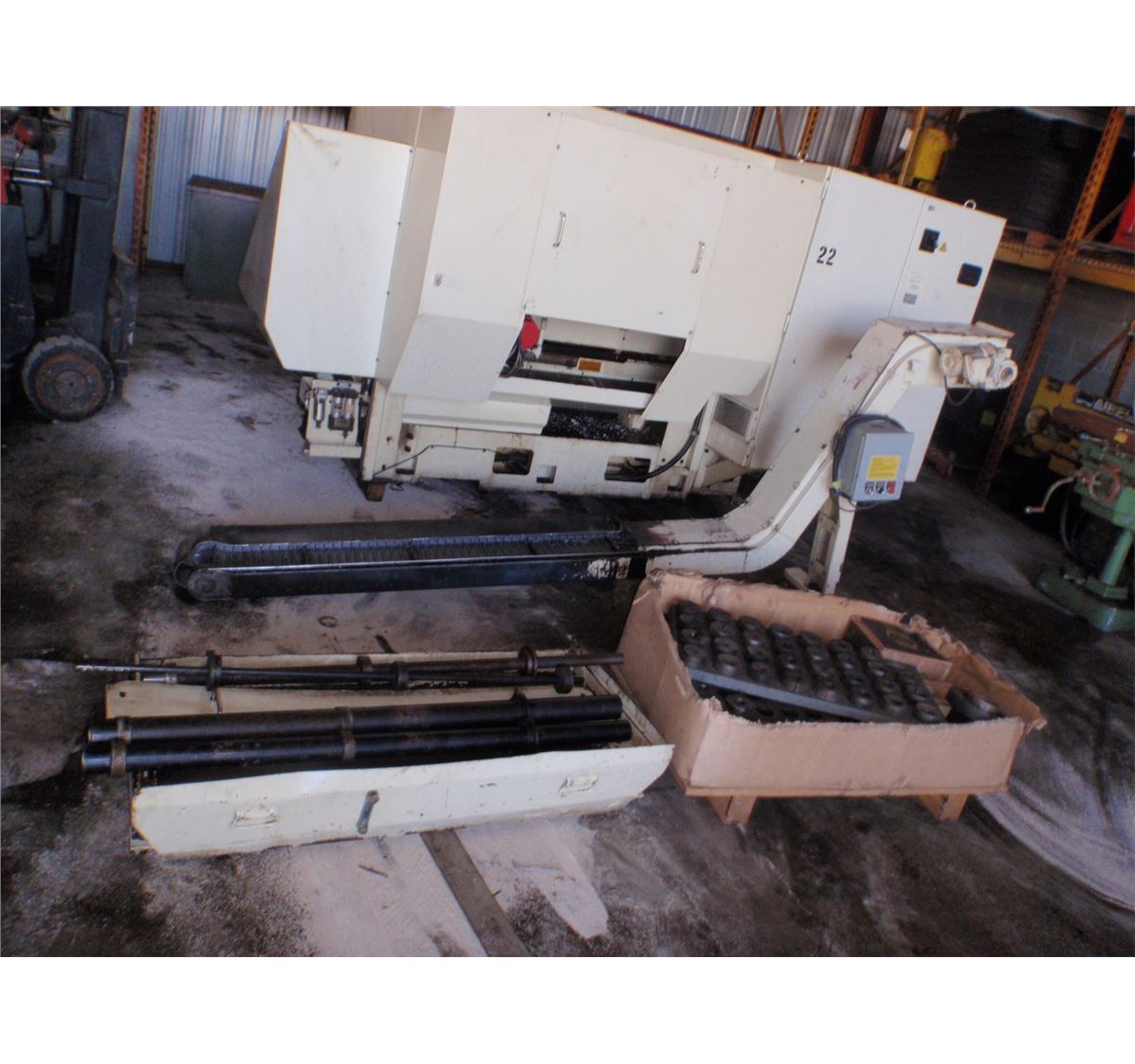

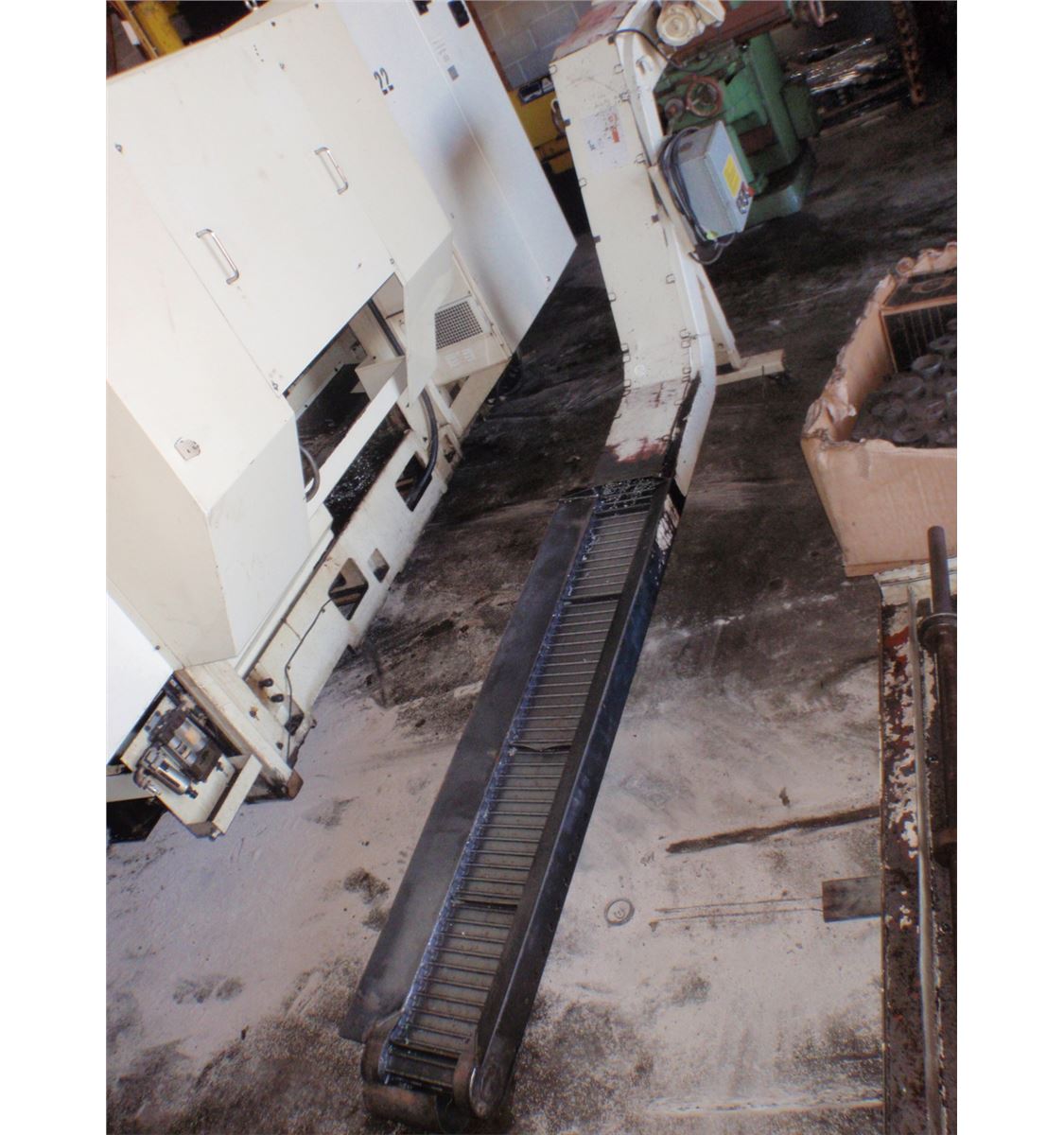

Chip Conveyor
Box ways

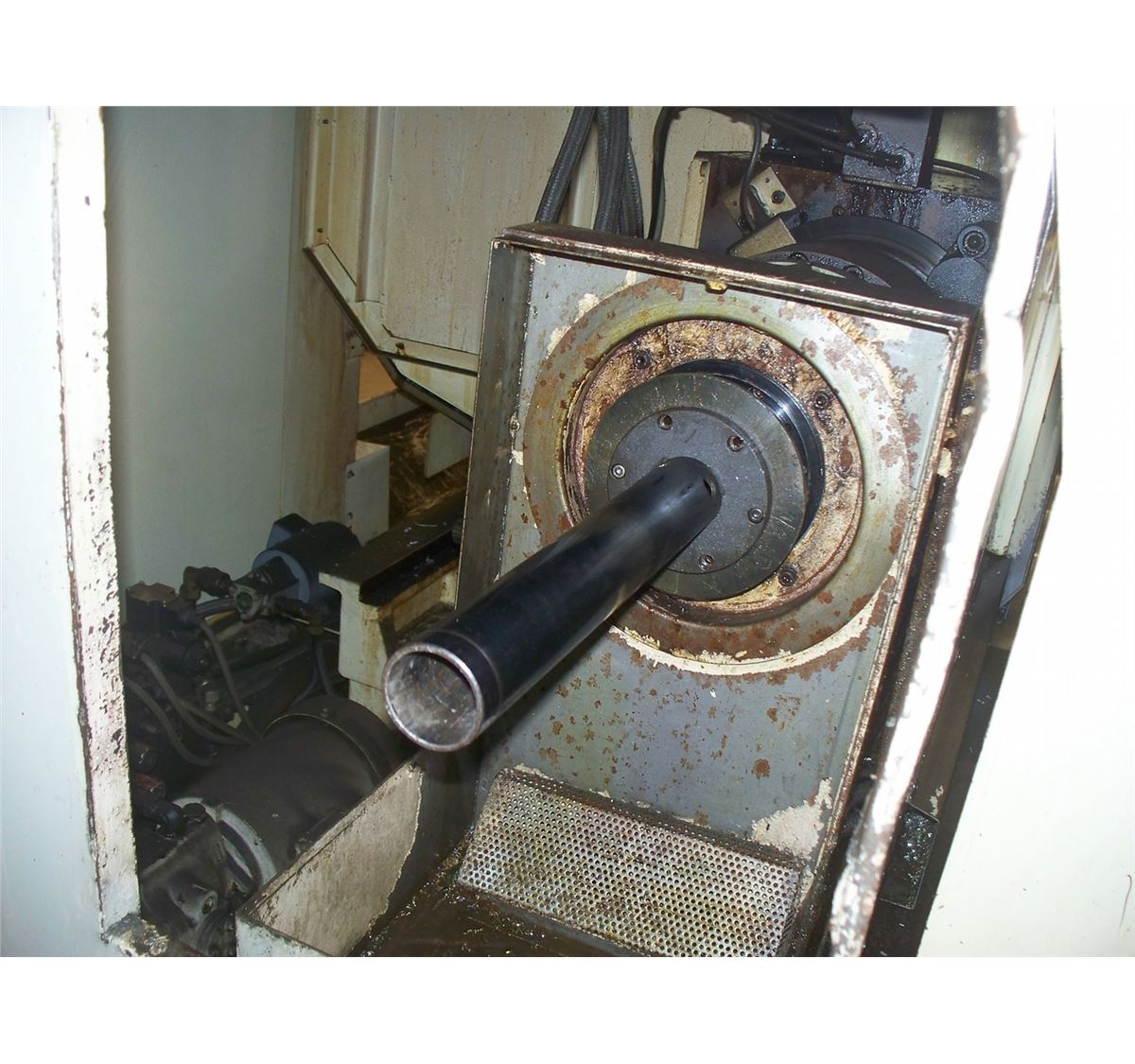

2.875 Bar capacity
MAX swing 16"
Max turn 9"
Max centers 24"

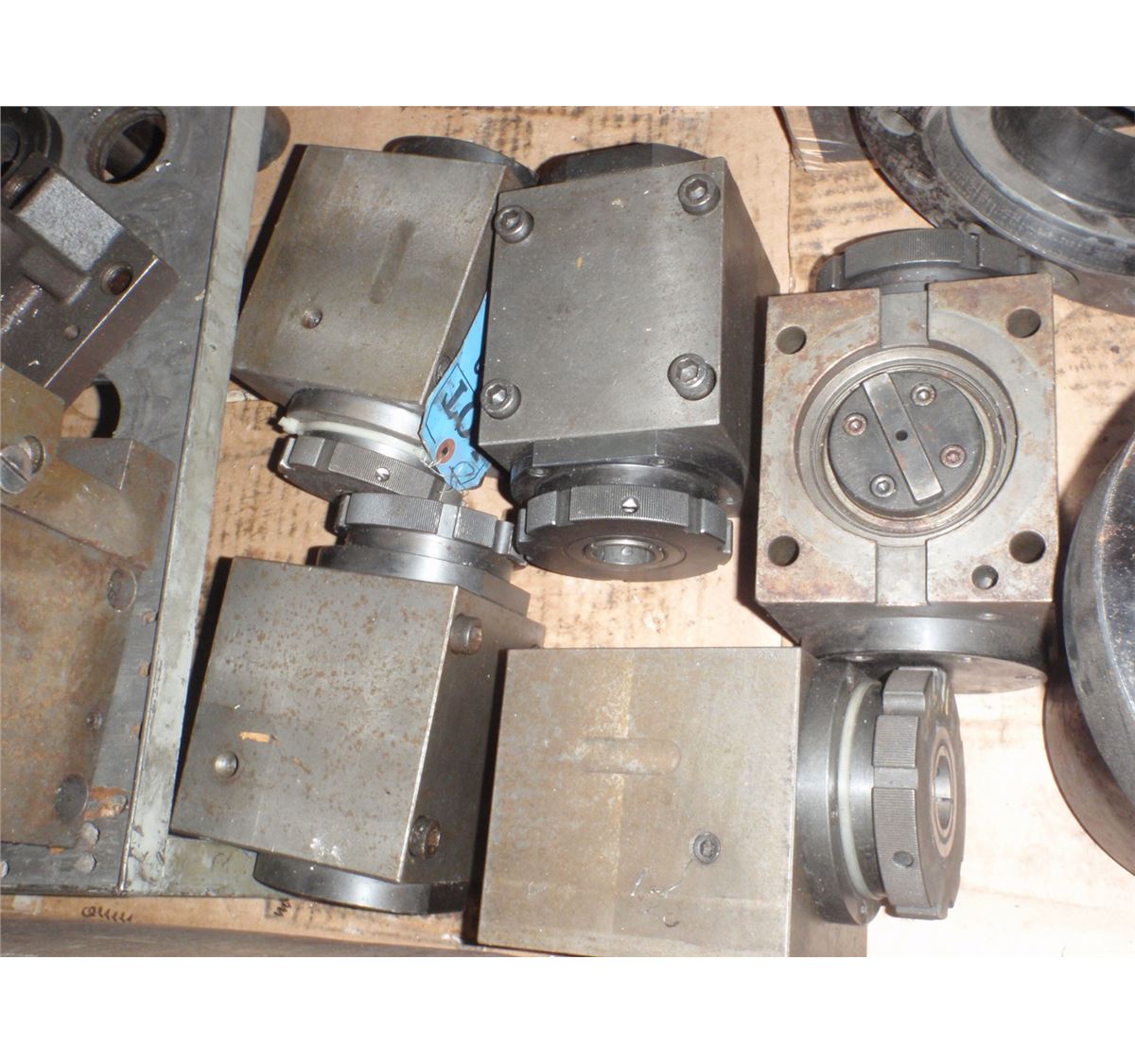

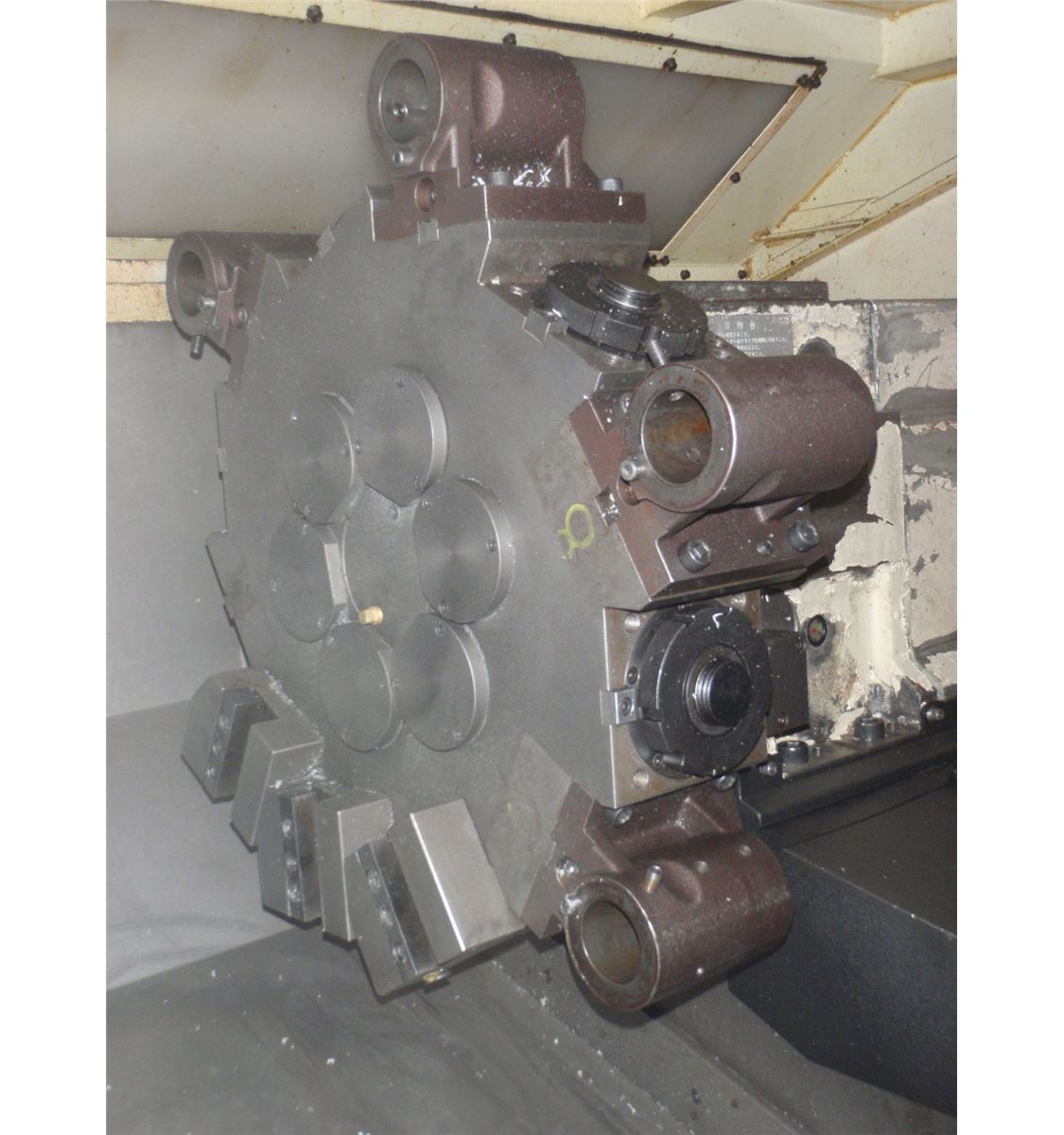

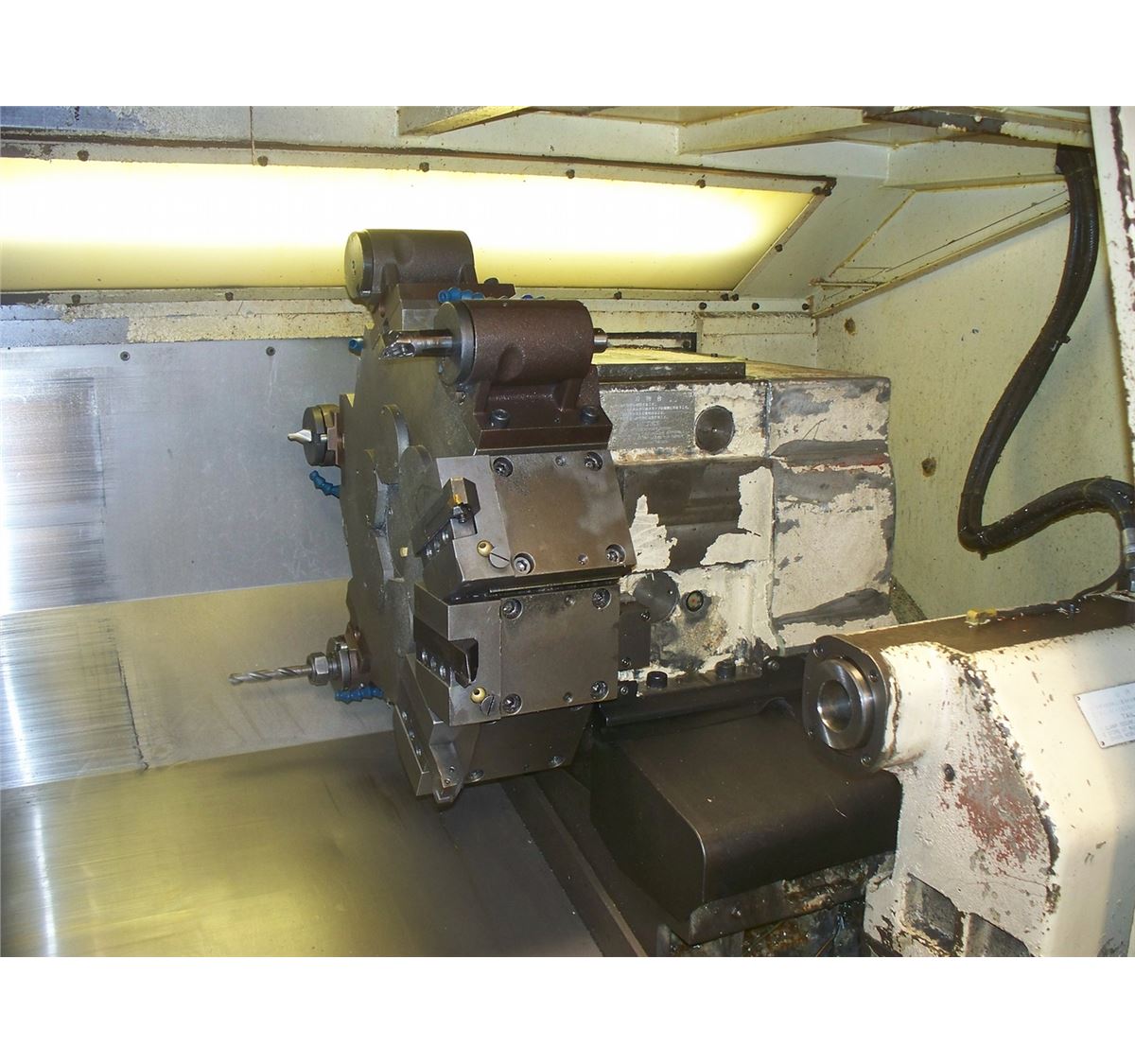

Tool 12 and 6 are live tool
Spindle speed 10-3500 RPM
Spindle bore 3.375
Spindle Nose A2-8
Spindle motor 30 HP AC
Milling speed 3000 RPM
Milling motor 5 hp
Rapids traverse rates (X/Y) 315/472
C-axis index 001 degrees
Tailstock Taper MT#5
Machine weight 11,700 LBS

Video 1
Click Here

Video 2
Click Here

Video 3
Click Here



Information deemed reliable, but not guaranteed. Absolutely no warranty
or representation, written or oral, is given with any lot.
