1991 Fadal 6030 Vertical Machining Center

Currency:USD Category:Business & Industrial / Manufacturing & Metalworking Start Price:1.00 USD
1991 Fadal 6030 Vertical Machining Center
SOLD
4,000.00USD+ (740.00) buyer's premium + applicable fees & taxes.
This item SOLD at 2018 Jul 24 @ 13:20UTC-4 : AST/EDT
Please reference the location of the lot in the "Item Description" tab. Lot locations may vary.

Appointments for inspections are available upon request, 8am-5pm M-F for each location. Please call 616-745-5953 or email sales@btmindustrial.com.

Current Locations:
Grand Rapids, MI
Martin, MI
Logansport, IN

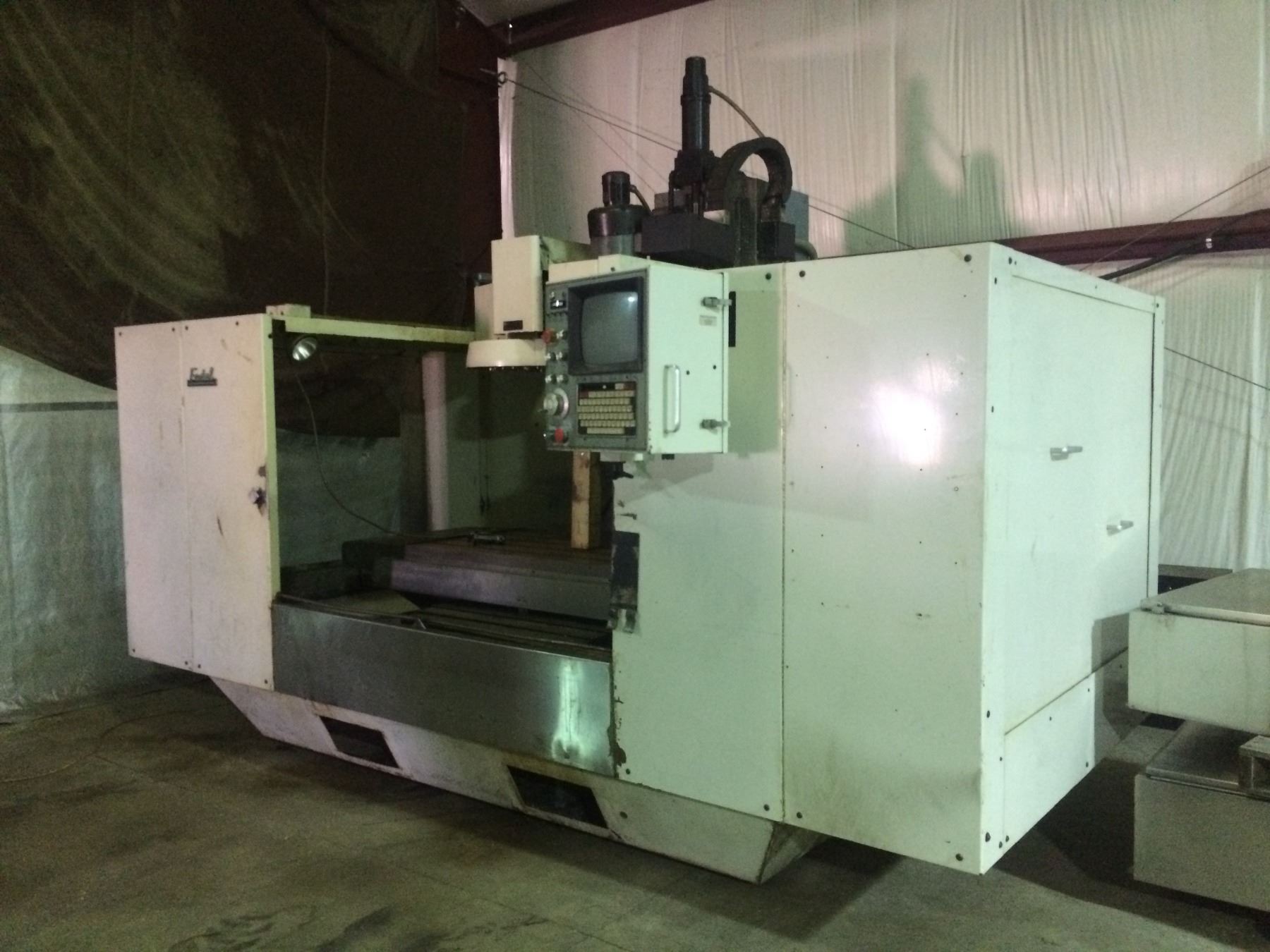

1991 Fadal 6030 Vertical machining center
Location: Martin, MI
Loading Fee: $950

Specifications
Table Size 62.5" x 30"
Table Load Capacity 1,500 lbs.
X-Axis Travel 60"
Y-Axis Travel 30"
Z-Axis Travel 30"
Spindle Taper CAT 40
Spindle Speed 40 - 10,000 RPM
Spindle Motor 22 HP
Table Top to Spindle Nose 5.5" - 35.5"

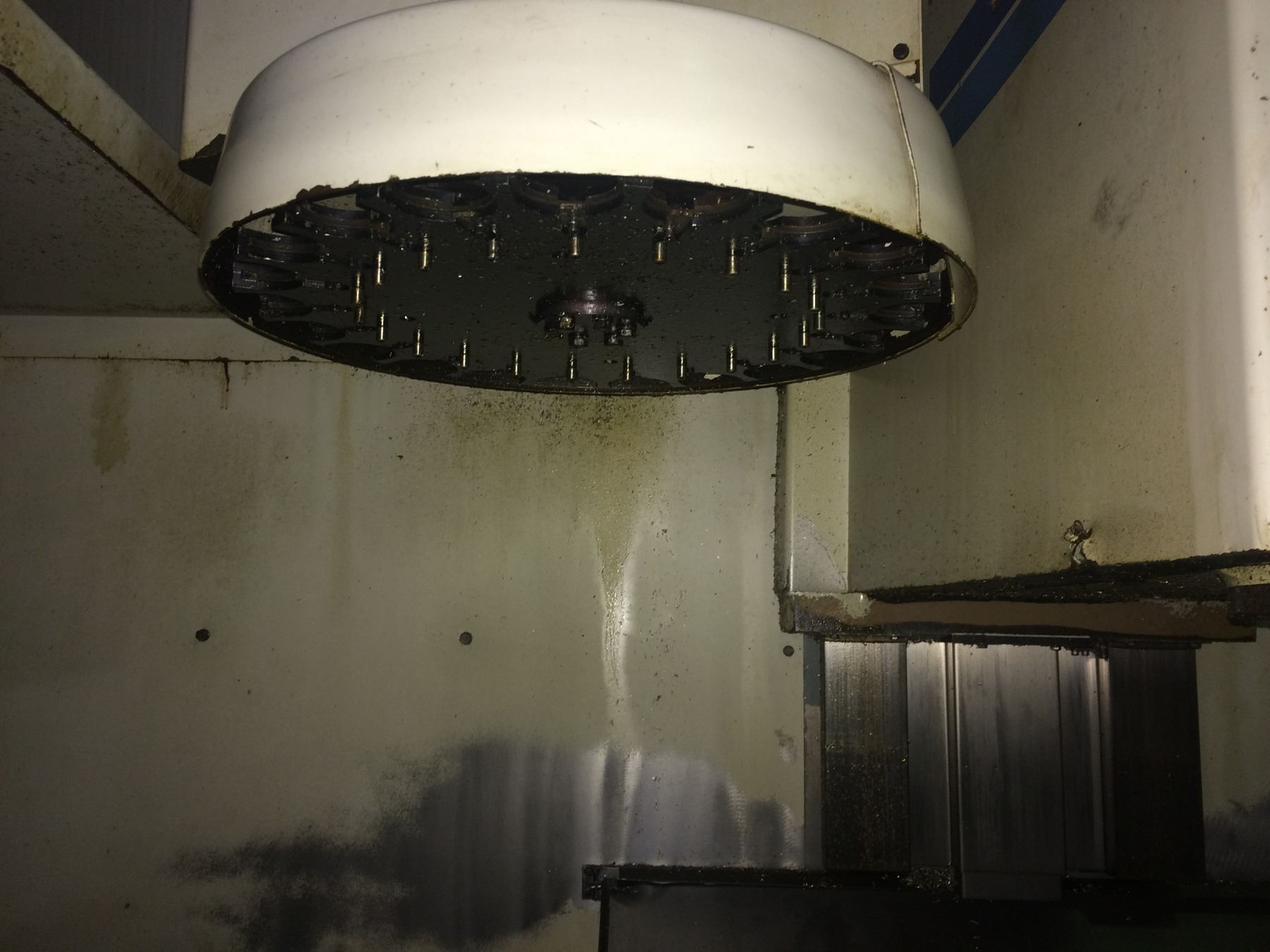

Tool Magazine Capacity 21 Position ATC
Maximum Tool Diameter / Length 6" / 15"
Rapid Traverse Rates 400 IPM
Machine Dimensions 151" x 108 " x 119"
Machine Weight 17,000 lbs.
Equipped with

10,000 RPM Spindle
RS 232 Port Interface
Work Light

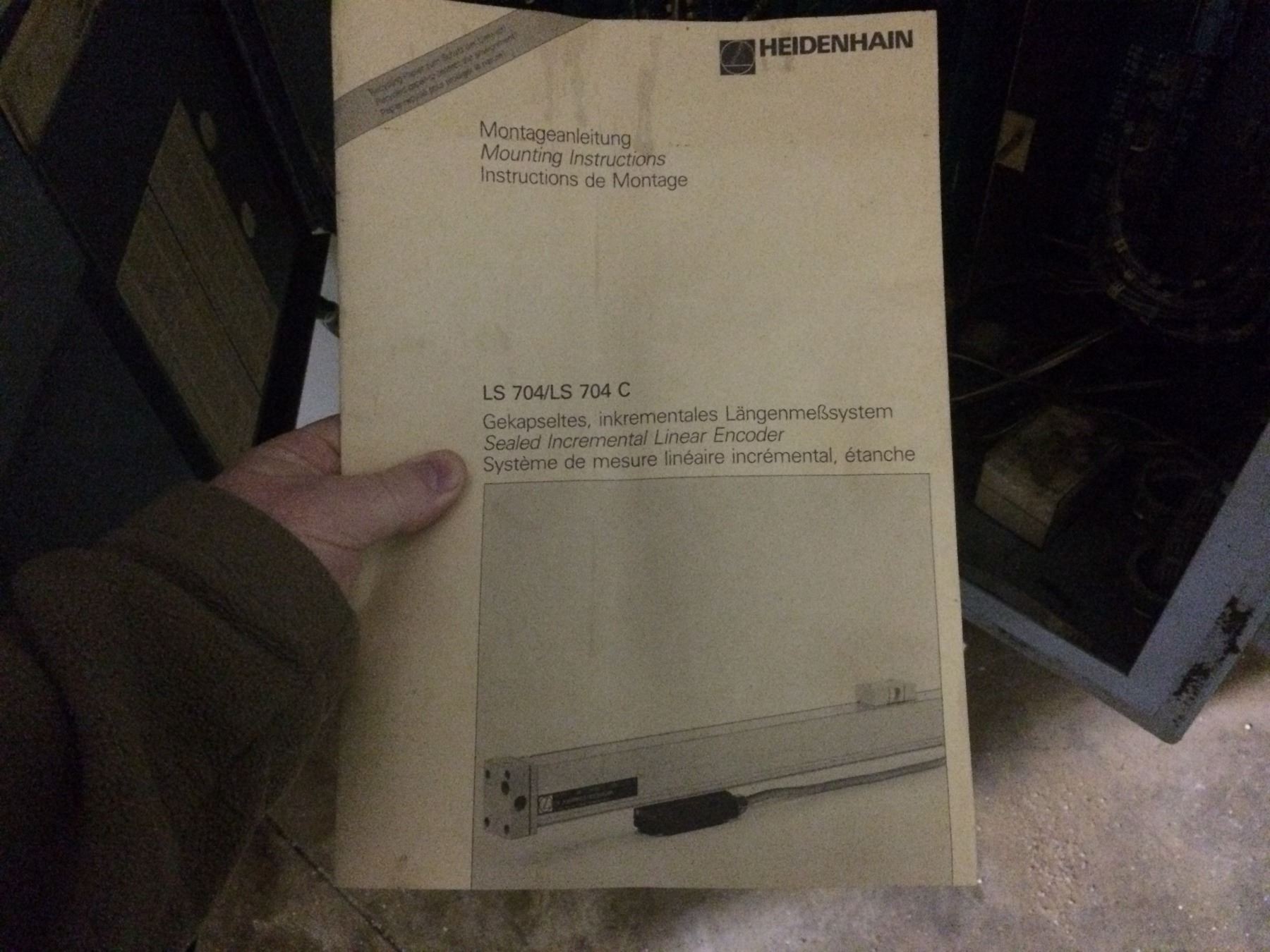

Full Enclosure and Glass scales
Flood Coolant with tank
