SOLD
1,025.00USD+ (153.75) buyer's premium + applicable fees & taxes.
This item SOLD at 2016 Jun 09 @ 13:25UTC-4 : AST/EDT
Did you win this lot?
A full invoice should be emailed to the winner by the auctioneer within a day or two.
LOCATION: Folkston, GA
LOADING COST: $150
THIS ITEM MUST BE LOADED OUT THE WEEK OF JUNE 13th! NO EXCEPTIONS!

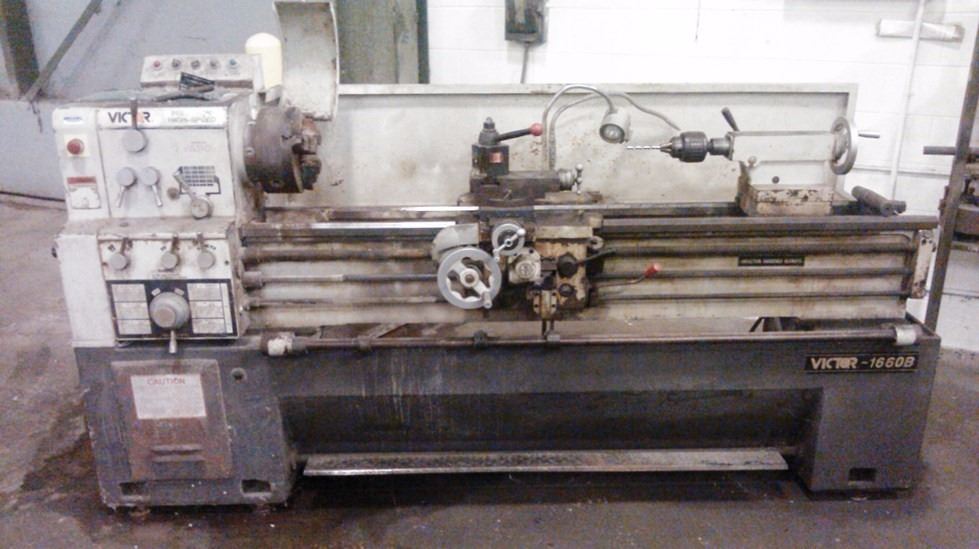

16" x 60" Victor Engine Lathe
Model 1660B
S/N 10020294
CONDITION report from Seller:
Rate as S0-SO at best, worn machine, needs some TLC!
SPECIFICATIONS FROM ONLINE SOURCE (please verify):
STANDARD FEATURES
• Heavy duty series with rigid one-piece cast iron base provides the best value and outstanding performance in the industry
• 7-1/2 HP Main motor to handle demanding continuous usage
• Spindle is supported at 3 points by precision bearings
• 2-1/32" Spindle bore with D1-6 camlock spindle nose
• 33 - 2,000 RPM Spindle speeds range
• Jog button for spindle speed changes
• Hardened and precision ground gears in headstock
• Hardened and ground bed ways
• Gap bed section provided for larger diameter work
• One shot lube system for apron and slide ways
• Inch/Metric dual dials
• Full length foot brake
• Tailstock has an inch/metric graduated quill
SPECIFICATIONS
Swing over Bed (in.) 16-1/8"
Swing over Cross Slide (in.) 10-1/4"
Swing over Gap (in.) 23"
Distance between Centers (in.) 60"
Bed Width (in.) 11"
Spindle Bore (in.) 2-1/32"
Spindle Nose D1-6
Spindle Taper (with Sleeve) MT-6 (MT-4)
Number of Spindle Speeds: 16
Range of Spindle Speeds (RPM) 33 - 2,000
Number of Longitudinal Feeds 36
Range of Longitudinal Feeds (in./rev.) 0.0033 - 0.0455
Number of Cross Feeds 36
Range of Cross Feeds (in./rev.) 0.0028 - 0.0387
Number of Inch Threads 36
Range of Inch Threads (TPI) 4 - 56
Number of Metric Threads 22
Range of Metric Threads (mm) 0.5 - 7
Compound Slide Travel (max./in.) 4-1/2
Cross Slide Travel (max./in.) 8-5/8
Tailstock Quill Travel (max./in.) 4-11/16
Tailstock Taper Center MT-4
Motor 7-1/2 HP (220V/440V/3 Phase/60 Hz)
Coolant Pump Motor 1/8 HP
Shipping Dimensions (in./L x W x H) 108 x 45 x 62
Shipping Weight (lbs.) 4,110
