SOLD
2,100.00USDto h********u+ buyer's premium (315.00)
This item SOLD at 2016 Feb 17 @ 13:45UTC-5 : EST/CDT
Did you win this lot?
A full invoice should be emailed to the winner by the auctioneer within a day or two.
LOCATION: Grand Rapids, MI Consignment Warehouse
LOADING FEE: $125

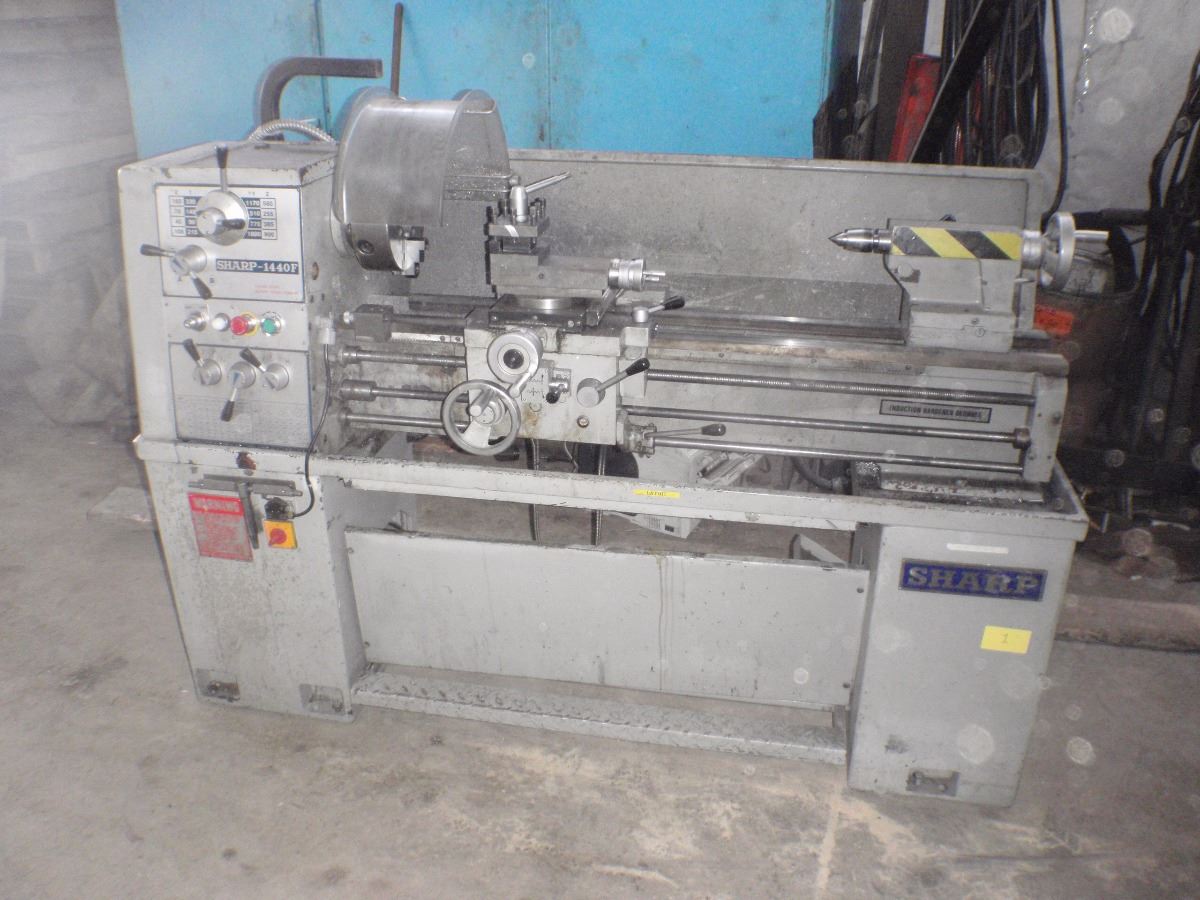

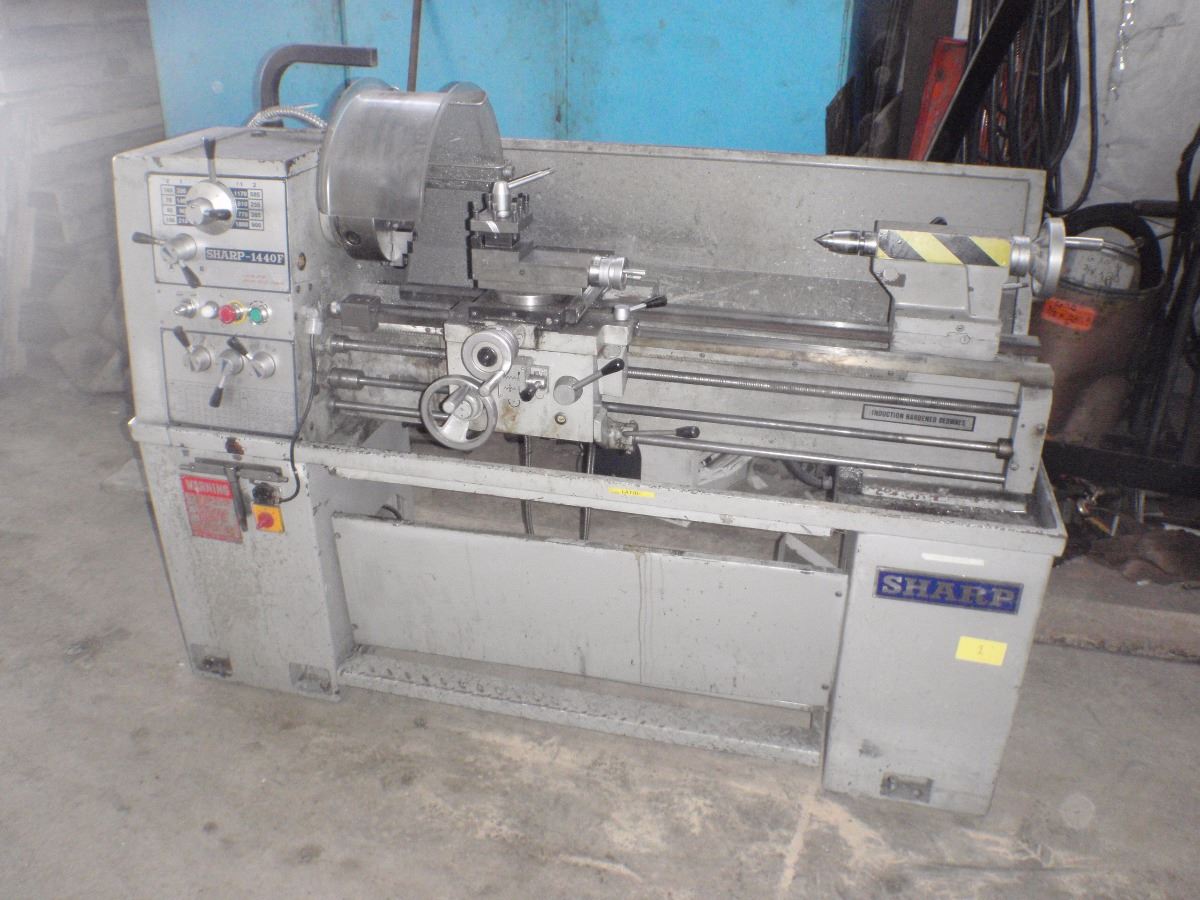

14" x 40" Sharp Engine Lathe, Model 1440F
*NOTE*

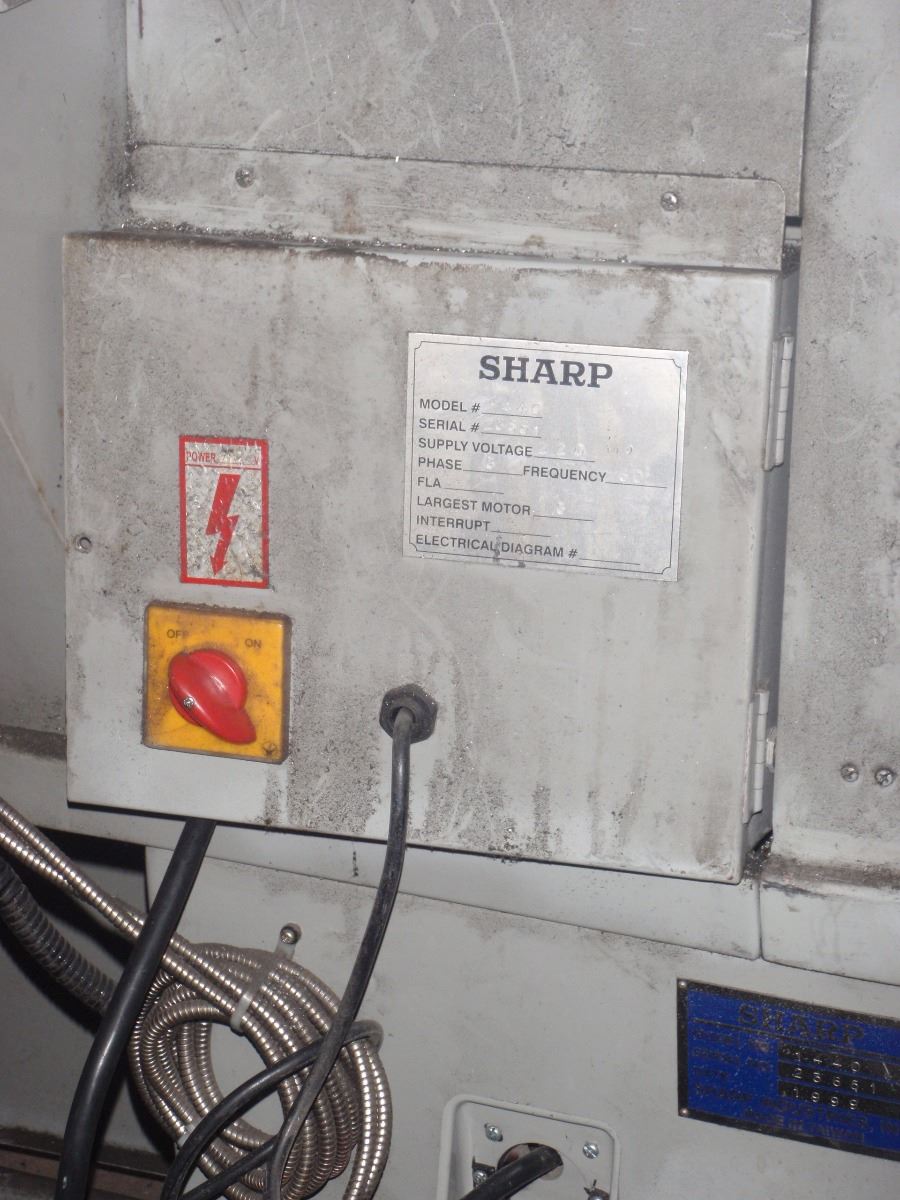

1. There was an issue when we went to hook power to this machine, tech thinks it is just a disconnect / contactor, but could possibly be motor issue. Unfortunately that is all we know about it!

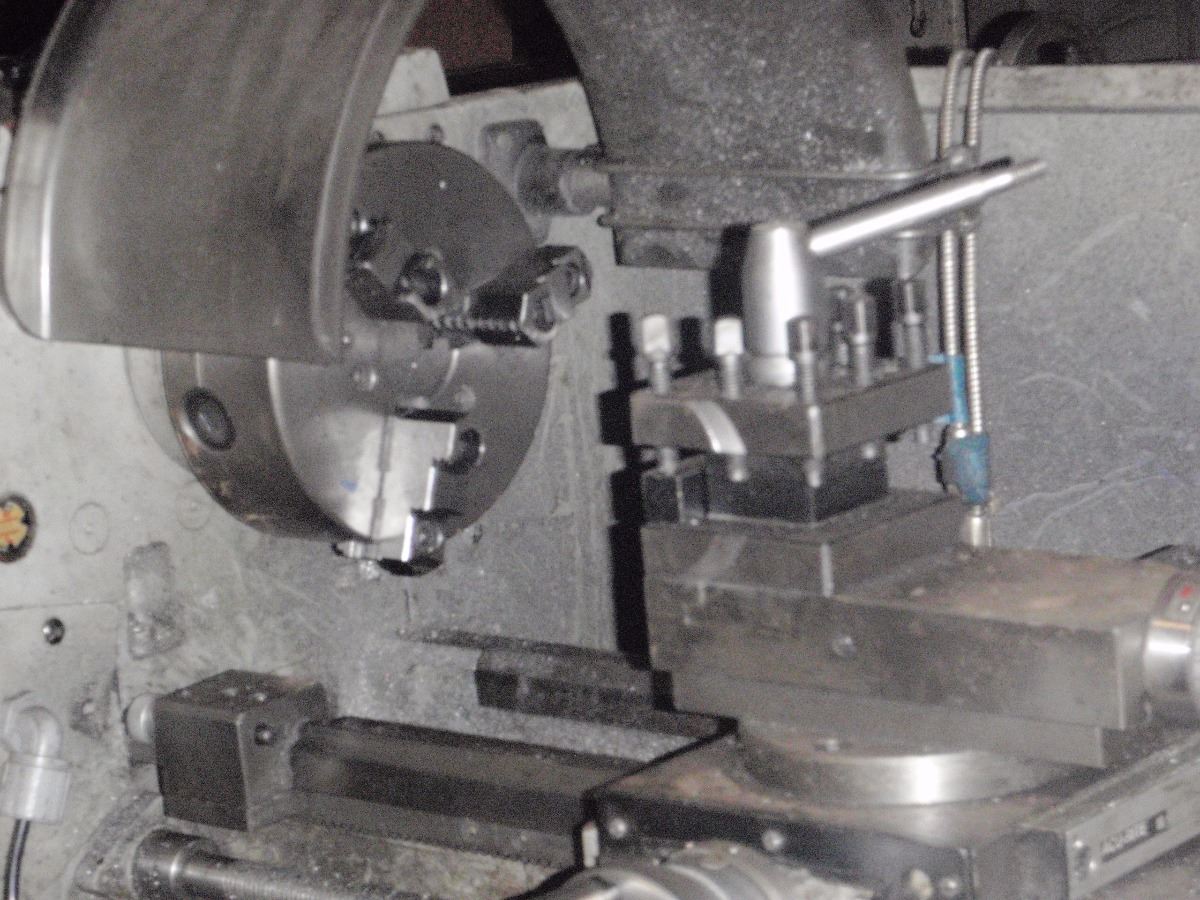

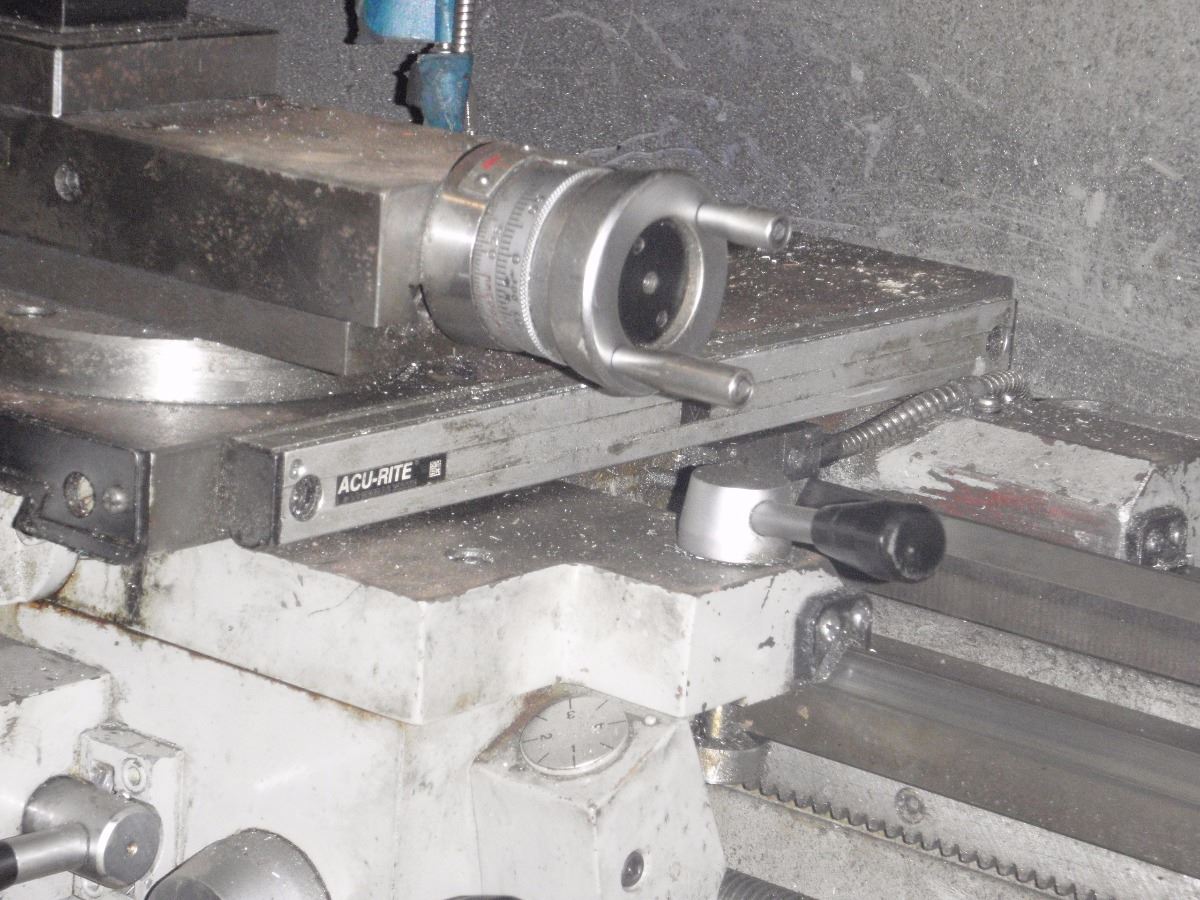

2. Unit appears to be set up for DRO, in one pic you see one of the scales. There is NO DRO box included however!
Specifications from OEM:
Capacities:
Swing Over Bed: 14"
Swing Over Cross Slide: 8-5/8"
Swing Over Gap: 20"
Width of Bed: 8-1/2"
Distance Between Centers: 40"

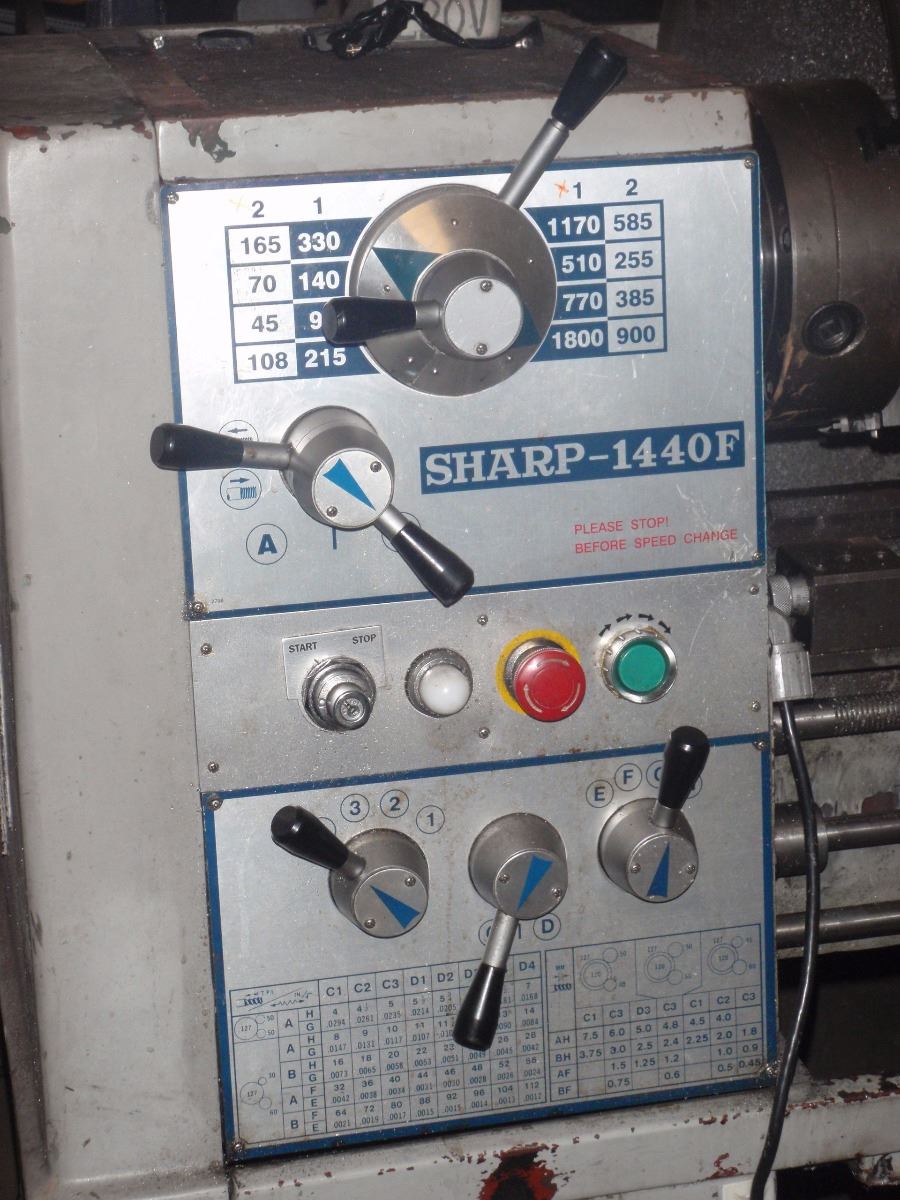

Headstock:
Spindle Nose Type: D1-4 cam lock
Spindle Bore: 1-1/2"
Spindle Speeds: 45 to 1,800 rpm (16) / 30 to 2200 rpm (variable)
Taper of Spindle Bore: MT #5
Threads and Feeds
Longitudinal Feeds - in/rev (40): 0.0012 - 0.029"
Cross Feed - in/rev (40): 0.0003 - 0.01"
Inch Threads (TPI): 4 - 112 (40)
Metric Threads (mm): 0.45 - 7.5mm
Lead Screw (Pitch, Diameter): 8 tpi, 7/8"

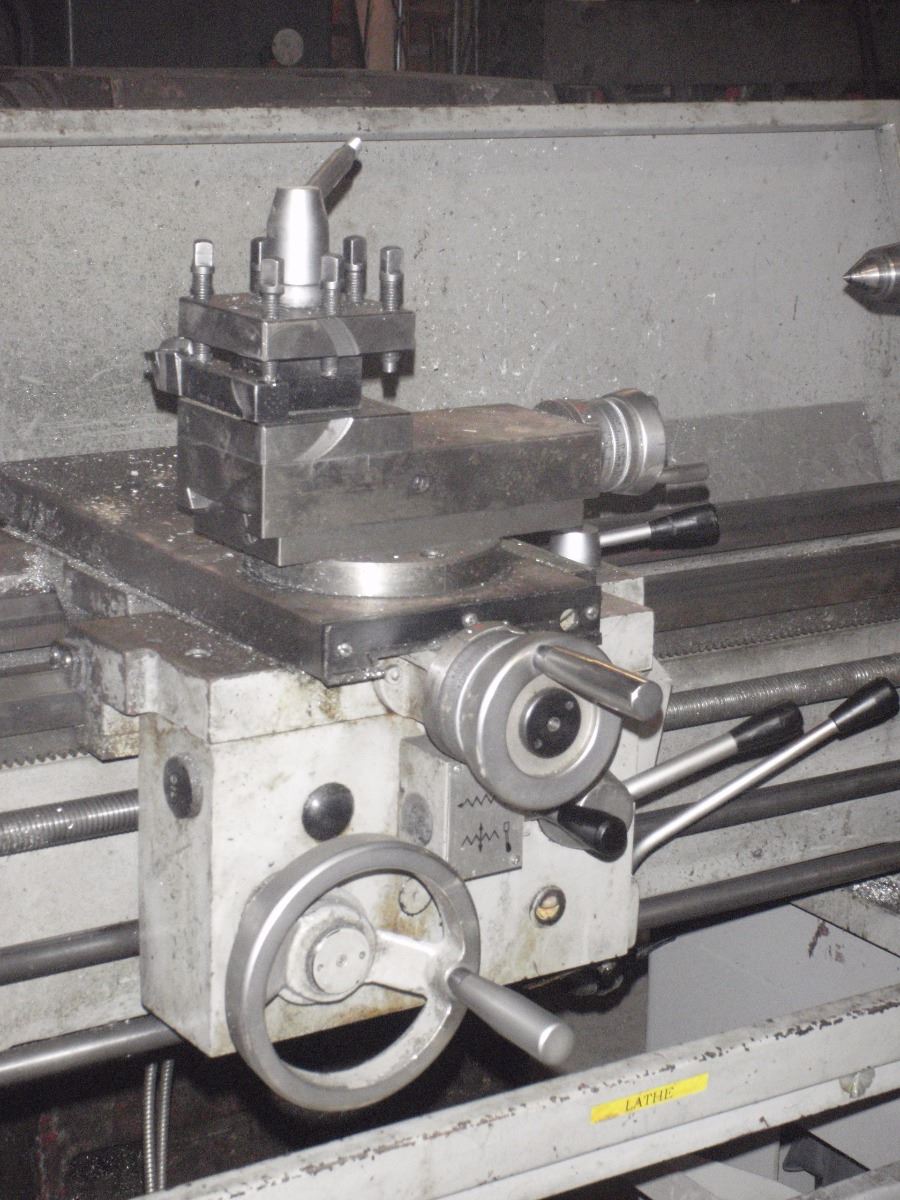

Carriage:
Saddle Width: 13-1/4"
Apron Width: 11"
Cross Slide Width: 6-3/4"
Cross Slide Travel: 7"
Compound Rest Travel: 4"
Compound Width x Length: 3-1/2 x 8-1/2"
Bed:
Bed Length: 66"
Bed Width: 8-1/2"

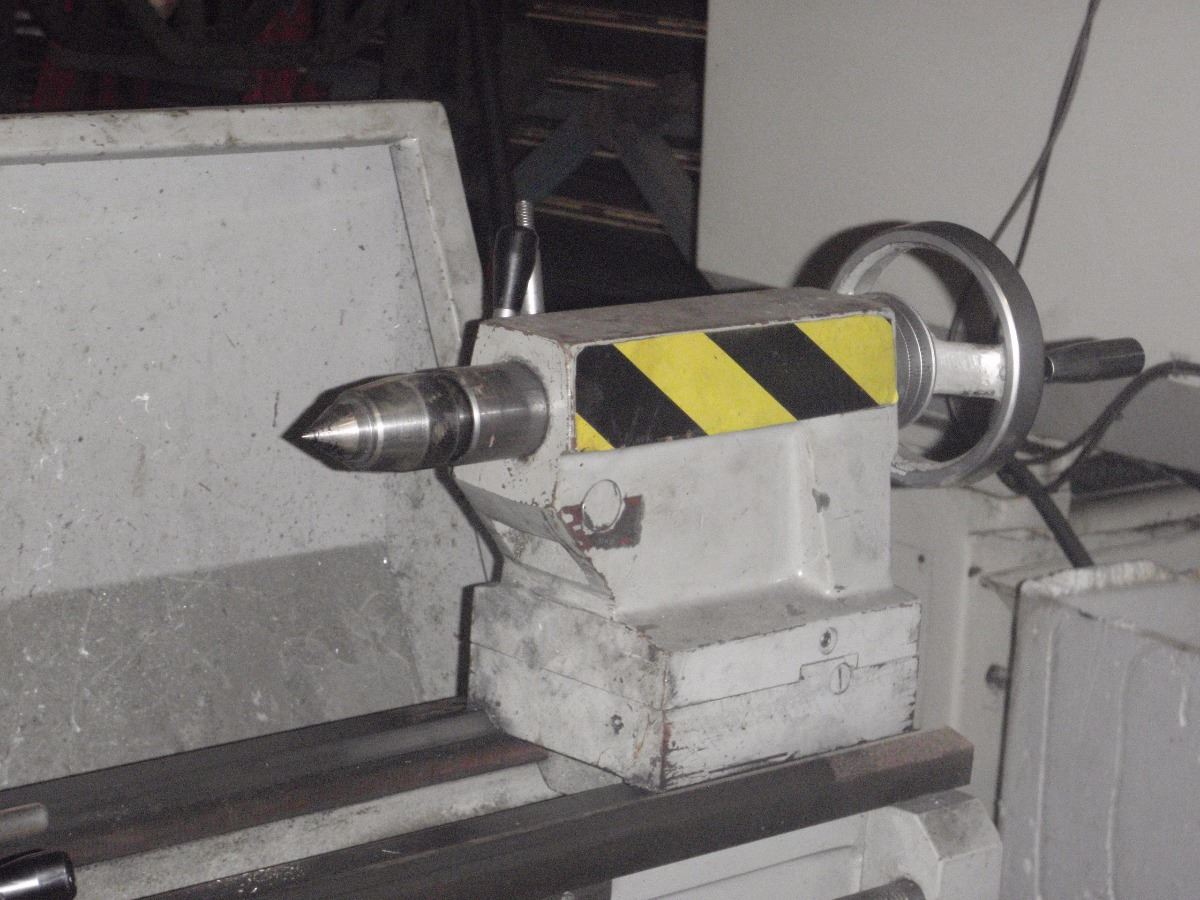

Tailstock:
Quill Travel (graduated): 4-1/2"
Quill Diameter: 1-3/4"
Quill Taper: MT #3
General:
Spindle Motor: 3 Horsepower
Electrical: 3 Phase
Net Weight (approx.): 1,650 lbs
